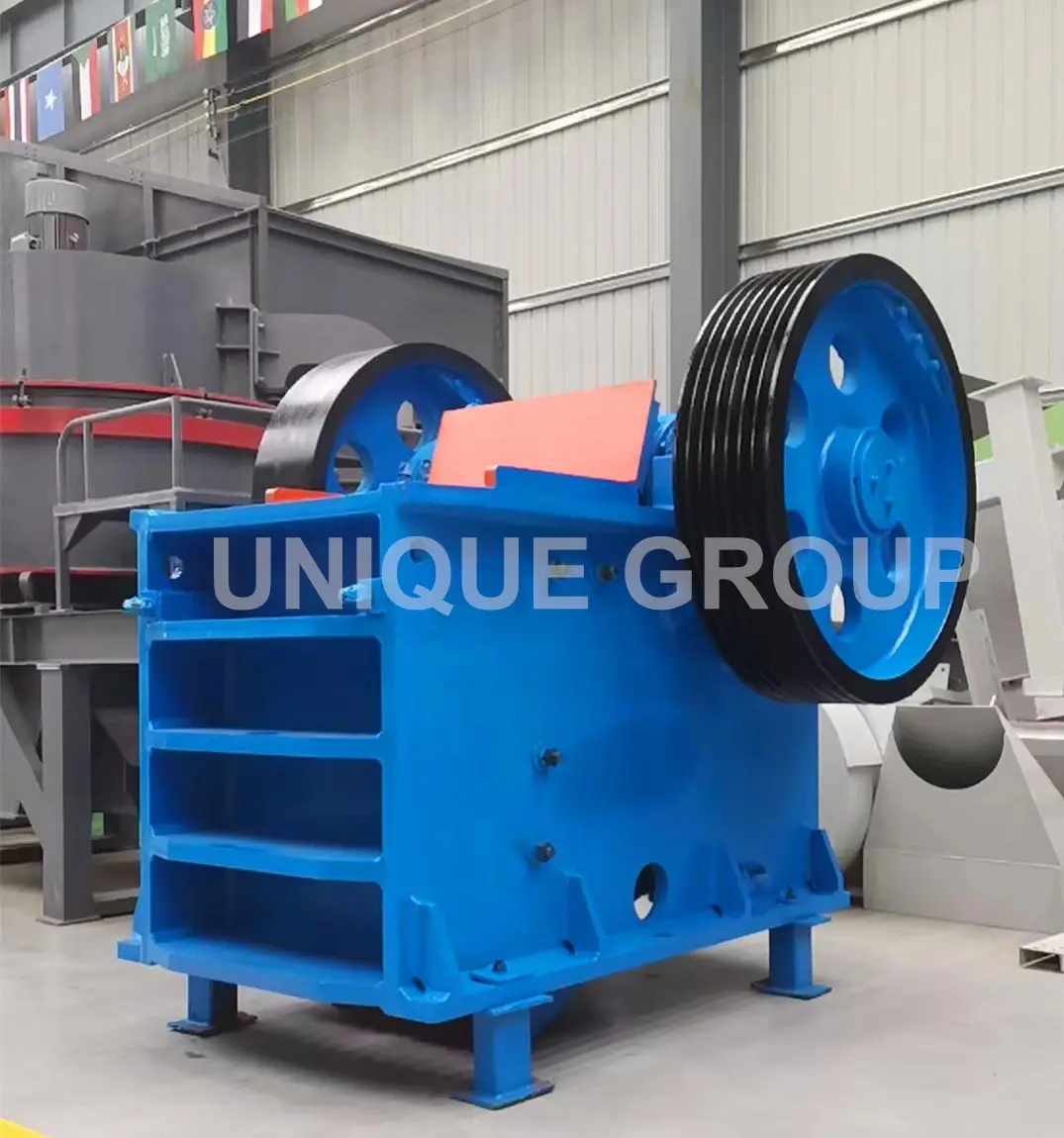

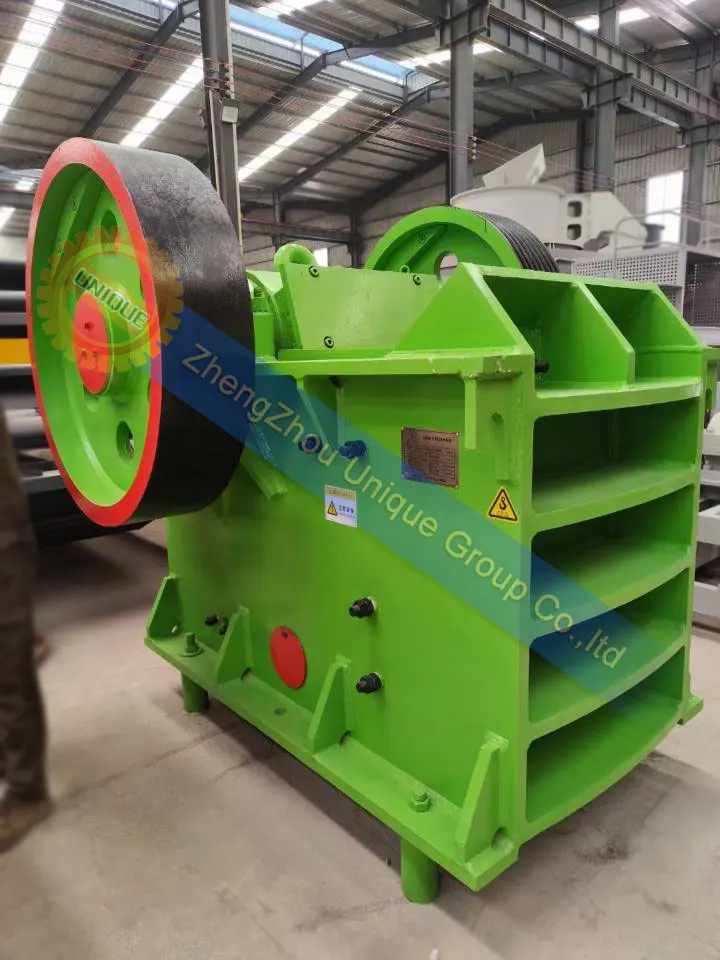

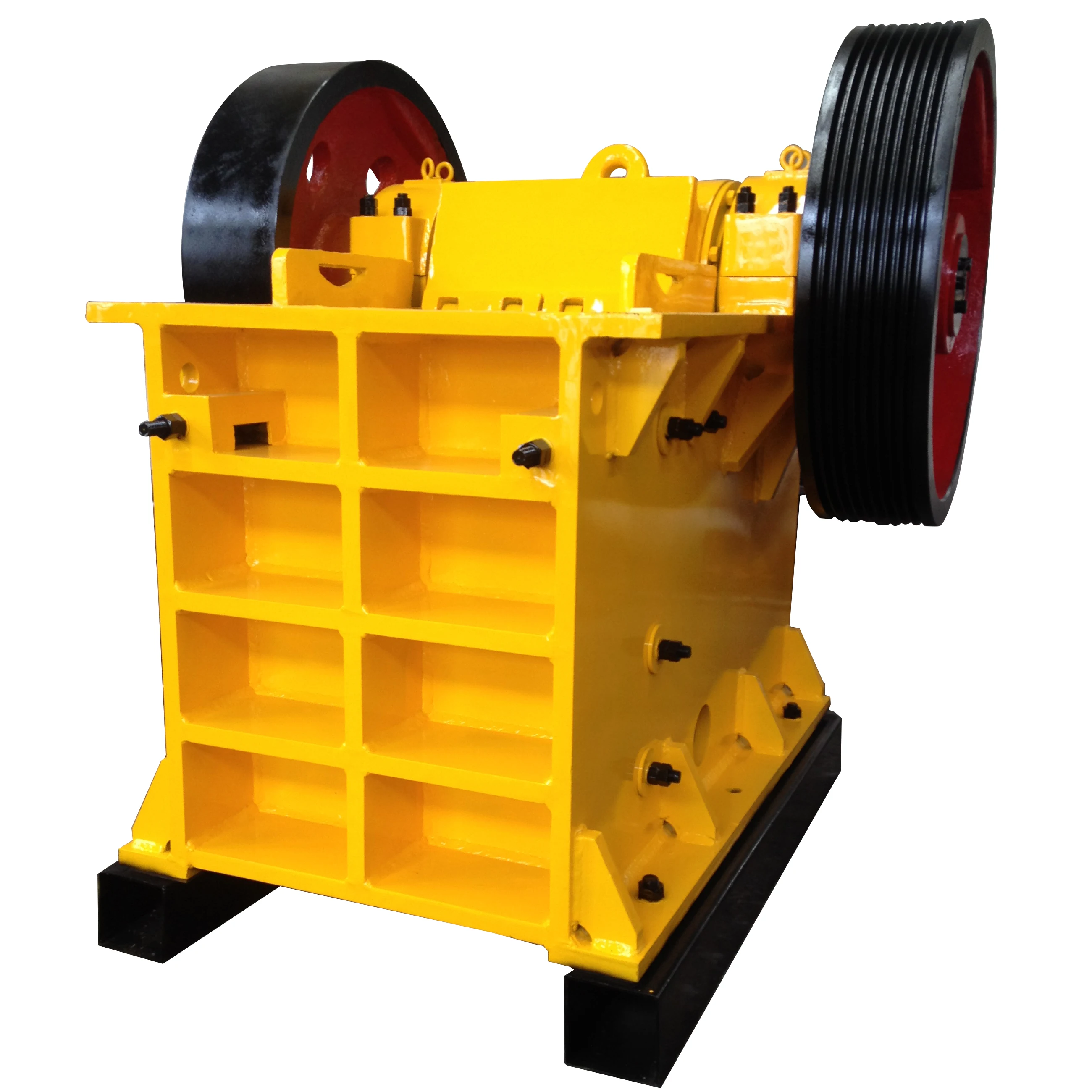

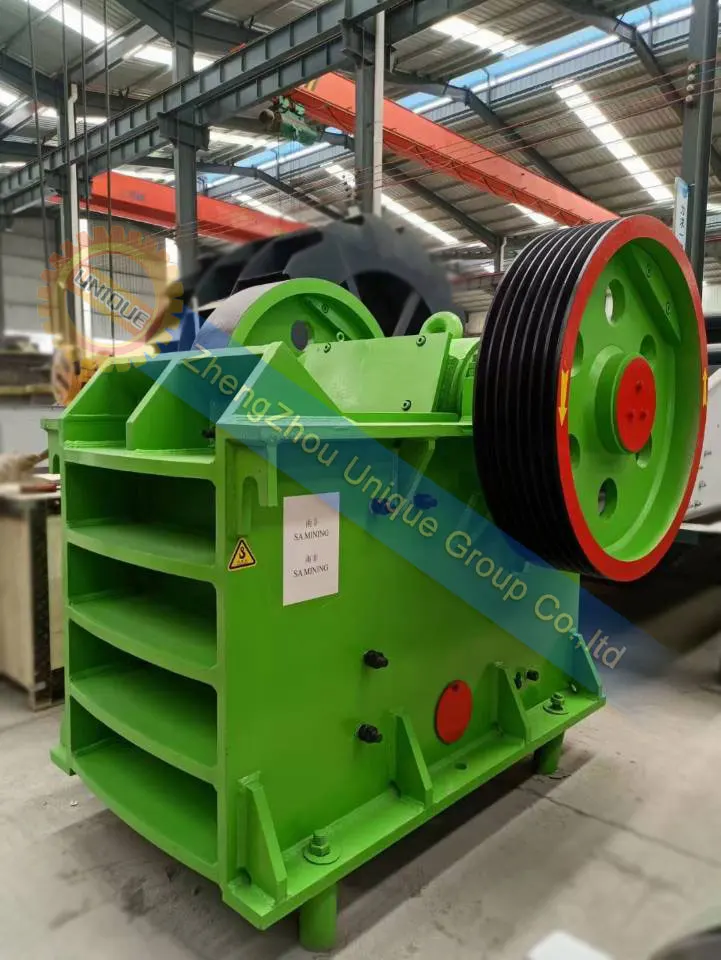

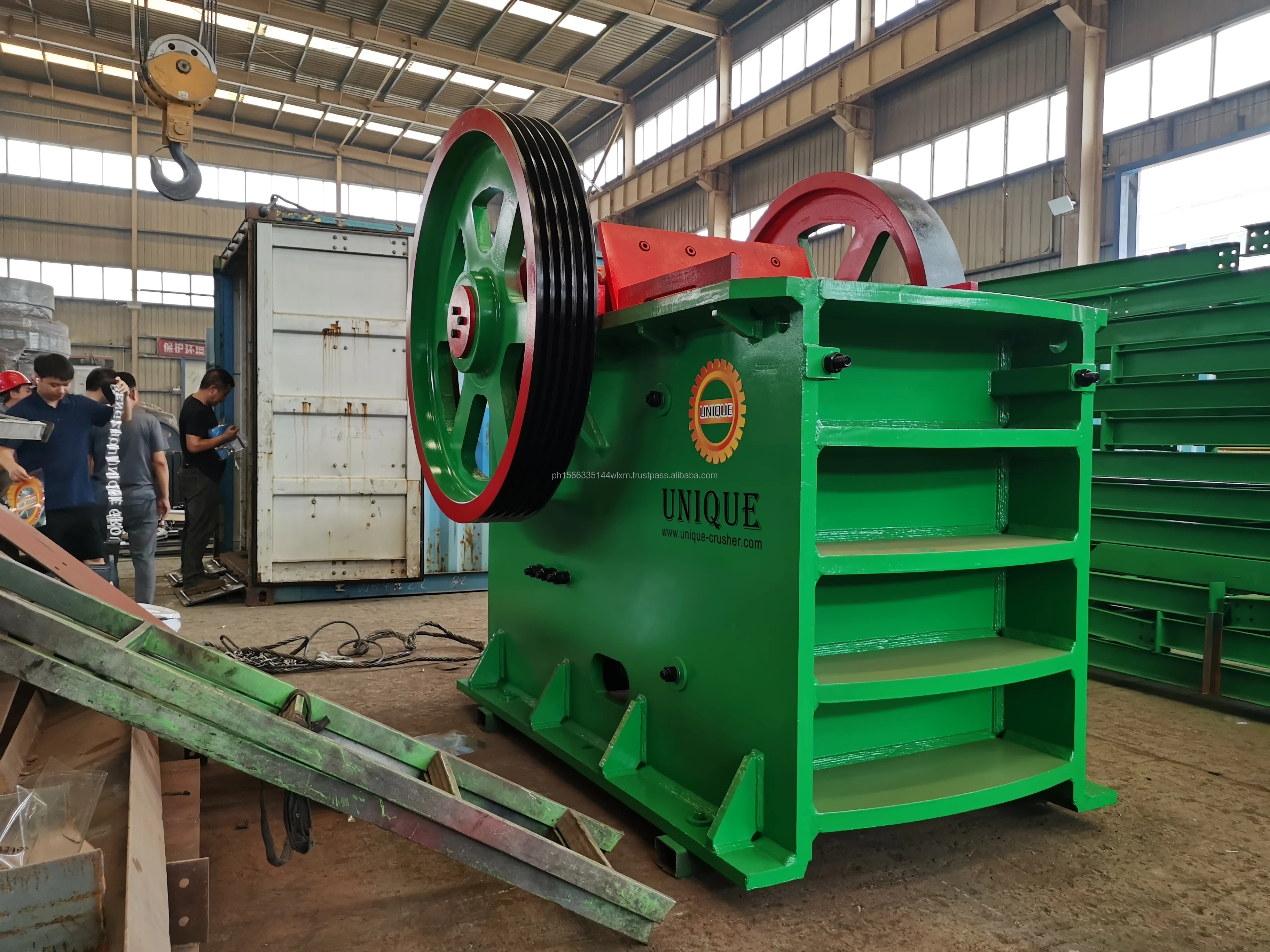

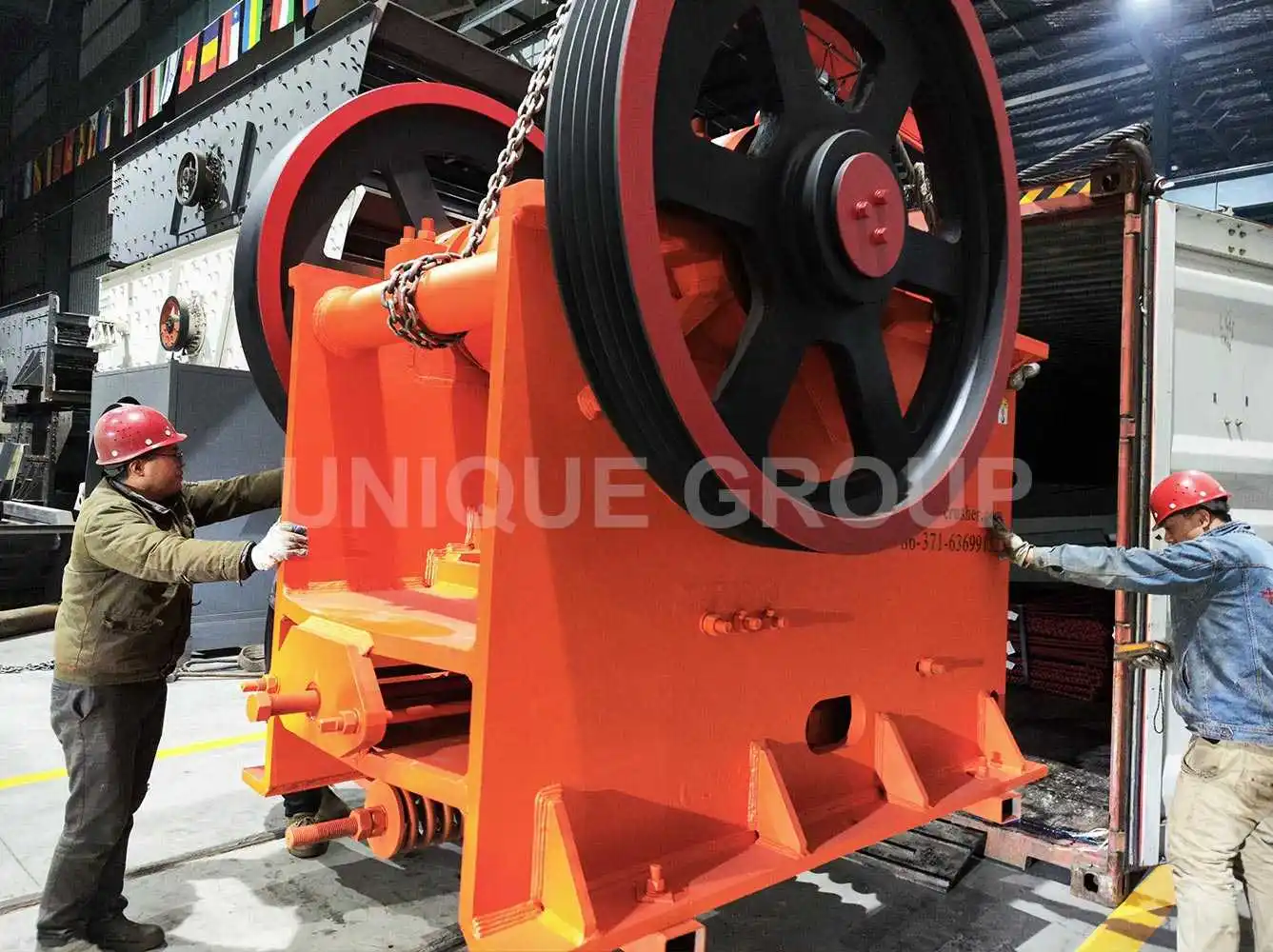

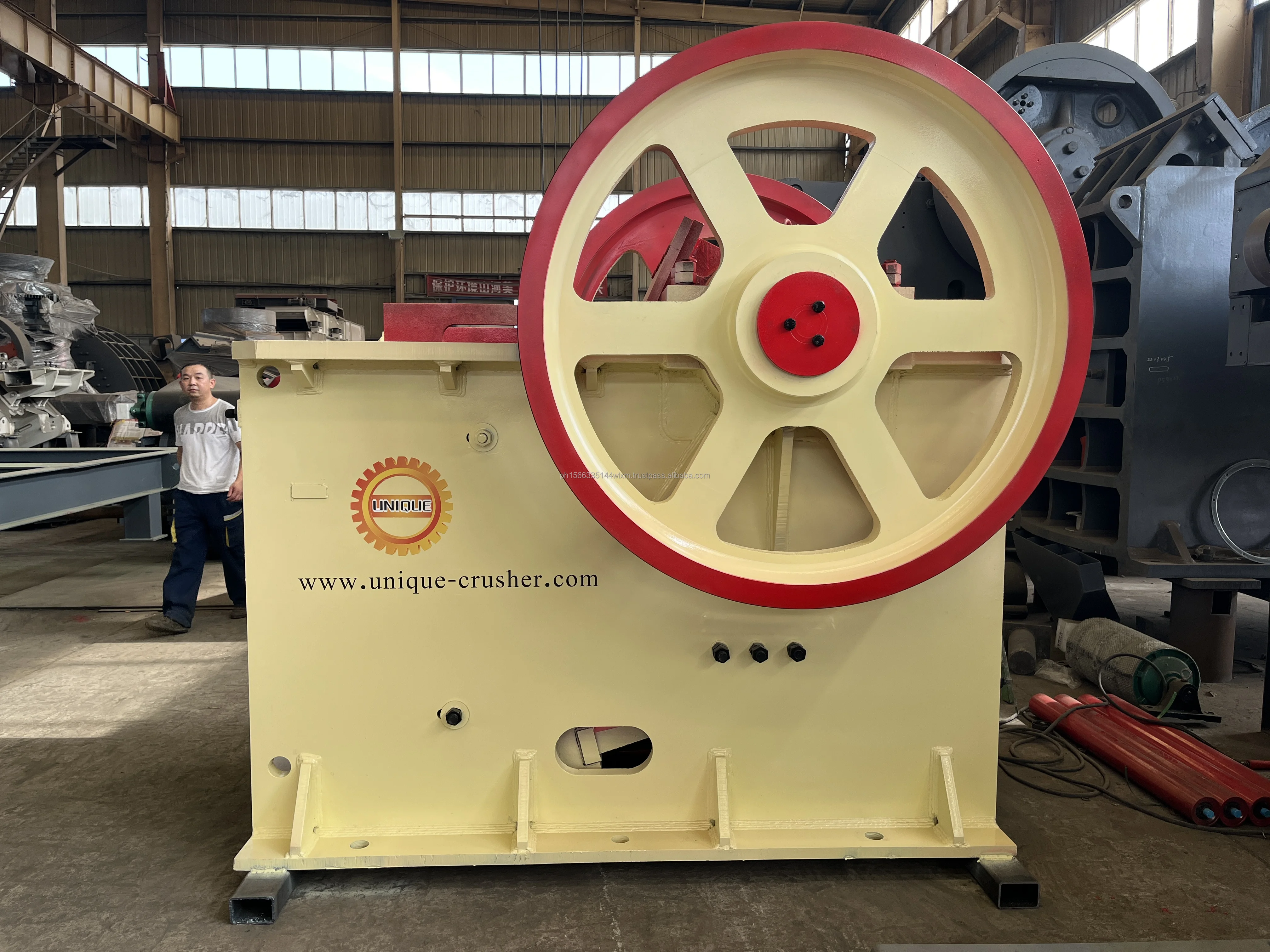

Product Overview
Jaw crusher are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using
compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and
the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained
by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
compression. The rock salt lump is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and
the rock salt lump is crushed because it has a lower breaking point than the opposing metal piece.Jaw crusher movement is obtained
by using a pivot point located at one end of the "swing jaw", and an eccentric motion located at the opposite end.
application：
1. Jaw crusher is mainly used for the medium and fine crushing of hard ores and rocks in metallurgy industry, mine industry,
chemical industry, cement industry, construction industry, refractory materials industry and other sectors.
2. Jaw crusher suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble,
calcite, granite, quartz, concrete, dolomite, blue stone, iron ore, limestone, iron ore,,
ferrosilicon, basalt, sandstone and etc.
chemical industry, cement industry, construction industry, refractory materials industry and other sectors.
2. Jaw crusher suitable for crushing all kinds of hard and soft ores with less than 300MPa compressive strength, such as pebble,
calcite, granite, quartz, concrete, dolomite, blue stone, iron ore, limestone, iron ore,,
ferrosilicon, basalt, sandstone and etc.
TYPE | JAW CRUSHER |
Model | Size of Feed Opening(mm) | Max Feed Size (mm) | Discharge Range Opening (mm) | Capacity (m3/h) | Motor Power (kw) |
PE-250×400 | 250×400 | 210 | 20-60 | 3-13 | 15 |
PE-400×600 | 400×600 | 340 | 40-100 | 10-35 | 30 |

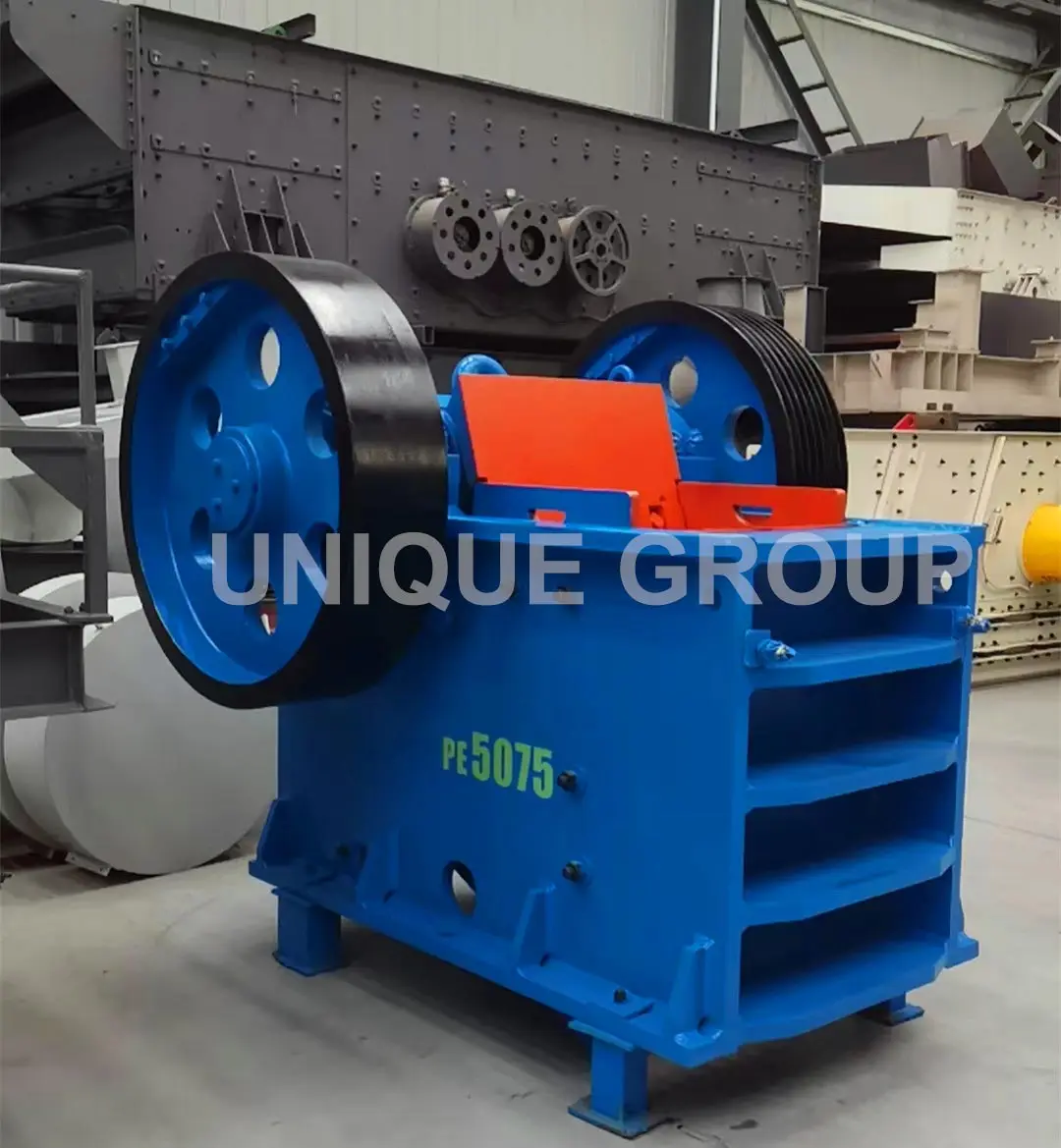

PE-500×750 | 500×750 | 425 | 50-100 | 25-60 | 55 |
PE-600×900 | 600×900 | 500 | 65-180 | 30-85 | 55- 75 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 72-150 | 110 |
PE-800×1060 | 800×1060 | 680 | 100-200 | 85-143 | 110 |
PE-870×1060 | 870×1060 | 750 | 170-270 | 145-235 | 110 |
PE-900×1060 | 900×1060 | 780 | 200-290 | 170-250 | 110 |
PE-900×1200 | 900×1200 | 780 | 95-225 | 100-240 | 110 |
PE-1000×1200 | 1000×1200 | 850 | 195-280 | 190-275 | 110 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 250-500 | 160 |
PEX-150×750 | 150×750 | 120 | 18-48 | 5-16 | 15 |
PEX-250×750 | 250×750 | 210 | 25-60 | 8-22 | 22 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 10-32 | 30-37 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 13-38 | 37 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 10-65 | 75 |
customer working sites:
Jaw crusher usually used to be primary crushing in stone crusher plant. our jaw crusher has good quality and is highly appreciated by customers. our jaw crusher has been exporting to countries and regions like Philippines, Indonesia, Peru, Chile, Cameroon, Uganda, Uzbekistan, UAE,Tanzania, South Africa, Zimbabwi, Algeria,Russia, Mongolia etc.
In Indonesia
PE500*750 for 60tph stone crusher plant
in Philippine
PE600*900 for 100-120tph stone crusher plant
in Peru
PE750*1060 for 200tph stone crusher plant
Successful Project
Project in nigeria
Project in Oman
Project in philippines
SIMILAR PRODUCTS
Company profile:
Zhengzhou Unique Industrial Equipment Co., Ltd is a leader in the R&D, manufacture, and distribution of Mining Machinery in China.
Our products comprise three categories: Stone Crushing & Screening, Portable Crushing Plant, and Complete Crushing Plant. Our
primary products are Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder,
Portable Crushing Plant and Aggregate Crushing Plant. Our vast line of products is available for countless uses, meeting any and
all of our customers' special needs.
Our products comprise three categories: Stone Crushing & Screening, Portable Crushing Plant, and Complete Crushing Plant. Our
primary products are Jaw Crusher, Impact Crusher, Hydraulic Cone Crusher, Spring Cone Crusher, Vibrating Screen, Vibrating Feeder,
Portable Crushing Plant and Aggregate Crushing Plant. Our vast line of products is available for countless uses, meeting any and
all of our customers' special needs.
