Эффективный мобильный миксер JS1000/HZS60 производство 60 м³/ч передовые технологии автоматизации низкий уровень шума идеально подходит для вашей работы отличное предложение!
3 645 133,09-3 770 815,63 ₽
Мобильная Установка 25 см/ч установка для дозирования бетона 500 арматура предварительно отливка завода изготовителя
- Категория: >>>
- Поставщик: Zhengzhou Zhenheng Construction Equipment Co. Ltd.Zhengzhou Ltd.
Сохранить в закладки 1601101183342:
Описание и отзывы
Характеристики
Product Description

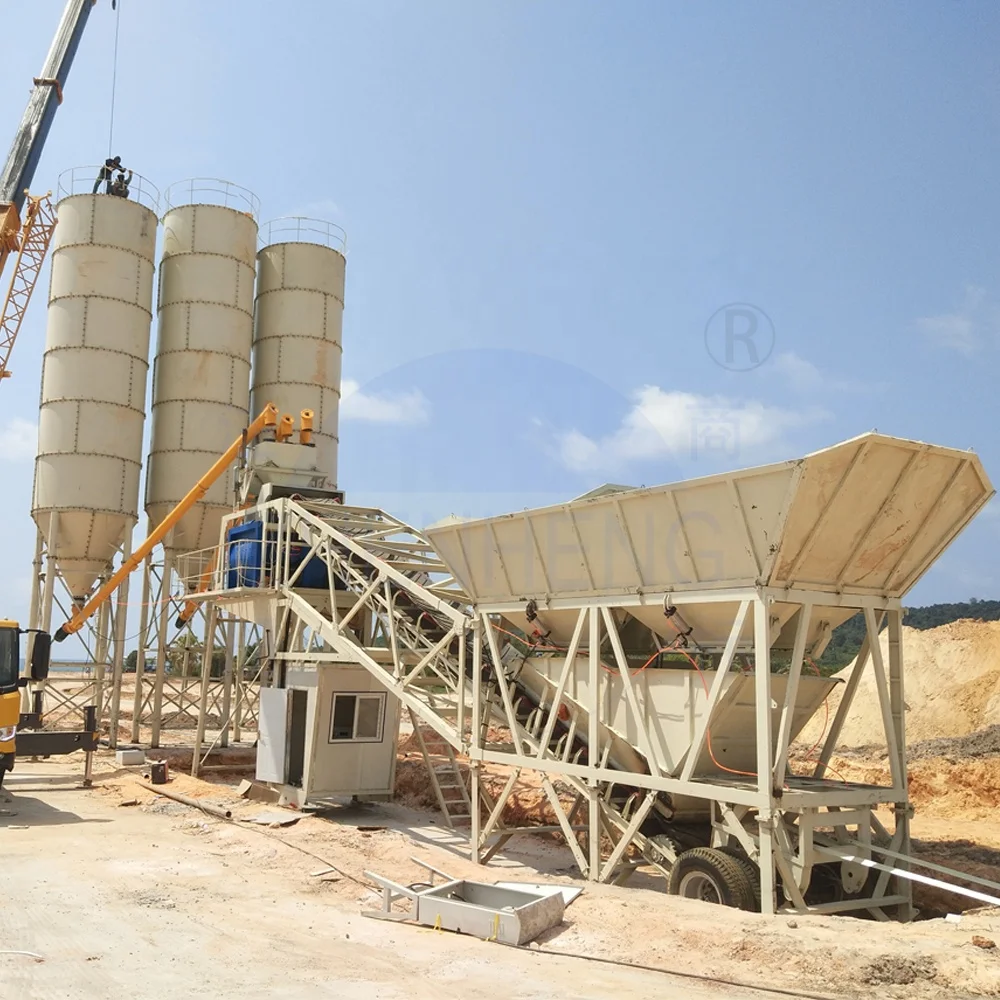

Advantages of YHZM mobile concrete batching plant
1.Quick disassembly:Except for the connecting equipment such as screw conveyor and cement silo. All the wiring of the mixing station need not be removed.
2. High degree of automation: The control room uses the microcomputer control system to automatically feed the material. The mixing station operator can set the ratio and complete the rated mixing times.
3. Stir well :With a compulsory twin shaft concrete mixer, uniform mixing can be achieved with the shortest mixing time.
Details Images
Storage hopper base
moved from the middle to the front generating two advantages:
1.remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
2. shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving
the working efficiency.
1.remaining space can be used for the generator, control cabinet, water tank, tool box, etc.;
2. shorten the length of the feeding belt and the feeding time, thereby shortening the single mixing cycle by 10s, and improving
the working efficiency.
Tires & Universal Steering Wheel
1. Double tires, strong pressure bearing capacity, strong stability, non-slip
2. it can be dragged by a medium-sized forklift directly, ensure the direction changing stably.
Support Leg & Support Steel
1. Quick disassemble and assembly, stabilize machine during work, protect tires, and extend service life.
2. Increase the bearing capacity of the chassis and extend the service life. Compact structure: Movable completely, work on the supporting legs, No foundation needed.
Lubricant Pump
Stable lubrication, large caliber oil cap, more convenient refueling
Pneumatic Switch
Precision machining, strong sealing, stable operation
Weighter
High precision sensor
Specification
Model | YHZM25 | YHZM35 | YHZM60 | YHZM75 | YHZM100 |
Theoretical capacity | 25m3/hr | 35m3/hr | 60m3/hr | 75m3/hr | 100m3/hr |
Mixer | JZM500 | JZM750 | JZM1000 | JZM1500 | JZM2000 |
Load Capacity | 800L | 1200L | 1600L | 2400L | 3200L |
Unload Capacity | 500L | 750L | 1000L | 1500L | 2000L |
Discharge Height | 1.3-1.8m | 1.3-1.8m | 1.3-1.8m | 1.3-1.8m | 1.3-1.8m |
Total Power | 40kw | 50kw | 60kw | 67kw | 85kw |
Aggregate Batching Machine | 4m³×2 | 5.5m³×3 | 6.5m³×3 | 8.5m³×3 | 10m³×3 |
Weighing Accuracy | ±1% | ±1% | ±1% | ±1% | ±1% |
Screw Conveyor | LSY219×6M | LSY219×6M | LSY219×8M | LSY219×8M | LSY219×9M |
Cement Silo | 50T | 50T | 50T | 50T | 70T*2 |
Packing & Delivery
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
Product Recommend
Company Profile
our team

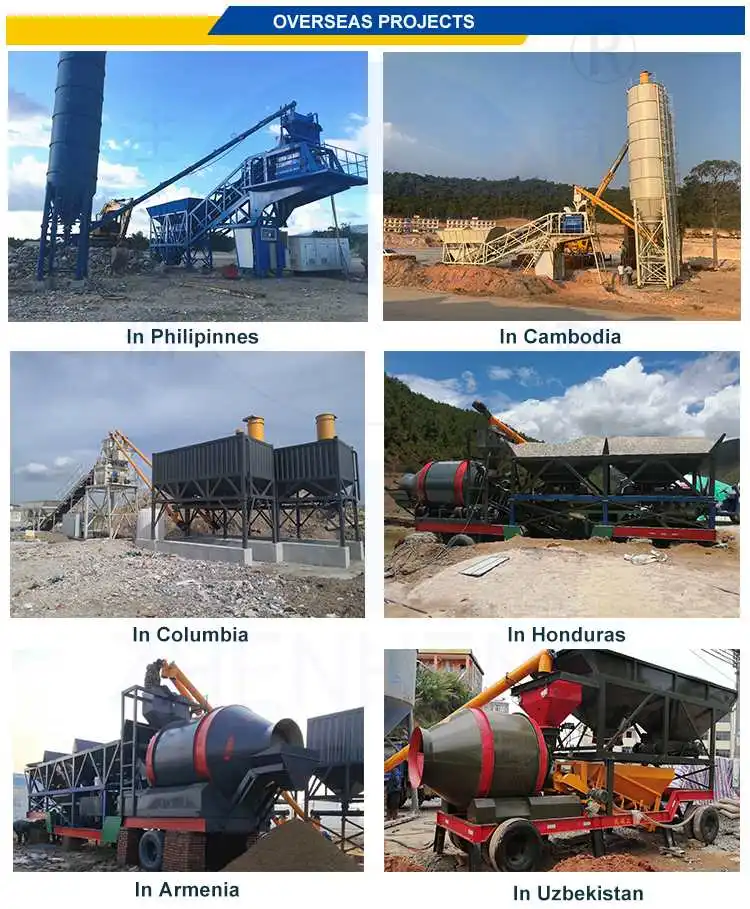

Exhibitions&Projects
FAQ
Q1.: Are you trading Company or Factory?
A: We are factory. We have been engaged in the production of self loading concrete mixer
for more than 40 years.
Q2: How about the quality of your products?
A: We are factory with more than 40 years of construction machinery manufacturing experience. All of our machines are manufactured
strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also
use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.
Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.
Q4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.
Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.
Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock, it will be about 20 days, subject to the
quantity you ordered.
Q7.: What is your acceptable payment terms.
A: By T/T. 30% deposit in advance, balance to be paid before delivery.
or By irrocable LC at Sight.
