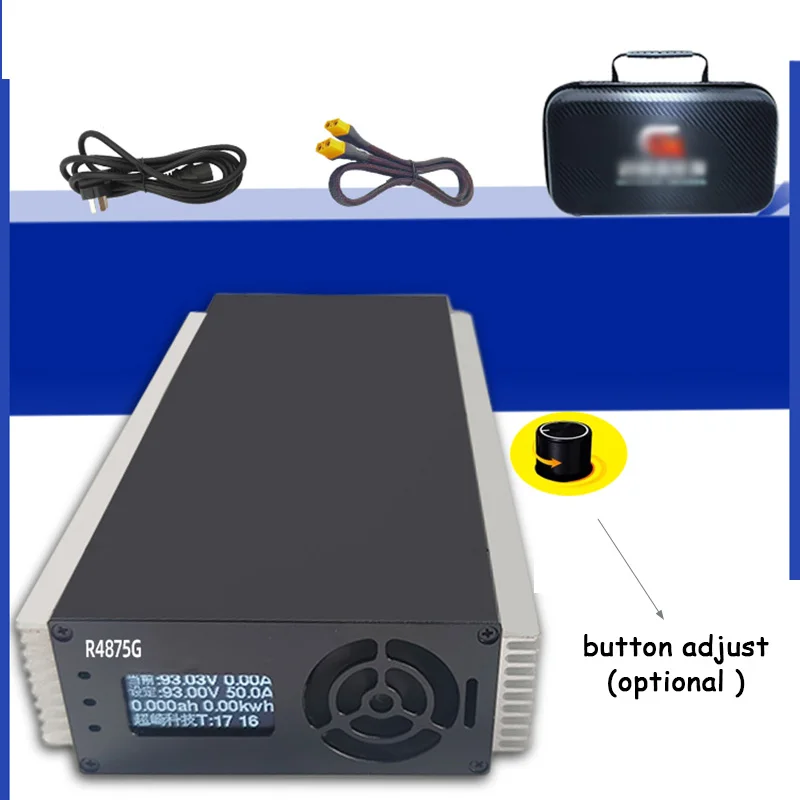

Зарядное устройство с литиевым аккумулятором Bluetooth регулируемое по току напряжению Smart Fast 48V 60V 72V 84V 96V 120V 144V 168V 50A 60A для Huawei

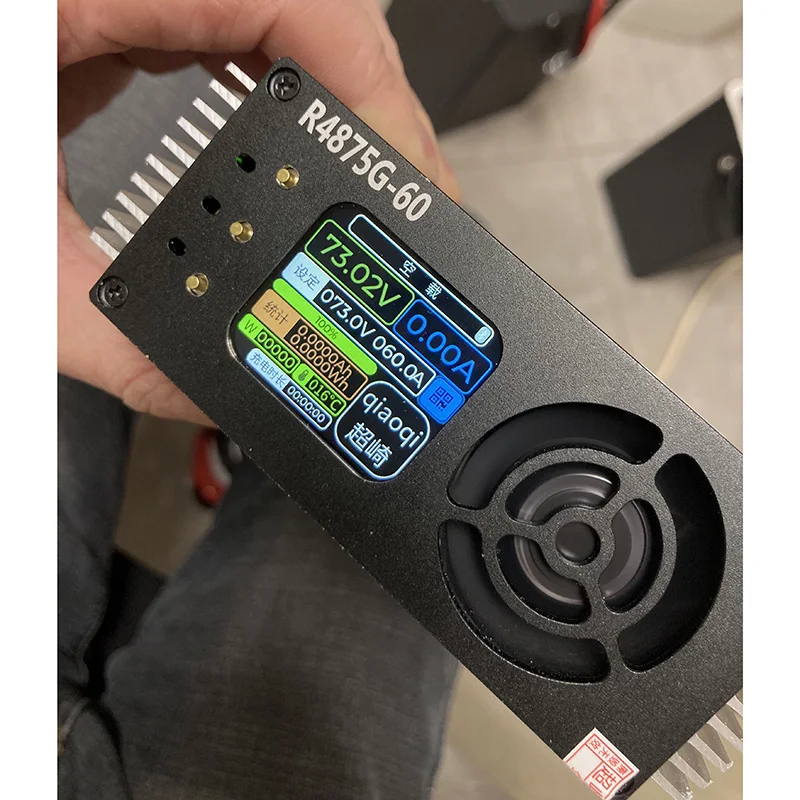

This charger adopts for Huawei's R4875G1/R4850G2 rectifier module, which provides the rectifier circuit for this product. This
charger is a digital adjustable charger with high efficiency and high power density, realizing wide range voltage input, wide DC
voltage and current output. It has the advantages of soft-start function, perfect protection function, low noise, and can be used
in parallel. Real-time monitoring of rectifier module status, load and output voltage regulation is realized through power supply
monitoring. Its peak efficiency reaches 97% ± 0.2%, the operating temperature is -40 ℃ to 75 ℃, the cooling mode is built-in and
has a temperature-controlled speed control function of the fan and the two special grid-type heat sink composition. Input voltage
range is at 85V AC-300V AC; input frequency: rated 45Hz~66Hz; rated input current ≤21A output voltage {can be customized for a
variety of models, such as: DC (50V ~ 103V; 66V ~ 93V; 70V ~ 120V; 0-93V;120V-180V) voltage output adjustable. Output current adjustable

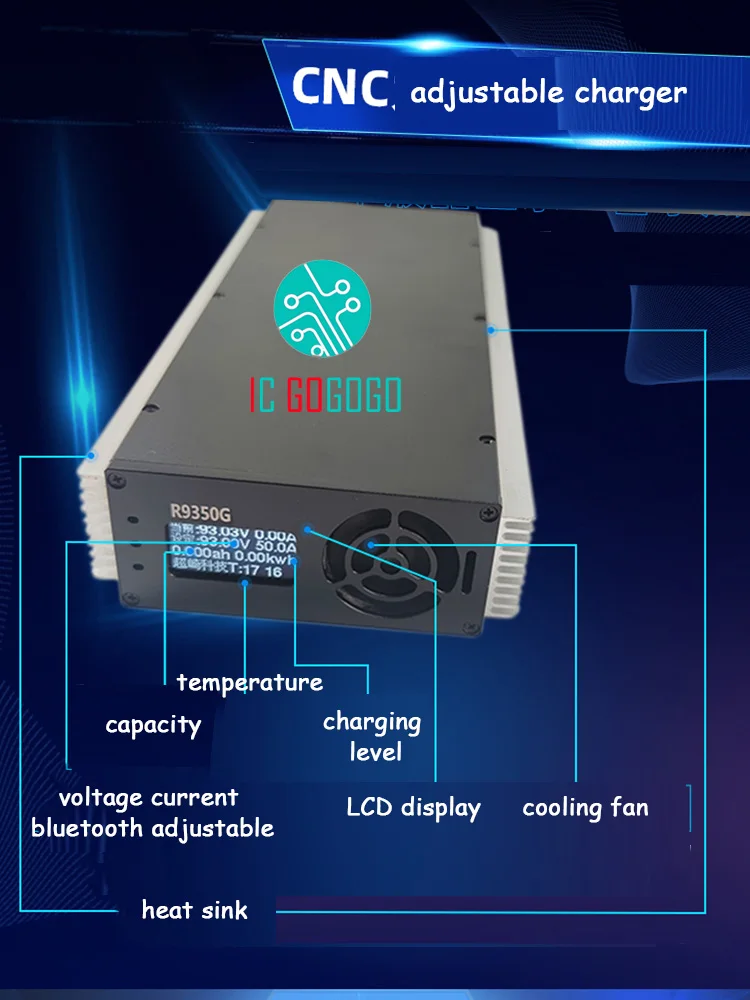

models (1-17A;1-30A; 1-45A; 1-50A, 1-60A) and so on. Adjustable mode of Bluetooth, CNC, touch; display LCD screen and digital tube
display;} voltage regulator accuracy of ≤ ± 0.6% * Vo; the product has an input over-voltage protection, input under-voltage
protection, output over-voltage protection, output current limiting protection, output short-circuit protection, over-temperature
protection and other functions. It can be applied to charge most of the batteries on the market, (such as Li-ion batteries,
Lifepo4 batteries, LTO batteries, lead-acid batteries, etc.).

Durable - Efficient - Energy Saving - Safe
Real material inside to ensure super durability

Information :
* Bluetooth digital integration
* Current Voltage both can be adjusted

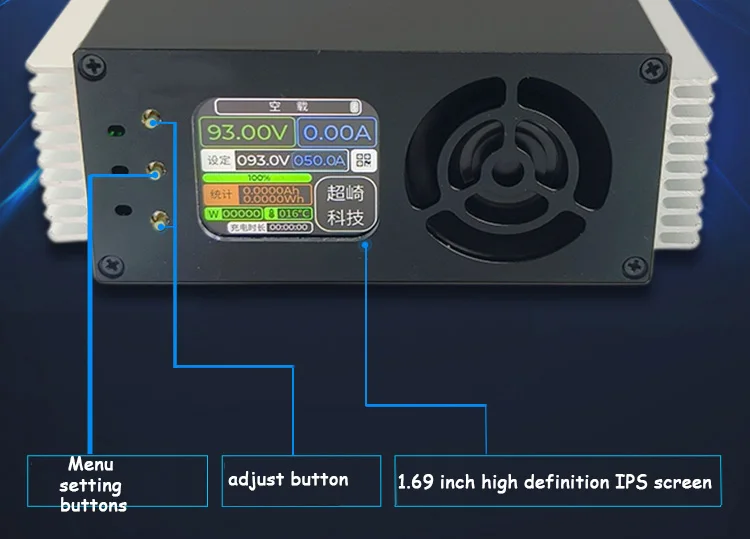

* Colorful screen or white screen can be choose
* English display of charger
* Various output connectors can be choose ( default sending XT60 , if you need other output connectors , need to contact us)
* Centrifugal turbine/ fan cooling/lower temperature
* CNC bluetooth digital / Button setting up
* Suitable for all kinds of lithium batteries like Li-ion , Lipo, LTO , Lifepo4 , Acid lead and so on
* Adjustable charger - Widely used for lithium battery DIY individuals, battery PACK factory, energy storage, caravan,
four-wheeler express delivery vehicles, etc. to support the car charging pile fast, slow charging use.
* small size :

Steps :
Step 1:The charger is first plugged into 220V AC energized.
Step 2:Set the value of full charged voltage, (must show the voltage of full state before plugging in to charge)
Step 3:Connect the battery to charge, adjust the right current.
