Включаемый Инвертор 24 В 48 В Гибридный солнечный инвертор 3,6 кВт 4,2 кВт 5 кВт 6,2 кВт чистые синусоидальные солнечные инверторы с MPPT
19 518,47 ₽ - 20 602,83 ₽
Спот товары Zumax 4 2 кВт 6 Гибридный солнечный инвертор производители в Китае гибридный
- Категория: >>>
- Поставщик: Dongguan Zumax Technology Limited
Сохранить в закладки 1601101396800:
Описание и отзывы
Характеристики
#SUPER DEDUCTION
★Buy 10Piece solar inverter and get 1 Wi-Fi module for free.
★Buy 100Piece solar inverter and get 10 Wi-Fi module for free.
If you don’t know which model solar inverter is suitable for you,
You can Send us an inquiry.
Our 10 years experience sale manager will help you configure the system in 12hrs.
If you don’t know which model solar inverter is suitable for you,
You can Send us an inquiry.
Our 10 years experience sale manager will help you configure the system in 12hrs.
Main Features
* Pure sine wave solar inverter(on/off Grid)* WIFI&GPRS available for IOS and Android
* Inverter can run without battery
* One-key restoration to factory Settings
* Built-in Lithium battery automatic activation
* Built-in 120A-140A(for 3.6KW-7.2KW)
* MPPT:Max 6200W(for 3.6KW/4.2KW),max 6500W(for 6.2KW)Solar Charge
* High PV input voltage range(90~450VDC) * Built-in anti-dust kit for harsh environment
* Smart battery charge design to optimize battery life
* Dual Output
* Inverter can run without battery
* One-key restoration to factory Settings
* Built-in Lithium battery automatic activation
* Built-in 120A-140A(for 3.6KW-7.2KW)
* MPPT:Max 6200W(for 3.6KW/4.2KW),max 6500W(for 6.2KW)Solar Charge
* High PV input voltage range(90~450VDC) * Built-in anti-dust kit for harsh environment
* Smart battery charge design to optimize battery life
* Dual Output
About the details and price ,feel free to contact with Customer service staff.Click Here.
Product Paramenters
MODEL | 4.2KW | 6.2KW | |
PHASE | 1-phase | ||
Rated Output Power | 4200w | 6200w | |
Maximum PV Input Power | 6200W | 6500W | |
Maximum Solar Charging Current | 120A | 120A | |
OFF-GRID OPERATION | |||
AC INPUT | |||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | ||
Acceptable Input Voltage Range | 90-280VAC or 170-280 VAC | ||
Maximum AC input Current | 30A | 40A | |
Nominal operating frequency | 50/60HZ | ||
Surge power | 8400W | 12400W | |
BATTERY MODE OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Waveform | Pure sine wave | ||
Efficiency(DC to AC） | 94% | ||
BATTERY&CHARGER | |||

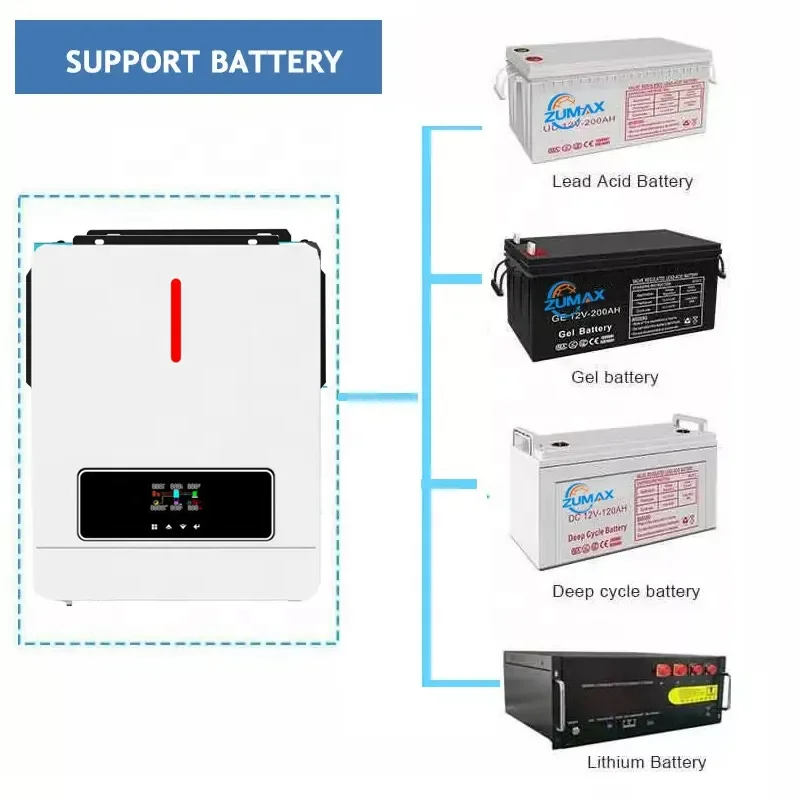

Battery Type | Lead acid/Gel/Lithium | ||
Nominal DC Voltage | 24VDC | 48VDC | |
Maximum Charging Current(Solar to AC) | 120A | 120A | |
Maximum AC Charging Current | 100A | 100A | |
GRID-TIE OPERATION | |||
PV INPUT(DC) | |||
Nominal DC Voltage/Maximum DC Voltage | 360VDC/500VDC | ||
Start-up Voltage/Initial Feeding Voltage | 90VDC/120VDC | ||
MPPT Range@Operating Voltage | 90VDC-450VDC | ||
Number of MPPT Trcker/Input Current | 1/18A | 1/27A | |
GRID-OUTPUT(AC) | |||
Nominal Output Voltage | 220/230/240VAC | ||
Output Voltage Range | 195.5V-253VAC | ||
Nominal Output Current | 18.2A | 27.0A | |
Power Factor | >0.99 | ||
Feed-in Grid Frequency Range | 49-51 ±1HZ | ||
EFFICIENCY | |||
Maximum Conversion Efficiency(Solar to AC) | 98% | ||
TWO LOAD OUTPUT POWER | |||
Full Load | 4200W | 6200W | |
Maximum Main Load | 4200W | 6200W | |
Maximum Second Load (battery mode) | 1400W | 2067W | |
Main Load Cut Off Voltage | 22VDC | 44VDC | |
Main Load Return Voltage | 27VDC | 55VDC | |
GENERAL | |||
Dimension,D*W*H(MM) | 420*310*110 | 420*310*110 | |
Net Weight(kgs) | 7.9 | 9.5 | |
Optional accessories | WIFI Module | ||
Operating Temperarure | -10-50℃ | ||

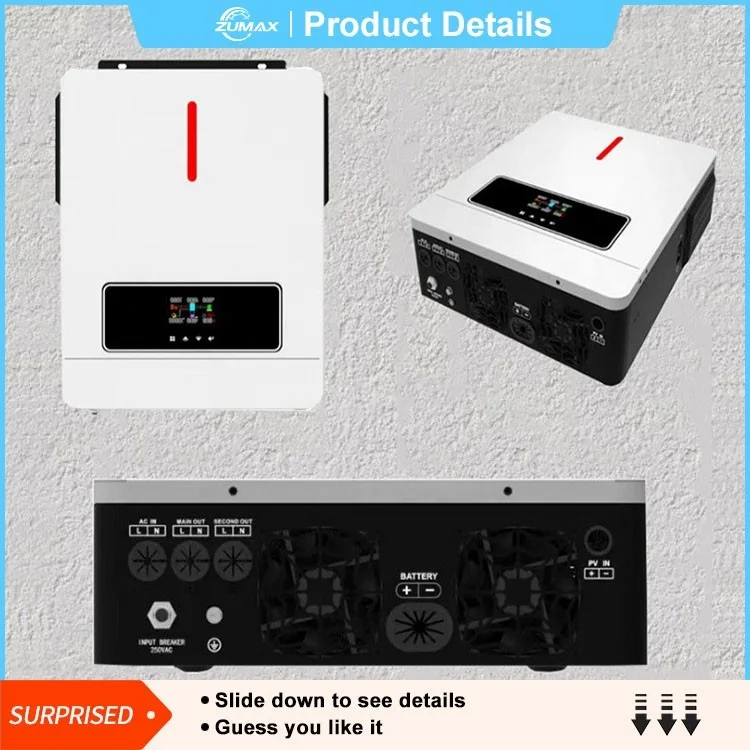

Product Details
Company Profile
Established in 2010, Dongguan Worldwide company co., Itd. Zumax International Limited) is a high-tech enterprise concentrating in power supply, solar inverter, lithium battery,server/computer power supply and power professional research,production, sales and service. The manufacturer located in Dongguan City, Therefore, it possesses good geographical positions and convenient transportation conditions. We have our own factory building of more than 5000 square meters, and there are more than 10 senior engineers and 120 staff engaged in the professional production, Now our production has stepped into certain standardization and scope. To ensure product quality and increase production efficiency, we have introduced advanced technology and equipment from abroad and strictly carries out the international quality standards, we have already passed the ISO9001, UL, FCC, CE, CB. C / managemen and quality certificate.
Our company take "Perfect Customer Service, Excellent Quality Continuous Creation" as our main principle, and our products have received warm reception from our customers. As fierce competition and decline market in power industry, our business increase as with reliable technology, good material and creative mind, which helping us win a sound reputation from our customers. Welcome to visit us.
Exhibition
certificate
Packing And Shipping
FAQ
Q1: Why you should choose us?
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
---More than 20 years Electrical Equipment factory experiences
---Professional sales team and R & D team
---Qualified product and competitive price
---Delivery in time
---Sincerely services
Q2: How is your after-sale service?
---We provide 1-2years warranty and 1% sapre parts for free
---We will repair the PCB or provide new one
Q3: What kind of certification you have?
---ISO9001,ISO14001, CE,ROHS,UL,and so on
---All series product pass different labor testing according to different countries’ requirements.
Q4: Delivery time:
---Standard products could be delivered within 15 days;
Q5. Can I have a sample order?
---Yes, we welcome sample order to test and check quality.
Q6. Do you have any MOQ?
---Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ,1 pcs for sample checking is available.
Q7. Do you support OEM?
---Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
