Product Description

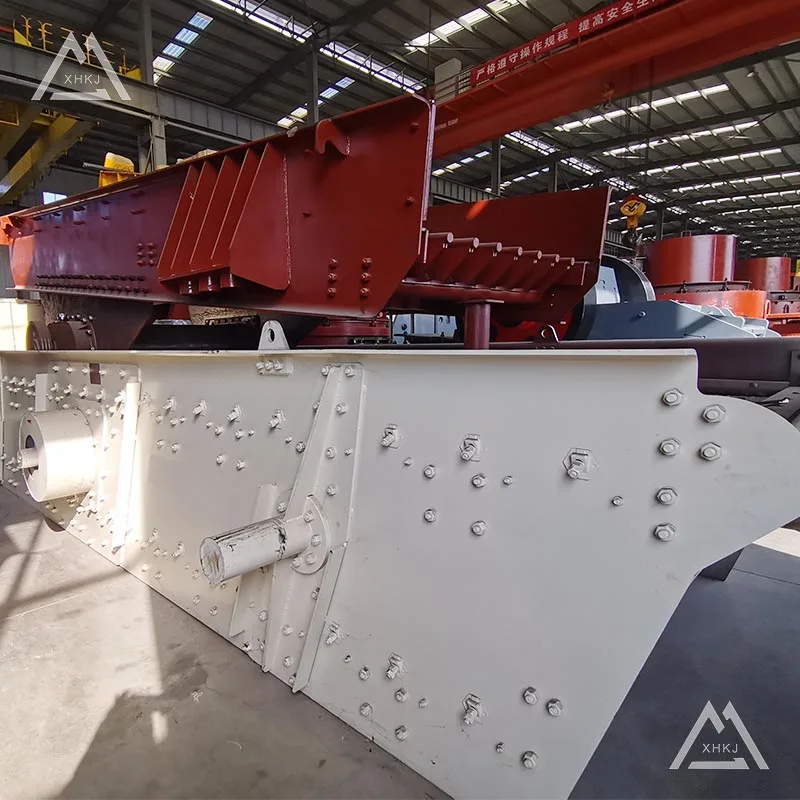

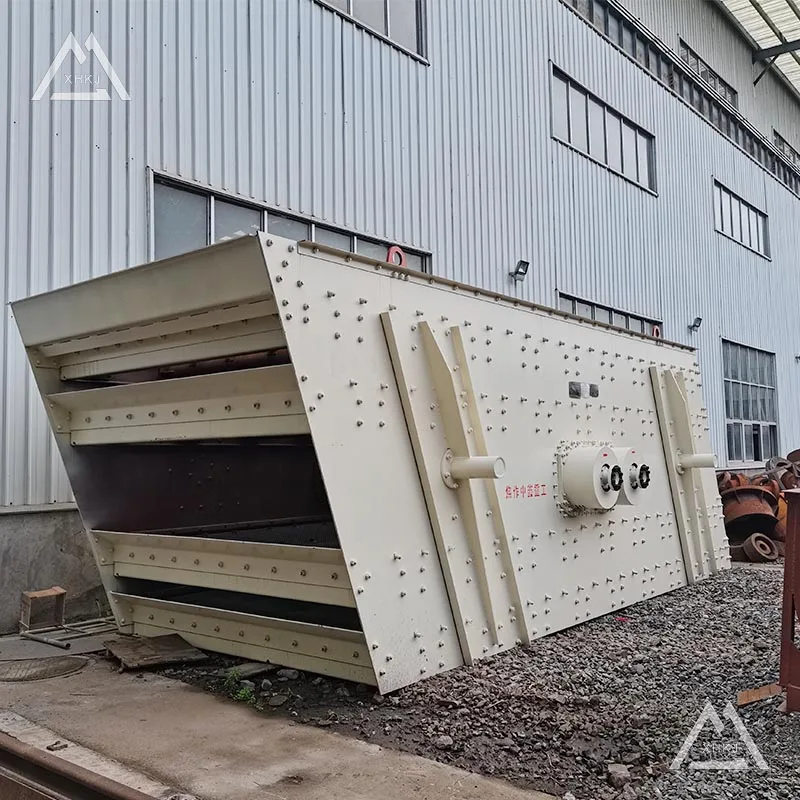

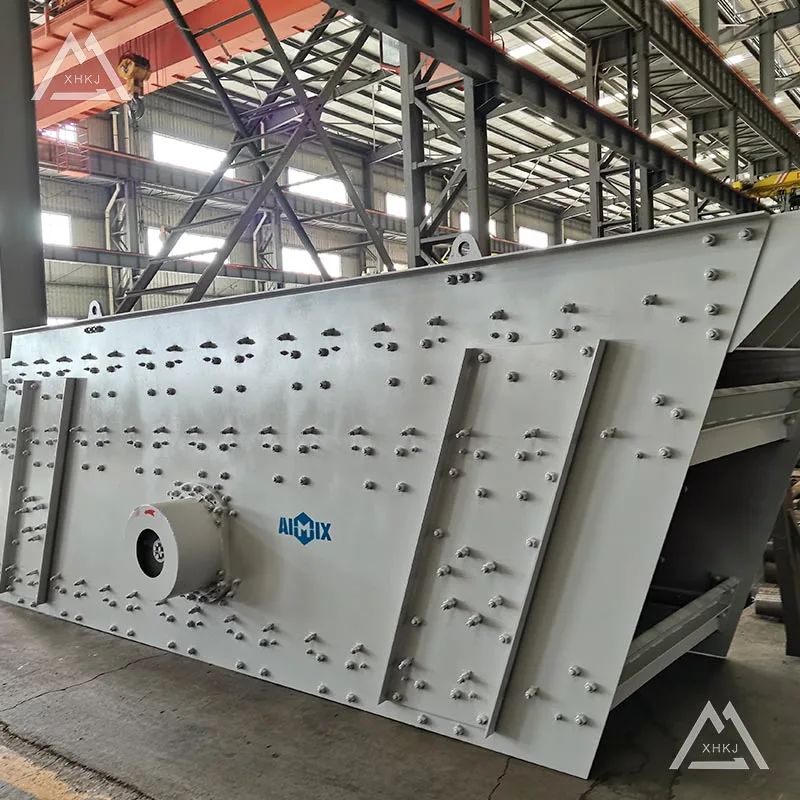

Introduction of vibrating screening machine
The moving road of this screen is similar as a circle, so it is called Circular vibrating screening machine. vibrating screening machine is of multi-layer and high efficiency. The eccentric shaft vibration exciter and eccentric block help to adjust amplitude. This kind of screen is of long screening stream line and more sieving specifications. So it is widely used for grading in the industries of quarry, building material, transportation, energy, chemical industry, etc.
Features
Advantages of vibrating screening machine
1.It uses cylinder-type eccentric shaft and eccentric block to make strong vibrating force.
2.Beam is connected to the main body with bolts, has the feature of high strength.
3.The side plate of the screen box uses the steel which makes the boiler, the steel have high strength and strong impact resistance.
4.It adopts the structure of small amplitude, high frequency, large obliquity to make the screen with high efficiency, large handing capacity, long life span, low consumption and little noise.
5.The vibrating screen uses the motor to drive the eccentric shaft and make the screen body periodically along with the direction of vibration force. The materials make circular movement on the screen to realize sieving. Circular vibrating screen consists of vibration source, screen body, screen mesh, shock absorbing device, base frame etc. It has the features of reasonable structure and long durability.
Specifications
Technical Data of vibrating screening machine
Model | Screen Size(mm) | Layers | Screen Mesh (mm) | Max Feed Size(mm) | Capacity (t/h) | Power (Kw) | Vibrating Frequency(r/min) | Double Swing (mm) |
2YK1237 | 3700*1200 | 2 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
3YK1237 | 3700*1200 | 3 | 3-80 | 100 | 10-80 | 11 | 750-950 | 5-9 |
2YK1548 | 4800*1500 | 2 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
3YK1548 | 4800*1500 | 3 | 3-80 | 100 | 30-200 | 15 | 750-950 | 5-9 |
2YK1848 | 4800*1800 | 2 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
3YK1848 | 4800*1800 | 3 | 3-80 | 100 | 50-250 | 18.5 | 750-950 | 5-9 |
2YK1860 | 6000*1800 | 2 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
3YK1860 | 6000*1800 | 3 | 3-80 | 100 | 60-300 | 22 | 750-950 | 5-9 |
4YK1860 | 6000-1800 | 4 | 3-80 | 100 | 60-300 | 30 | 750-950 | 5-9 |
2YK2160 | 6000*2100 | 2 | 3-80 | 100 | 80-400 | 22 | 700-900 | 5-9 |
3YK2160 | 6000*2100 | 3 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
4YK2160 | 6000*2100 | 4 | 3-80 | 100 | 80-400 | 30 | 700-900 | 5-9 |
2YK2460 | 6000*2400 | 2 | 5-80 | 100 | 100-500 | 30 | 700-900 | 5-9 |
3YK2460 | 6000*2400 | 3 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |
4YK2460 | 6000*2400 | 4 | 5-80 | 100 | 100-500 | 37 | 700-900 | 5-9 |

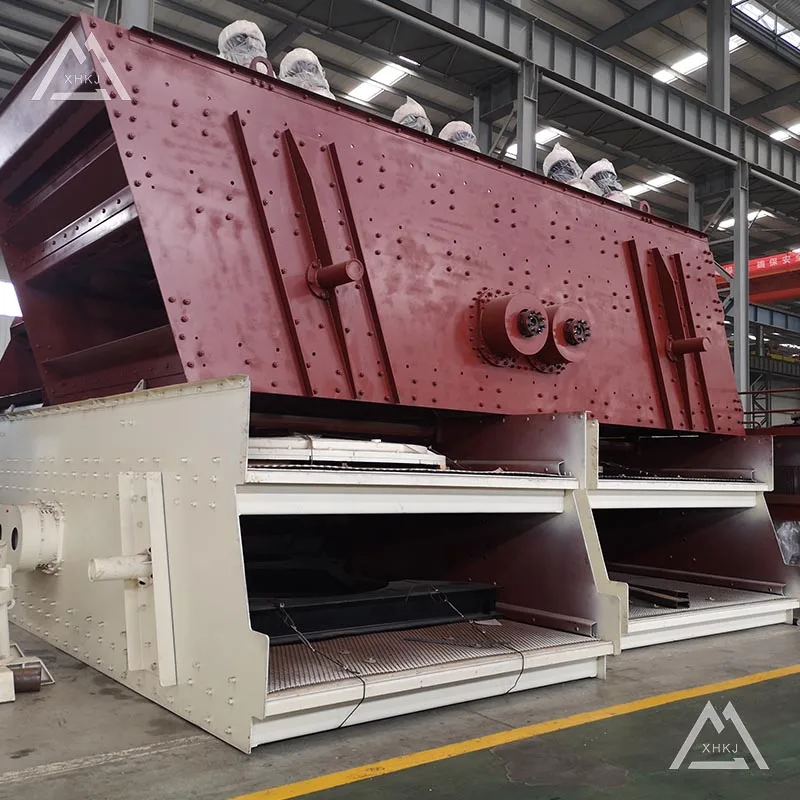

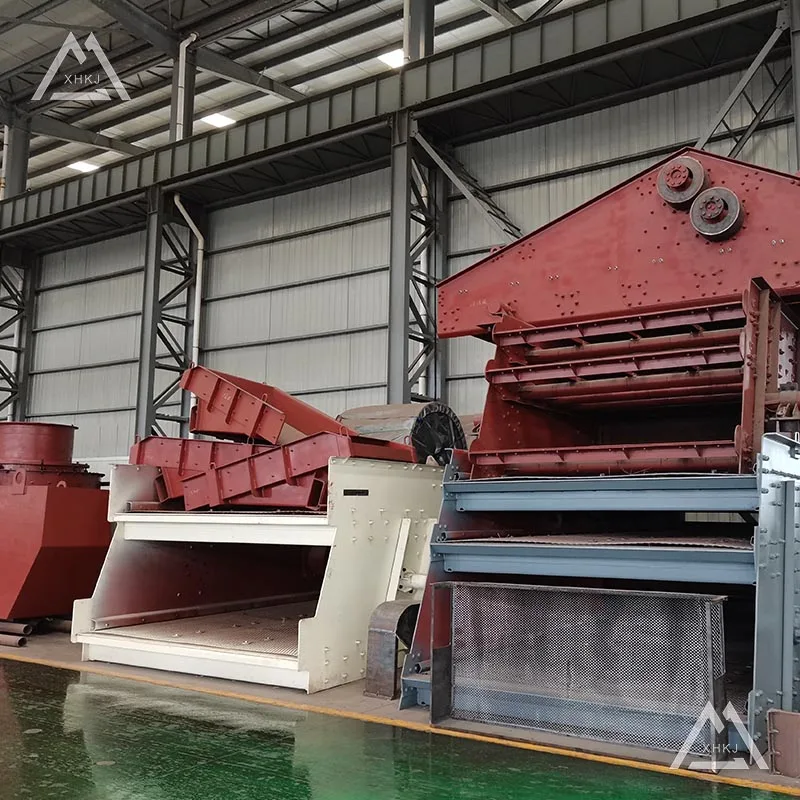

Workshop
Xinhai Heavy industry, a modern mining machinery manufacturer, is specialized in researching and developing, manufacturing and selling multi-cylinder hydraulic cone crusher. It is located in Boai Industrial District of Jiaozuo City in Henan Province, China, covering an area of more than 133,334 m2. One 20000m2 standard workshop has been built in the first phase with annual production capacity of 100 sets multi-cylinder hydraulic cone crusher and comprehensive annual output value of RMB 160,000,000.
Our Services
Before sales: Guide customer to choose suitable type of equipments; provide practical flow chart as well as responsible for designing the whole schem.
On sales: Inspect the product seriously before out of the factory; Invite customer for commissioning in the spot and raising the objection:Organize to delivery according to the contract.
After sales: Company can send technical persons for guiding to install ,debugg and train the workers.
We have spare parts of the very machine in stock all the time which means the replacements can be sent to you timely.
Contact us
Your email address and telephone will not be shared or published!
Please fill in your need products and your message and do not forget mail and/or phone if you like to be contacted.
we are the professional machine manufacturer in China.
I need to ask you some details for sending you the more suitable quotation,
1.what is the raw material do you want to process?
2.what is the capacity per hour do you need?
3.what is the raw material input size?
4.what is the output size of your product?
Of course, free live-chat is available and you can get help immediately.Or you can send me email .
You can get the price list and a Xinhai representative will contact you within one business day.
I hope you can tell me these details,i will give you well quotation ASAP ,thanks. Your satisfaction is our great pursuit, we would like to sincerely for your service! We look forward to your inquiry!
Contact us :
TEL:0086-371-67660555
Whatsapp/Wechat:+86-13676922906
Website:
Chinese website:www.jzzxzg.com España:www.zxcrusher.es
English website:www.zxcrusher.com Russian:www.zxcrusher.ru
Factory Address:Boai Industrial District, Jiaozuo City, Henan Province, China
Marketing Center Address:Room 1106, Rongcheng Building, Jianshe Road,Zhengzhou,China
Похожие товары

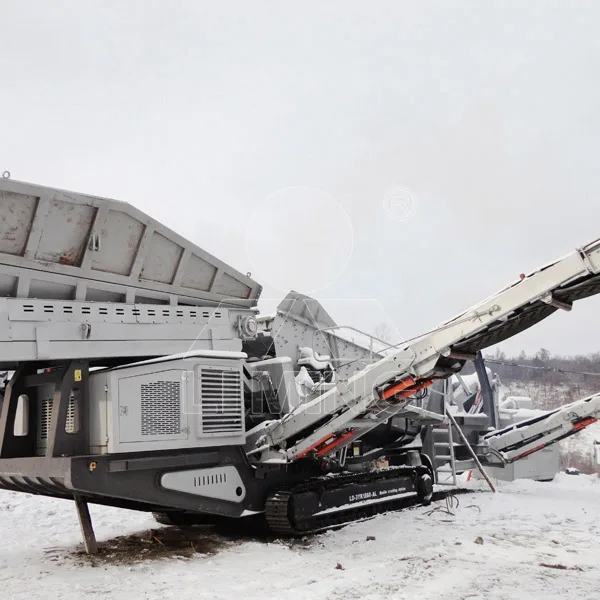

Мобильный скринер угольный Вибрационный Песок и каменный разделительный экран машина
2 204 226,00 ₽ - 3 306 339,00 ₽

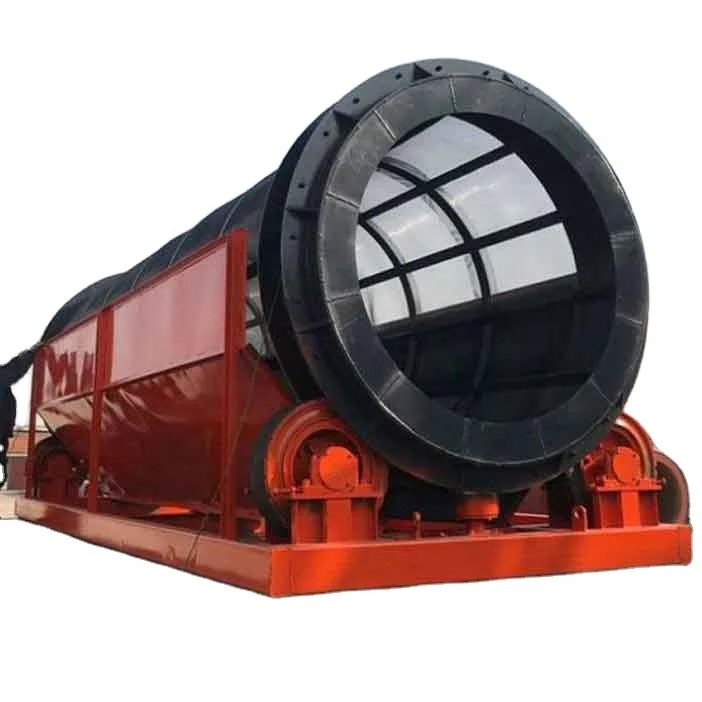

24 часа вращающийся экран для Золотого угля почвы песка гравия компоста и разделения
315 204,32 ₽
Гранулированный вибрирующий экран
275 528,25 ₽

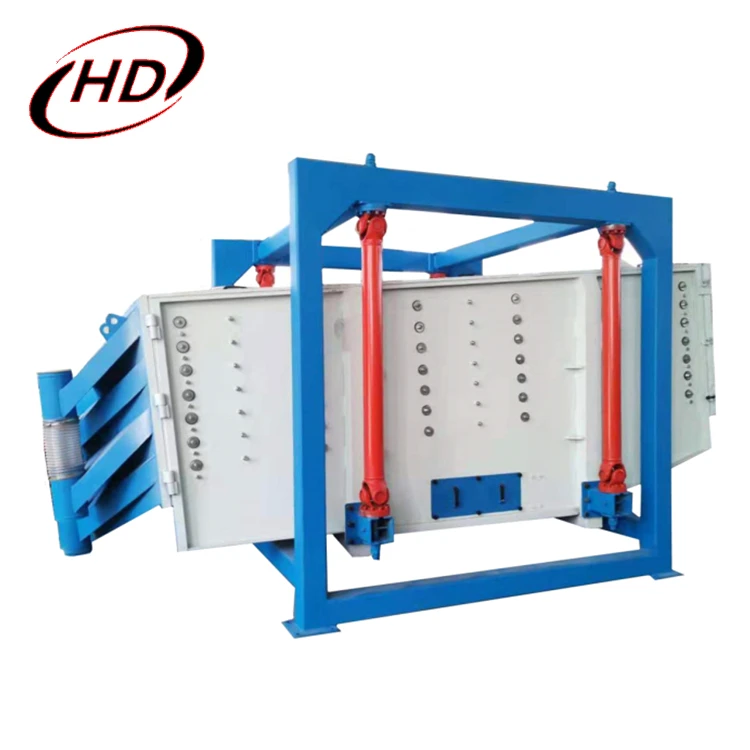

Вибрационный сито Feldspar гравий песок квадратный гидравлический сепаратор
Мобильный агрегатный Вибрационный экран для каменной дробилки круговой скринер
2 204 226,00 ₽ - 3 306 339,00 ₽

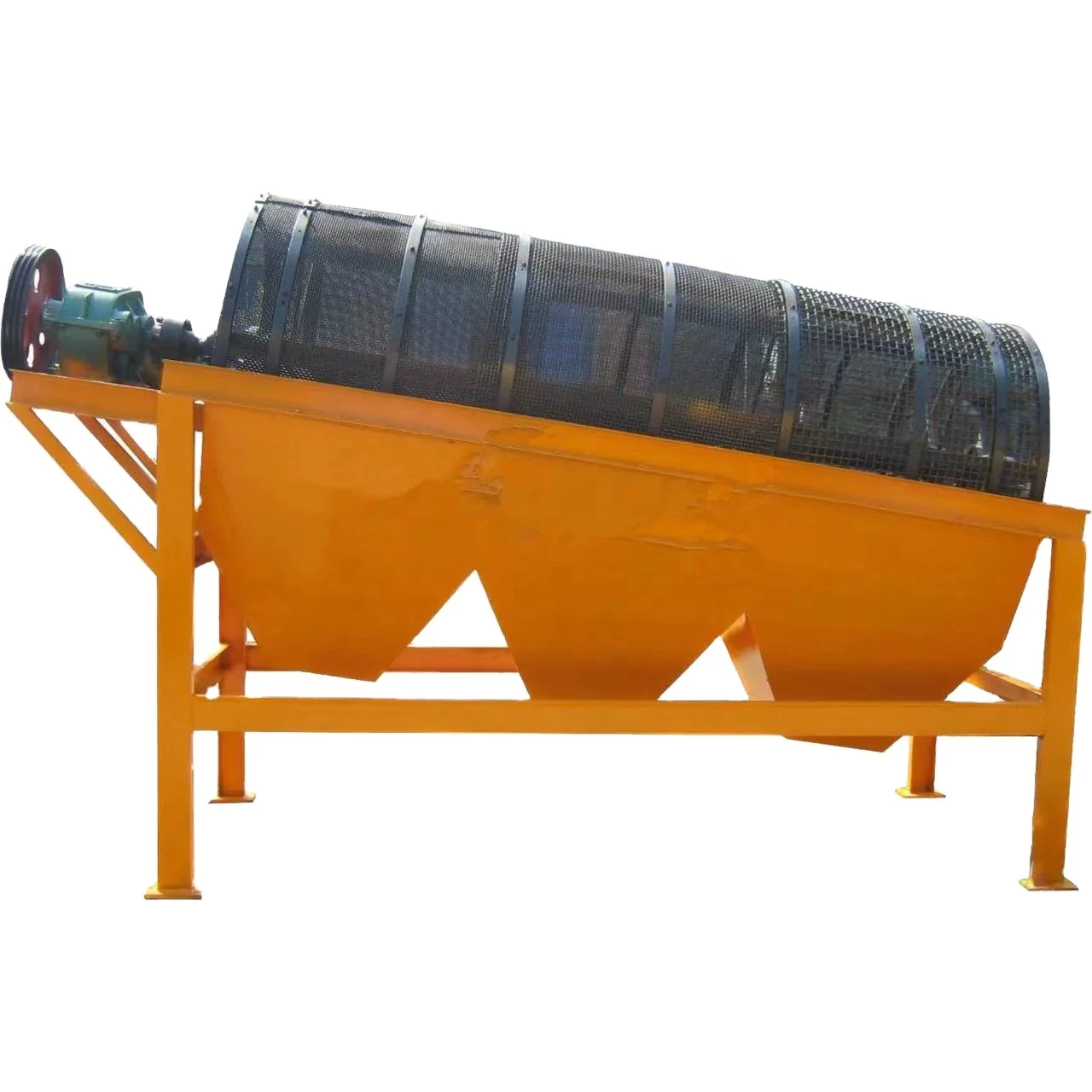

Сито Trommel ротационное сито для песка угля промышленного производства
187 359,21 ₽ - 198 380,34 ₽

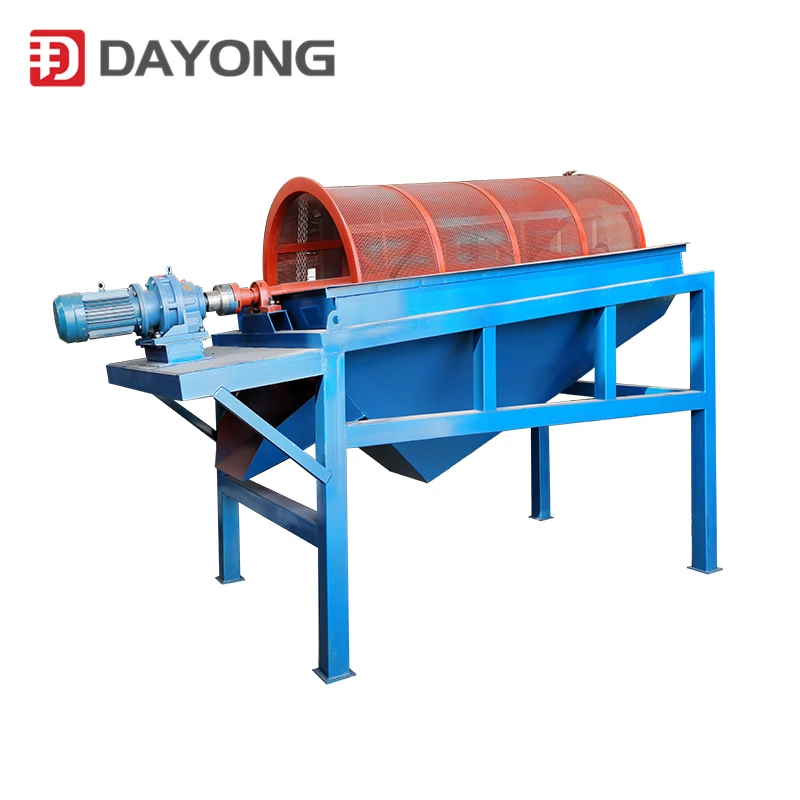

Барабанная просеивающая машина для древесных опилок ротационный просеиватель
