Оборудование для лазерной резки 3000 Вт 6 кВт
- Категория: >>>
- Поставщик: Beijing Boao Laser Tech Co. Ltd.Beijing Ltd.
Сохранить в закладки 1601101853814:
Описание и отзывы
Характеристики
Machines Introduction
Worktable Type : | Double Worktable Type |
Actual Cutting Size: | 3000x1500mm,4000x2000mm,6000x2000mm,8000x2000mm |
Cutting Thickness: | <25mm |
Materials : | Steel,Al, Brass,Alloy etc.. |
Laser Power : | 2000W |
Delivery Time : | 45 Working Days |
Warranty &Service : | 2 Years |
Main Parts
Laser Source
Original Raycus Fiber laser Source
Laser Head
Raytools Of Swiss
Laser Cutting Software
CypCut Cutting Software In original
Heavy Designing Worktable
Heavy Machine Tool Designing /Welded Bed /Precision Gantry Machining Center finishing milling/Secondary annealing/The Effective
Elimination of Stress
Elimination of Stress
Servo Motor System
YASKAYA Motor System of Japan .Y Axis :Double Driver,2.0KW /X axis 1.3KW /Z axis 400W
This type of configuration ensure the Repeating Precision Of Worktable: < +-0.03mm .
This type of configuration ensure the Repeating Precision Of Worktable: < +-0.03mm .
APEX Reducer
APEX reducer /higher precision
(Ensure The worktable movement more stable under higher precision condition )
(Ensure The worktable movement more stable under higher precision condition )
Technical Parameters
Model NO: | BFW2000 | ||||||
Laser Type | IPG fiber , Germany ------Raycus Fiber China | ||||||
Laser Wavelength | 1060nm | ||||||
Laser Maximum Power | 2000W/3000W/4000W/6000W/8000W/12000W/20000W | ||||||
Max. Cutting thickness | ≤20mm | ||||||
Total Power Consumption | <30KW (380v/ 3Phase/50Hz/ 110A) | ||||||
Working Size | 3000*1500 mm | ||||||
Max.cutting speed | 0-30m/min(Depending on the material and thickness) | ||||||
X, Y, Z Axis Orientation Precision | ≤±0.03mm/m | ||||||
X, Y, Z Axis Repeat Precision | ≤±0.03mm /m | ||||||
Min line width | ≤0.15mm | ||||||
Maximum Empty Running Speed | 100m/min | ||||||
Driving way | Imported servo motor | ||||||
Transmission way | Y-axis import gear rack double driver, X-axis imported ball screw | ||||||
Worktable Max Load | 12Tons | ||||||
Cooling System | Water Cooling | ||||||
Continuous working time | 24 Hours | ||||||
Environment temperature | 0-35°C | ||||||
Power requirements | 380V/3 Phases /50Hz or 60Hz | ||||||

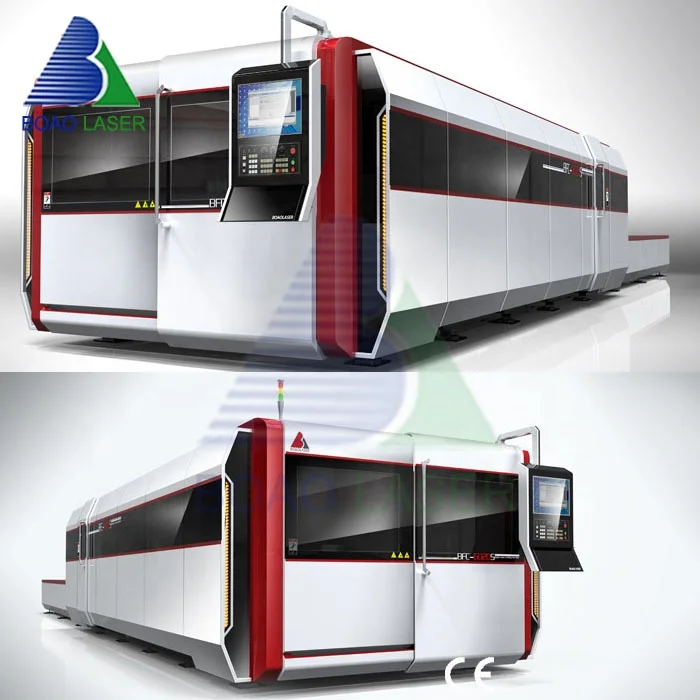

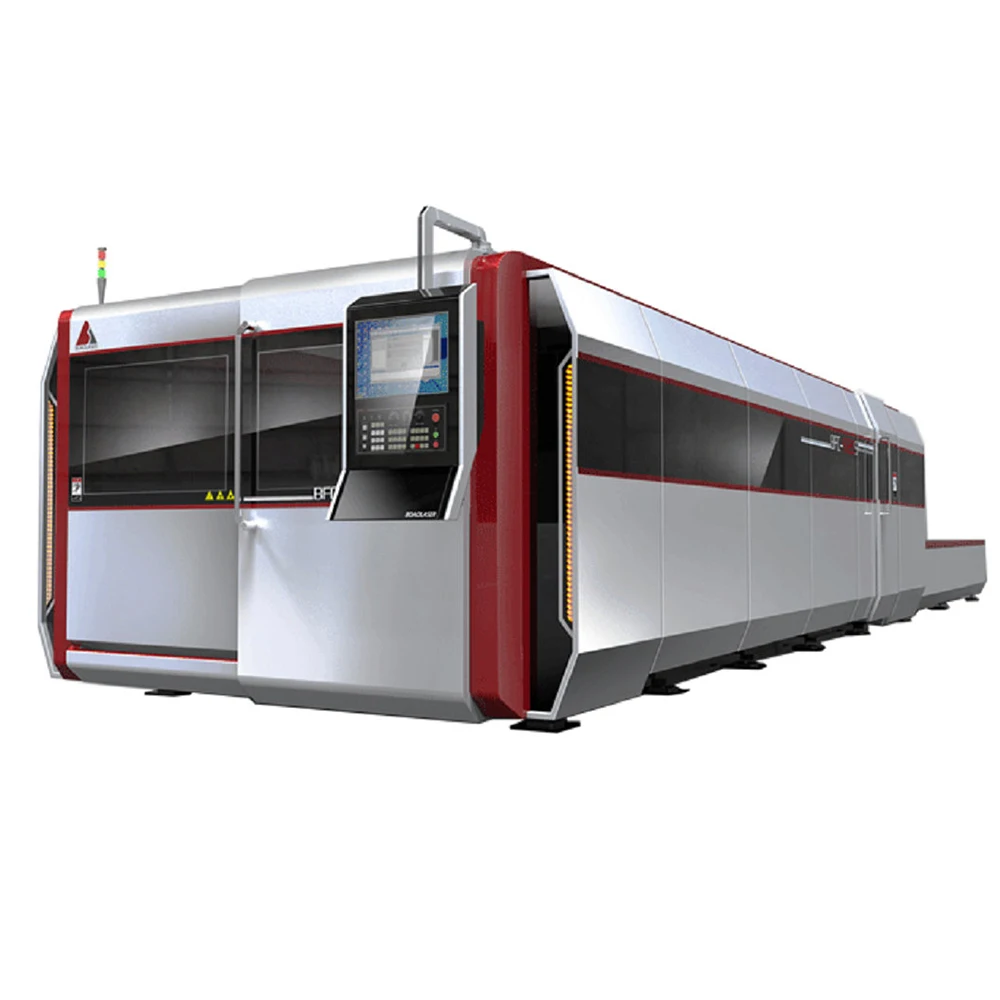

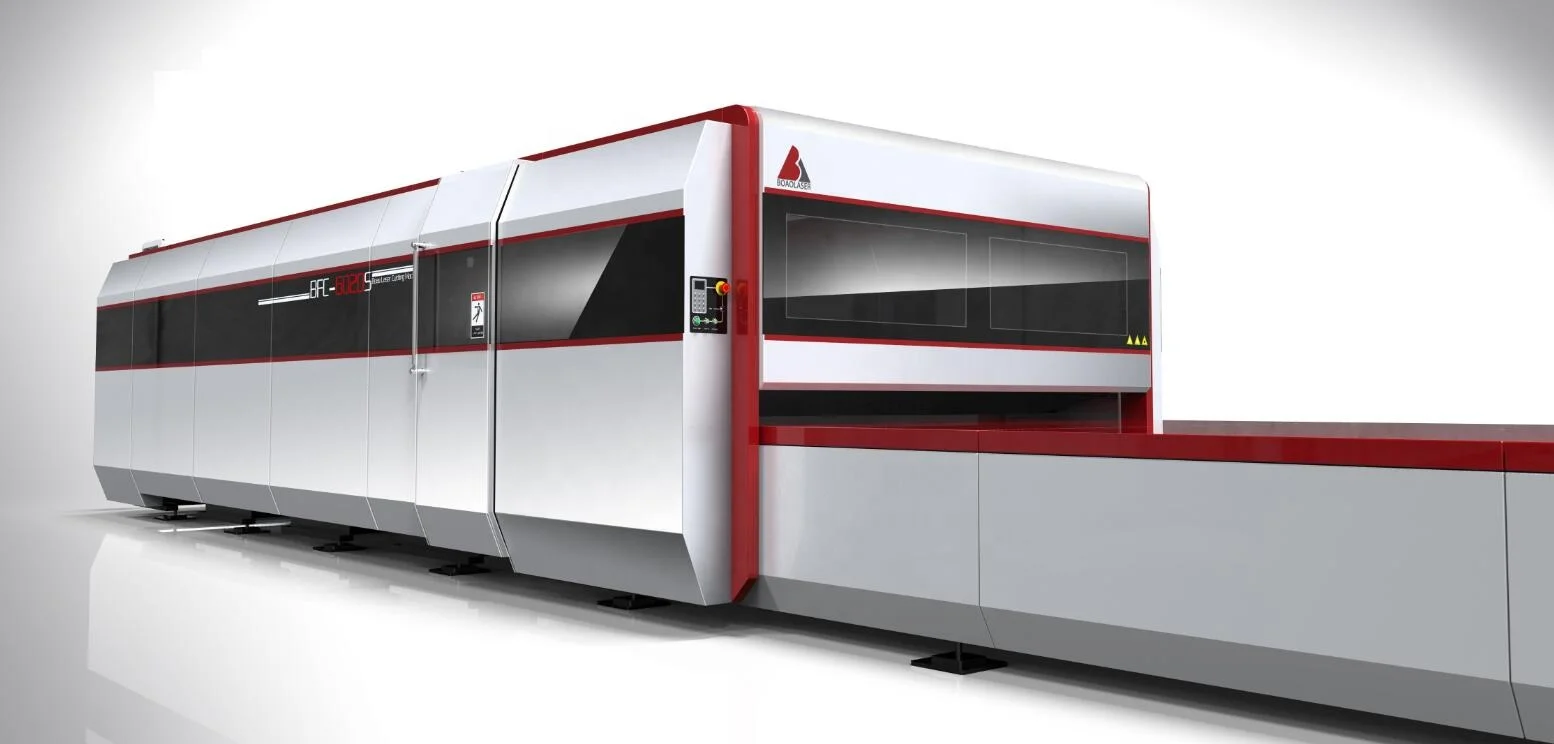

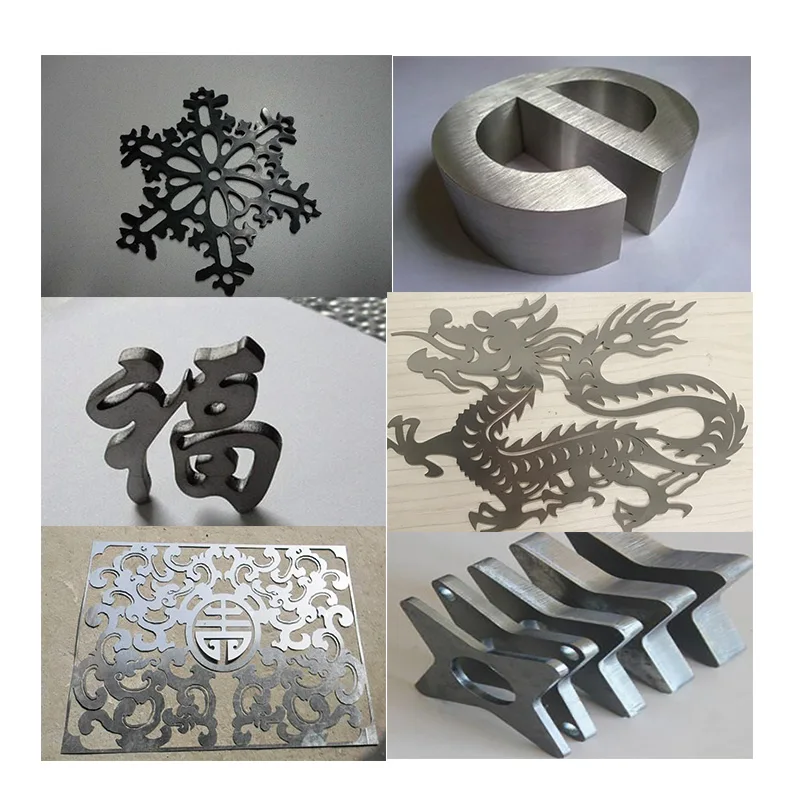

Machines And Cutting Photo
Production Procedure
Materials
Welding Worktable
Secondary Annealing
After Effective Elimination of Stress
Worktable Ready
Production
Running Test
Ready For Shipment
Transporation
Installationg And Training in Customers Factory
BOAO laser will arrange engineers go to customers factory provide the Insatllation And Training directly in English.
BOAO laser Company
BOAO laser Group Was founded in 2006 and is located in Beijng and Zhengzhou of China .It is a high-tech Enterprise which is specialized in R&D, Manufacturing and Marketing Various Laser Machinery .It was approved by CAS(Chinese Academy of Sciences) as the high–tech enterprise which is the largest and most comprehensive science and high-tech research organization in China.
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Products:
BOAO laser mainly Research & Production of large laser cutting machines, Medium&Small laser welding machines and Laser Marking machines in China. Invested $ 30 million build BOAO Industry Park and occupation of land 64000M2 , Special for the large Fiber laser cutting machines Research and Production .The main Laser Machines Production :
Fiber laser Cutting Machines Series from 300W--8000W,Cutting size from 500x500mm to 8000x2000mm .Laser welding Machines Series ,Laser Marking Machines Series .
Employee:
The company has 130 employees, including doctoral students, master's degree graduate 10, college or higher accounted for 80% of the number of companies.
Quality Control :
Boao laser based on the ISO9001 quality system standards and European standards for production,All aspect of Strict Quality Control in the Production Process to ensure Quality and Reliability of Laser Machines .
Service :
BOAO laser established relatively Completed Sales and After Sales Service Network , International Trade Sales Management Center, Build a number of effective International Agents and Distributors .Porvide 24 Hours online Service And 48 Hours Resolve Customer Problems Strategy
Certificates
Service
Website : | www.boaolaser.com |
General Manager: | Mr. Andy Yue |
Email: | sales@boaolaser.com andy@boaolaser.com |
Tel: | 0086-13910058345 0086-13911547331 0086-10-82895922 |
Wechat/Whatsapp: | 0086-13910058345 |
Advantages (Why Choose BOAO Laser?)
CAPACITY
*15 years Laser Machines Manufacturer .
*64000m2 Laser Technology Park In Zhengzhou of China .
*Beijing Office And Zhengzhou Production Base .
*CE/ISO90001 issued .
*One of the national standards unit in the laser industry
TEAM
*18 Technical Engineers of R&D Team
*86 Workers And Sales Engineers Team
*Developed 64 Countries Customers &Agent &Distributors All of the world.
*Obtained a number of laser patents
*Conduct regular training on technical, laser and service knowledge for all staff
SERVICE
*24 Hours Online Service Support Team in English .
*Professional, comprehensive training videos and materials are provided.
*Free Spare Parts And Service Within Warranty Time .
*Oversea Travel Service
*Implement 48-hour problem & Questions Confirmation and Solution Policy .
