JX гравировальный камень надгробный мраморная тень гравировка резьба лазерная машина
- Категория: >>>
- Поставщик: Shandong Jx Auto Cnc Machinery Co. Ltd
Сохранить в закладки 1601102587571:
Описание и отзывы
Характеристики
Products Description
Headstone marble stone granite pictures co2 laser engraver printer engraving machine

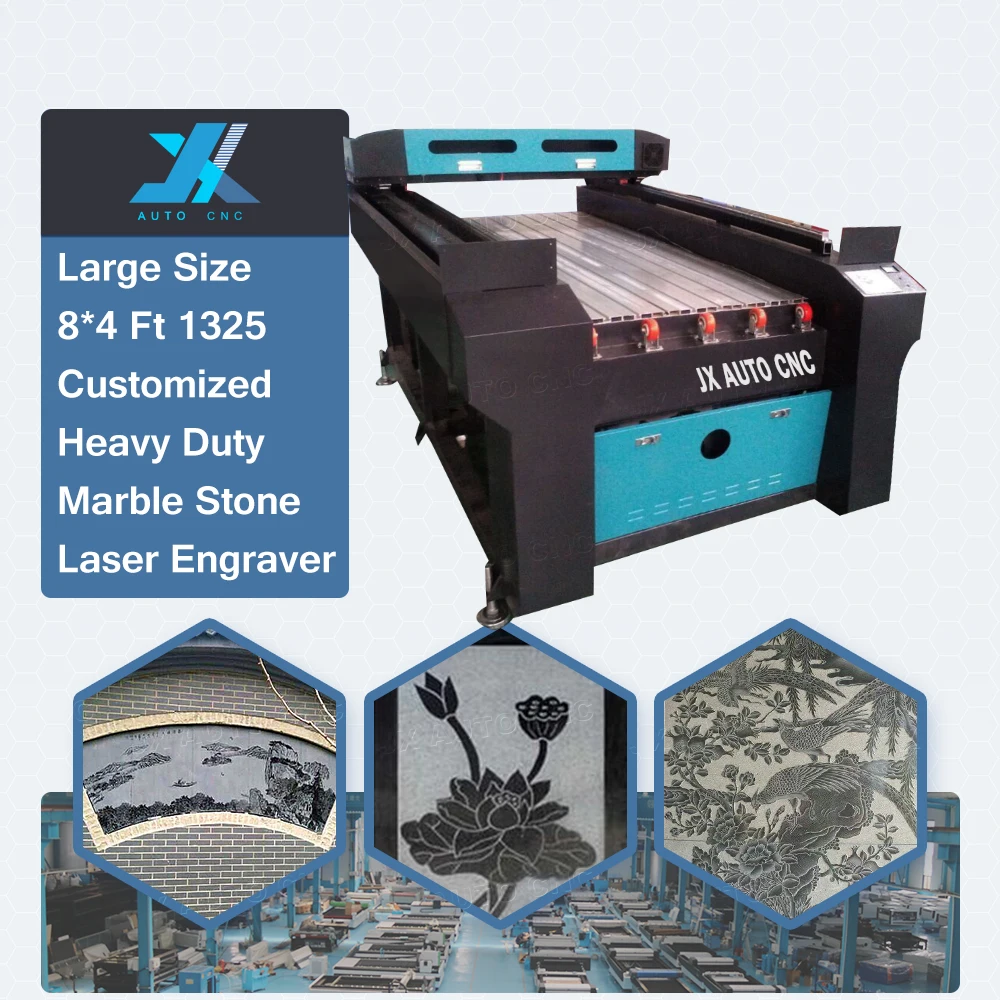

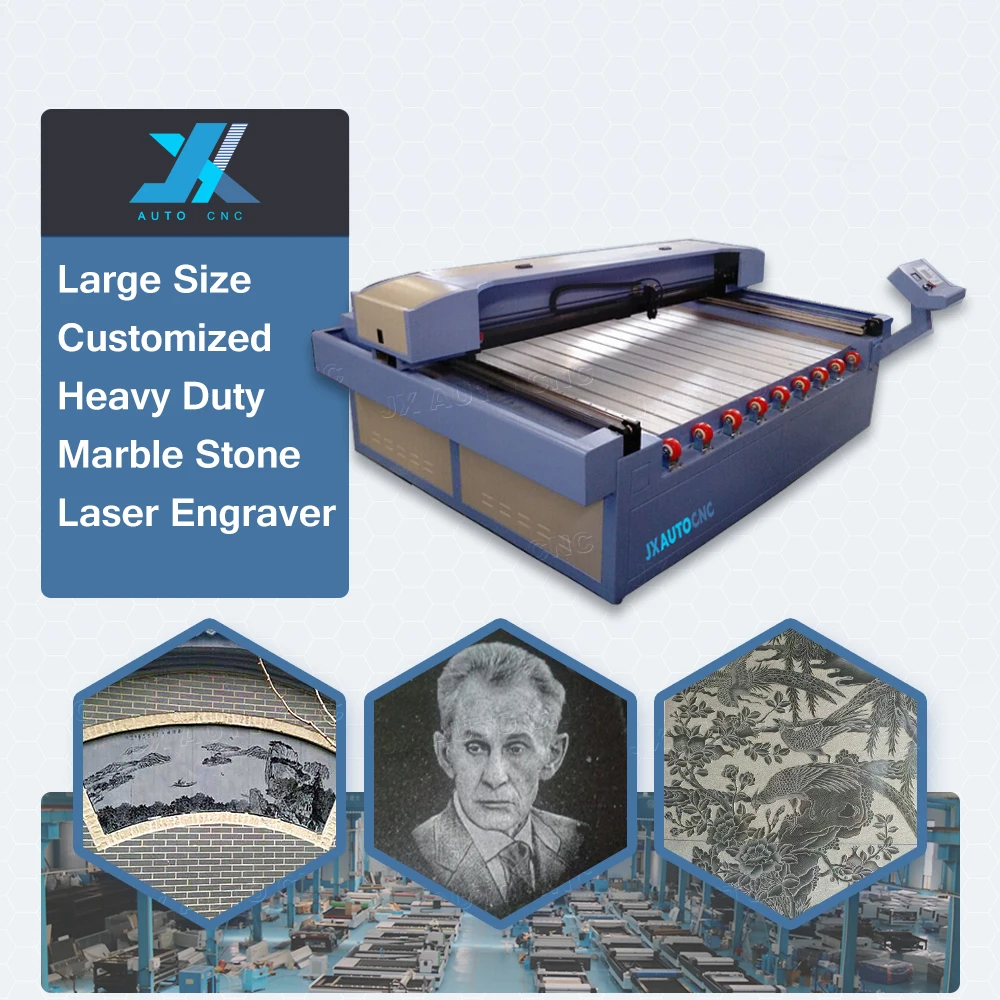

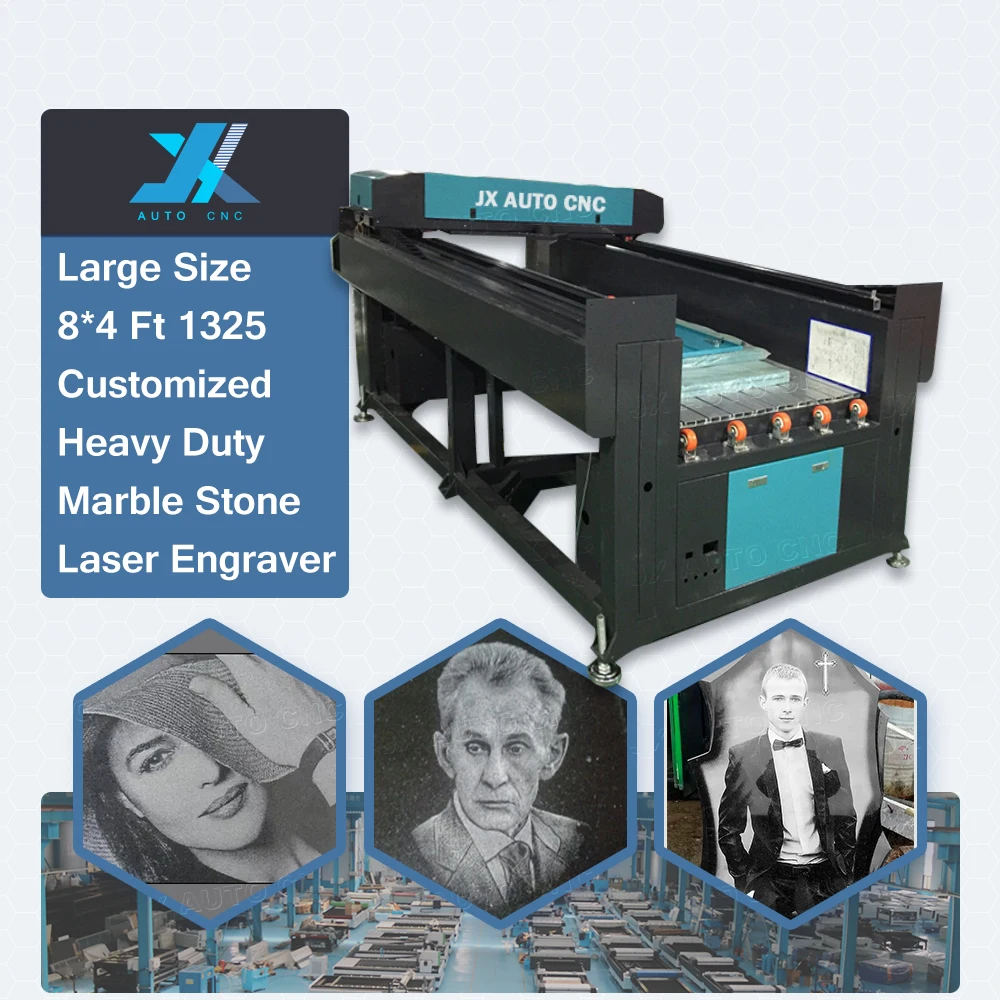

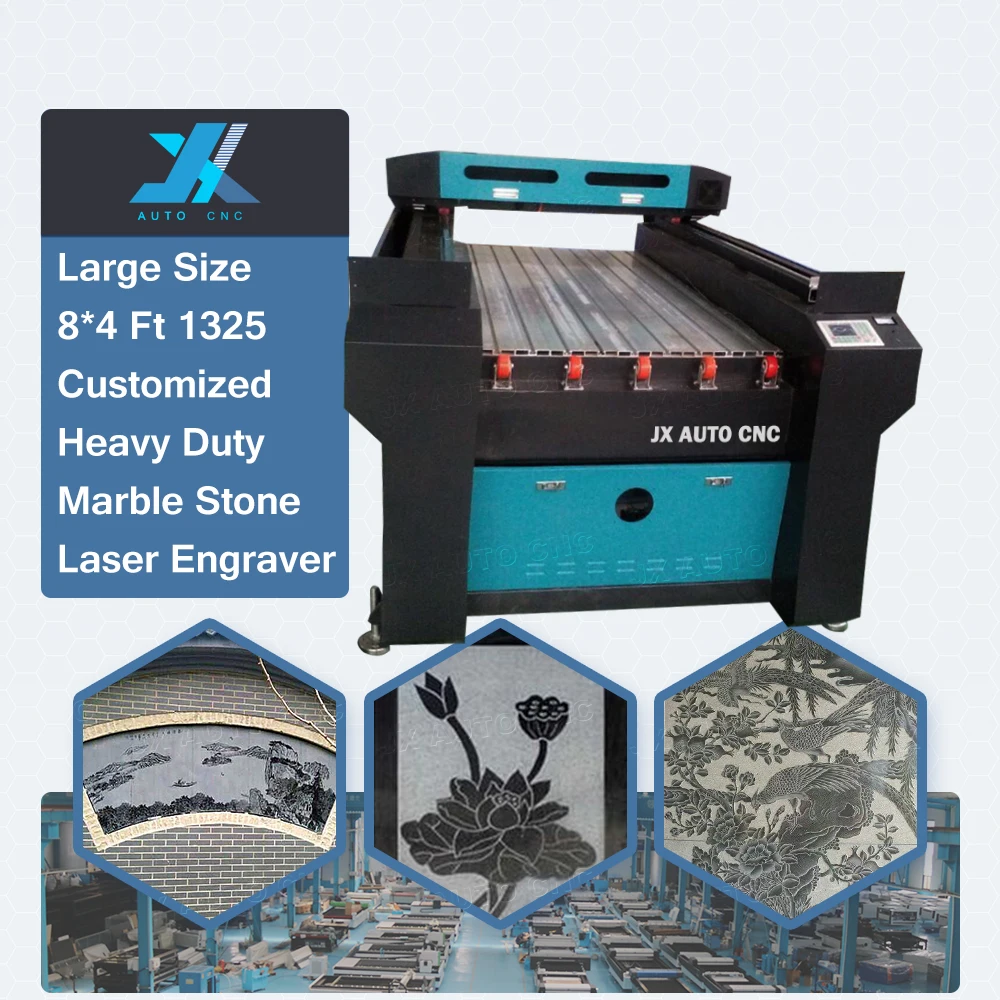

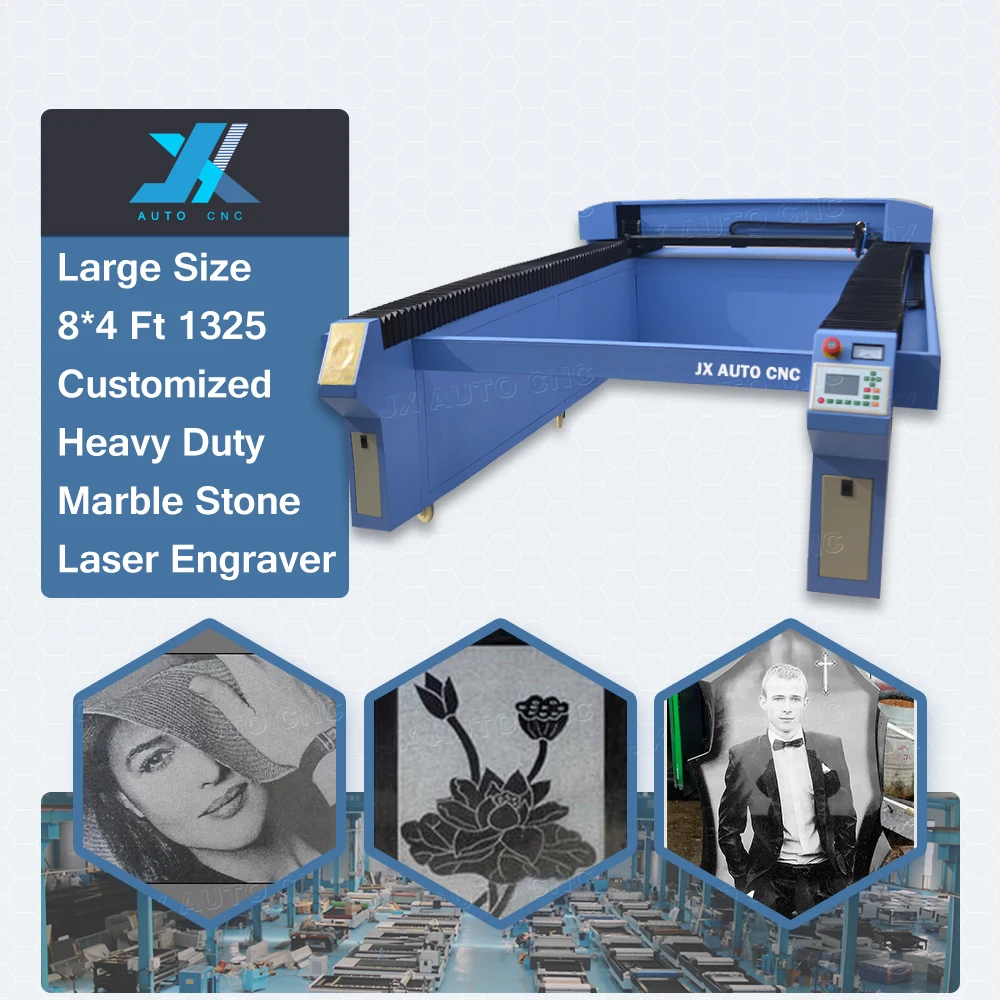

JX1610U Compact Co2 Motor lift Granite Laser Engraver
Divisible Stone Engraving Laser Engraving machine is developed for heavy materials. It brings great convenience to customers. The
machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the
machine, and the lower part can configure suitable platforms according to customers’ requirements. The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material.
Divisible Stone Engraving Laser Engraving machine is developed for heavy materials. It brings great convenience to customers. The
machine is designed by upper part and lower part, and the two parts can be separated. The upper part can be moved down from the
machine, and the lower part can configure suitable platforms according to customers’ requirements. The design changes the traditional engraving method. For some heavy materials we can put the upper part onto them, so that avoiding the difficulty of moving heavy material.
Meanwhile, it solves the problem that platform has a limited bearing ability. Both parts can be up and down so that engraving objects with greatly thickness changing is much easier to process.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
With unique design, excellent technique, our divisible style laser engraving machines are popular in marble engraving industry and many heavy material engraving industries.
Product Paramenters
Model | JX1390U/JX1610U |
Working area | 130cm*90cm(51.18in*35.43in) 160cm*100cm(62.99in*39.37in) |
Equipment size | 2370x1750x650mm/93.30x68.89x25.59in(LxWxH) 2680x1870x630mm/105.50x73.62x24.80in(LxWxH) |
Laser power | 70W/80W/90W/100W |
Laser type | CO2 sealed laser tube, water-cooled, 10.6um |
Engraving speed | 0-70000mm/min |
Cutting speed | 0-40000mm/min |
Laser output control | 1-100% software setting |
Communication interface | USB |
Smallest Character Engraving | English 1.0mm*1.0mm |
Locating Precision | ≤±0.01mm |
Highest Scanning precision | 4000DPI |
Operating temperature | 0 - 45°C |
Cooling type | Water cooling |
Power supply | 220V/50HZ , 110V/60HZ |
Graphic format supported | BMP, PLT, DST, DXF, AI |
Software supported | CorelDraw, PhotoShop, AutoCAD,TAJIMA |
Driving system | 3 phase stepper motor |
Gross weight | 489Kgs |
Optional Parts | 1.Metal slat worktable 2. Rotary tool with rollers 3. Red dot positioner 4. Auto focus |
Details Images
control panel
Adopt the off-line motion control system which need not be connected to PC operation. Use USB data import, can reserve many
processing documents.
Laser head with CCD
The camera can identify the whole work table design and cutting. can auto-generated the graphics according to the pattern on the fabric, automatic cutting no need drawing.
RECI laser tube
This CO2 Laser Tube has an inlet and outlet for water cooling and wire connections
for the anode and cathode sides of the tube.more precise markings on a wide
variety of materials.
Structure maching process
Sample & Application
Applicable materials:
Marble, stone, tomb stone, wood, bamboo, organic glass, crystal, plastic, garments, paper, leather, rubber, ceramic, glass and other nonmetal materials
Applicable industries:
Advertisement, gift, shoes, toys, computers, garments, model cutting, building, packaging, paper industry.
After service
Company Profile
Our Advantages
Certifications
Client Feedback
FAQ
Похожие товары
1325 6 мм 18 МДФ фанера 150 ватт источник питания co2 лазерная резка машина с охладителем
529 014,24 ₽
Горячая Распродажа 1325 1530 гибридная лазерная машина для резки металла и неметалла с двойной головкой
Supercnc 130 Вт 150 4x8 футов Reci трубка 1325 Co2 для лазерной резки древесины продажи
471 488,12 ₽ - 526 312,32 ₽
Лидер продаж профессиональная 1325 для лазерной гравировки CO2 по дереву МДФ акрил
548 242,00 ₽ - 603 066,20 ₽

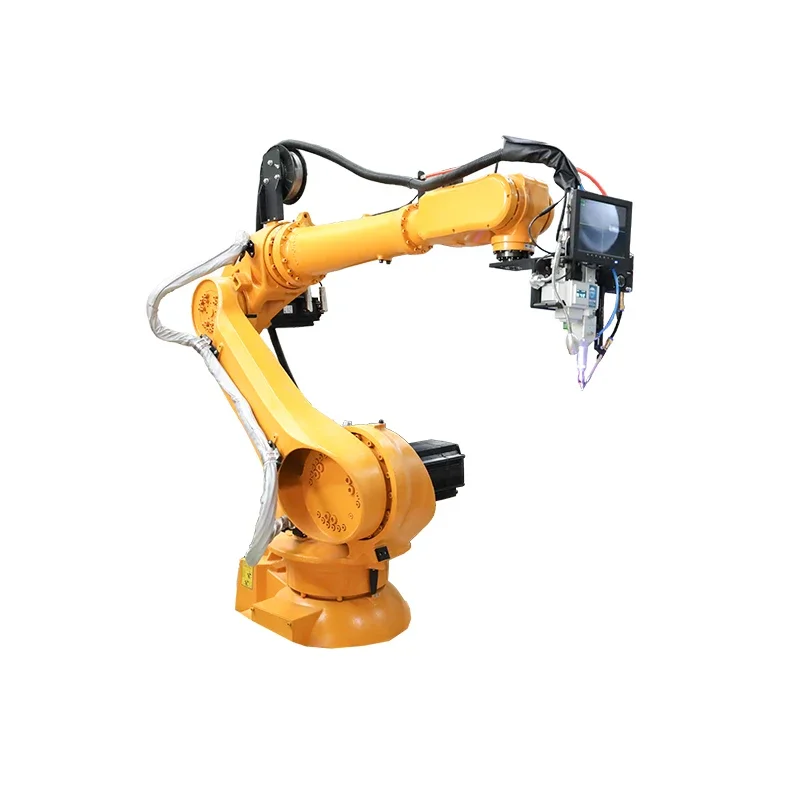

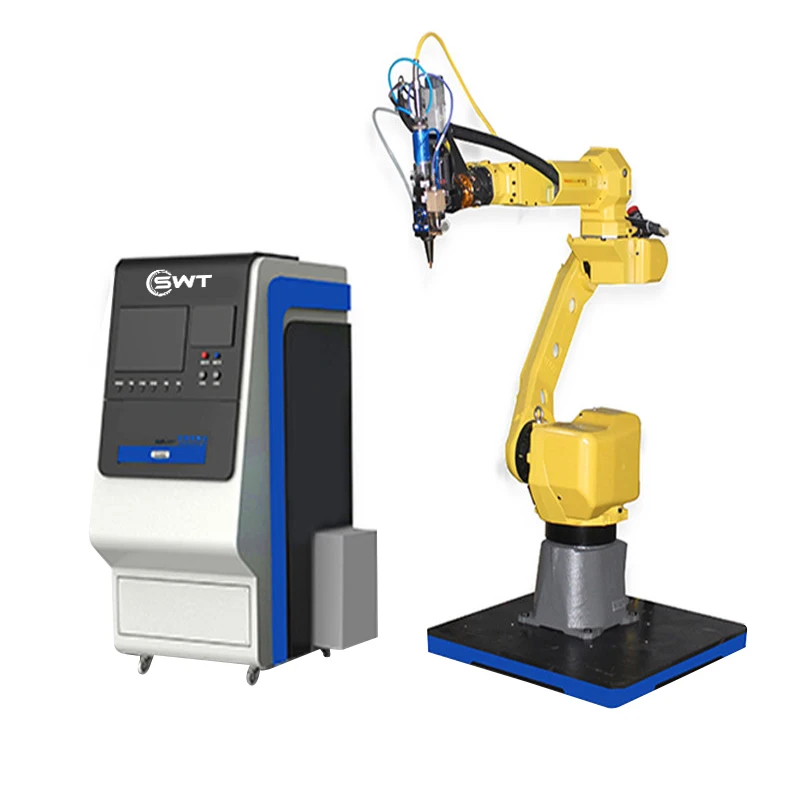

RayTools 2000 Вт-3000 Вт мощный волоконно-лазерный станок для резки робот рука 6 оси 3d лазерный резак прецизионной металла
