Product Description
![Z-LTWH500-1]()
![Z-LTWH500-3]()
![Z-LTWH500-2]()
![Z-LTWH500-4]()

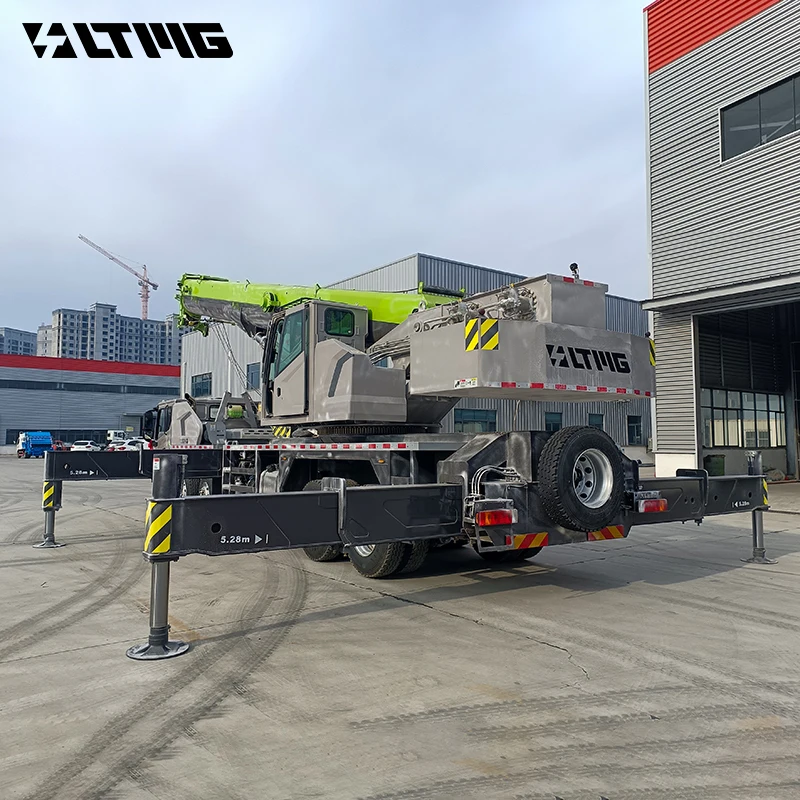

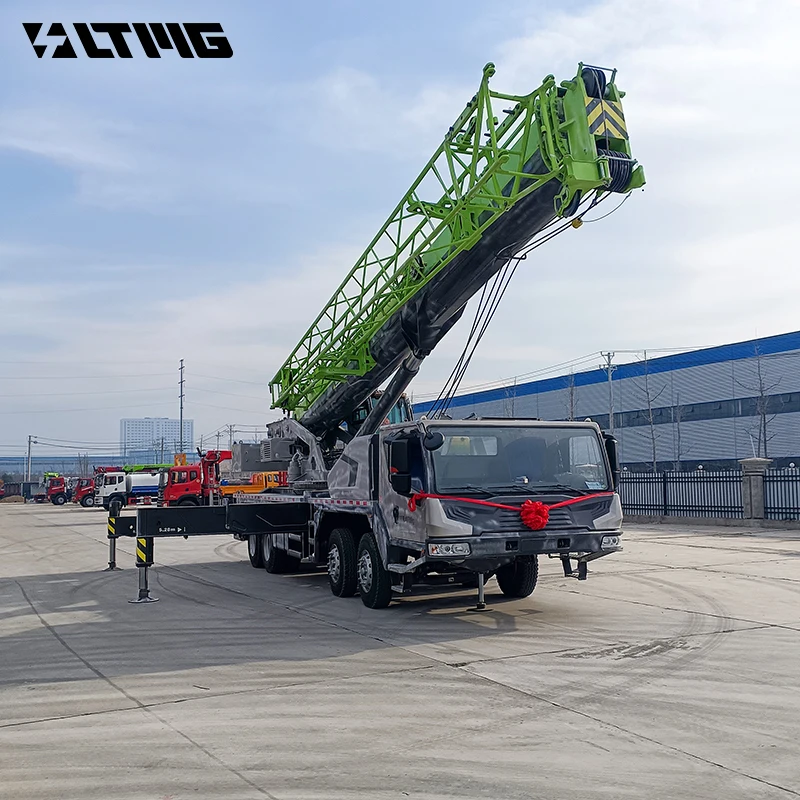

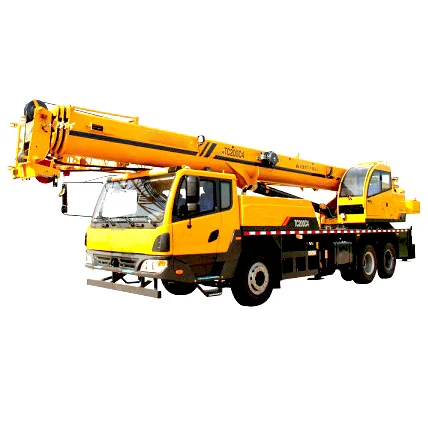

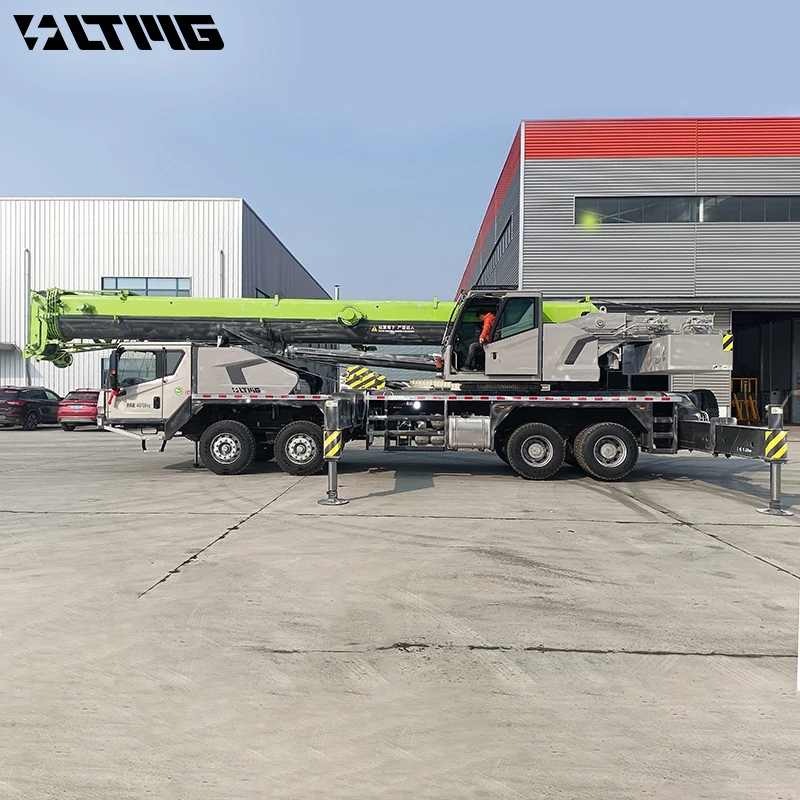

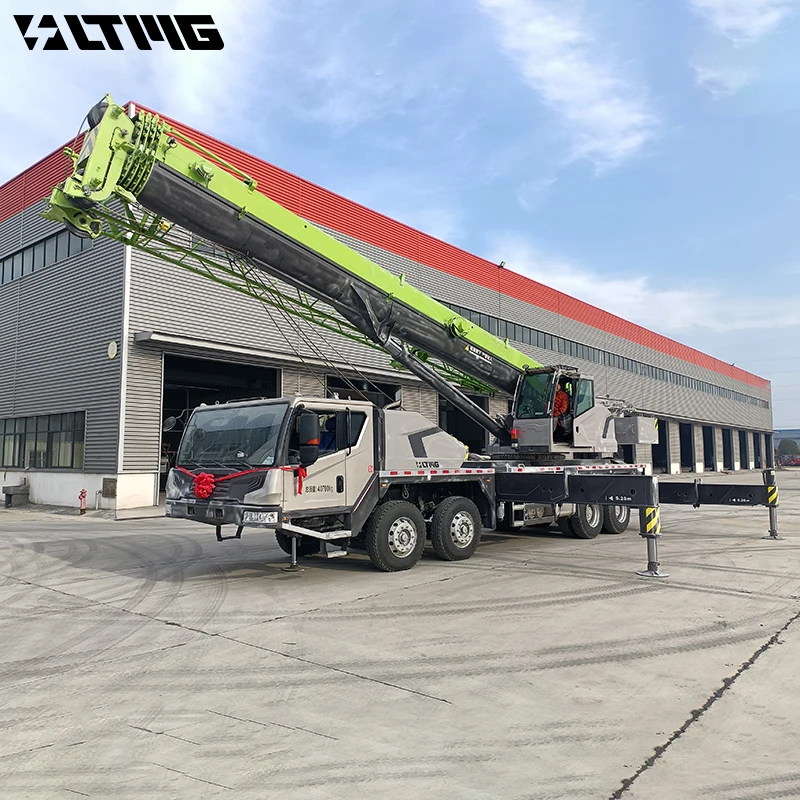

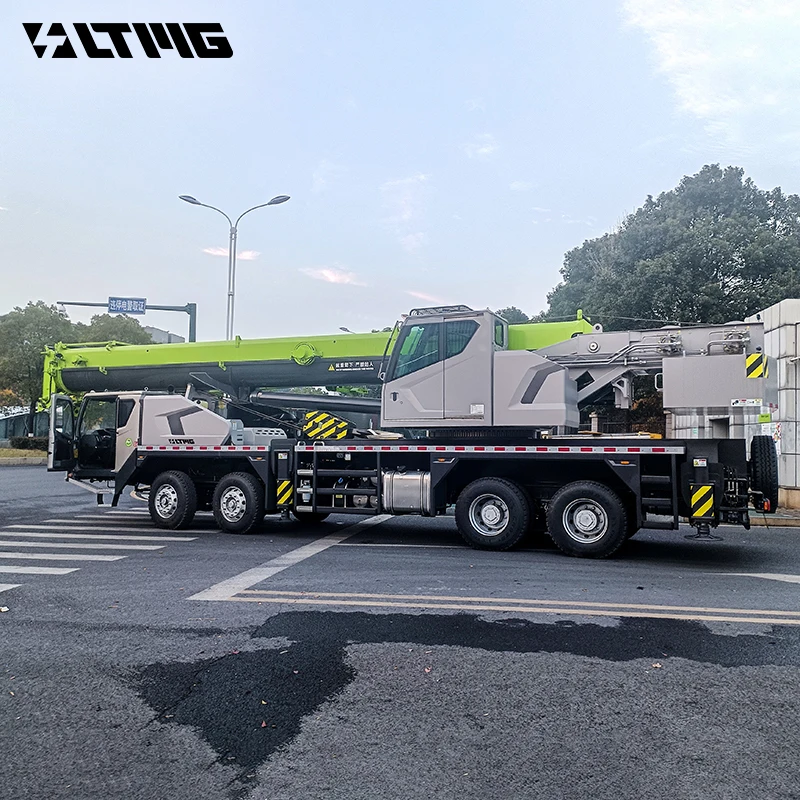

1. Liftsun truck crane adopts the famous brand of chassis. The driver cab and operator cab are separated. The advantage is that the crane has good mobility, high reliability and convenient after-sale service, etc.
2. The design of the whole crane is more reasonable than other kinds of cranes, saving raw materials and satisfying performance requirements.
3. New type cab, adjustable suspension seat, air motive shed, electron-hydraulic proportional handle and the push-button control, large color display and new dashboard, electric control H outrigger, electric control engine, electric control hydraulic torque converter gearbox, brake steering drive axle, easily operation, safe and reliable.
Description
|
Unit
|
Parameter value
|
Overall length
|
mm
|
13930
|
Overall width
|
mm
|
2780
|
Overall Height
|
mm
|
3630
|
Axle base
|
1st ,2nd axle
|
mm
|
1470
|
2nd ,3rd axle
|
4300
|
3rd ,4th axle
|
1350
|
Wheel Base
|
mm
|
2304+2075
|
Front overhang/rear overhang
|
mm
|
2389/2064or 2376/2064
|
Front extension/rear extension
|
mm
|
2131/226 or 2144/226
|
Total vehicle mass in travel configuration
|
kg
|
42200
|
Axle load
|
Front axle
|
kg
|
16200
|
Rear axle
|
26000
|
Engine Model
|
|
WD615.338
|
Engine rated power
|
kw/(r/min)
|
276/2200
|
Engine rated torque
|
N.m/(r/min)
|
1500/1300-1600
|
Max. travel speed
|
km/h
|
85
|
Min. steady travel speed
|
km/h
|
2~3
|
Min. turning diameter
|
m
|
24
|
Min. ground clearance
|
mm
|
327
|
Max. grade ability
|
%
|
42
|
Approach angle
|
°
|
19
|
Departure angle
|
°
|
15
|
Braking distance (at 30 km/h, full load )
|
m
|
≤10
|
Oil consumption per 100km
|
L
|
40
|
Exterior noise level during acceleration traveling
|
dB (A)
|
≤88
|
Noise level at seated position
|
dB (A)
|
≤90
|
