Насос с КУЛАЧКОВЫМ ротором 7,5 кВт, lobular шестеренчатые насосы для меда
70 483,34 ₽ - 75 905,13 ₽
Машина для розлива кетчупа роторный кулачковый насос медовый соус Чили майонез высоковязкий
- Категория: >>>
- Поставщик: Hebei Beigong Pump Co. Ltd.
Сохранить в закладки 1601103053881:
Описание и отзывы
Характеристики
Products Description
Overview:
The cam type double rotor pump is a multi-purpose two-way positive displacement pump produced by our company. This product uses two rotors running synchronously. The cam rotor pump adopts gear transmission, and the main shaft and the auxiliary shaft drive the rotor to rotate synchronously and reversely, so that the volume of the pump changes, forming a higher vacuum degree and discharge pressure, especially suitable for sanitary media and highly corrosive high viscosity medium.
Various specifications, support customization
Hot water insulation jacket type
Suitable for conveying chocolate, syrup and other high-viscosity liquids

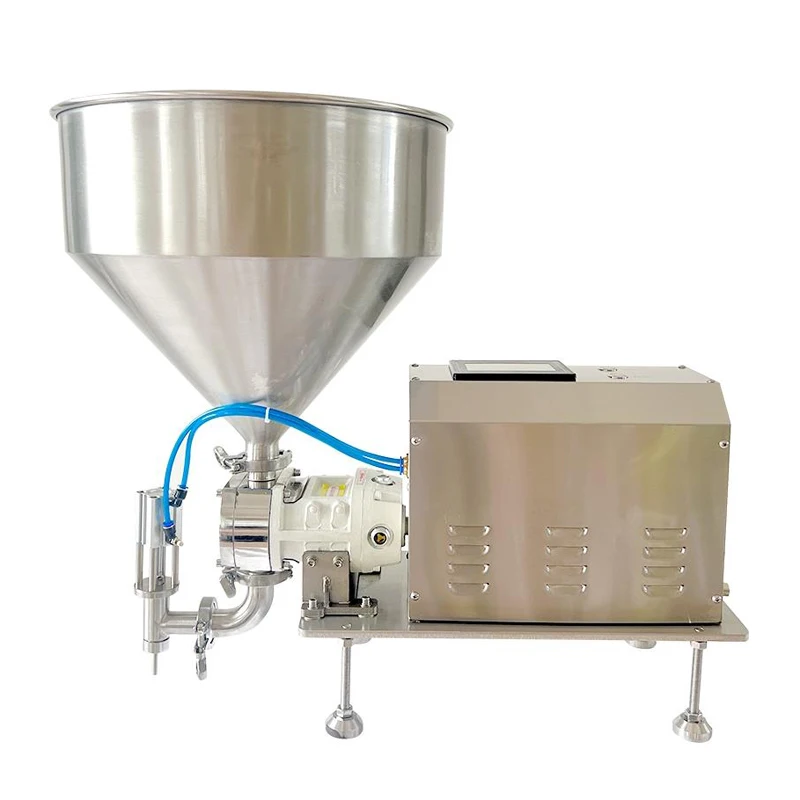

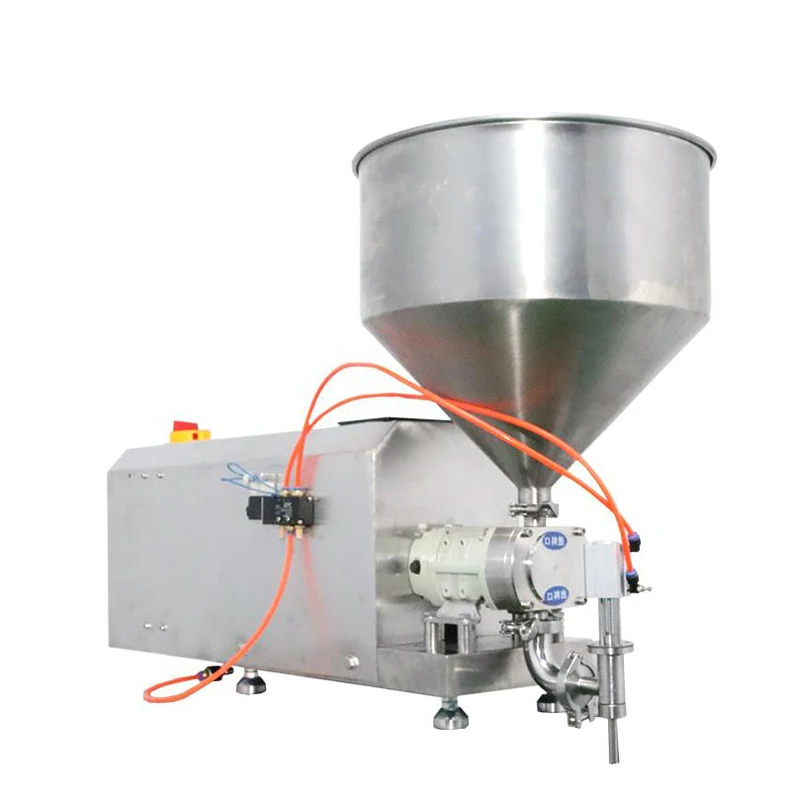

Food filling type
Equipped with a control device, it can accurately transport slurry of different weights
With trolleys mobile
Universal wheels installed, more convenient to move
Structure:
1> Gear
2> Transmission shaft
3> Vent plug
4> Bearing cap
5> Tighten
6> Rotor locking
7> Rotor
8> Sealed
9> The cover
10> Gearbox
Pump Shell:
1> Material
304/316stainless steel
2> Characteristic
Multiple interface design
No leakage
High temperature resistance
No leakage
High temperature resistance
3> Transfer
Chocolate, jam, chili paste, tomato paste, honey, rubber, meat foam, cosmetics, resin, etc
Rotor:
1> Single lobe rotor
2> Two lobe rotor
Butterfly type roto
3> Three lobe rotor
Helical three lobe rotor
4> Multi lobe rotor
Motor:
1> Material
100% Copper wire
2> Characteristic
Pole: 2 /4 /6
Protection class：IP168
Voltage: 220V/380V
Protection class：IP168
Voltage: 220V/380V
Optional: ordinary motor, servo motor, reduction motor, stepless speed regulating motor, variable frequency motor, etc
Filling high viscosity rotor pump
Categories
Product parameter table
Model | Discharge Capacity | Flow | Speed Range | Max Pressure | Viscosity | Motor Power | Caliber |
L/100r | (m3/h) | (rpm) | (MPa) | (Cp) | (kW) | (Clamp/Flange) | |
RP-1-5 | 5 | 0~1 | 4~700 | 1 | 1~500000 | 0.25~1.5 | 1"/DN20 |
RP-2-10 | 10 | 0.2~2 | 40~700 | 1.2 | 1~500000 | 0.55~2.2 | 1.25"/DN25 |
RP-3-17 | 17 | 0.4~3 | 40~500 | 1.5 | 1~1000000 | 0.75~3 | 1.5"/DN32 |
RP-5-26 | 26 | 0.6~5 | 40~500 | 1.5 | 1~1000000 | 1.5~5.5 | 2"/DN40 |
RP-8-46 | 46 | 1~8 | 40~450 | 1.5 | 1~1000000 | 2.2~11 | 2.5"/DN50 |
RP-12-70 | 70 | 1.6~12 | 40~450 | 1.5 | 1~1000000 | 3~15 | 2.5"/DN50 or DN65 |
RP-20-120 | 120 | 2.8~20 | 40~400 | 1.5 | 1~1000000 | 4~18.5 | 3"/DN65 or DN80 |
RP-35-210 | 210 | 5~35 | 40~400 | 1.5 | 1~1000000 | 7.5~30 | 4"/DN100 |
RP-55-420 | 420 | 10~55 | 40~350 | 1.5 | 1~1000000 | 11~45 | DN125 |
RP-80-670 | 670 | 16~80 | 40~350 | 1.5 | 1~1000000 | 15~75 | DN125 or DN150 |
RP-120-1100 | 1100 | 26~120 | 40~300 | 1.5 | 1~1000000 | 22~90 | DN150 |
Product real shot
Transportation and service
Product packaging, boxing, nailing, loading, arrival at the port, transportation
Support freight, air, sea, express and other transportation methods to provide you with better service, which is the purpose of our company!
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
Hebei Beigong Pump Industry Co., Ltd. wins the trust of customers with quality. All products are strictly inspected before leaving the factory to ensure product quality. During the warranty period, if the product fails to work normally due to poor manufacturing, the company will replace and repair the product and parts for the user free of charge. Beigong Pump Industry has a complete after-sales service system to ensure that customers have no worries about using any product.
Warm reminder: The price of the product is mainly in kind! For details, consult our customer manager
Our Company
Our Advantages
FAQ
Q: How can I make order online?
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
A: Send email or message(whatsApp/ wechat) us.you can ask any question ,after we confirm the detail, we can make order.
Q: Do you have MOQ limit?
A: The MOQ is 1 set.
Q: Which payments are acceptable?
A: T/T, L/C, Western Union, Paypal, Alibaba Trade Assurance.
Q: Which shipping terms are available?
A: By sea, air, Express
Q: How about the delivery time?
A: Delivery time is normally 3-7 working days after confirm the money. Depends on your quantity.
Q: What guarantee do you have?
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
A: The product warranty period is 2 years, except for wearing parts (if the product fails to work normally due to poor manufacturing, the company will replace and repair products and parts for users free of charge. Product damage caused by human causes is not covered by the warranty).
Q: Can I purchase parts separately?
A: Yes, all pump spare parts can be purchased separately.
