Лидер продаж Высококачественная Высокоэффективная ламинарная вытяжка модульная чистая комната Hepa FFU
180,00-220,00 $
Class10000 офтальмологическая Операционная модульная чистая
- Категория: >>>
- Поставщик: Dongguan Amber Purification Engineering LimitedDongguan Limited
Сохранить в закладки 1601103436861:
Описание и отзывы
Характеристики
Product Description

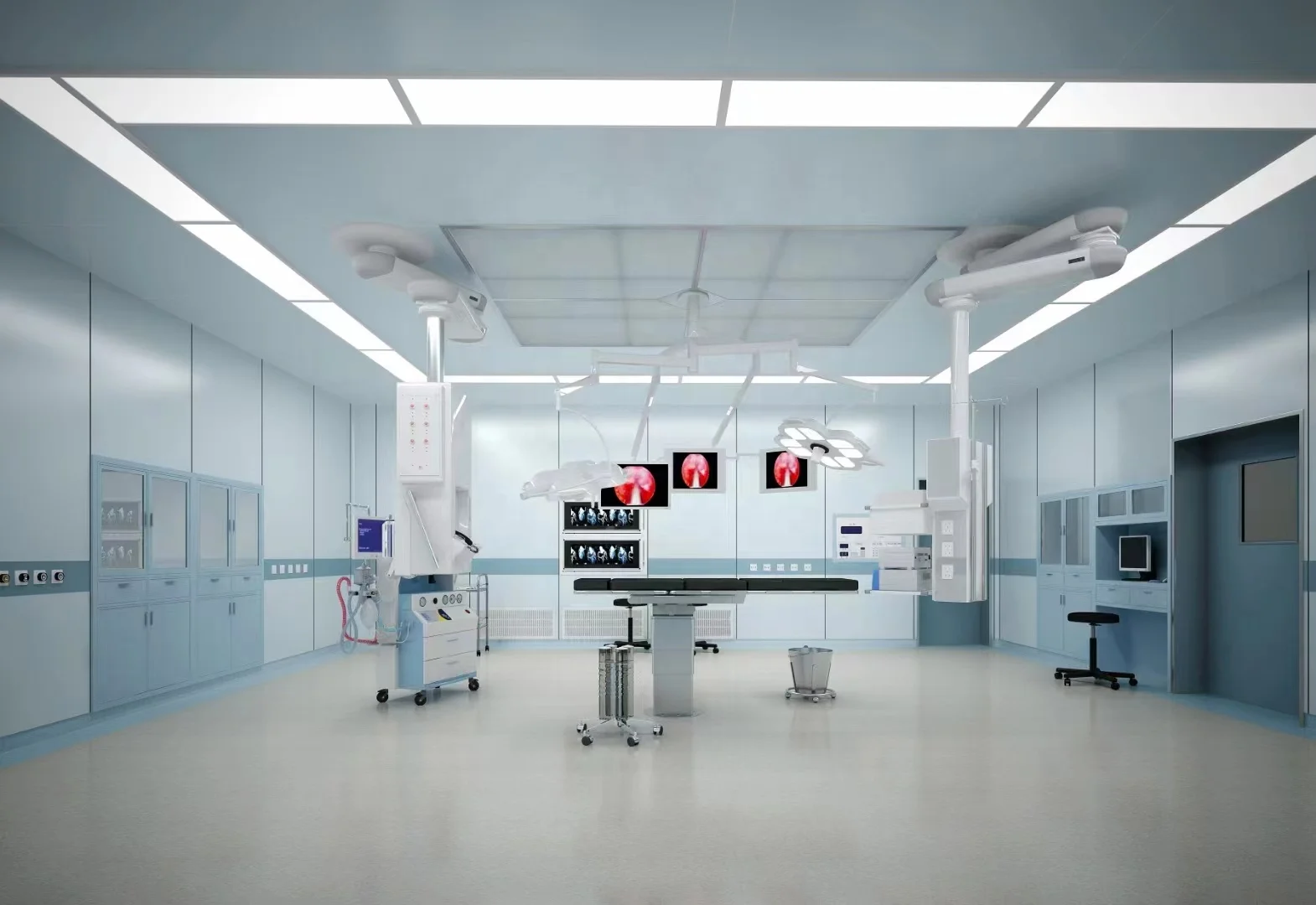

AMBER OPERATION ROOM
AMBER, we provide a one-stop operating room system that integrates production, sales, and installation into a complete service system. We have a large-scale production workshop that independently produces and develops operating room panels, control systems, medicine cabinets, instrument cabinets, laminar air supply ceilings, clean air conditioning systems, and more.
And cooperate with multiple well-known enterprises to provide customers with operating room equipment, such as shadowless lamps, suspension towers, operating beds, gas terminals, etc. In recent years, electrolytic steel plates in operating rooms have replaced traditional color steel sandwich panels.
Electrolytic steel plates have characteristics such as anti-static, antibacterial, corrosion resistance, moisture resistance, etc., with a long service life, and are gradually accepted and promoted by countries around the world. The laminar flow operating room has been widely used by the public.
AMBER has over 10 years of experience in the operating room industry, with professional engineering design support and installation services, providing operating room products and installation services to more than 50 countries and regions.

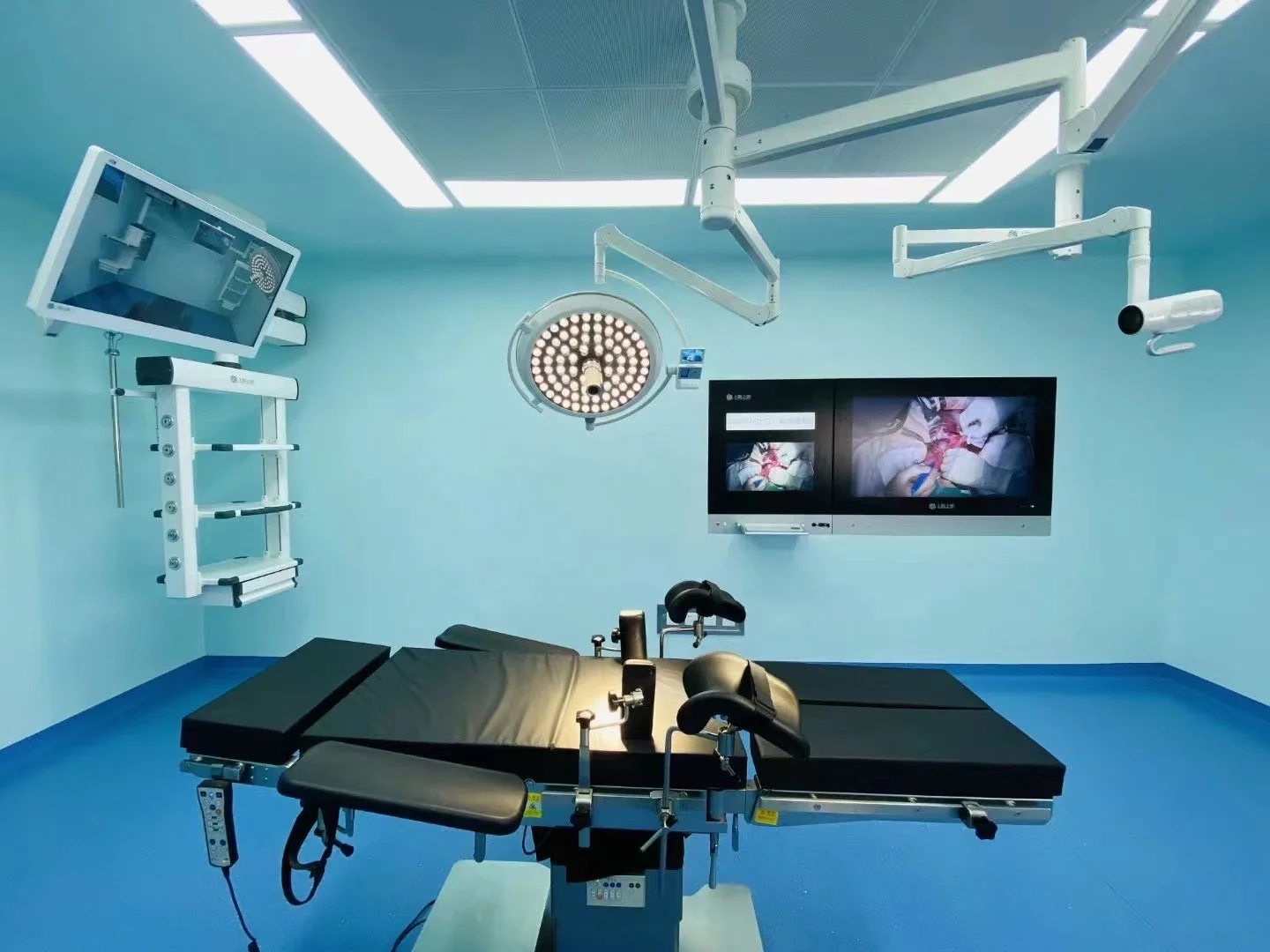

DIGITAL OPERATION ROOM
1. Digitalization and purification of the overall design of the operating room, integrated construction, truly achieving efficient intelligence, flexible expansion, and plug and play of the operating room;
2. A comprehensive clinical information solution for the perioperative period, integrating HIS, LIS, and PACS to achieve information interconnection and interoperability;
3. Fully integrate surgical peripheral imaging access (DSA, laparoscopy, ultrasound, intraoperative imaging, etc.), and switch to any routing;
4. Real time sharing of surgical videos and medical imaging materials, full link 4K ultra high definition surgical live streaming, achieving remote teaching and consultation;
5. Centralized control of operating room equipment (environment, video, audio, medical equipment, etc.), integrated touch operation;
6. Communication of surgical process information, improvement of work efficiency, improvement of doctor-patient relationship, and enhancement of medical experience
2. A comprehensive clinical information solution for the perioperative period, integrating HIS, LIS, and PACS to achieve information interconnection and interoperability;
3. Fully integrate surgical peripheral imaging access (DSA, laparoscopy, ultrasound, intraoperative imaging, etc.), and switch to any routing;
4. Real time sharing of surgical videos and medical imaging materials, full link 4K ultra high definition surgical live streaming, achieving remote teaching and consultation;
5. Centralized control of operating room equipment (environment, video, audio, medical equipment, etc.), integrated touch operation;
6. Communication of surgical process information, improvement of work efficiency, improvement of doctor-patient relationship, and enhancement of medical experience
Specification
Operation Room Cleanliness | Available from class 100~100000 |
Design Scope (from structure, HVAC, electric to auto-control,medical gas system etc) | 1. Structure: Wall Panel, Ceiling panel Ceiling filtering system, Windows, Doors, Various Fittings, Flooring |
2. HVAC: AHU, Ducting, Piping, Chiller, dehumidifier, etc. | |
3. Electric: Lighting, Switch, Cables, Wires, Power Distribution Cabinet, etc | |
4. Auto-control: PLC Controller, Sensors for Humidity and Temperature, Control Panel | |
5. Medical Gas System: Medical gas terminal, medical gas pipeline | |
Temperature | 21-27℃ (or as per required) |
Humidity | 45%-55% (or as per required) |
Application | Operation Theatre, Medical Center, ICU, etc. |
1.Electrolytic steel sandwich panel
1. 1.2mm electrolytic steel front side, 0.5mm galvanized steel in back
2. 50mm thick panel 3. aluminum honeycomb filler 4. free color customized
5. Flammability class A
2. Air tight hospital door
1. Door material: steel
2. door frame: aluminum
3. Flammability class: A2 4. opening/closing speed: 350-650mm/sec 6. opening staying time: 0.1-0.9s adjustable 7. safety function: Obstacle can open immediately when opening and closing 8. power: 220V±10% 50/60HZ

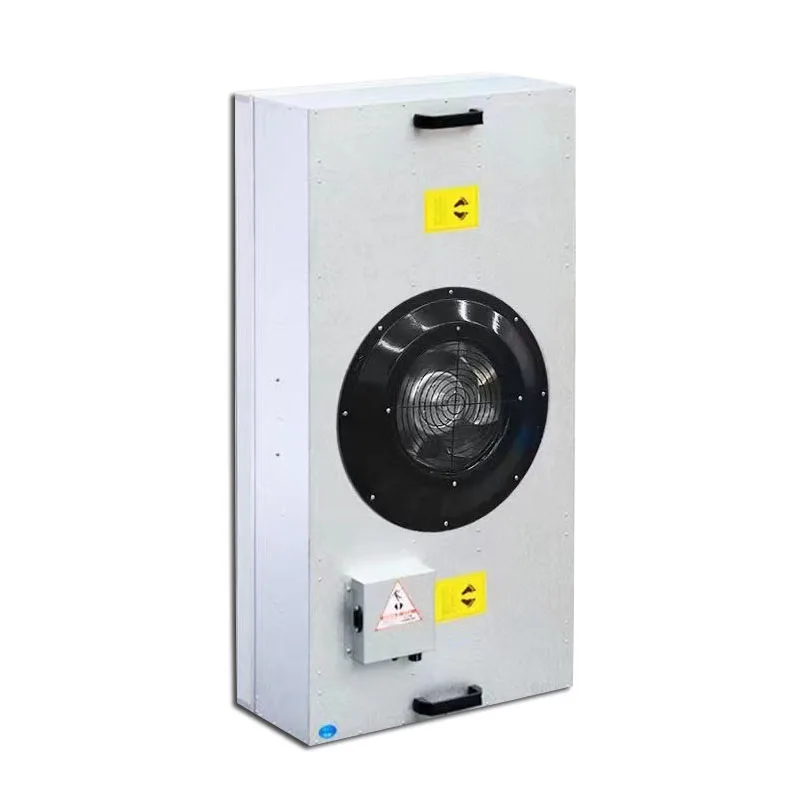

1.1.2mm powder coated galvanized steel
2.Filtering efficiency: H14, 99.995%@0.3um
3. With DPP flow equalization membrane
4. Equipped with 4 lifting rings
2.Filtering efficiency: H14, 99.995%@0.3um
3. With DPP flow equalization membrane
4. Equipped with 4 lifting rings
4. Medicine cabinet, Instrument cabinet , Anesthesia cabinet
SS304 stainless steel, color customized
sliding door and swing door optional
medicine cabinet
instrument cabinet
.
Anesthesia cabinet
5. OT control panel by LCD and touch type
One stop centralized control, integration of surgical peripheral data, intraoperative image scheduling, remote medical services, and surgical teaching viewing
With slim design, controller adopts a touchable LCD screen
With R9&R11 light source, German imported LED lamp bulb, worklife can reach 50000h
8. Operation room table
1. Max&MIN. height of tabletop 1000-700mm
2. Length&width:2100*500mm
3. Forward&Backward tilt≥35°/≥35°
4. Lateral tilt:Left≥20°,Right≥20°
2. Length&width:2100*500mm
3. Forward&Backward tilt≥35°/≥35°
4. Lateral tilt:Left≥20°,Right≥20°
9. Surgical pendent for operation room
1. Raotating Angle： ≤ 340°
2. Net load≤150 kg , Ultimate load bearing ≤600 kg 3. Rotation radius: 1000mm
4. Gas terminal interface: 2pcs oxygen, 2pcs negative pressure suction and 1pcs compressed air
2. Net load≤150 kg , Ultimate load bearing ≤600 kg 3. Rotation radius: 1000mm
4. Gas terminal interface: 2pcs oxygen, 2pcs negative pressure suction and 1pcs compressed air
10. Hand wash sink
1.2MM SS304 stainless steel material, Excellent workmanship, rounded design at corners, easy to clean and corrosion-resistant
size customized
10. Writing table 11.Film viewer 12. Socket box 13.Gas terminal

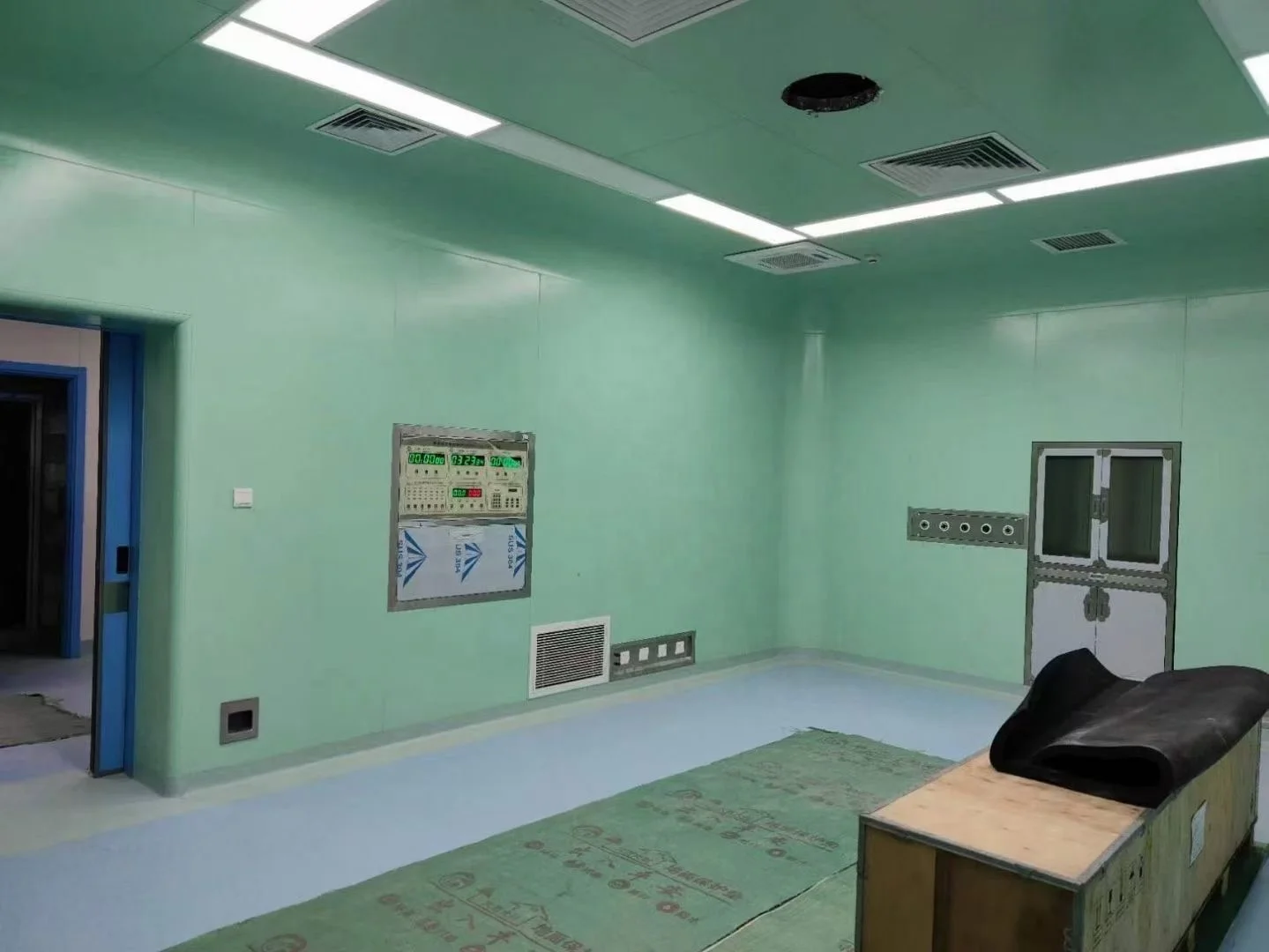

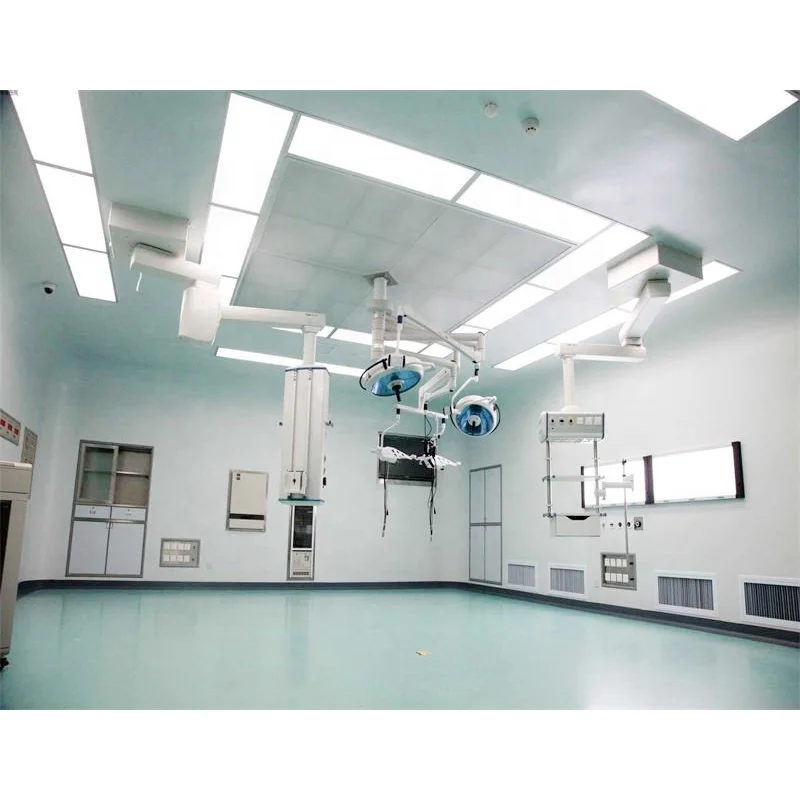

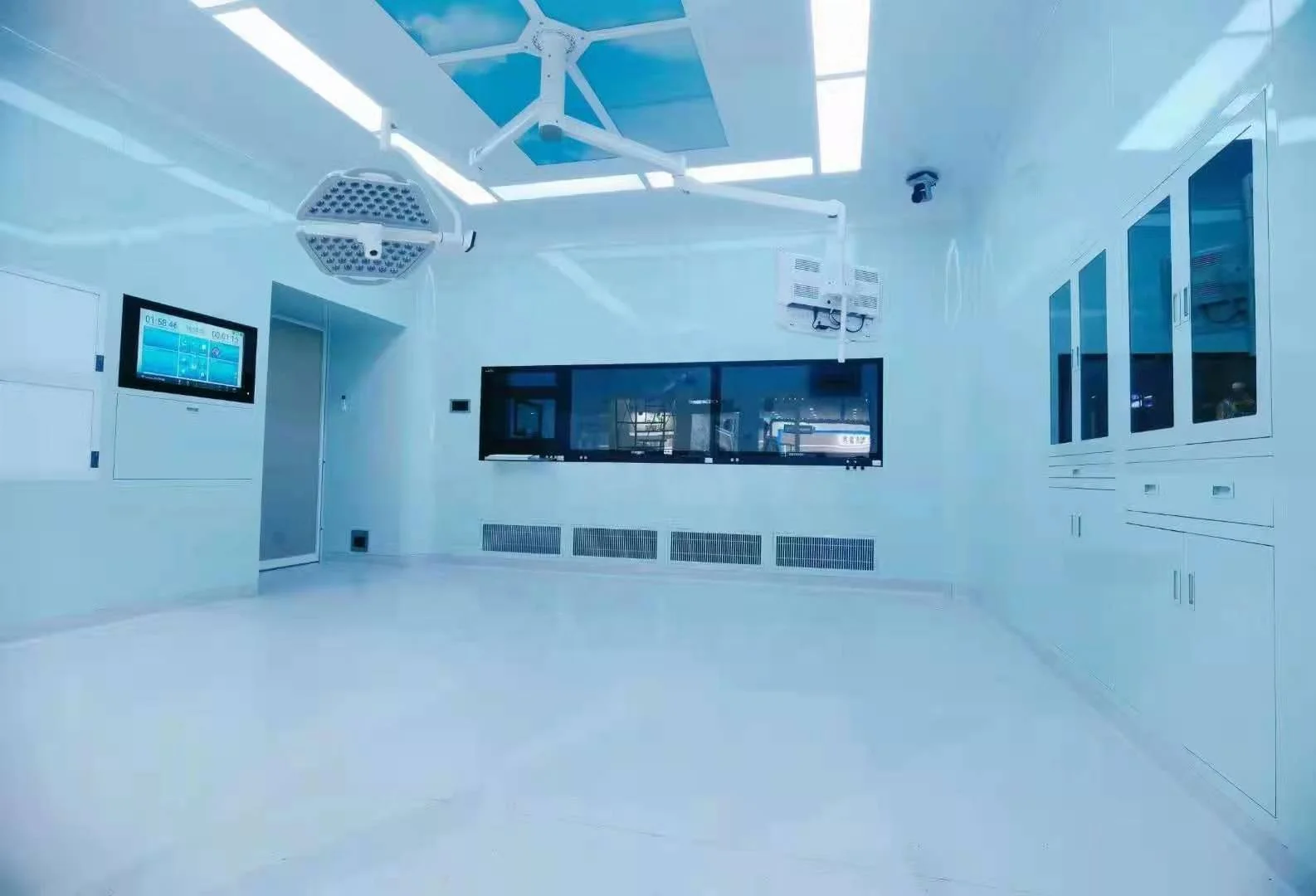

Project Case
Operation room
in Indonesia in 2020
Surgical operation room
in Peru in 2019
7sets operation room customer
from Uzbekistan in 2023
2sets operation room
in Philipines in 2022
Installation site for 4sets operating room in Bangladesh in 2021
2sets blue color operation room
in Uganda in 2023
Company Profile
Dongguan Amber Purification Engineering Ltd. was established in 2008 and is located in Nan shuang yu Industrial Zone, Shatou Street,Panyu District, Guangzhou. It covers an area of 12,000 square meters. It is a company that integrates clean finished doors,finished windows, modular operating rooms and ancillary equipment. A large-scale enterprise integrating the research and development, production, sales and installation of dust room engineering and purification equipment
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Certifications
FAQ
Q: Are you a producer or trader or factory?
A: We’re professional producer, which integrates designing, manufacturing, sales and installation
service.
Q: Do you offer customize and design service?
A: Yes, we accept custom orders and have professional engineering team to do any design
Q: What’s your product quality?
A: Over 15 years
service.
Q: Do you offer customize and design service?
A: Yes, we accept custom orders and have professional engineering team to do any design
Q: What’s your product quality?
A: Over 15 years
Q: What kind of the package for all products?
A: by plywood case
Q: Do you supply installation service?
A: Yes, but it is extra charge.
Похожие товары

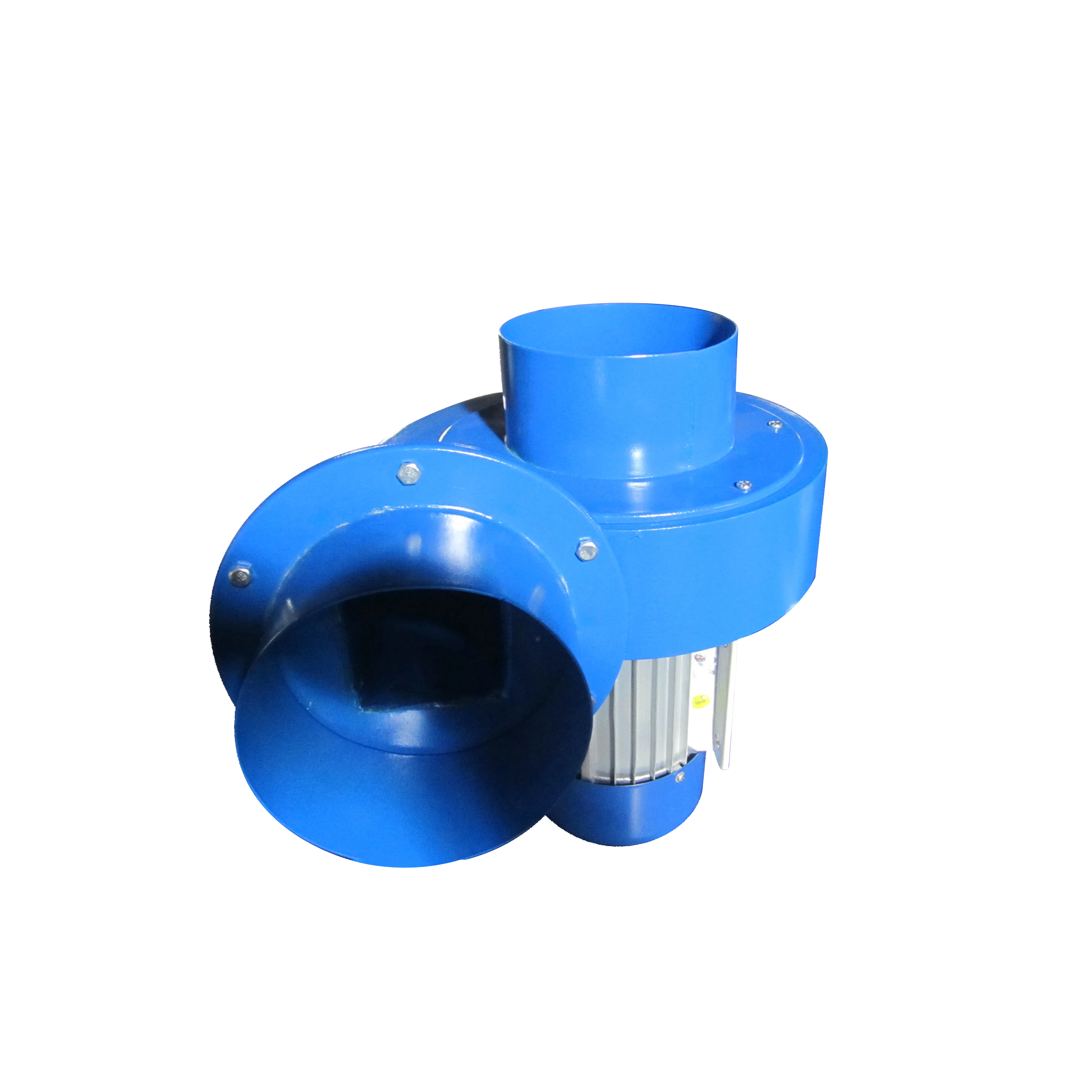

Портативное оборудование для транспортных средств стальной и алюминиевый вентилятор с всасывающим патрубком вакуумом
