GB стандартный FEP/PTFE/PFA облицованный поворотный/подъемный обратный клапан фланцевого типа для химической промышленности
- Категория: >>>
- Поставщик: Luoyang Pioneer Anticorrosion Equipment Co. Ltd.
Сохранить в закладки 1601103472755:
Описание и отзывы
Характеристики
Product Description
Detail images:

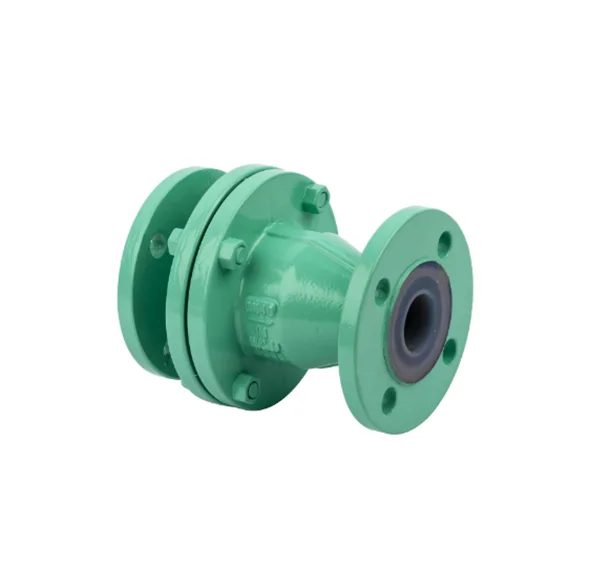

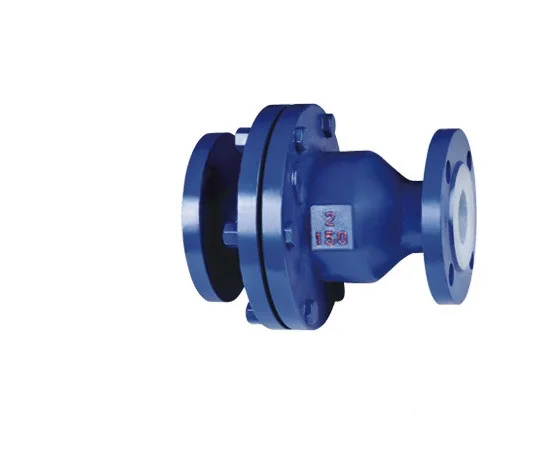

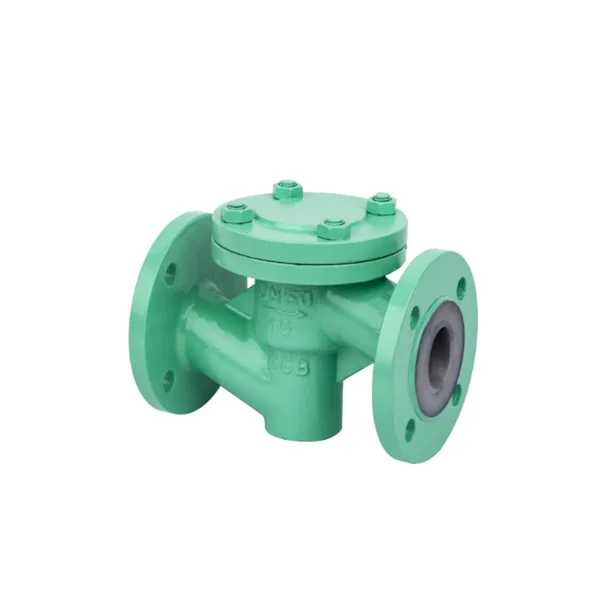

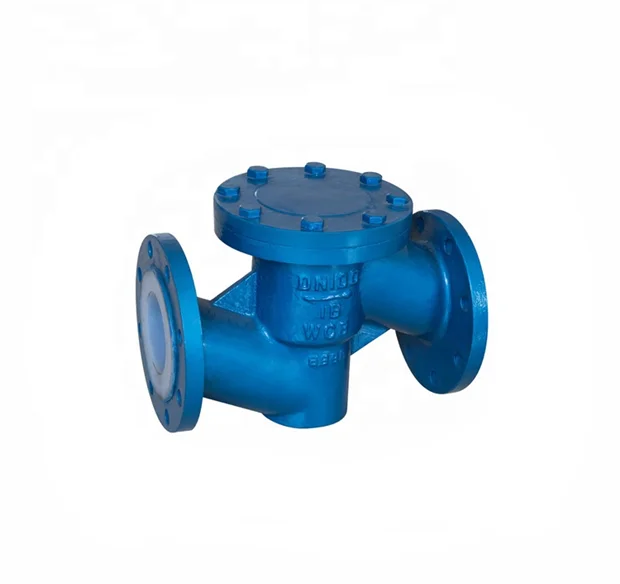

Fluorine polymer Lined Check Valve
Fluorine polymer Lined Check Valve
FEP/PTFE/PFA TEFLON LINED CHECK VALVE is epecially designed for controlling the usual corrosive medium. Its body inner surface is lined with fluorine plastic like FEP/PTFE/PTFE or some other kinds of rubber. It features a high strength and aprominent performance of corrosion resistance. It can be selected to suit with different working temperature and fluid pipelines.
Working Principle

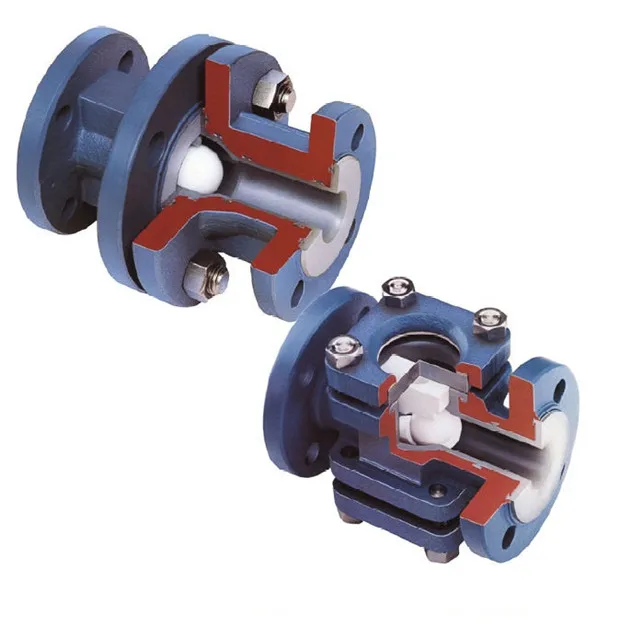

Generally check valve is automatically working, under the pressure function of one direction flow, the disc open, while when the liquid back flows, the valve will cut flow. PTFE/PFA Lined check valves only allow one way flow direction and prevent the back-flow of liquids in pipeline. The solid PTFE ball at valve body lining guarantees that ball rolls into the seat due to gravitation.
Generally check valve is automatically working, under the pressure function of one direction flow, the disc open, while when the liquid back flows, the valve will cut flow. PTFE/PFA Lined check valves only allow one way flow direction and prevent the back-flow of liquids in pipeline. The solid PTFE ball at valve body lining guarantees that ball rolls into the seat due to gravitation.
Product Specification
Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PTFE, PFA, FEP
Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150, PN10, PN16
Body Material: WCB, ASTM A395, CF8, CF8M
Lining Material: PTFE, PFA, FEP
Nominal Diameter: 1/2"-14"(DN15~DN350)
Pressure Range: Class150, PN10, PN16
Specification
item | value |
Warranty | 1 year |
Type | Check Valves |
Customized support | OEM, ODM, OBM |
Place of Origin | Shanghai |
Brand Name | PIONEER |
Model Number | H41-F46 |
Application | General |
Power | Manual |
Media | water |
Structure | Check |
Nominal pressure(pound) | PN 0.6 ~1.6(MPa) |
Nominal diameter | DN40-500mm |
Design and manufacture | GB/T 12238 (mid-line) |
Structure length | GB/T12221(short series) |
Flange size | GB/T9113.1 |
Pressure test | GB/T 13927 |
Sign | GB/T 12220 |
Certifications
Company Profile
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali, pharmaceutical industry and Mineral.
Packing & Delivery
Plywood case for safety sea shipping
FAQ
1. who are we?
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
We are based in Henan, China, start from 2019,sell to Domestic Market(20.00%),Southeast Asia(20.00%),Eastern Asia(10.00%),Mid East(10.00%),South America(10.00%),Northern Europe(10.00%),Africa(5.00%),South Asia(5.00%),North America(5.00%),Central America(5.00%). There are total about 5-10 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
centrifugal pump,industrial valve,PTFE lined pipe,chemical pump,Plastic pipe
4. why should you buy from us not from other suppliers?
Luoyang Pioneer Anticorrosion is specialized in the manufacturing of international quality anti corrosion pumps,valves,pipes and fittings. The products are widely used for scrubbing, steel pickling, electroplating, paints, dye stuffs, chlor alkali,
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,DDP,DDU,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash;
Language Spoken:English,Chinese,Russian
