Резьбовые соединительные фитинги для труб с CE профессиональная Заводская различная Спецификация BSP BSPT NPT латунь Hdpe наружная резьба
32,41 ₽ - 324,02 ₽
Прямоугольный редуцирующий Соединительный патрубок
- Категория: >>>
- Поставщик: Shanghai Haoliu Machinery Equipment Co. Ltd.
Сохранить в закладки 1601103478083:
Описание и отзывы
Характеристики

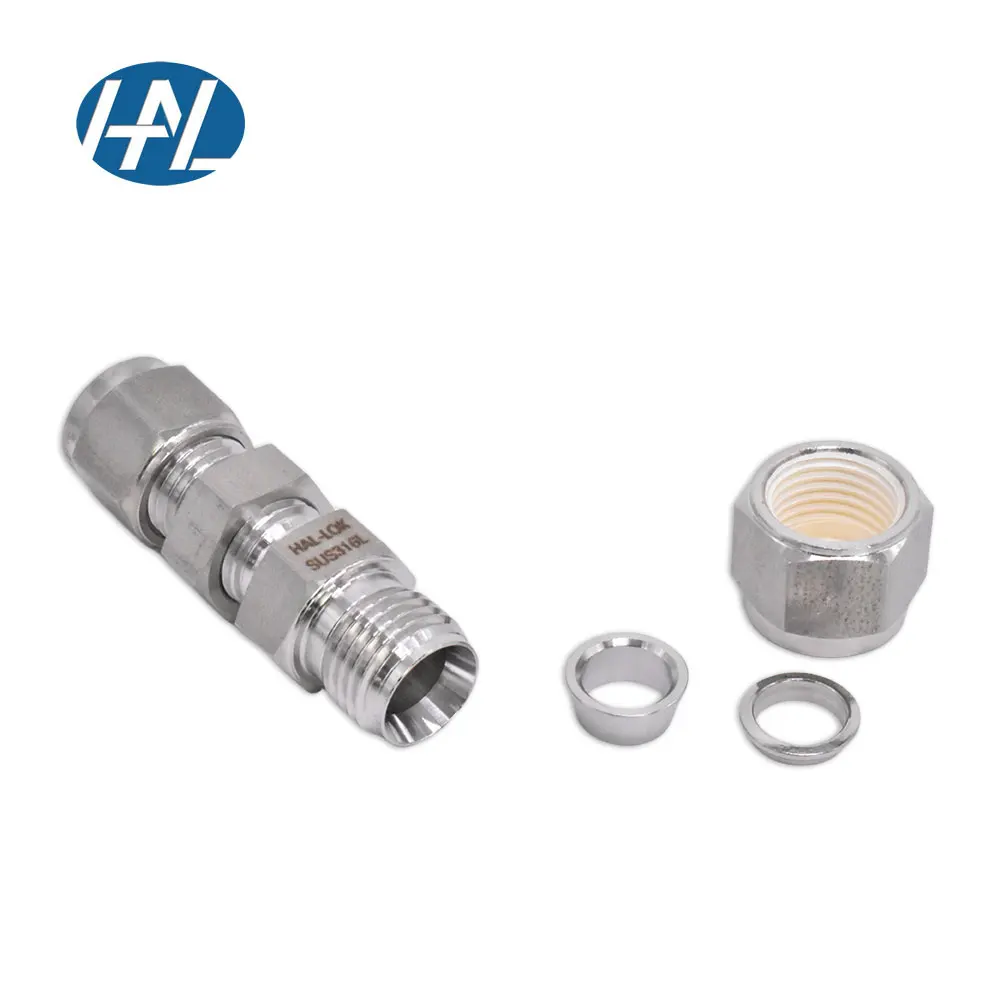

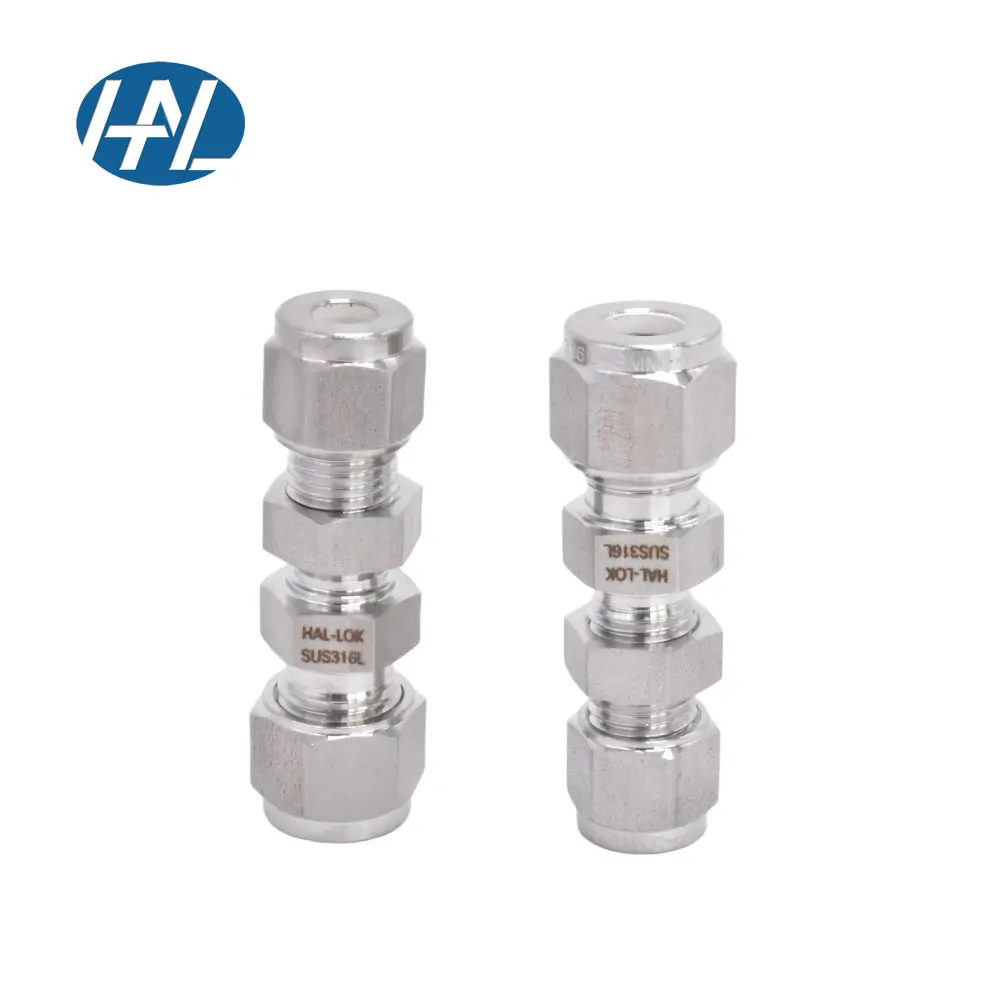

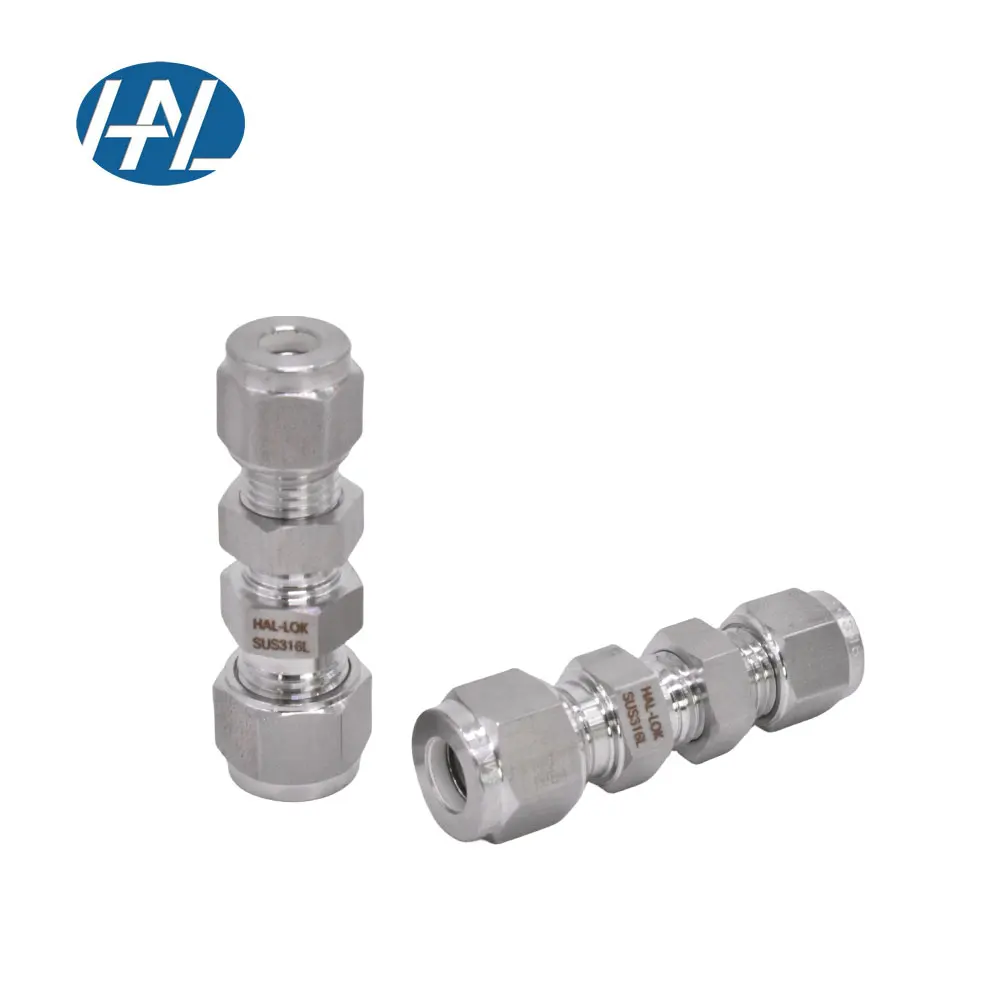

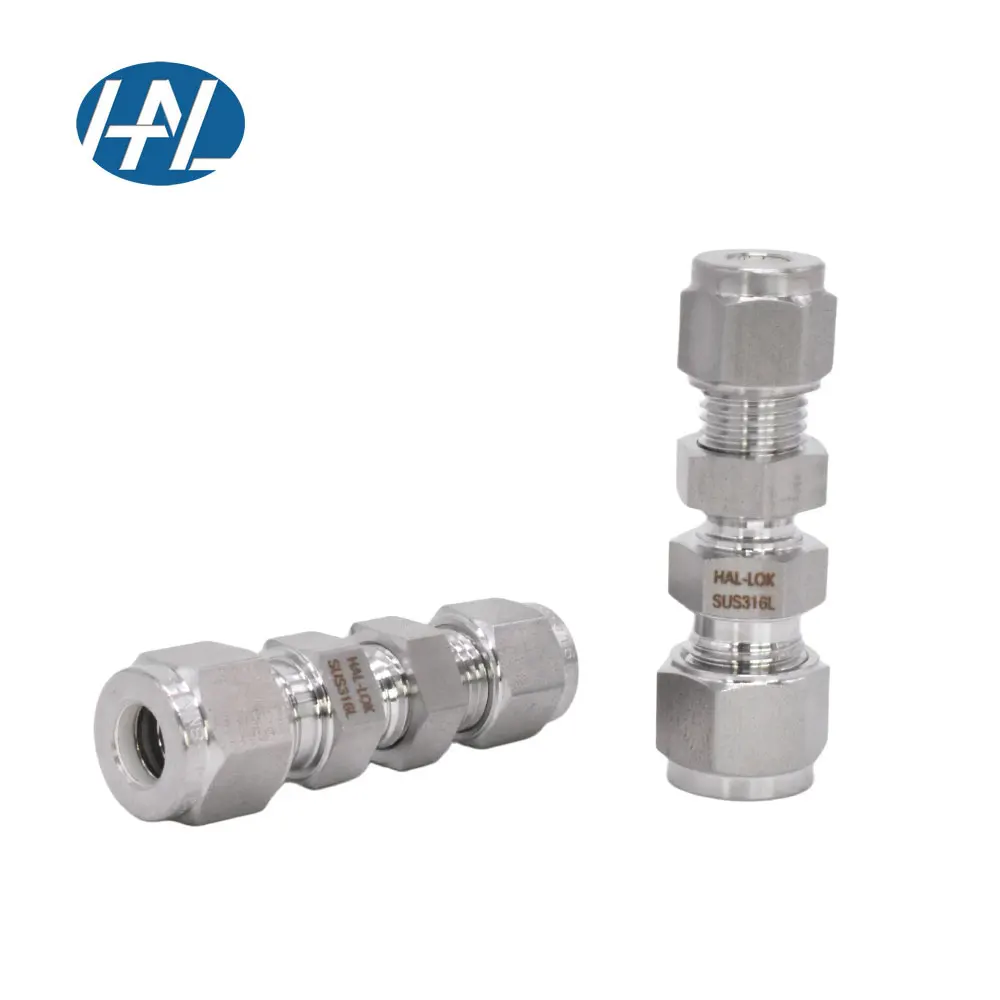

HAL-LOK Tube Fittings
Product Information | ||||||||
Available materials:SS304,SS316,904L,Alloy,etc. | ||||||||
Available in size:1/16" to 2" and 2mm to 50mm | ||||||||
Thread:NPT,BSP,BSPT,UNF,ISO,SAE etc. | ||||||||
Working pressure up to 1000psi-3000psi | ||||||||
Silver plated nuts,reduce torque and easy to install. | ||||||||
Corrosion free with excellent chemical resistance | ||||||||
Hardened threads with smooth surface finish avoid galling and help to extend the fitting service life. | ||||||||
Product Paramenters
Installation Instructions
Installation steps of ferrule:
Operating instructions for sealing connection: applicable to 1 / 4 to 1 in. Or 6 to 25 mm pipe diameter (as shown in Figure 1).
The sealing connection can be easily achieved by following three steps:
1. Put the connector nut in a loose state and insert it into the connecting pipe. Make sure that the connecting pipe is inserted into the bottom of the connector.
2. Pre tighten the nut manually.
3. Fix the connector body with corresponding tools, and tighten the nut with an appropriate wrench for 1 turn. After one full turn, continue to turn 1 / 4 turn.
Operating instructions for sealing connection: applicable to 1 / 8 in. Or 4mm pipe diameter. Follow the above steps. Tighten the nut for 3 / 4 turns from the pre tightening state (as shown in Figure 2),
be careful:
Please use high quality polishing tube. Check that the surface of the connecting part of the steel pipe shall not be scratched, and the pipe orifice shall be smooth and free of burr. Make sure that the steel pipe is inserted into the connector vertically. If bending pipe is needed, make sure that the straight part inserted into the interface is not less than 30mm.
Operating instructions for sealing connection: applicable to 1 / 4 to 1 in. Or 6 to 25 mm pipe diameter (as shown in Figure 1).
The sealing connection can be easily achieved by following three steps:
1. Put the connector nut in a loose state and insert it into the connecting pipe. Make sure that the connecting pipe is inserted into the bottom of the connector.
2. Pre tighten the nut manually.
3. Fix the connector body with corresponding tools, and tighten the nut with an appropriate wrench for 1 turn. After one full turn, continue to turn 1 / 4 turn.
Operating instructions for sealing connection: applicable to 1 / 8 in. Or 4mm pipe diameter. Follow the above steps. Tighten the nut for 3 / 4 turns from the pre tightening state (as shown in Figure 2),
be careful:
Please use high quality polishing tube. Check that the surface of the connecting part of the steel pipe shall not be scratched, and the pipe orifice shall be smooth and free of burr. Make sure that the steel pipe is inserted into the connector vertically. If bending pipe is needed, make sure that the straight part inserted into the interface is not less than 30mm.
Repeat the installation steps
1. Insert the tube with pre installed ferrule into the connector and tighten the nut with fingers
2.Tighten the nut to the last tightening position with a wrench
3. After reaching the position, use a wrench to tighten it slightly(normally, it depends on experience operation, if there is no experience, it can be rotated by 1 / 12 turn each time);
Recommended length of bend
When installing the connector near the bend of tube, enough length of straight tube must be ensured to make thetube contact the locating step of tube connector.
Company Profile
Exhibition
Product Application
Why Choose Us
Our products have received much praise from foreign customers.
Packaging & Shipping
FAQ
Q1. What products can you provide?
A: Tube fittings, pipe fittings, ball valves, needle valves,check valves,safety valves,filters,pressure regulator,etc.
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
Q2. Can you make the products based on our requests, such as size, connection, thread, shape and so on?
A: Yes, We have experienced techincal team and can design and produce the products according to your requirements.
Q3. Can you operate OEM orders?
Q3. Can you operate OEM orders?
A: Yes, we can OEM according to your drawings.we also have our own brand named HAL-LOK.
Q4: How long is your delivery time?
Q4: How long is your delivery time?
A: In stock -- 1 to 7 days No stock -- 7 to 30 days Depending on the quantity
Q5: Do you provide samples ? Is it free or extra?
If you have another question, please feel free to contact us.
Q5: Do you provide samples ? Is it free or extra?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q6. How will you ship the goods?
B: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q6. How will you ship the goods?
A: For small amount, international express is used mostly such as DHL, FedEx, UPS, TNT. For large amount, by air or by sea. Besides, you also can have your own forwarder pick up the goods and arrange the shipment.
If you have another question, please feel free to contact us.
Похожие товары
Китай, высокое качество, Мужской Латунный прямой адаптер, воздушные нажимные фитинги

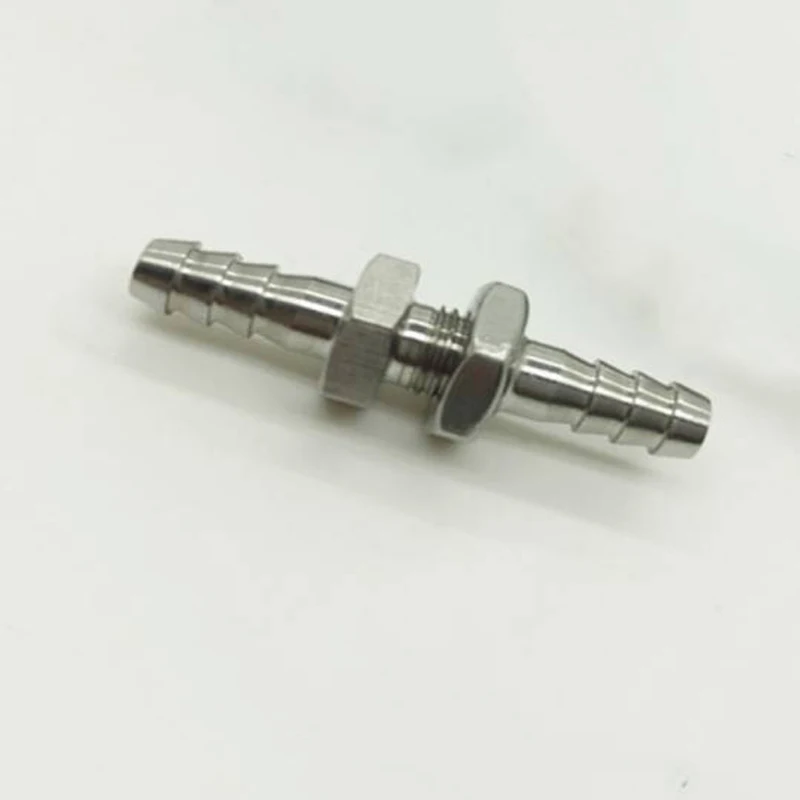

Производитель, нержавеющая перегородка, шланг, соска для 6 мм, 8 мм, 10 мм, 12 мм, 16 мм
46,45 ₽ - 48,61 ₽

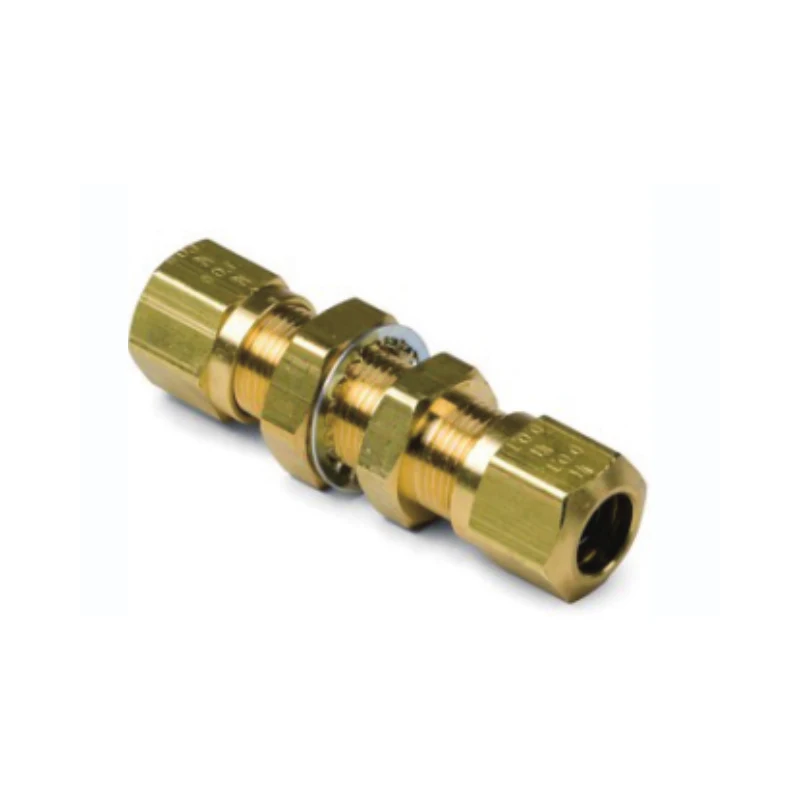

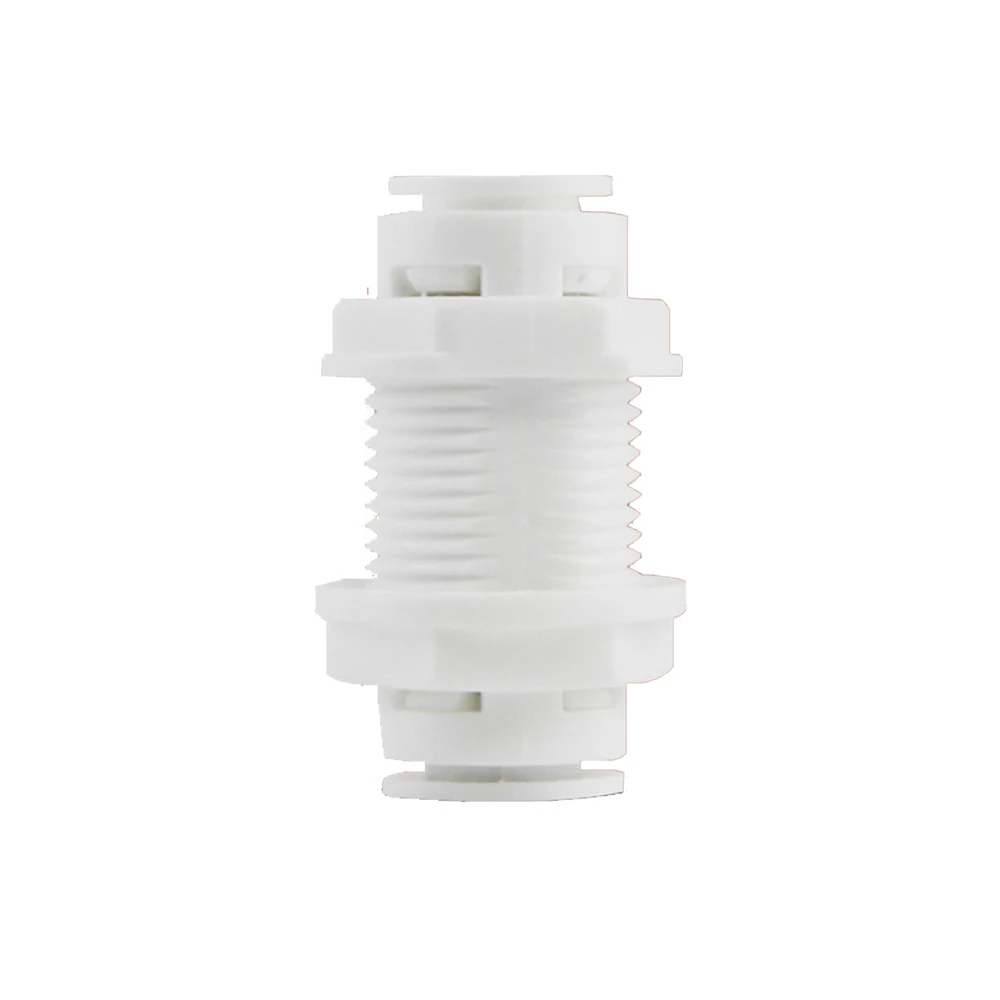

Заводская изготовленная на заказ Точная латунная перегородка с внутренней резьбой
183,62 ₽ - 237,62 ₽

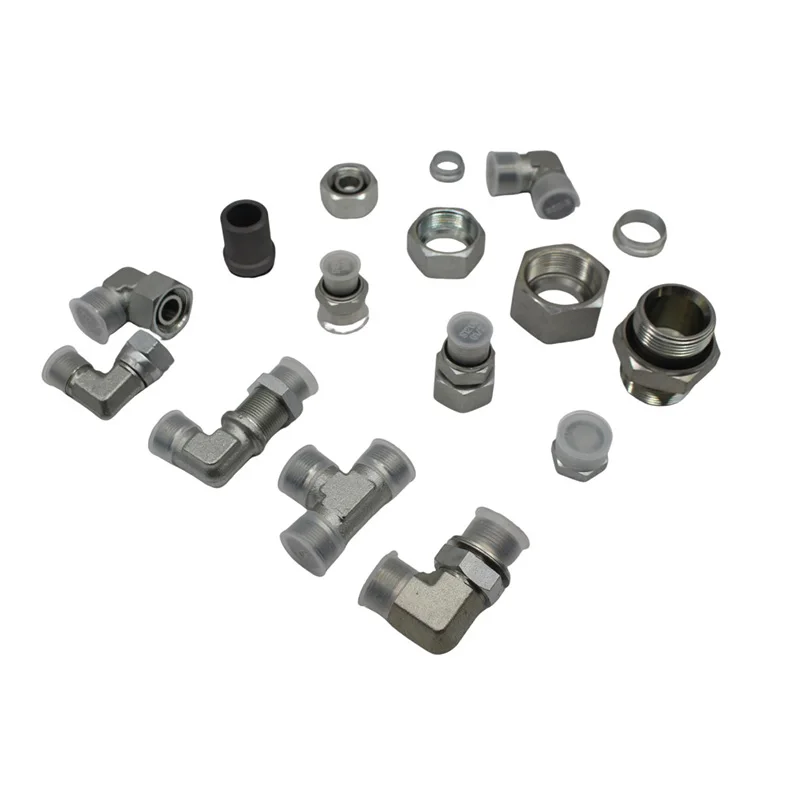

Гидравлические фитинги 90 градусов метрические мужские гидравлические наконечники шланги и Фитинги перегородки фитинги

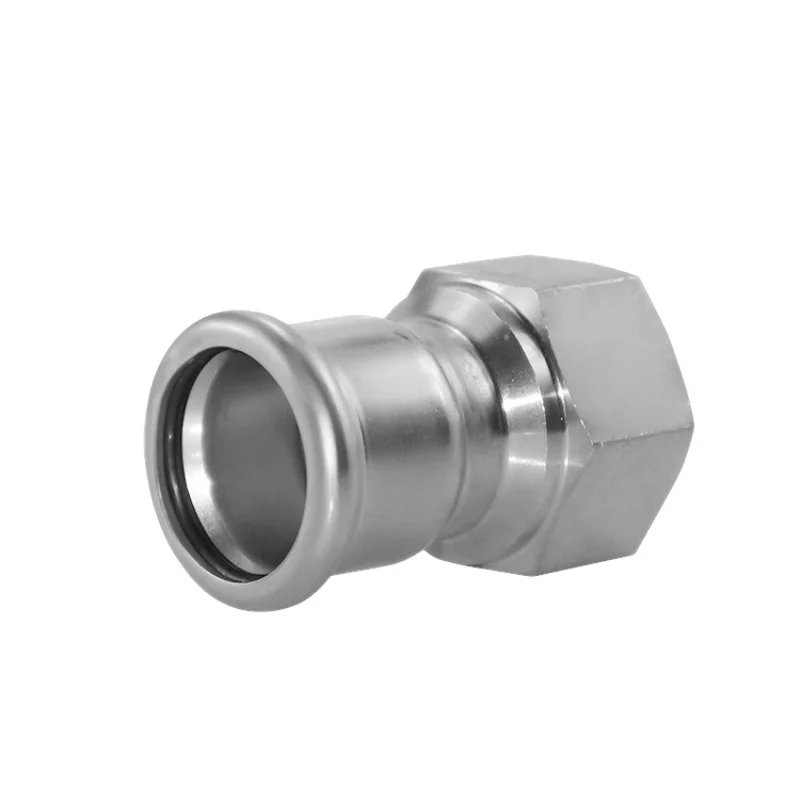

Seerein Pressfittings M-Contour/Profile Female Coupling/Adapter/BSP NPT Thread/Standard DIN GB JIS/Stainless steel Pipe fittings
3/8 патрубок Hikins M0606
43,21 ₽ - 64,81 ₽

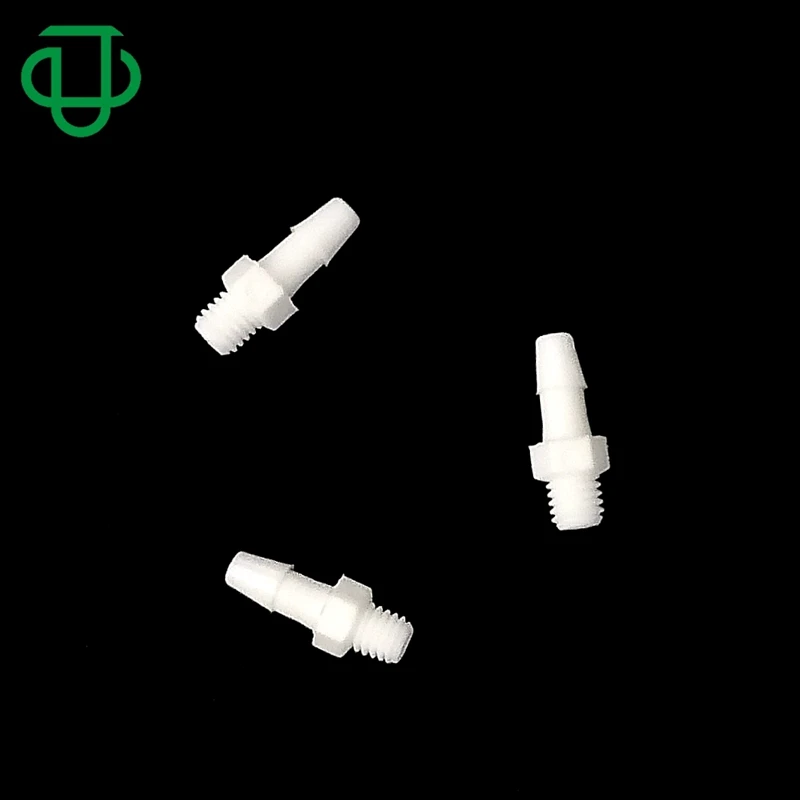

JU нейлоновый/полипропиленовый 10-32UNF Штекерный соединитель для шланга с хвостовой резьбой пластиковый Штекерный прямой фитинг для труб Соединительный адаптер
