Полностью Автоматическая 3/5/7 слоев гофрированного картона картонная коробка делая машину для производства картонных коробок производственная линия
1 656 054,00 ₽ - 5 520 180,00 ₽

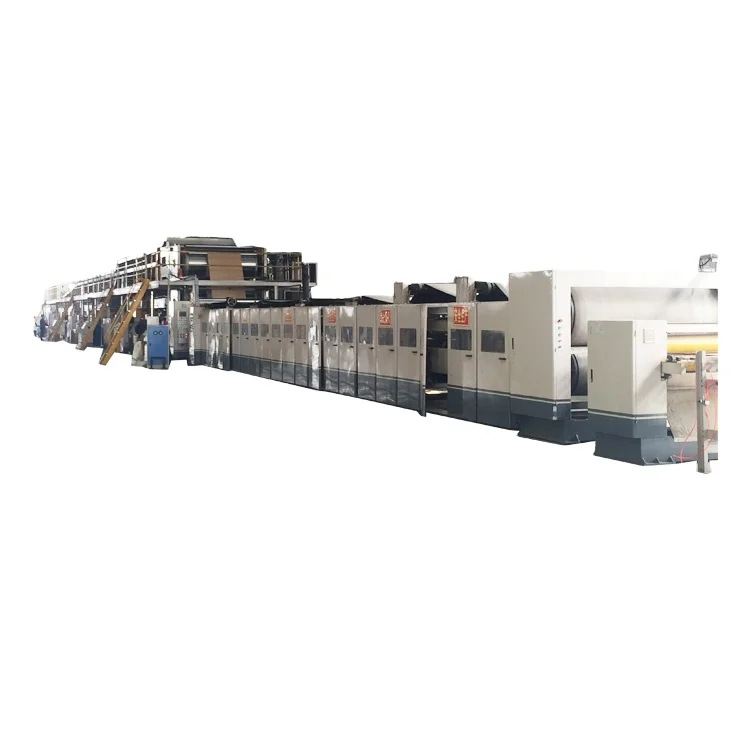

2 слойная/3 слойная/5 слойная производственная линия гофрированного картона/машина для производства картонных коробок
- Категория: >>>
- Поставщик: Cangzhou Zhaoli Import&Export Trade Co. Ltd.
Сохранить в закладки 1601103999375:
Описание и отзывы
Характеристики
Corrugated Paperboard Production Line Corrugated Cardboard Making Machine Corrugated Box Making Machine Fully Automatic
2ply/3ply/5ply Corrugated Cardboard Production Line/ Carton Box Making Machine
high speed corrugated cardboard paper production line/paper making machinery /carton box making machine prices
Product Description
hydraulic mill roll stand
★Adopt hydraulic drive to complete the paper clamping, loosen, remove for the medium, translation left and right and others, the lifting of the paper adopts hydraulic drive.
★The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, AirTac pneumatic components, stable tension, and long life.
★The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.
★The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.
★The brake uses a multi-point brake system, a gear disc structure, equipped with a cooling fan, AirTac pneumatic components, stable tension, and long life.
★The large-diameter spindle design, the swing arm slides smoothly, and the steel guide rails are treated with high frequency treatment, which is super wear-resistant.
★The hydraulic cylinder is installed on a twisted shaft, which does not bear radial force and is easy to maintain.
electric mill roll stand
★Symmetrical structure can also install two bundles of paper at the same time, Paper can be used for non-stop for a job; Adopts mechanical drive to complete the paper clamping, lifting, loosen, move on, around tradional motion, etc.
★Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car; paper guide the use of channel 14 and the guide post weld,paper car adopt 10 mm welded steel,the length of track is 4500 mm.
★ Pneumatic dics brake, add screw following
★ Electric elements centralized control the electric elements, expand chuck.
★Each shaftless mill roll stand is equipped with two pieces of paper guide, two set of paper car; paper guide the use of channel 14 and the guide post weld,paper car adopt 10 mm welded steel,the length of track is 4500 mm.
★ Pneumatic dics brake, add screw following
★ Electric elements centralized control the electric elements, expand chuck.

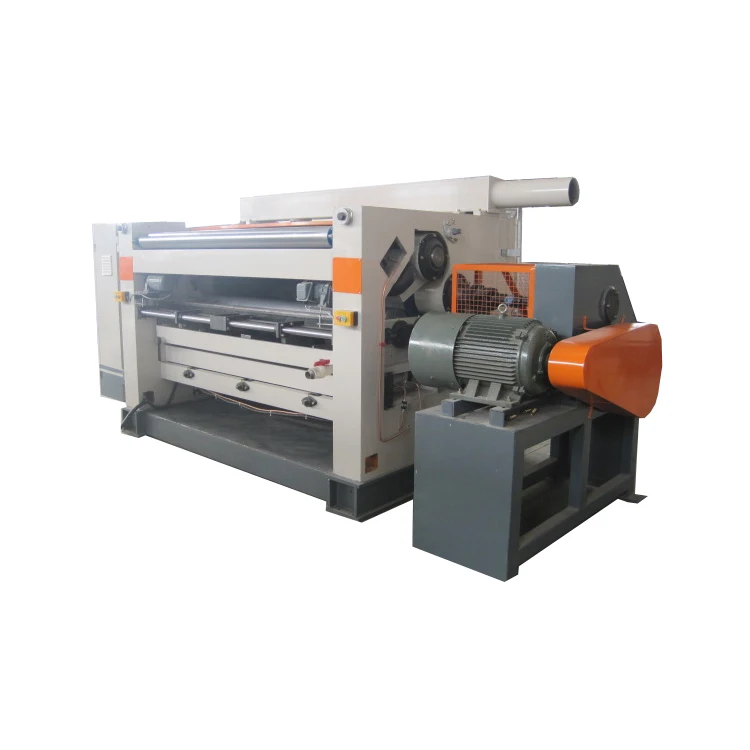

universal joint single facer
★Adopt vacuum suction structure, with high pressure strong blower.Suction with silencer.Gas supply and electrical control cabinet to focus on the same operation cabinet，not less than 1.5 meters away from the host，Fully enclosed full operation side。
★base and wallboard cast iron wall, Wallboard thickness 130 mm. universal Joints.
★corrugated roller material adopt 48CrMo alloy steel，quenched, Laser hardening, Surface finish, main roll of corrugated diameter¢280mm, surface hardnes sHRC60 degree above. The key parts of the tile and pressure roller bearings Wafangdian produce high temperature
bearings.
★Corrugated roller, pressure roller materials provided by the Central Plains Steel，High on corrugating unilateral 0.15mm, 0.075mm high pressure roller unilateral. Plus stopper. ¢160mm cylinder with compression cylinder.
Cassette Single facer
★Using negative pressure design, lower heat consumption, helps the core paper to press evenly and close to the surface of corrugated roller, make the corrugate molding better, because the pressure evenly, the top of corrugate can glue uniform and better, make the single corrugated paper have perfect laminating.
★Quickly change rollers in 10 minutes, while change corrugated roller with the electric trolley loading,put into the machine, and air pressure system will lock it, fixed to the machine base, only need a few buttons can complete the replacement quickly and easily.
★Corrugated roller adopt 50CrMo high quality alloy steel, dealing with heat,after grinding tungsten carbide surface treatment.
★Corrugated roller, pressure roller adopt airbag control system having high stability, having the barometric pressure control buffering effect at the same time.

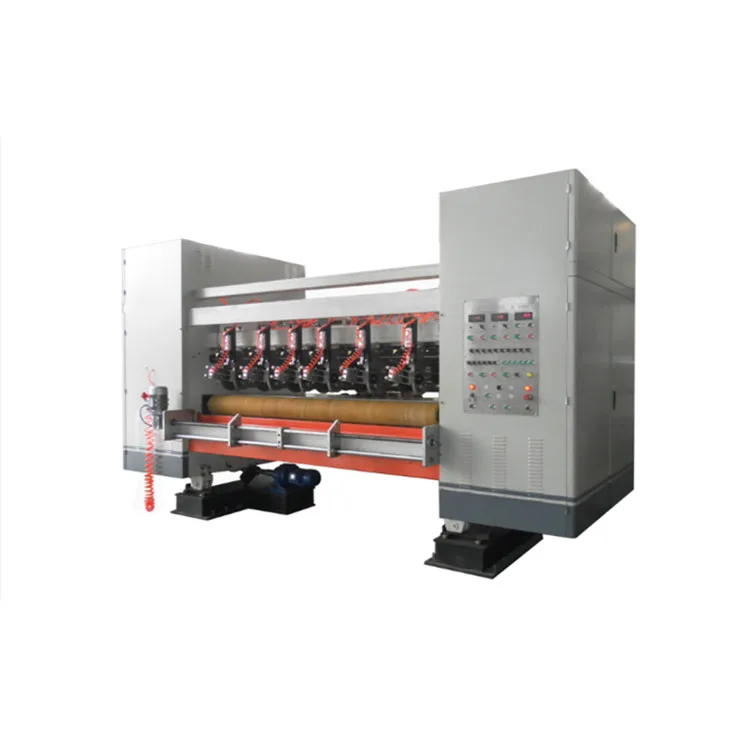

manual slitter scorer
★Overcome the conventional type of pole, cutting pressure lines appear when collapsed cardboard cut phenomenon, cutting board smooth, quality has improved significantly.
★the whole machine can remove left and right,cycloid reducer to adjust.
★Cutter and easy to adjust the pressure line, the error ± 0.5mm, automatic sharpening device, you can achieve timing Brothers, with intermittent Brothers and other features.
★the machine adopt five knives eight lines,the blade is made of tungsten alloy steel, the using life is not less than 3 million
running meters.
thin blade slitter scorer（Zero Pressure Line）
★The synchronous servo motor controls the row of knives and wires. Automatic reset. Precise size. Change order time is 1-3 seconds.
★HMI with 10.4-inch color touch screen, storage 999 orders, change orders automatically or manually for a single.
★Three kinds of pressure line forms：Convex against the concave (three layers line),Convex against the concave (five layers line), Convex against Flat, Three kinds of electric pressure line forms can be converted.
★The cutting and crimping are driven by independent frequency conversion motors. The suction port is automatically positioned with the change order.
★With gas storage tank and low pressure protection function.
NC helical cut-off machine
★It can store 200 units orders, replace the cutter specifications quickly and accurately, changing orders without stop, And enables networked computers to facilitate production management.
★Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
★This type of brake is energy storage type (non-energy brake), so in the process of production, the average power consumption is 1/3 of that of the ordinary NC cutting machine, saving more than 70% of electricity and achieving the goal of saving money.
★Independent oil pump and filter are used to distribute two sets of copper pipes in each gear position to feed oil, lubricate and cool.
★Knife roller: fine quality forged steel material, the balanced, with good stability.
★Knife shaft drive gears are precision forged steel induction hardening, backlash-free transmission, advanced keyless connection, high transmission accuracy.
★This type of brake is energy storage type (non-energy brake), so in the process of production, the average power consumption is 1/3 of that of the ordinary NC cutting machine, saving more than 70% of electricity and achieving the goal of saving money.
★Independent oil pump and filter are used to distribute two sets of copper pipes in each gear position to feed oil, lubricate and cool.
★Knife roller: fine quality forged steel material, the balanced, with good stability.

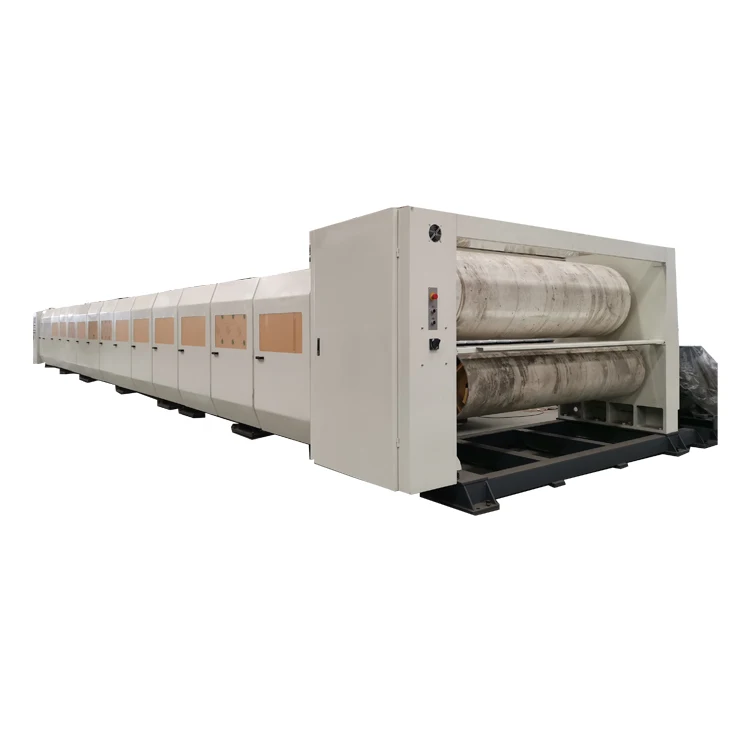

double facer
★Surface of hot plate is dealed with grinding, hot plate width 600mm, in total 16 pieces hot plate, Minister cooling stereotypes 4m. Hot plate is made adopt container board, enclosed pressure container certificate and inspection certificate. Internal thermal panels for partition isolation structure, s-shaped flow of steam, Steam, water separation function apparent, improve the using rate of steam.
★The hot plate adopts pneumatic pressure plate structure. The pressure plate lifting adopts pneumatic structure.
★The heat pipe of the heating plate controls the temperature in multiple sections and has a temperature display.
★The upper cotton webbing is automatically centered by the correcting pneumatic valve, and the double cylinder is used to control the S-shaped cotton web tensioning device. The amount of tightening is large.
★Gearbox drive unit using an independent structure, gear steel ZG-500 number for materials, the use of oil-immersed gear lubrication.
★The hot plate adopts pneumatic pressure plate structure. The pressure plate lifting adopts pneumatic structure.
★The heat pipe of the heating plate controls the temperature in multiple sections and has a temperature display.
★The upper cotton webbing is automatically centered by the correcting pneumatic valve, and the double cylinder is used to control the S-shaped cotton web tensioning device. The amount of tightening is large.
★Gearbox drive unit using an independent structure, gear steel ZG-500 number for materials, the use of oil-immersed gear lubrication.
Specification
working width | 1800, 2000, 2200, 2500, 3000 etc. |
design speed | 100m/min, 120m/min, 150m/min, 180m/min, 200m/min, 250m/min, 300m/min |
cardboard producing | 2 layer , 3 layer , 5 layer , 7 layer |
flute | A, C, B, E (or selected by the customer) |
Paper direction | drive left or right set according to the user factory |
self-provided part | boiler, air compressor, water & steam pipes, electric wires etc. |
installation | we can dispatch engineer for installation, debugging and training. |
Company Profile
Cangzhou Zhaoli Import & Export Trade Co.,Ltd. is a new type company which consisted of import & export sales department and two machine manufacture factories . Specializing in the production of two series of products, the one type of main products are "Taobao carton forming slotting machine, Taobao carton printing slotting machine, automatic multi knives slitting machine, automatic partition board assembler machine, automatic partition board machine" etc. for small carton packing ; the other type of main products are like the tranditional carton machines , like flexo printer slotter die cutter machine , folder gluer mahine , laminator machine , corrugated cardboard production line etc. At present, our products not only sale in the domestic but also sale to Europe, North-America, South America, Middle East, South-east Asia, Russia, South Africa and other countries and areas. Cangzhou Zhaoli Carton Machinery Co,Ltd. was established from research and development for the corrugated carton printing machine to current "Taobao carton specializing machines serious and automatic partition board assembler machine serious, it gives full play to every technologies on the advancement and manufacturing on the reliability, thus we can keep the leading position in the field of corrugated carton making machinery. All of our machines adopt advanced laser cutting technique in processing center to finish every structure units, our machines can use our unique technology to realize even if the cartons are difficult to make. Our
company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
company will do our best to meet customer's requirements, and bring abundant retribution to new and old customers with new innovation, development and perfect after-sale service.
FAQ
1. who are we?
We are based in Hebei, China, start from 2015, Our company Cangzhou zhaoli carton machinery co., ltd ,we have more than 15years experience for producing carton machines. such as semi-auto or auto printing machine with die cutter and slotter, corrugated machine , laminator , thin blade slitter machine ,glue machine ,stitching machine and so on.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Manufacture,carton machine,flexo ink printing machine,corrugated paperboard box machine,Import and export business
4. why should you buy from us not from other suppliers?
We, Cangzhou Zhaoli Import & Export Co., Ltd., are professional manufacturer of carton machines for more than 15years. focus on developing and manufacturing corrugated paperboard machines, printing machines and carton forming.
welcome to our factory!!!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,JPY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
We are based in Hebei, China, start from 2015, Our company Cangzhou zhaoli carton machinery co., ltd ,we have more than 15years experience for producing carton machines. such as semi-auto or auto printing machine with die cutter and slotter, corrugated machine , laminator , thin blade slitter machine ,glue machine ,stitching machine and so on.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Manufacture,carton machine,flexo ink printing machine,corrugated paperboard box machine,Import and export business
4. why should you buy from us not from other suppliers?
We, Cangzhou Zhaoli Import & Export Co., Ltd., are professional manufacturer of carton machines for more than 15years. focus on developing and manufacturing corrugated paperboard machines, printing machines and carton forming.
welcome to our factory!!!
5. what services can we provide?
Accepted Delivery Terms: FOB,CIF；
Accepted Payment Currency:USD,EUR,JPY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
