Qt12 15 машина для производства полых блоков

Сохранить в закладки 1601103999565:


Цена:4 849 297,20 ₽ - 4 959 508,50 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



Product Description


qt12-15 kerb paving hollow block making machine qingdao plant machine used for making concrete blocks




qt12-15 kerb paving hollow block making machine qingdao plant machine used for making concrete blocks, it is full automatic can make all types of hollow blocks, solid blocks, pavers, curbstones and so on, adopts our most advanced hydraulic system and vibration system, can ensure the block quality very good and the working noise very low. We cooperated with SIEMENS, SCHNEIDER, OMRON, CALYCA and so on to make sure our block machine with high quality and keep our machine work more stable





Technical Specifications
Model
qt12-15 kerb paving hollow block making machine qingdao plant machine used for making concrete blocks
Forming cycle
15-25s
Pcs/mould
12 pcs for 400x200x200mm hollow block
Hydraulic pressure
21Mpa
Vibrating frequency
2800-4500r/minute
Power
70.5KW
Pallet size
1350x900mm
Dimension
9350x2520x2950mm
Weight
14000kg
Brick material
Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.
Applied product
Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.

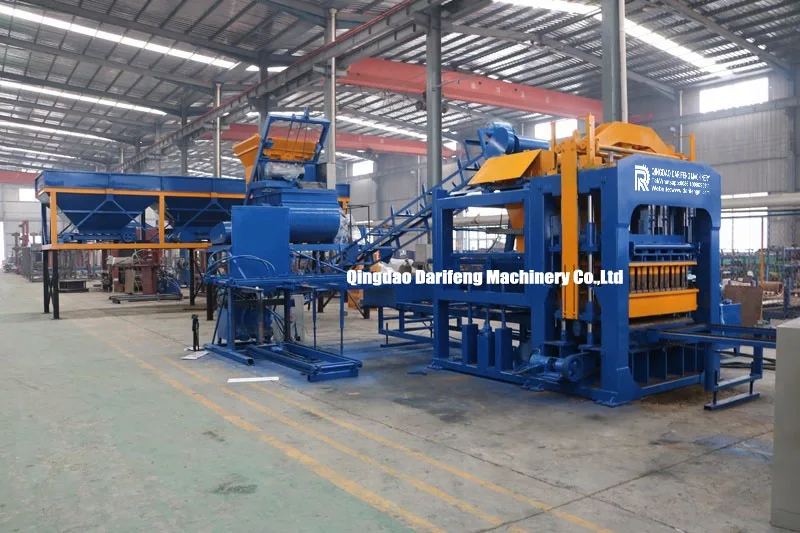

Production line

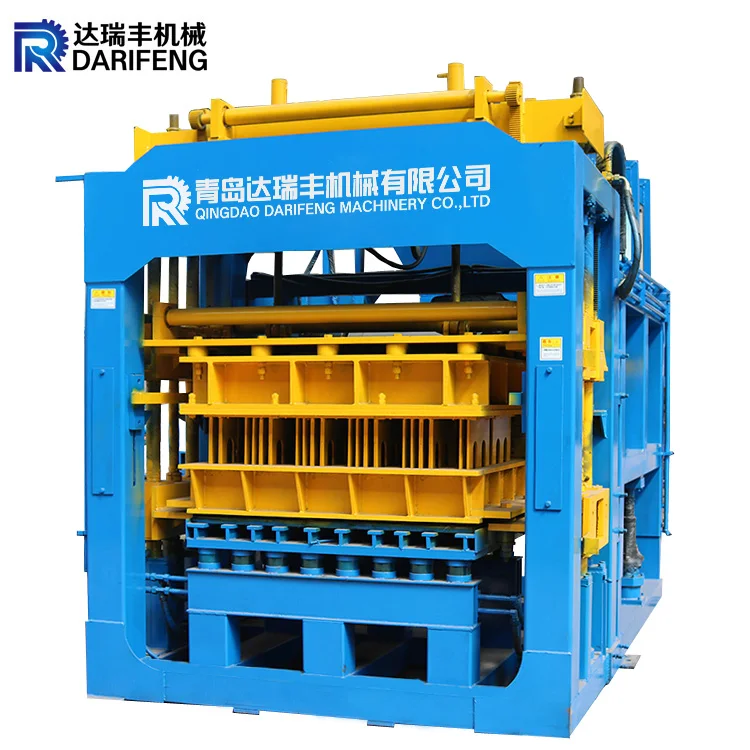

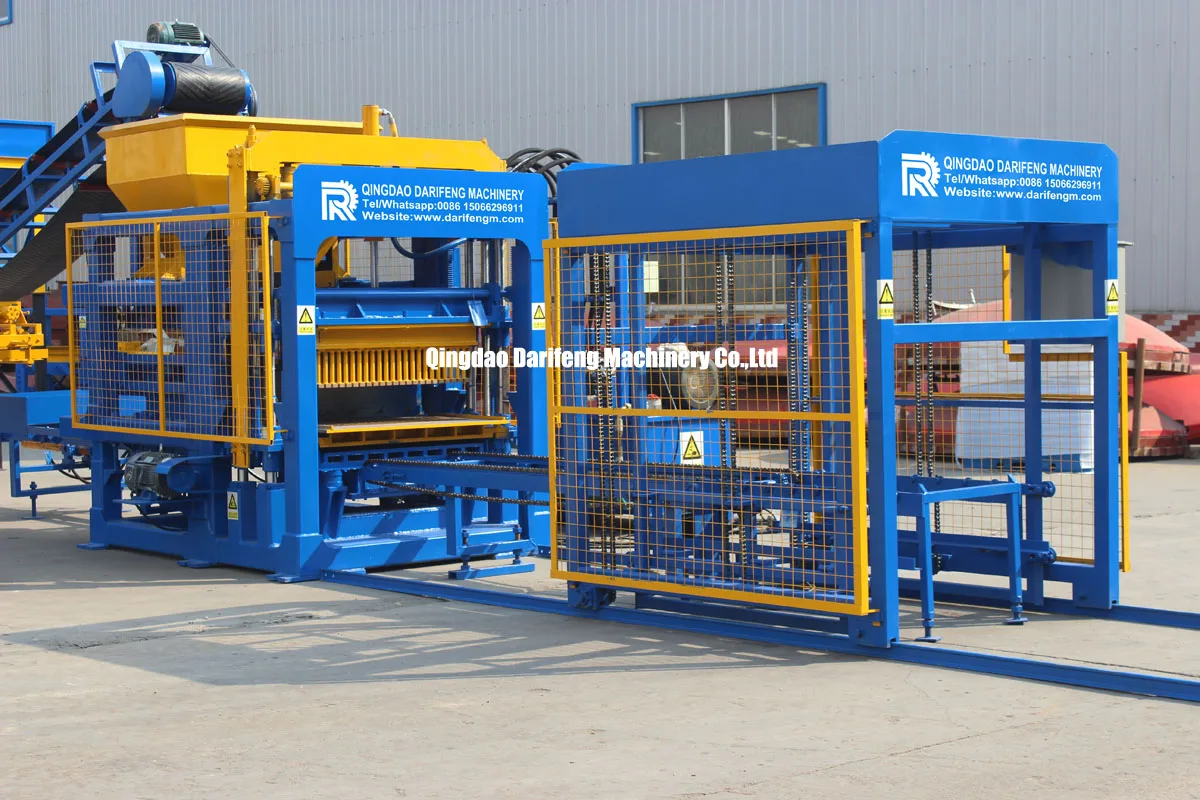

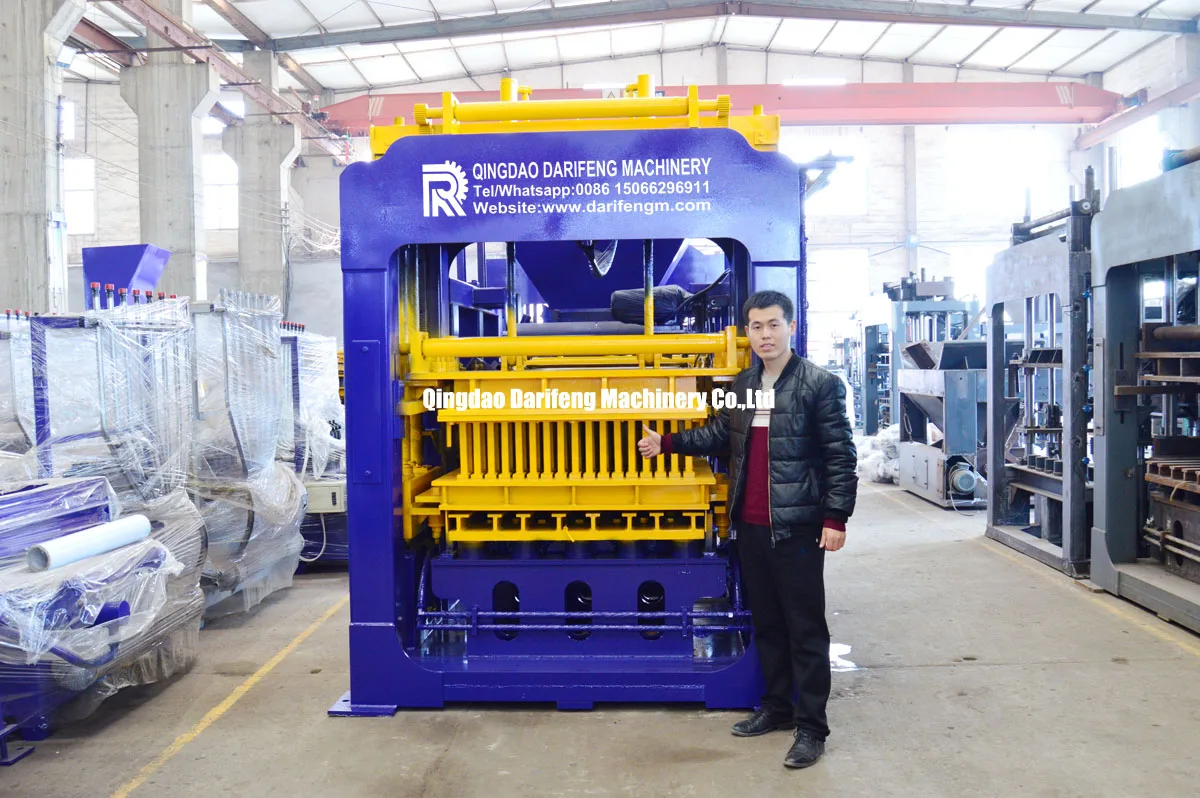

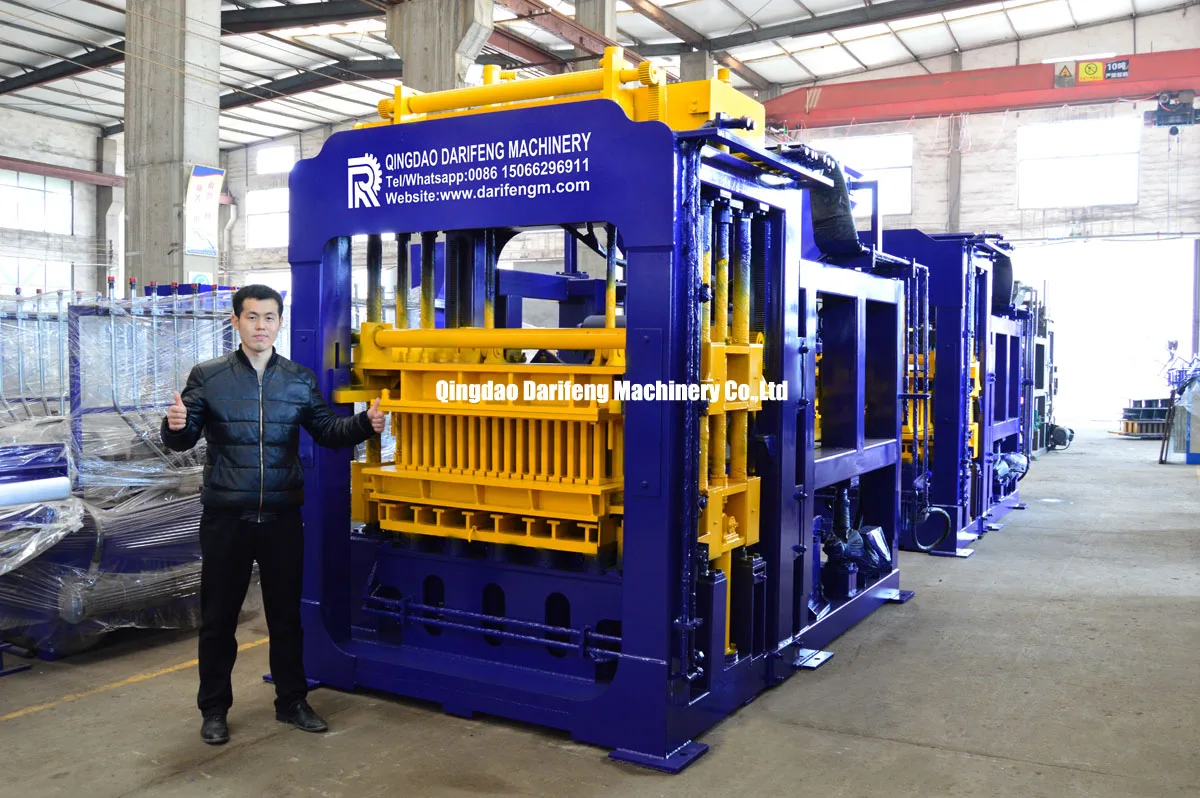

Machine display














Block samples


QT12-15 can make all of the following blocks by changing the moulds, you can choose and tell me which blocks you want to make?







Accessories


JS750 Mixer
Input capacity:
1200L
Output capacity:
750L
Power:
38.6KW
Productivity:
35 m³ /h
Weight:
5000KG


PLD1200 Batching machine
Weighing hopper:
1200L
Storing hopper:
3x4m³
Power:
16KW
Weight:
3000kg


Cement silo
Volume:
100tons
Height:
13m
Diameter:
3m
Weight:
6tons


Stacker
Pallets/time:
2pallets
Power:
3.75KW
Dimension:
3000x2000x2000mm
Weight:
1000kgs


Block mould
Size:
Can be customized
Raw material:
Manganese steel
Technology
Heat treatment & Line cutting
Lifespan
More than 200,000 times

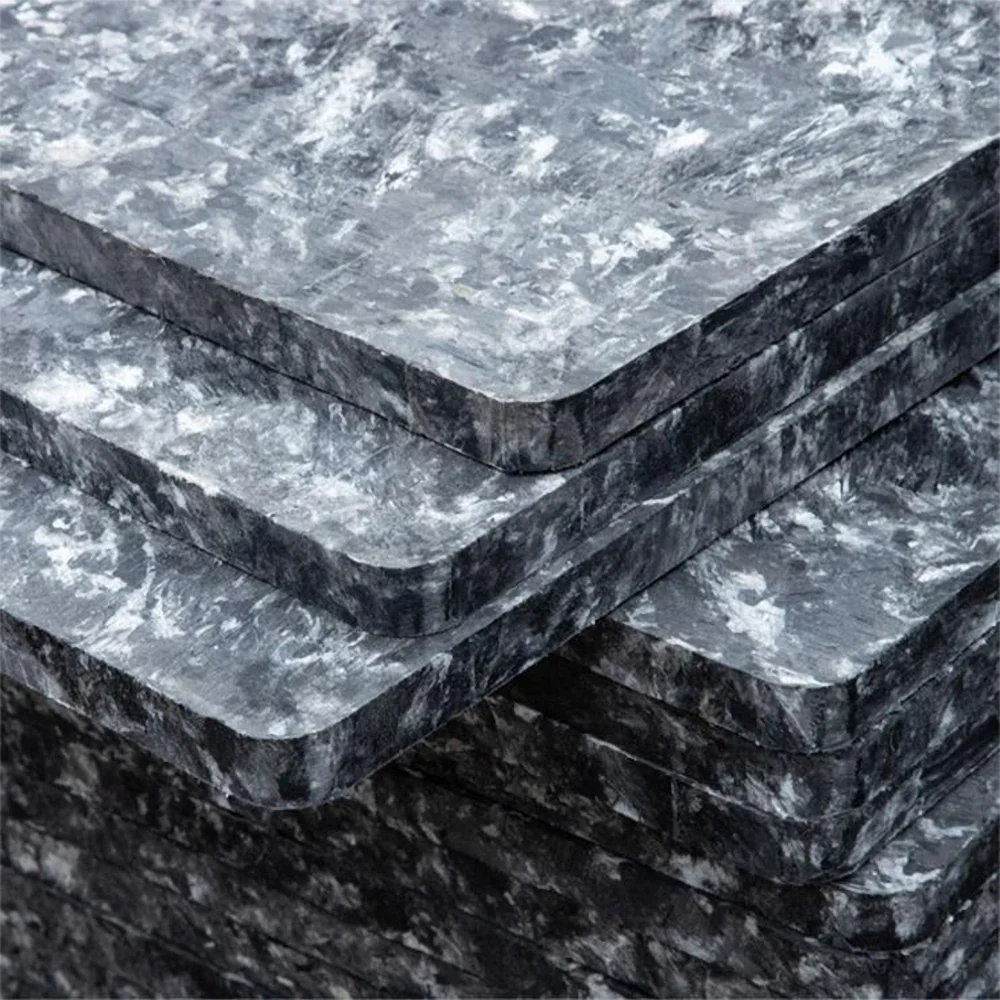

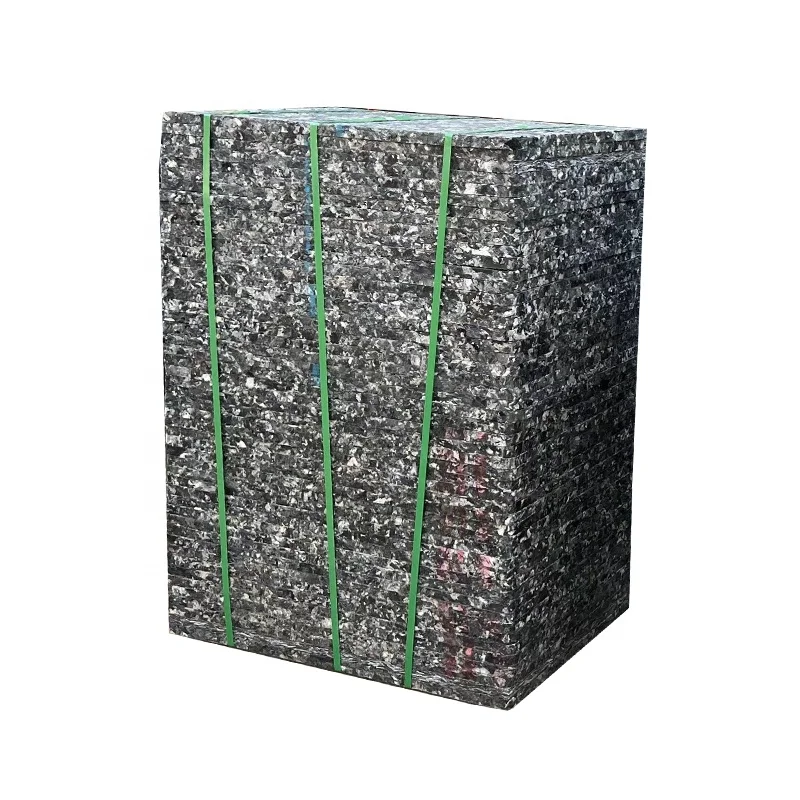

Block pallet
Pallet size:
1350x900x30mm
Pallet model:
GMT pallet
Raw material:
Glass fiber and PP plastic
Lifespan:
More than 7years






Company information


Darifeng\tMachinery- Profession achieves success

Qingdao Darifeng Machinery Co.,Ltd founded in 1985, is one of the biggest block & brick machine manufacturer in China, our company located in Qingdao City and Linyi City, Shandong Province, covers an area of 126,000 square meters, with 400 staffs, including medium and high-level professionals 100 staffs.


We are a high-tech enterprise, integrating science, industry and export for block & brick machine with our brand more than 30 varieties. Now we have built more than 20000 block production line in China and we also have exported block & brick machine to more than 100 countries, like Philippines, India, Bangladesh, Indonesia, Kazakhstan, Uzbekistan, Nepal, Yemen, Oman, Palestine, Armenia, Sudan, South Africa, Uganda, Mozambique, Tanzania, Ghana, Zimbabwe, Congo, Peru, Colombia, Chile, Paraguay, Bolivia Mexico etc, and have won great fame and popularity.

Our company not only provides customers with various brick and block making machine, but also provides services including process design, workshop design and factory design. In addition, we have a professional engineer team to offer the best after-sales services, such as training workers, imparting technical instruction and fixing problems, we provide all ofour customers 2 year's warranty. We always want to be the best in our industry because we clearly know that only the completely perfect quality and service are the best. Anyway, choosing to cooperate with us is really your wise choice. We are looking forward to cooperating with you.











Our service


1) Send the technicians to carry out the installation and debugging of equipment for the foreign users with compensation. Countries or regions with unstable political situation or in the throes of wartime are not included in our plan.
2) Train the users to command the equipment and guide them for safe production.
3) Explain the routine maintenance of equipment carefully and remove common faults.
4) We are responsible for all the repairs that caused by our quality problems within two year’s warranty. (We will provide one set of spare parts/wear & tear parts free of charge with shipment.)
5) For some countries whose visas are difficult obtained, customers can also send their technicians to our company to receive free guidance and training.
6) Accept suggestions for improvement put forward by customers an earnest way. In accordance with changes of the market, provide the products and services to meet the user’s needs and create value for them.
7) We will make every effort to solve your problems, and your success will add new glory to you.


FAQ


1> Is this block machine suitable for us to use?
Answer:Could you please tell us what kind of bricks do you want to make? And the capacity you want? Let us check if it can meet your request.
2>Which industry did this block machine usually be used in?
Answer: Interlocking bricks, Hollow bricks, Paving bricks,Solid bricks,etc
3>How to use the block machine?
Answer: We will send the operating manual to you after you purchase the machine, for bigger machine, we can offer engineer fly to your side for installation and training your workers.
4>How about the after sale service of block machine?
Answer: 2 year guarantee for the whole machine (without the spare parts).
5>what's your payment term
our common payment is 30% deposit by T/T before arrange the machine production,70% balance before the delivery,if other paymentterm,we can negotiation.
