EDWARDS NXDS10I 12 7 кубических метров в час вакуумный насос для сухой спирали продажа
- Категория: >>>
- Поставщик: Hongfei Technology (suzhou) Co. Ltd.
Сохранить в закладки 1601104302459:
Описание и отзывы
Характеристики
Company Overview
Hongfei technology is located in Suzhou, China, mainly engaged in a series of vacuum system products, such as vacuum pump, gauge and flanges. We have professional and technical team in vacuum maintenance and system design,and more than ten years of practical experiences in vacuum field.
Applications
* General clean pumping applications
* Scanning Electron Microscopes - SEM
* Beam lines and high energy physics
* Mass Spectrometry
* Electron Microscopy
* Sample Preparation
* Research and Development
* High Energy Physics
* Industrial
* Semiconductor
* Scanning Electron Microscopes - SEM
* Beam lines and high energy physics
* Mass Spectrometry
* Electron Microscopy
* Sample Preparation
* Research and Development
* High Energy Physics
* Industrial
* Semiconductor
* General clean pumping applications
* Scanning Electron Microscopes - SEM
* Beam lines and high energy physics
* Mass Spectrometry
* Electron Microscopy
* Sample Preparation
* Research and Development
* High Energy Physics
* Industrial
* Semiconductor
* Scanning Electron Microscopes - SEM
* Beam lines and high energy physics
* Mass Spectrometry
* Electron Microscopy
* Sample Preparation
* Research and Development
* High Energy Physics
* Industrial
* Semiconductor
Product Paramenters
Products Description

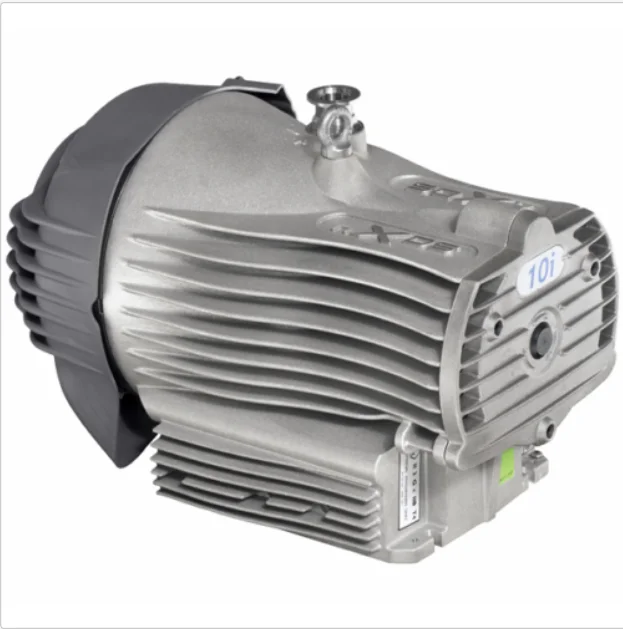

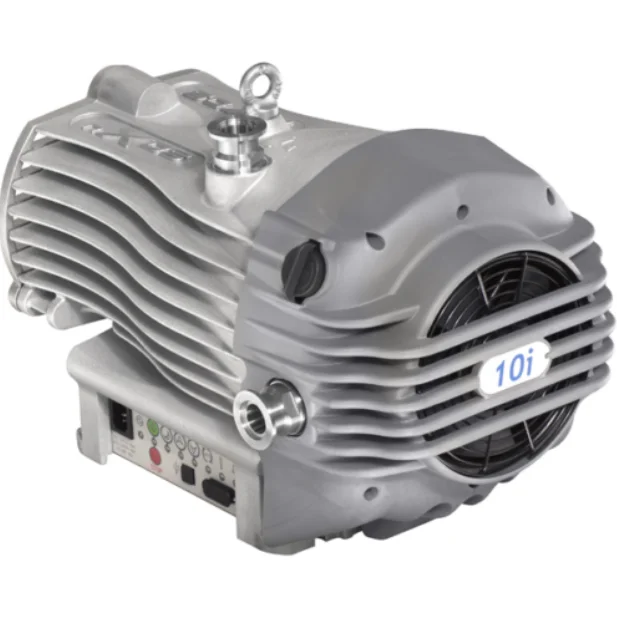

This Edwards nXDS10i dry scroll roughing/backing pump has a pumping speed of 6.7 cfm (11.4 m3/hr), and an ultimate vacuum of 0.005 Torr (0.007 mbar). It has KF-25 (NW25) inlet and outlet ports. It requires 100-240 VAC single phase power and has a standard C14 power connector. The nXDS10i draws 10A@120VAC (6A@240 VAC). The nXDS10i scroll pump produces a noise level up to twenty times less than competing products at 52 dB(A). The pump has an onboard inverter controller which allows the pump to be controlled either manually with easy to use push buttons, or remotely via its RS232/RS485 interface when connected to an Edwards TIC or TAG controller, or a user supplied software interface. This Edwards nXDS10i dry scroll pump has part number A73601983.
Edwards nXDSi pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDSi series of pumps is the next generation in completely oil free, dry scroll pumps and offer increased pumping speeds, lower ultimate pressures, lower power consumption and lower noise than previous models. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. Edwards nXDSi pumps feature the latest in tip seal technology giving them significantly longer life between tip seal changes (up to five year service intervals), and are designed to be completely field serviceable.
The nXDSi integral pump controller monitors power and temperature, and will protect the pump in the event of operation under sustained high load or under fault conditions. The pump controller has a unique feature to control the speed of the pump in standby mode to 70% of full speed or with other push buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life. The logic interface is designed to support RS232/RS485 serial or parallel control and monitoring through the DB15 connector.
Edwards nXDSi pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The nXDSi series of pumps is the next generation in completely oil free, dry scroll pumps and offer increased pumping speeds, lower ultimate pressures, lower power consumption and lower noise than previous models. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. Edwards nXDSi pumps feature the latest in tip seal technology giving them significantly longer life between tip seal changes (up to five year service intervals), and are designed to be completely field serviceable.
The nXDSi integral pump controller monitors power and temperature, and will protect the pump in the event of operation under sustained high load or under fault conditions. The pump controller has a unique feature to control the speed of the pump in standby mode to 70% of full speed or with other push buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life. The logic interface is designed to support RS232/RS485 serial or parallel control and monitoring through the DB15 connector.

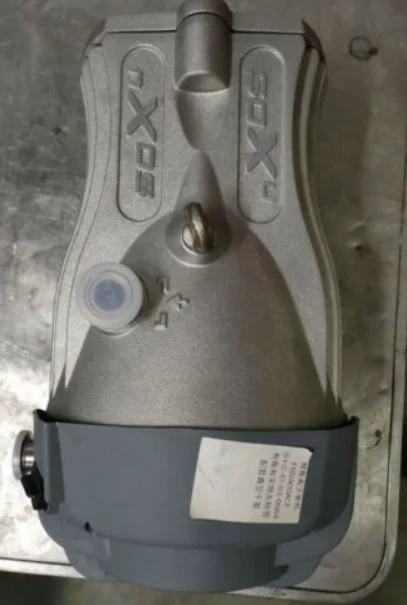

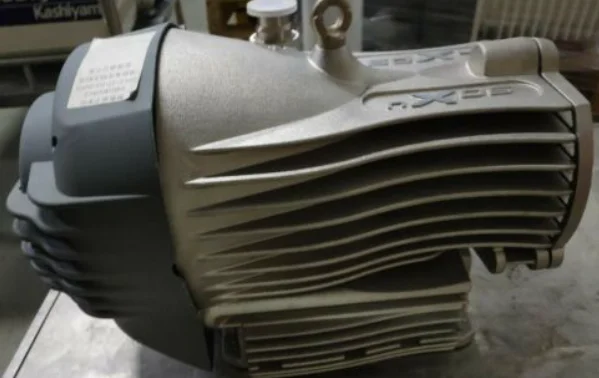

product display
FAQ
1. who are we?
We are based in Jiangsu, China,have more than ten years of vacuum system experience，There are total about 11-50
people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Sales of various vacuum pumps, turbo pumps&controllers，gauges&controllers，fittings and flanges，rebuild kits，parts&motors
4. why should you buy from us not from other suppliers?
The core members of Hongfei technology have more than ten years of experience in vacuum
equipment trade, and can provide solutions in vacuum field
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FAS；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T，L/C,D/P,Western Union,MoneyGram,Credit Card
Language Spoken:English,Chinese
We are based in Jiangsu, China,have more than ten years of vacuum system experience，There are total about 11-50
people in our office.
2. How can we guarantee quality?
Always final Inspection before shipment;
3.what can you buy from us?
Sales of various vacuum pumps, turbo pumps&controllers，gauges&controllers，fittings and flanges，rebuild kits，parts&motors
4. why should you buy from us not from other suppliers?
The core members of Hongfei technology have more than ten years of experience in vacuum
equipment trade, and can provide solutions in vacuum field
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW,FAS；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T，L/C,D/P,Western Union,MoneyGram,Credit Card
Language Spoken:English,Chinese
Похожие товары
Насос для шлама KBZ31.5 с максимальным потоком 40 м 3/ч морского песка промышленная машина откачки насос усиления давления майнинга
19 956,01 ₽ - 22 148,98 ₽
Высокопроизводительный Бустерный Насос для холодной и горячей воды усилитель одноступенчатый центробежный насос
6 030,67 ₽ - 6 578,91 ₽
Низкий уровень шума электронный небольшой насос для подогрева пола циркуляционный поддерживающий OEM
2 171,04 ₽ - 3 289,46 ₽

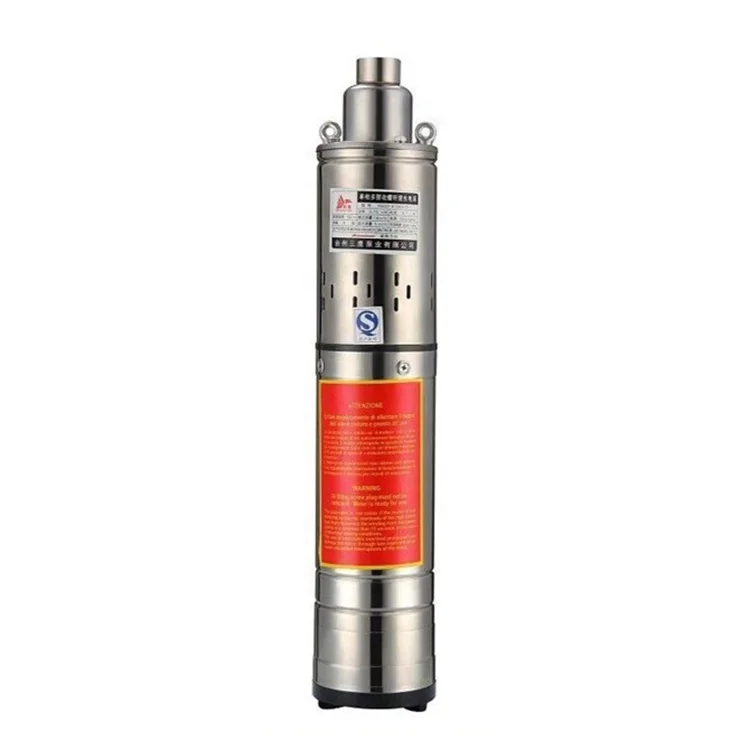

От 3 до 6 дюймов из нержавеющей стали Глубокие Скважины погружные водяные насосы от производителя Электрический погружной насос
3 837,70 ₽ - 8 223,63 ₽

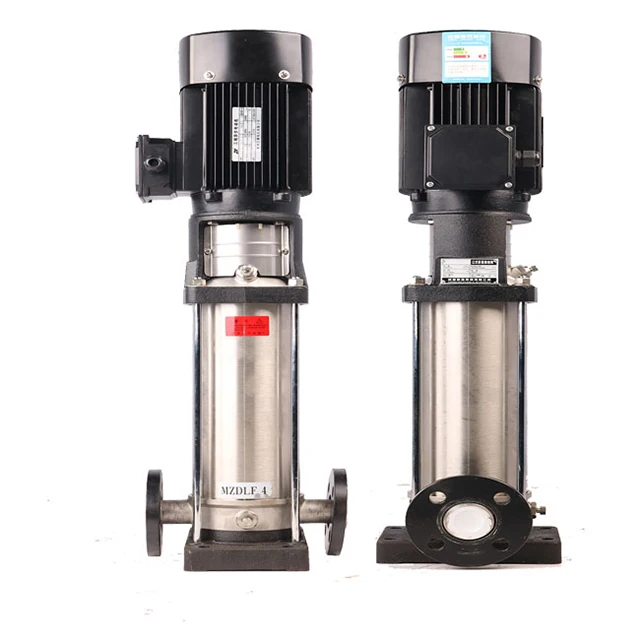

5 hp длительный срок службы Электрический свет вертикальный многоступенчатый центробежный водяной насос высокого давления 8 бар
RS-2 220V газовый насос
4 934,18 ₽ - 5 482,42 ₽

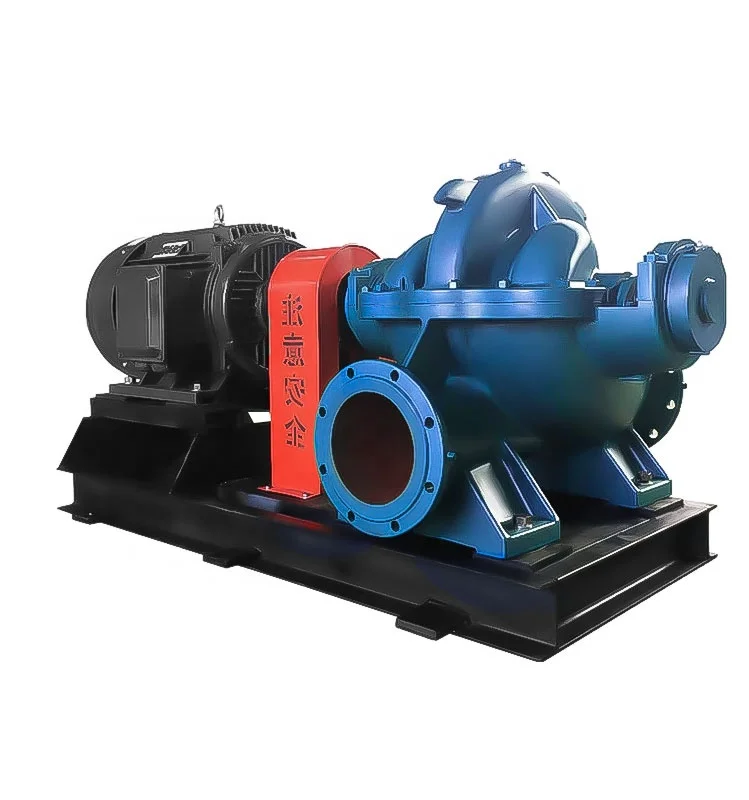

10 л. С. Из Нержавеющей Стали Химический Промышленный городской Электрический Центробежный водяной ферма горизонтальный двойной всасывающий сплит-насос
