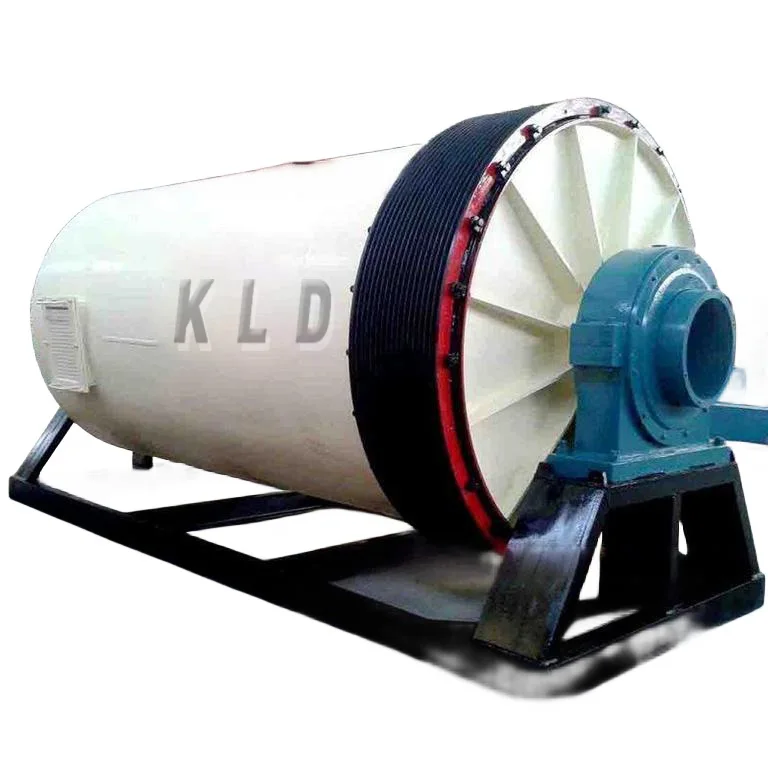

Электрическая мельница непрерывная высокопроизводственная Вертикальная шаровая мельница для керамической промышленности
528 699,22 ₽ - 1 618 467,00 ₽

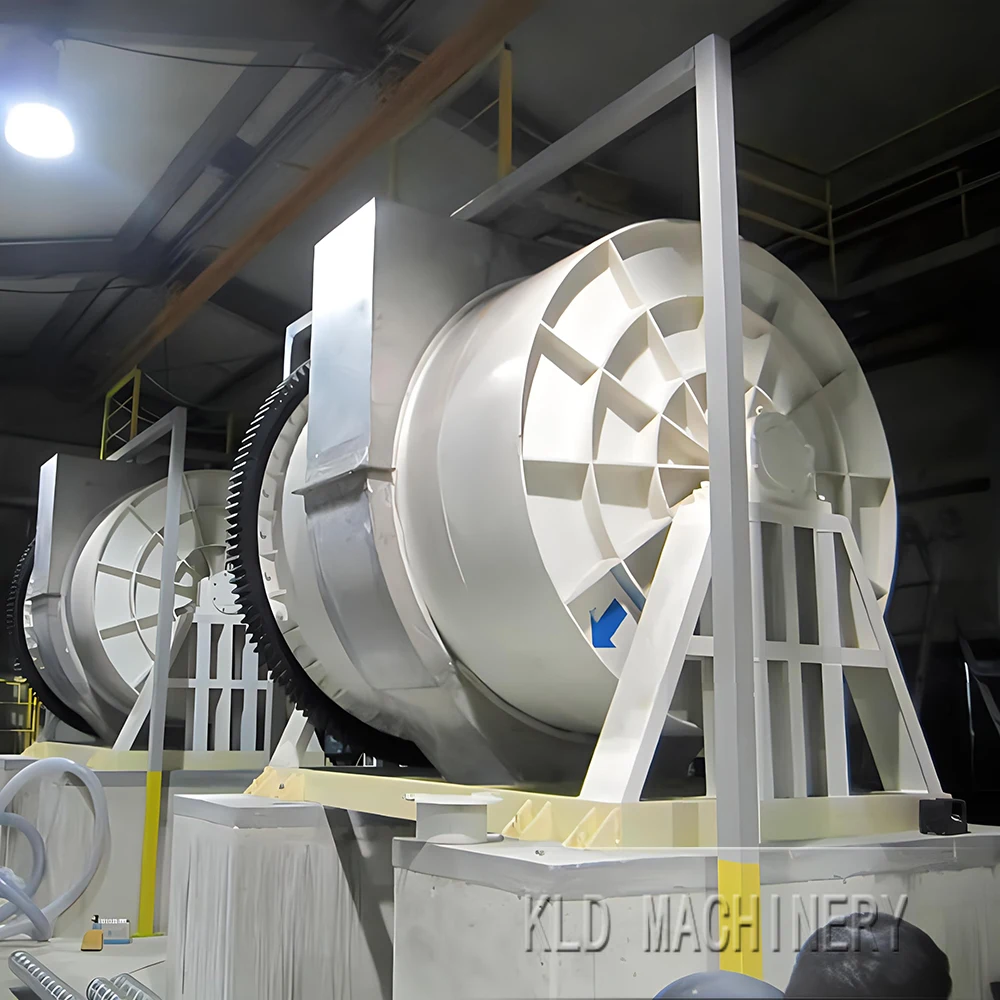

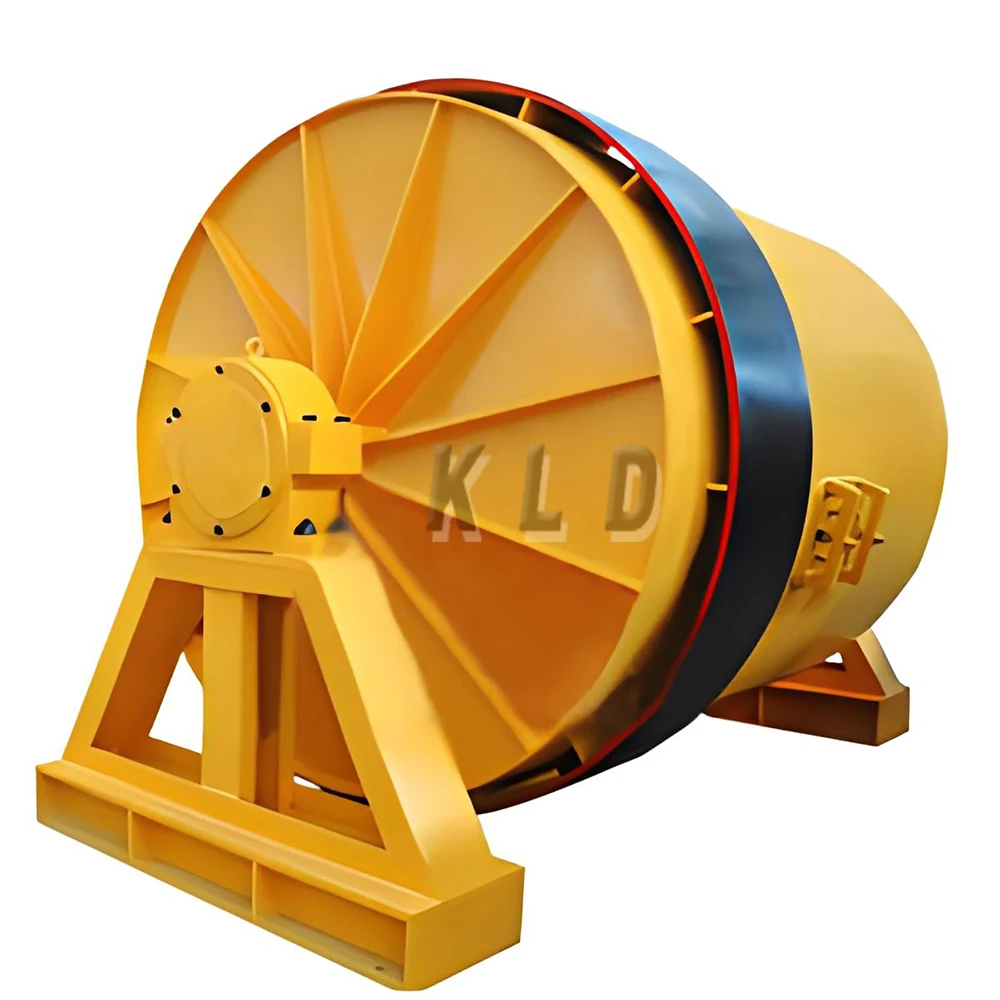

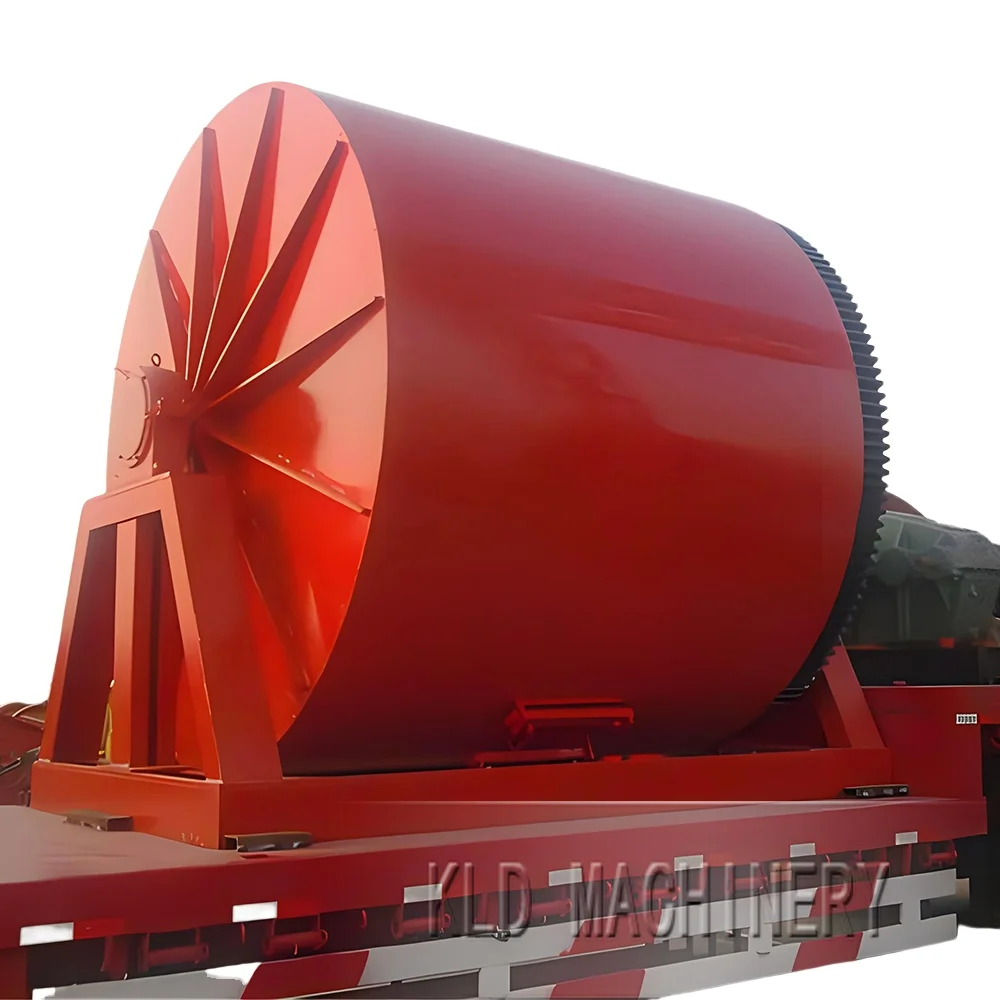

Шаровая мельница для мокрого помола керамическая добычи золота шаровая керамической руды цена
- Категория: >>>
- Поставщик: Henan Kailide Machinery Equipment Co. Ltd.
Сохранить в закладки 1601104411158:
Описание и отзывы
Характеристики
Product Overview

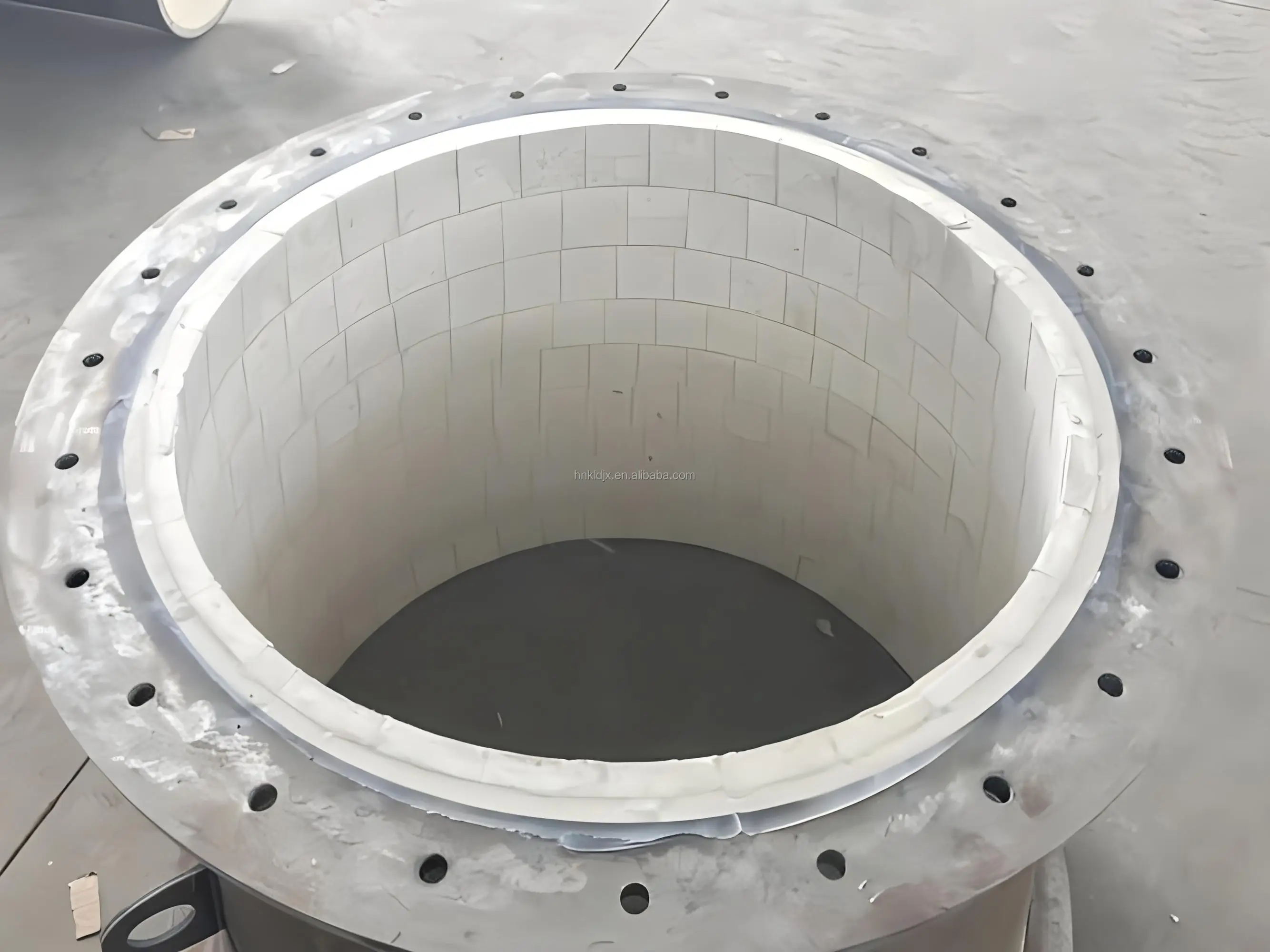

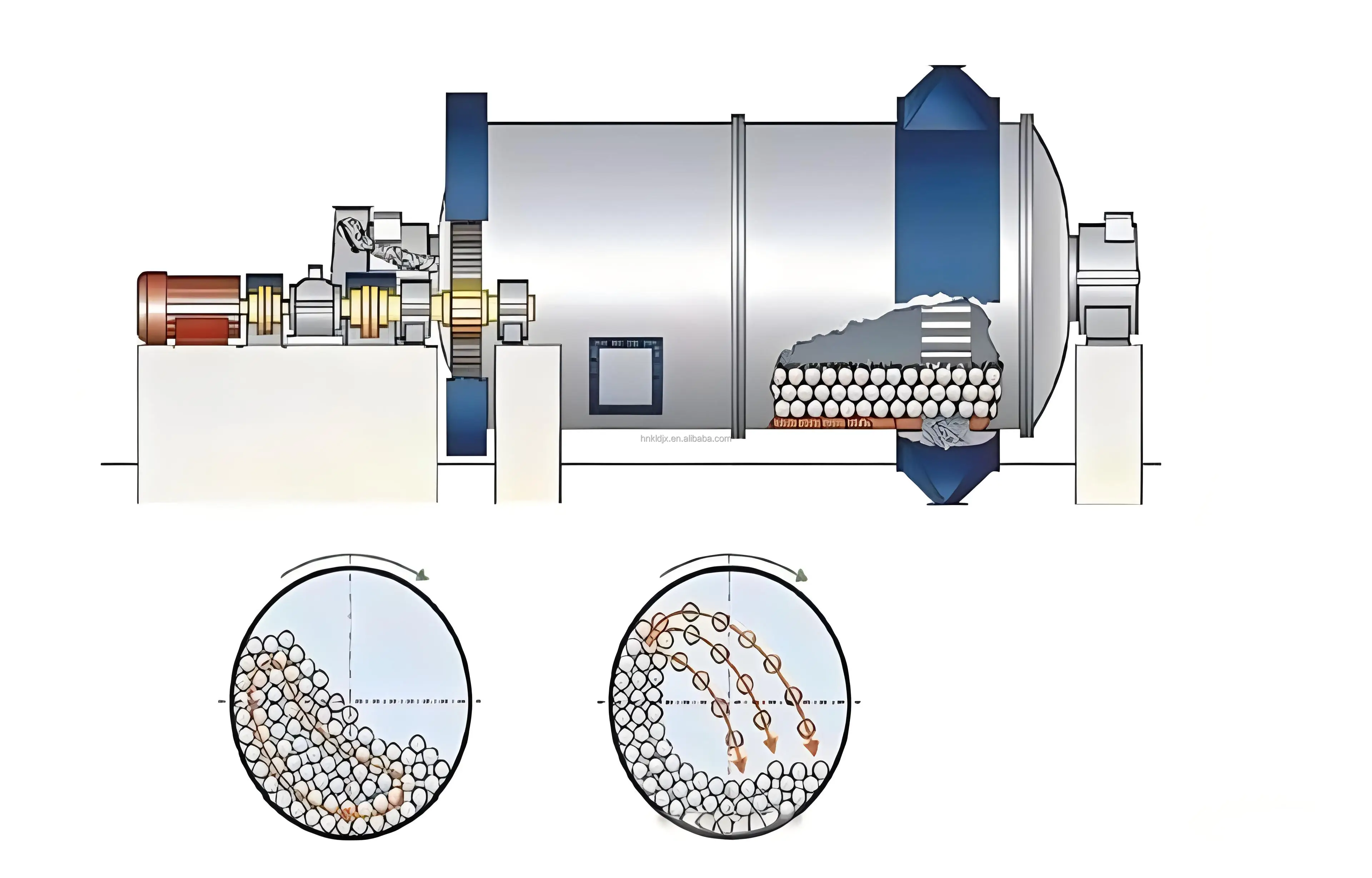

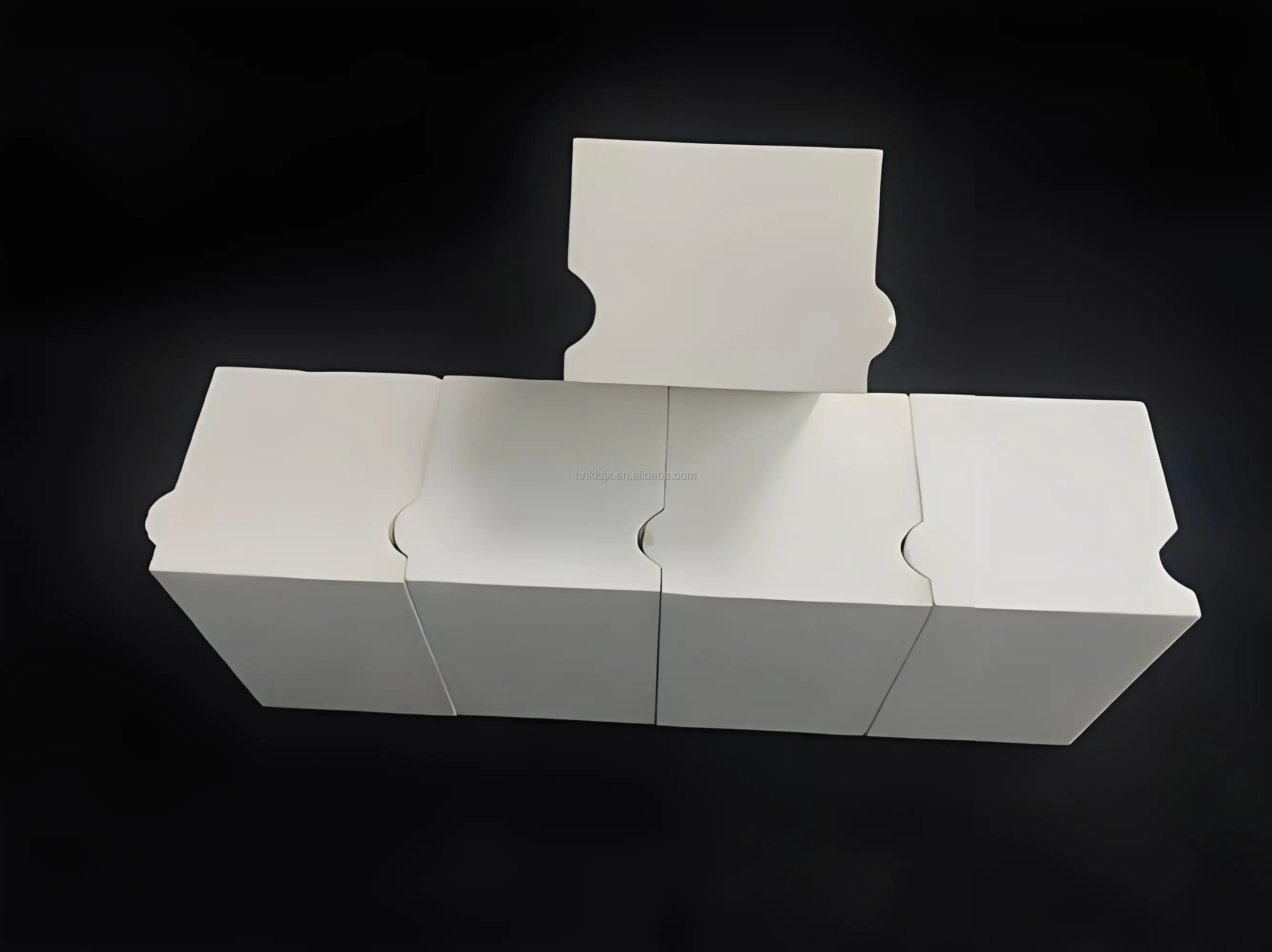

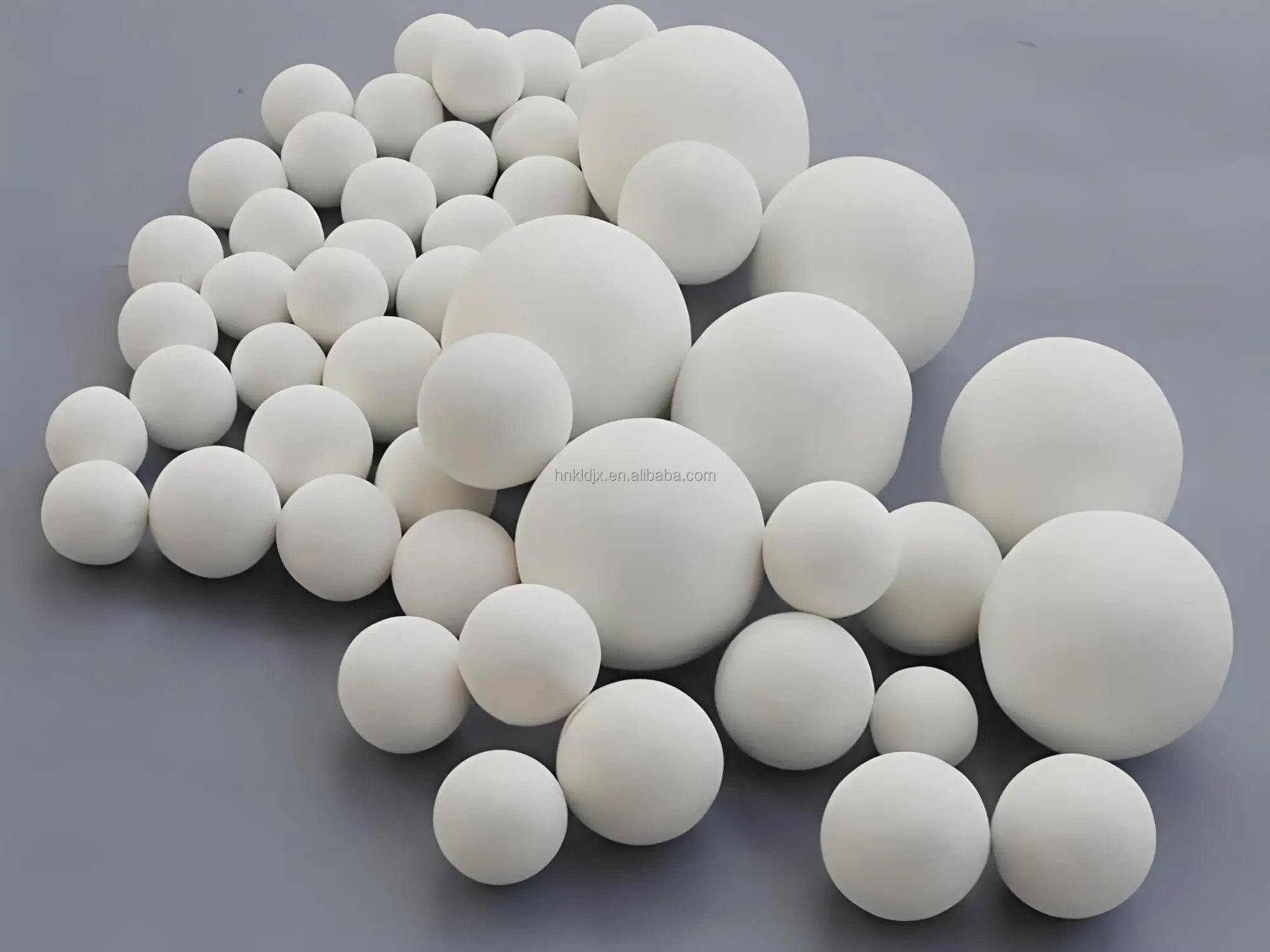

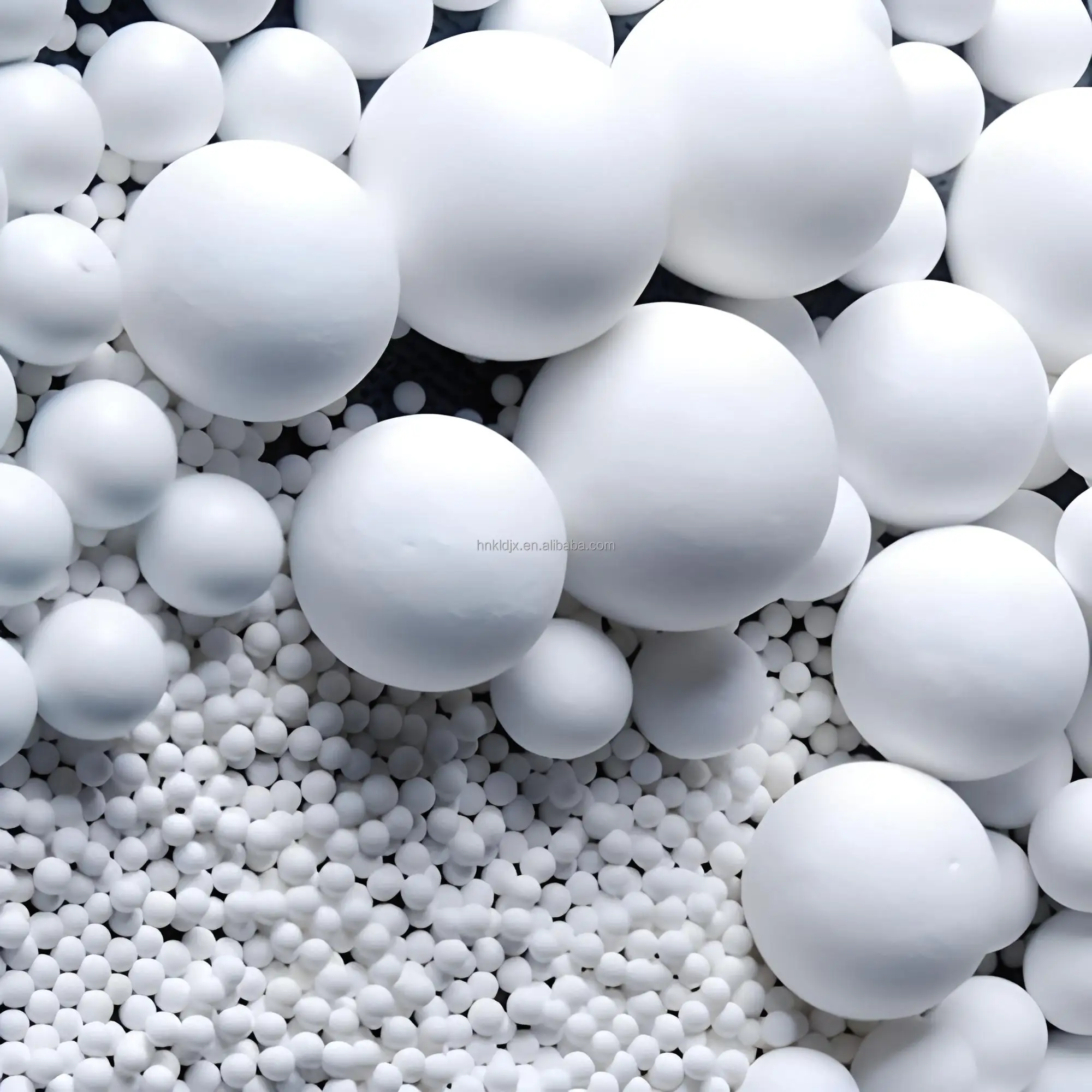

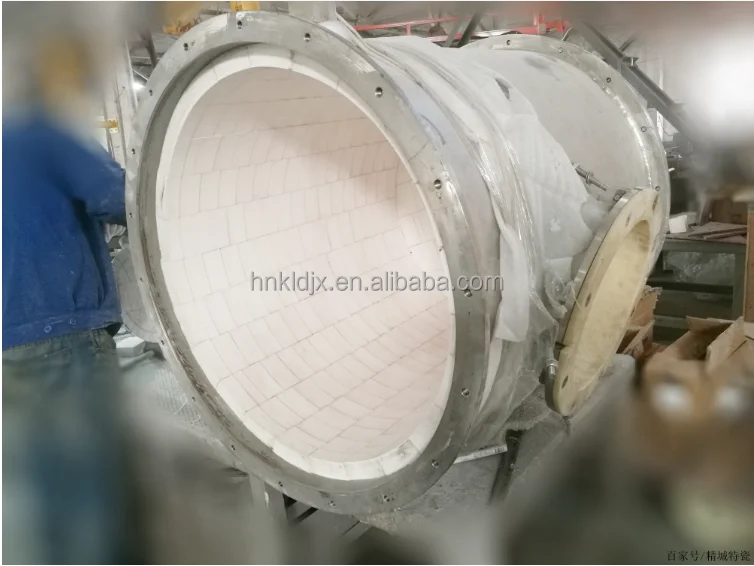

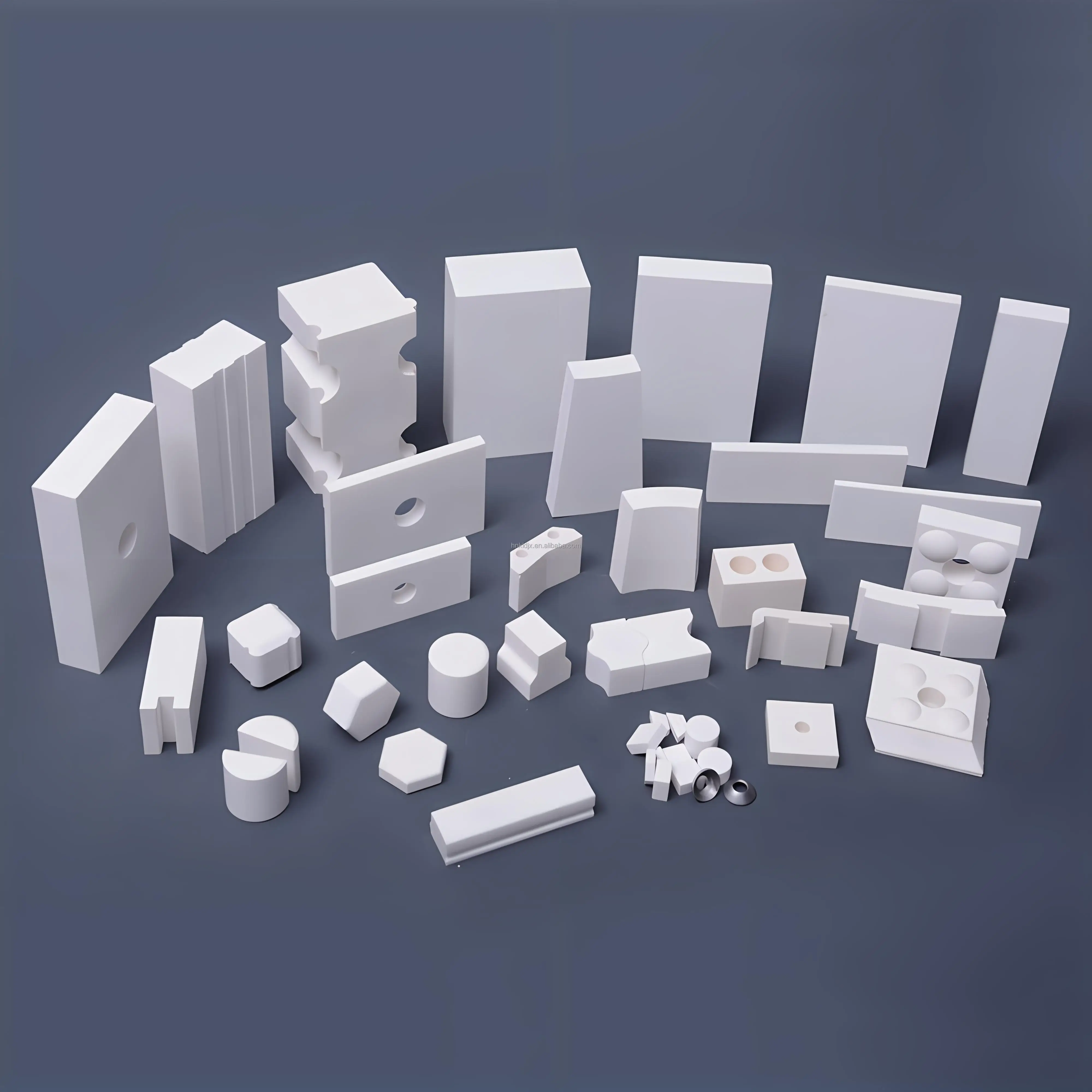

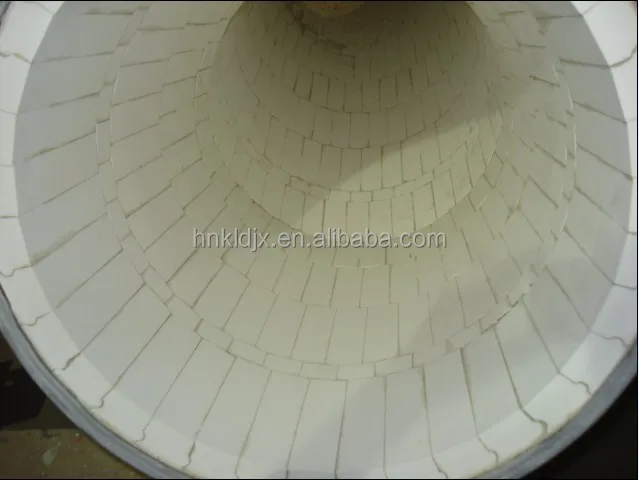

Ceramic ball mill is a small and medium non-continuous grinding machine. It is used for grinding all kinds of mineral stone into fine powder from 50 mesh to 800 mesh. The ceramic ball mill machine liner is ceramic material and its grinding media is high alumina ceramic balls to avoid the iron contamination.It can be used as wet or dry grinding mill machine according to the specific requirements.The ceramic ball mill is applied to production line with high fineness requirement and no iron pollution.
[ Rotating Speed ]: 36r/min
[Effective volume]:0.68m³
[Max material loading]:0.22T
[ Capacity ]: 0.5–1.5 t/h[Feeding Size]:≤25mm
[ Power ]: 5.5-11kw
Batch Ball Mill Advantages:
1. More energy saving,less energy loss during the transmission;
2. The overall structure,the performance is more stable and reliable;
3. Uniform particle size and high pass rate;
4. Grinding time can be controlled by itself to meet different requirements;
5. Start under reduced pressure, reduce current;
6. Strong ability to apply materials.
1. More energy saving,less energy loss during the transmission;
2. The overall structure,the performance is more stable and reliable;
3. Uniform particle size and high pass rate;
4. Grinding time can be controlled by itself to meet different requirements;
5. Start under reduced pressure, reduce current;
6. Strong ability to apply materials.

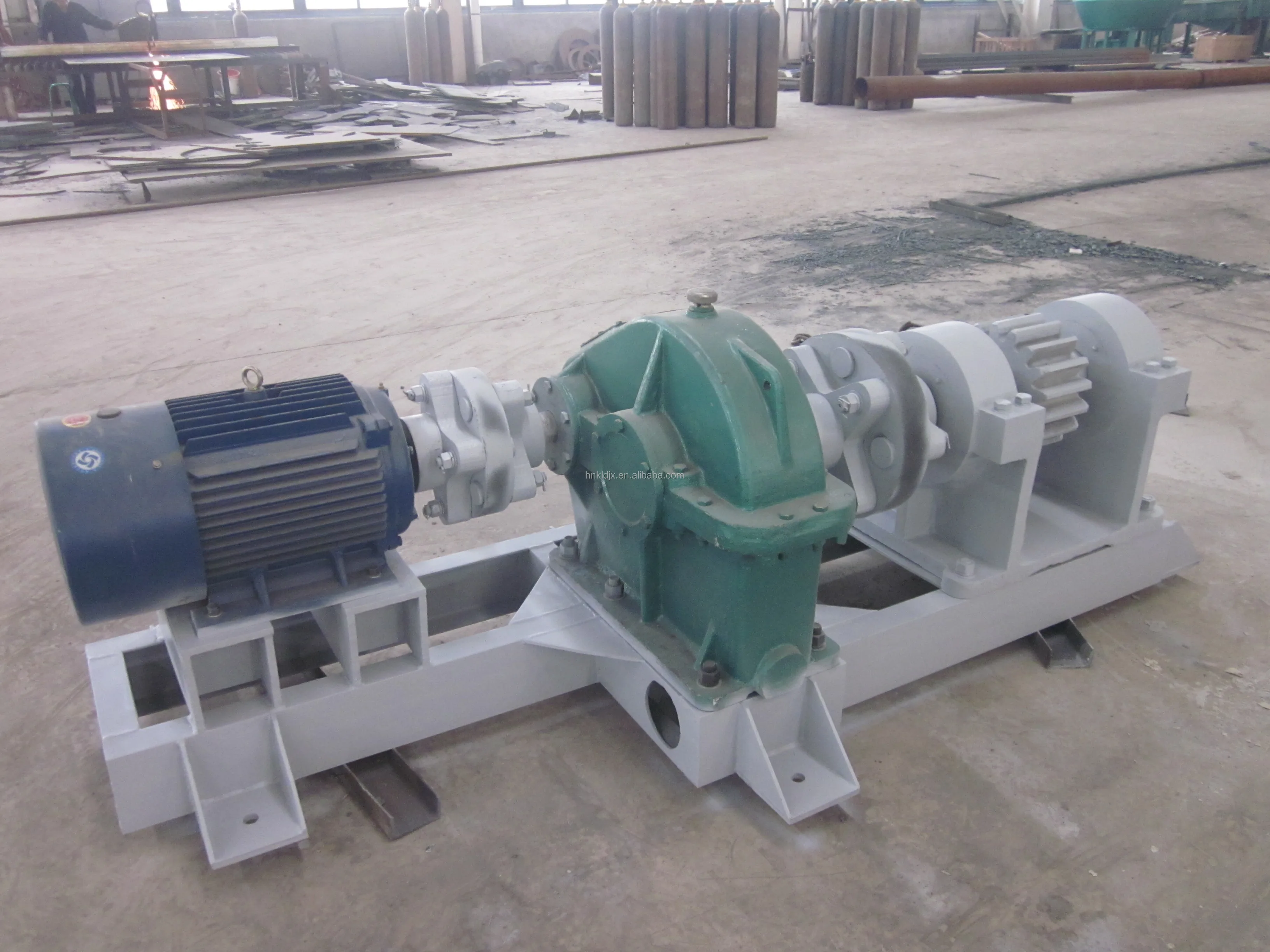

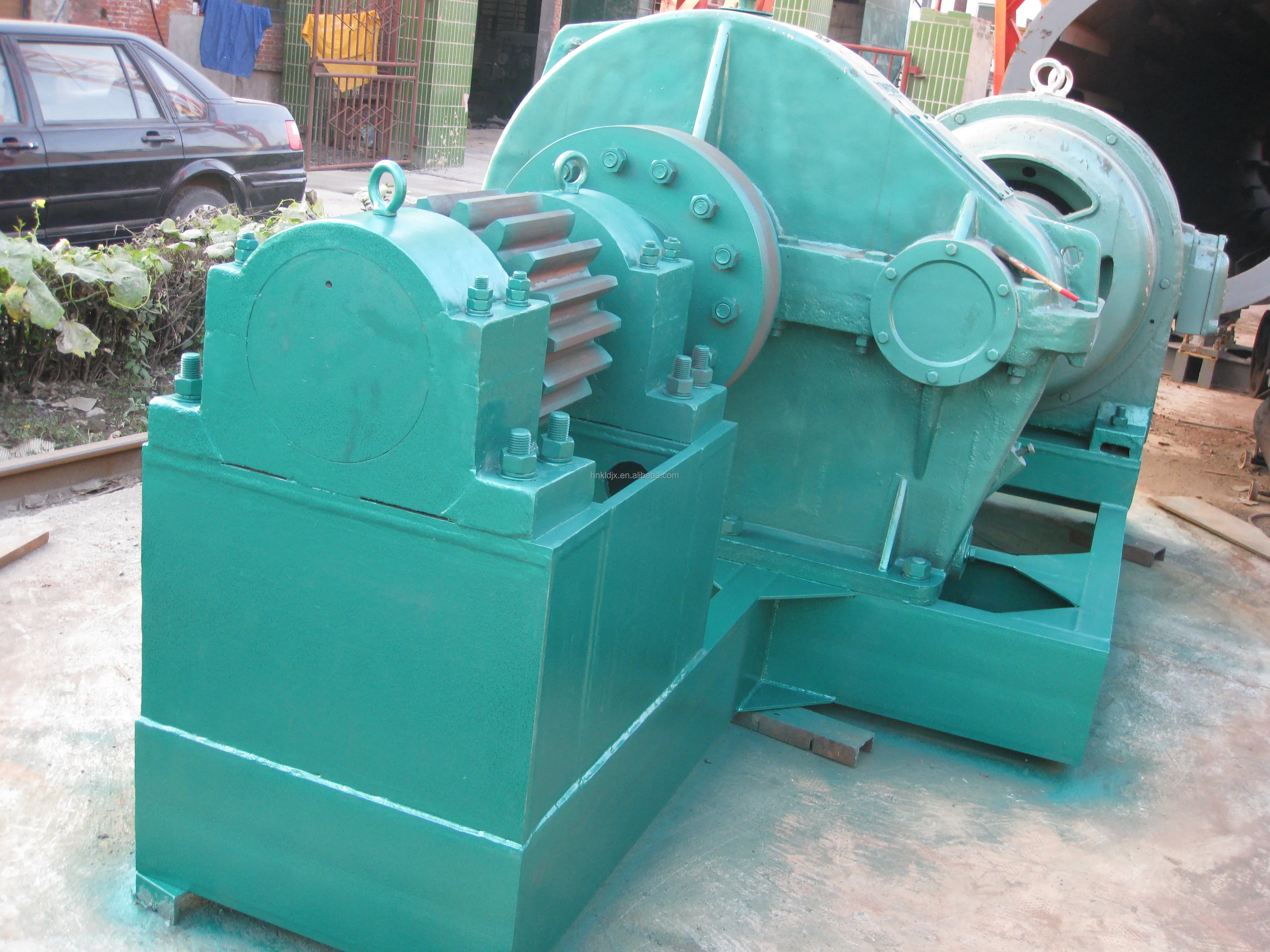

PRODUCT DETAILS
Technical Parameters
Model | Capacity (t/h) | Cylinder speed (r/min) | Motor power (kw) | Weight (t) |
TCQ910×1120 | 0.2 | 36 | 5.5-11 | 3.0 |
TCQ1200×1400 | 0.5 | 32 | 11-18.5 | 3.8 |
TCQ1500×1800 | 1.0 | 28 | 15-22 | 4.5 |
TCQ1800×2100 | 1.5 | 26 | 18.5-30 | 6.0 |
TCQ2100×2100 | 2.5 | 22 | 22-37 | 7.4 |
TCQ2500×2900 | 5.0 | 16 | 37-55 | 9.3 |
TCQ2800×3700 | 8.0 | 14.5 | 55-75 | 12.5 |
TCQ3000×3700 | 10 | 14 | 75-90 | 18.6 |

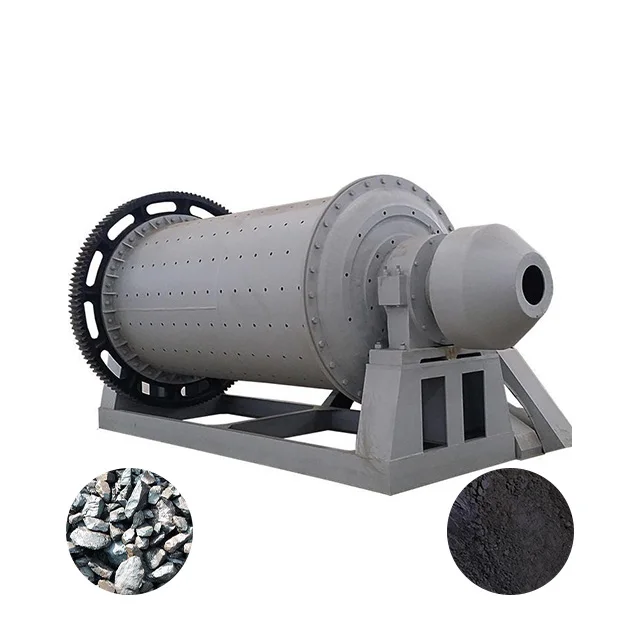

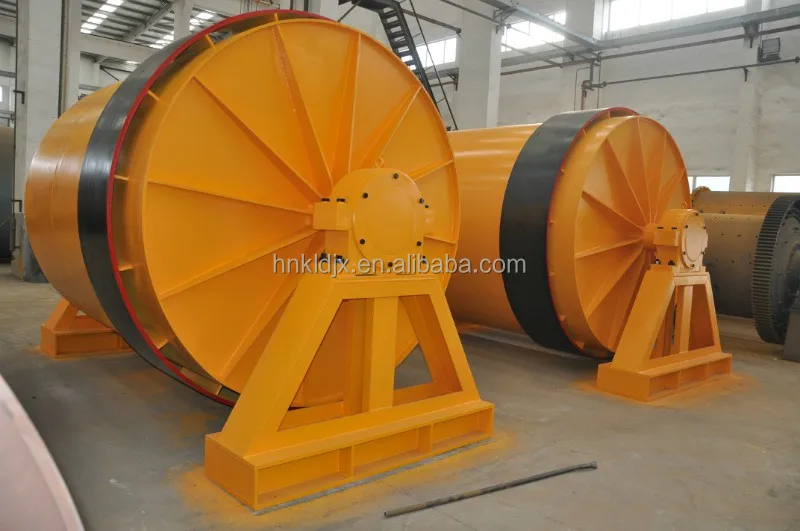

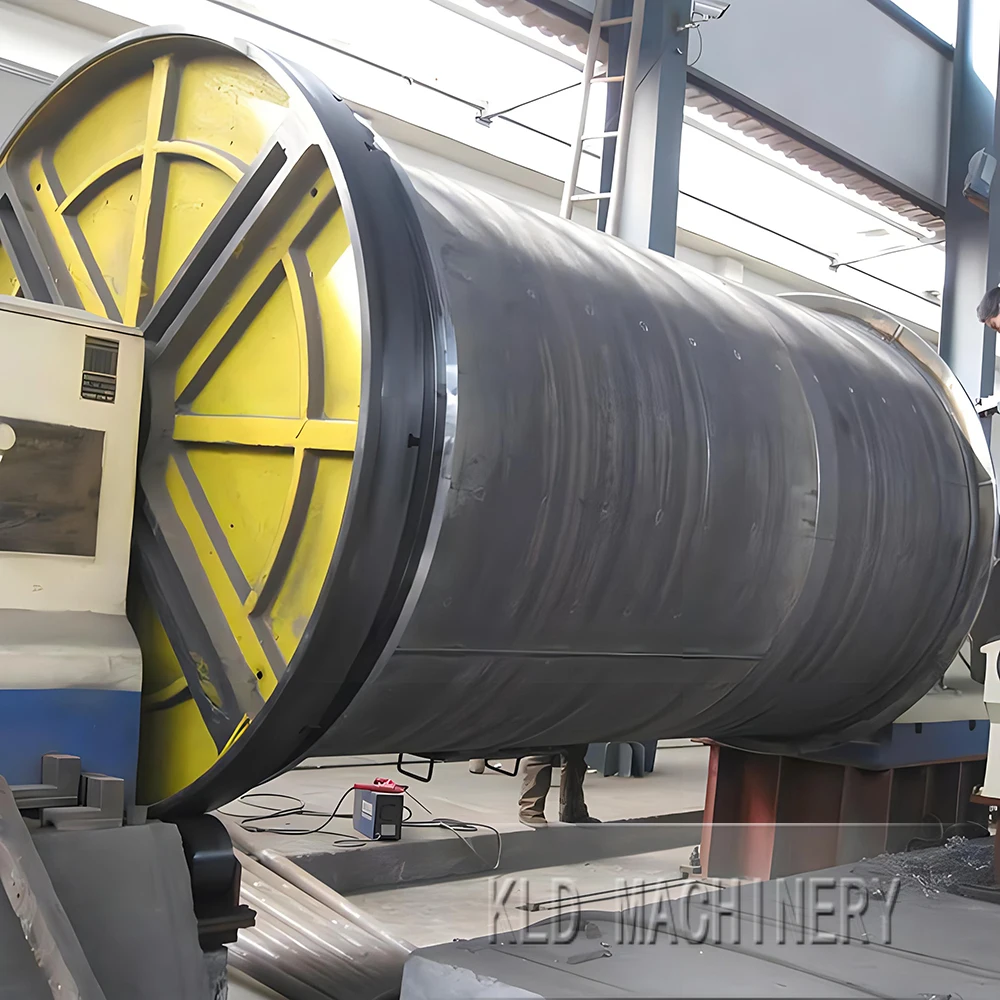

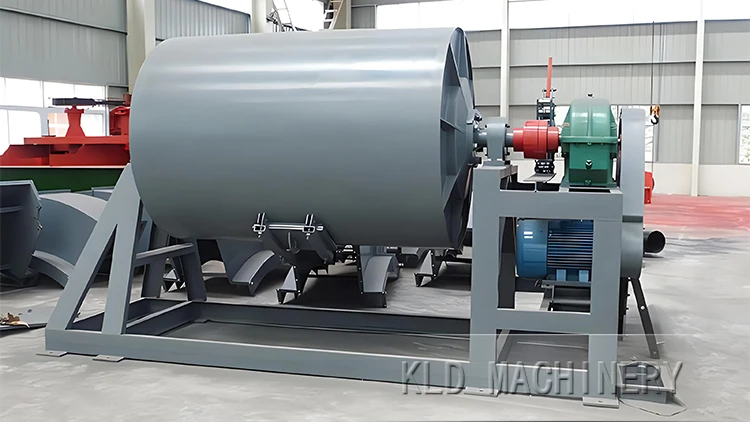

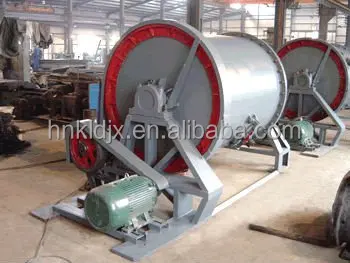

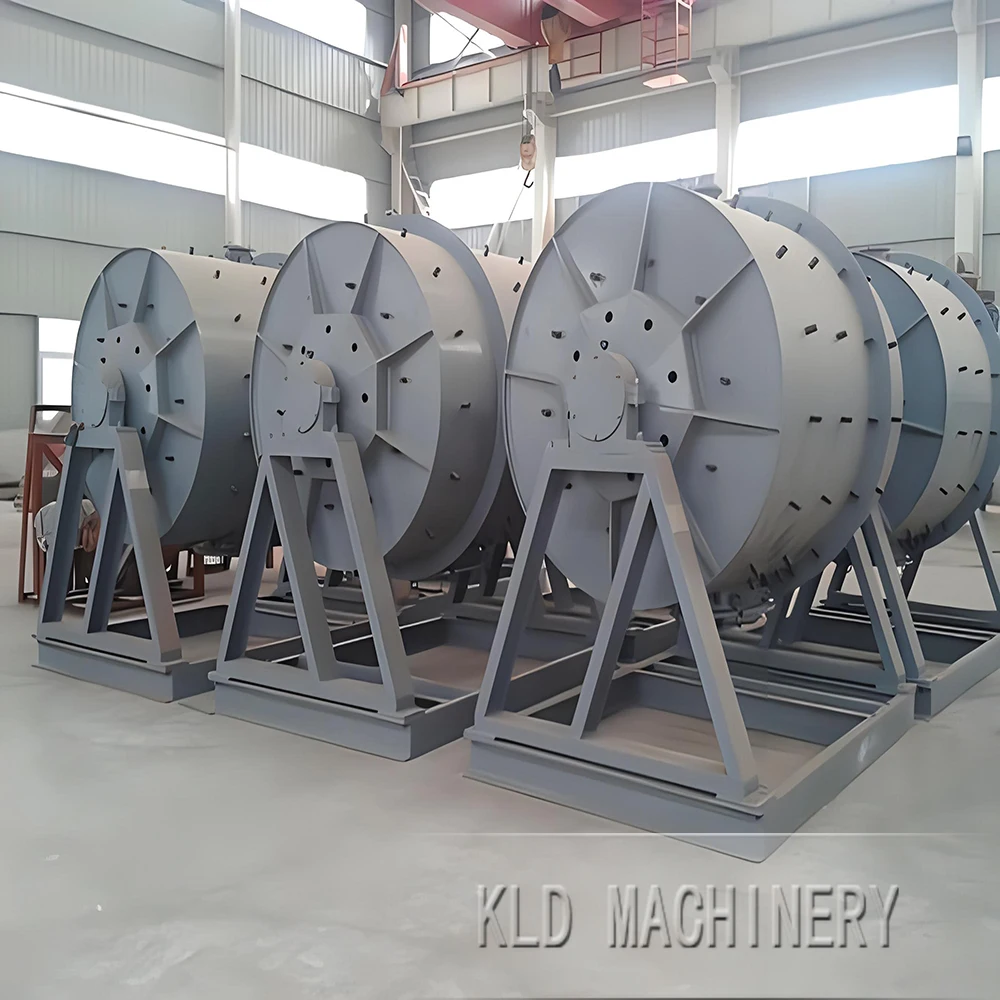

PRODUCT DISPLAY

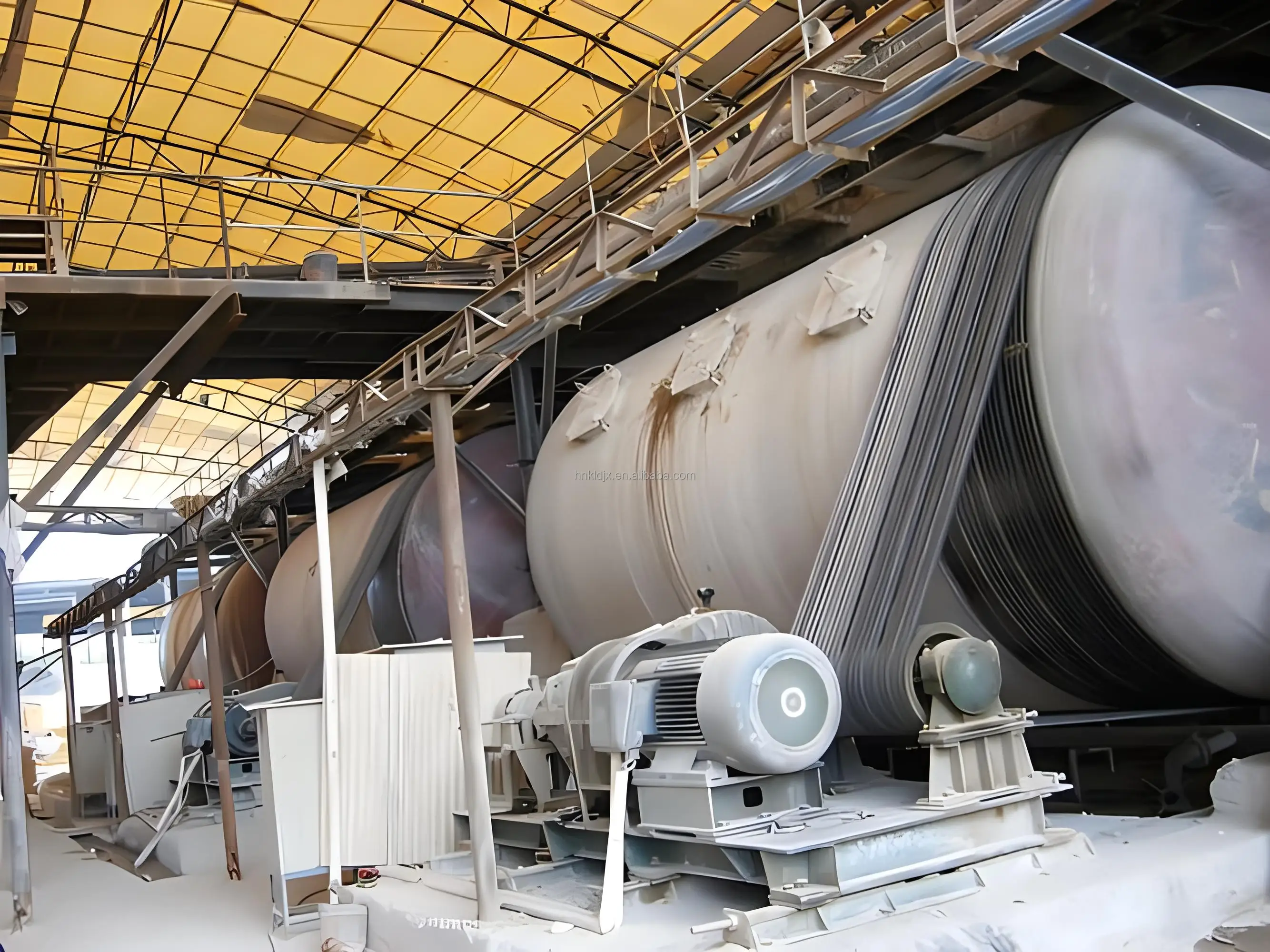

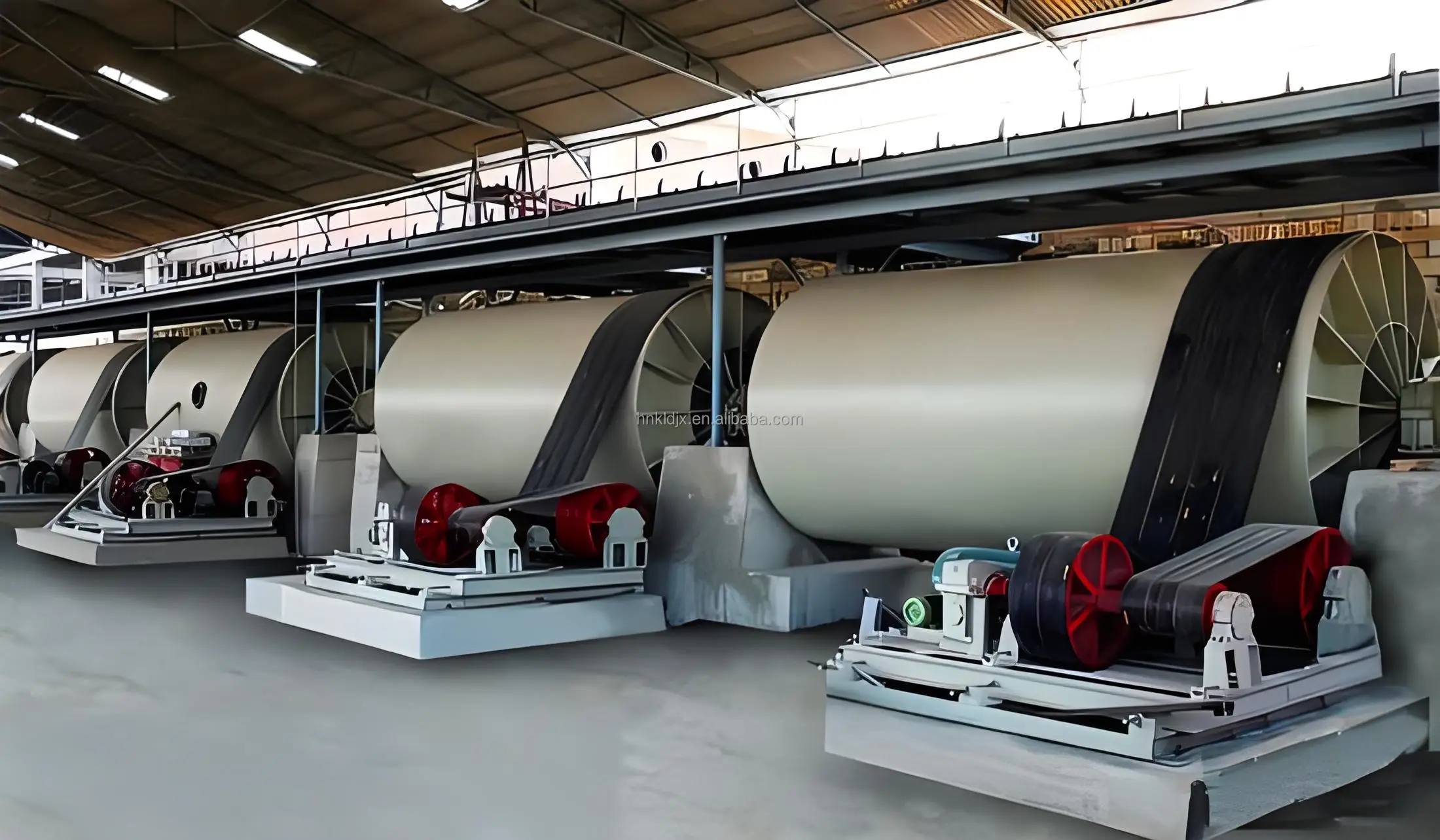

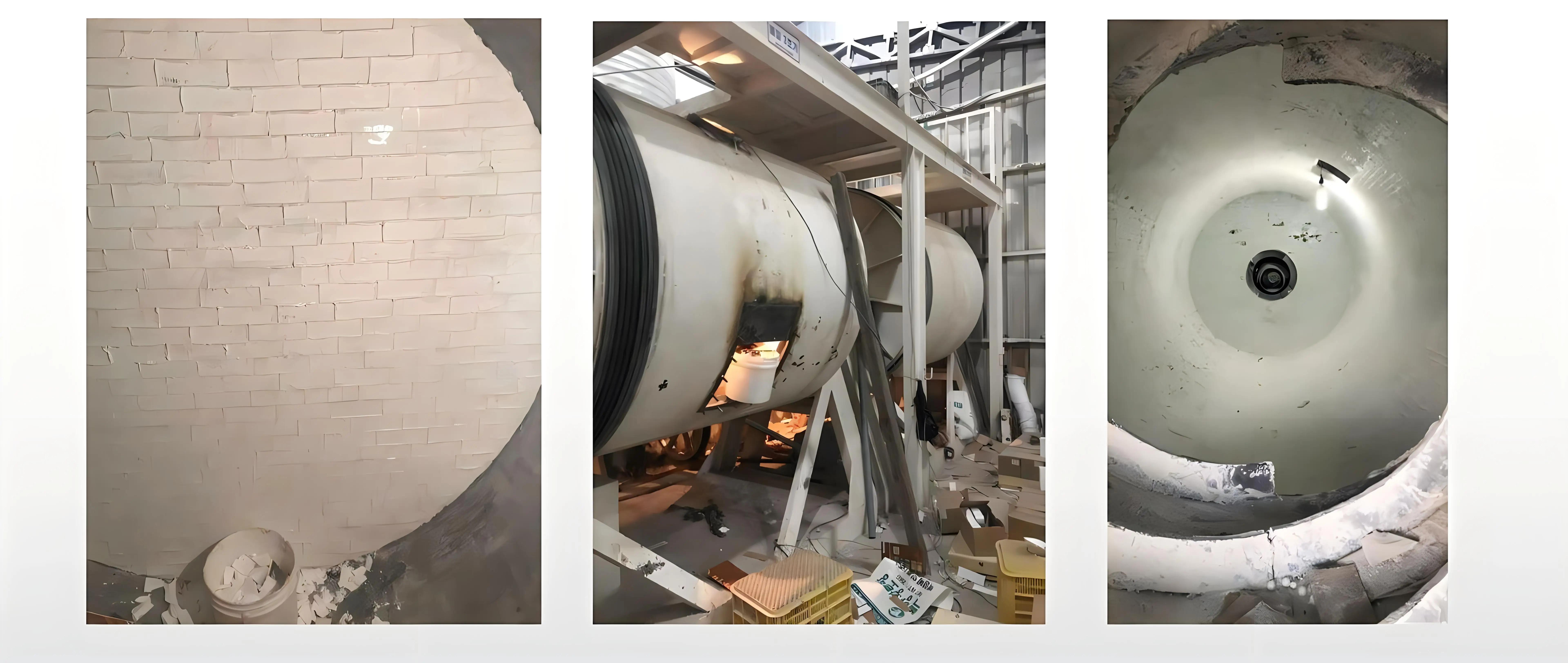

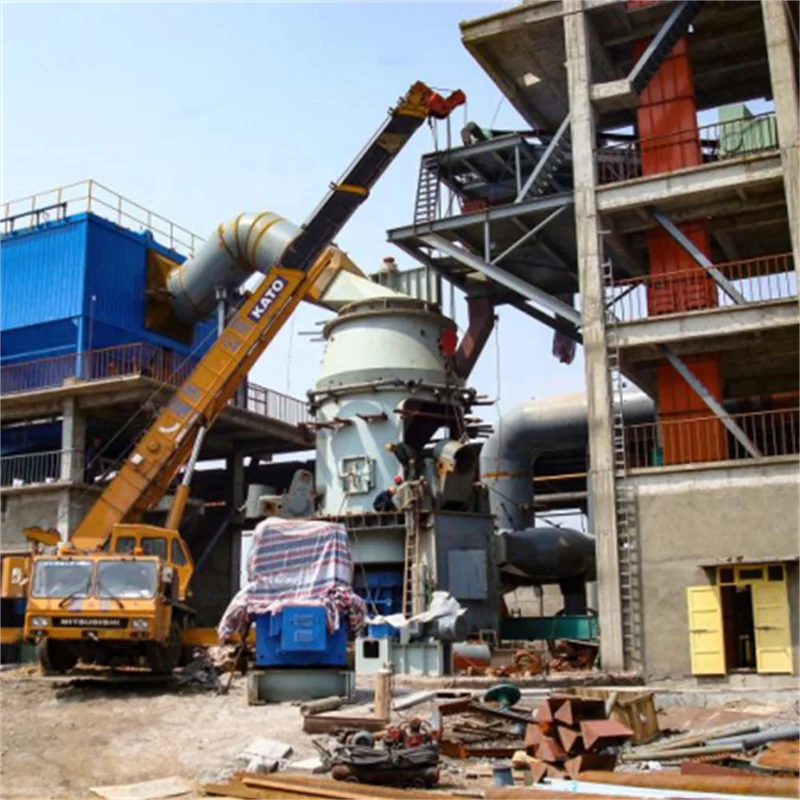

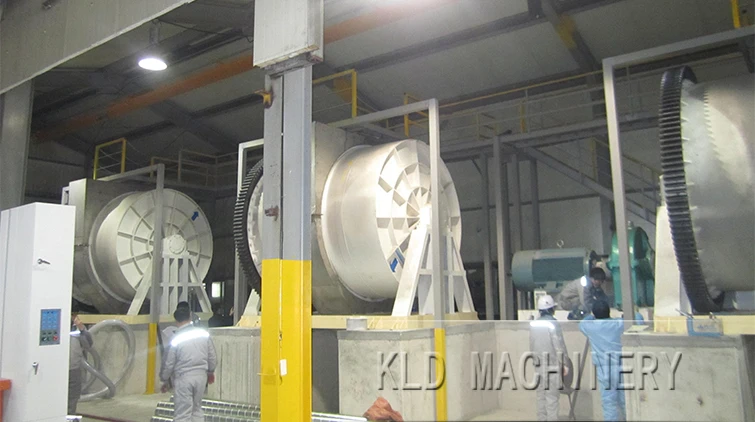

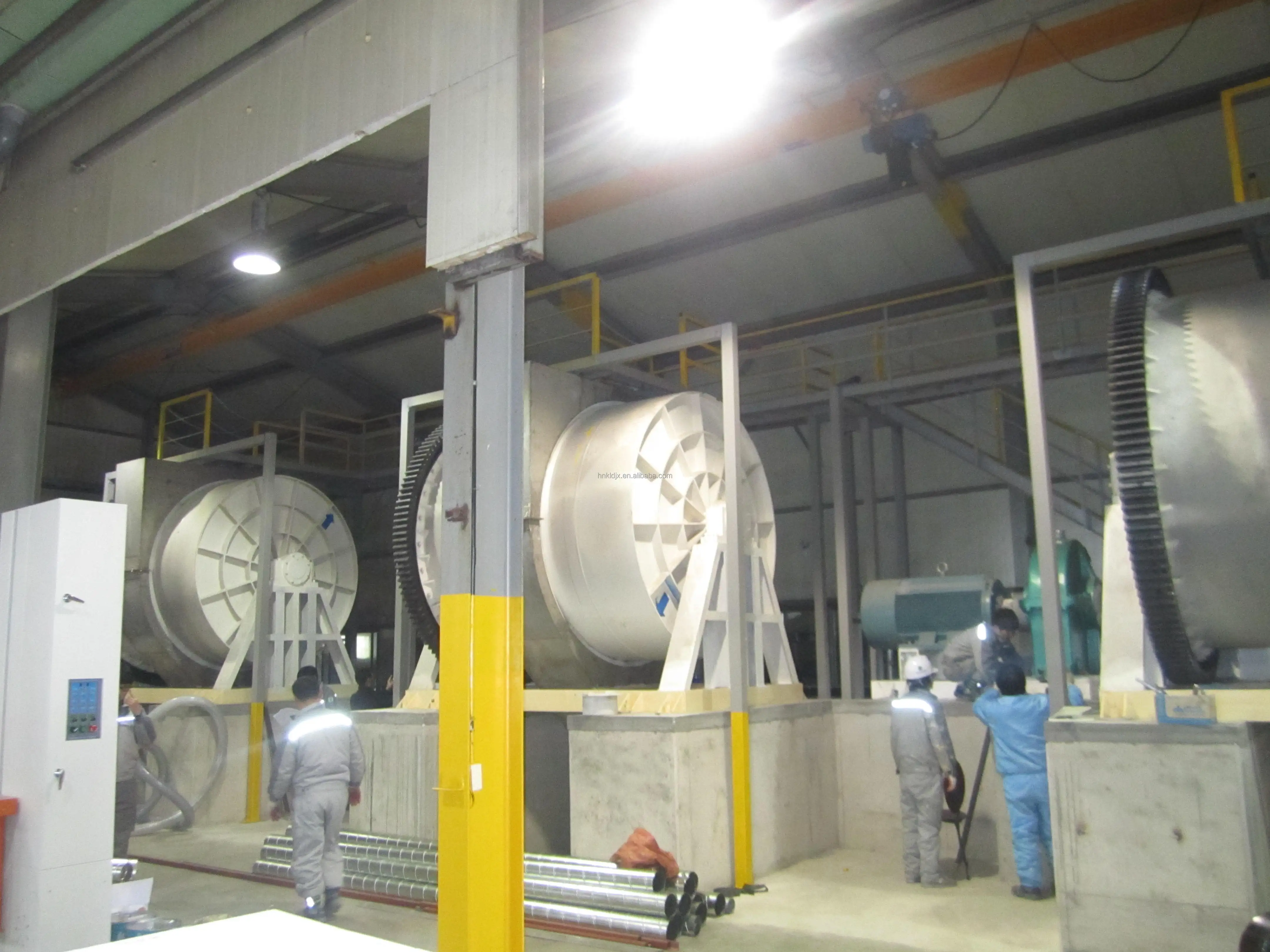

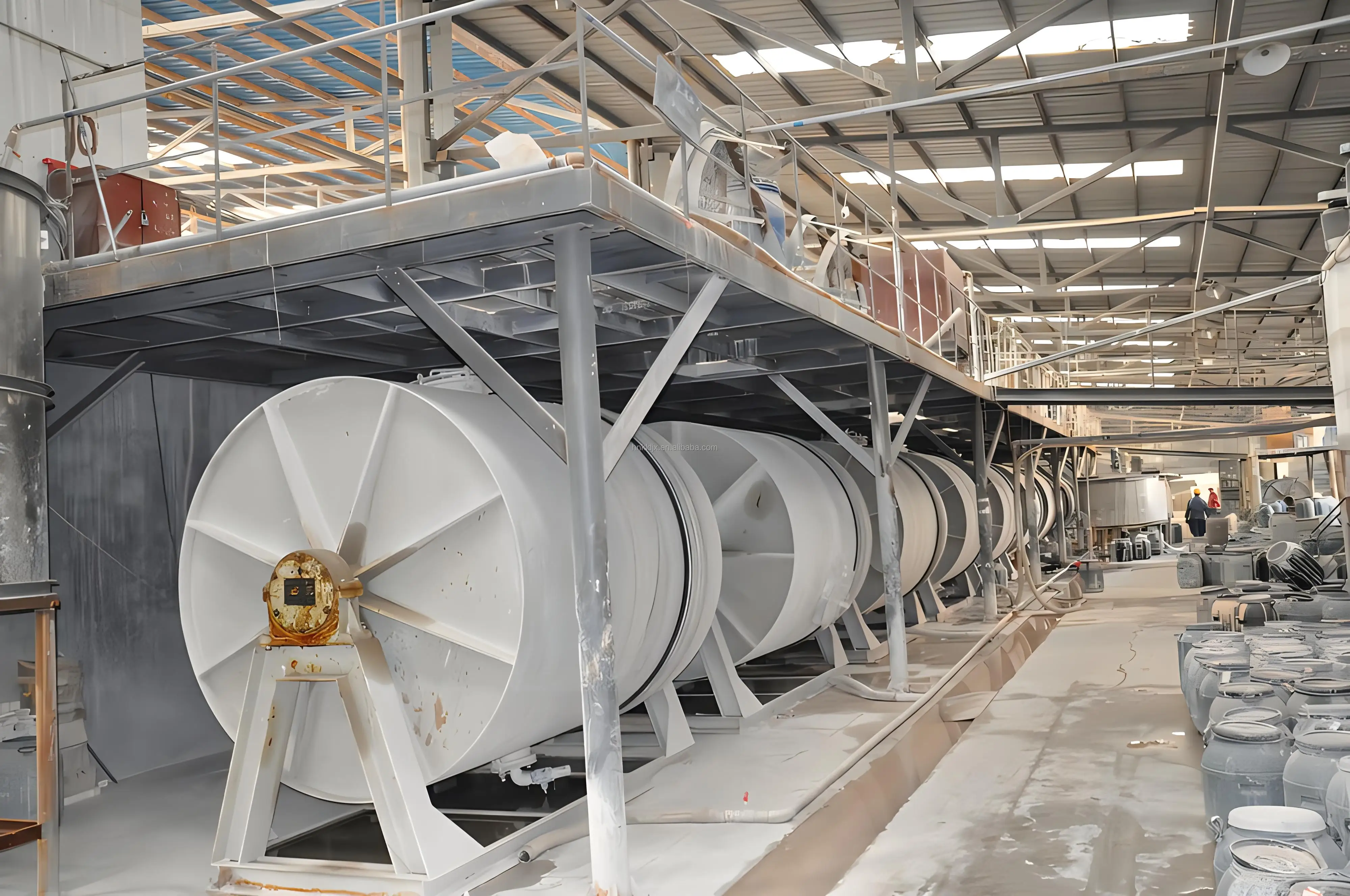

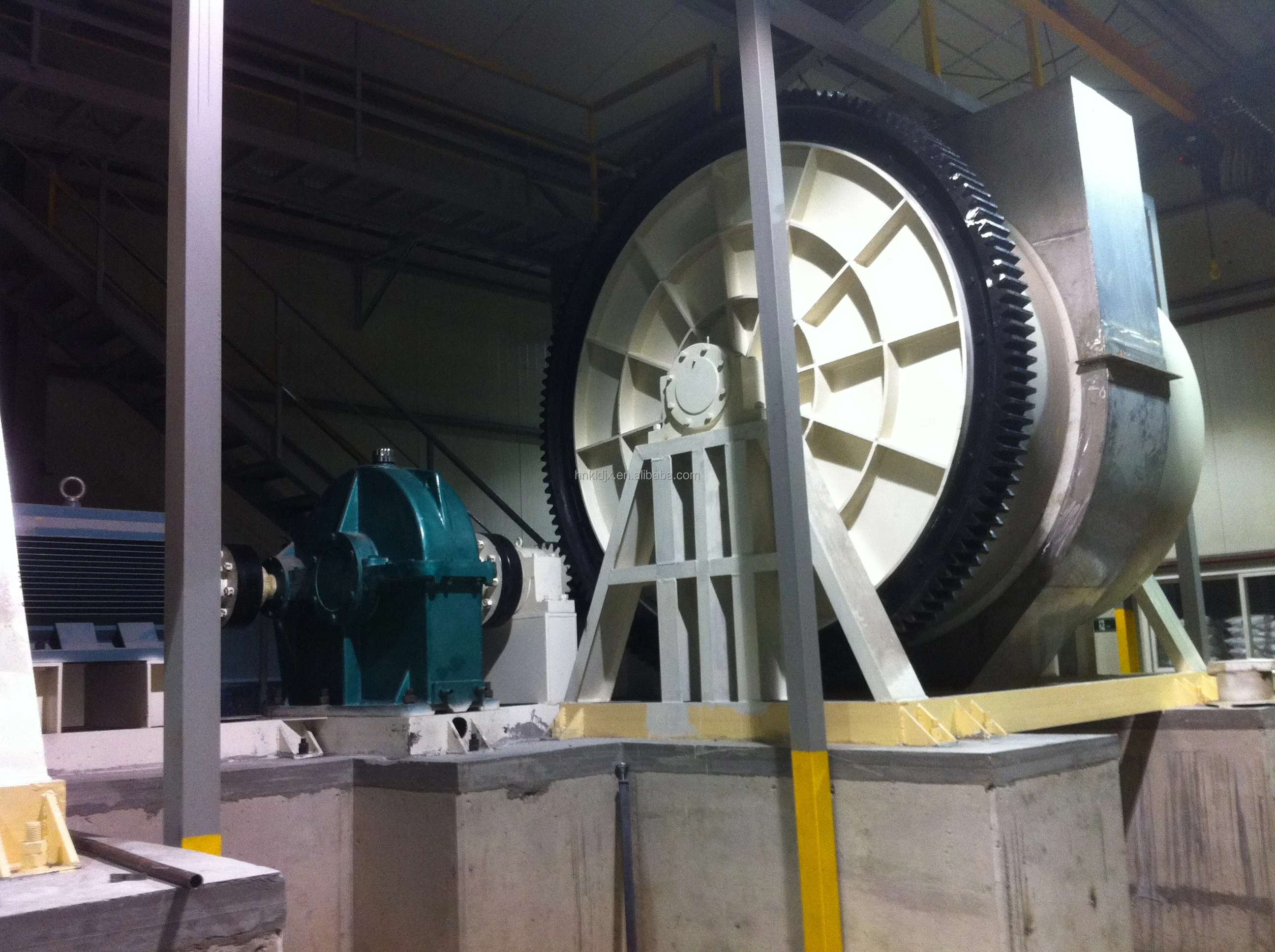

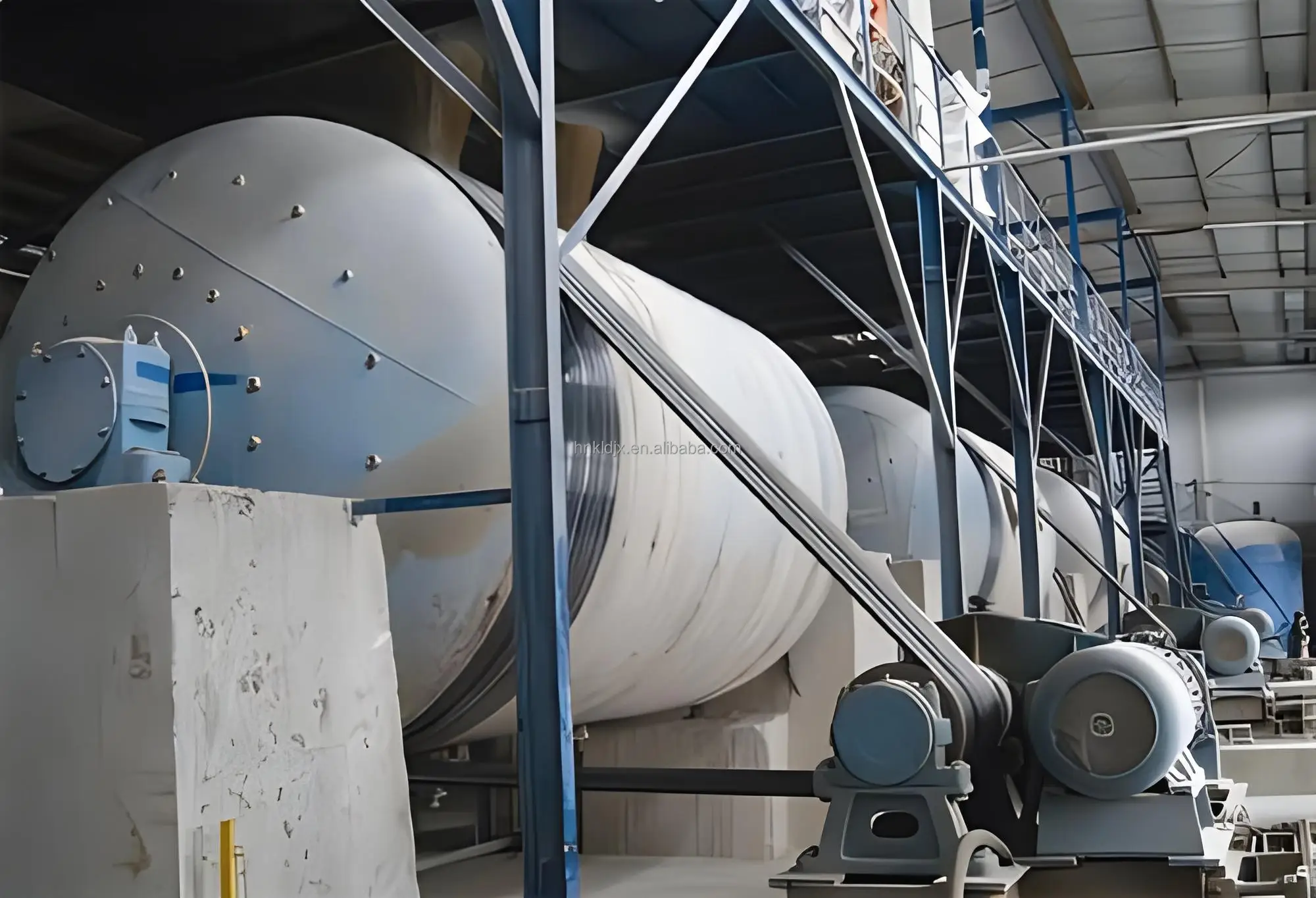

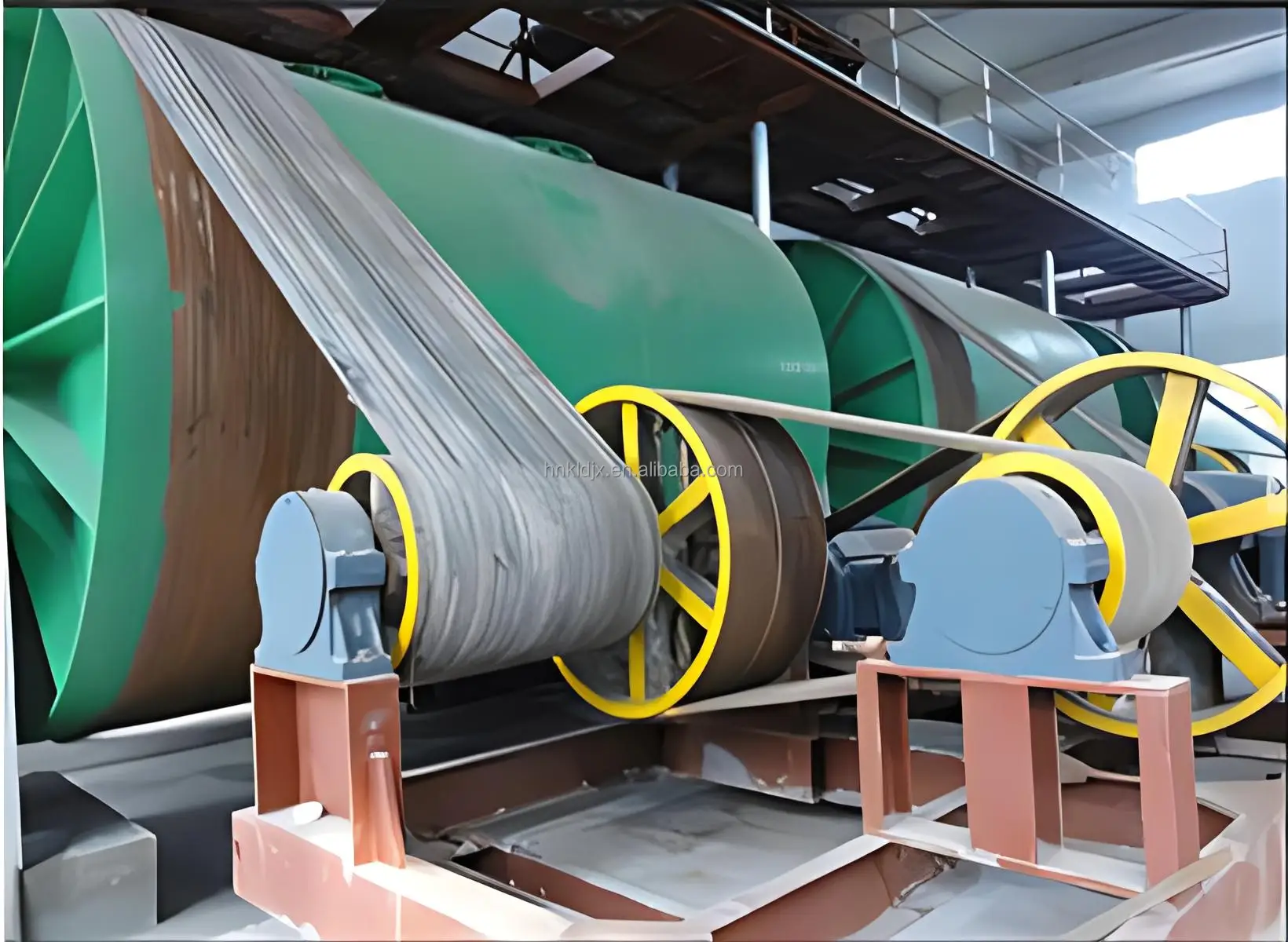

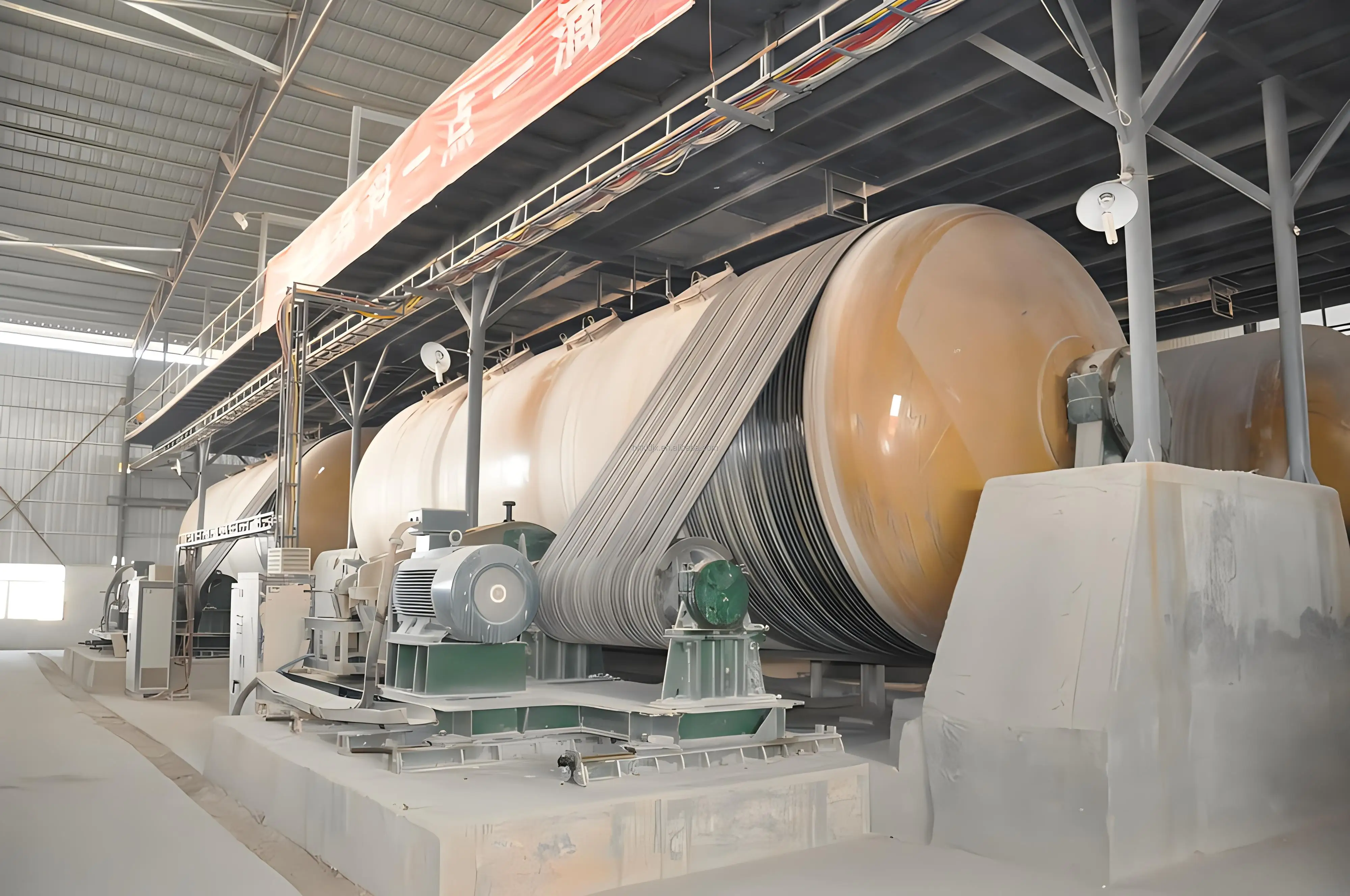

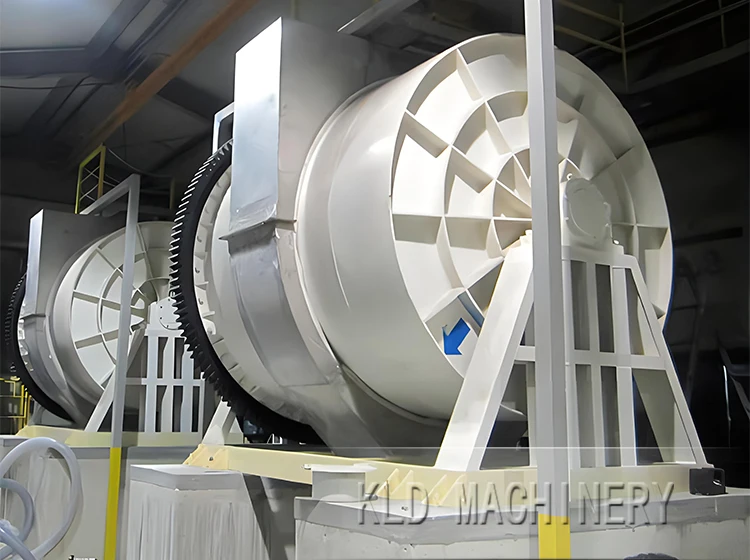

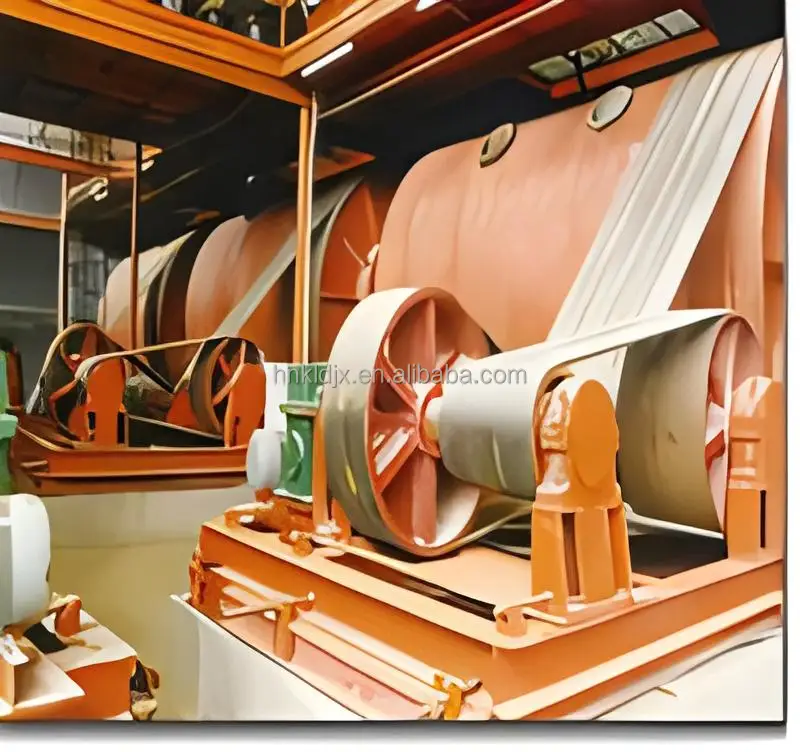

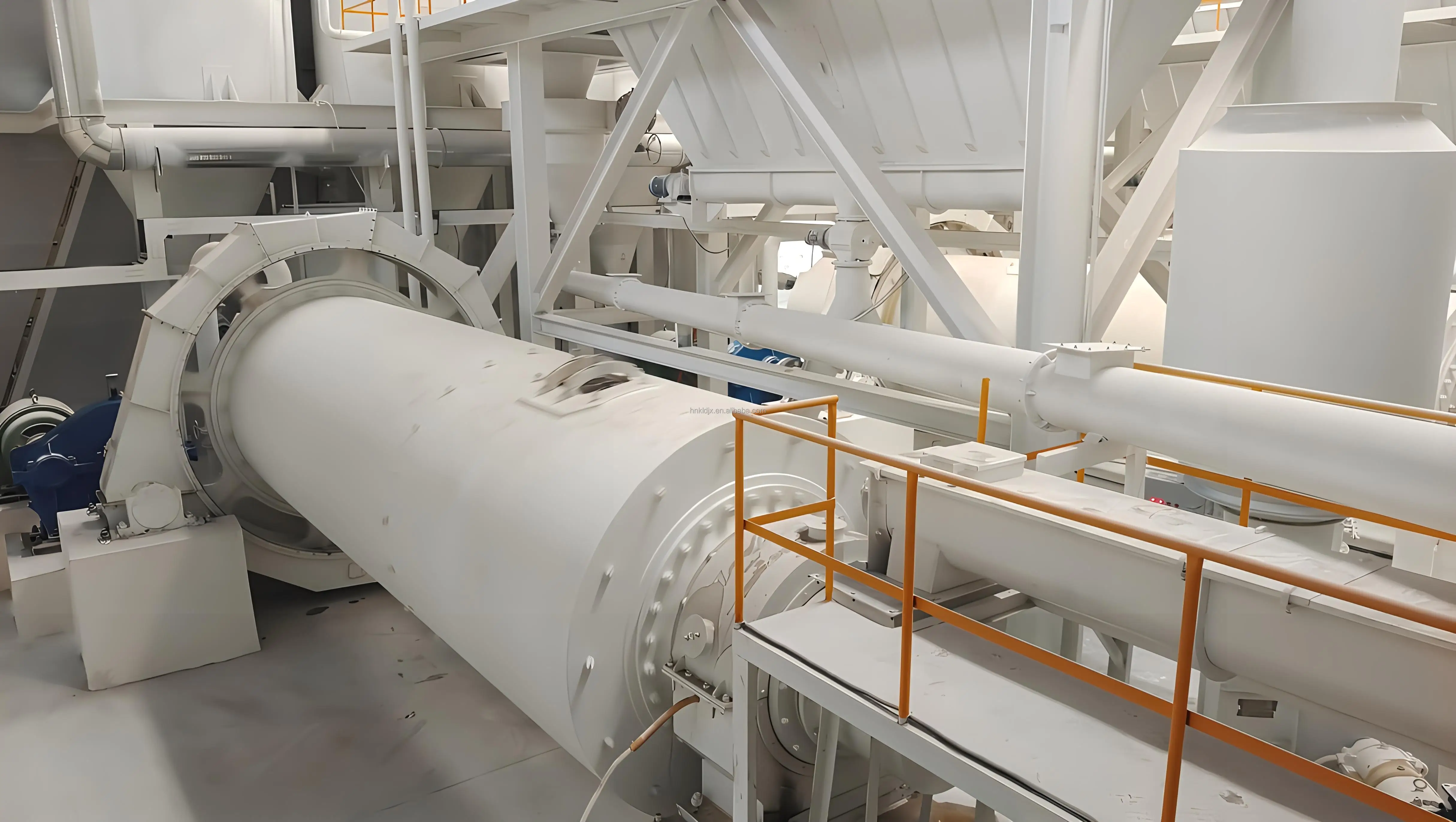

Product case
Maybe you are interested in
wet pan mill
Impact Crusher
Compound crusher
Hammer crusher
Grinding Mill
Centrifugal gold concentrator

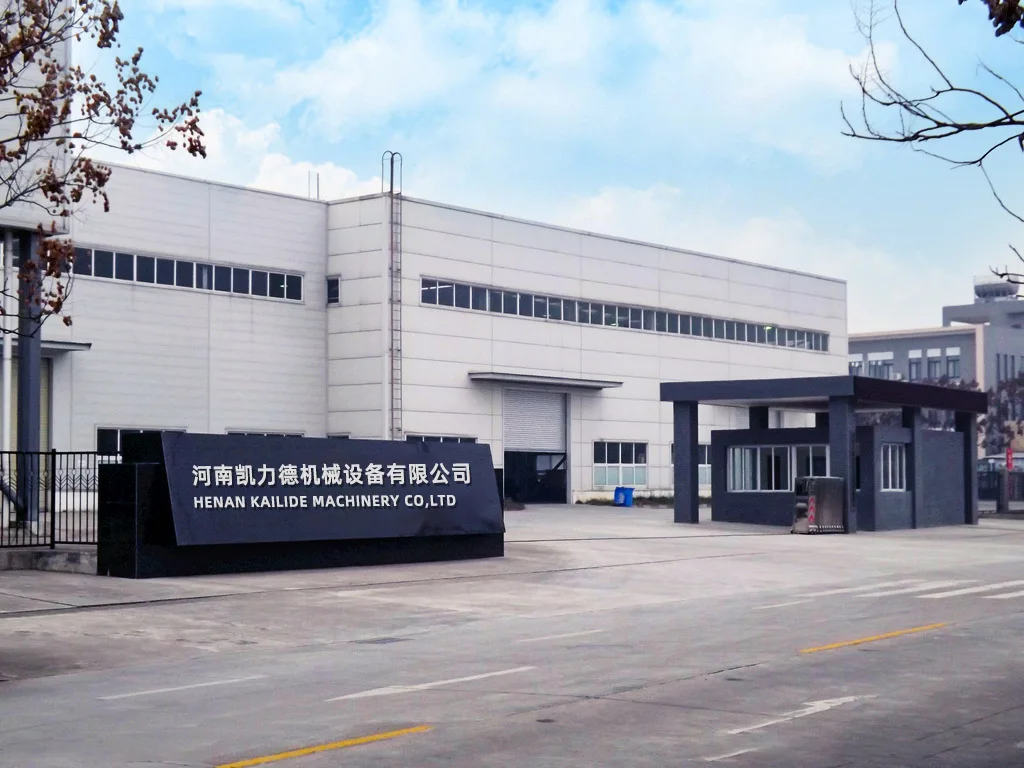

About Us
Henan Kailide Machinery Co.,ltd is a professional mining machinery manufacturer and provides all kinds of mining equipment for client, which includes ore beneficiation equipment, crushing equipment,sand making equipment, powder grinding equipment and widely used in various industries such as metallurgy, mine, chemistry, building material, coal, refractory and ceramics. We are always insisting on international advanced technical cooperation and communication, and introduce advanced technology from Germany,Finland, and make digestion and absorption to improve our products' quality continuously. While expanding domestic market percentage constantly, our products are being exported to Sudan, Russia, Pakistan, Georgia, Kazakhstan, South Korea, Australia,Indonesia, Malaysia, Vietnam, Africa and so on, more than 50 countries and regions totally.

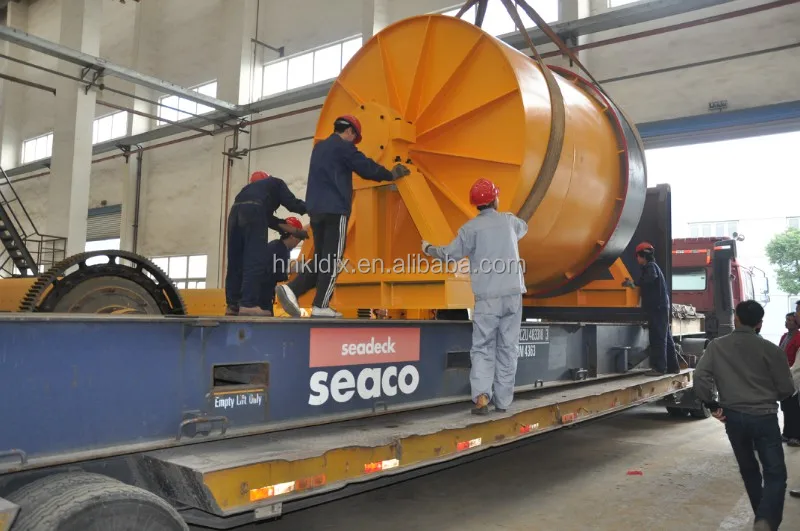

packaging&shiping
FAQ
Q1: Are you trading company or manufacturer?
A1:We are professional manufacturer, and our factory mainly produce crushing and milling equipment, wood crushing
equipment,construction equipment, brick production equipment, etc. Our products have been exported to more than 50 countries ofAsia, South America, Africa, and get a good reputation in the world.
Q2: Installation?
A2:Our senior engineer will supply installation and training service on-line or on-site.
Q3: What about Warranty?
A3:Vansen Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported fromus.During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q4: What about After-sale service?
A4:All equipment produced by Vansen is of the highest standard and our customers rarely experience mechanical failures. If there are any problems, our engineers and technicians will respond with in 12 hours of customer notification.
Q5. For providing you the right model, we need to know the following information:
A5:
(1)* What is the raw material for the production line?
(2)* What is the capacity per hour you required?
(3)* What is the maximum input size of the raw material?
A1:We are professional manufacturer, and our factory mainly produce crushing and milling equipment, wood crushing
equipment,construction equipment, brick production equipment, etc. Our products have been exported to more than 50 countries ofAsia, South America, Africa, and get a good reputation in the world.
Q2: Installation?
A2:Our senior engineer will supply installation and training service on-line or on-site.
Q3: What about Warranty?
A3:Vansen Machinery grants our customers a twelve-month-period warranty from the date of delivery for machines exported fromus.During the warranty period, in case any defect of material or workmanship occurred with spare parts in normal operation, we will at our discretion replace or repair the defective parts freely.
Q4: What about After-sale service?
A4:All equipment produced by Vansen is of the highest standard and our customers rarely experience mechanical failures. If there are any problems, our engineers and technicians will respond with in 12 hours of customer notification.
Q5. For providing you the right model, we need to know the following information:
A5:
(1)* What is the raw material for the production line?
(2)* What is the capacity per hour you required?
(3)* What is the maximum input size of the raw material?
