Машина для производства гранул из нержавеющей стали по заводской цене
- Категория: >>>
- Поставщик: Liyang Rongda Machinery Co. Ltd.
Сохранить в закладки 1601104997514:
Описание и отзывы
Характеристики
FEATURES：

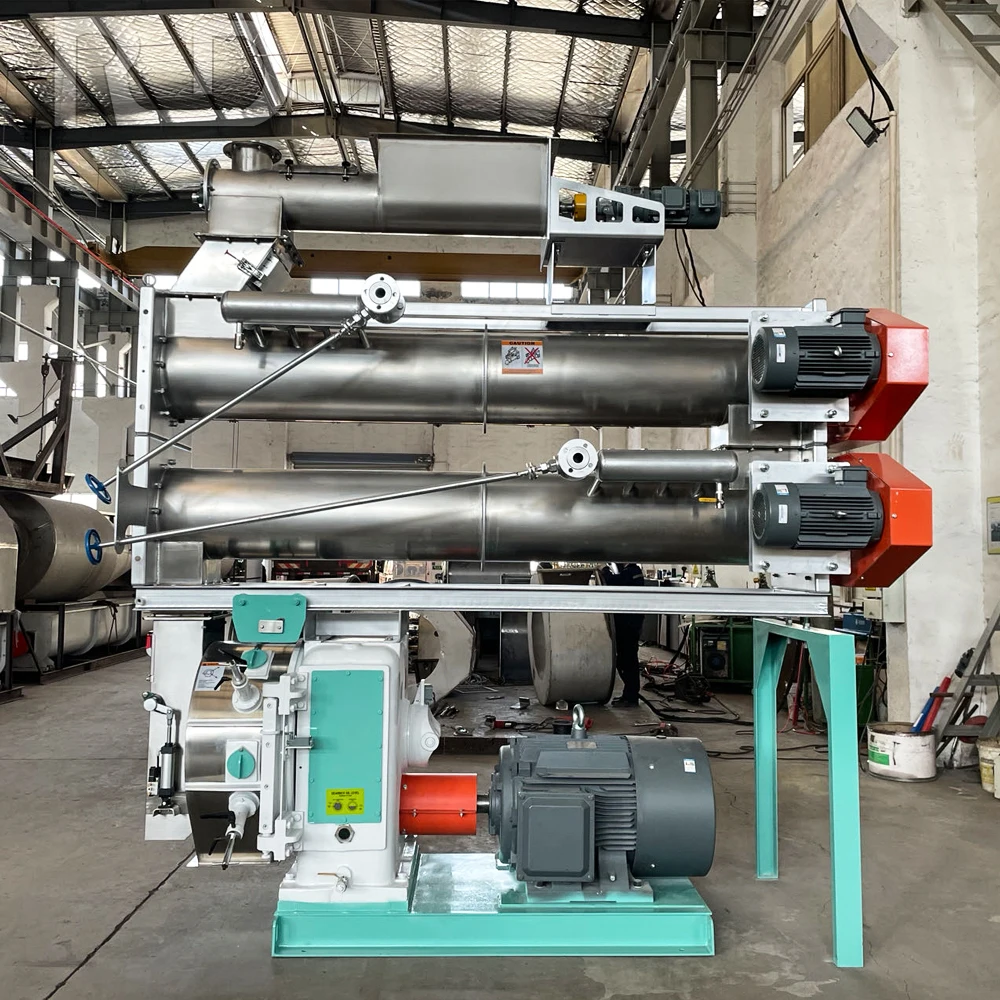

1.1 RD series feed pellet mill is a machine which is used to produce hard pellets and is applicable for the medium and large-sized feed companies with annual capacity of 40,000 ton per shift.
1.2 This machine has the features of compact structure, fine appearance, convenient installation, operation and maintenance, and reliable performance.
1.3 Dies of various hole diameter such asφ1.5、φ1.8、φ2、φ2.2、φ2.5 are available . Customers can order dies of different hole diameters according to the production needs.
1.4 This machine adopts a system of conversion speed-adjustable feeding and axial steam spraying, and a cleaning method of “LL” conditioner big opening, and also systems of external discharging, strong magnetic safety and overload protection, additionally, clamp type die, fully imported bearings in gearbox and power transmission through S-shaped spring coupling.
Item | Technical Data |
Capacity(t/h) | 3～22 |
Main motor power (kW) | 110/132/160(1500rpm) |
Feeder screw motor power(kW) | 2.2 |
Conditioner motor power (kW) | 7.5 |
Pellet forming rate | ≥95% |
Pellet powdering rate | ≤10% |
Noise | ≤85dB(A) |
Steam | ≥1.5 t/h |
Size（L×W×H） | 3500×1470×2674mm |
Weight | About 4ton |
Model | RD250 | RD320 | RD350 | RD400 | RD420 | RD508 | RD558 | RD678 | RD768 |
Main power (kw) | 22 | 37 | 55 | 75/90 | 90/110 | 110/132/160 | 160/185 | 185/220 | 220/250 |
Capacity (t/h) | 0.5-1.5 | 2-3 | 3-5 | 3-10 | 3-14 | 6-15 | 10-20 | 15-25 | 25-30 |
Die Dia. (mm) | 250 | 320 | 350 | 400 | 420 | 508 | 558 | 673 | 763 |

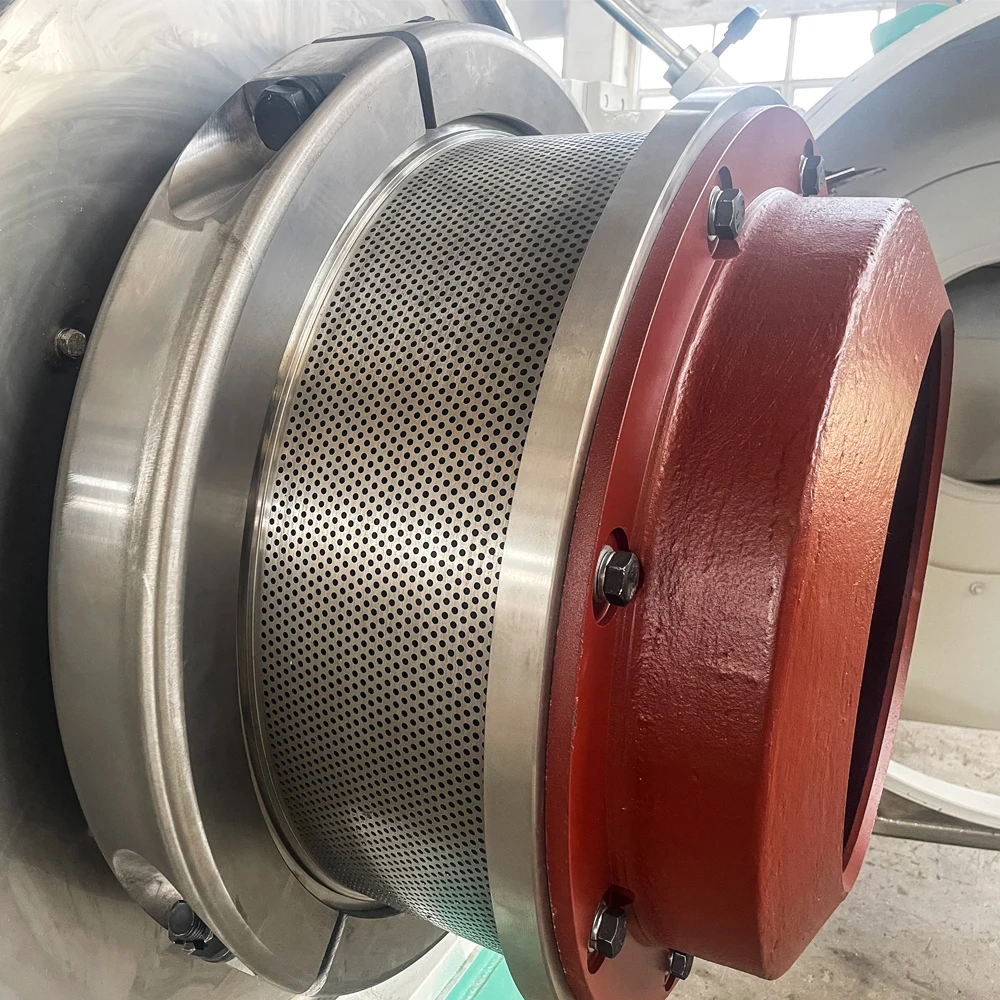

Users can choose (alloy steel or stainless steel) according
to their needs. If necessary, users can also customize Φ2.5
or larger aperture of the ring die.

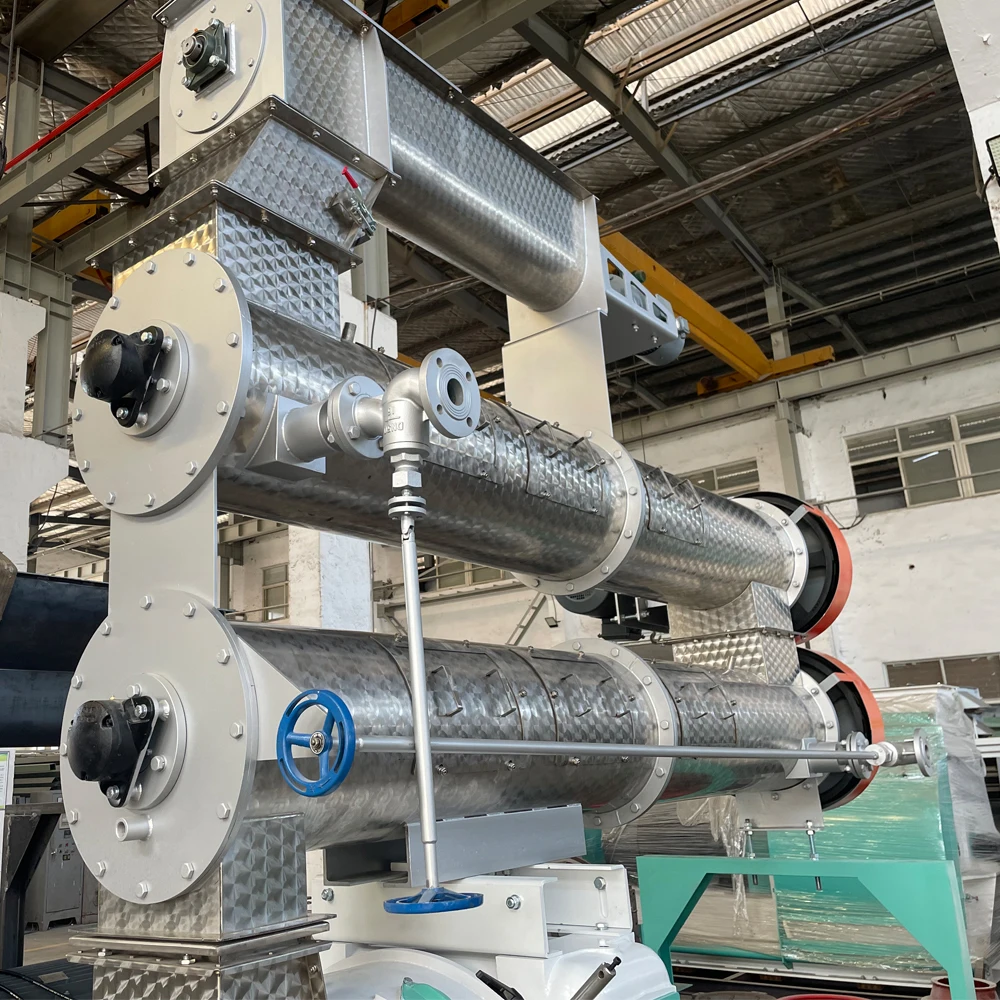

The conditioner, also known as the mixer, The length of
the conditioning cylinder can be appropriately lengthened
according to user needs, and an observation and cleaning
door is provided for maintenance and cleaning. Its function
is to introduce 0.1~0.4MPa dry steam and feed to fully
condition and soften the material.

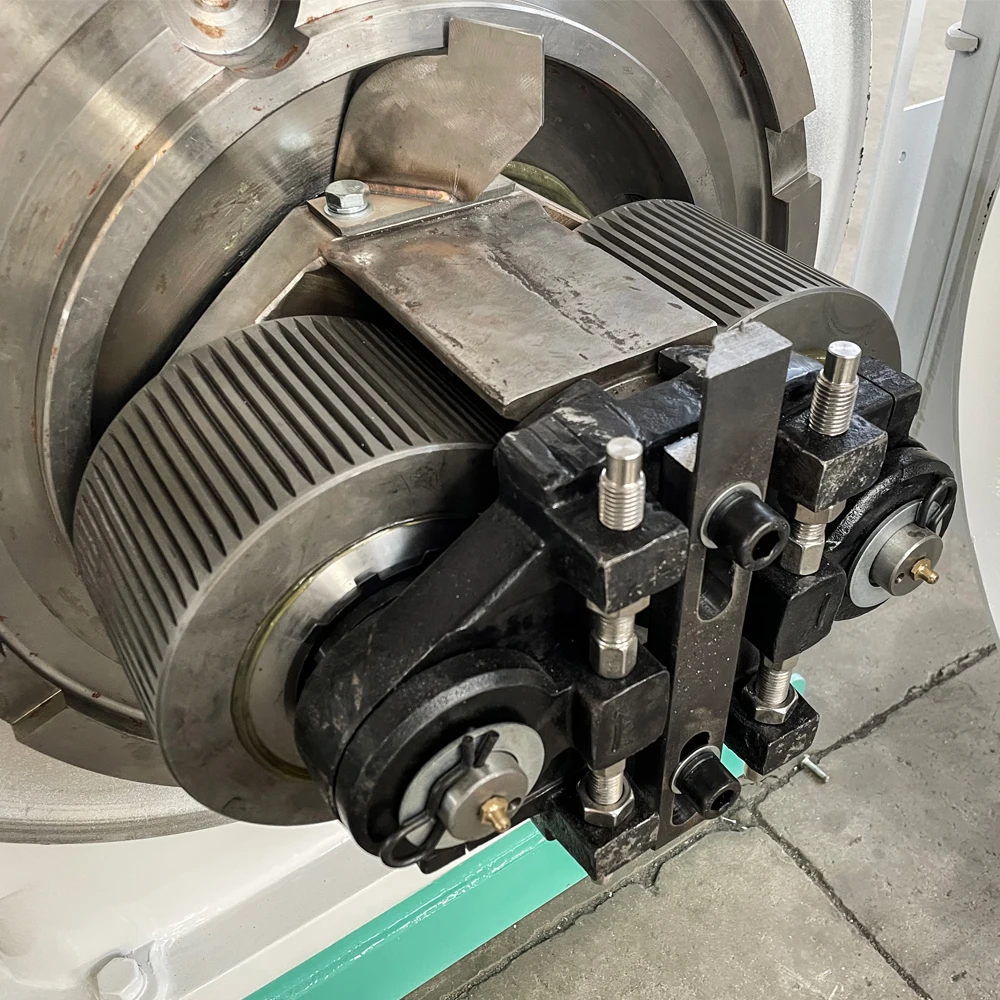

The pelleting chamber of the Animal Feed Pellet Machinery
is made up of two rollers, two roller shells and ring die, and
other fixing parts.
is made up of two rollers, two roller shells and ring die, and
other fixing parts.

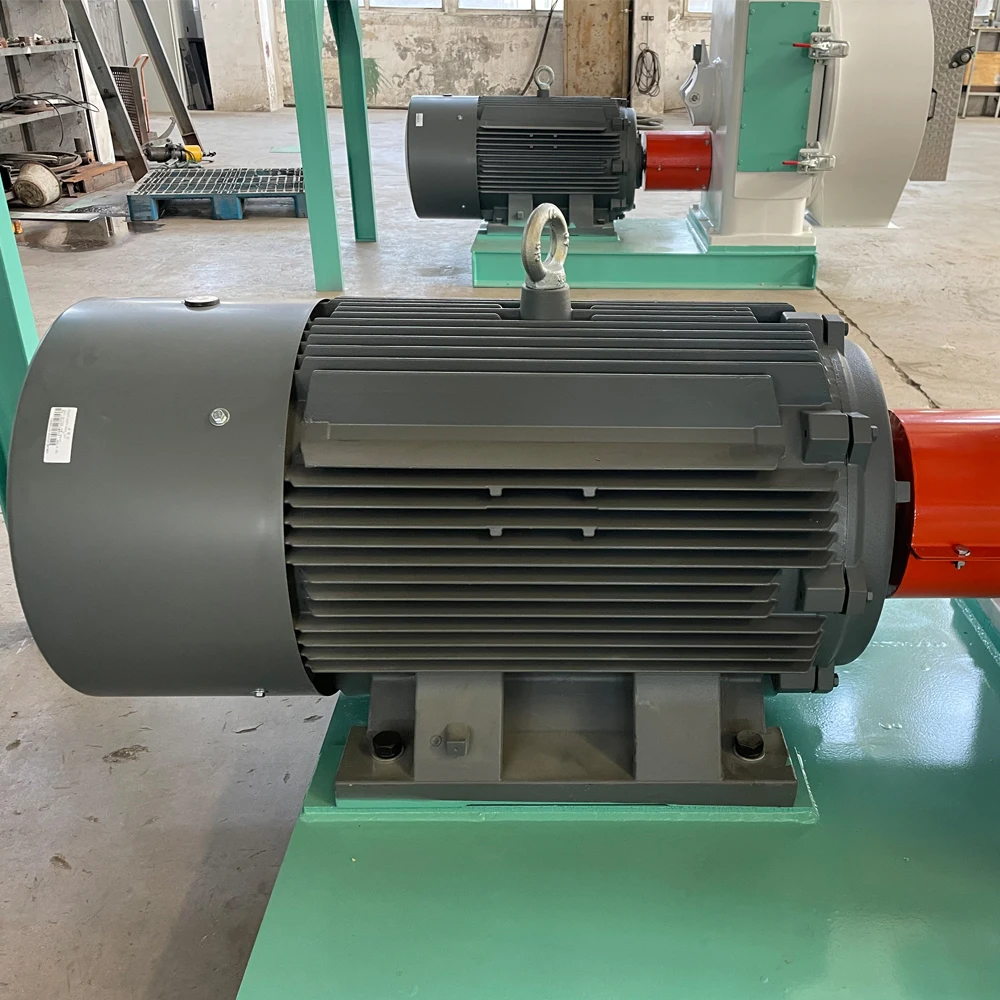

All models use Siemens motors
DETAILS OF PELLET MILL
Features:
1. The main transmission adopts high-precision gear transmission, and the output is about 20% higher than that of the belt transmission type.
2. The transmission part of the whole machine (including the motor) uses high-quality bearings from Switzerland and Japan to ensure efficient, stable transmission and low noise;
3. The all-stainless steel enlarged reinforced feeding conditioner adopts frequency conversion speed control to ensure the high quality of pellet feed;
Other capacity animal feed pellet mill
Choose a model according to your capacity
Model: RD- 350
Main power :55KW
Capacity: 3-5T/H
Model: RD- 420
Main power 90/110KW
Capacity: 3-14T/H
Model: RD- 508
Main power :110-/132/60KW
Capacity: 6-15T/H
Liyang Rongda Machinery Co., Ltd. was established in 2005. It is located in Daitou Industrial Zone with a superior investment environment. It covers an area of 40 acres, with a factory area of 18,000 square meters and an office building of 500 square meters. It is an innovative high-tech enterprise specializing in the R&D, design and manufacturing of biomass pellet fuel machinery, feed pellet machinery, compound fertilizer machinery, complete sets of feed projects, complete sets of biomass pellet fuel projects and all their accessories.
The company has passed CE , GOST , SO9001 quality system certification, and has more thana dozenpatents, is a high quality products of high-tech enterprises. With a strong commitment to quality, our productrange is tested on multiple parameters to ensure a longer service life and efficient performance.
The company has multiple high-precision automated processing machine tools, a skilled machining team and production personnel, full-time quality inspection personnel, a complete after-sales service team, and a technical design team that is brave in innovation and improvement. The company can provide From product design, manufacturing, installation, packaging and transportation, training and after-sales, we provide one-stop services to ensure customers' safe use.
FAQ
* I am interested in your machines, how can I or more information?
Please leave your message in the text box below to send an inquiry to Rongda. Or click the "Contact Supplier" or "Chat Now"button to contact us online. We provide 24/7 service.
* We don't know how to operate the pellet machine, what should I do?
We provide remote and on-site technical guidance, and provide on-site installation, testing, maintenance services, ourengineers will help you, please don't worry.
* What brand is your motor and bearing?
We use Siemens motors and FAG brand bearings.
* I don't know much about this industry, how can I choose the most suitable machine?
Just tell us your raw materials, your capacity (t/h), and the size of the final pellet product, and we will select the machine for you according to your specific situation.
* What’s the best price of your wood pellet mill?
Leave the message to us , and let me know the detail of your requirement , then i will contact with you at the first,the price depends on your situation , we will offer the best machine and price just right for you.
* How do you install the wood pellet production line?
We will send the professional workers to install the machines in your location.
* Do you have some foreign customers using your equipment?
Yes, our company has established business relationships with customers in Russia,German,Slovakia,Ukraine,
Vietnam,Pakistan, the Philippines, Indonesia, Thailand, Pakistan, Egypt ,Iraq,Jordan,Saudi Arabia,Syria, Libya etc.
* Will you send engineers to install the plant?
Yes, but at an extra cost payable by the customer. Or you can get localcontractors to do the commissioning and we send one supervising engineer.
* How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when
needed. You will be welcome to contact us with any problem may happened.
* How can I get to your company?
You can get a flight to Nanjing Lukou Airport. We are just about 40-50mins away from Nanjing Airport. You may also come to our city,Liyang city by High speed Railway,just 20-30mins.
* Are you a trading company or a manufacturer?
We are a manufacturer, which has almost 20 years of experience in this industry.
