Ультразвуковой аппарат для сварки металла 4/0 медных кабелей AWG (OOOO) прикрепить его к медной пластине 4/6/8 многоядерная проволока
- Категория: >>>
- Поставщик: Guangzhou Minder-Hightech Co. Ltd.
Сохранить в закладки 1601105265090:
Описание и отзывы
Характеристики
Product details

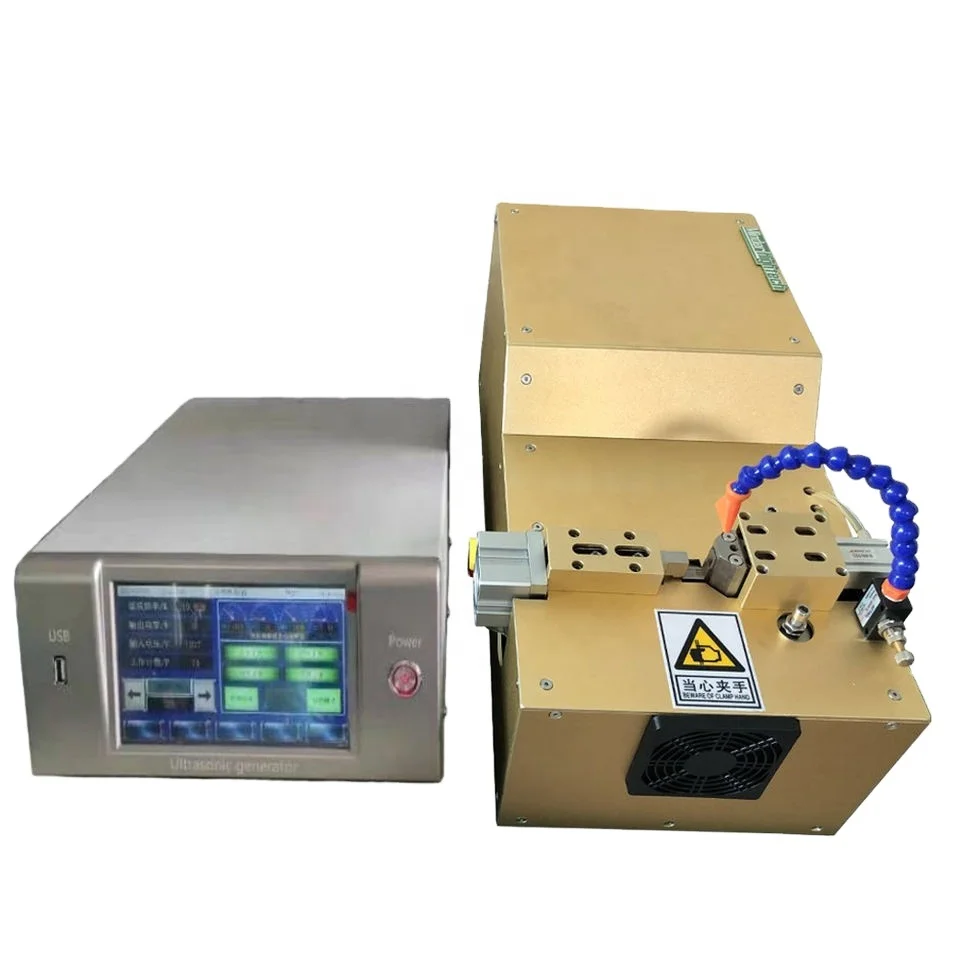

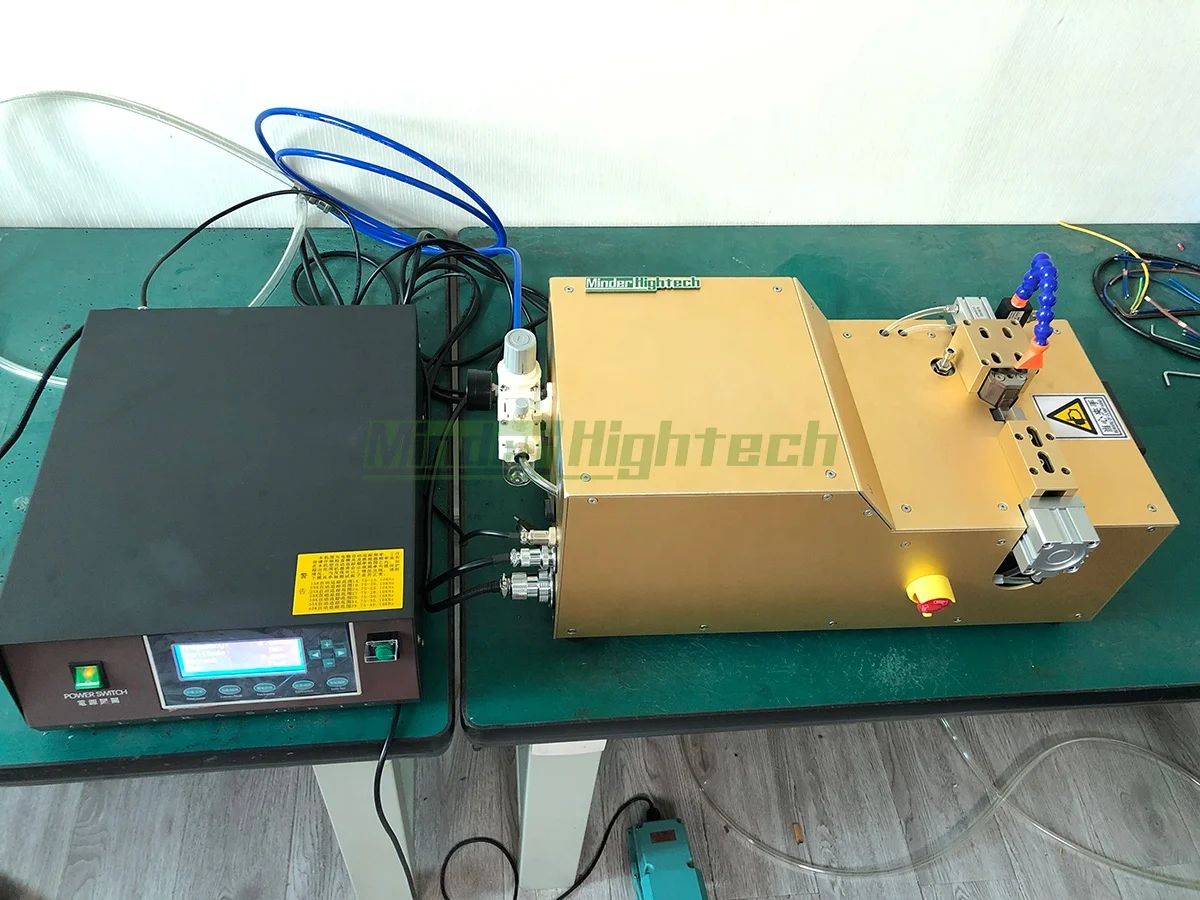

The Ultrasonic Wire Splicing Machine produces ultra-reliable, solid-state metallurgical bonds without the use of heat, current, fluxes, filler materials, or other consumables. It creates a welded joint that is strong and highly conductive. And while the welding rate depends on the thickness and type of materials being joined, most operations are completed in less than 3 seconds.
The Ultrasonic Wire Splicing Machine consists of a solid-state frequency converter, a welding head, with minderhighech unique Wedge-Reed system, and an easily removable and replaceable Taper Lock Tip which vibrates to ultrasonically spot weld the materials. minderhightech custom designs tooling to meet each customer’s specific needs.
Ultrasonic Wire Splicing Machine delivering up to 10,000 watts of output power to weld a variety of metal assemblies.
The Ultrasonic Wire Splicing Machine consists of a solid-state frequency converter, a welding head, with minderhighech unique Wedge-Reed system, and an easily removable and replaceable Taper Lock Tip which vibrates to ultrasonically spot weld the materials. minderhightech custom designs tooling to meet each customer’s specific needs.
Ultrasonic Wire Splicing Machine delivering up to 10,000 watts of output power to weld a variety of metal assemblies.
Applications
The minderhightech Ultrasonic Wire Splicing Machine is used for heavy gage wire to wire, or wire to terminal assembly, electrical bus bar fabrication, and other electronic/electrical assemblies even tinned stranded wire assemblies.
Title goes here.
The Ultrasonic Wire Splicing Machine uses minderhightech unique Wedge-Reed coupling system of high vibratory force and low amplitude to ensure precise, dependable welds. The unit directs high frequency, ultrasonic energy via a welding tip to the surface between the metals to be welded. The vibratory energy disperses the oxides and surface films between the workpieces and creates a true metallurgical weld without melting the materials.
Materials

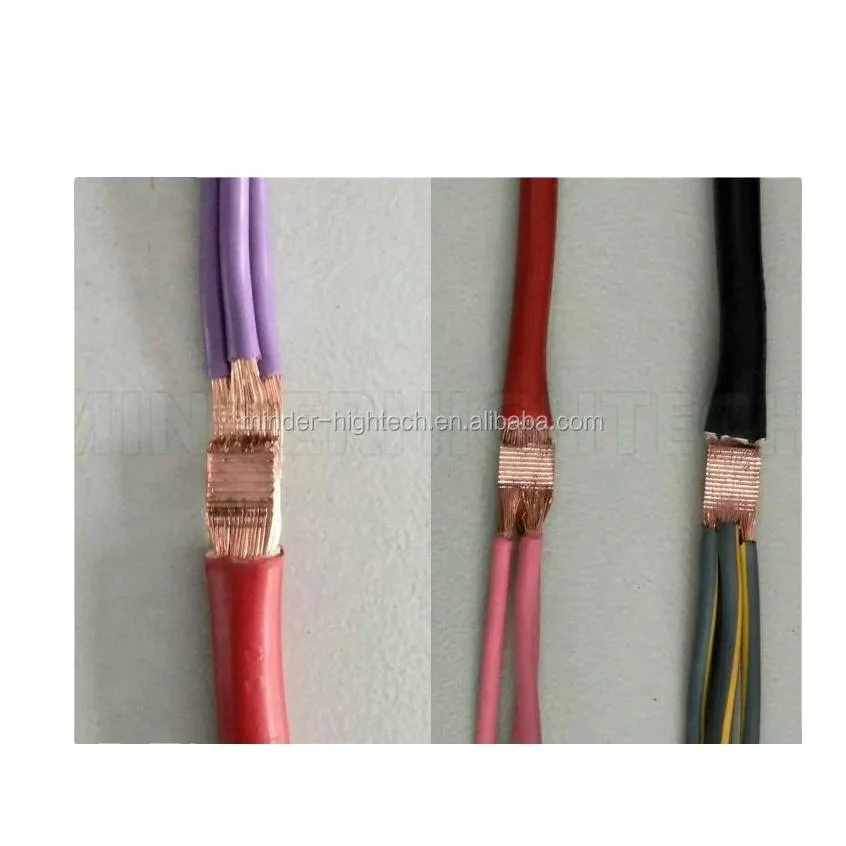

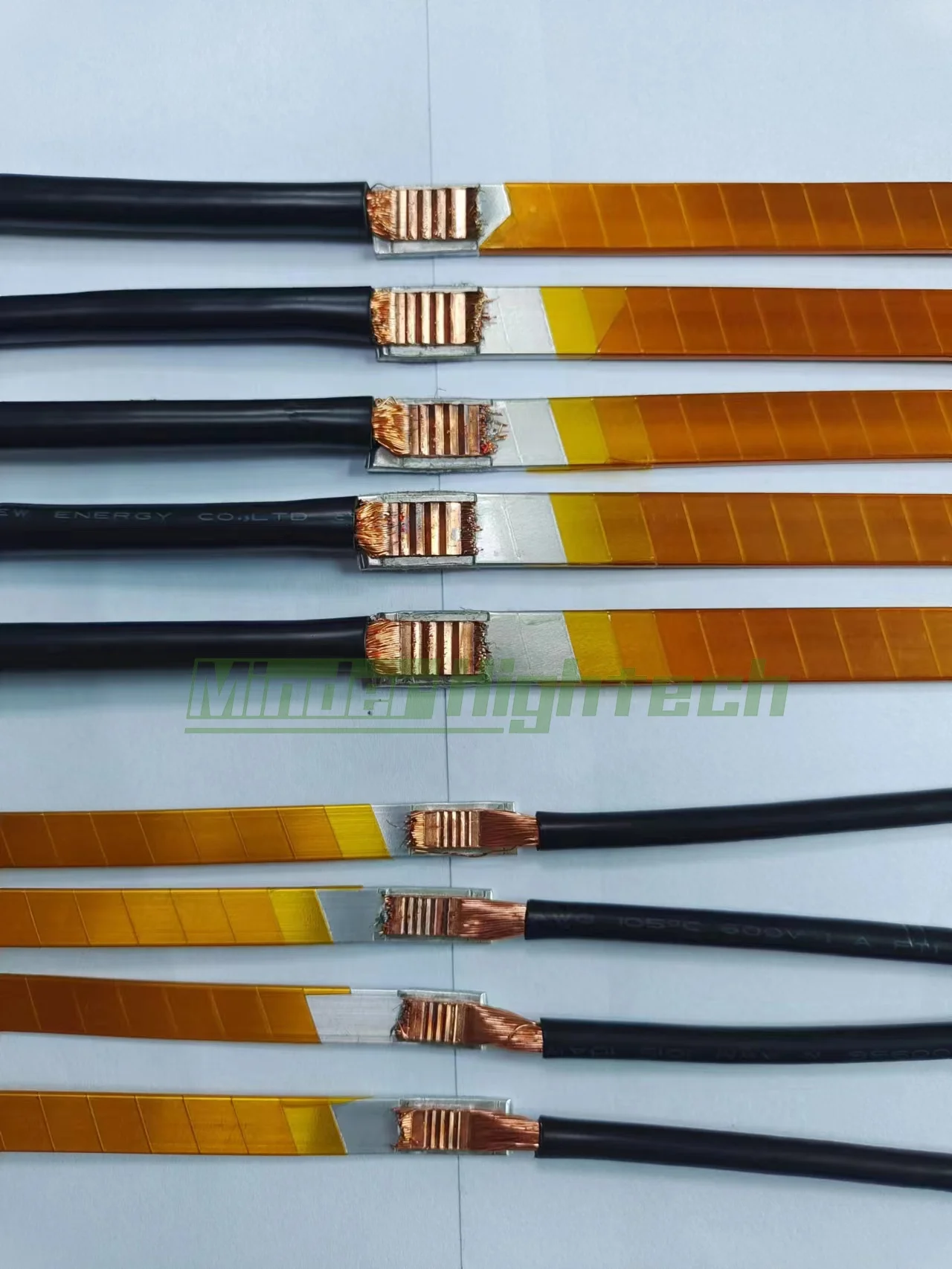

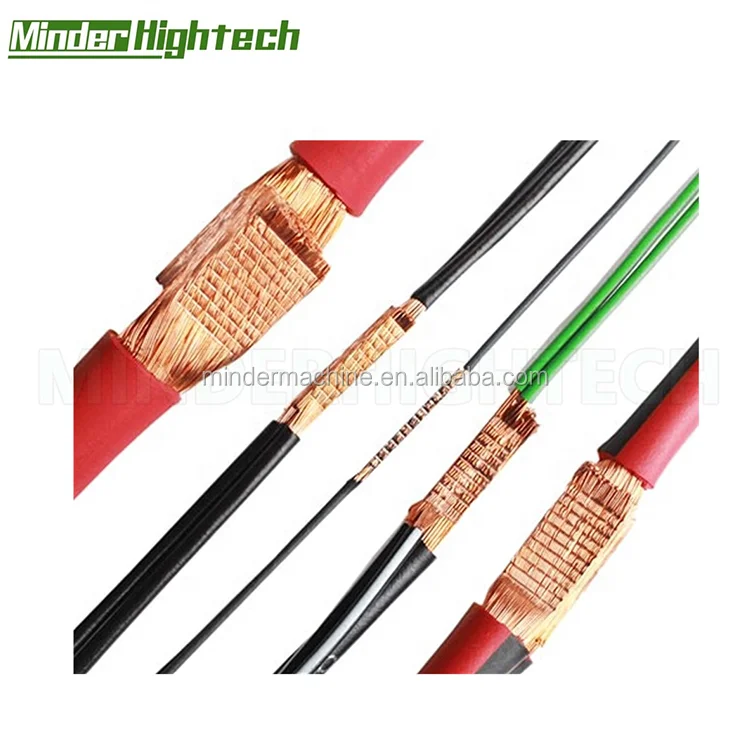

The Ultrasonic Wire Splicing Machine can be tooled to join stranded copper wire to wire up to 200 sq. mm. cross sectional area or equivalent weld area for stranded copper wire to terminal.
Application
FEATURES
1, Equipped with high-performance ultrasonic metal spot welding power supply, automatically tracking the frequency of the transducer, with two control modes of time and energy;
2, Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
3, The welding material does not need to be melted, does not change the material characteristics, and has no pollution can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
4, After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is suitable for welding of conductive materials.
5, The welding time is short, without any flux, shielding gas and filler
6. Unique Wedge-Reed coupling system assures precise, dependable welds and facilitates special tooling, fixtures, rotary tables, or feeders.
7. Heat-treated, tool steel Taper Lock Tips perform up to 50,000 welds and are easily removed and replaced.
2, Ultrasonic welding has low requirements on the metal surface, no need to scrape the oxide layer or electroplating layer, and the welding efficiency and quality are high;
3, The welding material does not need to be melted, does not change the material characteristics, and has no pollution can realize the welding between different metal materials, such as nickel+copper,copper+aluminum,nickel+aluminum,etc.;
4, After welding, the metal material conducts electricity, has good thermal conductivity, and extremely low resistivity, which is suitable for welding of conductive materials.
5, The welding time is short, without any flux, shielding gas and filler
6. Unique Wedge-Reed coupling system assures precise, dependable welds and facilitates special tooling, fixtures, rotary tables, or feeders.
7. Heat-treated, tool steel Taper Lock Tips perform up to 50,000 welds and are easily removed and replaced.
Specification
Model | MD-XWBW2030 | MD-XWBW2040 | MD-XWBW2050 | ||
Ultrasonic frequency | 20KHz | ||||
Power | AC110V-220V, 50/60Hz | ||||
Ultrasonic power | 3000W | 4000W | 5000W | ||
Air pressue | 0.4MPa~0.6MPa | ||||
Operation interface | 4.3-inch/7-inch touch screen | ||||
Automatic frequency tracking accuracy | ±5HZ | ||||
Power stability | ≤ 5% | ||||
The remote terminal responds dynamically | ≤10ms | ||||
Control model | Time/Energy/Height | ||||
Max. welding stroke | 30mm | ||||
Overcurrent protection current | 10A | ||||
Overcurrent protection time | 100ms | ||||
Acoustics | Unique Wedge-Reed and Contra- Resonant anvil system for high clamp force, low amplitude welding of metals | ||||
Size | 50*30*20cm | 60*30*23cm | 60*30*23cm | ||
Size | 450*135*140mm | ||||
weight | 80kg | 90kg | 110kg | ||
Factory
Похожие товары

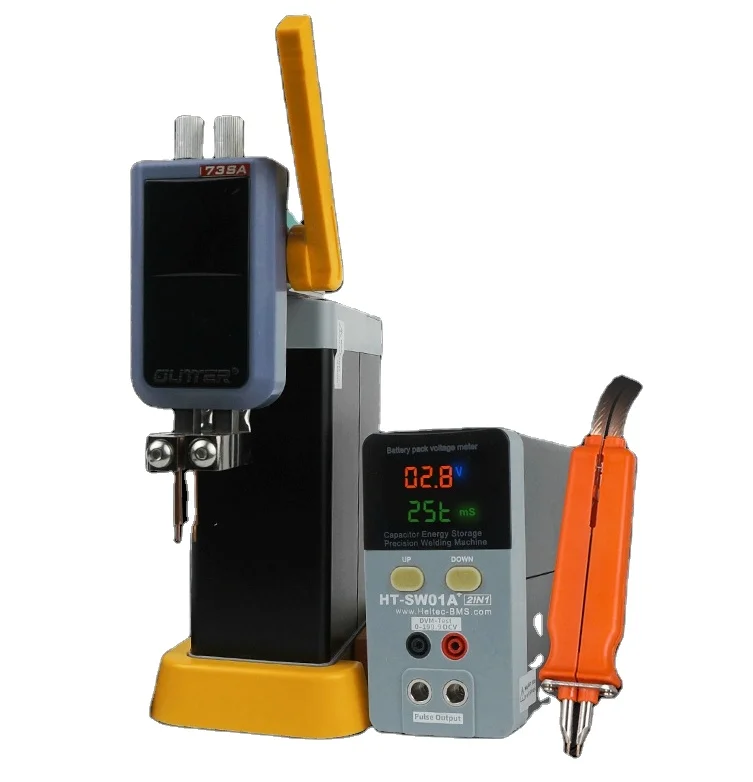

Сварщик Heltec для точечной сварки 11 6 кВт аккумулятор хранения конденсаторов портативный мини-аппарат светодиодный цифровой дисплей 0 5 мм
13 706,05 ₽ - 14 802,54 ₽

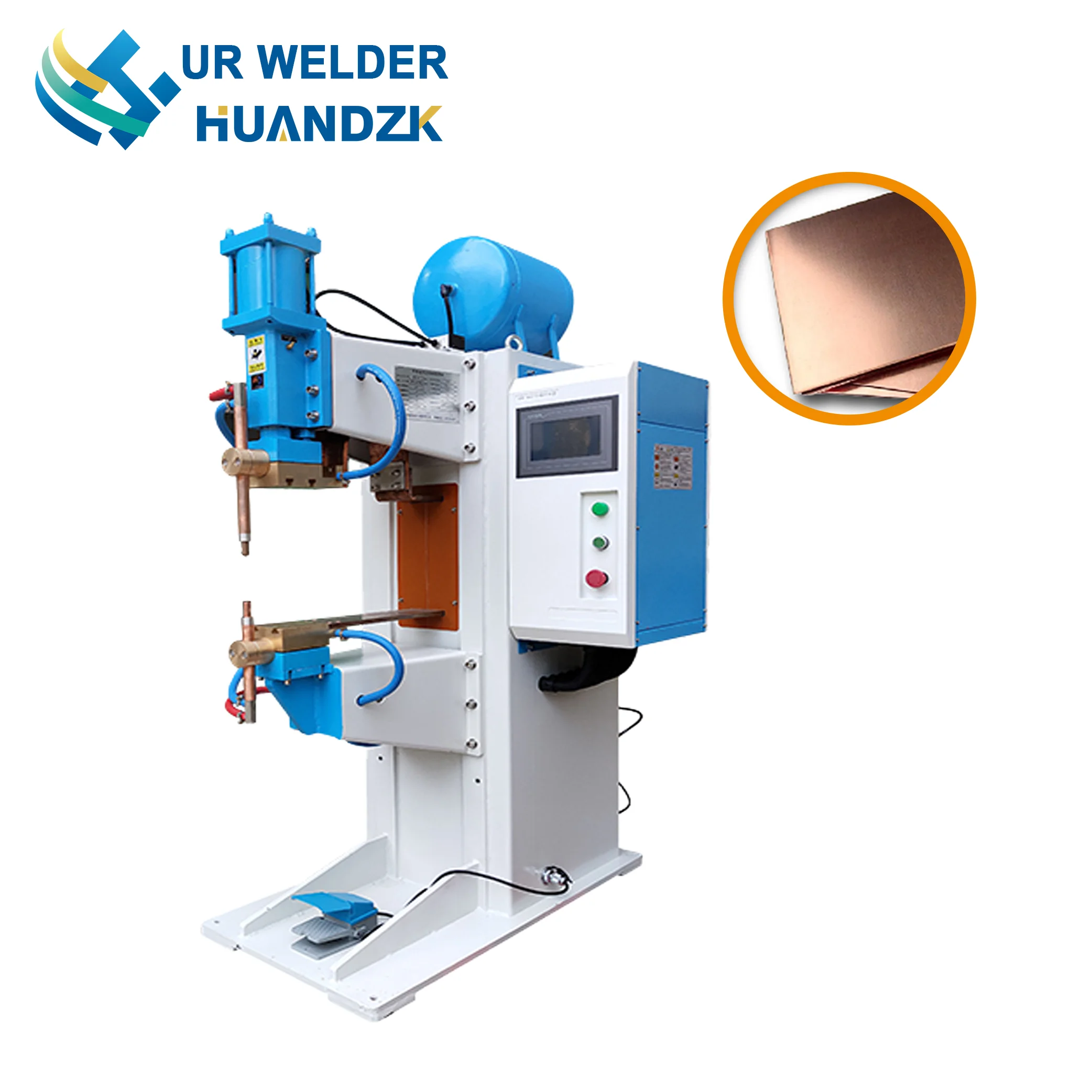

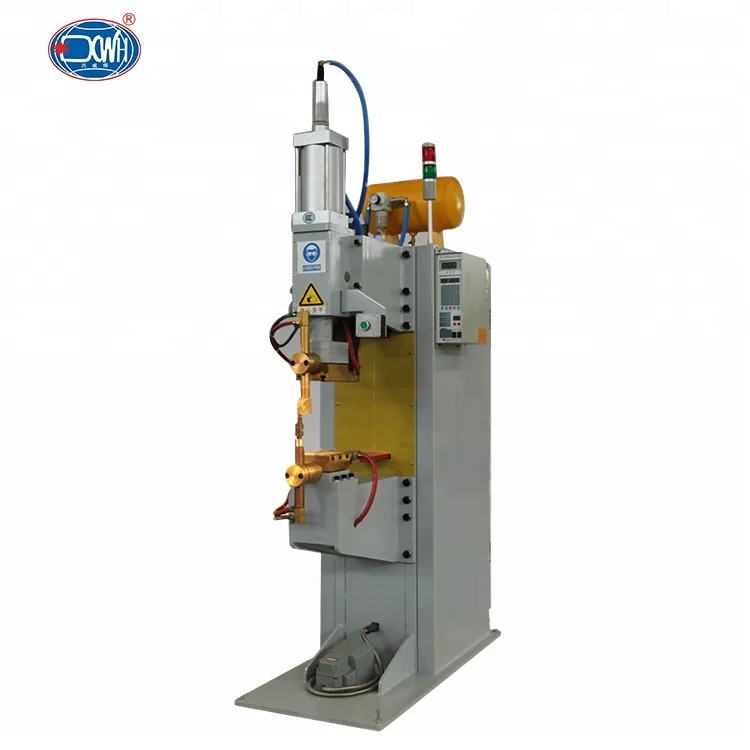

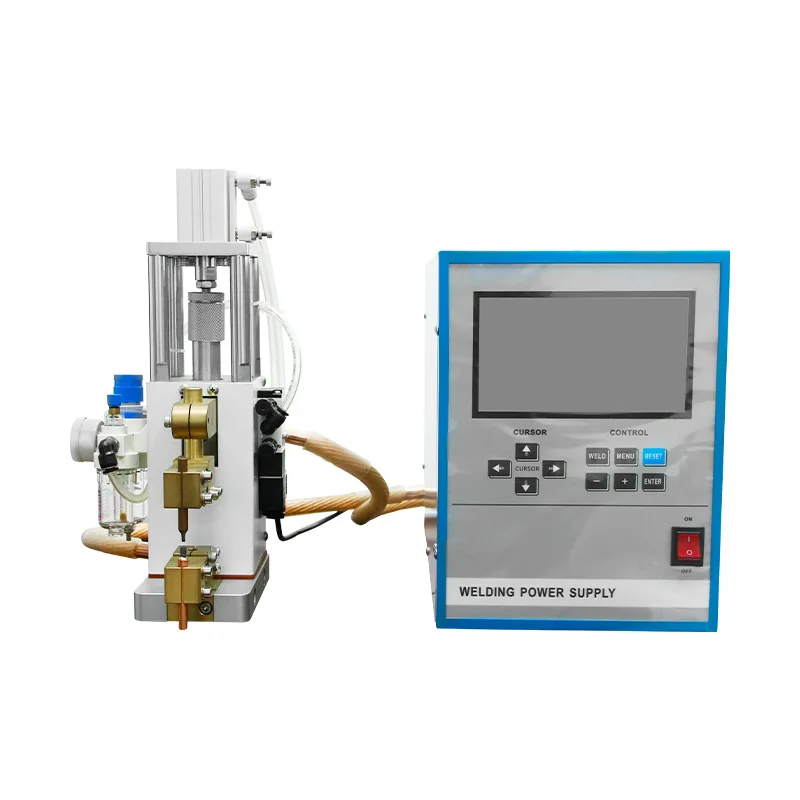

50 кВА точечный сварщик ножной Педальный сварочный аппарат инвертор цены точечные шестигранные сварочные гайки Робот Сварочный контроллер
679 710,44 ₽ - 986 725,96 ₽
Вибратор женственный член ремень вагинальные Para Punto G Nadex точечной сварки контроллер клетка для птиц tig сварочный аппарат ленточные пилы машина 50100
438 593,60 ₽ - 657 890,40 ₽

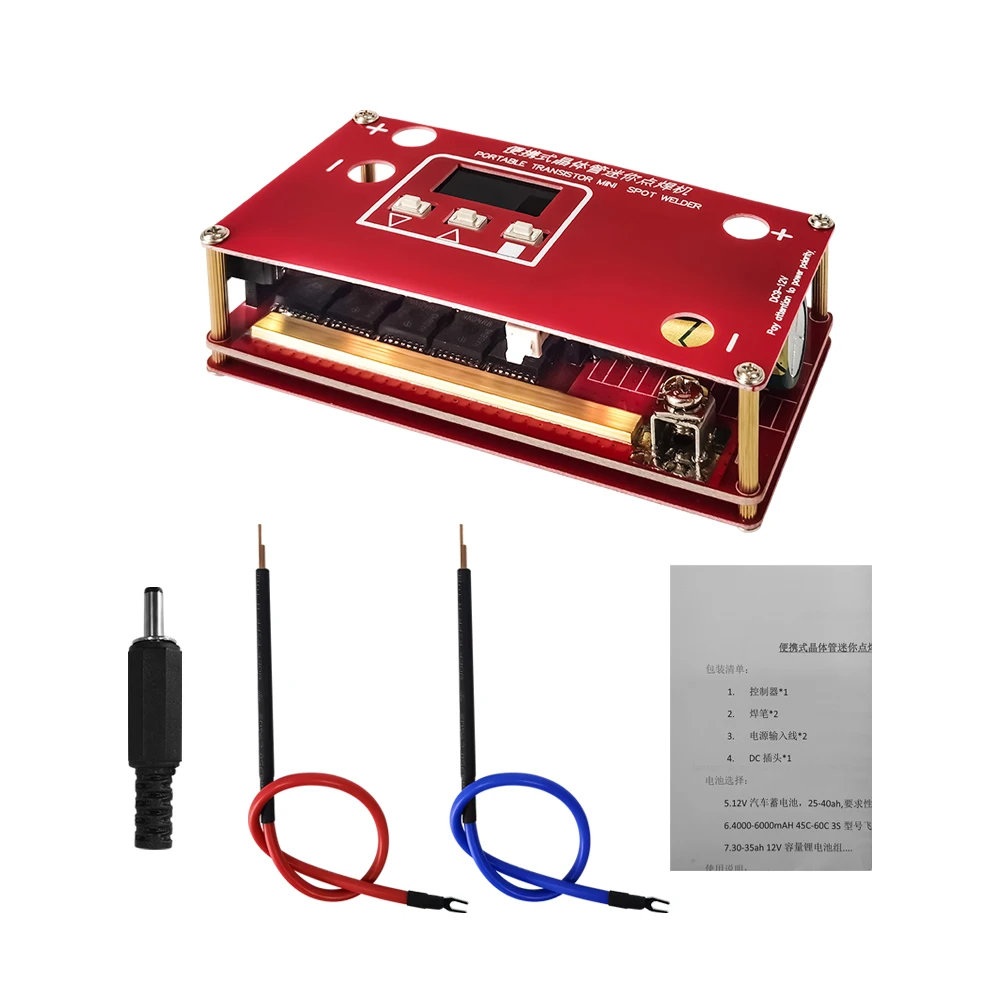

Транзистор мини-точечный сварщик ЖК-дисплей экран портативный точечный сварочный аппарат 18650 литиевая батарея печатная плата 12 В автомобиль

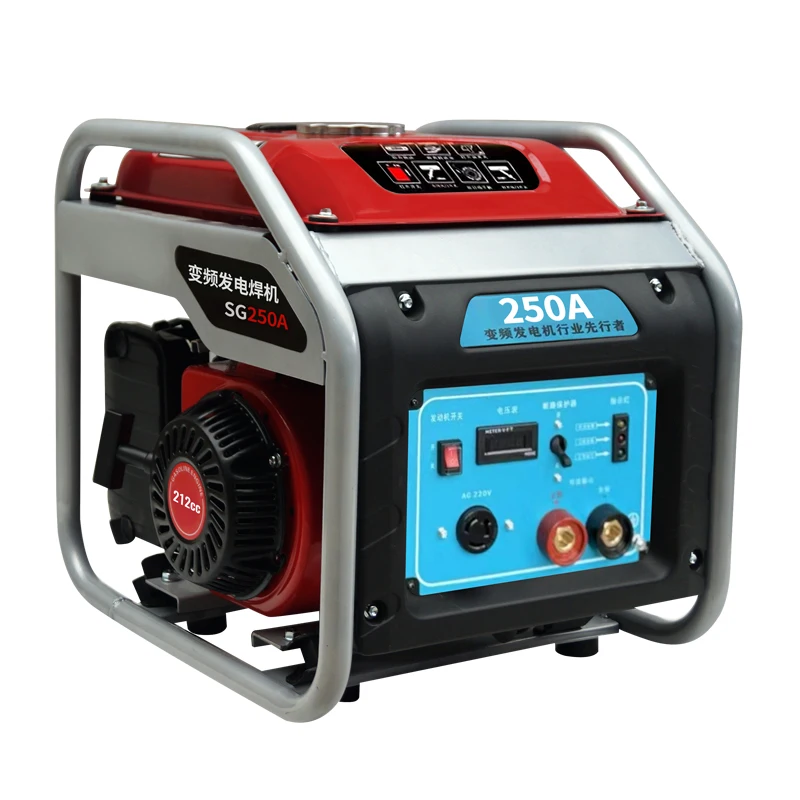

250A портативный генератор сварочный комбо дизельный двигатель бензиновый двойного назначения и аппарат
