30W/50W Optical Fiber Laser Marking and Printing Machine
The fiber laser marking machine is widely applied in electronic component, the communication,the spare parts of automobiles and motorcycles,instrument and meter, aerospace, military products, hardware and machinery, measuring and cutting tools,
sanitary equipment, medication, food and beverage, cosmetics, drugs packing, medical appliance, solar energy, handicraft and so on. It is suitable to mark on all kinds of metal and partial nonmetallic materials.
Model | SFM30/SFM50 | ||||||
Max.Marking Area | 110x110mm-200x200mm(Optional) | ||||||
Laser Output Power | 30W/50W | ||||||
Laser Wavelength | ≤ 5-7kWh | ||||||
Indicating Beam | Red Light | ||||||
Power Stability | ≤0.5% | ||||||
Laser Accuracy | 0.025mm | ||||||
Focus Facula Diameter | 20um | ||||||
Beam Size | ≤0.5% | ||||||
Marking Speed | ≤7000mm/s | ||||||
Frequency | 20kHz~100kHz | ||||||
Laser Head | Chinese Sino Galvo Scanner | ||||||
Cooling Way | Forced-air Cooling | ||||||
Power Supply | 220V/50Hz/1.5kVA (Customizable) | ||||||
File Formats | PLT PCX. DXP BMP JPG etc | ||||||
Output Compatibility | AutoCAD, CorelDRAW, Photoshop etc | ||||||
Warranty | 1 year Warranty for the Whole Machine | ||||||
Marking Varieties | Words, Pictures, Bar Codes, Serial Numbers etc | ||||||

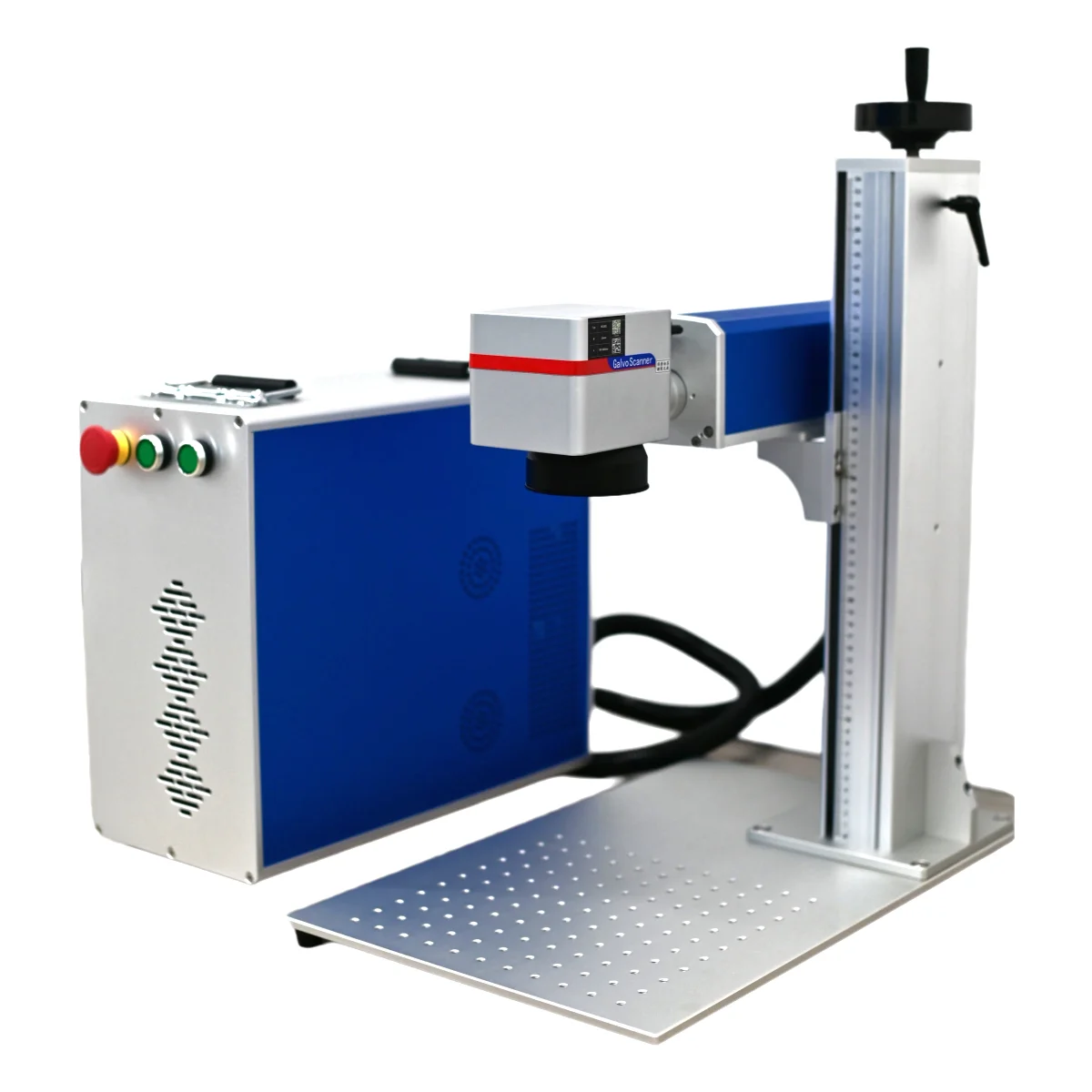

The portable type marking series provide different power lasers, which can be adjusted according to the different marking requirements, to achieve efficient marking .
Adapt different Height
Standard double red light
guiding light focusing function,
marking height 0-150mm
adjustable, high precision
lifting can be adjusted.
Field lens with marking ranges of 110mm*110mm or 175mm*175mm can be optional according to different marking requirements, with a minimum marking range of 0.3mm.
Easy for Operating
Copyright EZCAD 2 control
software.Supporting PLT, AI,
DXF, BMP, JPG and other file
formats , easy to operating
and learning.
Top1 brand in China. Output laser power is stable. Different power option, long lifespan .

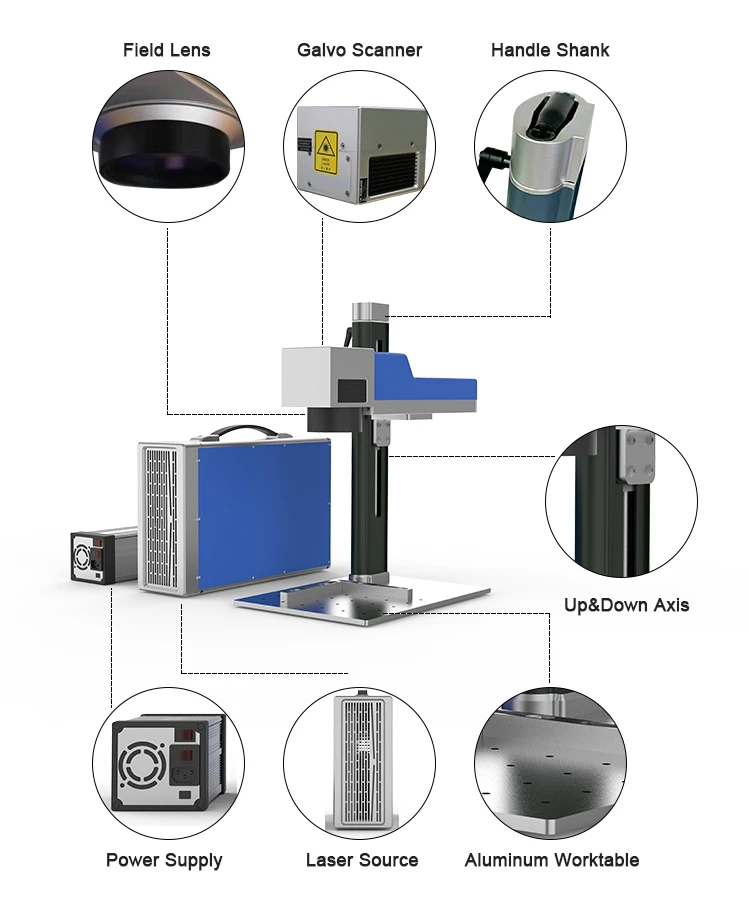

Adopts advance digital high
speed scanning galvanometer,
quick speed without deviation,
small volume, good stability,
and performance reached the
international advanced level.
High quality optical field lens, different working size optional.
What is fiber laser marking machine application ?
The machine is used for all metal and some hard plastic laser marking and engraving. It is widely applied in electronic and communication area, it can mark on multifarious parts of autos, hardware, apparatus, sanitation, plastic surface, jewelry, exact instrument etc. It is suitable to do digital graphics figure and literal marking.
What materials can fiber laser marking machines be applied to?
Material Application:Stainless steel, carbon steel, alloy steel, silicon steel, spring steel, aluminum,aluminum alloy, galvanized sheet, galvanized sheet, pickled sheet, copper, silver, gold, titanium and other metal sheet marking and engraving .
About Sunic Group
Wuhan Sunic Group are a professional laser machines and solar panel products lines equipment manufacturer since 1998.We are specialized in design, research, manufacture, sales and service for laser machines. Sunic Group would like to be customer's technical consultant, support in laser&solar equipment to make further development and progress together.
We supply customized solution for different materials processing, such as invitation cards, wedding
cards, pop up cards, Pop up books,candy box, paper products,acrylic, PMMA, LGP, jeans wash,leather, Fabric,textiles,wood,MDF,laminate materials,marble, package film, metalp, plastic products and so on.
♥♥♥♥♥Satisfaction give 5 Star♥♥♥♥♥
If you are not satisfied,please contact us,we will sure give you satified solutions,if you are satisfied with our products,please remember to give 5 starts,to supports.Thanks!
What kind of laser machine and model should I choose?
You can tell us your processing material, working size and detail requirement, detail work by picture or video so that we can judge whether our machine can meet your need.
What kind of materials does the laser machine can process?
We have different laser machines, such as Fiber laser, CO2 Laser, UV Laser, Green Laser. Normally fiber laser can process metal and plastic. CO2 laser is for processing non-metallic materials, such as Acrylic, PMMA, Wood, Glass, Leather, Jeans, Paper, Textiles Garments and so on. UV laser and green laser are also called cold laser source, they are usually used for plastic, glass, crystal and some special processing job.
Is it easy to operate?
We will send you manual and guide video in English, I can teach you how to operate the machine. lf you still can not learn how to use it, we can help you by Team viewer online help software. Or we can talk by phone email or other contact ways.
What's your guarantee in case the machine breaks down?
The machine has one year guarantee. If it breaks down, generally speaking our technician will figure out what the problem may be,according to client's feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
How will you do the after- sale service?
We will firstly check your problems online through Teamviewer, E-mail, Whatsapp or other contact way, if it is easy to handle it,we will guide you onlinet to fix it or send you the spare parts for replacement.
What is your equipment lead time?
Fiber laser marking machine lead time is around 7 working days.CO2 laser engraving&cutting machine lead time is around 2-3 weeks.3D dynamic CO2 laser marking machine lead time is around 10 working days.
How will you do the package and shipping?
All of our equipment are packed in export standard cases. Express, air shipping, sea shipping are all available.
