Product Description

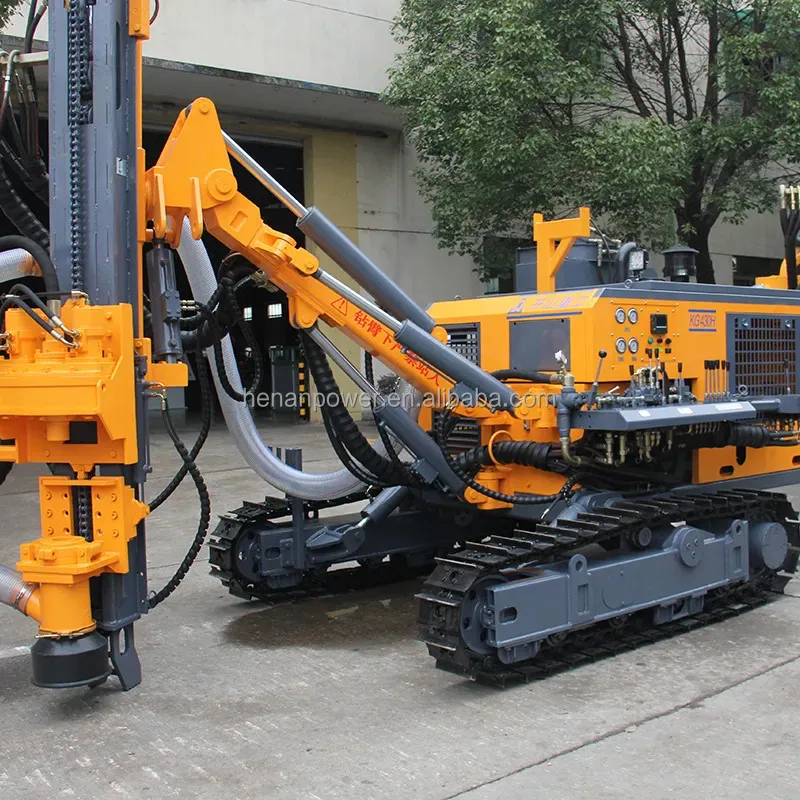

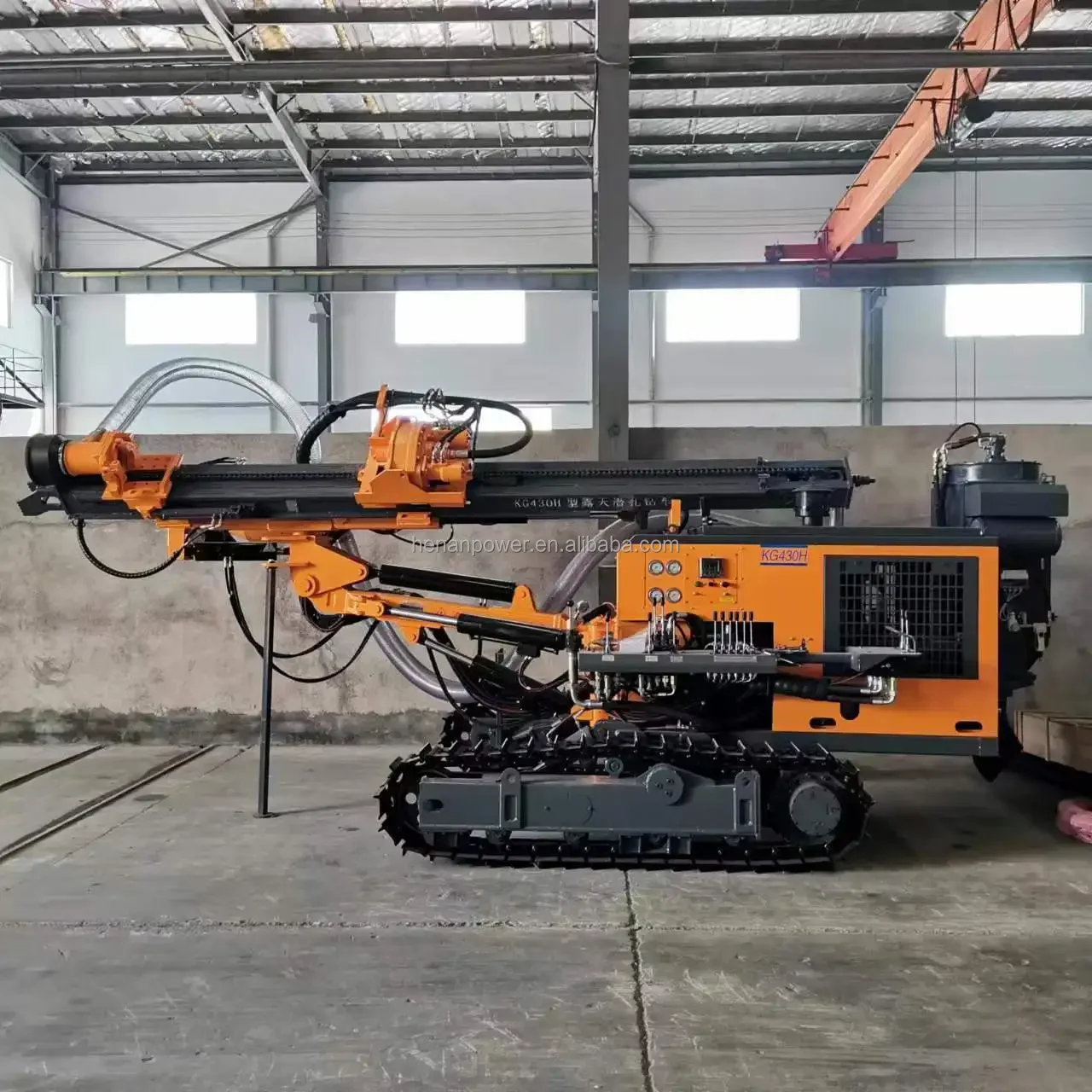

The KG430/KG430H down the hole drill rig for open use is an improved device in compliance with national regulations on diesel-engine emissions.
Equipped with Yuchai four-cylinder engine(China III), the drill rig meets national standards for emissions and environment.
The folding frame track and four-wheel drive are adopted, and track leveling and the walking motor of plunger piston improve the working pressure and climbing capacity.
The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position.
The rotary torque and revolving speed are raised, the propulsion motor and chain are used to raise the lifting force and reliability.
The thickened profile is used for the housing, and the additional ring makes handling and lifting convenient.
The KG430H down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Product Parameters
Model | KG430 | KG430H | |
Weight of complete machine | 5250KG | 5700KG | |
Outer dimensions | 6300×2250×2700mm | 6300×2400×2700mm | |
Drilling hardness | f=6-20 | ||
Drilling diameter | Φ90-152mm | ||
Depth of economical drilling | 25m | ||
Rotary speed | 0-90rpm | ||
Rotary torque | 5000N·m | ||
Lifting force | 40KN | ||
Method of Feed | Oil cylinder-leaf chain | ||
Feed stroke | 3175mm | ||
Travelling speed | 0-2.5km/h | ||
Climbing capacity | ≤30° | ||
Ground clearance | 500mm | ||
Tilt angle of Beam | Down: 110°, up: 35°, total: 145° | ||
Swing angle of boom | Left: 91°, right: 5°, total: 96° | ||
Pitch angle of drill boom | Down: 55°, up: 15°, total: 70° | ||
Swing angle of drill boom | Left: 32°, right: 32°, total: 64° | ||
Leveling angle of track | ±10° | ||
Compensation length of beam | 900mm | ||
Supporting power | Yuchai YC4DK80-T302 (58KW/2200r/min) KG430 Yuchai YC4DK100-T304 (73KW/2200r/min) KG430H | ||
DTH hammer | K40 | ||
Drilling rod | Φ76×2m+Φ76×3m | ||
Air consumption | 13-20m3/min | ||
Maximum height of horizontal hole | 2850mm | ||
Minimum height of horizontal hole | 350mm | ||
Product Details
Powerful Rotary Head
Cycloid rotation double motor for powerful rotation torque.Bigger and stronger designed rotation head for smooth high torque output and less drill tool jamming with seamless speed regulation.Hydraulic System
The hydraulic system is upgraded,the hydraulic cylinder is more reliable,the system flow is increased,and the rotary drilling speed is increased.
The hydraulic system is upgraded,the hydraulic cylinder is more reliable,the system flow is increased,and the rotary drilling speed is increased.

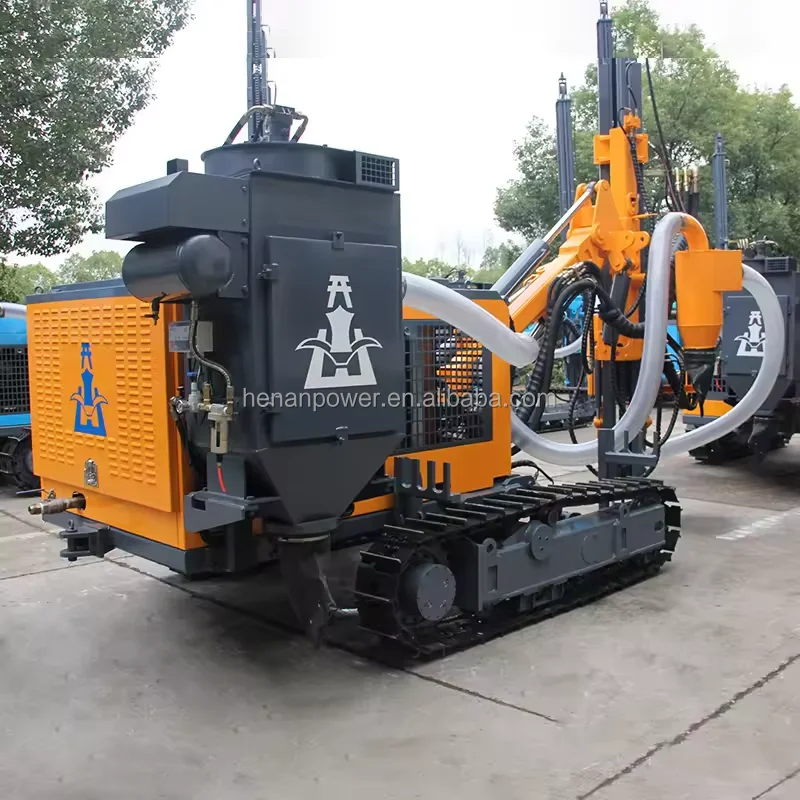

Enlarged Dry Type Dust Collector
KG430H is with Dust Collector.It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.
KG430H is with Dust Collector.It is Hydraulic Cyclonic Laminar Flow.Reduce dust and protect workers’ health. Reduce air pollution and protect the atmospheric environment.

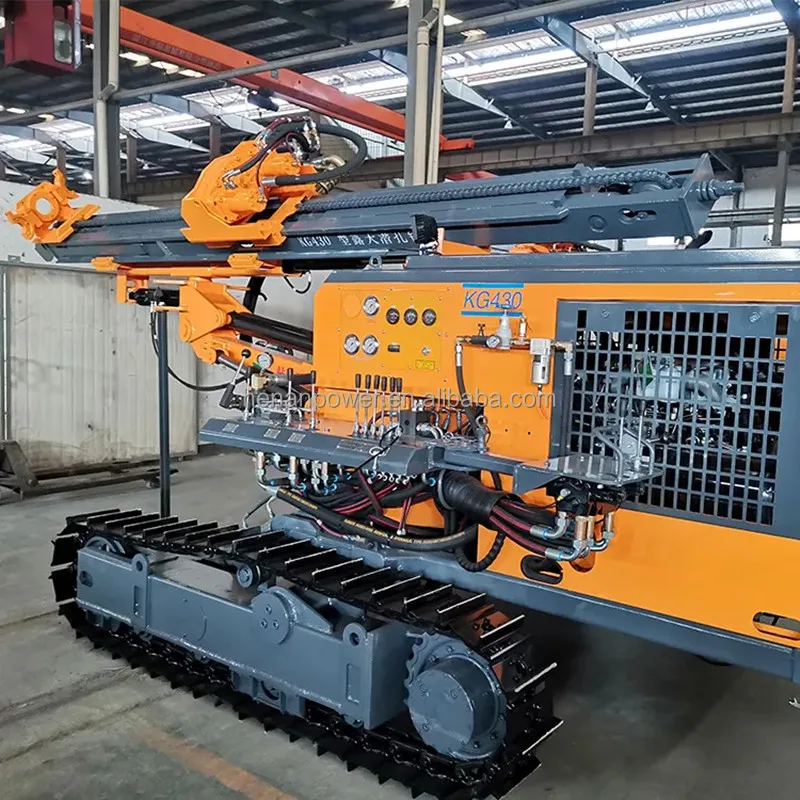

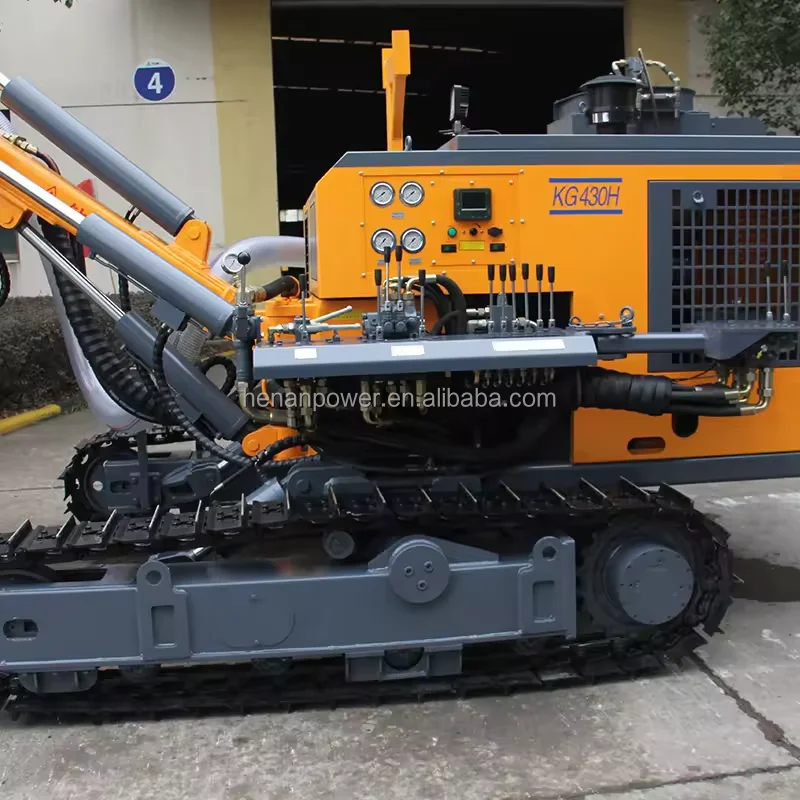

Control Panel
All controls integrated on the control panel for convenient operation by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.
All controls integrated on the control panel for convenient operation by single operator,higher work efficiency & lower drilling cost,safer and more comfortable operation.
Walking Hydraulic Motor
Dual-speed tramming plunger hydraulic motor.Low noise, high efficiency, long service-life, high power, easy maintenance.
Construction Steel Crawler
Equipped with speed reduction tramming system and standard excavator track for compact structure. Excellent off-road performance with powerful two-speed hydraulic tramming system for extreme low failure rate.
Product Application
KG430/KG430H open-air DTH drilling rig is an efficient and energy-saving advanced drilling equipment specially developed for small and medium-sized open pit mining, quarry and infrastructure construction projects.
About Us
Henan Power Machinery Equipment Co., Ltd is a integrated mining and engineering machinery manufacturer and trader. The company is committed to developing the professional production of DTH drilling rig, water well drilling rig, drilling tool and air compressor. The drilling rig has passed ISO9001 international quality management system certification. Power drilling equipment and air compressor have export to over 30 different nations and regions such as United States, Germany, Japan, South Korea,Russia, African and Latin American countries and so on. We welcome customers, business associations and friends from all parts of the world to contact us and seek cooperation for mutual benefits.
FAQ
Q1. What is the advantage about your company?
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
A1. Our company has professional team and professional production line.
Q2. Why should I choose your products?
A2. Our products are high quality and low price.
Q3. The logo and the color can be customized?
A3. Yes, we welcome you to sample custom.
Q4. Any other good service your company can provide?
A4. Yes,we can provide good after-sale and fast delivery.
Q5. Which payment term can you accept?
A5. T/T 30% down payment ,T/T 70% balance payment before delivery.
Q6. Which trade term can you accept?
A6. Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
A5. T/T 30% down payment ,T/T 70% balance payment before delivery.
Q6. Which trade term can you accept?
A6. Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
Recommend Products
This is Alicia from China.
Thanks for your attention to our products! We will supply the best goods and the best service to every client! If any questions,please free free to ask me anytime!
Thanks for your attention to our products! We will supply the best goods and the best service to every client! If any questions,please free free to ask me anytime!
Похожие товары
Геологоразведочные 100 мм алмазные буровые гусеничные буровые установки цены
314 464,11 ₽ - 748 207,71 ₽
Горячая распродажа! Магнитная буровая установка HZ200
412 056,42 ₽ - 433 743,60 ₽
100 м 200 м магнитный сердечник Алмазный сверлильный гусеничный станок буровой установки цены
650 615,40 ₽ - 759 051,30 ₽
Подземная кабельная Укладка Буровой установки мягкая труба Укладка Буровой установки HDD Горизонтально направленная буровая установка
542 179,50 ₽ - 759 051,30 ₽

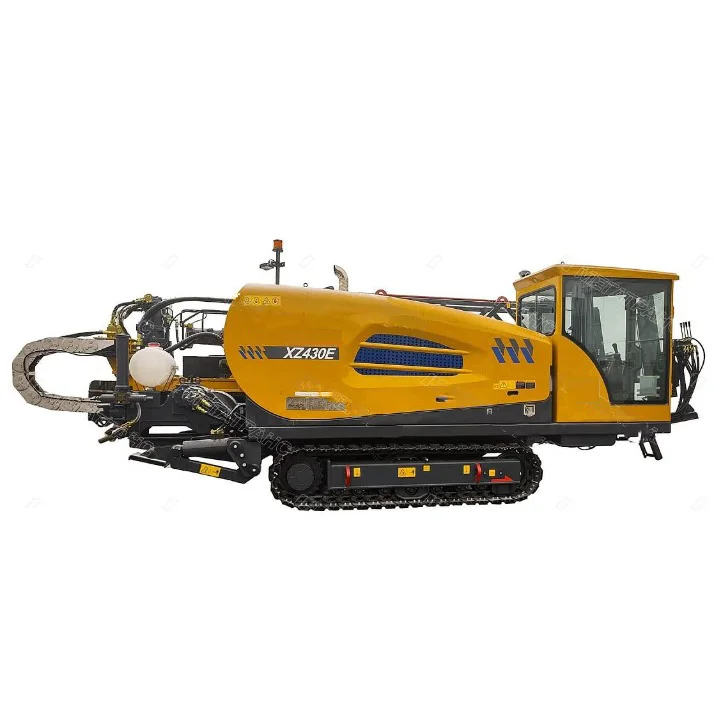

Укладка труб и кабелей Горизонтально направленное сверло XZ430E с полностью автоматическим конвейерным устройством
