Система пожаротушения FM200 HFC227ea оборудование для
- Категория: >>>
- Поставщик: Guangzhou Xingjin Fire Equipment Co. Ltd.Guangzhou Ltd.
Сохранить в закладки 1601105509459:
Описание и отзывы
Характеристики
Product Description
FM200 system with electrical elements extinguishing system FM200 gas
NO. | Specifications | 4.2MPa system | 5.6MPa system | |
1 | Capacity | 40Ltr,70Ltr,100Ltr,120Ltr,150Ltr,180Ltr | 70Ltr,90Ltr,120Ltr | |
2 | Device model | QMP40/4.2, QMP70/4.2, QMP100/4.2,QMP120/4.2, QMP150/4.2, QMP180/4.2 | QMP70/5.6, QMP90/5.6, QMP120/5.6 | |
3 | Filling pressure | 4.2MPa | 5.6MPa | |
4 | Max filling rate | 0.95kg/L | 1.08kg/L | |
5 | Discharge time | ≤10s | ||
6 | Power | DC24V/1.6A | ||
7 | Nitrogen driving device | 6.0±1.0Mpa | ||
8 | Storage surroundings | Temperature:-10~50℃ Relative humidity:≤97% | ||
9 | Proportion | ≤800m² | ||
10 | Volume | ≤3600m³ | ||

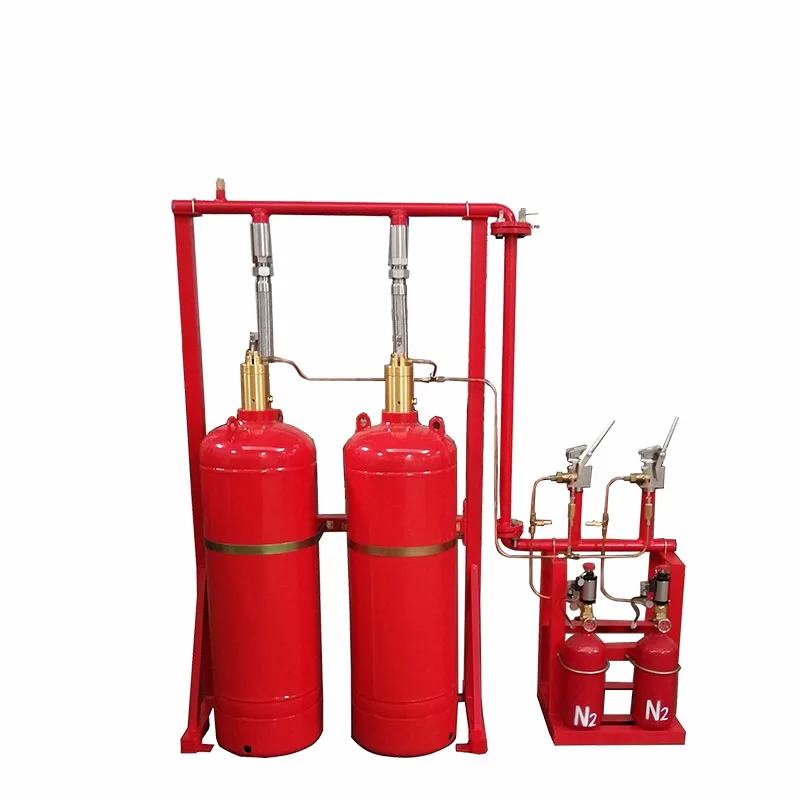

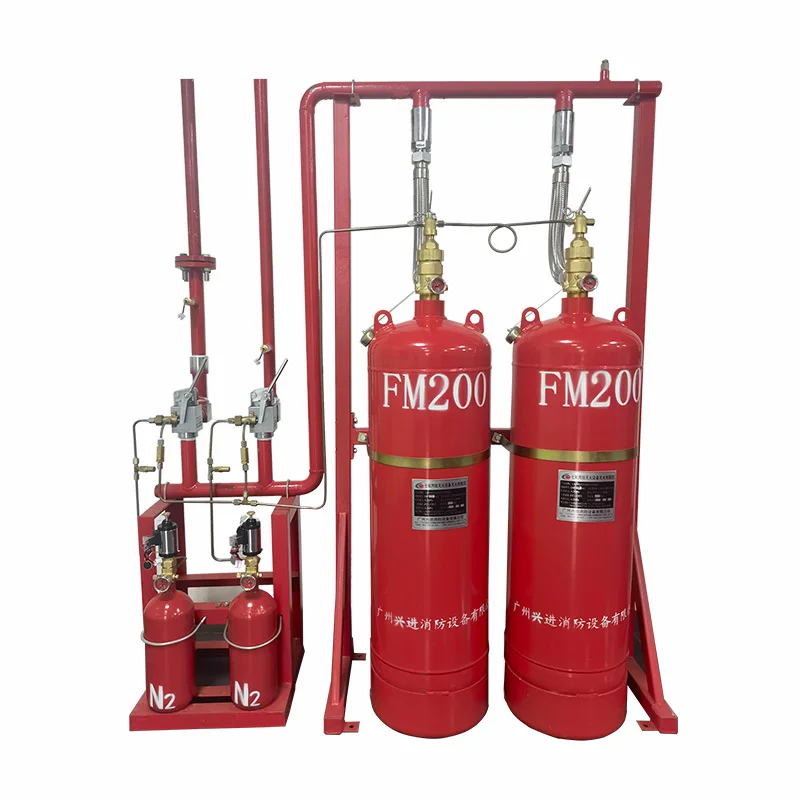

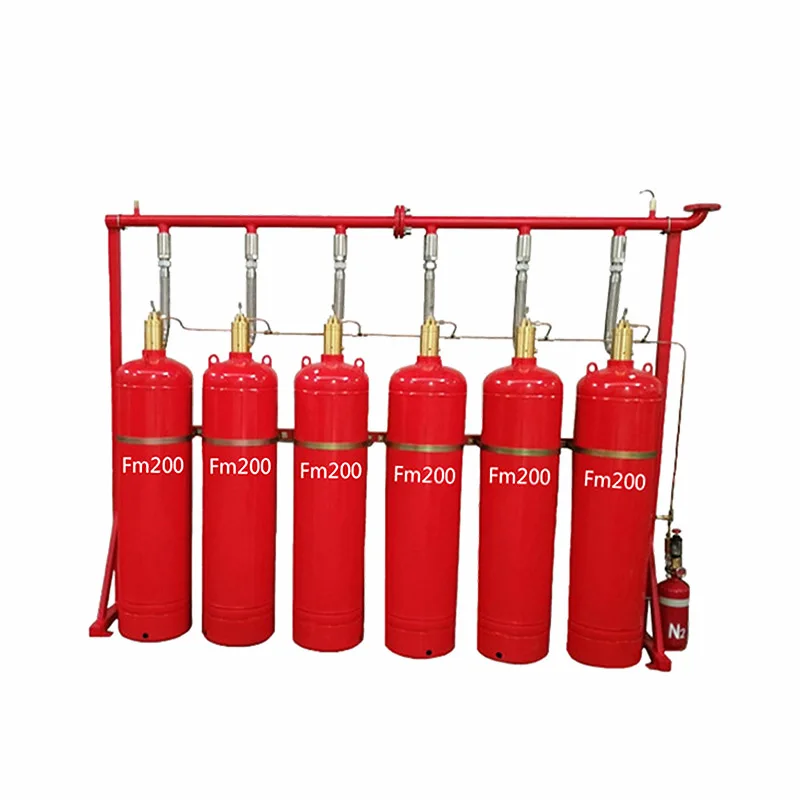

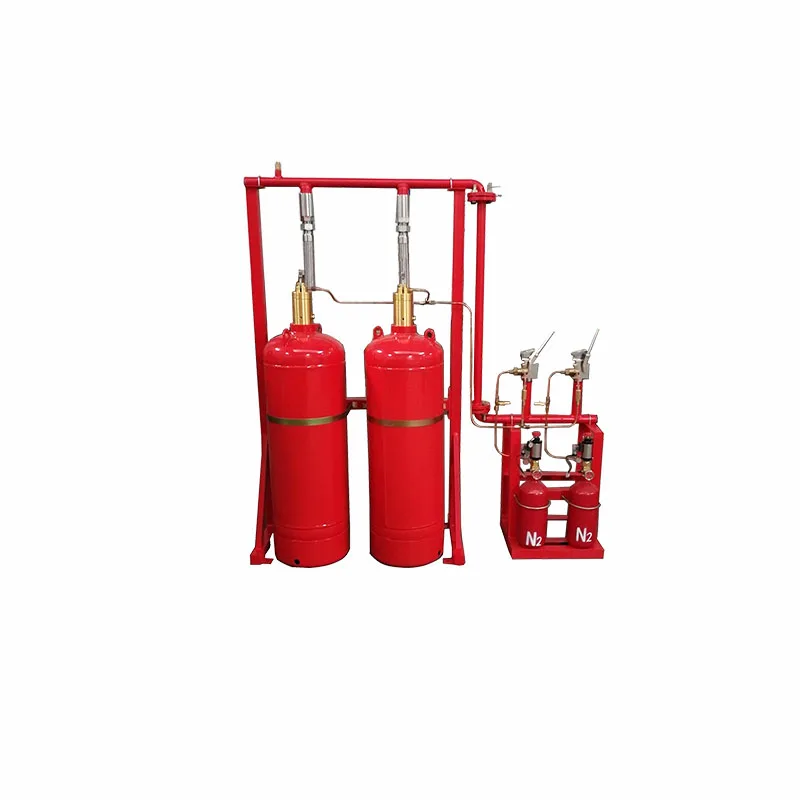

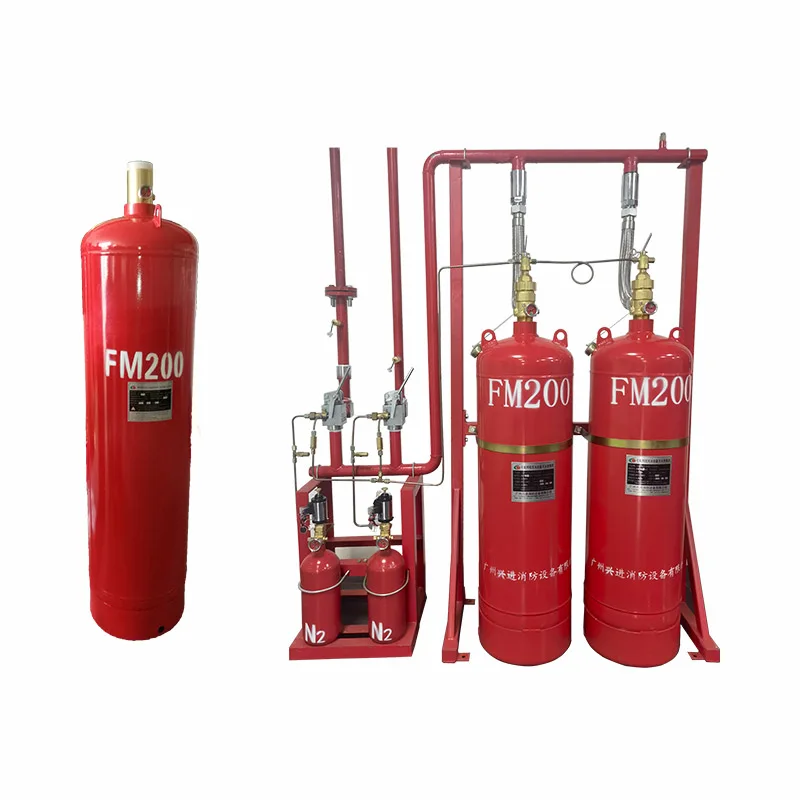

Detailed Images
FM200 (Heptafluoropropane, HFC-227ea) automatic fire extinguishing system is a gas fire, automatic control and fire detection is one of the modern intelligent automatic fire extinguishing system.
FM200 gas fire extinguishing system can be combined with physical and chemical reaction process rapidly and effectively eliminate heat, prevent the happening of the fire, the physical properties of FM200 performance in its molecule vaporizing stage can rapid cooling flame temperature; And the release of free radicals in the process of chemical reaction, will eventually stop burning a chain reaction.
FM200 gas fire extinguishing system can be combined with physical and chemical reaction process rapidly and effectively eliminate heat, prevent the happening of the fire, the physical properties of FM200 performance in its molecule vaporizing stage can rapid cooling flame temperature; And the release of free radicals in the process of chemical reaction, will eventually stop burning a chain reaction.
Components
The pipe network type fm200 fire suppression system consists of actually three parts: The electrical elements is a set of detecting device, and it always plays a subsidiary role in each system. The electrical elements includes:several control panels, several manual buttons, some discharge indicator lights, some alarm bells, some sounder with light, some smoke detectors and heat detectors.pipe network part, the fire fighting equipment part and the electrical elements part. Here will explain the last two parts for customers.
The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
The main part of the system is fire fighting equipment. It is formed by several components: fm200 cylinders, a cylinder frame, nitrogen-pressure driving devices, a driving device frame, container valves, flexible hoses, liquid flow check valves, gas control pipes, gas flow check valves, manifolds, safety valves, selective valves, flanges, elbows and nozzles.
• Computer room, communication room, power distribution room, library, archives,
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Museum, etc.
• Be used for electrical fire, liquid fire, solid fire, gas fire which can be cut off the gas
source before extinguishing occur, etc.
Related Products
Certificate
Environmental Management System Certificate
Occupational Health and Safety Management System Certificate
Quality Management System Certificate
Certificate of China Compulsory Product Certification
(4.2MPa System)
Certificate of China Compulsory Product Certification
(5.6MPa System)
Company Introduction
Guangzhou Xingjin Fire Equipment Co,.Ltd. is specialized in fire suppression system. Our Headquarter is located in Panyu District, Guangzhou, which is the south door of China mainland. Our company has complete and scientific quality management system.The sincerity, powerful strength and good quality are recognized by fire industry. All Xingjin staffs welcome everyone from all directions and all industries to come here for visit, guidance and business cooperation.
Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
Our company specializes in all kinds of Heptafluoropropane fire suppression systems,aerosol fire suppression systems, and we possess an experienced research and development team who have more than 20 years work experiences in national fire suppression career.
After-Sale Service
• We have an efficient sales and after sales team to promise slove all client's question in time.
• We provide 8×6 hrs technical support and service.
• We provide 8×6 hrs technical support and service.
FAQ
Q1: Are you a manufacturer or a trading company?
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
A1: We are a manufacturer.
Q2: Is OEM products available?
A2: Yes, we welcome your own design and drawing.
Q3: Where is your factory? Can I visit it?
A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China.
Of course yes. We always welcome and wait for your visit.
Q4: How can I get to your factory?
A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
