Заводская цена Двухосная солнечная система слежения slew drive
45 817,50 ₽ - 49 129,61 ₽
3 дюймовый Высокоточный двухосевой поворотный привод Sde3 для слежения за солнечной батареей
- Категория: >>>
- Поставщик: Luoyang Jiawei Bearing Manufacturing Co. Ltd.
Сохранить в закладки 1601105894865:
Описание и отзывы
Характеристики
Product display

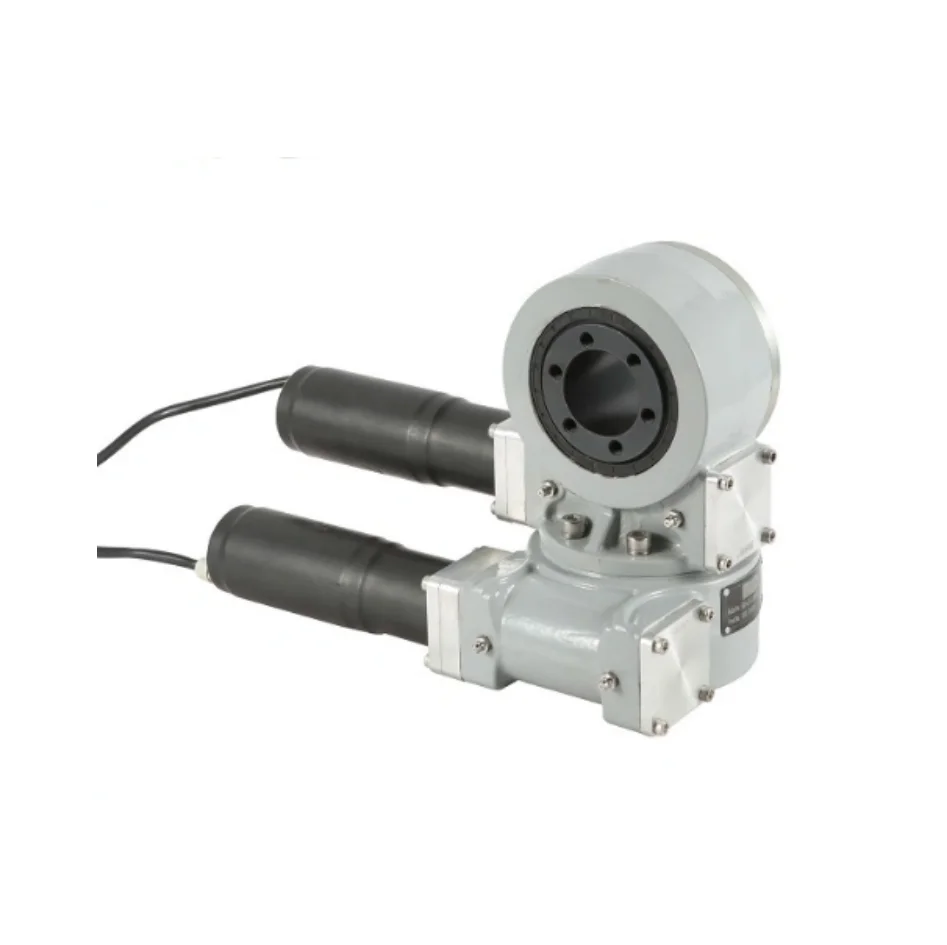

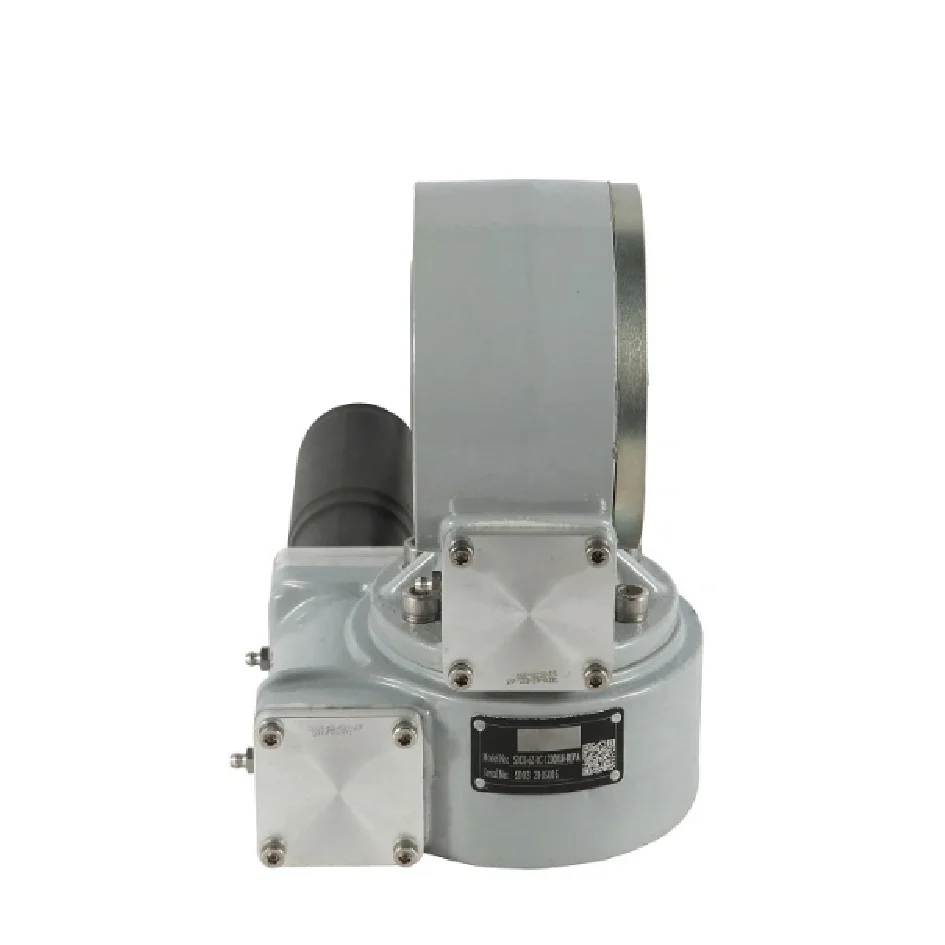

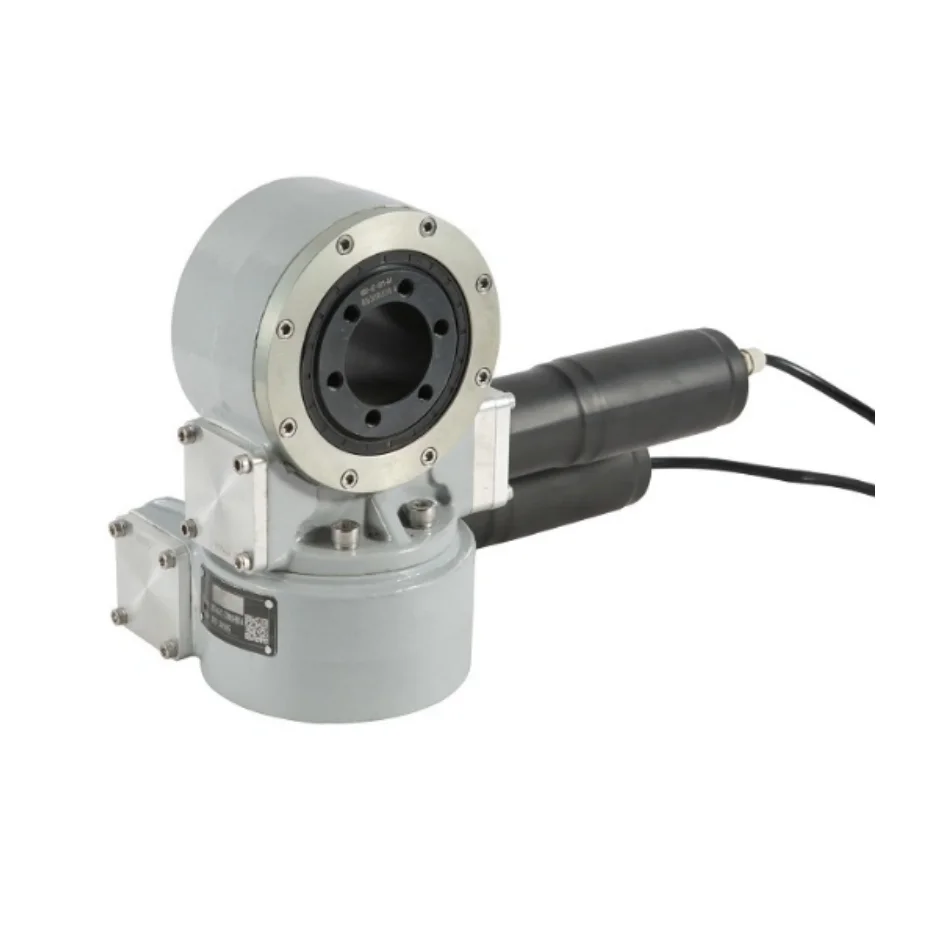

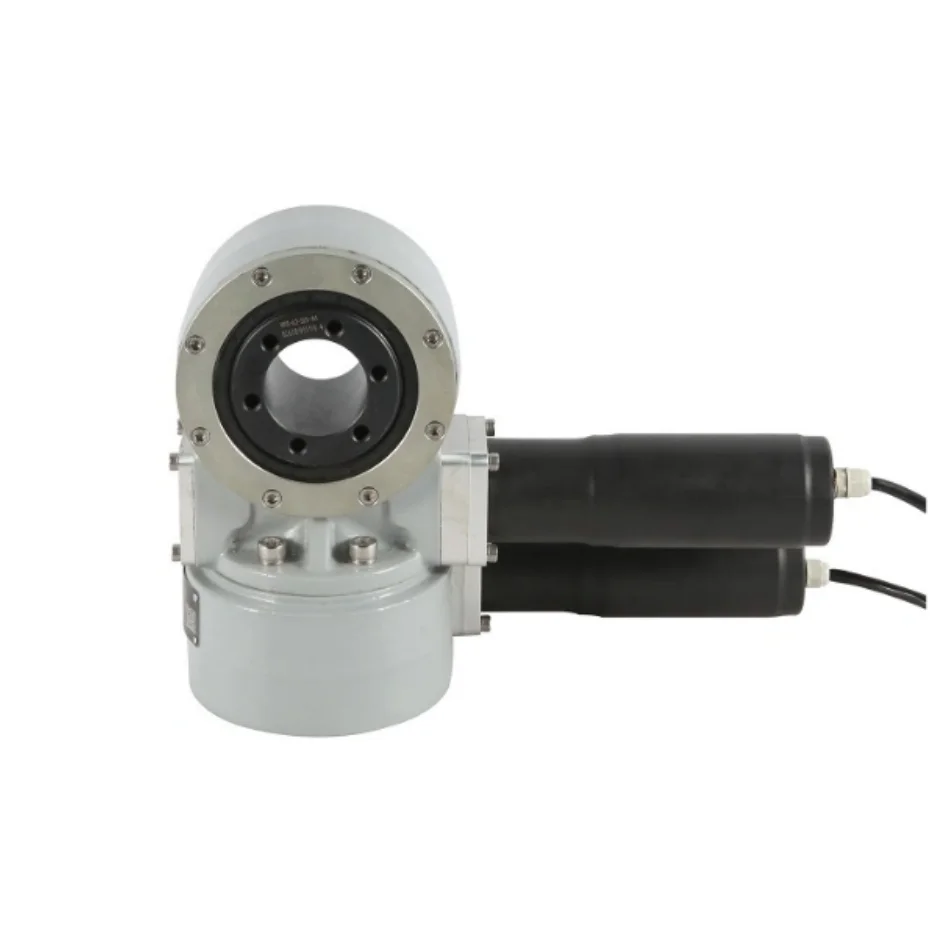

3" dual axis rotation gear slewing drive for solar tracker satellite antenna
SDE3 a slew worm drive system is a compactly constructed unit which consists of a slewing ring, base plate and worm. This unit brings the advantages of a slewing ring and a worm into one unit.It is suitable for applications which demand slow rotation with a continuous or cyclical movement capable of handling combined loads. The product is with standard dimensions for coupling an electric or hydraulic motor as well as coupling a whole system to equipment.
Due to its compactness, high rigidity and other mentioned advantages, a worm drive system is used in varying equipment such as Solar Power System, mobile assembly platforms, satellite system, hydraulic loading cranes on haulage vehicles, small marine cranes, extendable rotating ladders, in wheel units of large marine portal transporters.
Model | SDE3 | Place of Origin | Henan,China |
Brand | LYJW | Type | Dual Axis |
IP Class | IP65 | Output Torque | 446N.m |
Tilting Moment Torque | 1100N.m | Holding Torque | 2000N.m |
Mounting Bolts | M10 | Output Speed | 0.5rpm |
Gear Ratio | 62:1 | Efficiency | 40% |
Motor | 24VDC | Type | Gear Reducer |
Carrying weight | 50-200kg | Carrying area | 3-5㎡ |
SVH3 dual axis slewing drive advantage
1.After heat treatment, the gear, worm gear, high hardness, good wear resistance, service life can reach 25-30 years
2. Through tooth grinding and special worm processing mode, fit clearance, high precision.
3. Double lip skeleton oil seal structure is adopted to achieve IP65 and IP66 protection level.
4. Compact structure, easy installation, meet the load design requirements.
5. Customizable production with different flanges and adapters.
1.After heat treatment, the gear, worm gear, high hardness, good wear resistance, service life can reach 25-30 years
2. Through tooth grinding and special worm processing mode, fit clearance, high precision.
3. Double lip skeleton oil seal structure is adopted to achieve IP65 and IP66 protection level.
4. Compact structure, easy installation, meet the load design requirements.
5. Customizable production with different flanges and adapters.
The definition of altitude angle is the angle formed between a horizontal plane and an imaginary line pointed to
the sun. The azimuth angle is a horizontal angular distance from a reference direction, usually north.
Generally, these trackers are set up as alt-azimuth mounts, meaning the axes move vertically (the altitude) and horizontally (azimuth). This reduces the issue of ground clearance, which can be a problem with equatorial mounts,
but it requires a controller to make the adjustments in driving two motors.
In addition to the benefit for concentrating collectors, dual-axis tracking is sometimes used with flat collectors.
A flat collector always receives the maximum amount of solar energy if it is oriented so that the direct radiation is
perpendicular to its surface.
A dual-tracker moves the collector continuously during daylight hours to meet this condition, thus maximizing the
solar energy harvested.
LYJW processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows
the standard inspection specification.
In addition to the benefit for concentrating collectors, dual-axis tracking is sometimes used with flat collectors.
A flat collector always receives the maximum amount of solar energy if it is oriented so that the direct radiation is
perpendicular to its surface.
A dual-tracker moves the collector continuously during daylight hours to meet this condition, thus maximizing the
solar energy harvested.
LYJW processes the Slewing Drive Motor metallographic testing to ensure the quality of raw material and follows
the standard inspection specification.
When a slewing drive is used in solar energy industry, users have to choose an ideal one according to the actual
area of solar panels. Broadly speaking, 3 inch slewing drive is suitable for solar power system coming with 3- 5 m2
solar panel.For more specific and detailed information, please contact me directly.Can also be specially customized
for your situation
SDE3 dual axis slewing drive gearmotor is available to load 50-200kg weight:
For 4-6pcs solar panels tracking design
For 1-2.5 Dia. satellite receiver and solar dish system
For 4-6pcs solar panels tracking design
For 1-2.5 Dia. satellite receiver and solar dish system
Certifications
Company Profile
The company has 40,000 square meters of industrial land; three workshops, covering an area of 30,000 square meters; one office building, covering an area of 5,000
square meters.
Production 80 people
Product processing
FAQ
A:Shipping time
B:Normally within 20 days.The manufacturer's delivery speed is as fast as flying. Sometimes it will be shipped early and it will be shipped as fast as possible.
A:Shipping method
B:Packed and shipped in standard export wooden boxes. Can be shipped by express, sea and land.Generally, express delivery takes 10-20 days, sea shipping takes 55-65 days, and land shipping generally takes 35-45 days.
A:Shipping method
B:Packed and shipped in standard export wooden boxes. Can be shipped by express, sea and land.Generally, express delivery takes 10-20 days, sea shipping takes 55-65 days, and land shipping generally takes 35-45 days.
Contact Us
Name:Darline
Whatsapp:+86 15225511839
Tel:+86 15225511839
Fax:+86 379 68777180
"Every turn is just for creating a better future"
Address:Yiyang Industry District,Luoyang,Henan,China
Похожие товары
Плоский солнечный коллектор система отопления pv-модули тепловой
1 484,93 ₽ - 1 720,09 ₽
Солнечное светодиодное ТВ с кабелем постоянного тока 12 В 19 дюймов
2 760,09 ₽ - 2 980,90 ₽

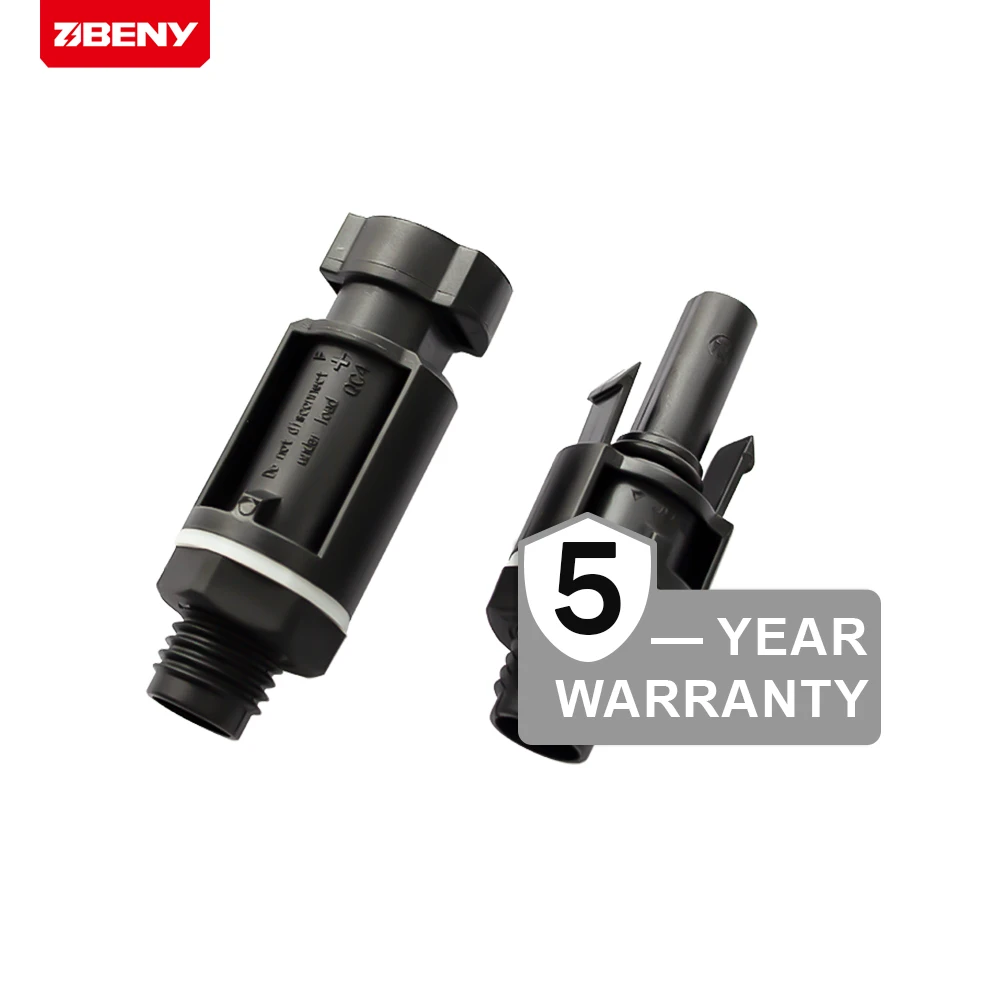

BENY фотогальванический соединитель контактный провод водостойкий 30 А 1000 В кабель постоянного тока MC4 мужской женский солнечный PV-панель система с 5-летней гарантией
110,41 ₽ - 317,97 ₽

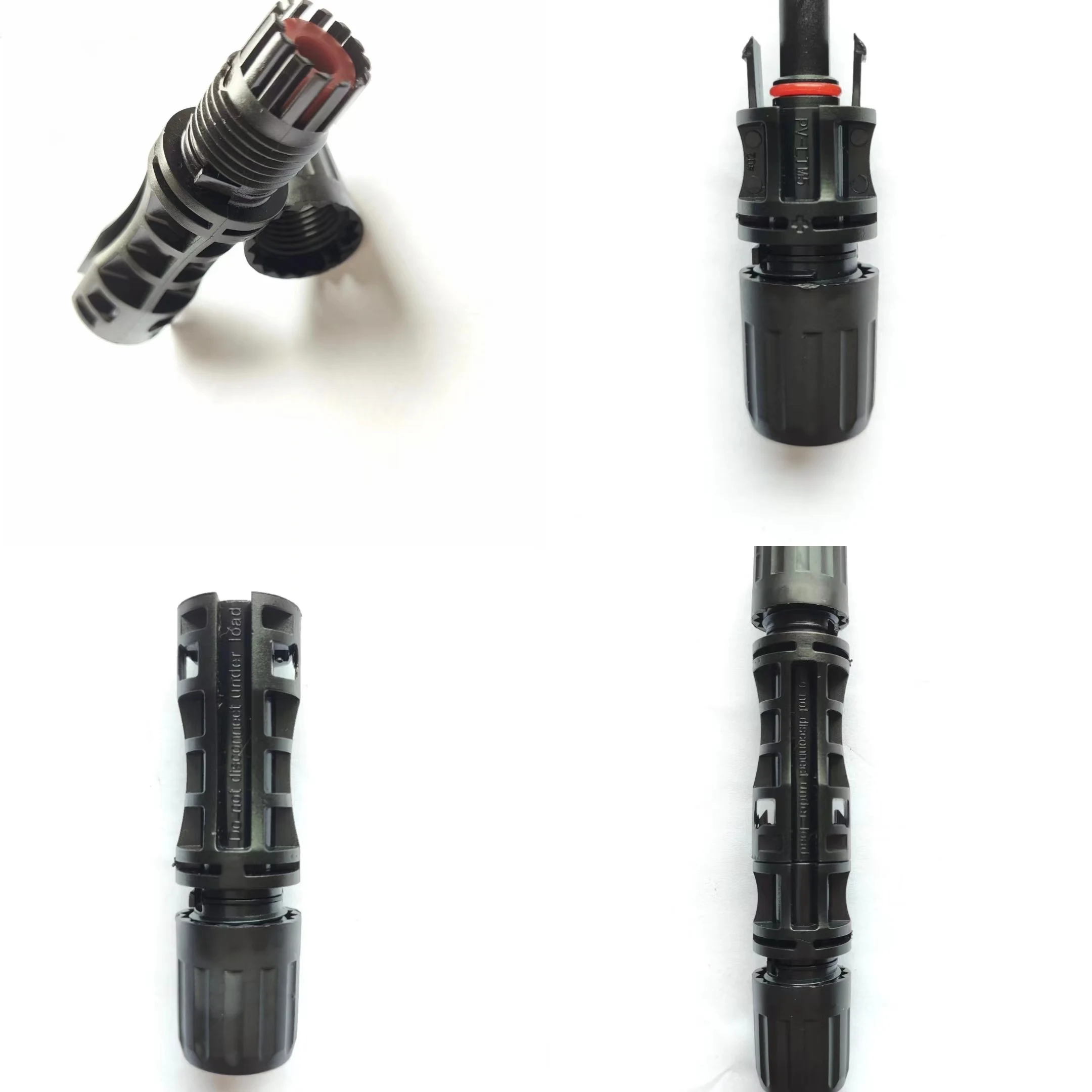

1500 В 30 А соединитель для солнечных батарей штепсельная Вилка PV-панели соединительный кабель 2 5 м
28,71 ₽ - 32,02 ₽
Huawei солнечной энергии эффективность оборудования со слежением за максимальной точкой мощности SUN2000-450W-P Optimizer солнечные продукты CE сертификация домашнего использования панели солнечных
25,40 ₽ - 26,50 ₽

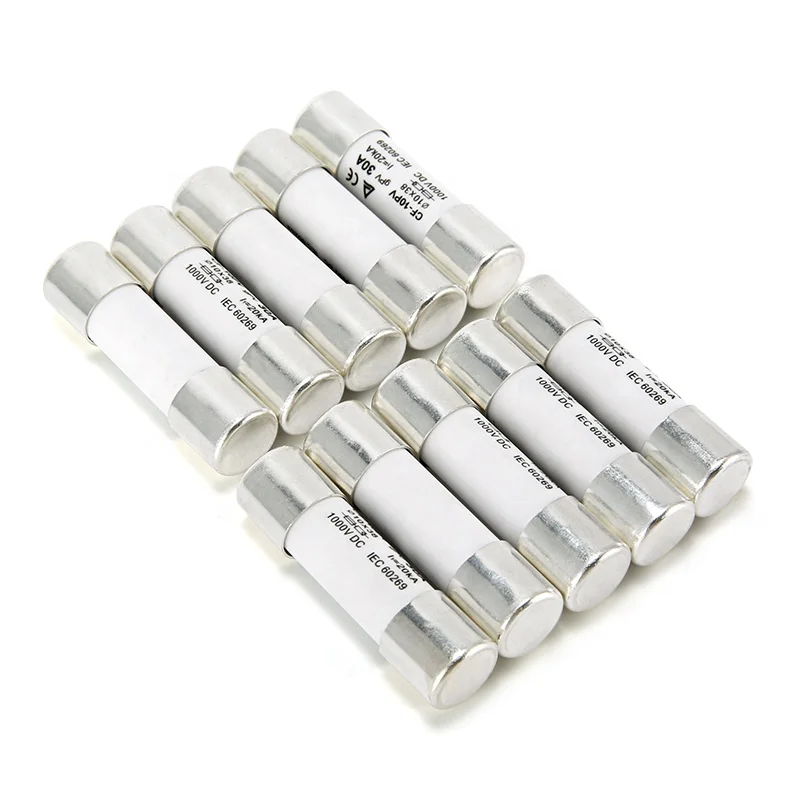

1000 В DC солнечные фотоэлектрические предохранители 5A-32A Высоковольтные электрические для фотоэлектрических систем с держателем предохранителя
