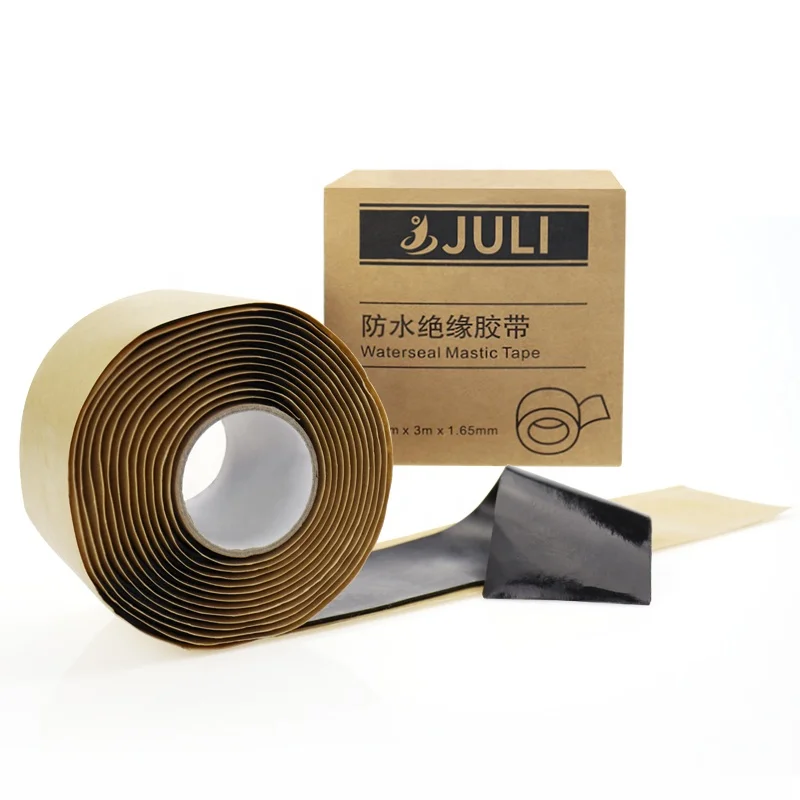

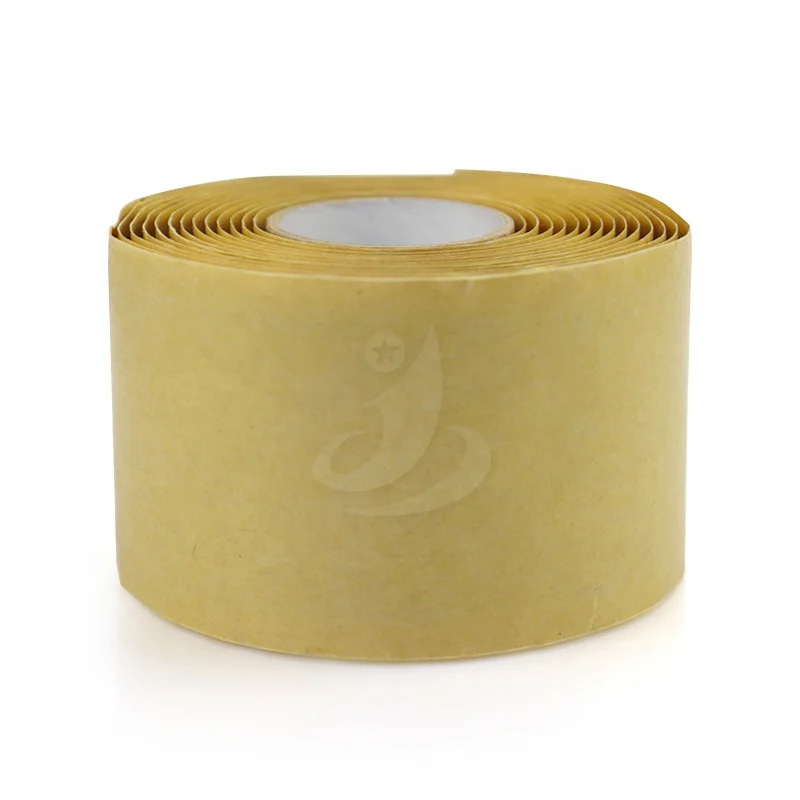

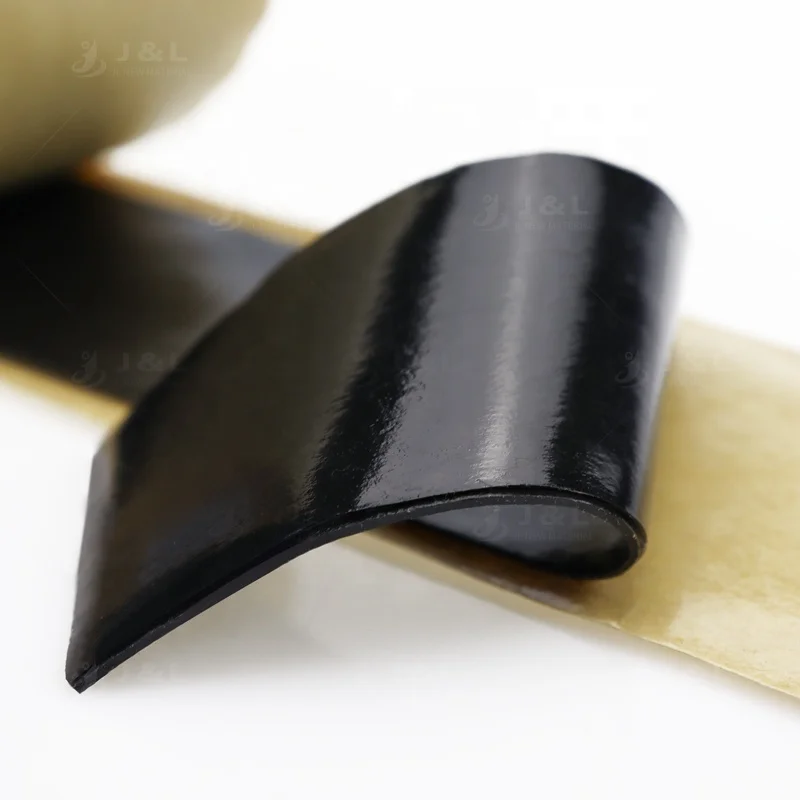

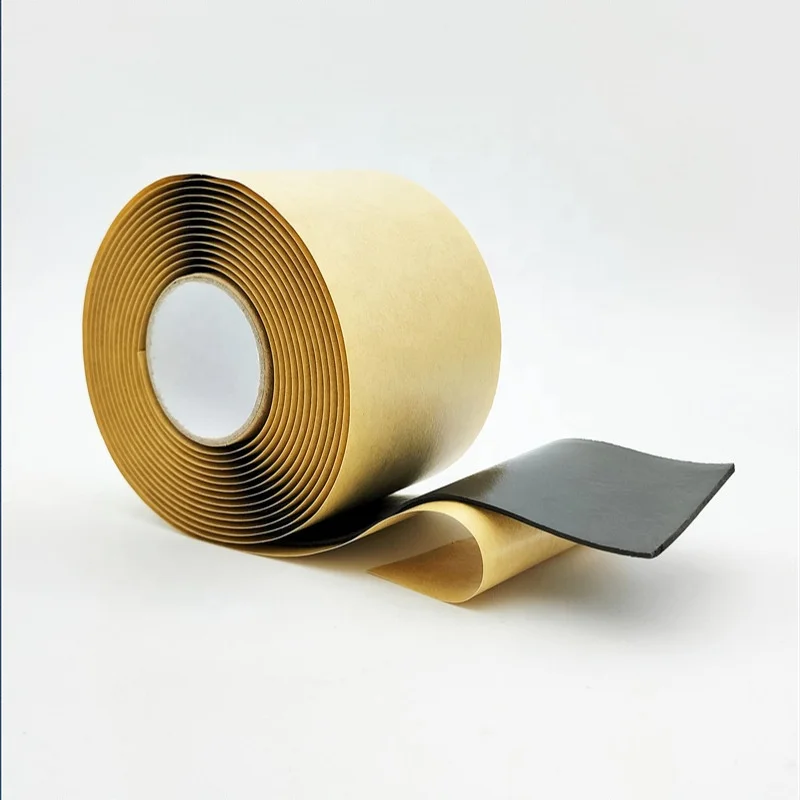

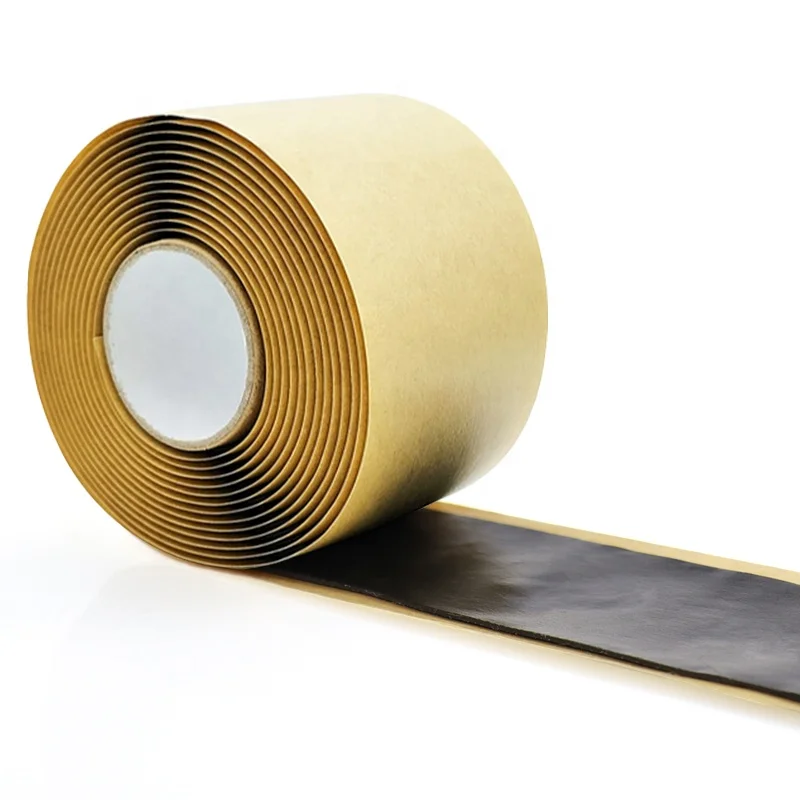

Electrical waterseal mastic tape
Waterseal mastic tape is a conformable self fusingelectrical insulating and waterproof sealing tape,suitable for application over irregular surface.ltconsisits of an EPR(ethylene propylene rubber)backing coated with an aggressive,temperature-stable mastic adhesive,Waterseal mastic tape isused for electrical insulating and moisture sealingapplications,with working temperature of 90°Cand an emergency overload temperature 130°C.
Feature
①Conformable for application over irregular surfaces;
②Compatible with solid dielectric cable insulations;
③Self-fusing tape;
④Flexible over wide temperature range;
⑤Excellent weather and moisture resistance;
⑥Excellent adhesion and sealing characteristics with copper, aluminium and power cable jacket materials;
⑦Thick construction allows quick application build-up and padding over irregular connections;
②Compatible with solid dielectric cable insulations;
③Self-fusing tape;
④Flexible over wide temperature range;
⑤Excellent weather and moisture resistance;
⑥Excellent adhesion and sealing characteristics with copper, aluminium and power cable jacket materials;
⑦Thick construction allows quick application build-up and padding over irregular connections;
specification | color |
50mm*1.65mm*3m | Black |
Number | Mechanical performance | Typical value |
1 | Tensile Strength | 1.16MPa |
2 | Ultimate Elongation | 900% |
3 | Dielectric intensity | 22.5KV/mm |
4 | Viscosity | |
Viscosity(steel plate) | 55N/50mm | |
Viscosity(PE) | 55N/50mm | |
5 | Melting point | A grade pass |
6 | Dielectric loss | 0.008 |
7 | Working Temperature | 90℃ |
8 | Emergency overload | 130℃ |
9 | Water absorption | 0.49% |
10 | Water vapor percolation rate | <0.26g/(100inch 2.24h) |
11 | Ozone resistance test | pass |
12 | Heat exposure | 130℃ |
13 | UV resistance | pass |
① Primary electrical insulation for cable and wire connections rated up to 1000 volts;
② Electrical insulation and vibration padding for motor leads rated up to 1000 volts;
③ Primary electrical insulation for bus bar connections rated up to 35kV ;
④Padding for irregular shaped bus bar bolted connections;
⑤Moisture seal for cable and wire connections;
⑥Moisture seal for service drops;
⑦Moisture seal for ground wire and rod connections;
⑧Jacket seal on power cable applications;
② Electrical insulation and vibration padding for motor leads rated up to 1000 volts;
③ Primary electrical insulation for bus bar connections rated up to 35kV ;
④Padding for irregular shaped bus bar bolted connections;
⑤Moisture seal for cable and wire connections;
⑥Moisture seal for service drops;
⑦Moisture seal for ground wire and rod connections;
⑧Jacket seal on power cable applications;
