Product Description
Introduction

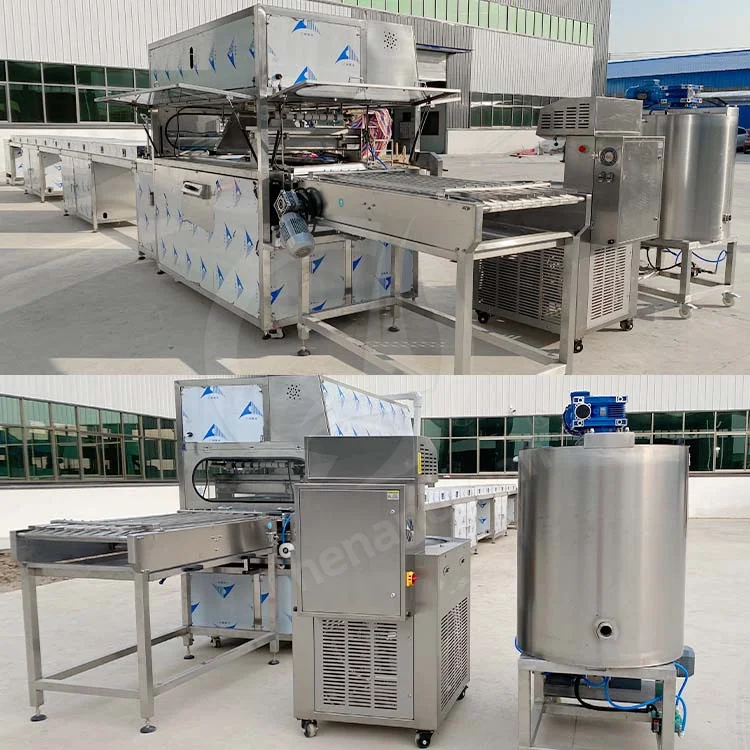

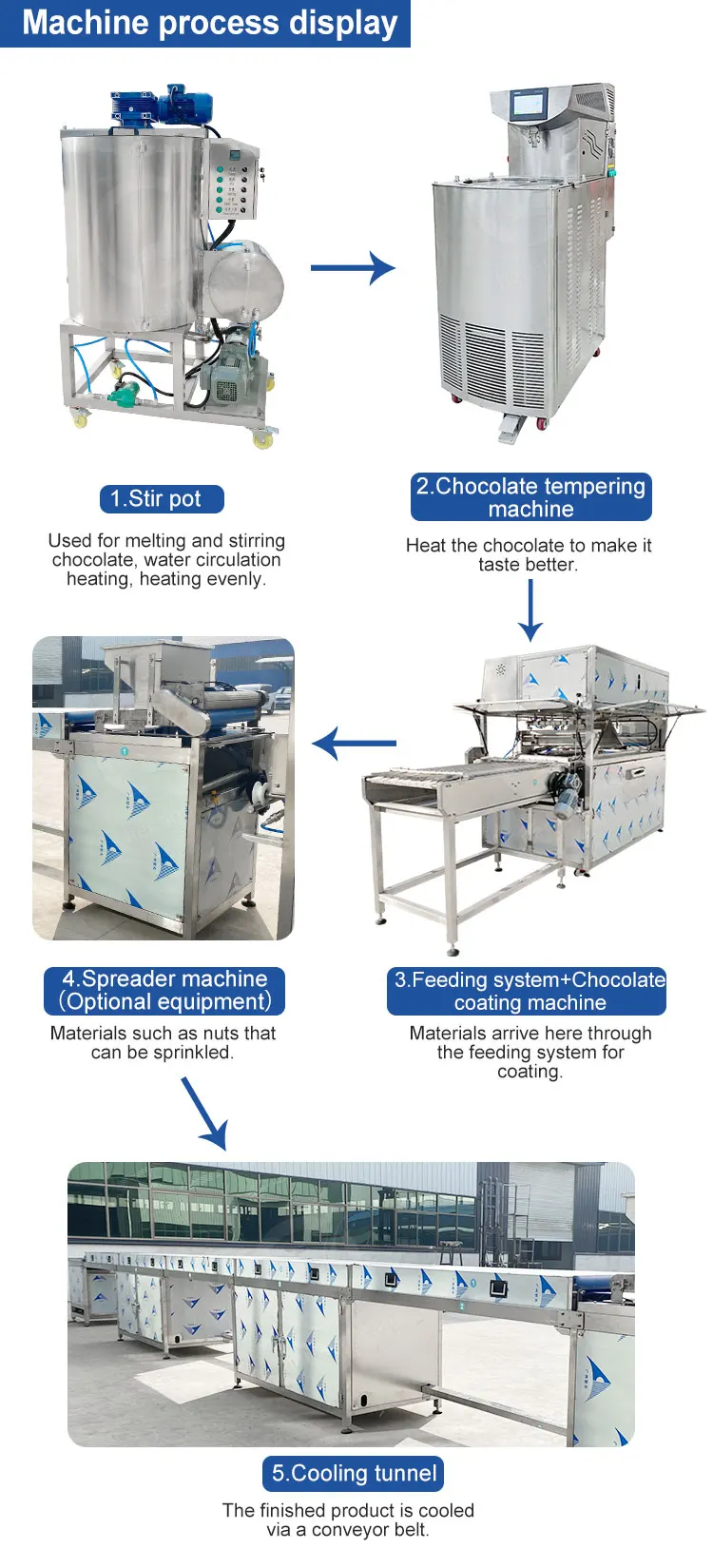

The chocolate enrobing cooling production line is composed of a melting machine, a tempering machine, a enrobing machine, a spreading machine and a cooling tunnel. Its working principle is to melt small pieces of chocolate and transport them to the temperature control machine. The temperature control machine adjusts the temperature multiple times to increase the taste of the chocolate, and then transports it to the coating machine. After coating, it is sprinkled with auxiliary materials and enters the cooling tunnel for cooling. Finally get the finished product.
Application
Our machines have a wide range of applications, suitable for canteens, hotels, bakery, cafe, fast food shop and food processing factories.
Features
1. The equipment has a high degree of automation, fully automatic operation, compact structure, smooth operation, simple operation and high work efficiency.
2. The operating switch of the chocolate melting machine is marked in Chinese and English. It is controlled by a separate switch and has a corresponding indicator light. The indicator light turns on after the switch is turned on to prevent misoperation.
3. The chocolate melting machine uses water circulation heating, which is heated evenly and the temperature can reach 70-80 degrees. The controller is easy to adjust the temperature. There is a visual pipe on the side to facilitate observation of the water level in the pipe.
4. The temperature regulating machine adopts touch-control color screen human-machine interface, which is simple to operate and convenient to adjust.
5. The material handling and conveying is composed of stainless steel mesh belt and track baffle, which is easy to clean. The track prevents materials from falling from the edge. The track gap can be adjusted according to customer requirements.

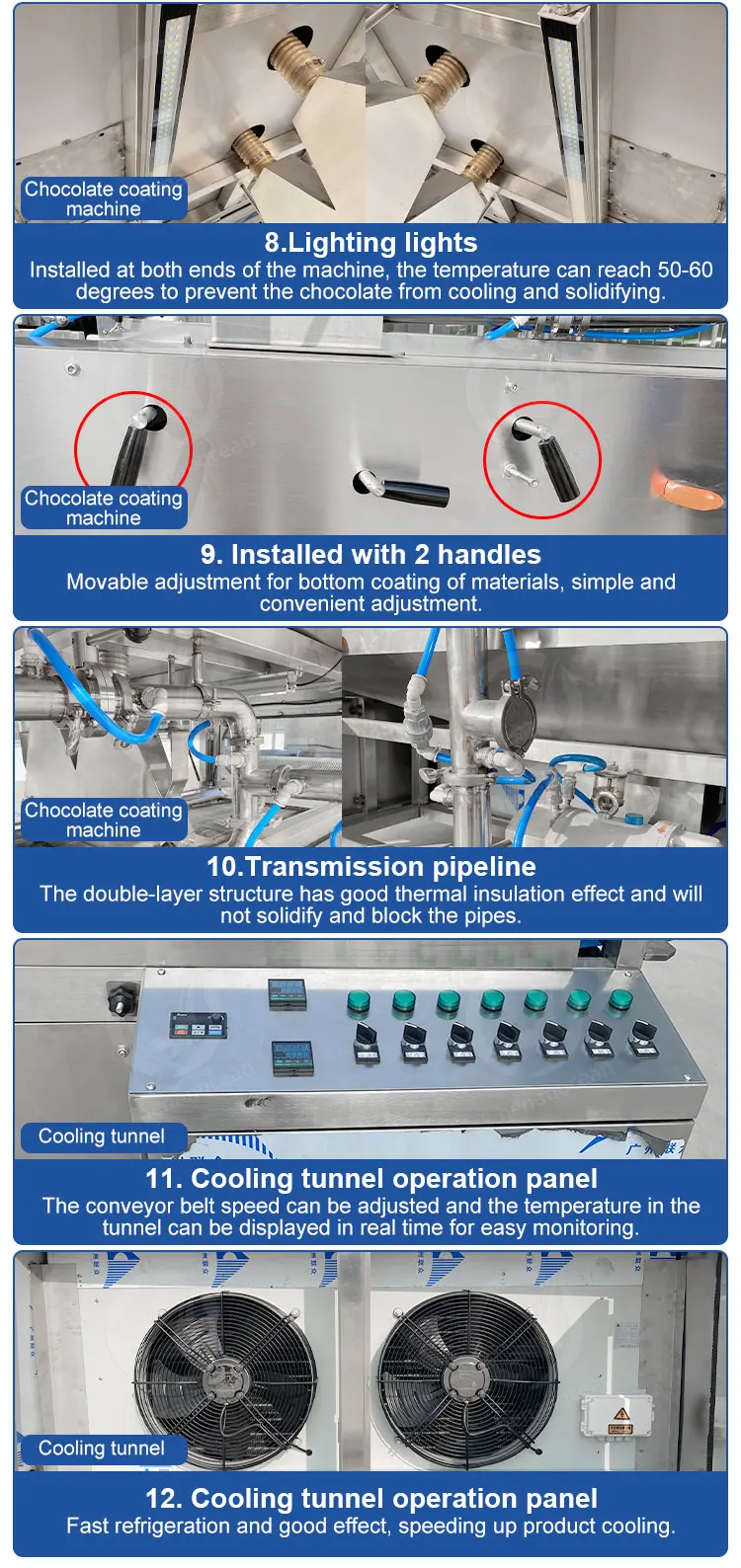

6. Heating lamps are installed at both ends of the chocolate coating machine, and the temperature can reach 50-60 degrees to prevent the chocolate from cooling and solidifying.
7. The enrobing machine is equipped with 2 handles, which can be moved and adjusted to coat the bottom of the material. The adjustment is simple and convenient.
8. The spraying bracket is equipped with two control handwheels, which can spray and control the amount of spraying on both sides at the same time.
9. The operation interface has color screen control and clear layout. The overall operating speed of the machine can be manually adjusted, making adjustment easy.
10. The chocolate enrobing recycling hopper is equipped with a water heating circulation system, which is kept warm by a circulating water pump to prevent the chocolate from cooling and solidifying. The operation interface can control the operation of the water pump and monitor the water temperature.
11. The enrobing machine has a double-layer structure of internal transportation pipes. Hot water circulates outside and chocolate is transported inside. It has good heat preservation effect and will not solidify or block the pipes.
12. The blowing device can adjust the blowing volume of the fan and control the thickness of the coating according to the customer's coating requirements.
13. The enrobing net has a vibration function, which can shake off excess chocolate and make the spraying more uniform. The vibration frequency can be adjusted on the operation screen.
14. The enrobing machine outlet is equipped with a tail removal motor to prevent small tails after coating the chocolate.
15. The main electrical components of the coating line are made of the French brand. The electrical cabinets are neatly wired and have stable performance.
16. The front end of the cooling tunnel is designed with a spreading structure, and some nuts or fruit pieces can be sprinkled according to customer needs to increase the eating taste. The brush roller structure makes the material spread more evenly.
17. The cooling tunnel refrigeration uses two 5P refrigeration compressors, which has fast cooling speed and good effect.
18. The cooling tunnel is easy to operate. The indicator light turns on after the switch is turned on; the conveyor belt speed can be adjusted through the speed regulator; the temperature in the tunnel is displayed in real time for easy monitoring.
2. The operating switch of the chocolate melting machine is marked in Chinese and English. It is controlled by a separate switch and has a corresponding indicator light. The indicator light turns on after the switch is turned on to prevent misoperation.
3. The chocolate melting machine uses water circulation heating, which is heated evenly and the temperature can reach 70-80 degrees. The controller is easy to adjust the temperature. There is a visual pipe on the side to facilitate observation of the water level in the pipe.
4. The temperature regulating machine adopts touch-control color screen human-machine interface, which is simple to operate and convenient to adjust.
5. The material handling and conveying is composed of stainless steel mesh belt and track baffle, which is easy to clean. The track prevents materials from falling from the edge. The track gap can be adjusted according to customer requirements.
6. Heating lamps are installed at both ends of the chocolate coating machine, and the temperature can reach 50-60 degrees to prevent the chocolate from cooling and solidifying.
7. The enrobing machine is equipped with 2 handles, which can be moved and adjusted to coat the bottom of the material. The adjustment is simple and convenient.
8. The spraying bracket is equipped with two control handwheels, which can spray and control the amount of spraying on both sides at the same time.
9. The operation interface has color screen control and clear layout. The overall operating speed of the machine can be manually adjusted, making adjustment easy.
10. The chocolate enrobing recycling hopper is equipped with a water heating circulation system, which is kept warm by a circulating water pump to prevent the chocolate from cooling and solidifying. The operation interface can control the operation of the water pump and monitor the water temperature.
11. The enrobing machine has a double-layer structure of internal transportation pipes. Hot water circulates outside and chocolate is transported inside. It has good heat preservation effect and will not solidify or block the pipes.
12. The blowing device can adjust the blowing volume of the fan and control the thickness of the coating according to the customer's coating requirements.
13. The enrobing net has a vibration function, which can shake off excess chocolate and make the spraying more uniform. The vibration frequency can be adjusted on the operation screen.
14. The enrobing machine outlet is equipped with a tail removal motor to prevent small tails after coating the chocolate.
15. The main electrical components of the coating line are made of the French brand. The electrical cabinets are neatly wired and have stable performance.
16. The front end of the cooling tunnel is designed with a spreading structure, and some nuts or fruit pieces can be sprinkled according to customer needs to increase the eating taste. The brush roller structure makes the material spread more evenly.
17. The cooling tunnel refrigeration uses two 5P refrigeration compressors, which has fast cooling speed and good effect.
18. The cooling tunnel is easy to operate. The indicator light turns on after the switch is turned on; the conveyor belt speed can be adjusted through the speed regulator; the temperature in the tunnel is displayed in real time for easy monitoring.
Voltage | 380V 50Hz |
Power | 28KW |
Cooling method | wind cooling |
Capacity | 300-500kg/h |
Air pressure | 0.5-0.8MPa |
Weight | 3000Kg |
Cooling tunnel dimension | 1400*1200*1200mm |
Whole line dimension | 18155*600*2177mm |

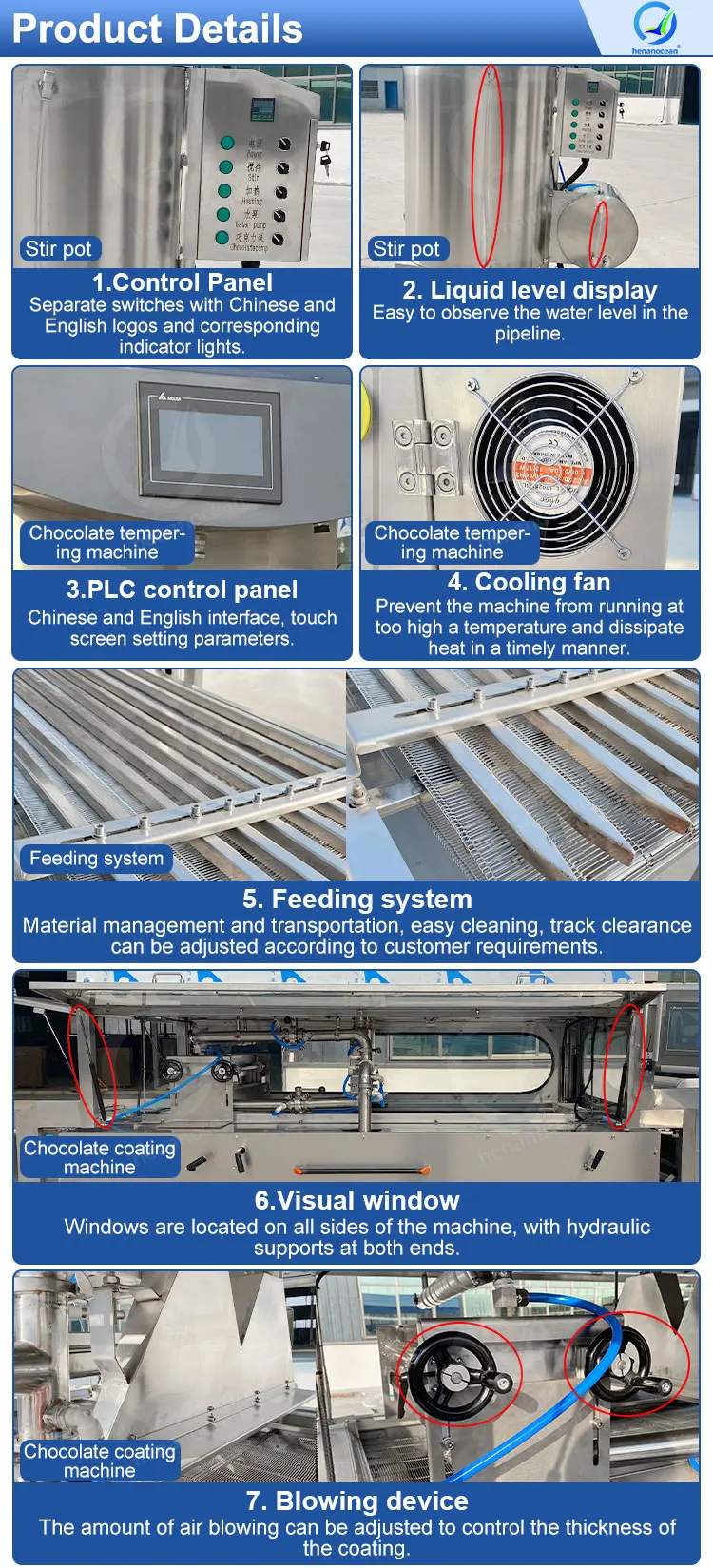

Production Details
Product photograph
Company Information
1. More than 20 years of professional mechanical equipment manufacturers.
2. R&D team keep sustained technology improving anddeveloping.
3. Strict Q.C.and full process monitoring management.
4. ISO 9001, ISO 14001, ISO 45001, CE. BSCI, ETL certificated.OEMODM services.
5. Self owned professional R&D capacity,lab, QC capability.
Certification and Approva
Oversea Customer Visit
Exhibition Photos
Oversea After-sales Service
Our Services
1. 24-hour communication service.
2. Fast logistics provides you with smooth delivery service; if you are not familiar with customs clearance, we can provide you with door-to-door delivery (DDU&DDP).
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
3. One-year warranty, lifetime technical support and free staff training.
4. New design or product recommendation.
5. Participate in international expositions and negotiate face-to-face with customers.
6. If you come to China, please provide a formal invitation.
7. Front desk service, help you book the hotel.
8. Support local after-sales service.
FAQ
Q1: What's your company after- sales service ?
A1: Our machine will be checked three times before shipment to ensure that the
machine itself has no problems. If the machine has some problems under incorrect operation:
1. improper operation problem, we will solve all the usage problems by video call.
2. machine parts problem, we will send you accessories to ensure the normal use of the machine.
3. In addition, our engineers go abroad every year to help customers solve problems they cannot solve. Give customers the best quality machine, the best service, Is the standard of our company.
Q2: Do you provide any warranty about your equipment ?
A2: One year warranty. Frankly speaking, The quality of our machines is very stable. The machine will be tested three times before leaving the factory to ensure that the machine is in the best condition when it arrives at your address. Some minor problems of the machine are usually caused by incorrect operation by novices, so we provide a full set of English instruction videos and common problem solving videos,To help users better understand it. On the other hand, we put a set of spare parts in the toolbox of the machine in advance. During your use, if you need any spare parts, we can send it to you via UPS, and it only takes 5-7 days to arrive at your door. During use, if you have any questions, we can make a video call at any time.
Q3: How to transport without customs clearance experience ?
A3: We have reliable forwarder agent which can ship items to you by sea/air/
Express to your home. We will help you choose the most suitable shipping service.
Q4: Does your company provide training ?
A4: Yes, we provide a series of instructional videos and after-sales service
videos,supporting Chinese, English, French, Spanish, and Arabic.
Q5: Differences from other brands in China ?
A5: We are not only selling machines, we pay more attention to after-sales service.We have always believed that the customer's reputation is the best advertisement.We hope to really help our customers use machines and bring growth to their business. You can view our customers' feedback, facts speak louder than words.
