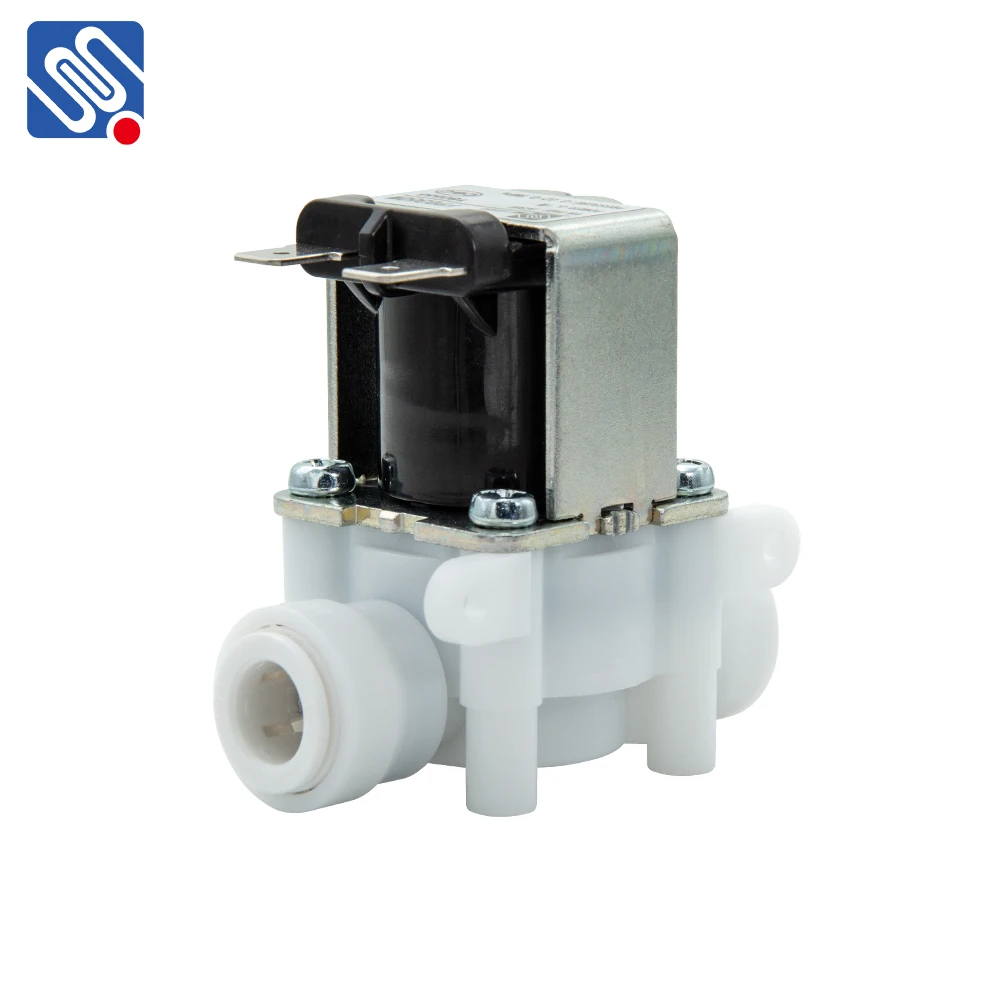

MEISHUO FPD360W маленький размер пластиковый 12 В постоянного тока миниатюрный водяной электромагнитный клапан 3/8 нормально закрытый для очистителя воды
192,87 ₽ - 203,89 ₽

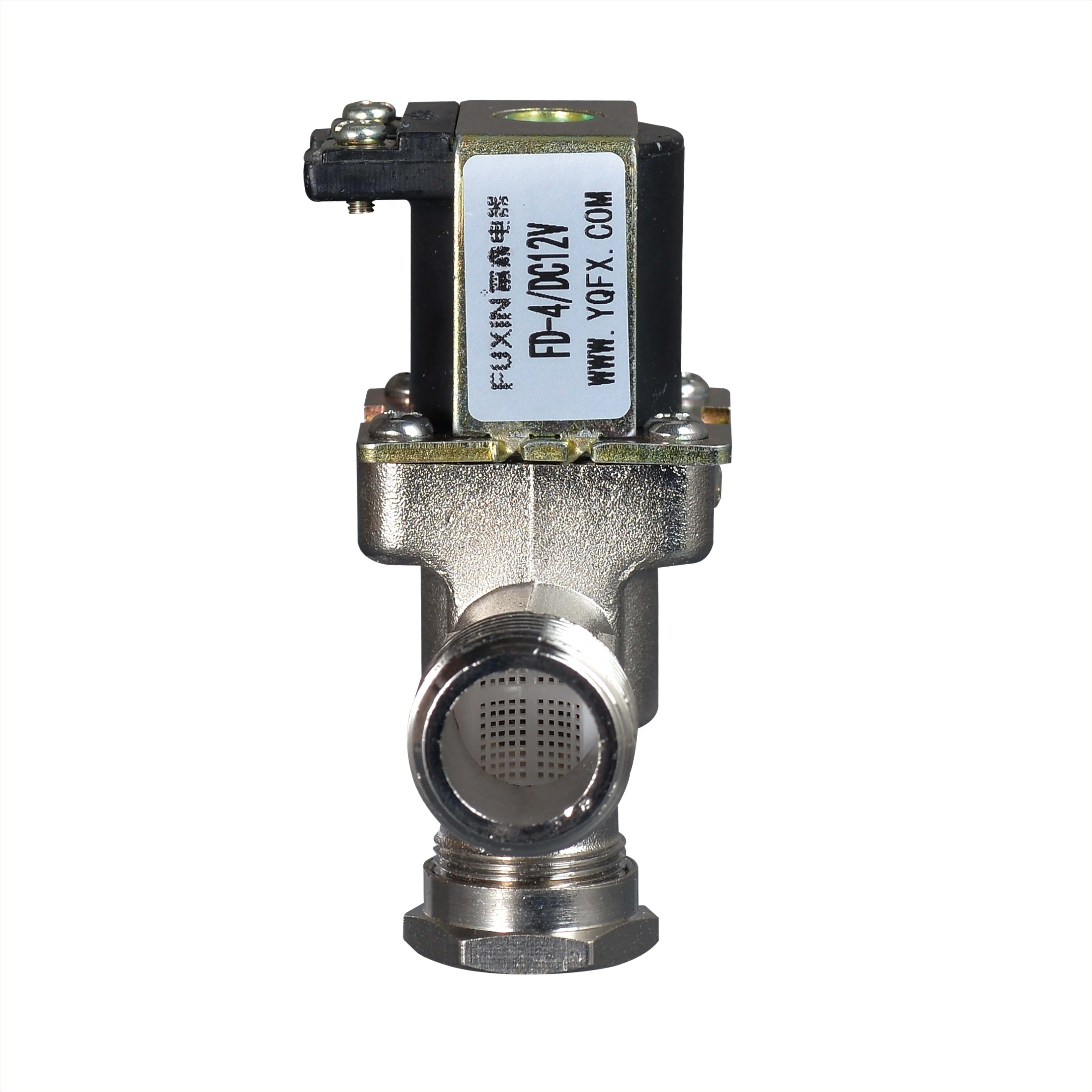

Fuxin FD 4 воды орошения Miniature12V 24V 220V пластиковый мембранный электромагнитный клапан типа NC
- Категория: >>>
- Поставщик: Zhejiang Fuxin Electrical Technology Co. Ltd.
Сохранить в закладки 1601109944384:
Описание и отзывы
Характеристики
Product Description
The valves are applied in the automatic water control system , like the shower inlet , irrigation inlet and so on. There are three cavities in the valve body to adjust the pressure ,reduce the resistance when the valve core is moving in the cavity ,also absorb the impact of medium to valve body while switching. Which improve the stability of valve and extend the service life, narrow the pulse width upon the max or min pressure . Special self-clean feature makes the easy anti-blocking ability .
Specification
Rated Voltage | DC 12V | DC 24V | AC 220V | ||
Coil resistance | 36Ω ±0.5Ω(20ºC) | 130Ω± 5Ω(20ºC) | 4.75KΩ ±0.25KΩ(20ºC) | ||
Min current | 300mA | 166mA | 18mA | ||
Switch mode | AC and DC continuous(normal closed type) | AC and DC continuous(normal closed type) | |||
Flow Rate | Based on the valve body | ||||
Operating pressure | 0.02Mpa-0.8Mpa | ||||
Media temperature | 1ºC--75ºC | ||||
Responding time | Open ≤0.15s close≤0.5s | ||||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Founded in 2001.Fuxin was mainly engaged in producing energy-saving type bi-stable pulse solenoid valve and accessories.The products are widely used in intelligent toilet automatic flushing control, induction sanitary ware, solar automatic water supply control, household appliances, washing equipment, food processing, garden irrigation, intelligent water meter and engineering water control systems, etc.
As a leading solenoid valve manufacturing enterprise,its products have passed CE, ROHS, French ACS, international electrical certification CB, German KTW, U.K. W270, and U.S. NSF certification. Fuxin always adheres to the technical concept of prominent performance and always takes providing the best solutions for the customers as its own duty. Now the company has laboratory, professional research and development teams composed of engineers and technicians, and a set of strict production and other links are all provided with professional designers for control and check. In the production process, the advanced, first-class testing equipment makes each Fuxin product have diamond-like quality, and solenoid valves have service life longer than 1.2 million times.
Zhejiang Fuxin Electrical Technology , a new company founded in 2021 , we take the interests of customers and employees as the foundation, brand operation as the strategy, and we are determined to contribute to the development of intelligence and energy-saving undertakings.
Certifications
Exhibition
FAQ
Why choose us?
1.22 years of solenoid valve manufacture experience
2.Pass ,TUV,CE,ROHS,ISO9001 Certificate
3. Experienced R&D Department
4.we accept Paypal, Western Union, bank T.T,LC payment.
5. Expert packing to protect products in shipment
6. OEM is acceptable.
7. 100% quality test before packing.Short delivery time for standard products.
FAQ
Q: Do you have factory?
A: Yes, Our factory is located in Wenzhou,Zhejiang province, welcome to visit our factory.
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed the ISO9001:2008,CE,RoHS,
Q: What is the delivery date?
A: 15-30 days after order confirmation
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order.
1.22 years of solenoid valve manufacture experience
2.Pass ,TUV,CE,ROHS,ISO9001 Certificate
3. Experienced R&D Department
4.we accept Paypal, Western Union, bank T.T,LC payment.
5. Expert packing to protect products in shipment
6. OEM is acceptable.
7. 100% quality test before packing.Short delivery time for standard products.
FAQ
Q: Do you have factory?
A: Yes, Our factory is located in Wenzhou,Zhejiang province, welcome to visit our factory.
Q: What's the warranty of your product?
A: All of our products have one year warranty.
Q: What certification your product have?
A: We have passed the ISO9001:2008,CE,RoHS,
Q: What is the delivery date?
A: 15-30 days after order confirmation
Q: Do you accept OEM/ODM or sample order?
A: Yes, we accept both OEM/ODM and sample order.
Похожие товары
Jcrslb двигатель внутреннего сгорания аксессуары микро электромагнитный клапан 1/4in AC220V/AC110V/DC24V/DC12V
1 212,30 ₽ - 1 432,71 ₽

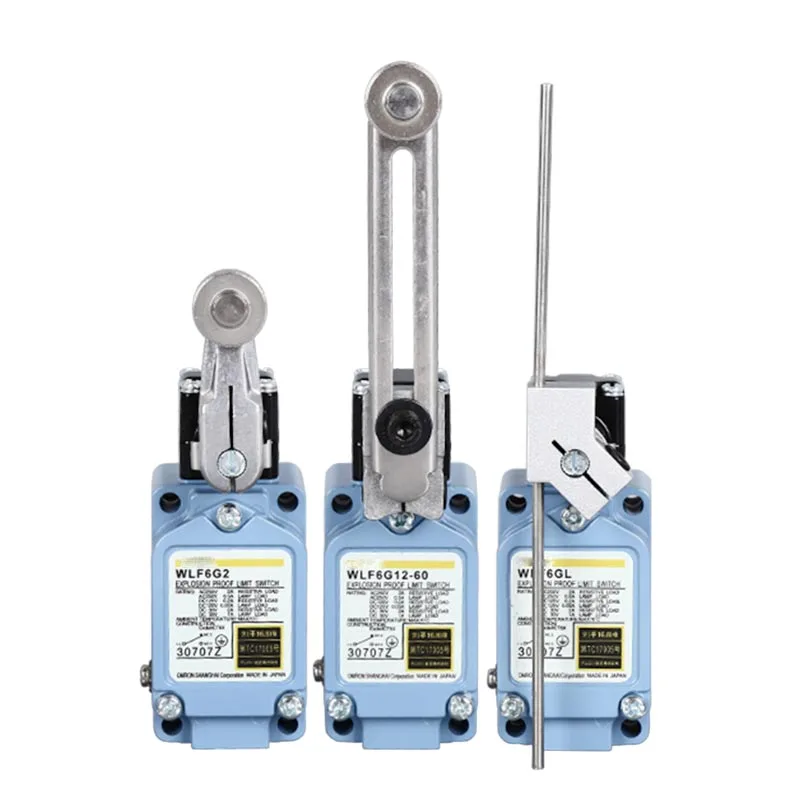

Новый взрывозащищенный концевой выключатель WLF6G2-60 WLF6G12-60 WLF6D2 WLF6G2 6GL высококачественный
