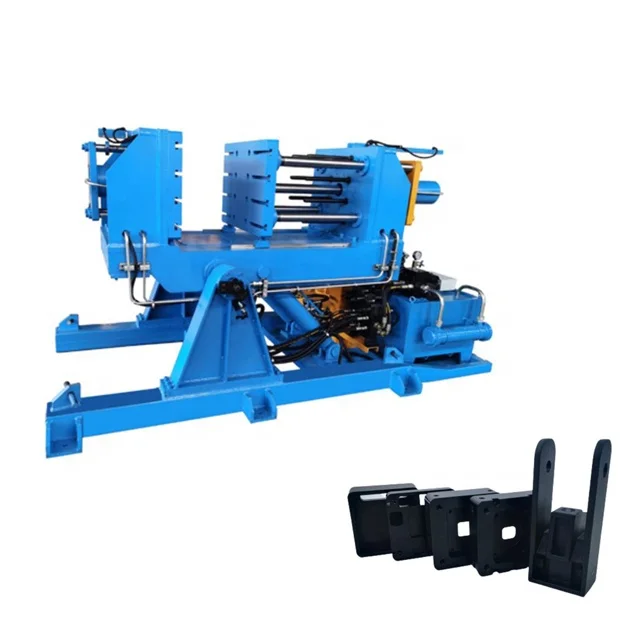

China Die Cast Machine System Material Metal Casting Machine For Aluminum Gear Products

Compared to sand casting, metal casting has the following advantages:

1.The metal type has large thermal conductivity and heat capacity, the cooling rate of the molten metal is fast, the structure of the casting is dense, and the mechanical properties are higher than that of the sand casting. For example, the tensile strength of the aluminum alloy casting can be increased by 10%-20%, and the elongation is improved doubled.

2.Can obtain castings with high dimensional accuracy and good surface quality.

3.It can produce castings with complex internal cavity structure, such as engine block, cylinder head, wheel hub and so on.

4.Easy to automate and mechanize, high production efficiency

Parameter	Unit	ZJ750	ZJ860	ZJ1210
Dual active plate size	mm	700*500	800*600	1200*1000
Main mold opening and closing stroke	mm	600	600	800
Main model hydraulic cylinder bore	mm	150	150	200
Secondary mold opening and closing stroke	mm	100	100	150
Auxiliary mold hydraulic cylinder bore	mm	150	150	200
before and after the additional cylinder template size	mm	300*400	300*400	500*600
before and after the additional mold stroke	mm	150	150	200
before and after the cylinder bore	mm	125	125	180
the main mold vice mold minimum closure and maximum open Distance	mm	400*1100	500*1200	900*1600
tilt angle	°	0-90	0-90	0-90
tilt cylinder bore	mm	100	100	150

photobank (2)

paste-pic-dp_uuid_pipct psd20514 photobank (1)

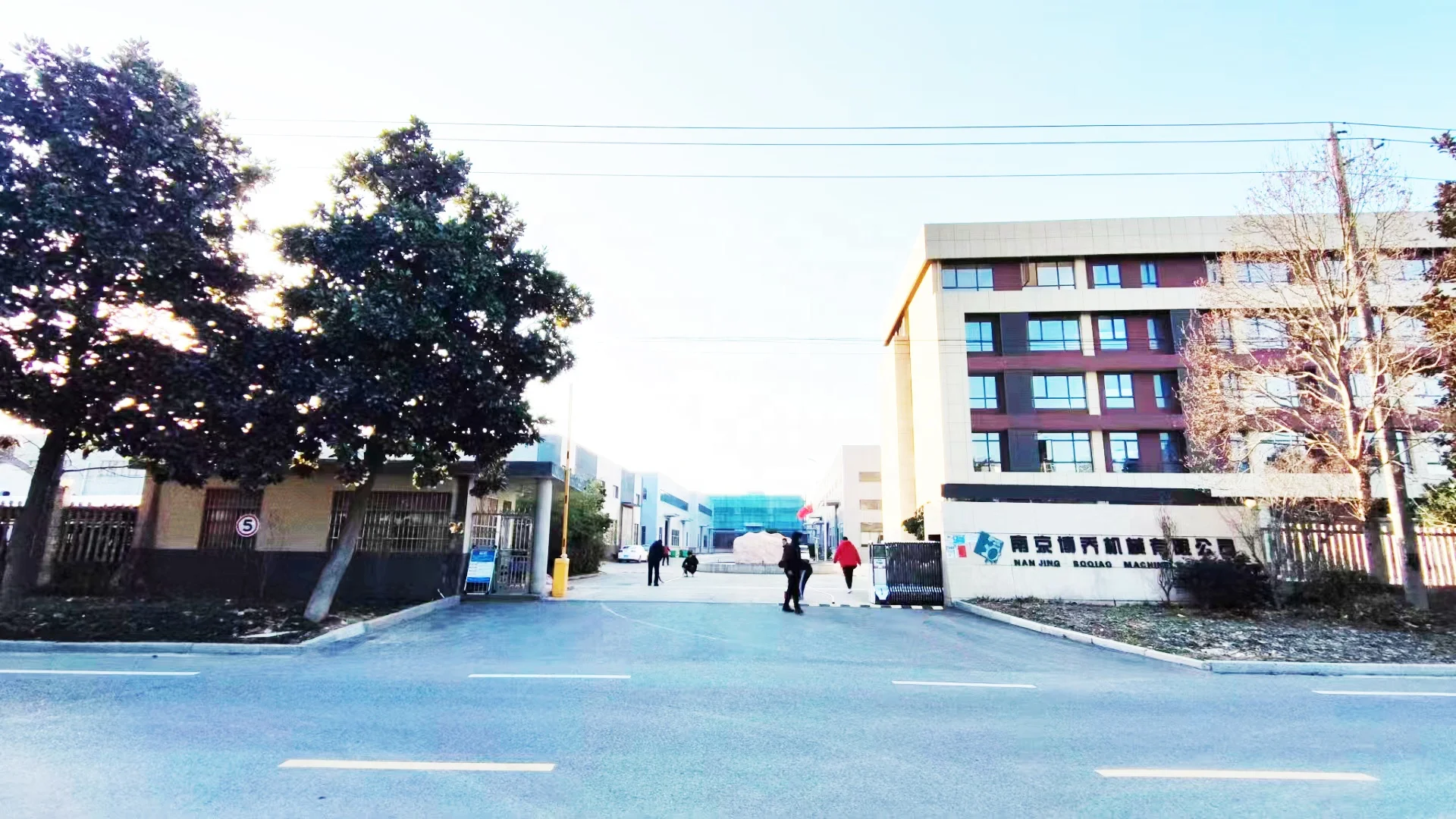

Boqiao Factory 2.jpg
