Оборудование для добычи золота минеральный сепаратор Гравитационный концентратор двойной диафрагменный Алмазный с двойным ковшом
- Категория: >>>
- Поставщик: Jiangxi Hengchang Mining Machinery Manufacturing Co. Ltd.
Сохранить в закладки 1601111401433:
Описание и отзывы
Характеристики

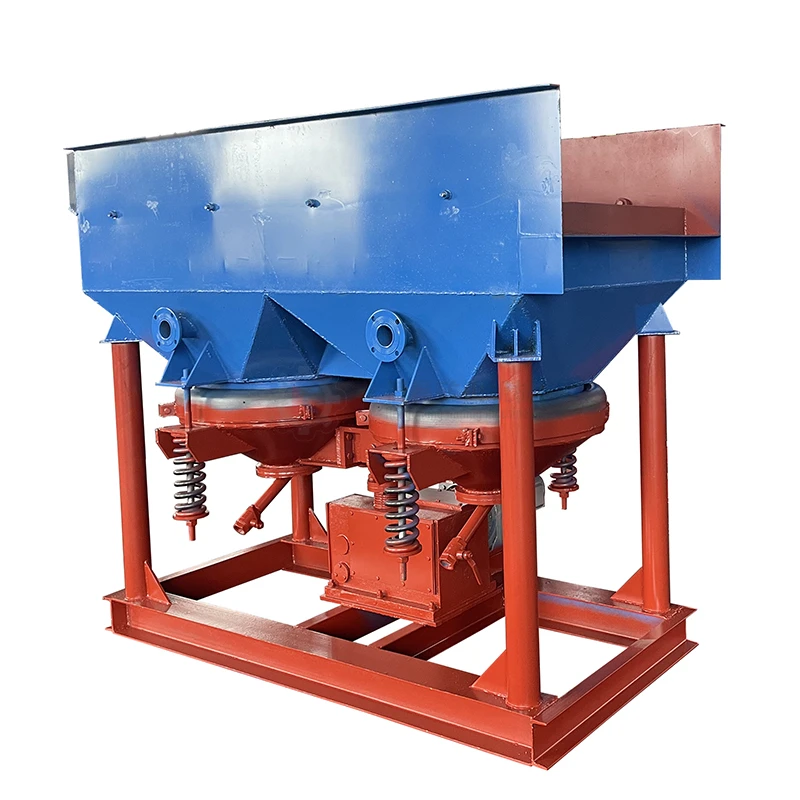

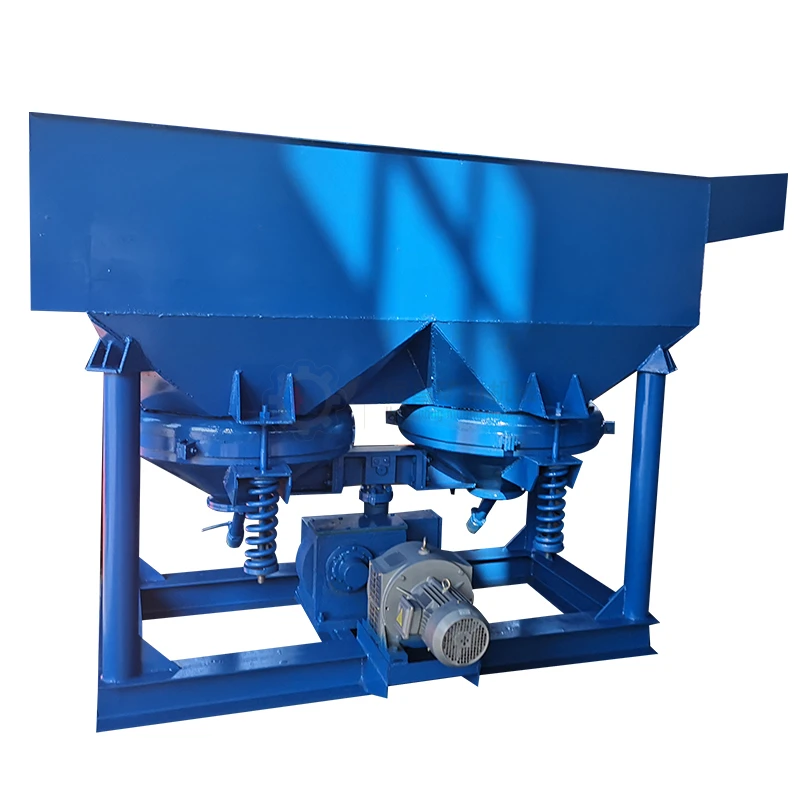

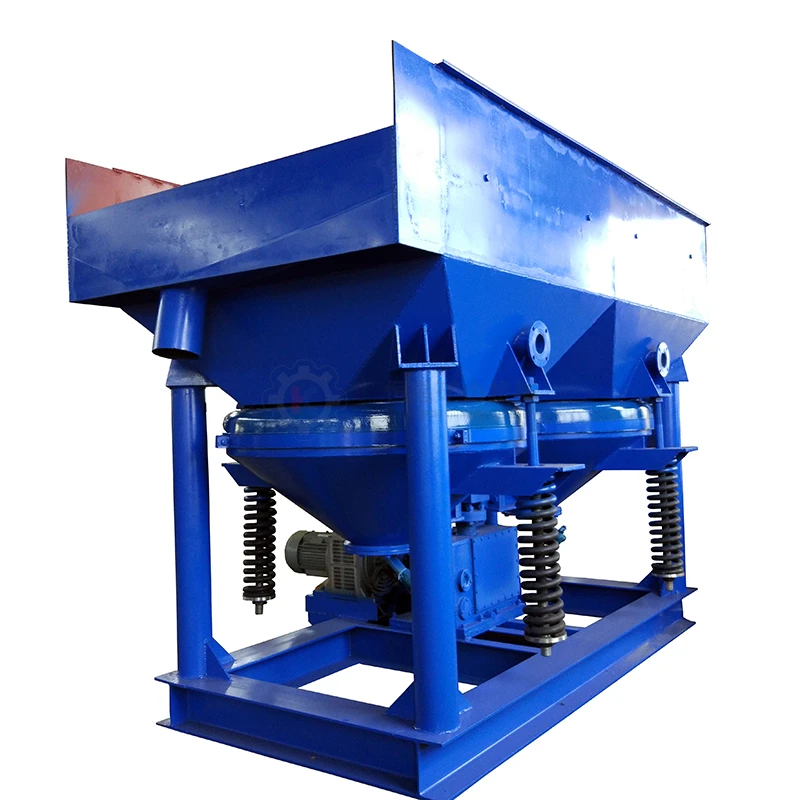

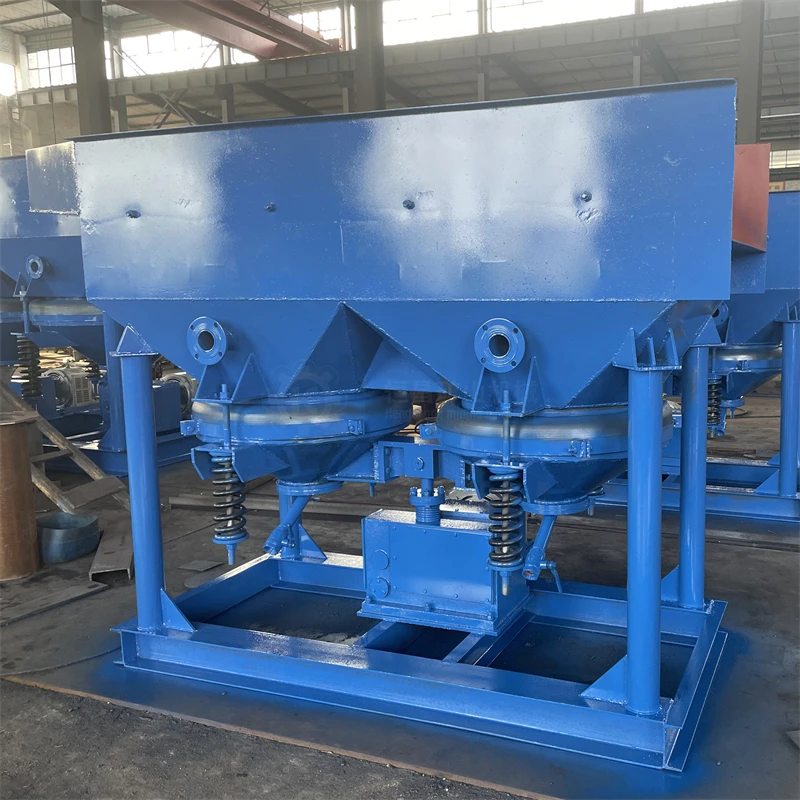

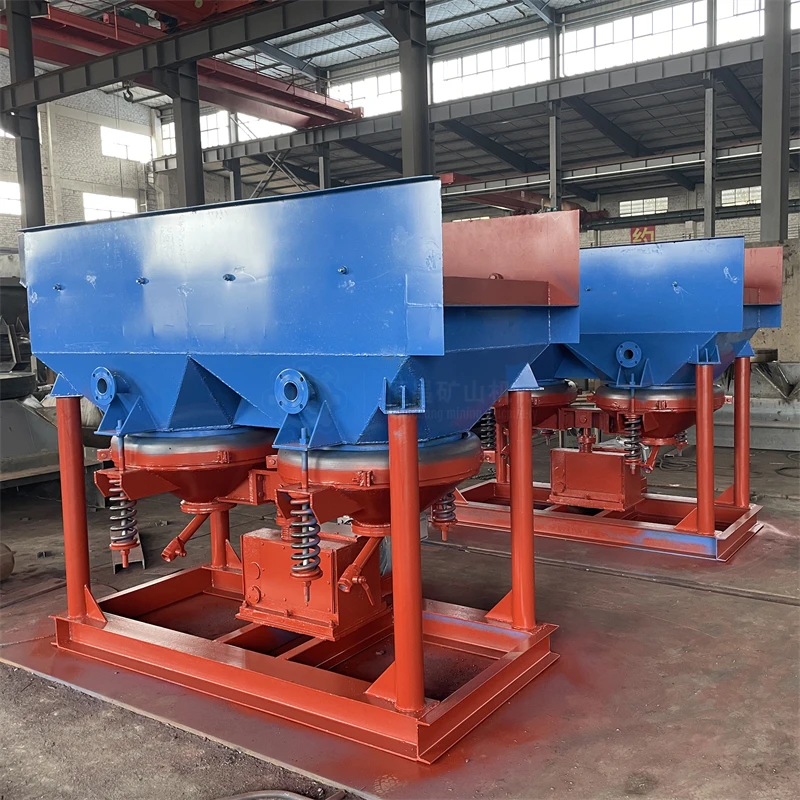

Gold Diamond Mining Equipment Mineral Separator Gravity Concentrator Double Diaphragm Diamond Jig Separator With Double Dipper
Hengchang mining machinery gravity jig concentrator can be used for many minerals separating, such as gold, tin, iron, titanium,manganese, barite, zinc ore and some other minerals. If you want to buy mining equipment, choose Hengchang, we must ensure that you are satisfied.
Products Description
Jig concentrator machine is one of the relative new methods for gravity concentration. As a rougher or cleaner device, it is widely applied on the separation of gold, tin, tungsten, titanium, hematite, coal and other minerals due to its high processing capacity, large range of separation size and simplicity of operation and maintenance.
Widely Applications:It is widely used to separator tungsten, tin, gold, red iron, brown iron, manganese, titanium, antimony, lead, tantalum, niobium and other minerals.There are many applications where the jig separator of particular value and cannot be equaled for economical and efficient performance. They are effective in processing precious and base metal, rare metal and non-metallic minerals.
Product Working Principle
Diamond Mining Machinery need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials of different densities and discharges both layers from up and down discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes, and there are screens in each chamber.Water and raw ore will be fed from one end of the jigger screen, the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials. The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger density will be in the down layer and will discharged from the down discharging port as jigging concentrate.
Product Features
1.High processing capacity, concentration ratio and high recovery
2. Fabricated with highest quality material
3. Easy to install, operate and maintain
4. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5. The pulsation speed very easy adjusted by regulator
6. Suitable for roughing and desliming
2. Fabricated with highest quality material
3. Easy to install, operate and maintain
4. The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
5. The pulsation speed very easy adjusted by regulator
6. Suitable for roughing and desliming
Product Paramenters
Model | Area (m²) | Feed Size (mm) | Water Added (m³/t) | Water Pressure (MPa) | Capacity (t/h) | Power (kw) | Dimension (mm) | Weight (kg) |
JT0.57-1 | 0.57 | <6 | 1-2 | ≥0.05 | 1-3 | 1.5 | 1550x780x1530 | 610 |
JT1-1 | 1.04 | <10 | 2-3 | ≥0.05 | 2-4 | 2.2 | 2270x1110x1890 | 900 |
JT2-2 | 2.28 | <10 | 2-4 | ≥0.05 | 4-8 | 3 | 3225x1550x2050 | 1640 |
JT3-1 | 3.3 | <10 | 3-6 | ≥0.05 | 6-10 | 5.5 | 2745x2000x3030 | 3260 |
JT4-2 | 4.33 | <25 | 4-8 | ≥0.05 | 10-15 | 7.5 | 4240x1990x2750 | 4200 |
JT4-2A | 4.33 | <25 | 4-8 | ≥0.05 | 10-15 | 4×2 | 4240x1990x2750 | 4200 |
JT5-2 | 4.86 | <10 | 3-6 | ≥0.05 | 12-20 | 7.5 | 3600x2000x2600 | 4500 |
Successful Case
Saw-Tooth wave Jig Machine In Mali
For separating hematite ore
Saw-Tooth wave Jig Machine In Zambia
For Selection of titanium ore
Saw-Tooth wave Jig Machine In Vietnam
For concentrating manganese ore
Saw-Tooth wave Jig Machine In Malaysia
For concentrating tungsten ore
Saw-Tooth wave Jig Machine In South Africa
For concentrating fluorite ore
Saw-Tooth wave Jig Machine In Uganda
For separating gemstone/diamond
Saw-Tooth wave Jig Machine in In Mongolia
For concentrating rock gold
Saw-Tooth wave Jig Machine in China
For Selection of Tin ore
Packing & Delivery
Company Profile
FAQ
Q1: Are you manufacturer or trade company?
A1: We are manufacturer with CE certificate. Our factory has more than 25 years history.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
Q2: Where your products have been exported before?
A2: Our products have been sold to Southeast Asia, Africa, North America, Oceania, South America, Middle East and so on.
Q3: How will you help the customer to install the equipment?
#1 Our senior engineer will supply installation and training service on-line or on-site.
#2 We have engineer in Southeast Asia and Africa, we can supply 7*24 service.
Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price. You can buy them from our factory in China.
Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.
Q6: How to get the free solution and quotation?
A6: Please send inquiry to us ,leave your whatsapp and email address, our sales manager will contact you within 1 hours.
Похожие товары
Центробежный сепаратор центрифужного оборудования гравитационного разделения в водной рубашке
319 612,77 ₽ - 330 633,90 ₽

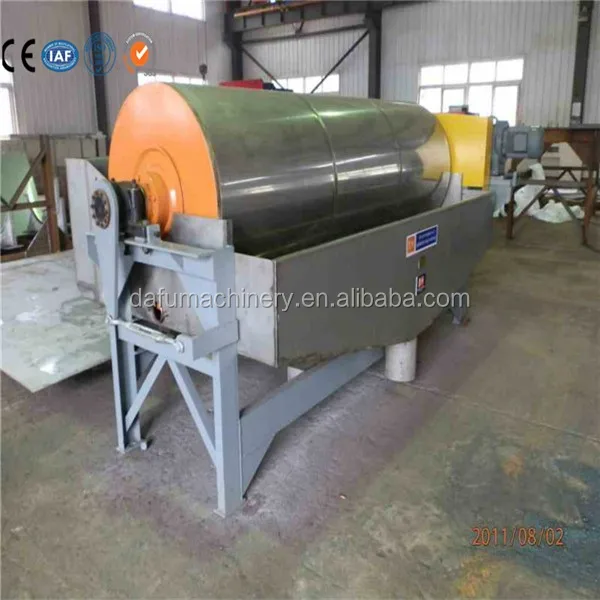

Серия RCYD самоочищающийся постоянный магнитный сепаратор
220 422,60 ₽
Самоочистки постоянный магнитный сепаратор для переработки
220 422,60 ₽
Металлические магнитные сепараторы поставщик 3 дисковых магнитных сепараторов для пластиковой магнитной системы более 5 лет 750

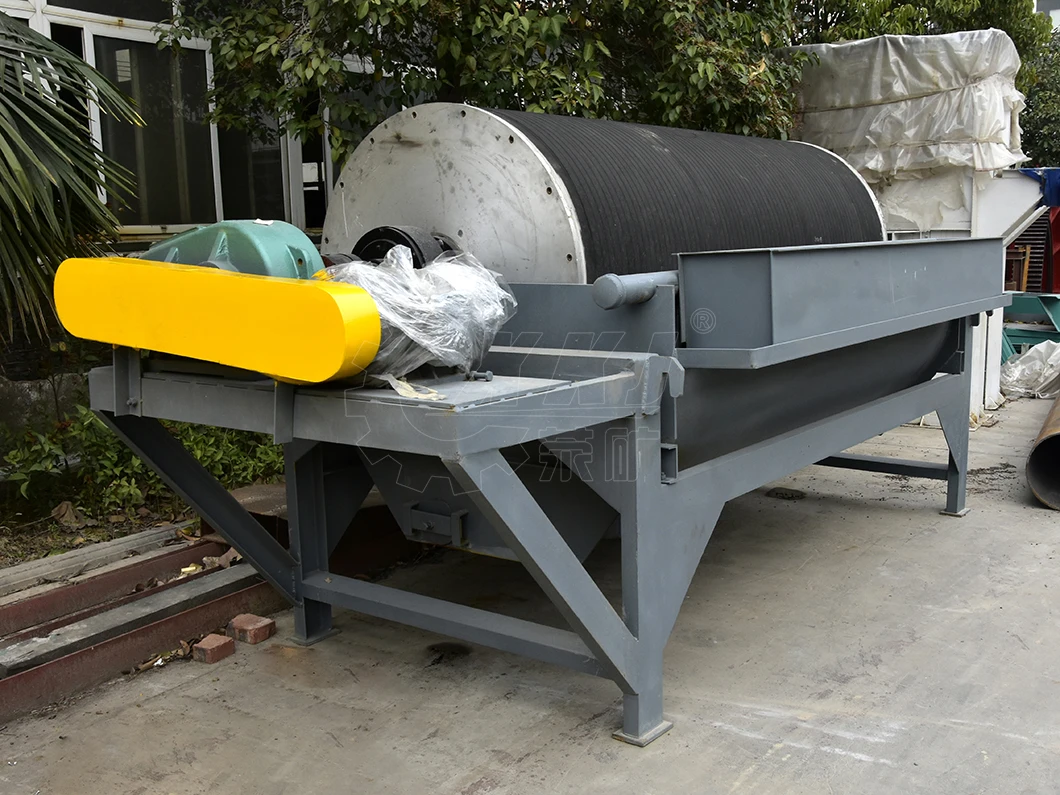

Сухой магнитный сепаратор с постоянным магнитом
330 633,90 ₽

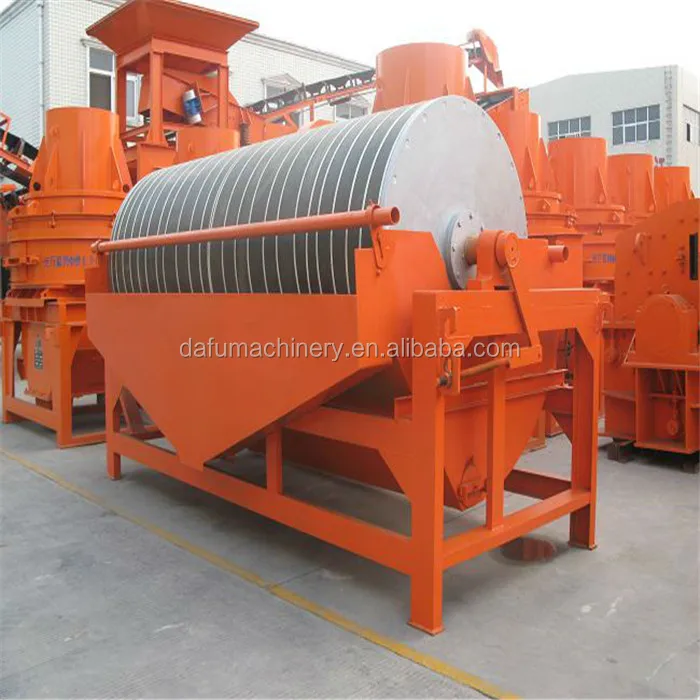

Henan Zhengzhou высокоинтенсивный магнитный сепаратор для обработки влажной железной руды
