R & S NRQ6 выбор частоты датчик мощности измерения Rohde Schwarz лабораторное оборудование
- Категория: >>>
- Поставщик: Nanjing Daoce Electronics Co. Ltd.Nanjing Ltd.
Сохранить в закладки 1601111481707:
Описание и отзывы
Характеристики
Product Description

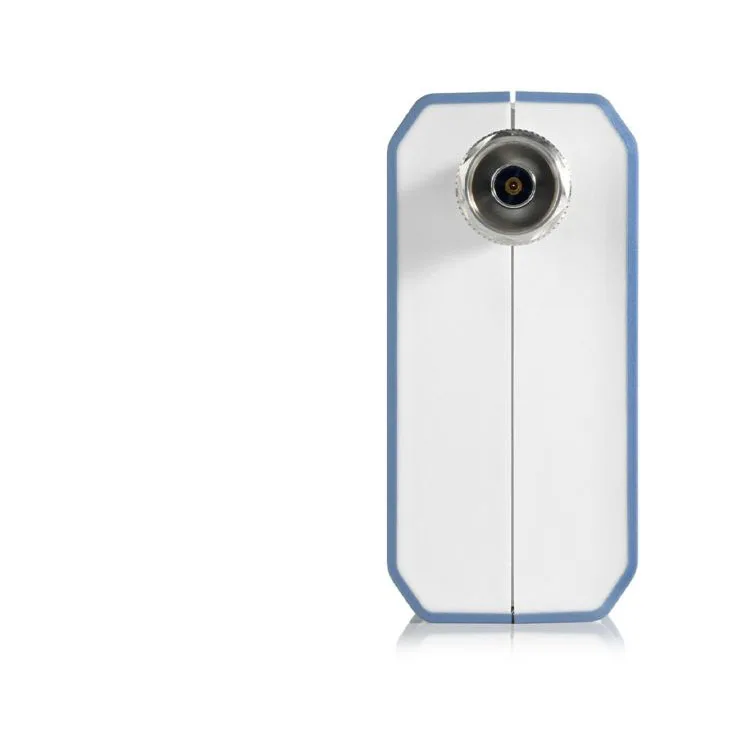

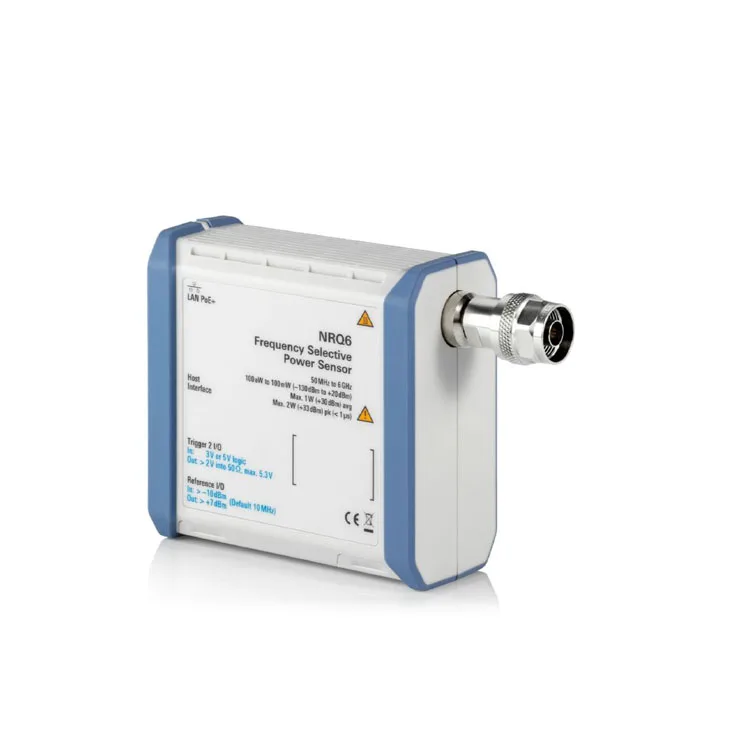

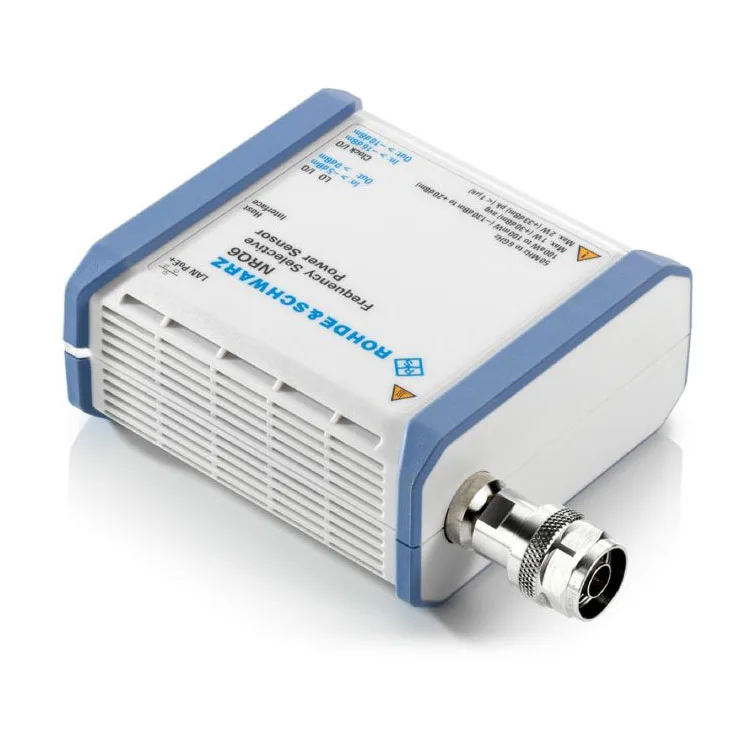

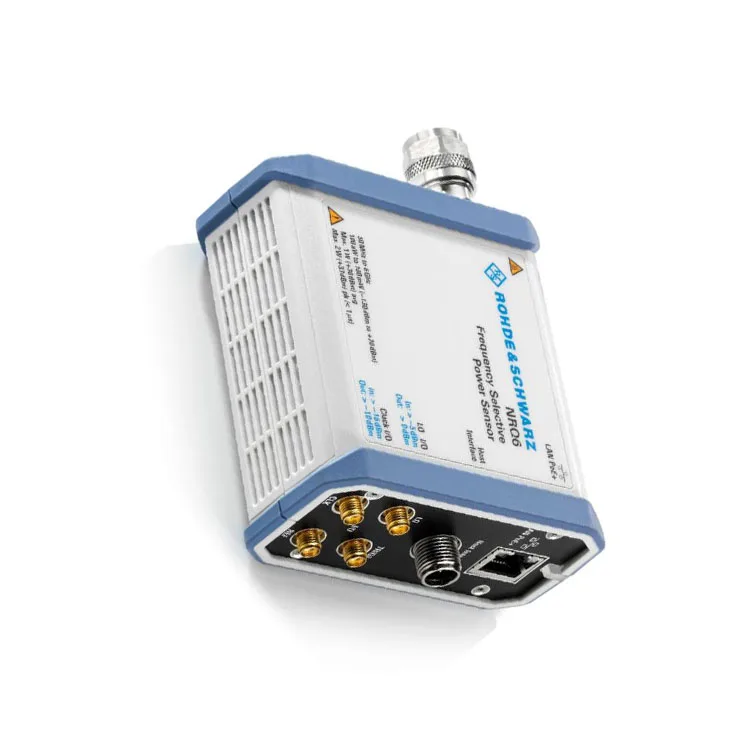

R&S®NRQ6 FREQUENCY SELECTIVE POWER SENSOR
A milestone in power measurements
measurements down to –130 dBm
The R&S®NRQ6 is based on receiver technology and can perform band-limited power measurements – i.e. power measurements on a
selected transmission channel – down to –130 dBm. The R&S®NRQ6 delivers high-precision, high-speed measurements beyond the limits
of currently available power meters. In addition to conventional continuous average measurements, the R&S®NRQ6 has a trace display
function and also performs ACLR measurements – a common mobile communications application. Using the optional R&S®NRQ6-K1 I/Q data
interface, I/Q data can be downloaded from the power sensor to a PC for further analysis. The R&S®NRQ6-K2 power servoing option
enables a dedicated high-speed remote control channel for fast power servoing between an R&S®NRQ6 and an R&S®SGT100A RF vector RF
source. This significantly improves the typical setting time via SCPI.
selected transmission channel – down to –130 dBm. The R&S®NRQ6 delivers high-precision, high-speed measurements beyond the limits
of currently available power meters. In addition to conventional continuous average measurements, the R&S®NRQ6 has a trace display
function and also performs ACLR measurements – a common mobile communications application. Using the optional R&S®NRQ6-K1 I/Q data
interface, I/Q data can be downloaded from the power sensor to a PC for further analysis. The R&S®NRQ6-K2 power servoing option
enables a dedicated high-speed remote control channel for fast power servoing between an R&S®NRQ6 and an R&S®SGT100A RF vector RF
source. This significantly improves the typical setting time via SCPI.
Using additionally the R&S®NRQ6-K3 phase coherent measurements option, complex phase coherent measurements can be carried out by

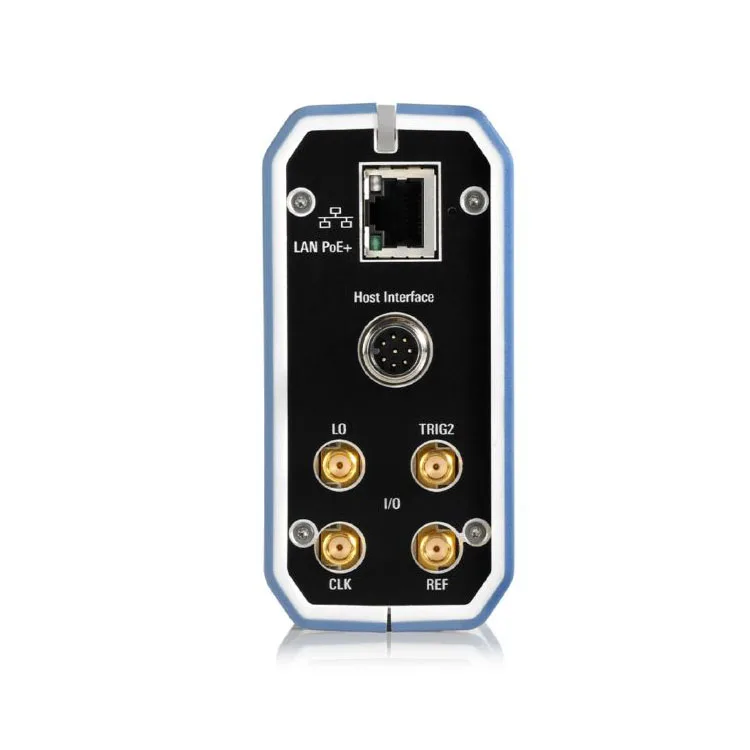

configuring one master R&S®NRQ6 and one or multiple slave R&S®NRQ6. The R&S®NRQ6 is controlled via LAN, requiring power over
Ethernet (PoE+). The sensor’s integrated web server makes it possible to operate the GUI without any extra software – all that is
needed is a PC with a web browser. The intuitive GUI is well structured and easy to operate thanks to diverse autoset functions.
configuring one master R&S®NRQ6 and one or multiple slave R&S®NRQ6. The R&S®NRQ6 is controlled via LAN, requiring power over
Ethernet (PoE+). The sensor’s integrated web server makes it possible to operate the GUI without any extra software – all that is
needed is a PC with a web browser. The intuitive GUI is well structured and easy to operate thanks to diverse autoset functions.
Specification
Frequency selective power measurements | Frequency range: 50 MHz to 6 GHz | Power measurement range: –130 dBm to +20 dBm | Automatic frequency and bandwidth detection |
100 MHz measurement bandwidth | Continuous average, trace and ACLR measurements | I/Q data capturing for RF vector signal analysis | Fast power servoing with R&S®SGT100A Phase coherent measurements for low-power modulated signals |
Product name | R&S®NRQ6 FREQUENCY SELECTIVE POWER SENSOR |
Product brand | R&S® |
series | R&S®NRQ |
model | R&S®NRQ6 |
Recommend Products
Packing & Delivery
Company Profile
AVANTEST ELECTRONICS established in February 2018, integrates sales, system integration, customized services, R&D, and production.The company serves as a leading solution provider in relevant industries. Its R&D department team is experienced in microwave radio frequency, communication, and semiconductor industries. All of the core technical staff hold doctoral degrees. Its products and solutions are widely used in traditional industries and emerging technological fields, including but not limited to communication, aerospace, power electronics, industrial automation, automotive electronics, rail transit, semiconductor, new energy, LED lighting, medical electronics, and electromagnetic compatibility. Its customer base comprises research institutes, testing organizations, and industrial clients.
In addition to one-stop solutions for clients, the company also acts as an authorized agent for leading domestic and international brands in product testing and measurement. including, but not limited to: Keysight, Ceyear, Rohde Schwarz, Tektronix, Agitek, Anritsu, VIAVI, Gwinstek, ActionPower, Xinertel, and others.
The product range includes but is not limited to: oscilloscopes, signal generators, spectrum analyzers, network analyzers, DC power supplies, AC power supplies, parameter analyzers, device analyzers, microwave power meters, frequency counters, noise figure testers, EMI test receivers, signal quality analyzers (high-speed bit error rate testers), wireless communication testers, protocol analyzers (PCIe, SAS/SATA, USB, etc.), safety compliance testers, digital multimeters, LCR meters, electronic loads, special power sources, network testers, network impairment emulators, and others.
In addition to one-stop solutions for clients, the company also acts as an authorized agent for leading domestic and international brands in product testing and measurement. including, but not limited to: Keysight, Ceyear, Rohde Schwarz, Tektronix, Agitek, Anritsu, VIAVI, Gwinstek, ActionPower, Xinertel, and others.
The product range includes but is not limited to: oscilloscopes, signal generators, spectrum analyzers, network analyzers, DC power supplies, AC power supplies, parameter analyzers, device analyzers, microwave power meters, frequency counters, noise figure testers, EMI test receivers, signal quality analyzers (high-speed bit error rate testers), wireless communication testers, protocol analyzers (PCIe, SAS/SATA, USB, etc.), safety compliance testers, digital multimeters, LCR meters, electronic loads, special power sources, network testers, network impairment emulators, and others.
FAQ
Q 1: Why should we choose your company over others?
Dear customer, thank you for your interest in Avantest and considering us as your supplier of instrumentation testing equipment.Avantest has more than ten years of experience in the field of instrumentation and testing equipment. Our team consists of a group of industry experts and senior engineers who have in-depth understanding of market demand and industry trends, and are able to provide you with the most suitable solutions.
Q2：Can you provide customized services?
We understand that each customer's needs are unique. Therefore, we provide customized products and services, designing and producing according to your specific needs. Regardless of the size of your project, we can provide you with a satisfactory solution.
Q3：Whether to provide after-sales service？
Perfect after-sales service,We value long-term partnerships with our customers, so we provide comprehensive after-sales services, including equipment installation, debugging, training, and maintenance. Our customer service team is always on standby to ensure that any issues you may encounter during use are promptly resolved.
Q 4: Where is your company? Can I come and visit?
Our company is located in Yida Huichuang Center, Pukou Avenue, Pukou District, Nanjing City, Jiangsu Province, China.We are very much looking forward to your arrival! We are very glad to have the opportunity to meet with you, please feel free to drop by.
Q 5: Product range ？
The product range includes but is not limited to: oscilloscopes, signal generators, spectrum analyzers, network analyzers, DC power supplies, AC power supplies, parameter analyzers, device analyzers, microwave power meters, frequency counters, noise figure testers, EMI test receivers, signal quality analyzers (high-speed bit error rate testers), wireless communication testers, protocol analyzers (PCIe, SAS/SATA, USB, etc.), safety compliance testers, digital multimeters, LCR meters, electronic loads, special power sources, network testers, network impairm.
Dear customer, thank you for your interest in Avantest and considering us as your supplier of instrumentation testing equipment.Avantest has more than ten years of experience in the field of instrumentation and testing equipment. Our team consists of a group of industry experts and senior engineers who have in-depth understanding of market demand and industry trends, and are able to provide you with the most suitable solutions.
Q2：Can you provide customized services?
We understand that each customer's needs are unique. Therefore, we provide customized products and services, designing and producing according to your specific needs. Regardless of the size of your project, we can provide you with a satisfactory solution.
Q3：Whether to provide after-sales service？
Perfect after-sales service,We value long-term partnerships with our customers, so we provide comprehensive after-sales services, including equipment installation, debugging, training, and maintenance. Our customer service team is always on standby to ensure that any issues you may encounter during use are promptly resolved.
Q 4: Where is your company? Can I come and visit?
Our company is located in Yida Huichuang Center, Pukou Avenue, Pukou District, Nanjing City, Jiangsu Province, China.We are very much looking forward to your arrival! We are very glad to have the opportunity to meet with you, please feel free to drop by.
Q 5: Product range ？
The product range includes but is not limited to: oscilloscopes, signal generators, spectrum analyzers, network analyzers, DC power supplies, AC power supplies, parameter analyzers, device analyzers, microwave power meters, frequency counters, noise figure testers, EMI test receivers, signal quality analyzers (high-speed bit error rate testers), wireless communication testers, protocol analyzers (PCIe, SAS/SATA, USB, etc.), safety compliance testers, digital multimeters, LCR meters, electronic loads, special power sources, network testers, network impairm.
Похожие товары

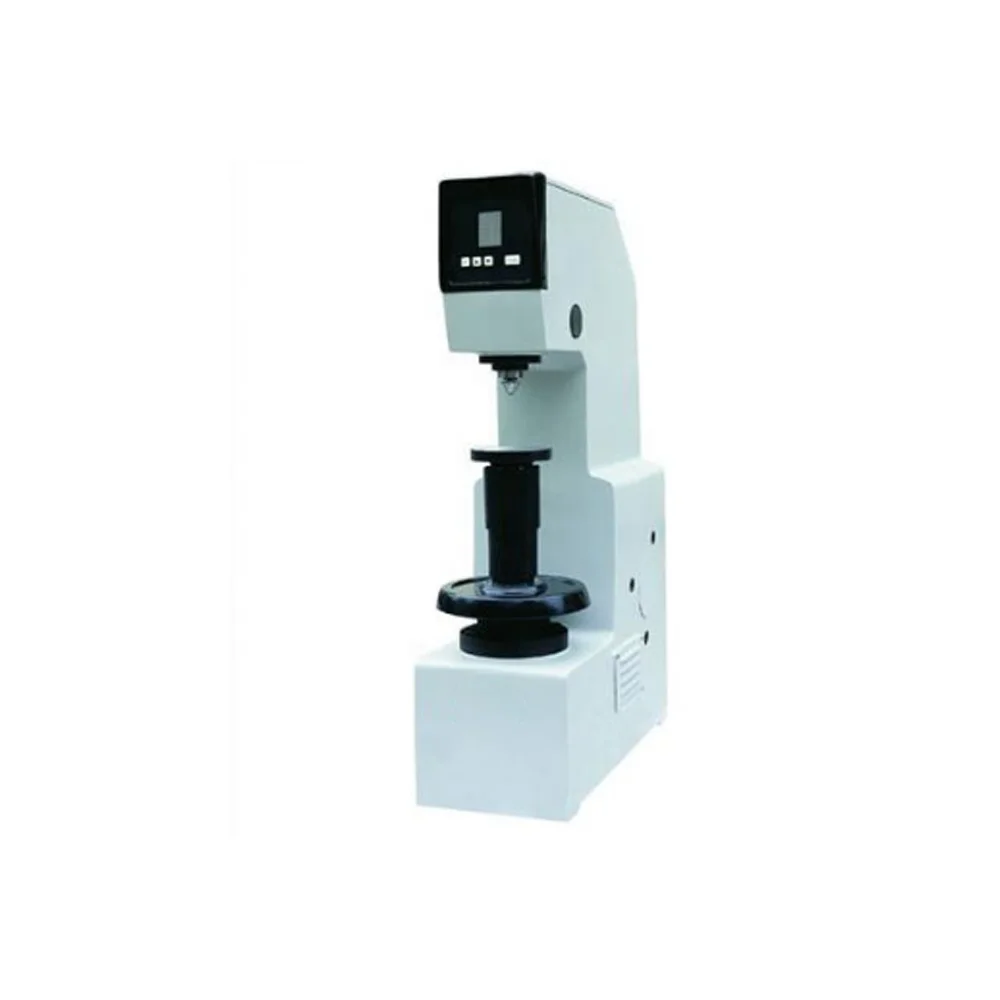

Электронный Измеритель Твердости Brinell обучающее оборудование механическое тренировочное

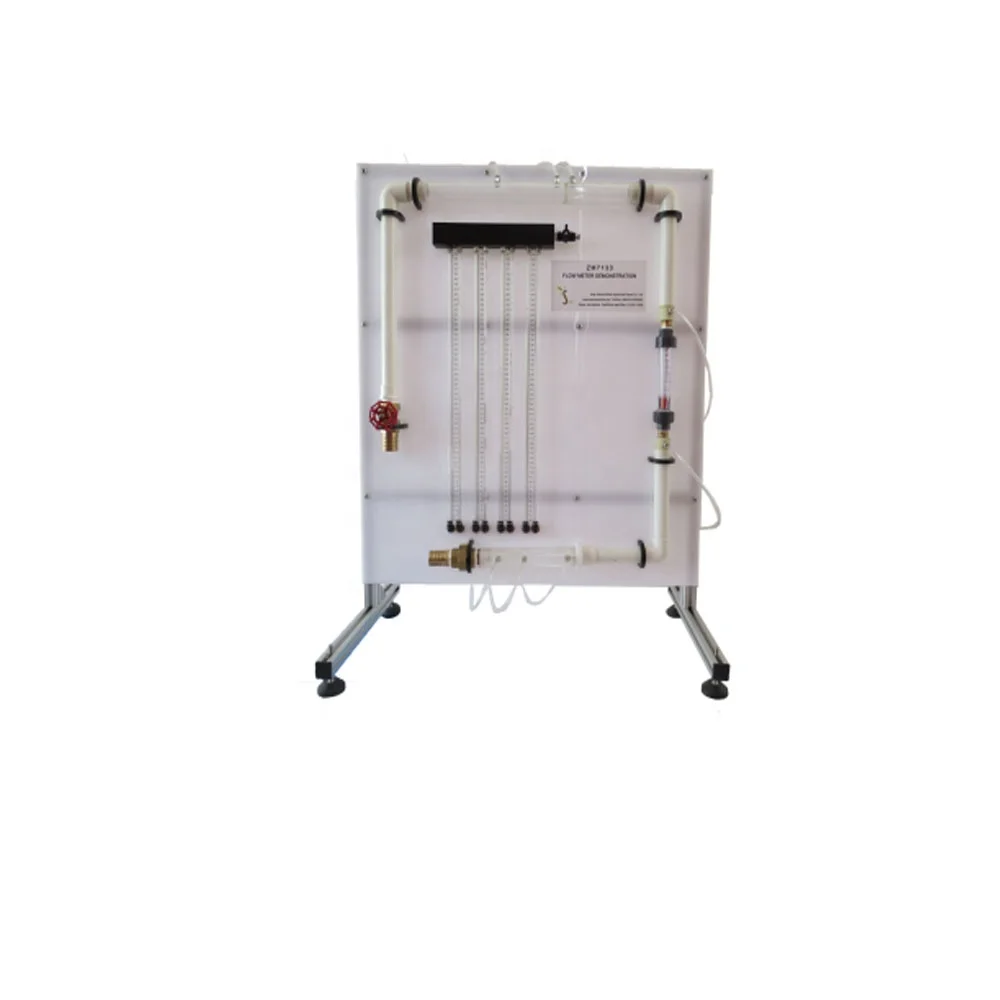

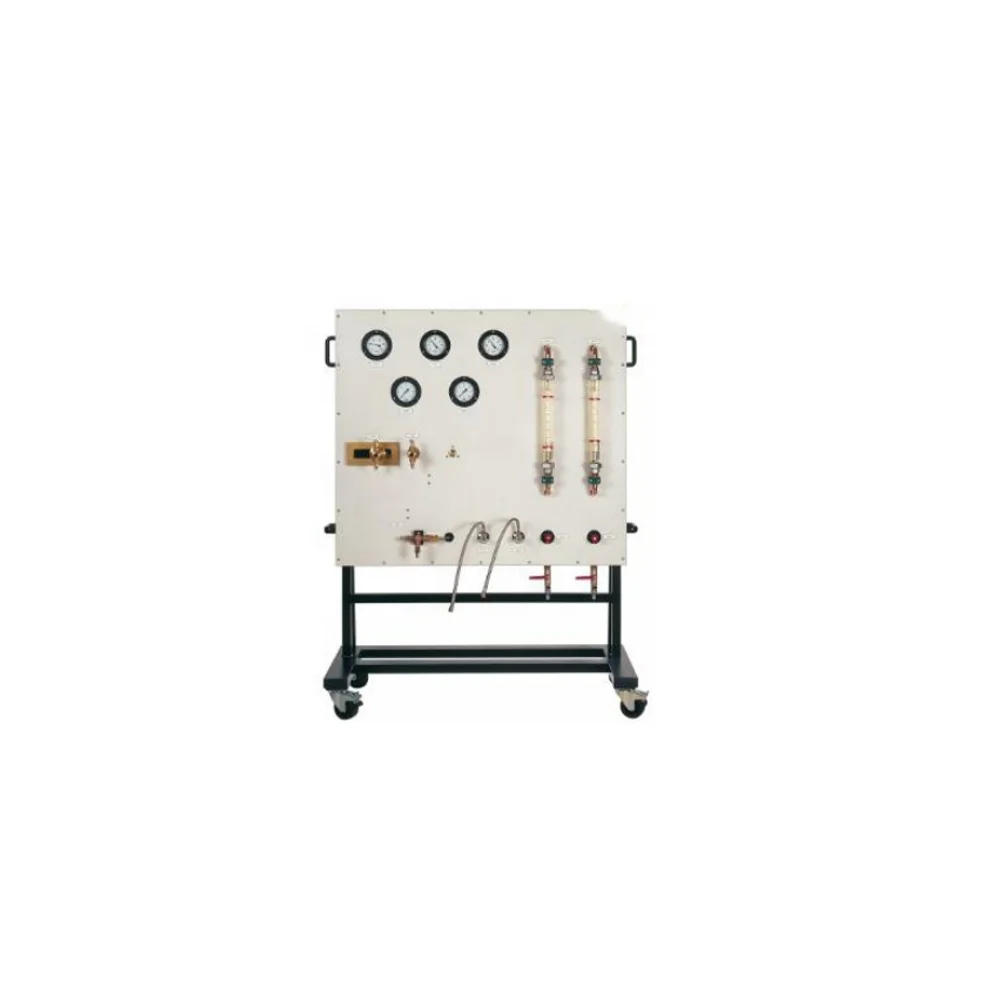

Расходомер демонстрационное учебное оборудование

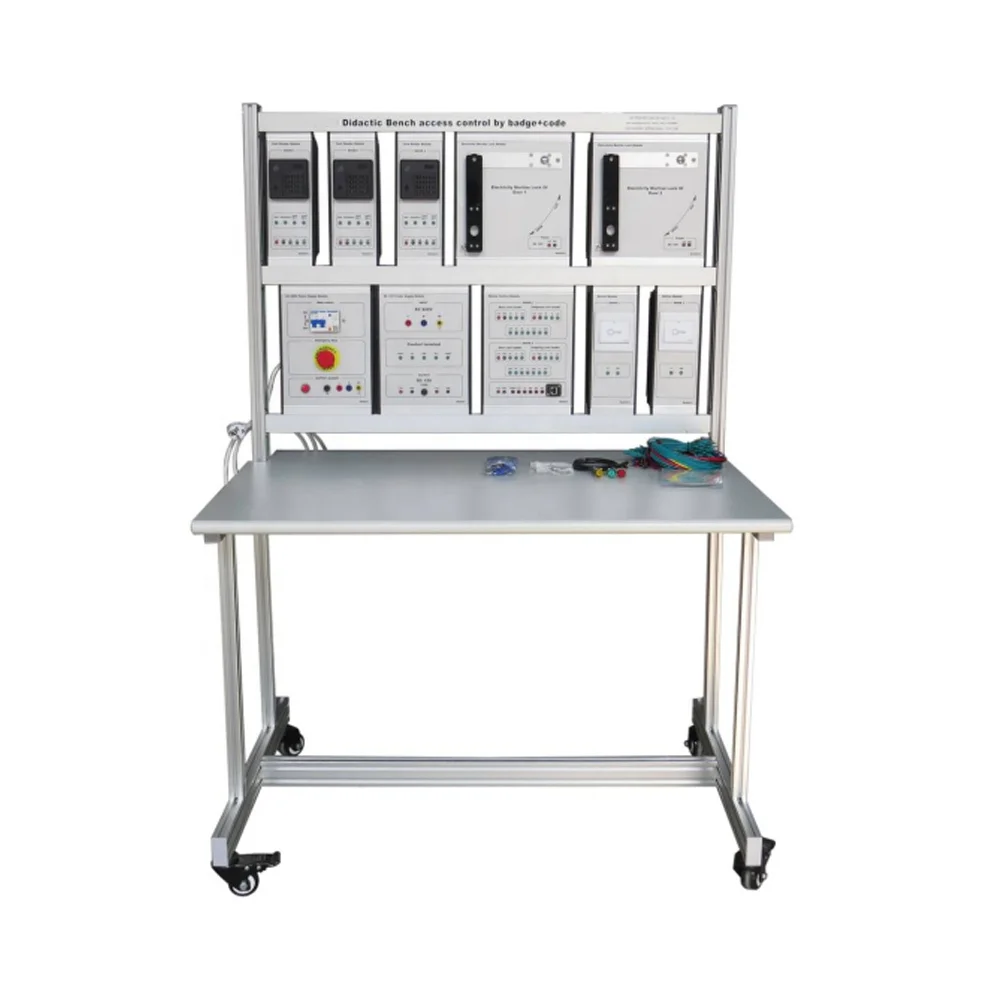

Контроль доступа с помощью дидактического стенда демонстрационное оборудование для профессионального образования учебное автоматизации зданий
Китайский оптовик поставщик видеомикшер переключатель прямая трансляция Классная запись презентация лекционная система захвата
963 961,60-1 204 952,00 ₽
Санитарная арматура учебная панель дидактическое оборудование школьное обучающее электрическое учебное
963 961,60 ₽

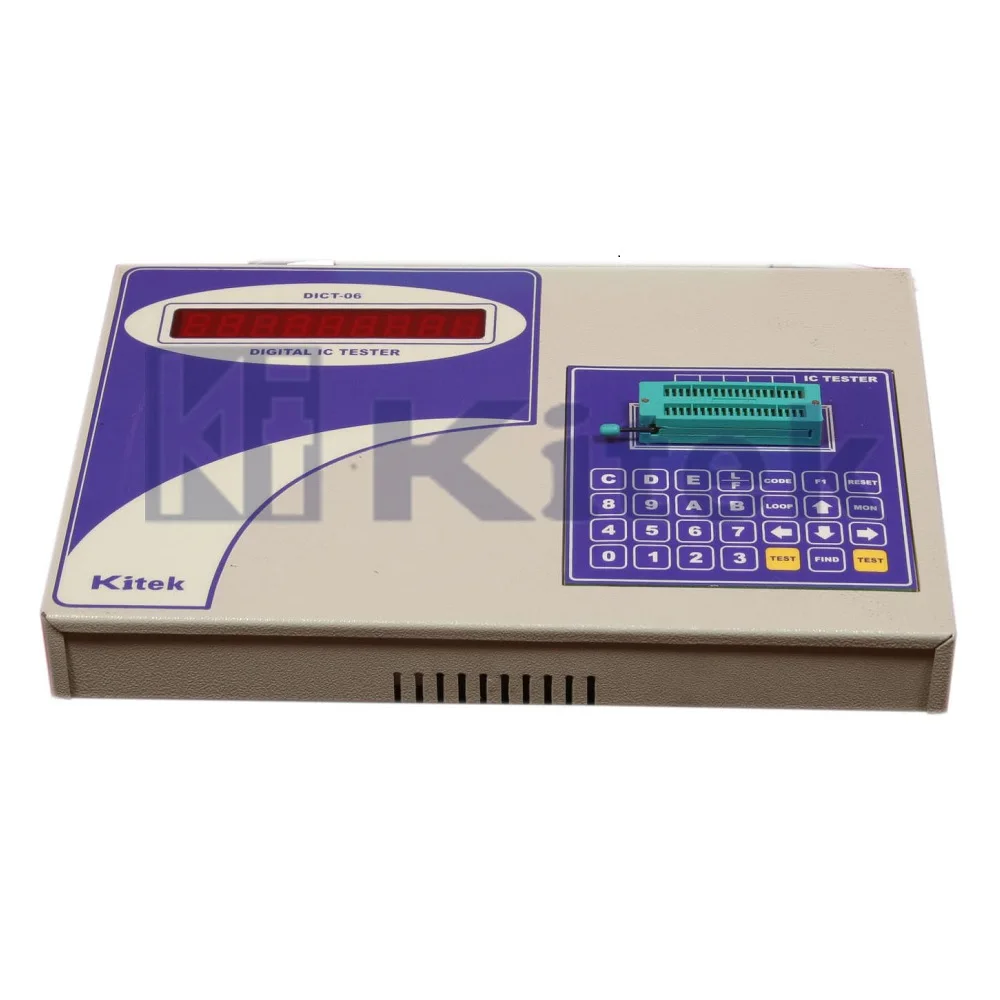

Цифровой тестер ic

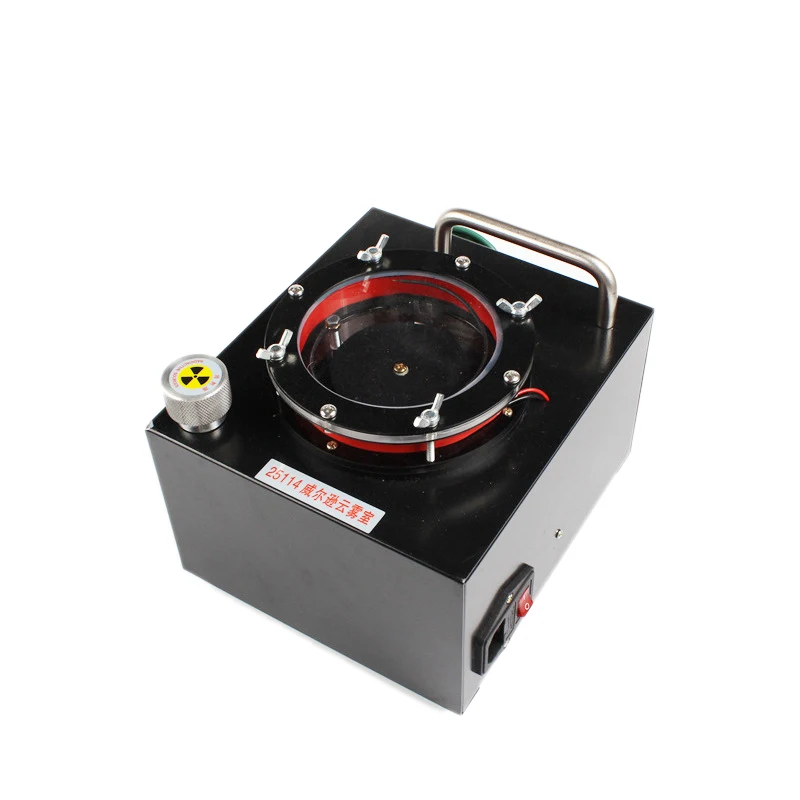

Оборудование для демонстрации физики Ленинская облачная камера учебные инструменты
