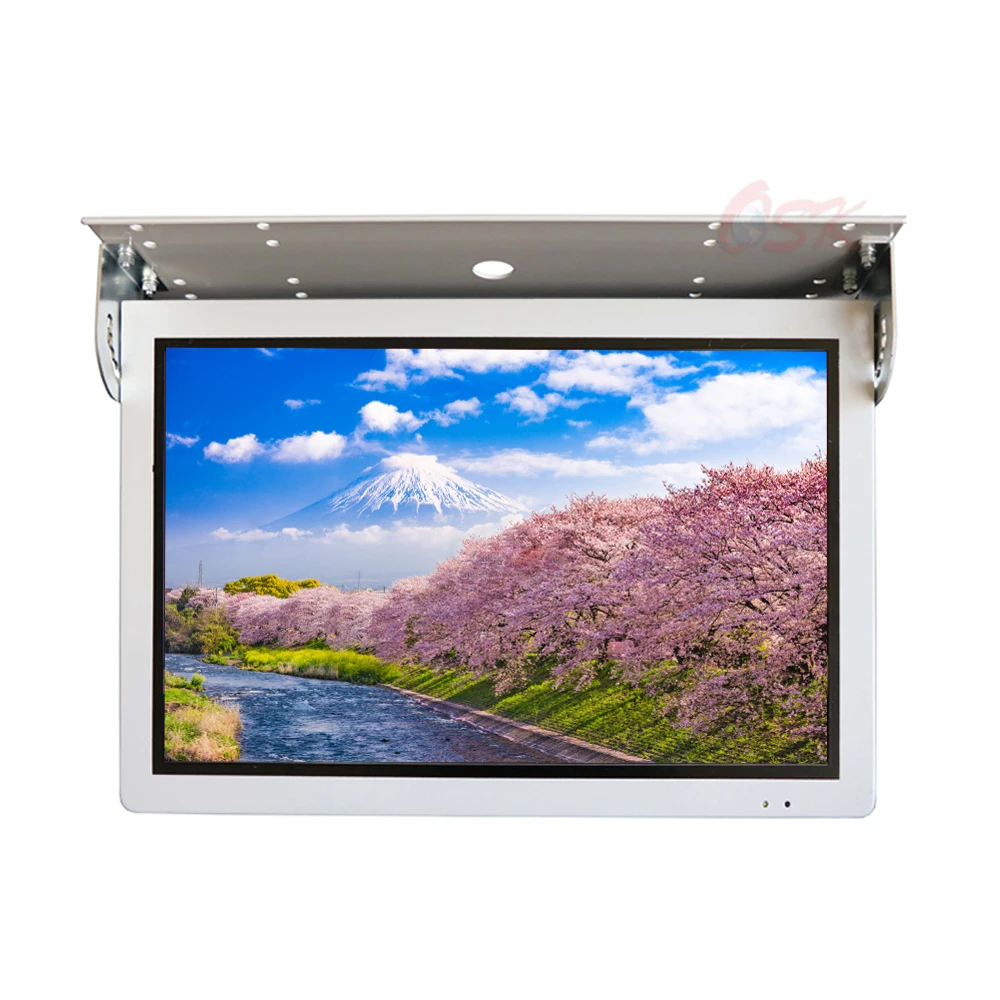

OSK QZ-1604-4G 24 В/12 В 16-дюймовый экран шины android 4G для рекламы автобуса медиа монитор Автомобильный ТВ
17 523,60 ₽ - 25 679,24 ₽

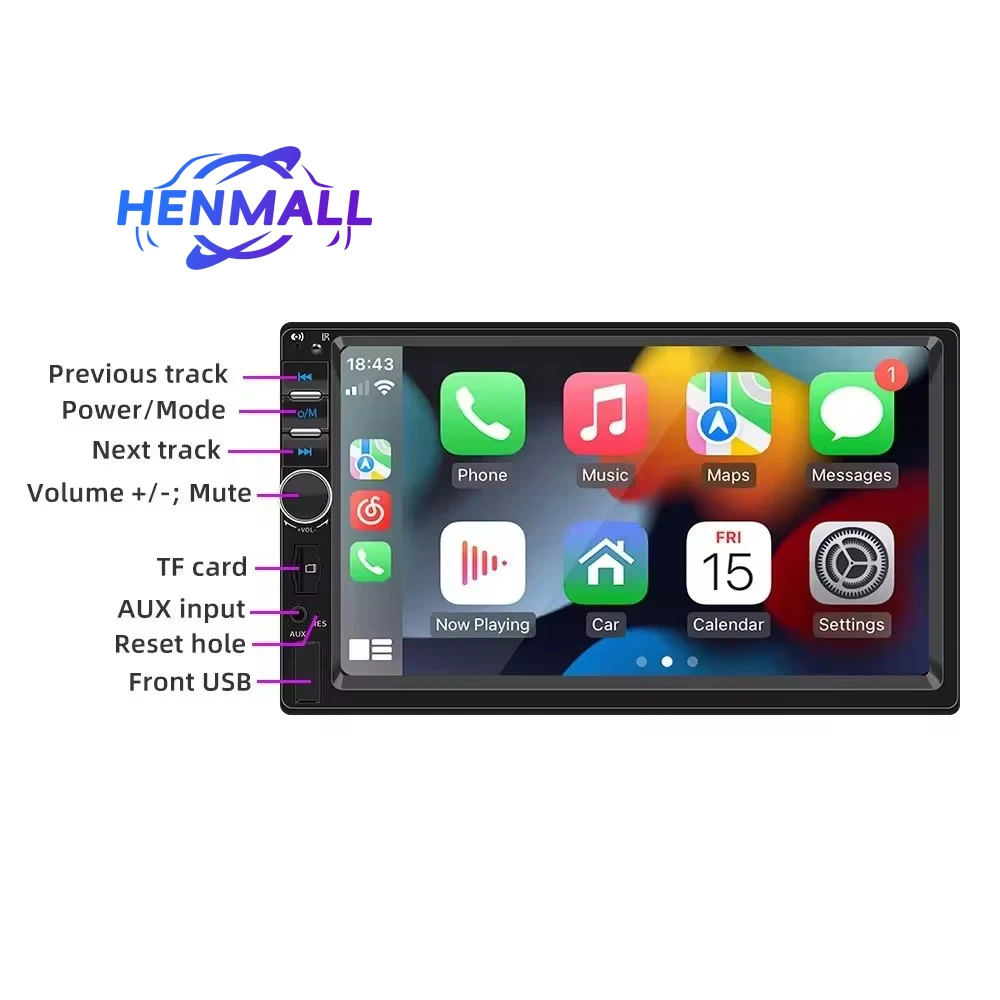

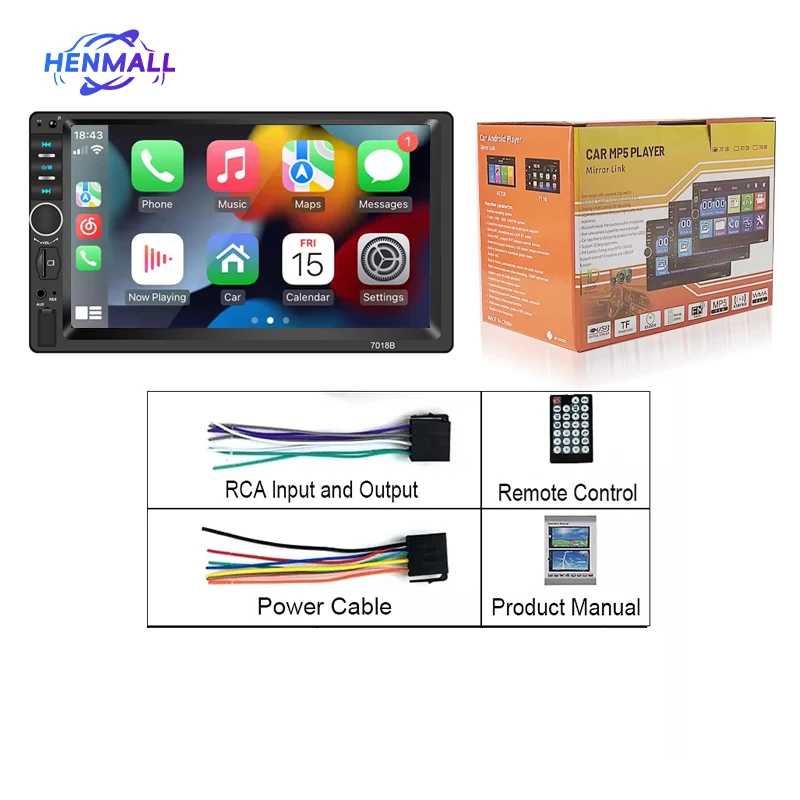

HENMALL 7 дюймовый HD Carplay Android автоматический сенсорный экран TF BT USB FM Hands Free резервная камера с зеркальным соединением 2DIN автомобильный радиоплеер
- Категория: >>>
- Поставщик: Shenzhen Hengmao Electronics Co. ltd.
Сохранить в закладки 1601112061232:
Описание и отзывы
Характеристики
Product Description
Description 1. Wired Carplay: The wired Carplay in-vehicle system can closely integrate the user's iOS device and iOS experience with the dashboard system. Users who use Carplay can connect to the car system through a data cable to achieve voice-controlled navigation, make calls, send and receive messages, and listen to music. 2. Wired Android auto: The wired Android auto car system can closely integrate the user's Android phone and player, and realize navigation, make calls, send and receive information, listen to music, and other operations through a data cable connection; |
Features 3. Rear view camera input function(optional): Need to choose the camera, if connect to a car backup camera, the car stereo monitor will turn to rear view reversing details automatically(require optional) , Support A2DP Bluetooth, which can play stereo music through Bluetooth from your Phone. |
Products Images
Welcome to Contact: Hengmao-Lynn Whatsapp/Wechat: +86 15818599065 Email: sales1 @ szhmup.com |
Product Paramenters
Type | Car MP5 |
System | Allwinner melis system |
Software Solution | F133 |
Radio frequency | FM 87.5~108.0MHz (can switch radio frequencies in China, America 1, America 2, Japan, Russia, Middle East, Europe) |
Radio IC | QN8035 |
Power amplifier IC | CD7388CZ |
Output power | 60Wx4 |
Working voltage | 12~14.4V |
Working temperature | -10~60℃ |
Bluetooth version | 5.1 version (default name: SWL-BT) |
CPU | F133 |
Running memory | 533M |
Display resolution | 1024x600 |
Screen size | 7 inches |

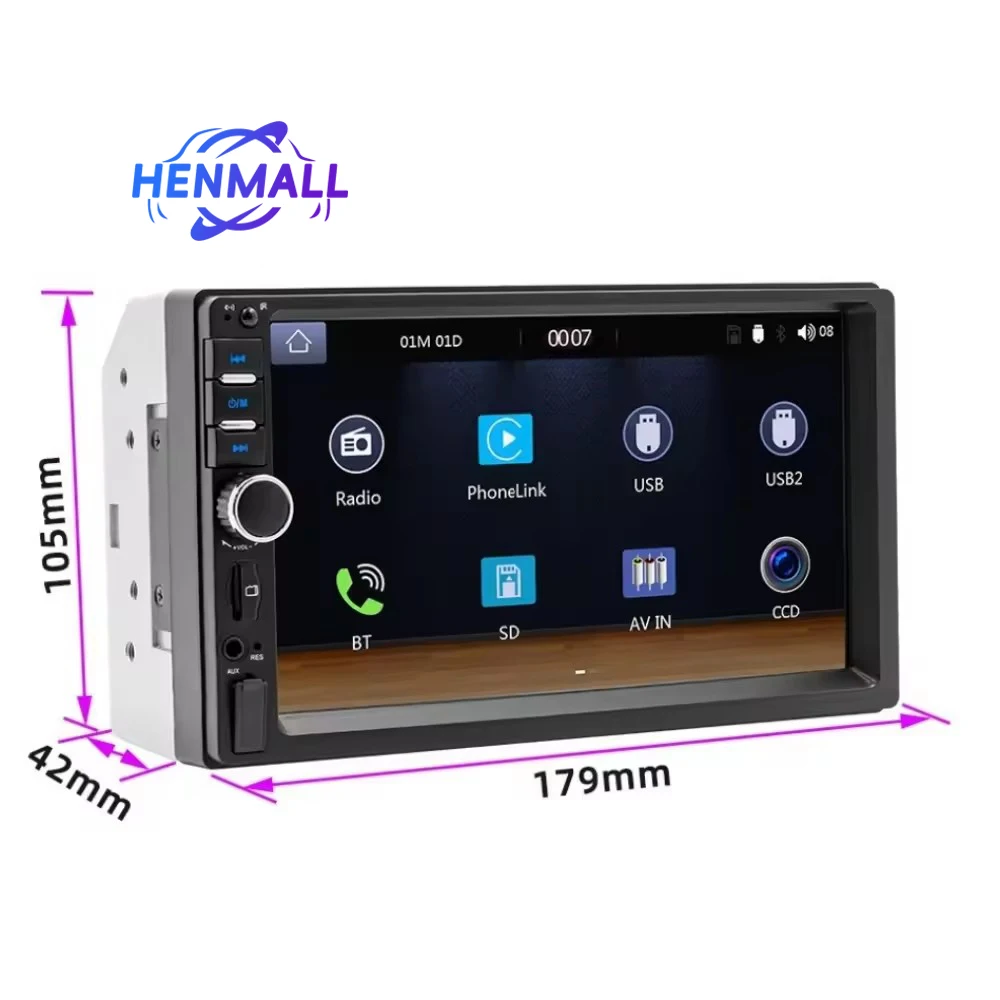

Installation size | 178x105x55MM |
Mobile Internet | Support |
Reversing image | Support |
Play Video Warning | Support |
Steering wheel control | Supports button learning |
Video output | Support |

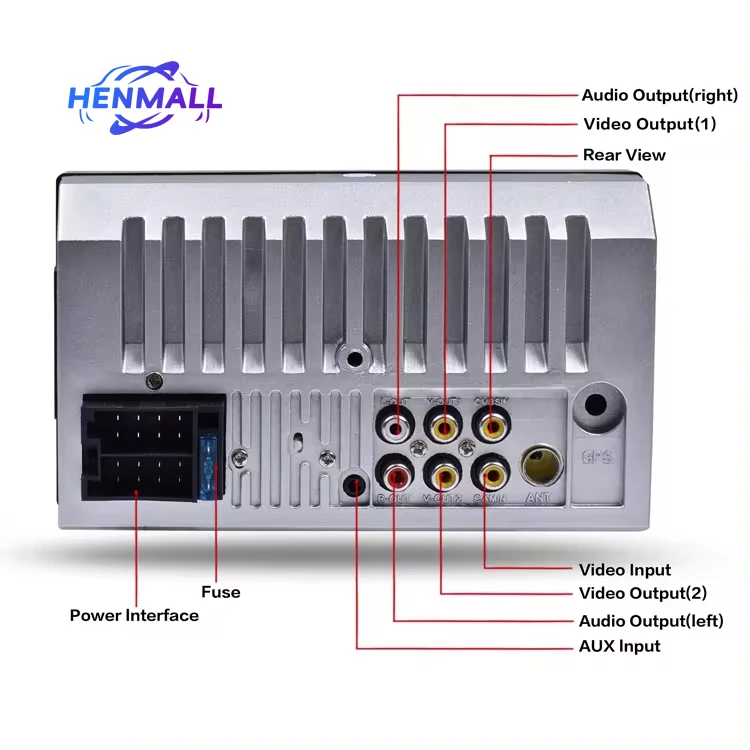

USB | Front USB2.0+rear USB2.0 |
TF card | Support |
Reset button | Support |
Audio output | 2 channels (left channel + right channel) |
Video output | 2 channels |
Video input | 1 way |
Reversing video input | 1ch |
Video format | H263/H264/H265/DIVX HD /AVI/FLV/MKV/MPEG/MP4/WMV9/VC/ASF/TS/QT |
Picture format | JPEG/PNG/BMP/GIF |
language parameters | English, Chinese, Spanish, Portuguese, Russian, German, French, Polish, Turkish, Arabic, Hebrew, Italian, Czech, Japanese, Korean |
Factory set password | 113266 |
Audio format | MP3/AAC/APE/OGG/M4A/RA/WAV |
FAQ
Q1: What are your hot items? A1:Our main products are Car MP3/Car MP5/Car DVD/Car GPS/Android GPS etc. Q2: How about the Shipping Method? A2: DHL/UPS/TNT/FedEx and other air shipments and sea shipments are all workable. In one word, we could do any shipments you wanted. Q3: How about the MOQ? A3: Lower MOQ of 1 PCS per style. Q4: What about the total price to ship to my place? Can you arrange shipment to my forwarder in China? A4: Please tell us the quantity actually needed, where to ship and your ideal lead time at first. We will estimate and get back to you according to your requirements. Sure, we can ship to your forwarder in China. Please let us know the address. Q5: When can I get the goods? A5: Normally it takes 3-28 working days from China. It depends on order quantity and shipping ways. Procedure: Order Confirmation-Payment-Production/Ready Stock Preparation-Tracking Number(in 3 working days)-Online. Tracking(Information delays 1-2 days) Please contact us if you do not receive the products in 45 days, and please give us 3 days for checking the reason. Q6: What functions does it have? Do you have CE ROHS certificates? A6: For function, it has what you want: music play, video play, BT call, BT music, mirror link, navigation, google online, use youtube, etc. For the certificate, yes for sure. We would love to provide our partners with all our company certificates sincerely. |
Company Profile
We Are Here Waiting For You ! SHENZHEN HENGMAO ELECTRONINCS CO., LTD.is a professional manufacturer of car automotive electronics. Our products are: car stereo, car audio, car radio, car video player, car camera, car monitor, parking sensor, auto accessories, car mp5 player, gps navigation, car android radio and so on. Our factory has established the complete production system from raw materials to finished products. We had via ISO9001 quality management system and CE,ROHS certificates. |
Our Factory
FAQ
Q1.Why the car radio can't turn on ? 1>Please check the Voltage of car radio :DC 12V 2>When you test this car radio,you can combine the red and yellow wires and connect them to the positive side of the power supply.Black line to negative power supply. 3>Replace the same type of insurance to test the car radio. Note:Mustt use our power cables to connect the radio,it is can not insert the original car plug directly into our machine. Q2.Why the car radio will show "No Signal" when we reversing? 1>Please check if the camera's wire is properly connected to the car radio. 2>Note:The video port of rear camera must insert the "CAMIN" port of car radio. Q3.Why does the camera display "!" and "Can't watch video while driving" when I use USB to watch videos? 1> Please turn off the "Video Warning" function in the settings,then will be OK. Q4.Why the car radio will show time after we turn off this? 1>That time clock is a function for the car radio ,that can't be removed.In fact that car radio had been turn off,it save the time are more convenience for people to see, 2>If you don't need this,you need to unplug the power positive and negative. Q5.Why haven't sound in car radio when playing the music? 1>When you are not using our original audio cable, please check if your audio cable is suitable for our radio. 2>Please check if there is any collision between the lines. 3.>If the line is connected, there will be no sound when the speaker cable touches the speaker cable.There is no sound too when the power cord touches the speaker cable. 4>If no use,please use a single speaker to connect a group of audio cables to test the car radio. The four speaker cables are connected separately to see if there is any sound. Q6.Why can't search FM? 1> No radio antenna inserted. 2> Please check if the radio antenna is plugged in. Please insert more antennas several times to make it well contacted. 3>The signal of your location is not good. Please go to a better place to test again. 4>The radio antenna on the car is broken/no effect; please replace the radio antenna and test again; Q7.Why can't connect the BT of car radio? 1>Open the phone settings interface, open the BT in the BT function, search for BT devices, find the player's BT model to be paired; if you need a pairing code, enter 0000; if not, try 1234 or 123456. 2>Please try to use another mobile phone to test this function.All methods are correct and still cannot use BT, Please unplug the plug on the back of the player and plug it in after 3 minutes. |
Похожие товары

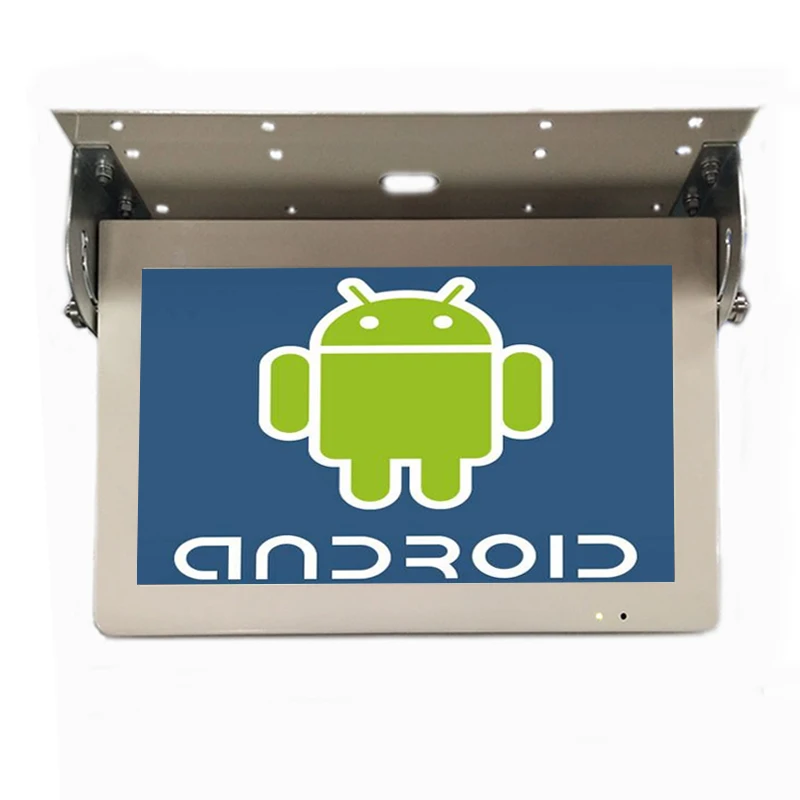

QZ-1854-WIFI 24 В/12 В 18 5 дюймов откидной автомобиль android WIFI автобус ЖК-монитор цифровая вывеска на крыше автобуса ТВ экран
20 940,15 ₽ - 23 144,38 ₽

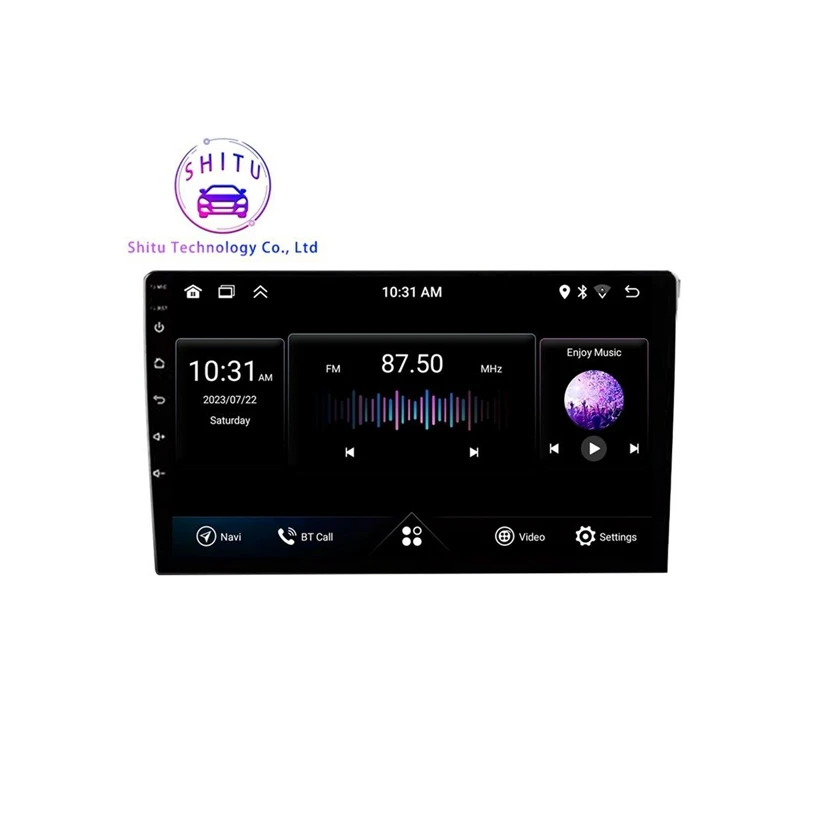

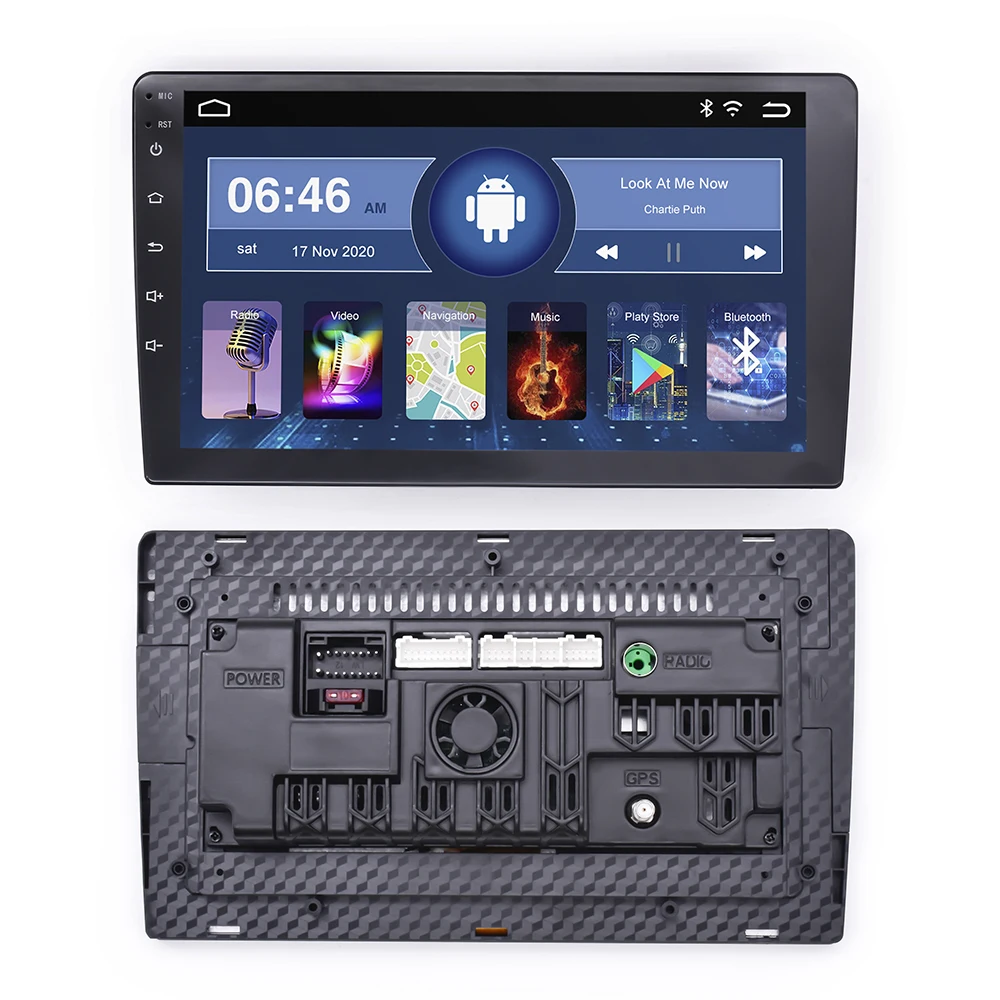

Оригинальный производитель Android 10 дюймов 1 Din 2G + 32G Bluetooth 5 0 автомобильное радио беспроводное 4G 'Android Автомобильная навигационная система
4 518,67 ₽ - 4 739,09 ₽

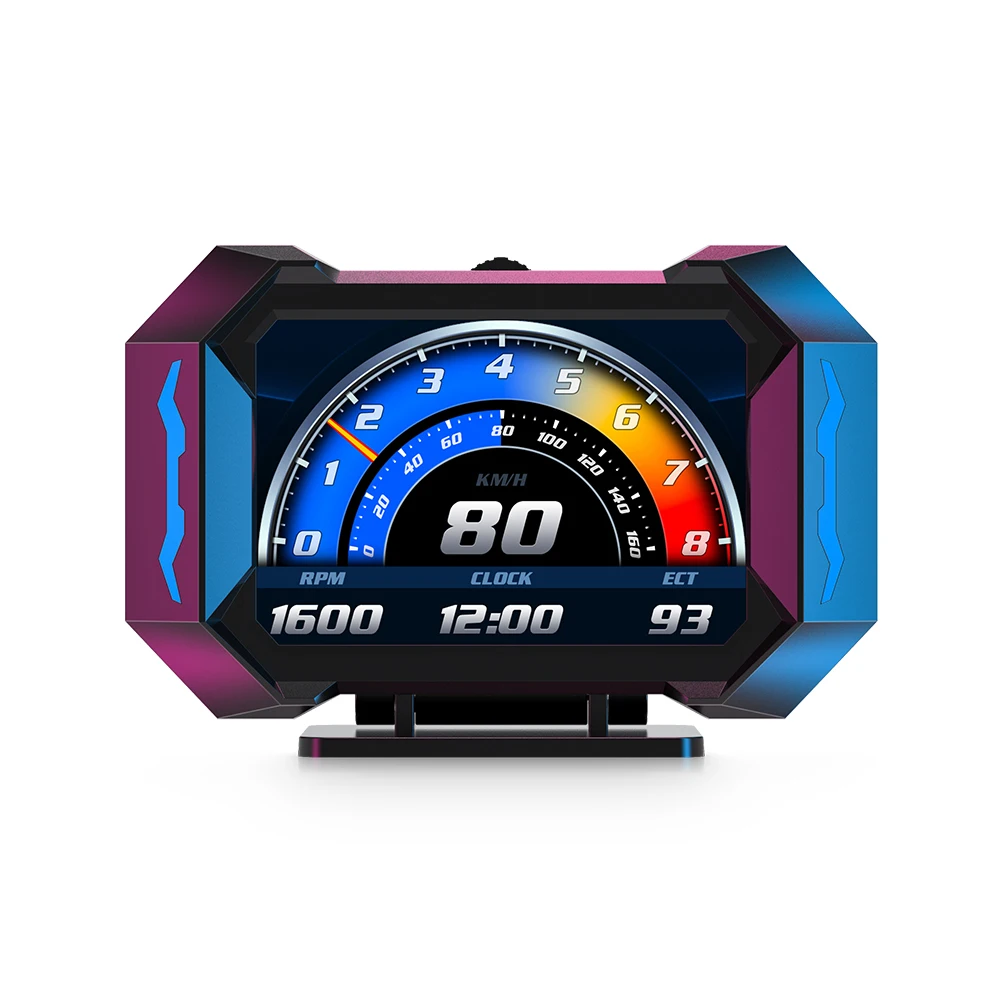

Автомобильный светодиодный дисплей ЖК-дисплей расход топлива многофункциональный новый продукт датчик наклона P25
4 188,03 ₽ - 4 298,25 ₽
9210 10-дюймовый дисплей управления центром автомобиля закаленное стекло сенсорный экран салона

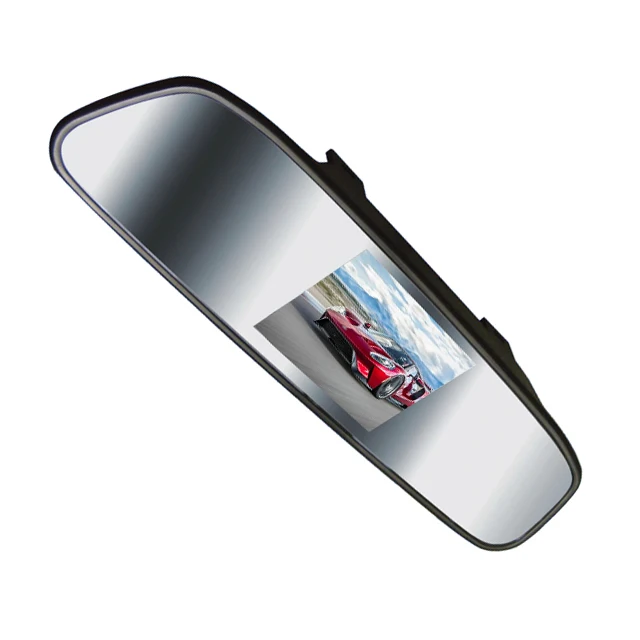

Лидер продаж модное 5-дюймовое истинное цветное стекло для монитора автомобиля зеркальное камеры заднего вида со светодиодной подсветкой
716,38 ₽ - 881,70 ₽

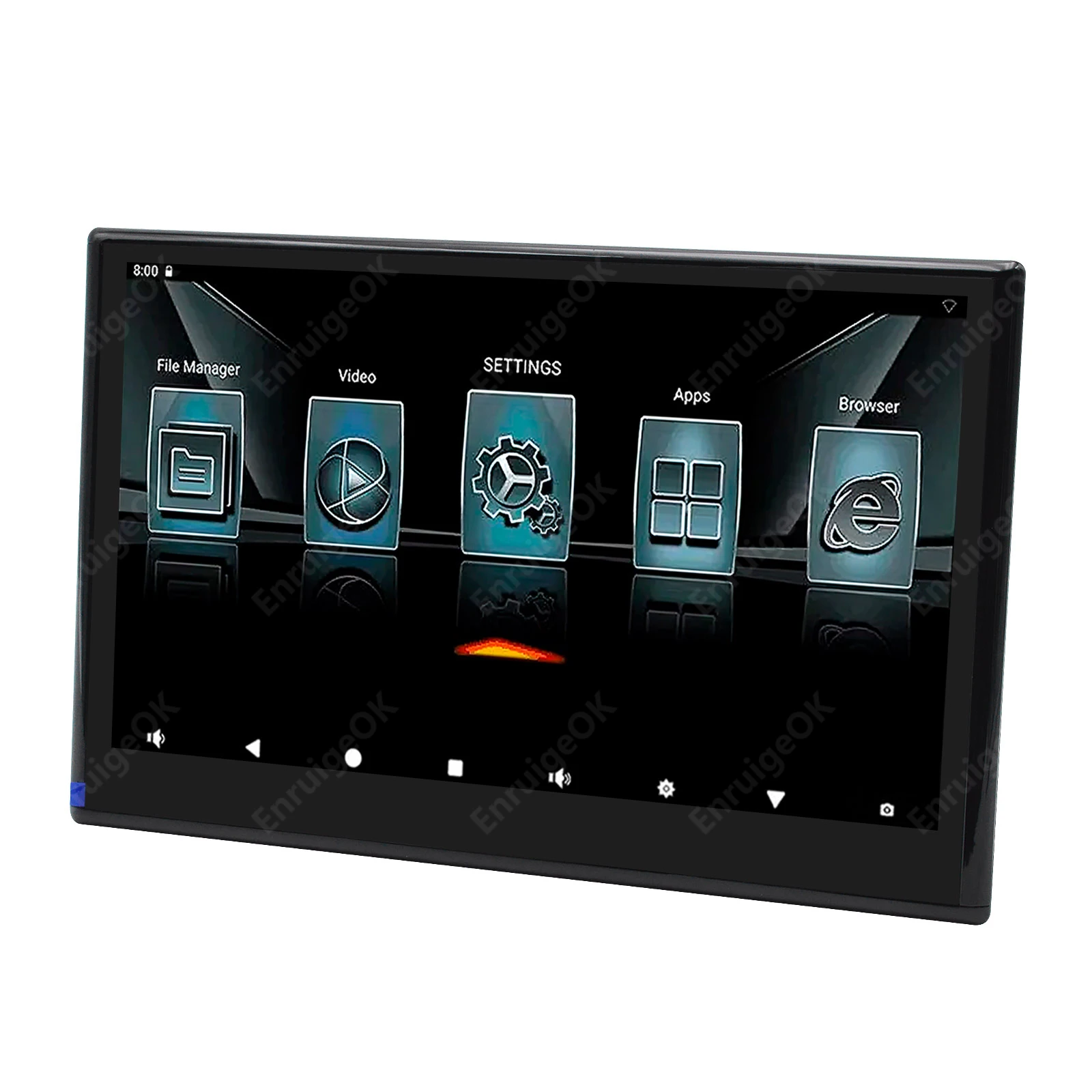

13 3 дюймов сенсорный экран автомобиля подголовник монитор 1920x1080 IPS дисплей с Wi-Fi Bluetooth HDMI вход выход Multi Media Player
