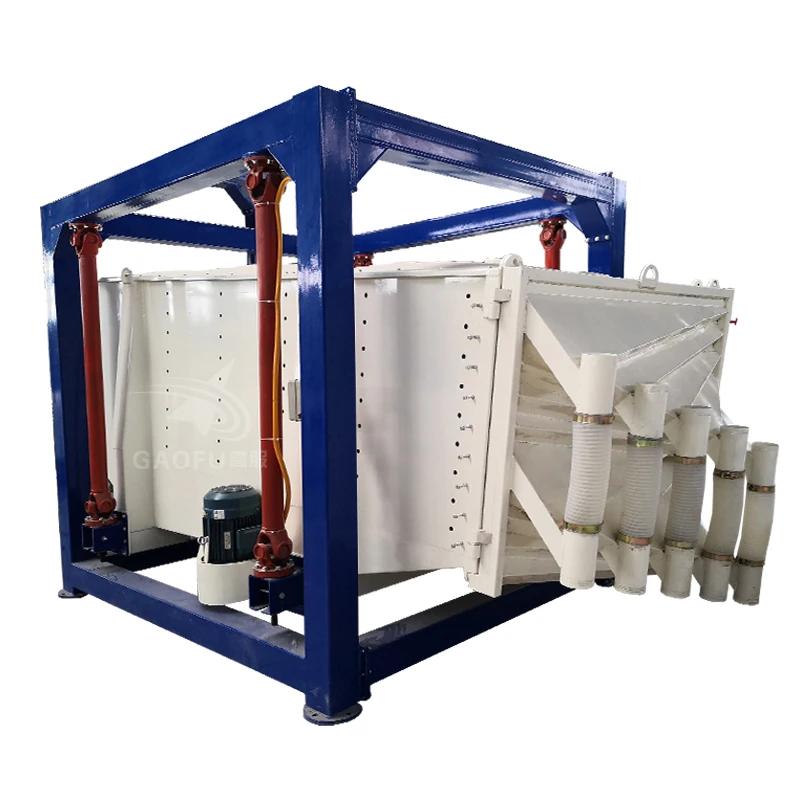

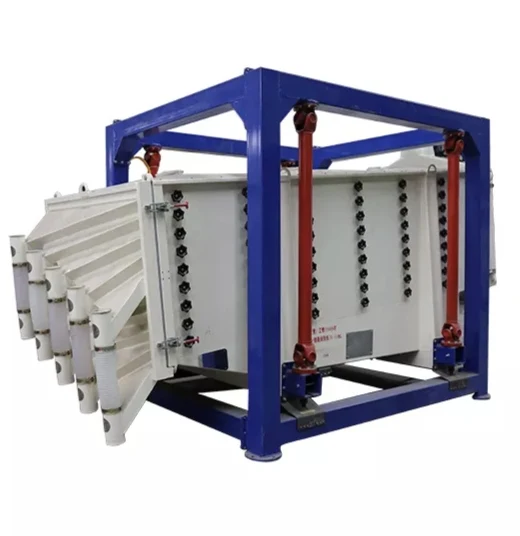

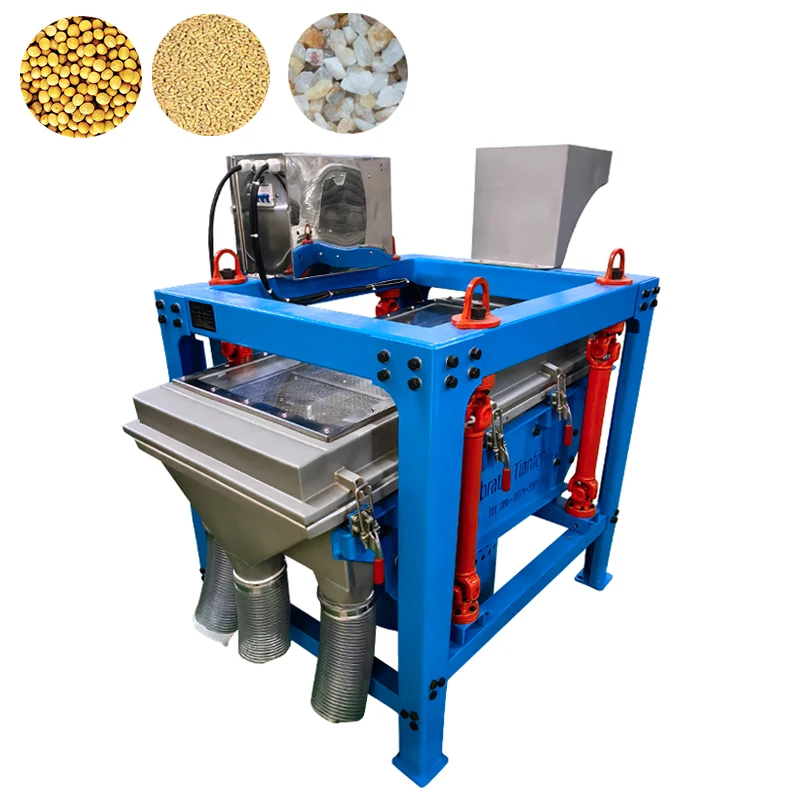

Лидер продаж 1-5 слоев промышленная экранная машина перлит скрининг прямоугольный гираторный просеиватель квадратный поворотный экран
1 095 963,70 ₽ - 1 550 766,45 ₽

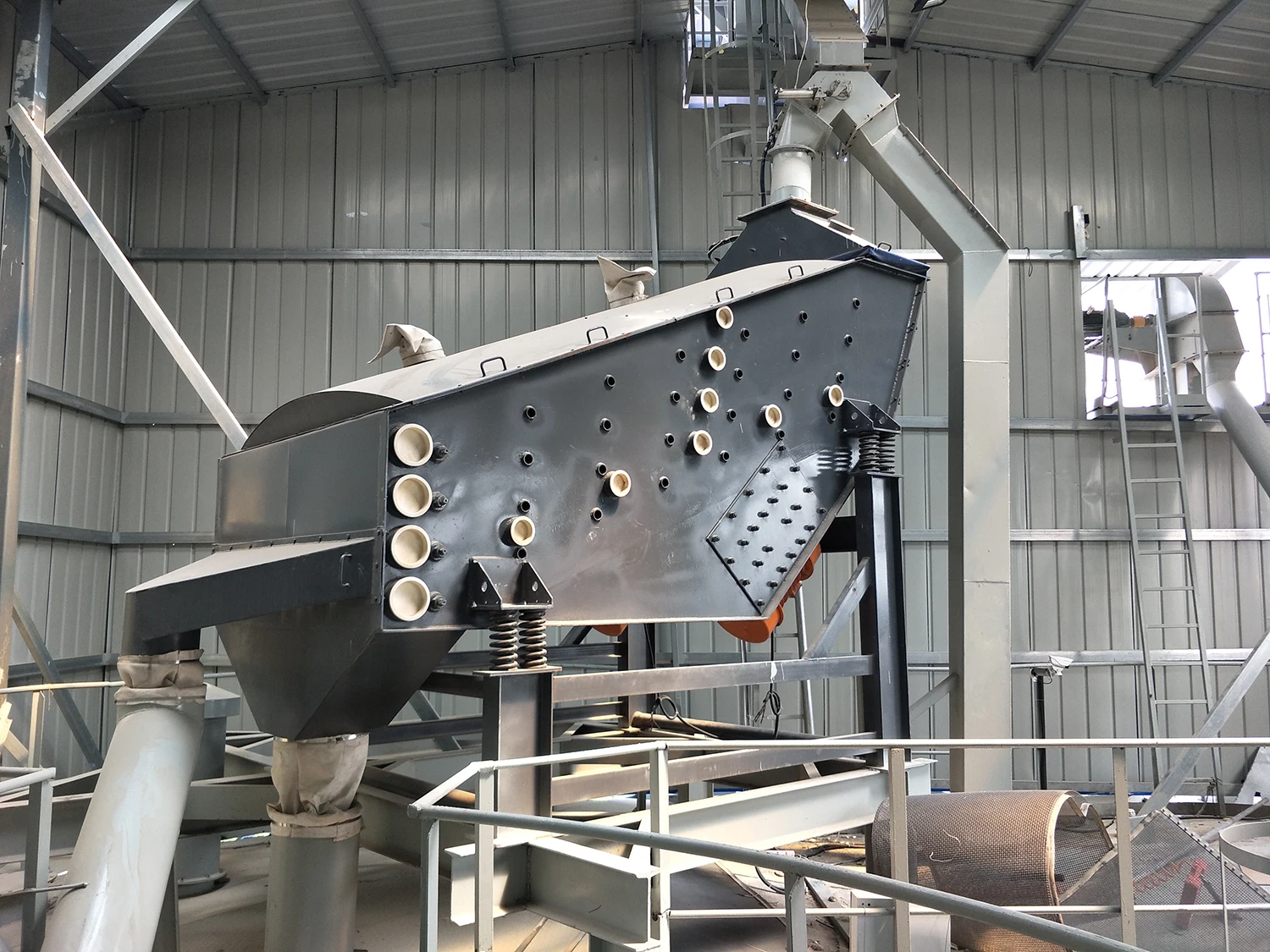

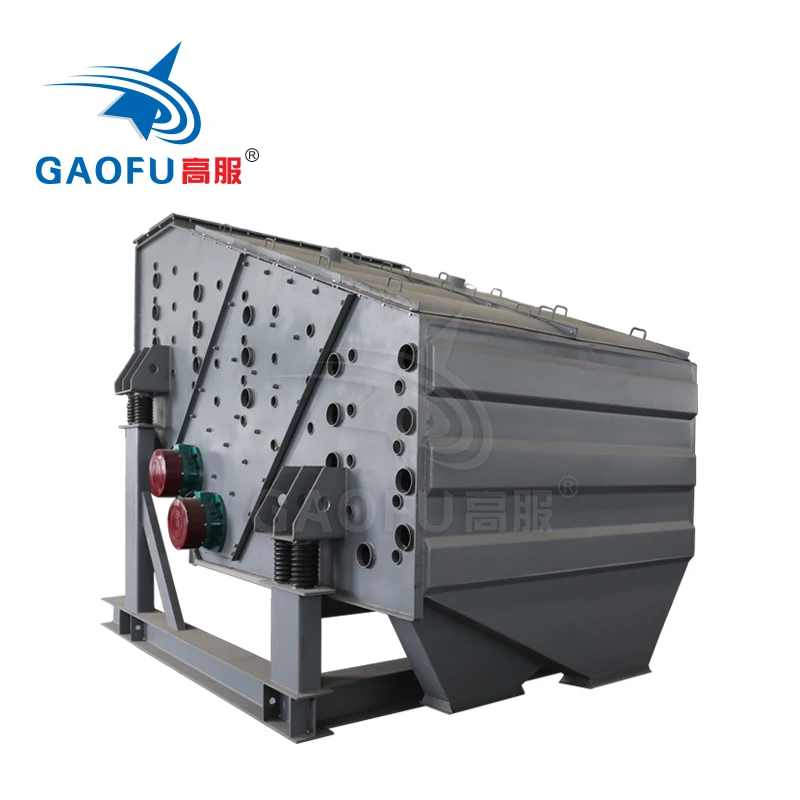

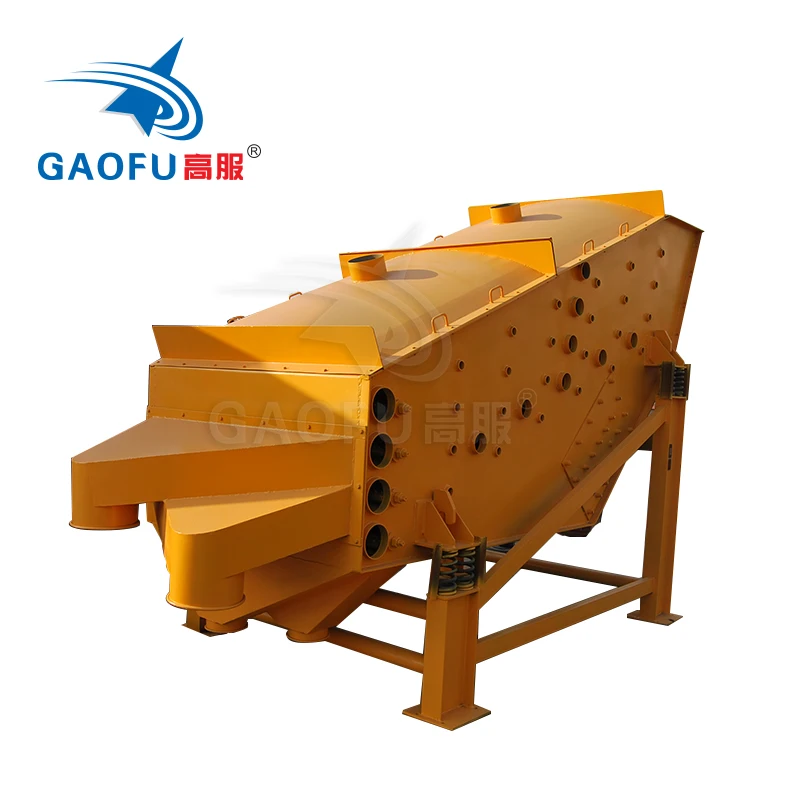

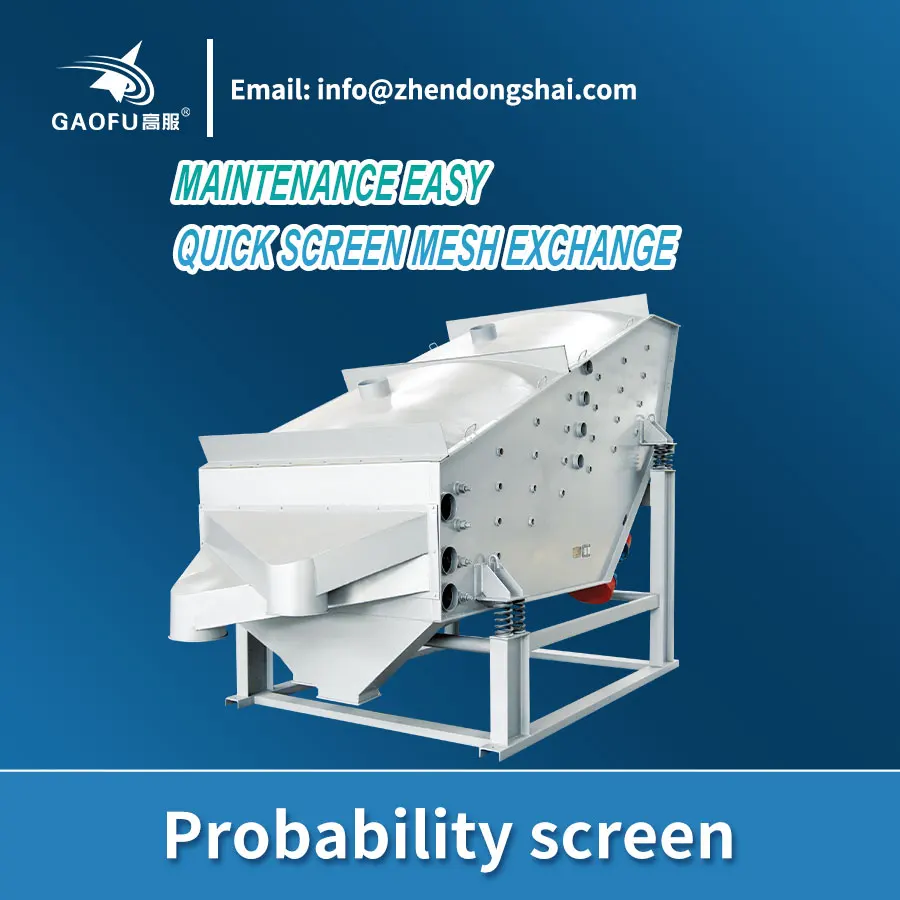

Лидер продаж многослойный вибрационный просеиватель перлита скрининг сортировка вероятность экран
- Категория: >>>
- Поставщик: Xinxiang Gaofu Machinery Co. Ltd.
Сохранить в закладки 1601112164008:
Описание и отзывы
Характеристики
Product Description
WORKING PRINCIPLE:

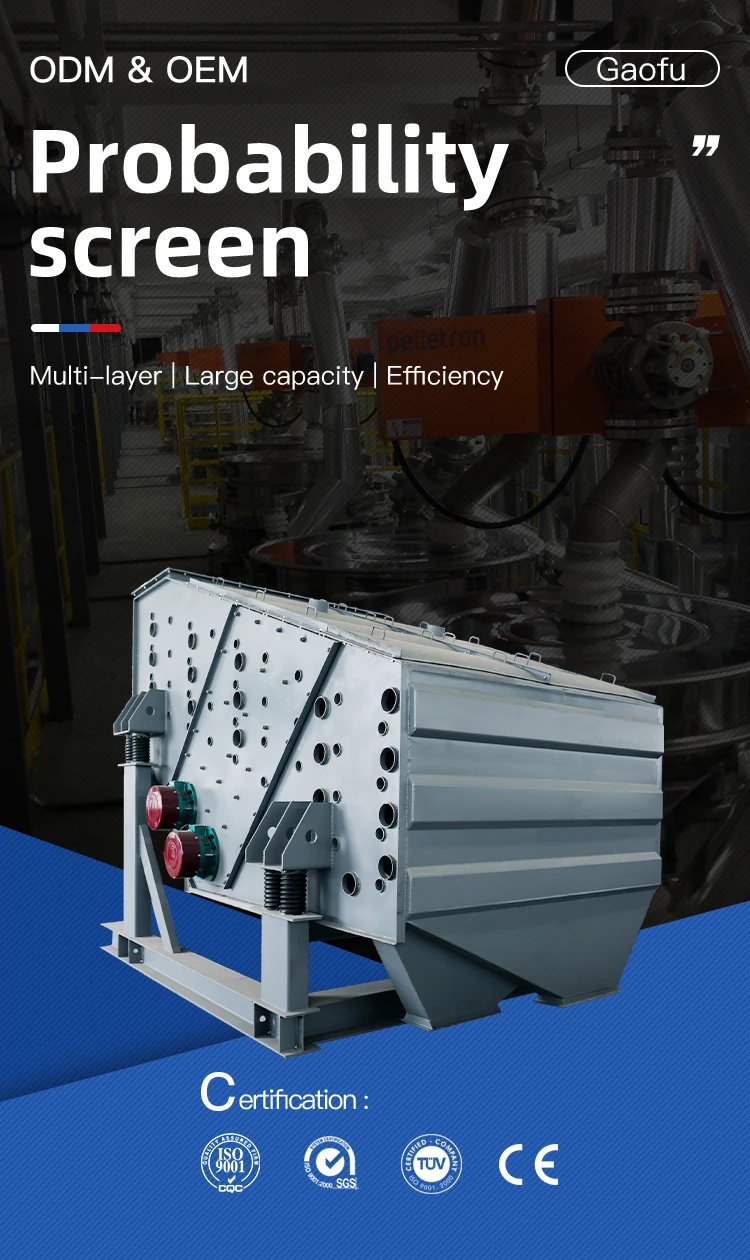

Probability screen is a kind of sieve machinery which can make use of the principle of probabilistic screening. The sieve theory points out that, the stranded time of each object in its interior is opposite to its weight in the work. Through the actual experiment, particle size is much smaller than the hole diameter, it can quickly pass the screen surface, the more close to the
hole diameter, the longer the stranded time, if the diameter of the two sides are close, the stranded time of the material is the longest, popular speaking, large particles stay time is long, small particles stay time is short. When the sieve machine starts, the symmetrical arrangement of two identical models and specifications of the vibration motor or exciter for synchronous reverse
operation, the excitation force through the transmission body—motor or exciter base pass to the entire vibration body— sieve box, the sieve box drives the sieve surface to do periodic vibration, so that material in the sieve surface with the screen for directional leaping movement, meanwhile, the material less than the sieve aperture through the sieve hole fall to the bottom, as undersize material, the material larger than the sieve aperture is discharged from the outlet after the continuous jumping movement, and finally the screening operation is completed.
Probability screen is a kind of sieve machinery which can make use of the principle of probabilistic screening. The sieve theory points out that, the stranded time of each object in its interior is opposite to its weight in the work. Through the actual experiment, particle size is much smaller than the hole diameter, it can quickly pass the screen surface, the more close to the
hole diameter, the longer the stranded time, if the diameter of the two sides are close, the stranded time of the material is the longest, popular speaking, large particles stay time is long, small particles stay time is short. When the sieve machine starts, the symmetrical arrangement of two identical models and specifications of the vibration motor or exciter for synchronous reverse
operation, the excitation force through the transmission body—motor or exciter base pass to the entire vibration body— sieve box, the sieve box drives the sieve surface to do periodic vibration, so that material in the sieve surface with the screen for directional leaping movement, meanwhile, the material less than the sieve aperture through the sieve hole fall to the bottom, as undersize material, the material larger than the sieve aperture is discharged from the outlet after the continuous jumping movement, and finally the screening operation is completed.
Model | Screen mesh (mm) | Power (kw) | Motor model | Inclination (degree) | Double amplitude (mm) | Layers (s) | Capacity (t/h) |
GLS-1020 | 0.6-25 | 1.8×2 | YZO 25-6 | 15-30 | 6-8 | 2-4 | 30-100 |
GLS-1225 | 0.6-25 | 2.2×2 | YZO 30-6 | 15-30 | 6-8 | 2-4 | 30-120 |
GLS-1230 | 0.6-25 | 3.0×2 | YZO 40-6 | 15-30 | 6-8 | 2-4 | 30-140 |
GLS-1536 | 0.6-25 | 3.7×2 | YZO 50-6 | 15-30 | 6-8 | 2-4 | 30-160 |
GLS-1836 | 0.6-25 | 3.7×2 | YZO 50-6 | 15-30 | 6-8 | 2-4 | 30-180 |
GLS-2040 | 0.6-25 | 7.5×2 | VB 100756-W | 15-30 | 6-8 | 2-4 | 50-200 |
GLS-2442 | 0.6-25 | 6.0×2 | VBCB 75606-W | 15-30 | 6-8 | 2-4 | 50-220 |
Note:
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US
Due to the wide range of our products, we cannot list all product pictures and corresponding product parameters. If you have other needs, please communicate with me. We can provide supplementary information and technical support.
CONTACT US

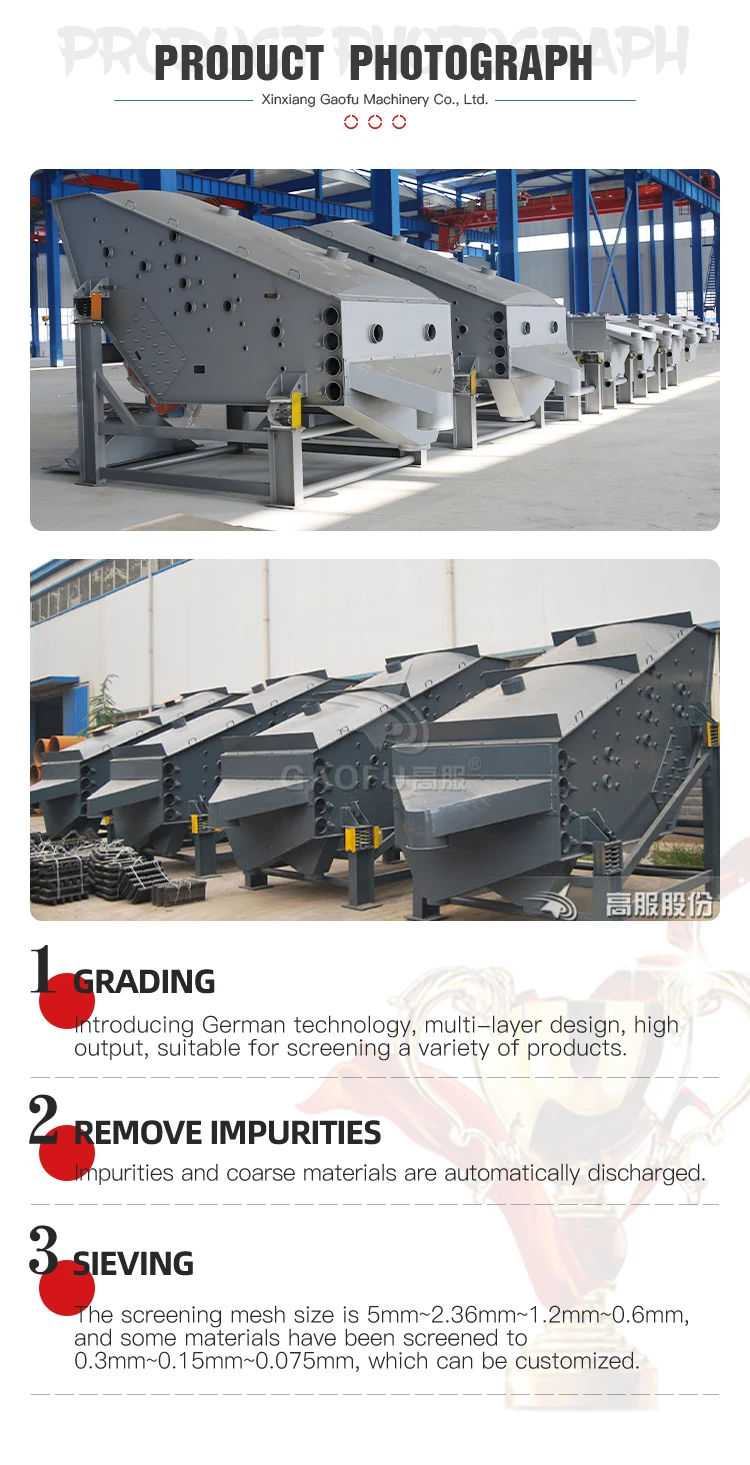

1 GRADING
Introducing German technology, multi-layer design, high output, suitable for screening a variety of products.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
Introducing German technology, multi-layer design, high output, suitable for screening a variety of products.
2 REMOVE IMPURITIES
Impurities and coarse materials are automatically discharged.
3 SIEVING
The screening mesh size is 5mm~2.36mm~1.2mm~0.6mm, and some materials have been screened to 0.3mm~0.15mm~0.075mm, which can be
customized.
The screening mesh size is 5mm~2.36mm~1.2mm~0.6mm, and some materials have been screened to 0.3mm~0.15mm~0.075mm, which can be
customized.
Applicable industries：
1. Chemical industry
Resin, paint, industrial medicine, cosmetics, etc.2. Food industry
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
Powdered sugar, starch, salt, rice flour, milk powder, soy milk, egg powder, soy sauce, fruit juice, etc.
3. Metallurgy & mining
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Aluminum powder, lead powder, copper powder, ore,alloy powder, Electrode powder, electromagnetic materials, grinding powder, refractory materials, kaolin, heavy calcium carbonate, quartz sand, etc.
4. Other industries
Waste oil, wastewater, dyeing and finishing wastewater, papermaking, additives, etc.
Type selection:
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
1. Selected according to the specific screening needs.
2. Recommended according to industry standards.
3. Recommended according to material characteristics.
4. Recommended according to customer cases and screening experience.
ODM & OEM
Customization options:

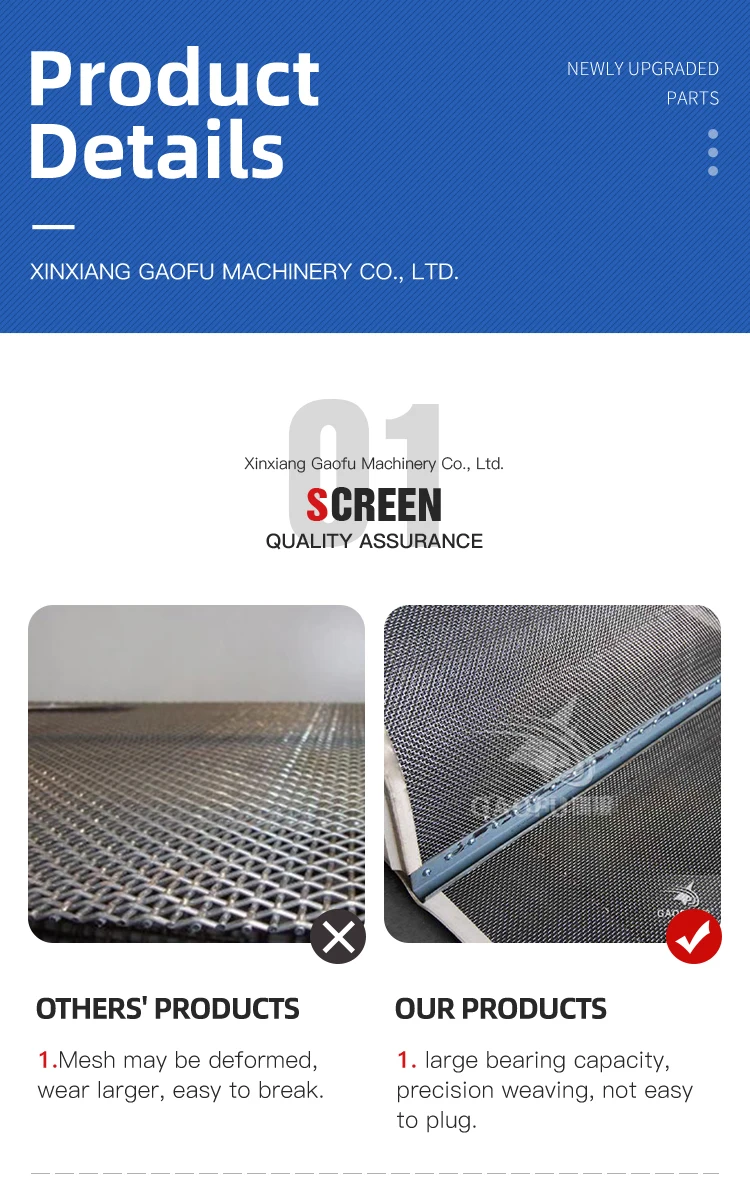

1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white...
Customization options:
1. Screen material: stainless steel, perforated plate, polyurethane.
2. Screen frame type: bonded grid, letter grid, flange grid, C-type frame.
3. Customized inner coating: Teflon, mirror, sandblasting, brushed.
4. Machine material: Stainless steel 314/306, carbon steel.
5. Machine color: blue, red, yellow, white...
RELATED PRODUCTS
Xinxiang Gaofu Machinery Co., Ltd.
Company Profile
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015, and was listed on the New OTC (stock code:836946) on March 25, 2016. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
Xinxiang Gaofu Machinery Co., LTD was founded in 1982, the company made shareholding reform in 2015, and was listed on the New OTC (stock code:836946) on March 25, 2016. The company covers an area of 60,000 square meters, and a building area of 46,000 square meters, registered capital of Chinese Yuan 51.46 million and 400 employees.
In 2017, the company brand “GAOFU ®" is identified as “China well-known trademark" by the Trademark Office of The State Administration For Industry and Commerce. Gaofu company also owns three “Henan Province Famous Trademark", is a provincial “High Technology Expertise”, “Henan Technical Small and Medium Enterprises”, “Enterprise of Observing Contract and Value Credit”. The company has science and technology achievement award issued by the Ministry of Industry and Information Technology of The Republic of China, and hundreds of various patents.
1 INTELLIGENT MANUFACTURING :
Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
High-end intelligent equipment based on computer numerical control machine tools, robots, etc. for production and testing.
Pay attention to the improvement of safety production capacity, the improvement of production equipment capacity, and strictly control every link of quality management.
2 INTELLIGENT FACTORY :Vertical and horizontal integration is based on the information management system to realizes the interconnection and interoperability of CNC automation of manufacturing systems such as manufacturing, products, workshops, and warehouses.
The factory strictly implements the "6S" management model, improves the information construction of the workshop, and improves the production management ability.
FAQ
Xinxiang Gaofu Machinery Co.,Ltd.
Q1: Industry application
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
A: Our vibrating screen machines are widely used in food, medicine, chemical industry, metallurgy, mining, ceramics, plastics, electromagnetic materials, thermoelectricity, building materials and other industries.
Q2: Guaranteed
A: The whole machine is guaranteed for one year, and the core accessories are guaranteed for three months. After receiving the goods, if you have any quality problems, please contact us in time.
Q3: After-sale service
A: If there is any installation or test machine problem, provide remote online guidance or on-site service.
Q4: Shipping Method and Shipping Time
A: 1. By air port to port: about 7days depends on port.
2. By sea port to port: about 20-35 days.
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
Q5: Where is Xinxiang Gaofu Machinery? Is it possible to visit your factory?
A: Our company is located in Xinxiang City, Henan province, a very famous vibrating screen city in China. The city is near by Zhengzhou Airport, it only take one and half hour from Zhengzhou Airport, welcome to visit our company !
