iTeaQ Power 10kva-80kva 3 phase UPS 208Vac
Product Description
High Frequency Tower UPS 10-30kVA -Front Case
Model: TM33010S-A/TM33015S-ATM33020S-A/TM33030S-A

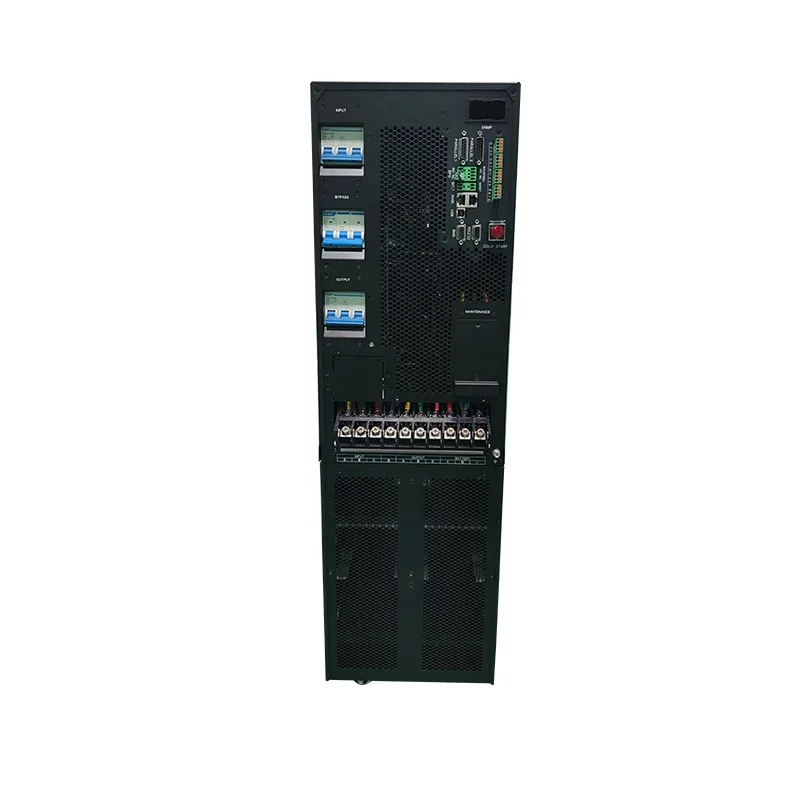

High Frequency Tower UPS 10-30kVA -Rear
Model:Model: TM33010S-A/TM33015S-ATM33020S-A/TM33030S-A
Introduction:
TM33 10-180kVA adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers with stable and pure sinusoidal power supply protection. Innovative design makes these products have unparalleled reliability and high performance. The high input power factor and low input current harmonics ensure the UPS green and environmental protection and high efficiency ensures energy saving.
Scenarios:
Small and medium-sized data centers, IT machine rooms, financial institutions, traffic dispatch centers, security monitoring, etc.
Features:
1. Wide input voltage range
2. Online double conversion technology
3. DSP digital control technology
4. Output power factor 1.0
5.N+X redundancy
6. Communications: RS485/Relay card/USB/SNMP option
Benefits:
1. Wide input voltage range adapts to the harsh power grid
2. DSP technology greatly improves the system reliability
3. Friendly man-machine interface, easy to operate
4. Intelligent battery management extends battery life
5.N+X redundancy, expanding as required, saves initial investment
TM33 10-180kVA adopts online double conversion technology, which can completely eliminate all kinds of grid problems and provide customers with stable and pure sinusoidal power supply protection. Innovative design makes these products have unparalleled reliability and high performance. The high input power factor and low input current harmonics ensure the UPS green and environmental protection and high efficiency ensures energy saving.
Scenarios:
Small and medium-sized data centers, IT machine rooms, financial institutions, traffic dispatch centers, security monitoring, etc.
Features:
1. Wide input voltage range
2. Online double conversion technology
3. DSP digital control technology
4. Output power factor 1.0
5.N+X redundancy
6. Communications: RS485/Relay card/USB/SNMP option
Benefits:
1. Wide input voltage range adapts to the harsh power grid
2. DSP technology greatly improves the system reliability
3. Friendly man-machine interface, easy to operate
4. Intelligent battery management extends battery life
5.N+X redundancy, expanding as required, saves initial investment
Specification
Model | TM33010H/S-A | TM33015H/S-A | TM33020H/S-A | TM33030H/S-A | TM33040H-A | TM3360H-A | TM3380H-A | ||||||||||
Capacity (VA) | 10/10KW | 15/15KW | 20/20KW | 30/30KW | 40/40KW | 60/60KW | 80/80KW | ||||||||||
Phase | 3 Phase 4 Wires and Ground | ||||||||||||||||
Rated Voltage | 208Vac | ||||||||||||||||
Operating voltage range | 138~485Vac | 138~485Vac | |||||||||||||||
Operating frequency range | 40Hz-70Hz | ||||||||||||||||
Power factor | ≥0.99 | ||||||||||||||||
Harmonic distortion (THDi) | ≤3% (100% non-linear load ) | ||||||||||||||||
Generator input | Support | ||||||||||||||||
Phase | 3 Phase 4 Wires and Ground | ||||||||||||||||
Output voltage | 208Vac | ||||||||||||||||
Power factor | 1.0 | ||||||||||||||||
Voltage regulation | ±1% | ||||||||||||||||
Output frequency | Utility Mode: ±1%/±2%/±4%/±5%±10% optional; Battery Mode:(50/60±0.1%)Hz | ||||||||||||||||
Crest factor | 3:1 | ||||||||||||||||
THD | ≤2% with linear load; ≤4% with non linear load | ||||||||||||||||
Efficiency | 95.5% | 95.5% | |||||||||||||||
Overload | Load≤110%, last 60min; ≤125%, last 10min; ≤150%, last 1min; >150% change to bypass | ||||||||||||||||
deflaut ±120VDC | deflaut ±120VDC | ||||||||||||||||
Charge Current | Max. 10A | Max. 15A | Max. 35A | ||||||||||||||
Transfer Time | Transfer Time | Utility to Battery : 0ms; Utility to bypass: 0ms | |||||||||||||||
Operating temperature | 0℃～40℃ | ||||||||||||||||
Storage temperature | -25℃～55℃(no battery) | ||||||||||||||||
Humidity range | 0～95% (non condensing) | ||||||||||||||||
Altitude | < 1500m | ||||||||||||||||
Noise level | <55dB | <58dB | <60dB | <65dB | |||||||||||||
Alarm | overload, utility abnormal, UPS fault, battery low, etc | ||||||||||||||||
Protection | Protection | short circuit, overload, over temperature, battery low, fan fault alarm | |||||||||||||||
Communication | USB, CAN, RS485, FE, LBS, Parallel card, Relay card, SNMP card(optional) | ||||||||||||||||
Physical | Dimension D×W×H (mm) | 720*250*535 | 868*250*862 | 885*440*1200 | 850x440x1200 | ||||||||||||
Net weight (kg) | 32 | 35 | 38 | 70.5 | 150 | 162 | 196 | ||||||||||
Standards | EN62040-1, EN62040-2 | ||||||||||||||||
