Заводская цена Smd наружный передний светодиодный рекламный щит P10 алюминиевый панельный фиксированный экран
- Категория: >>>
- Поставщик: Shenzhen XD Vision Co. Ltd.
Сохранить в закладки 1601112361873:
Описание и отзывы
Характеристики
Products Description
XOA Series LED Display
XD Vision Outdoor Fixed LED Display
Aluminum Module and Cabinet, Fast Heat Dissipation
Modular design makes it easy to assemble and install the cabinet
Front and back maintenance available, easy for maintenance
Aluminum module and cabinet for fast heat dissipation for outdoor use
Energy-saving PCB design, reducing cost for electricity
Details Images
Cabinet Size 960*960mm Module Size 480*320mm
Front and Rear Maintenance
Front maintenance method:
1. Use a quadrilateral tool to twist the lock cylinder 90 degrees clockwise to open the side lock;
2. Insert the other end into the front maintenance hole，turn clockwise 3 times, and pull out the module;
3. The power supply box has 8 lock positions, and the lock positions can be opened with tools;
4. Then turn on the valve switch to maintain the power box;
1. Use a quadrilateral tool to twist the lock cylinder 90 degrees clockwise to open the side lock;
2. Insert the other end into the front maintenance hole，turn clockwise 3 times, and pull out the module;
3. The power supply box has 8 lock positions, and the lock positions can be opened with tools;
4. Then turn on the valve switch to maintain the power box;
Front and Rear Maintenance
Rear-maintenance method:
1. Use a quadrilateral tool to twist the lock cylinder 90 degrees ;
2. counterclockwise to open the side lock;
3. Push the module out forcefully，rotate it to a suitable angle，and then take it out;
4. For the power box, after-maintenance only needs to open the valve switch to maintain it.
1. Use a quadrilateral tool to twist the lock cylinder 90 degrees ;
2. counterclockwise to open the side lock;
3. Push the module out forcefully，rotate it to a suitable angle，and then take it out;
4. For the power box, after-maintenance only needs to open the valve switch to maintain it.
Installation applies to various installation environment
Advertisement fixed installation;
Add boom & connector and quick lock when renting;
Add rubber pads and brackets for peripheral display.
Product Paramenters
Part Number | XOA5.7 | XOA10 |
Pixel Pitch | 5.7mm | 10mm |
LED Configuration | SMD2727 | SMD3535 |
Pixel Density | 30625dot/m² | 10000dot/m² |
Module size | 480X320mm | 480X320mm |
Module Resolution | 84X56dot | 48X32dot |
Cabinet Size | 960X960X76mm | 960X960X76mm |
Cabinet Resolution | 168X168 dot | 96X96dot |
Cabinet Weight | 25kg / PCS | 25kg / PCS |
IP Rating ( front/back) | IP65/43 | IP65/43 |
Frame Frequency | 60Hz | 60Hz |
Brightness Intensity | ≥6500CD/m² | ≥7500CD/m² |
Viewing Angle | 140° | 120° |
View Distance | ＞5m | ＞10m |
Gray Scale | 14bit | 14bit |
Display Scale | 16.7M | 16.7M |
Max.Power Consumption | 900 W/m² | 900 W/m² |
Ave.Power Consumption | 450 W/m² | 450 W/m² |
Refresh Frequency | ≥3840HZ | ≥3840HZ |
Brightness Adjustment | 0 - 100 levels adjustable | 0 - 100 levels adjustable |
Control Mode | Synchronous display with control PC by DVI | Synchronous display with control PC by DVI |
Source compatibility (with video processor) | HDMI, HDSDI, SDI, VGA, RJ45, YC | HDMI, HDSDI, SDI, VGA, RJ45, YC |
Operation Power | AC100/240 50/60HZ | AC100/240 50/60HZ |
Operating Temperature | - 20℃~+50℃ | - 20℃~+50℃ |
perating Humidity | 10~90% RH | 10~90% RH |
Operating Life | 100,000hours | 100,000hours |

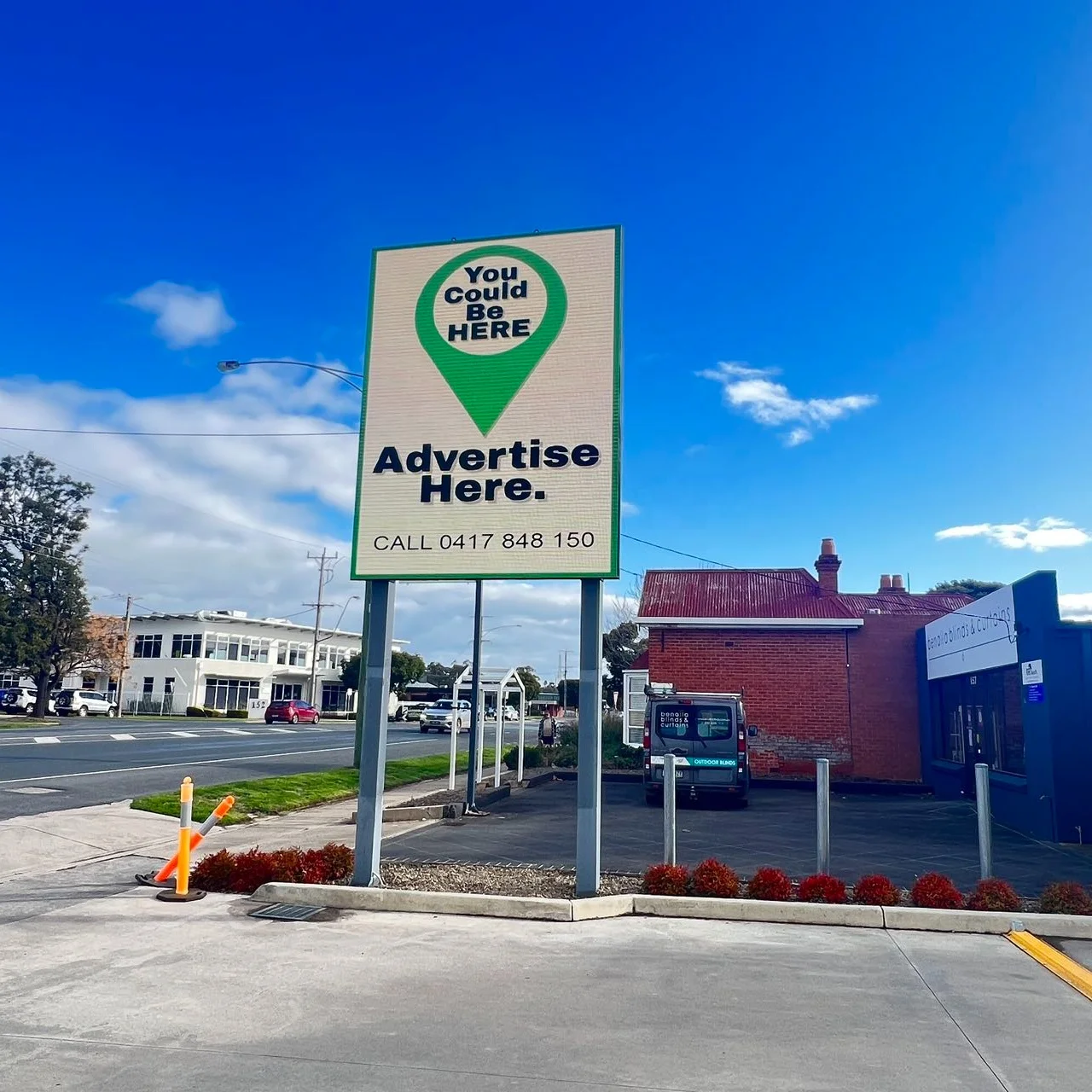

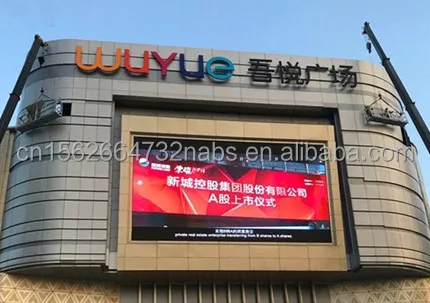

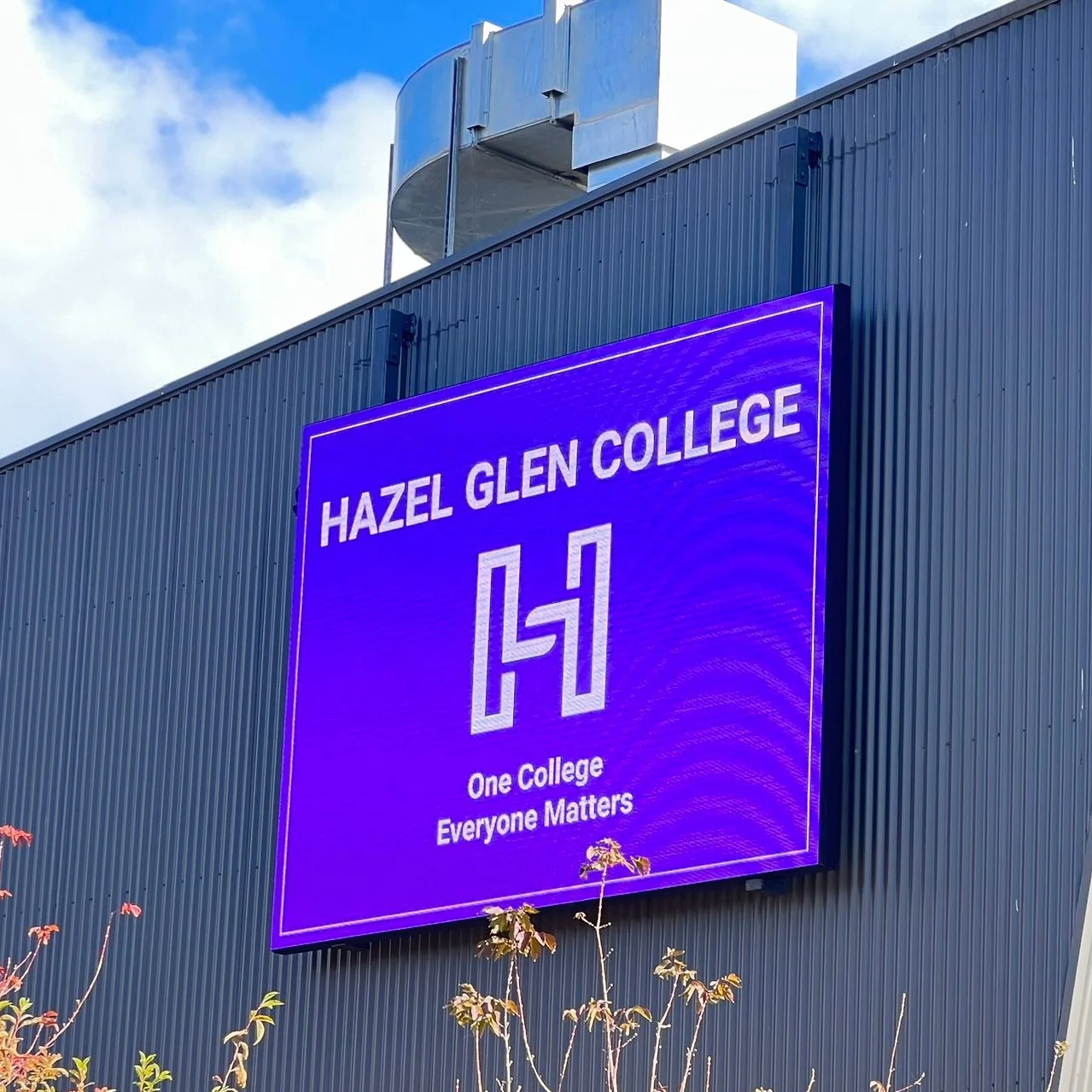

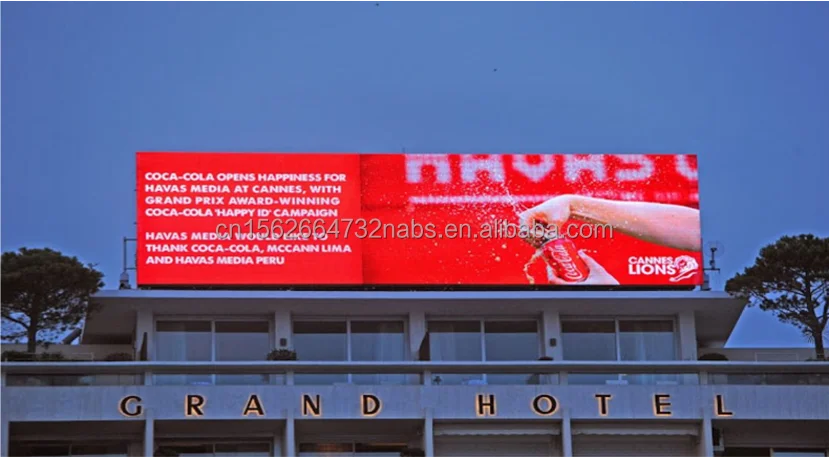

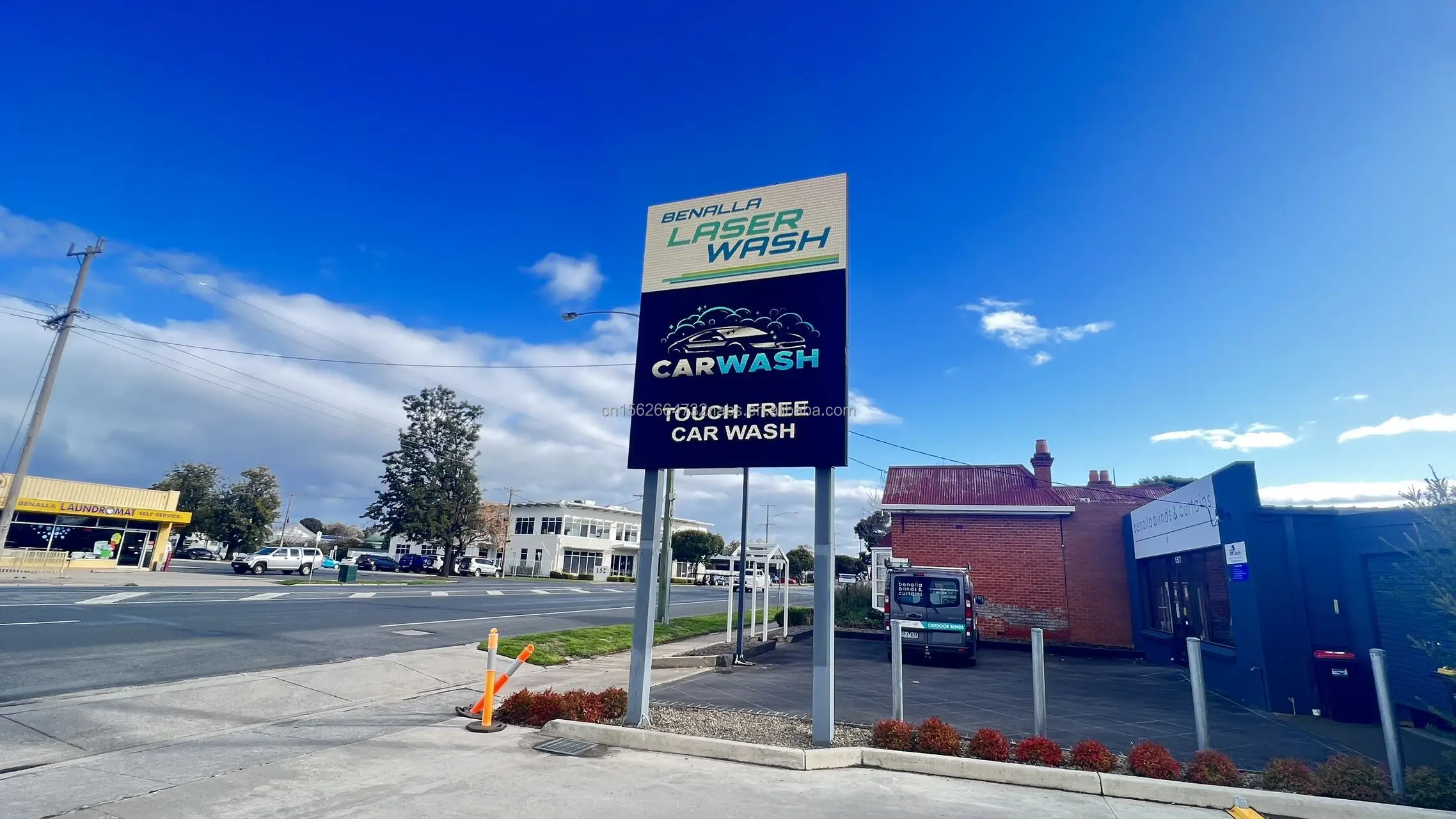

Project Cases
Recommend Products
Company Profile
FAQ
Q&A
Q1. Could I get a sample order of led display?
A: Yes, sample order is available to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. You can send us your logo design and info to confirm before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Do you provide technical training (installation training and user training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service for your clients
Q5: Do you accpet other trade terms, like CIF, CFA, etc.?
A: Yes, please send us your destination address and way of shippment, we can check for you the cost for insurance and freight.
Q6: Do you custom design for different shapes?
A: Yes, we can design and manufacturer custom design LED display according to requirements.
Q1. Could I get a sample order of led display?
A: Yes, sample order is available to check the quality.
Q2: Could we print our own logo on led display products?
A: Of course. You can send us your logo design and info to confirm before production.
Q3: Do you offer guarantee for the led display products?
A: Yes, we offer one year warranty for our products.
Q4: Do you provide technical training (installation training and user training)?
A: Yes, we offer full service, Including pre-sale, sale, after-sales service for your clients
Q5: Do you accpet other trade terms, like CIF, CFA, etc.?
A: Yes, please send us your destination address and way of shippment, we can check for you the cost for insurance and freight.
Q6: Do you custom design for different shapes?
A: Yes, we can design and manufacturer custom design LED display according to requirements.
