PE100 SDR11 для подачи воды HDPE трубы пластиковый фитинг электрофузионной стыковой термоядерной

Сохранить в закладки 1601112917498:


Цена:44,38 ₽ - 66,56 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики



HDPE 100 New Material Butt Welding Hdpe Pipe Fittings Bend 45 Degree Elbow For HDPE Pipe Connector


Supply:HDPE pipes and fittings
Standard:ISO4427/ IPS/DIPS
Sizes:DN20-DN2000 ( 1/2 inch-65 inch)


Products Description



Fast on-time
Production Short lead times
High quality fittings


HDPE Pipe FITTINGS Advantages:
HDPE is a durable, flexible plastic. The insoluble material is weather-resistant, shock-resistant, and abrasion-resistant. HDPE is also highly affordable, created from petroleum under high heat.



Product Paramenters


Molded Butt Fusion 45 Degree Elbows




SDR 17 (Standard Dimension Ratio) 125 PSI (Working Pressure at 73.4˚ F)


Nominal IPS Pipe Size
A
inches
B
inches
C
inches
D
inches
E
inches
Weight lbs.
Item Code
2”
3.23
2.64
0.14
2.38
6.38
0.23
45BI-2IPS-17
3”
4.72
3.86
0.21
3.50
9.33
0.72
45BI-3IPS-17
4”
5.31
4.21
0.26
4.50
10.63
1.32
45BI-4IPS-17
6”
6.89
5.35
0.39
6.63
14.09
3.77
45BI-6IPS-17
8”
8.46
6.54
0.51
8.63
17.48
8.03
45BI-8IPS-17
10”
10.04
7.64
0.63
10.75
20.94
14.44
45BI-10IPS-17
12”
10.63
7.80
0.75
12.75
22.64
21.30
45BI-12IPS-17


SDR 11 (Standard Dimension Ratio) 200 PSI (Working Pressure at 73.4˚ F)


Nominal IPS Pipe Size
A
inches
B
inches
C
inches
D
inches
E
inches
Weight lbs.
Item Code
2”
3.23
2.64
0.22
2.38
6.38
0.35
45BI-2IPS-11
3”
4.72
3.86
0.32
3.50
9.33
1.07
45BI-3IPS-11
4”
5.31
4.21
0.41
4.50
10.63
2.00
45BI-4IPS-11
6”
6.89
5.35
0.60
6.63
14.09
5.55
45BI-6IPS-11
8”
8.46
6.54
0.79
8.63
17.48
11.64
45BI-8IPS-11
10”
10.04
7.64
0.98
10.75
20.94
21.30
45BI-10IPS-11
12”
10.63
7.80
1.16
12.75
22.64
31.84
45BI-12IPS-11


SDR 9 (Standard Dimension Ratio) 255 PSI (Working Pressure at 73.4˚ F)


Nominal IPS Pipe Size
A
inches
B
inches
C
inches
D
inches
E
inches
Weight lbs.
Item Code
2”
3.23
2.64
0.26
2.38
6.38
1.00
45BI-2IPS-9
3”
4.72
3.86
0.39
3.50
9.33
2.00
45BI-3IPS-9
4”
5.31
4.21
0.50
4.50
10.63
3.00
45BI-4IPS-9
6”
6.89
5.35
0.74
6.63
14.09
9.00
45BI-6IPS-9
8”
8.46
6.54
0.96
8.63
17.48
22.00
45BI-8IPS-9


SDR 7 (Standard Dimension Ratio) 335 PSI (Working Pressure at 73.4˚ F)


Nominal IPS Pipe Size
A
inches
B
inches
C
inches
D
inches
E
inches
Weight lbs.
Item Code
2”
3.23
2.64
0.34
2.38
6.38
1.50
45BI-2IPS-7
3”
4.72
3.86
0.50
3.50
9.33
3.00
45BI-3IPS-7
4”
5.31
4.21
0.64
4.50
10.63
5.00
45BI-4IPS-7
6”
6.89
5.35
0.95
6.63
14.09
12.00
45BI-6IPS-7
8”
8.46
6.54
1.23
8.63
17.48
25.00
45BI-8IPS-7

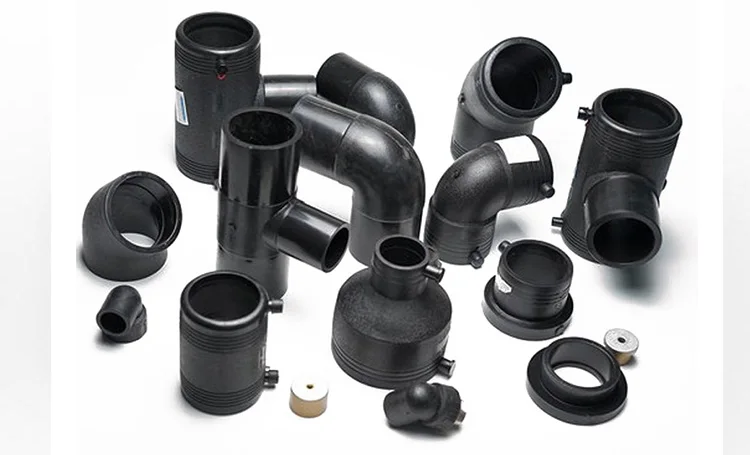

Details Images


HDPE Pipe FITTINGS Advantages










HANDLING


Do✔:
Store pipe on firm and flat surfaces.
Keep pipe and fttings away from sharp objects, heat,and toxic and aggressive materials.
Take carenot tocut,kink,abrade,or otherwise damage the pipe during handling.
Keep protective packaging intact until pipes and fittings are required for use.
Release coils carefully,keeping in mind they may be coiled under tension.
Take care when handling pipe under wet or frosty conditions,as the pipe may become slippery.
Temporarily cap cut pipe ends to prevent dirt or other material from entering the pipe.
Uncoil pipe and allow it to warm in the sun before burial for ease of installation.


DON"T❌:
Throw pipe from delivery vehicles.· Drag pipe or roll pipe coils.
Place pipeand fittings incontact withlubricating oil,gasoline,solvents,or other aggressive materials.Heat pipe with an open flame.

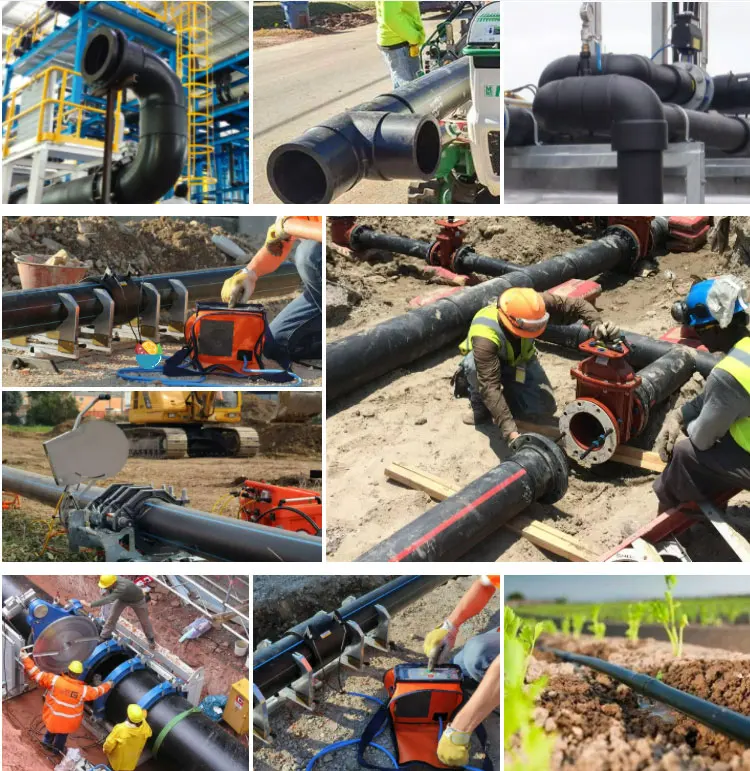

Customer Photos




Packing&Shipping




Company Profile






Certifications




FAQ


Q: What is your MOQ?
A: As customer's request.

Q: Why choose us?
A: We are a professional and leader of HDPE pipe factory, we offer pipeline system one stop services with competitive price and fast delivery time, and we insure our quality is the second to none.

Q: How to buy the product?
A: Contact with us by email or by Trade Manager, and inform us which product and quantity that you need, we will contact you immediately. More specify the information that you provided more faster and easier you will get the quotation.

Q: Can I make my own design and logo on the product?
A: Yes, we do OEM. Welcome partner from globally, we can make your product in China.

Q: Do you have customized pipe fittings?
A: We can make any plastic pipe fittings according customer drawings.

Q: What's the payment term?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
