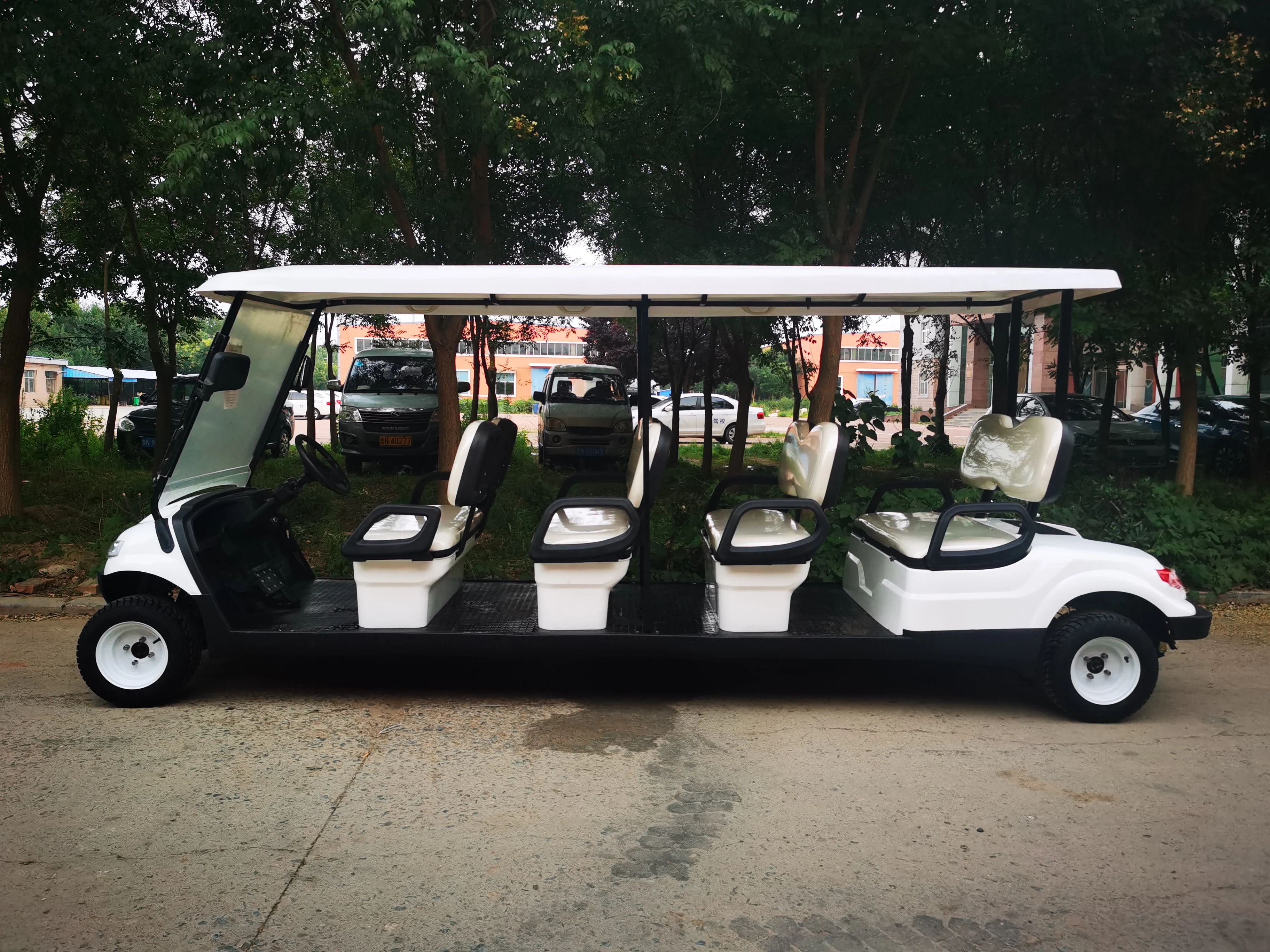

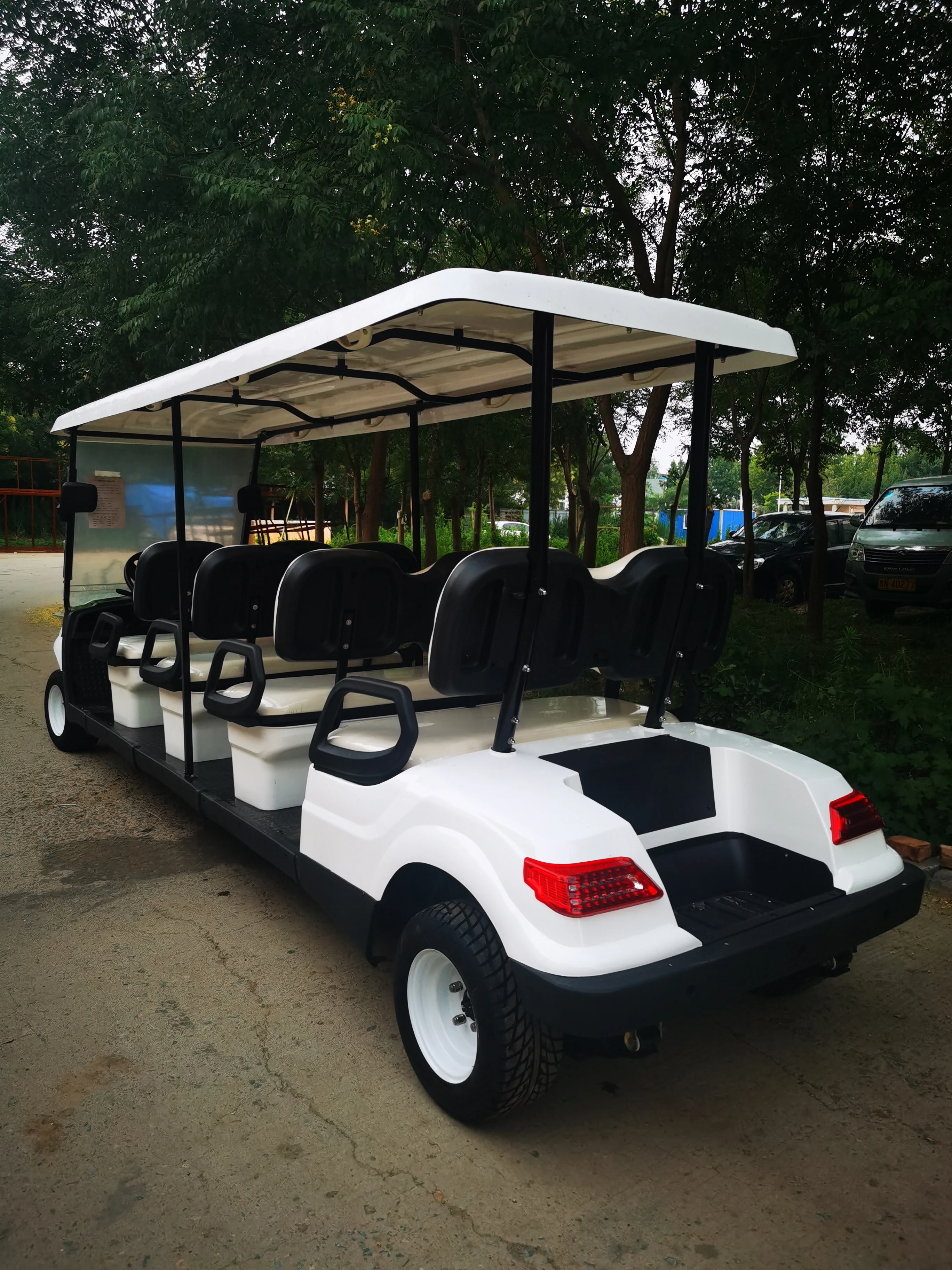

36 В, китайская электрическая тележка для гольфа, оптовая продажа, новая 4-местная тележка для гольфа с 4 колесами
466 274,37 ₽
TONGCAI оптовая продажа литиевая электрическая тележка 72 В китайская аккумуляторная батарея клуб и багги идеальный Carrito de golf electrico baja velocidad
- Категория: >>>
- Поставщик: Shandong Tongcai New Energy Machinery Co. Ltd.
Сохранить в закладки 1601112991294:
Описание и отзывы
Характеристики
➤Product Paramenters
Model specifications | Model | TCKC2 | TCKC22 | TCKC4 | TCKC42 | TCKC6 | TCKC62 | TCKC8 | TCKC82 | |||||||
Technical parameters | Overall Dimension（L*W*H) | 2500*1300*2000 | 2900*1300*2000 | 3200*1300*2000 | 3600*1300*2000 | 4000*1300*2000 | 4400*1300*2000 | 4800*1300*2000 | 5200*1300*2000 | |||||||
Passengers Capacity | 2 | 4 | 4 | 6 | 6 | 8 | 8 | 10 | ||||||||
Max.Speed(km/h) | 30 or Negotiatable | |||||||||||||||
Max.Travelling Range(km) | 80~100 | |||||||||||||||
Slope Climbing Capacity | 30% | |||||||||||||||
Turning Radius(m) | 3.5 | 3.5 | 4.6 | 4.6 | 5.7 | 5.7 | 6.7 | 6.7 | ||||||||
Minimum Ground Clearance（mm) | 150 | |||||||||||||||
Brake Distance(m) | ≤5m | |||||||||||||||
Wheelbase(mm) | 1700 | 1700 | 2400 | 2400 | 3100 | 3100 | 3850 | 3850 | ||||||||
Front/Rear Tread(mm) | Front 900mm / Rear 1000mm | |||||||||||||||
Weight(kg) | 530 | 560 | 600 | 620 | 680 | 710 | 800 | 830 | ||||||||
Electric system | Motor power (kw) | 3.5/4/5kw or customized | ||||||||||||||
Electric Controller | Enpower Fully Intelligent Controller | |||||||||||||||
Battery type | 6V 200AH /8V 150AH / 12V 100AH can choose | |||||||||||||||
Charger | Intelligent high-frequency car charger | |||||||||||||||
Charging time(h) | 8~10 | |||||||||||||||
Charging input voltage | 220V/110V | |||||||||||||||
Chassis system | Suspension | Front Torsion Beam Suspension+Integral rear axle high strength steel plate spring cartridge or customized | ||||||||||||||
Brake system | Drum hydraulic brake, double-circuit hydraulic brake and parking brake device or customized | |||||||||||||||
Steering | "Rack&Pinoin"Steering | |||||||||||||||
Motion transfer system | Continuously variable transmission | |||||||||||||||
Drive mode | Rear drive | |||||||||||||||
Exterior | Dashboard | Multi-function smart display(Bluetooth-radio-movie etc.) | ||||||||||||||
Light | LED combined headlights,turn signals,combined rear taillights,brake lights and electric | |||||||||||||||
Seat | Joint row seats (leather fabric+high resilience PU seats) | |||||||||||||||
Body material | Steel frame+injection shell /ABS engineering plastic molded parts | |||||||||||||||
Wheel | 10/12/14inch iron/aluminum wheels options | |||||||||||||||
Tire | Road and off-road tire options | |||||||||||||||
➤Our Advantages
1、Tongcai is located in the largest low-speed electric vehicle industry belt in northern China of Shandong province.We understand product trends and better meet your requirements.
2、An independent product design department can provide you with timely, efficient and high-quality services.
3、A professional sales team can provide 7*24 hours service. We also have an independent documentation department that can update your shipping information in a timely manner and assist you with customs clearance.
4、Professional QC team performs full-process quality control. We always believe that what we sell is not products, but responsibility and trust.
5、1 year warranty for the major parts, 5 years warranty for lithium battery,
Provide spare parts for free,during the warranty period.
6、In case of major situations, we can provide professional online guidance to solve problems. If it's necessary, we can send our team to local place.
➤OEM/ODM

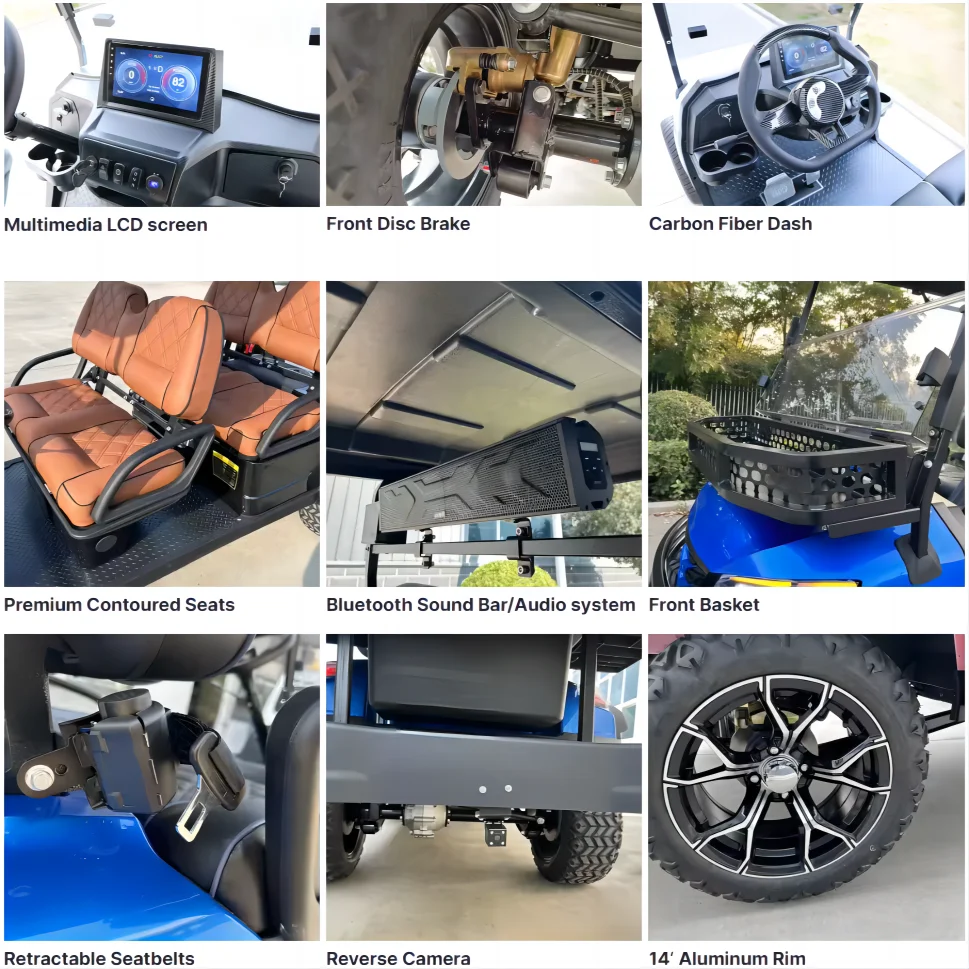

➢➢➢Show Some Details
Any Color Customization
Seat Options
Customizable Battery
Optional Suspension
Customizable Wheels
Customizable Motor
Customizable Dashboard
➢➣➢Other Customization Options

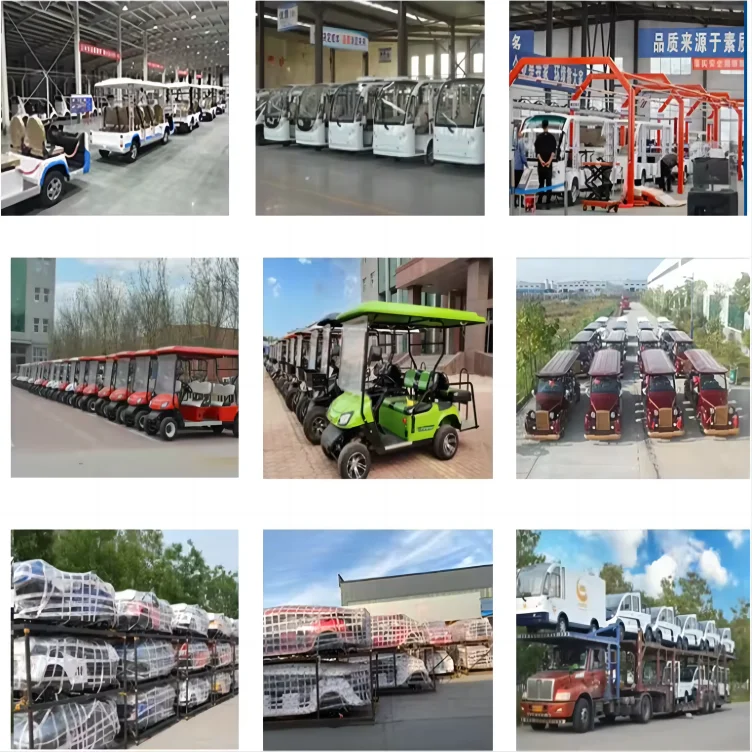

➤Packing&Delivery

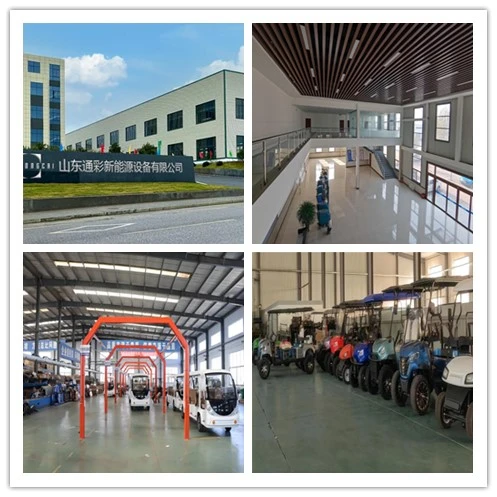

➤Company Profile
➤Certifications
➢➢➢Customer Reviews
➤FAQ
Q1. What is your terms of packing?
A1: Generally, we pack out goods in containers by iron frame. If you have special requirement
we can follow.
Q2.What is your terms of payment?
we can follow.
Q2.What is your terms of payment?
A2:T/T 30% deposit,70% balance before dispatch from factory.
Q3. How about the logo?
Q3. How about the logo?
A3:We can customize the logo for free as per your requets.
Q4. How about your delivery time?
Q4. How about your delivery time?
A4: Generally, it will take 7 to 15days after receiving your advance payment. The specific delivery time depends on the items and the qty of your order.
Q5. Can you produce according to the samples?
Q5. Can you produce according to the samples?
A5: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. How to charging the electric car, if there are any notice during the charge?
Q6. How to charging the electric car, if there are any notice during the charge?
A6: Company will send on charger along with the electric car.The charging will be finish automatically once the battery is full.
Q7. How long for the warranty?
Q7. How long for the warranty?
A7: The whole electric car have 12 months warranty.
Q8. Do you accept to customize the vehicles as per our special request?
Q8. Do you accept to customize the vehicles as per our special request?
A8: Yes, we customize vehicles as per customer's speical request with reasonable cost and lead time, as long as the customization is not related to the chassis modification.
Q9. Do you test all your goods before delivery?
Q9. Do you test all your goods before delivery?
A9: Yes, we have 100% test before delivery.
Q10: How do you make our business long-term and good relationship?
Q10: How do you make our business long-term and good relationship?
A10: 1. We keep good quality and competitive price to ensure ourcustomers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
➤Contact me
