Product Overview

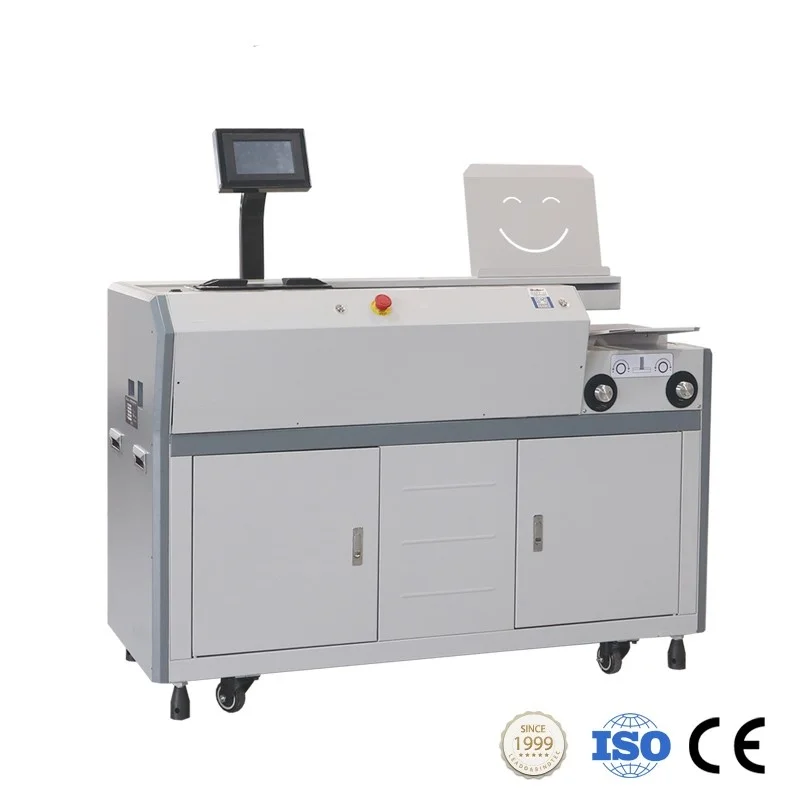

TC60A4 Glue Binding Machine with Side Glue
TC60A4 Glue Binding Machine with Side Glue
This Glue binder can be used for short runs with just a couple of books or large jobs with thousands of books. Inexpensive to
operate, The machine owing the patent of converting frequency to make speed changeably according to the book thickness., ensuring the best quality book.The capable of binding up to 200-450 books per hour.
According to various binding requirement , multiple design with all kinds of function are available for customers.
operate, The machine owing the patent of converting frequency to make speed changeably according to the book thickness., ensuring the best quality book.The capable of binding up to 200-450 books per hour.
According to various binding requirement , multiple design with all kinds of function are available for customers.
FEATURES AT A GLANCE
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model No. | TC60A4/A3 |
2 | Book Length（mm） | 330/425 mm |
3 | Book Thicness(mm) | 58 mm |
4 | Speed (books/hour ) | 200-300 books/hour |
5 | Roller Quantity | Double roller |
6 | Automatic Side Gluing | Yes |
7 | Machine Size (mm) | 1340*580*970 / 1550*580*970 |
8 | Net Weight(kg) | 220/230 |
Economic Single Roller Gluing Machine | Standard Single Roller Gluing Machine | Double Roller Gluing Machine with Side Glue | Three Roller Gluing Machine with Side Glue | Automatic Gluing Machine with Side Glue | |||
TT100 | TT300 | T60A4/A3 | TC60A4/A3 | ST60CA3 | S10000 | ||
Book Length（mm） | 310 | 310 | 330/425 | 330/425 | 425 | 320 | |
Book Thickness (mm) | 58 | 58 | 58 | 58 | 65 | 58 | |
Speed (books/hour ) | 250 | 250 | 250 | 250 | 350 | 300-450 | |
Glue Melting Time (min) | 30mins | 30mins | 30mins | 35mins | 40mins | 30mins | |
Milling Cutter | 10-teeth | 10-teeth | 21-teeth | 21-teeth | 21-teeth | High-speed Milling cutter | |
Auto anti-creasing Clamp | / | / | / | Auto anti-creasing | Auto anti-creasing | Auto anti-creasing | |
Roller Quantity | Single | Single | Single | Double rollers | Three rollers | Double rollers | |
Automatic Side Gluing | / | YES | / | YES | YES | YES | |
Thickness Measurement Speed Adjustment | / | / | / | YES | YES | YES | |
Pre-melting & Replenishing Glue | / | / | YES | YES | YES | YES | |
Vacuum Cleaner | Single | Single | Single | Single | Single | Forceful vacuum cleaner | |
Self-adaptive Thickness of Book Clamp Plate | / | / | / | YES | YES | YES | |
Power | 1500w | 1800w | 2600w | 2600w | 2600w | / | |
Dimension (mm) | 1180*500*950 | 1300*500*950 | 1240*540*980/ 1560*570*1070 | 1340*580*970 / 1550*580*970 | 1660*560*970 | 1990*1700*1085 | |
Net Weight (Kg) | 150 | 190 | 200/220 | 220/230 | 260 | 450 | |
Products Description
1. We own more than 20 patent for book binding machine
2. All products acquire the CE Certificate, ISO Certificate.
3. The special frequency converter for automatic speed adjustment.
4. Series of accessories, consumables and ready-made product on sale, on-stop service provided.
5. Online service for installation, operation, maintenance service by video talk, solving your problem more efficient.
2. All products acquire the CE Certificate, ISO Certificate.
3. The special frequency converter for automatic speed adjustment.
4. Series of accessories, consumables and ready-made product on sale, on-stop service provided.
5. Online service for installation, operation, maintenance service by video talk, solving your problem more efficient.
* 7inch touch screen
Color touch screen control, sensitive touch, newly designed operation interface, simple and convenient operation.
*Vacuuming fan
Large fan can vacuuming completely and avoid
paper scrap go into the glue groove
paper scrap go into the glue groove
* single roller gluing
A major gluing roller glue evenly with special texture deign, not easy to produce Vhollowing, and gluing more firmly
* Intelligent circuit design
With well-known brand components, quality can assurance
* Roller adjusting wheel
According your certain need, adjust the final effect
* Strong milling cutter
The sun cutter for better milling effect, evenly distributed tool slots, and firmer glue
binding
binding
* Clamp plate lifting and Quick disassembly design patent
Clamp plate lifting can increase depth of milling, meeting different materials gluing binding requirement. Quick disassembly can
clean the the residual glue at the bottom
clean the the residual glue at the bottom
* High speed and low speed can change freely
Running speed is adjustable, choosing the mode of high
or slow binding speed, improving the binding efficiency.
or slow binding speed, improving the binding efficiency.
