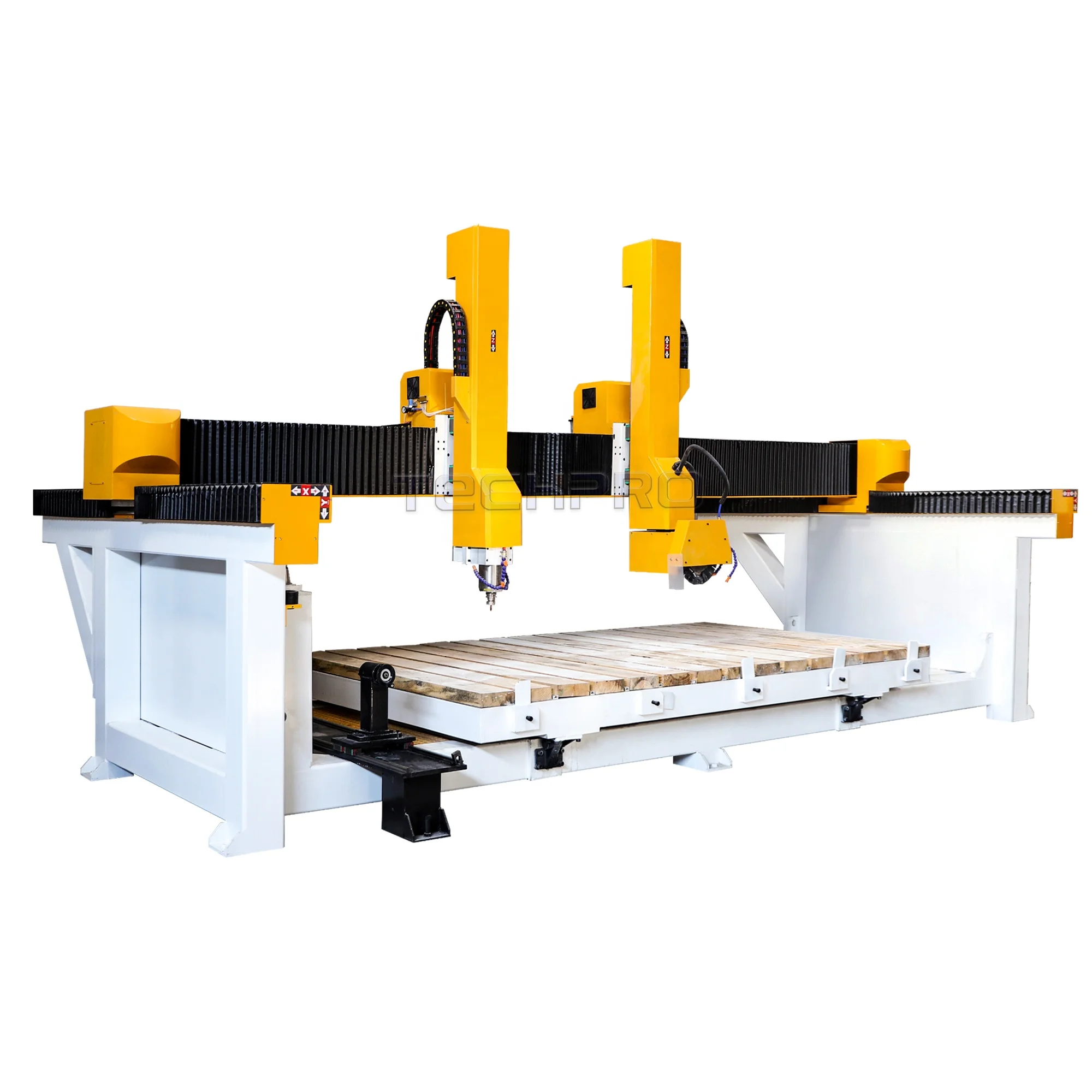

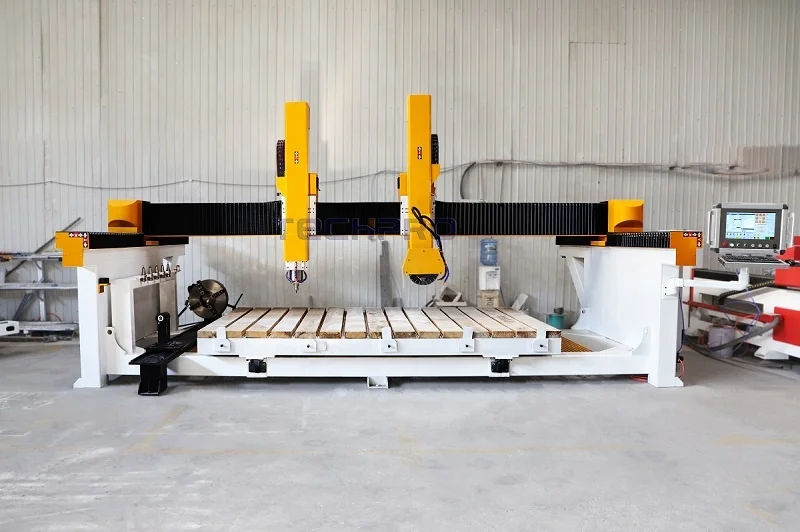

Новый Запуск ЧПУ резьба по мраморному гранитному камню машина 3D скульптура 4 оси ATC с вращающимся лезвием пилы
- Категория: >>>
- Поставщик: Jinan TechPro CNC Equipment Co. Ltd
Сохранить в закладки 1601113480991:
Описание и отзывы
Характеристики

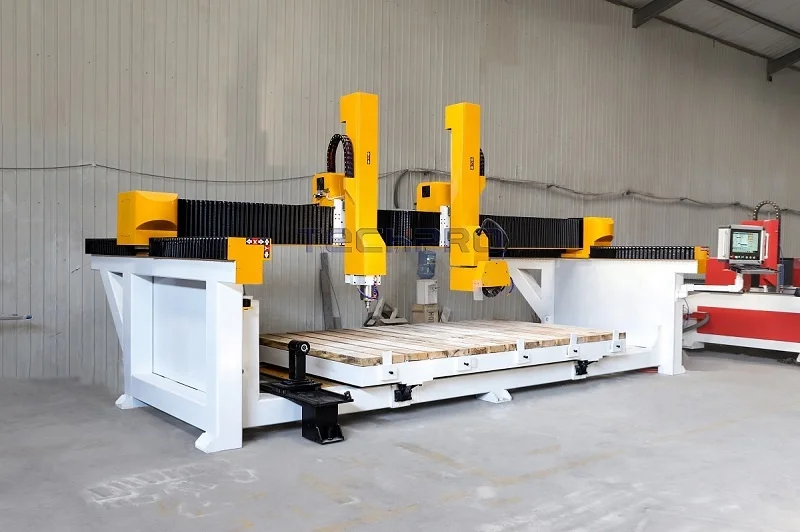

New Launch CNC Carving Marble Granite Stone Machine 3D Sculpture 4 Axis ATC Machine With Rotate Saw Blade
Products Description
TechPro 4 Axis Saw Stone CNC Router Features :
1. The machine bed is welded with thick-walled steel pipes and is tempered at high temperature to ensure that the machine body does not deform, has good rigidity and high strength.
3. It uses a high-power saw blade spindle of 12.8kw, a saw blade diameter of 350mm, and can rotate and cut from 0 to 90 degrees and -90 to 0 degrees.

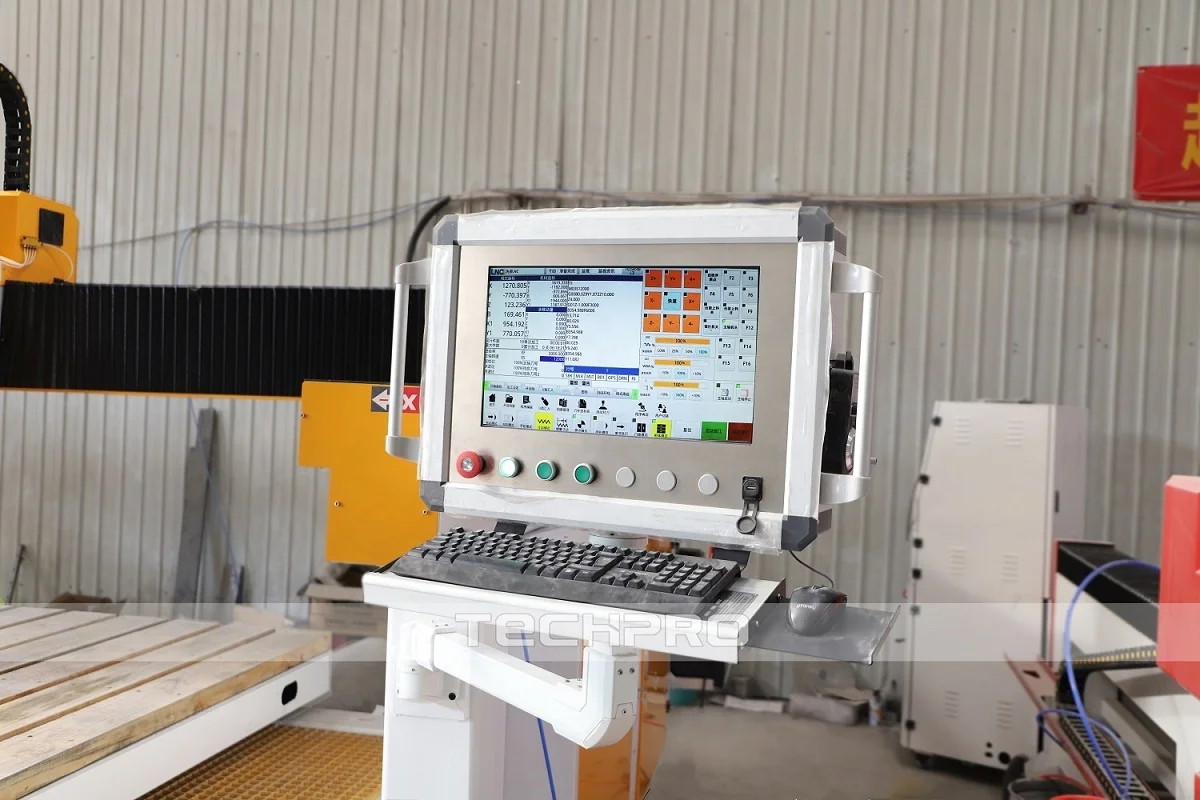

4. TechPro 4 axis stone cnc router cutting machine adopts adopt Taiwan LNC control system, easy to operate, able to support various drawing team building, can realize the processing of two heads with different processes, and improve processing efficiency.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
2. It has the functions of automatic table turning, automatic tools changer and 4th rotary axis working.
3. It uses a high-power saw blade spindle of 12.8kw, a saw blade diameter of 350mm, and can rotate and cut from 0 to 90 degrees and -90 to 0 degrees.
4. TechPro 4 axis stone cnc router cutting machine adopts adopt Taiwan LNC control system, easy to operate, able to support various drawing team building, can realize the processing of two heads with different processes, and improve processing efficiency.
5. High-precision screws and guide rails: All screws and guide rails are imported. The X and Y axis adopt oil-immersed lubrication method. In addition, the effective waterproof and dustproof structure ensures high processing accuracy and maximizes the service life of the screw and guide rail.
Application of TechPro 4 Axis Saw Stone CNC Machine :
1. Applied materials:
The stone engraving machine is suitable for three-dimensional relief, pointed bottom engraving, flat bottom engraving, line engraving, chamfering, drilling, etc. of various stones such as marble, granite, jade, bluestone, black stone, etc. It is specifically used for stone engraving, stone relief, stone positive engraving, stone negative engraving, stone line engraving, stone cutting, stone hollowing.
2. Application industries:
It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
2. Application industries:
It is suitable for stone industry, stone tablet processing industry, artistic relief, advertising industry, decoration and decoration industry, ceramic industry and construction industry, etc.
Machine Configuration
Model | TPS2032ER-2 |
Working area | 3200*2000*1200mm (Optional 3000*1500*1200) |
Control system | TechPro customization 5 axis control system |

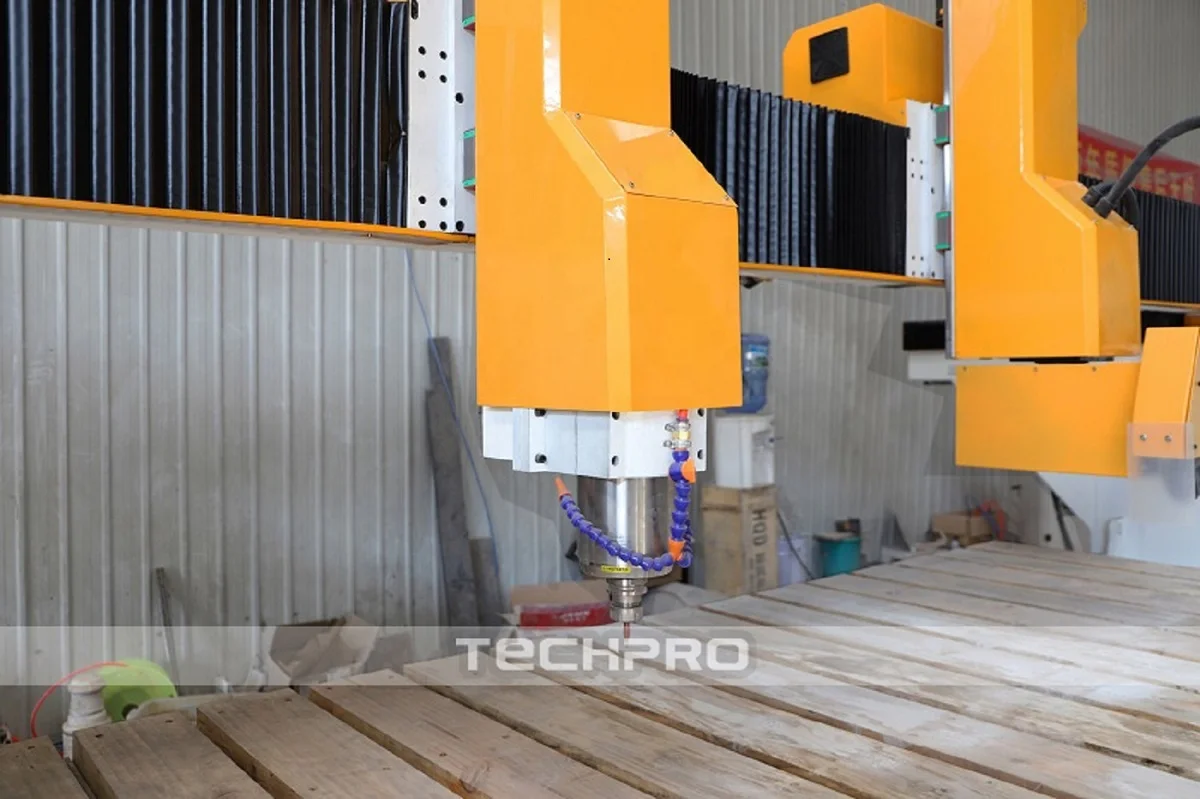

Spindle 1 | China HQD 12kw water cooling spindle ( 0-24000rpm ) |
Spindle 2 | China HQD 12.8kw saw blade head (Can rotate 0-180 degrees) |
4 Axis Processing | X Y Z C A axis |
Motor and Driver | Japan Yaskawa AC servo motor and driver 850W |
Inverter | Taiwan Delta inverter |
Table surface | Slide wood Lifting Table |
Structure | Heavy Duty 10mm steel machine bed; 18mm Moving Steel Gantry |
Lubrication system | Manual lubrication system |
Transmission | X,Y axis: rack and pinion drive Z axis: Taiwan TBI 3205 ball screw X,Y axis: Taiwan Hiwin square guide rails with 30mm |
Electric Parts | Schneider brand |
Software | Artcam/Ucancam / Aspire /Fushion360 etc |
Working Voltage | 380V or 220V /3phase/1 Phase |
Extra Functions | Double head type design |
8Pcs Linear Automatic tool changer | |
Automatic table turning | |
4 Axis rotary device diameter 300* length 2000mm |
