Самообслуживание киоск карты диспенсер принтер

Model

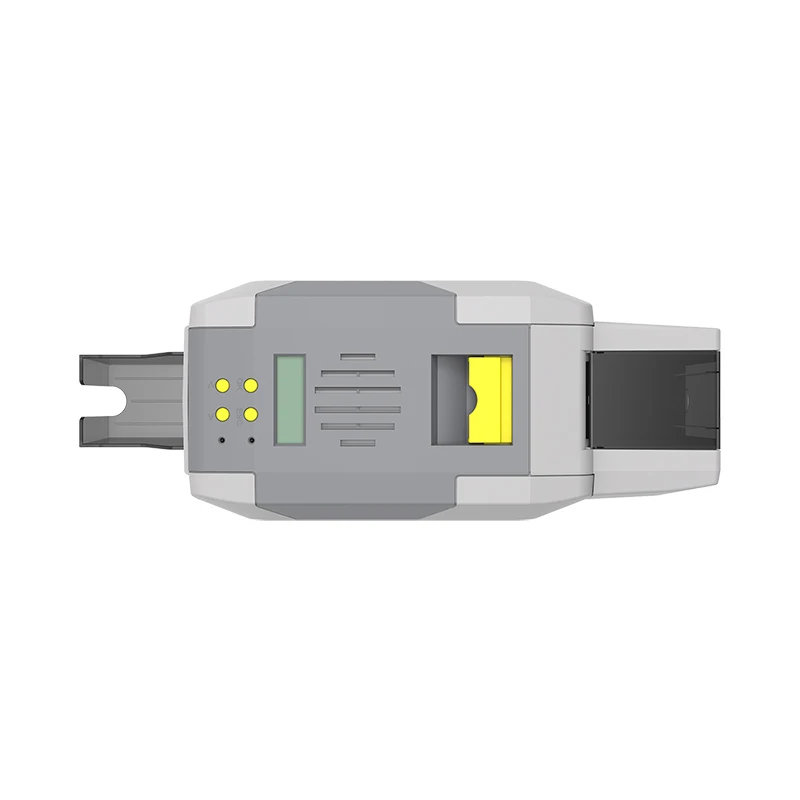

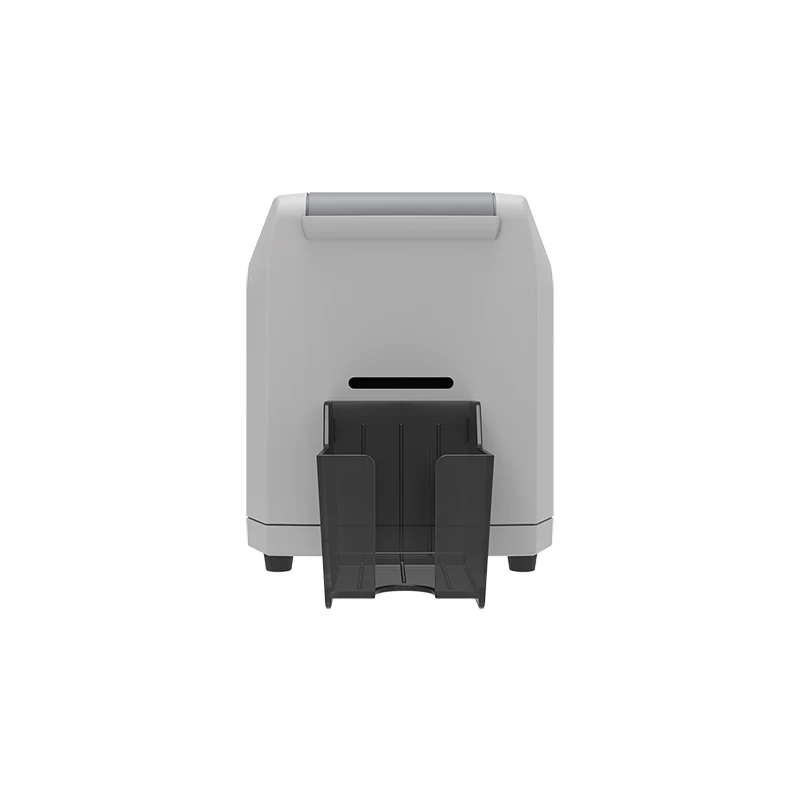

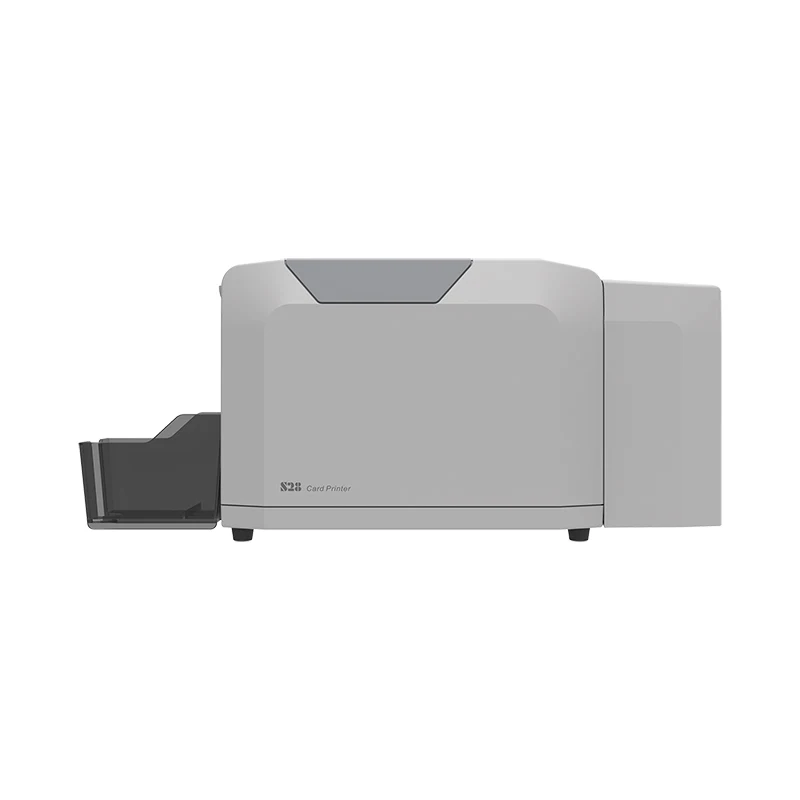

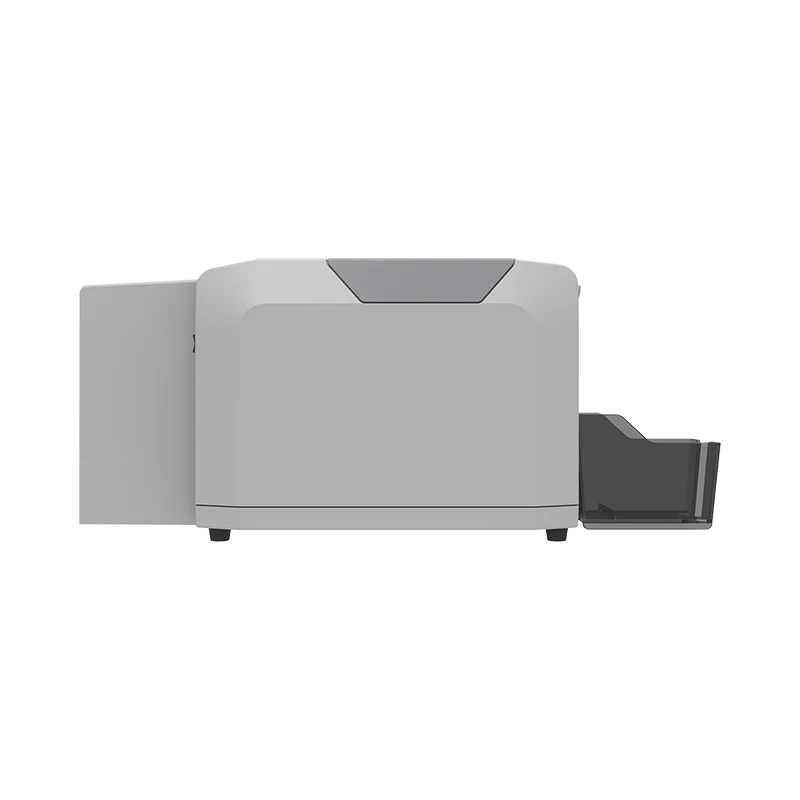

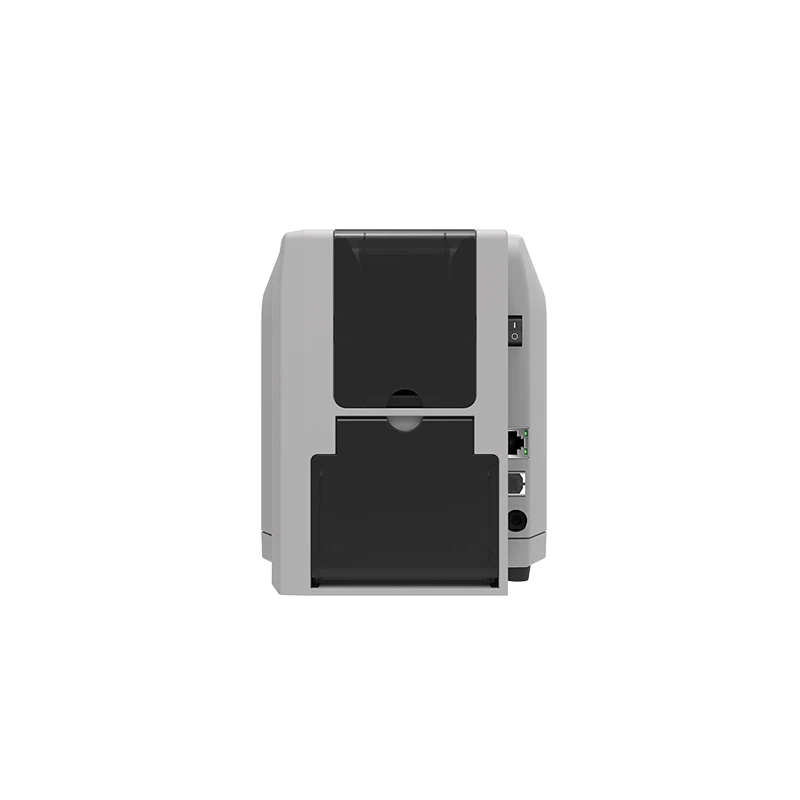

S28 / Desktop Dual-sided Card Printer

Specifications

383 × 174 × 208 (mm), 4.6Kg  without output hopper

Interfaces

USB & Ethernet

Input Capacity

100 cards

Output Capacity

50 cards

Print Speed

Monochrome printing: 3~5 s per card(single-sided) / 7~9 s per card(dual-sided);

Full-color(YMCKO) printing: 18 s per card(single-sided) / 37 s per card(dual-sided).

Card Material

PVC / Composite PVC / Other material upon request and validation

Power

AC 100~240V, 50/60 Hz, DC 24-25.5V, 2.7 A

Print Dimension

ISO CR80 (53.98mm×85.60mm), edge-to-edge printing

Print Resolution

300dpi × 300dpi ,300dpi × 600dpi ,300dpi × 1200dpi

Memory

128MB

Print Method

Dye sublimation (Direct-to-card)

Card Thickness

0.3-1.05mm

LCM Display

Chinese: 8 characters per line, 2 lines / English: 16 characters per line, 4 lines / Multi-language

Operation System

Driver: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, and NeoKylin, Kylin, UOS and other made-in-China operating system.

Development Kit: Support Windows XP/7/8/10/11, Windows Server 2003/2008/2012/2016, Linux, and NeoKylin, Kylin, UOS and other made-in-China Operating System

Card Design Software: iCARDE card design software, support Windows XP/7/8/10 operating systems

Warranty

Card printer : 24 months (artificial damage excluded) / Print head: Replace one for free within 1 year (artificial damage excluded)

Operating

Condition

1. Regular running temp.: 15℃-30℃(59-86℉), 20%~65% RH non-condensing

2. Lowest / Highest running temp.: 0℃(32℉) / 40℃(104℉), 20%~65% RH non-condensing

Storage Condition

Temp.: -5℃-70℃(23-158℉), 20%~70% RH non-condensing

Certificates

CCC, FCC, CE, ROHS, UKCA
