Specification


Product name
LED linear light-5568
Product size
L1200*W55*H68mm
Material
aluminium+PC
Surface treatment
Teflon or Powder coated
Color Option
black/white
Input voltage
85-240V 50/60HZ
Wattage
30W/36W/42W
CCT
3000K/4000K/6000K
Luminous Efficacy(lm/w)
100lm/w
LEDs life span
50000H
Color Render(CRI)
RA≥80 or RA≥90
Power Factor(PF)
≥0.9
Beam Angel
120°
Optional Features
0-10V dimming,DALI dimming,2.4G dimming,CCT dimming
IP Rate
IP20
Working Temp(℃)
-20℃-40℃
Certification
CE,ETL,FCC,ROHS,CCC
Warranty
3 Years


Product Features











Aluminum Profile
The light housing is made of high quality aluminum alloy material.Powder coating, corrosion resistance, easy to clean.






HIGH CRI
Beautiful natural light
High-quality LED chip,the real "CHIP" is different,using LED chips to restorethe true color of the object, strong heat dissipation, refused to splash screen to protect the eyes and health


Product Specification


Model No.
Product size
Voltage
Wattage
Efficacy
PF
CRI
Certificate
BTD5568-2436A0
2400x55x68mm
85-277V / 220-240V
72W
>100lm/w
>90
>80
ETL , CE
BTD5568-1836A0
1800x55x68mm

85-277V / 220-240V
54W
>100lm/w
>90
>80
ETL , CE
BTD5568-1536A0
1500x55x68mm
85-277V / 220-240V
45W
>100lm/w
>90
>80
ETL , CE
BTD5568-1236A0
1200x55x68mm
85-277V / 220-240V
36W
>100lm/w
>90
>80
ETL , CE
BTD5568-1030A0
1000x55x68mm
85-277V / 220-240V
30W
>100lm/w
>90
>80
ETL , CE
BTD5568-0927A0
900x55x68mm
85-277V / 220-240V
27W
>100lm/w
>90
>80
ETL , CE
BTD5568-0618A0
600x55x68mm
85-277V / 220-240V
18W
>100lm/w
>90
>80
ETL , CE
BTD5568-0309A0
300x55x68mm
85-277V / 220-240V
9W
>100lm/w
>90
>80
ETL , CE
90°splicing
150x150x68mm
85-277V / 220-240V
9W
>100lm/w
>90
>80
ETL , CE
120°splicing
228x157x68mm
85-277V / 220-240V
9W
>100lm/w
>90
>80
ETL , CE
T splicng
245x150x68mm
85-277V / 220-240V
12W
>100lm/w
>90
>80
ETL , CE
Y splicing
225x260x68mm
85-277V / 220-240V
12W
>100lm/w
>90
>80
ETL , CE
十 splicing
245x245x68mm
85-277V / 220-240V
15W
>100lm/w
>90
>80
ETL , CE


Installation
A variety of installation methods, enjoy the changeable visual space fun

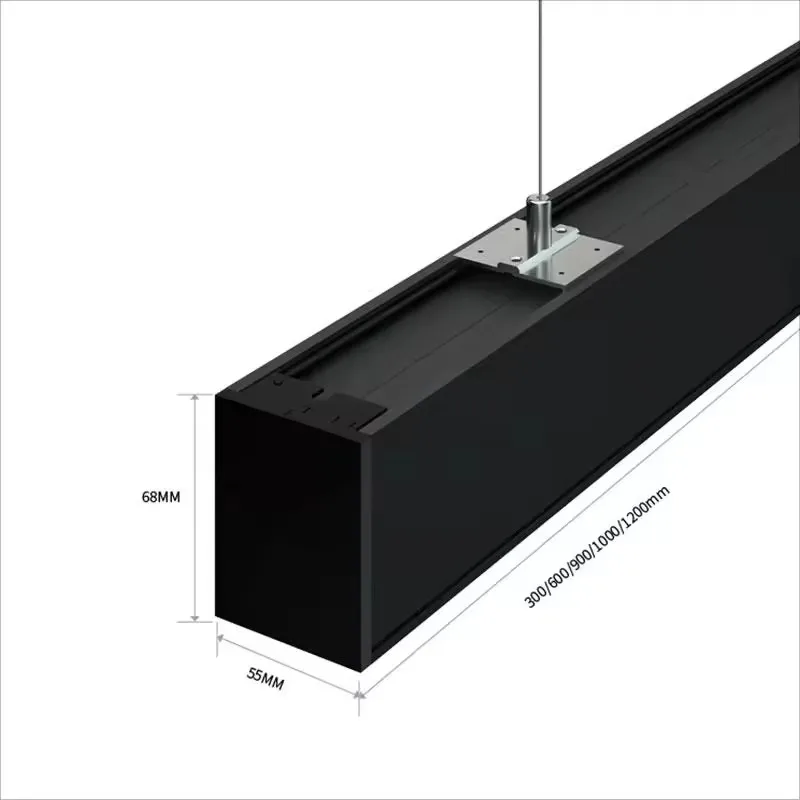

Size Diagram
A variety of lengths and spliced shapes, experience a different sense of space


Light Distribution
The illumination data is in full view

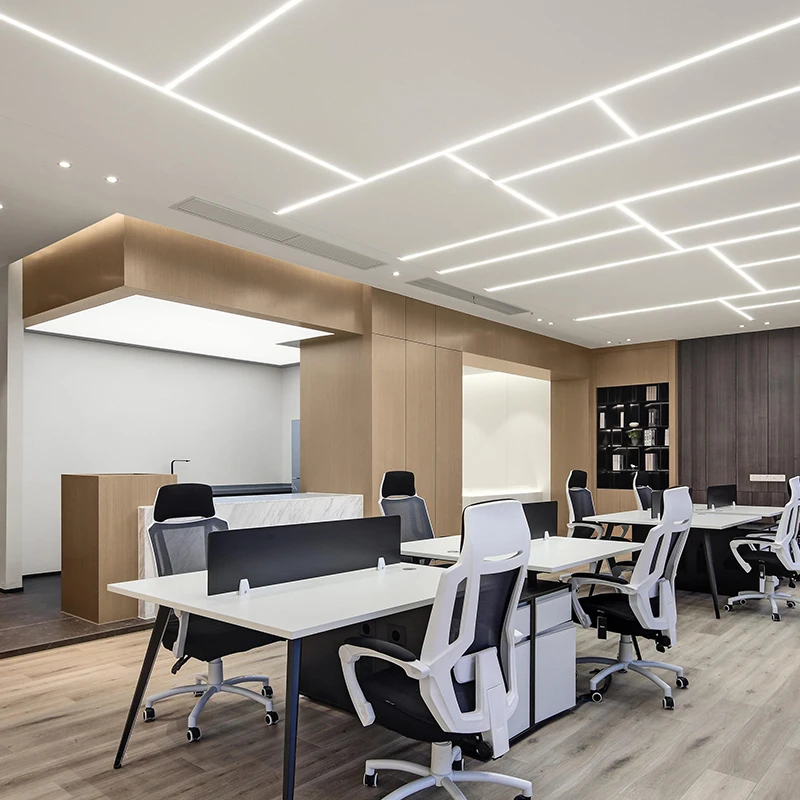

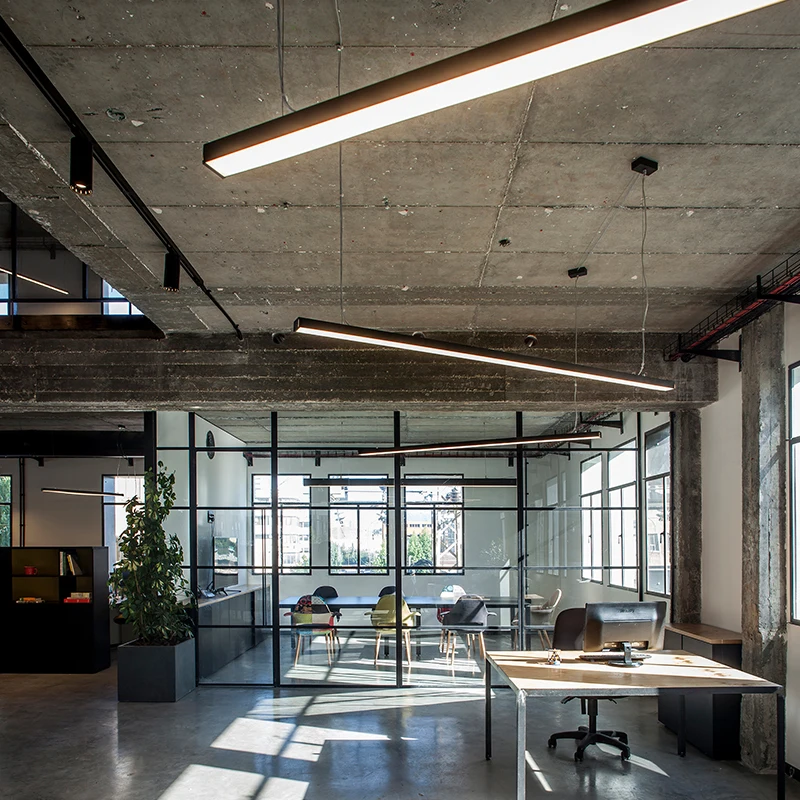

   Office
Dining Room


Meeting Room
School


Public Buildings
Drawing Room


Why Choose Us


1.Barrina led linear lights adopt international invention patents to solve industry pain points faced during production,
installation and after-sales in the linear light field.

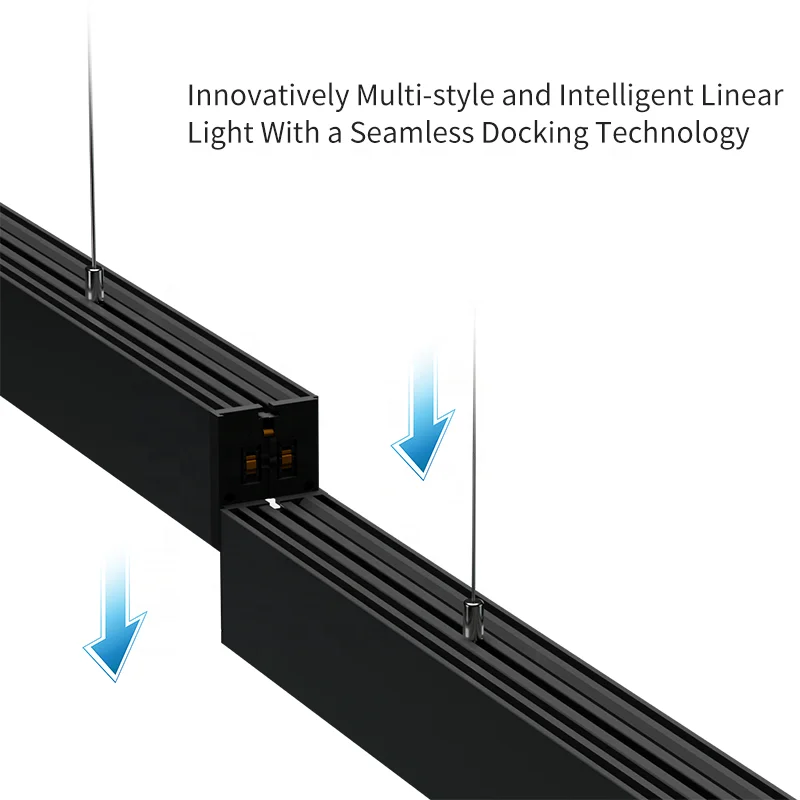

2.Seamless docking technolog make the lights link easily, changed the status quo that linear light have to reprocessing on the building site,eliminate a series of quality and process hazards caused by installation. you could link up to 15 lights in a series or use them individually.

3. The products are standard and integrated , convenient during production,package,shipping,installation and after-sales.

4. The lights have constant current and constant voltage intelligent control system, making they have high light efficiency and long lifespan.It is a great option for schools, commercial, office, hotel, exhibition, high-speed rail station, airport and other high-demand places, bring you the most comfortable environment all the time.


Customer Photos




Feedback




Packing & Delivery




Company Profile








Zhongshan Mingcai Intelligent Lighting Technology Co., Ltd. is a professional manufacturer of LED office light, LED Grow Light,LED Commercial Light, Aquarium Light, Indoor Light and other intelligent innovative lighting. We focus on R&D, manufacturing and sales of new function projects or lighting solutions, and obtained a number of invention, utility model and design patents in the industry. The latest design concept and powerful design team with more than 10 years of experience, enable us to launch practical and convenient products continuously and customize more than 20 new products for customers every year to meet customers' demand.
The main products are LED linear light, T5/T8 LED tube light ,LED grow light panel, LED grow light bar Etc.After continuous
development, our products become the hot sellers in the United States, Europe, Japan, Korea and other countries and regions. The factory covers an area of 18,000 square meters, have strict quality management system, testing equipment and automatic production lines, have passed ISO9001:2015.
Innovation and excellence, think what you think is the brand philosophy of Zhongshan Mingcai Intelligent Lighting Technology Co., Ltd. With our in-depth research on the global market and key technology engineering and manufacturing capabilities, we constantly create new functional products and series of solutions for consumers. OEM,ODM, MDM,RTS service are available.If you have any new ideas or concepts for the products, please contact us. We are glad to work together with you.
