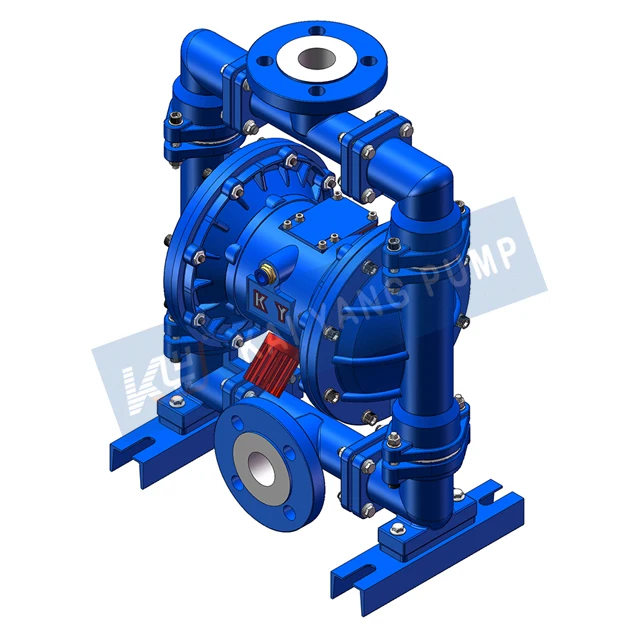

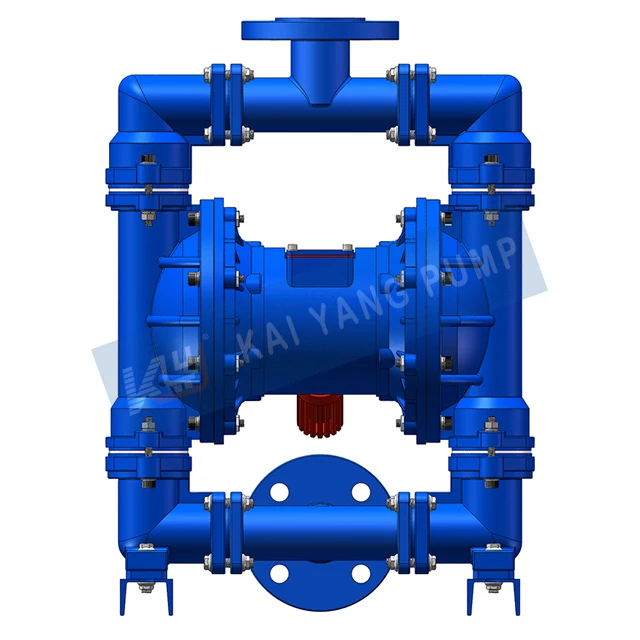

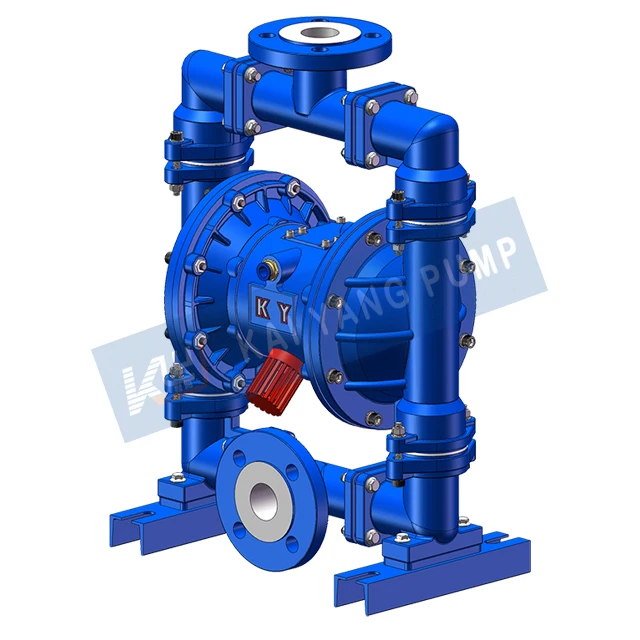

KYQ40LC PTFE мембранный насос внутренняя накладка пневматическая диафрагма вода это своего рода высокопроизводительный транспортировка жидкости

Описание и отзывы

Характеристики

Pump Body Material:	Cast steel lined with PTFE
Air Motor Material:	Aluminum Alloy
Pump Weight:	About 99 lbs
Air Inlet Size:	1/2 in BSP
Fluid Inlet/Outlet Size:	1½ in Flange PN10
Max.Suction Height:	Dry:5m  Wet:8m
Max.Flow:	43.8GPM
Max.Working Pressure:	109PSI
Max.Permitted Grain:	3/16 in



Performance Curves And Dimensions

The Meaning Of Pump Model

Model Selection Table

Installation Instruction Diagram

1. No irrigation water is required, the suction range is up to 7 meters, the head reaches 70 meters, and the outlet pressure is up to 7bar
2. Good passing performance, allowing the maximum particle diameter up to 10 mm.
3. The head and flow can be adjusted stepless (the pressure is adjusted between 1-7bar) through the opening of the air valve.
4. The teflon diaphragm pump has no rotating part and no shaft seal. The diaphragm will separate the pumped medium from the motor part of the pump.
5. Do not use electricity. It is safe and reliable to use in flammable and explosive places
6. Diaphragm water pump can work in the medium
7. Easy to use and easy to start and stop, simply open and close the gas valve. Even if the pump runs without medium for a long time due to unexpected circumstances or stops suddenly, it will not be damaged.
8. Simple structure, less vulnerable parts, simple structure and convenient installation and maintenance;
9. Since the pneumatic diaphragm water pump is powered by air, the flow rate is adjusted automatically with the change of back pressure (outlet resistance), which is suitable for medium and high viscosity fluids.
10. Pneumatic teflon diaphragm pump is reliable and low cost in flammable and explosive environment.
11. In bad places at construction sites, such as construction sites, industrial and mining waste discharge, pneumatic diaphragm pump can pass through particles and flow can be adjusted, and the pipe will stop automatically when blocked.
12. Fluorine-lined pneumatic teflon diaphragm pump can be used to transport fluid with relatively unstable chemical properties, such as photosensitive materials, flocculation fluid, etc. This is because the diaphragm water pump shear force is low, the physical impact on the material is small.
