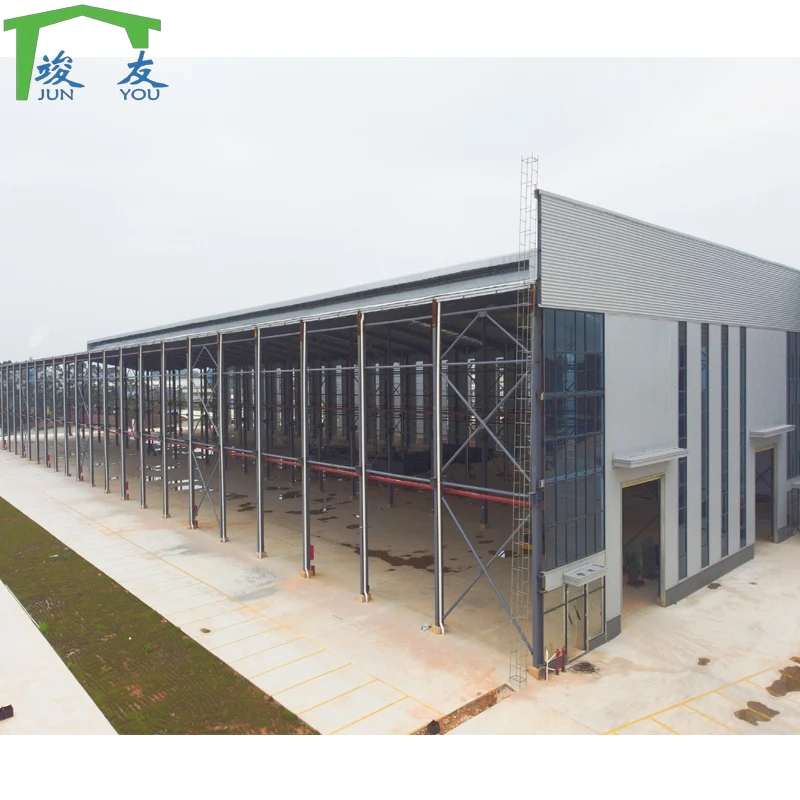

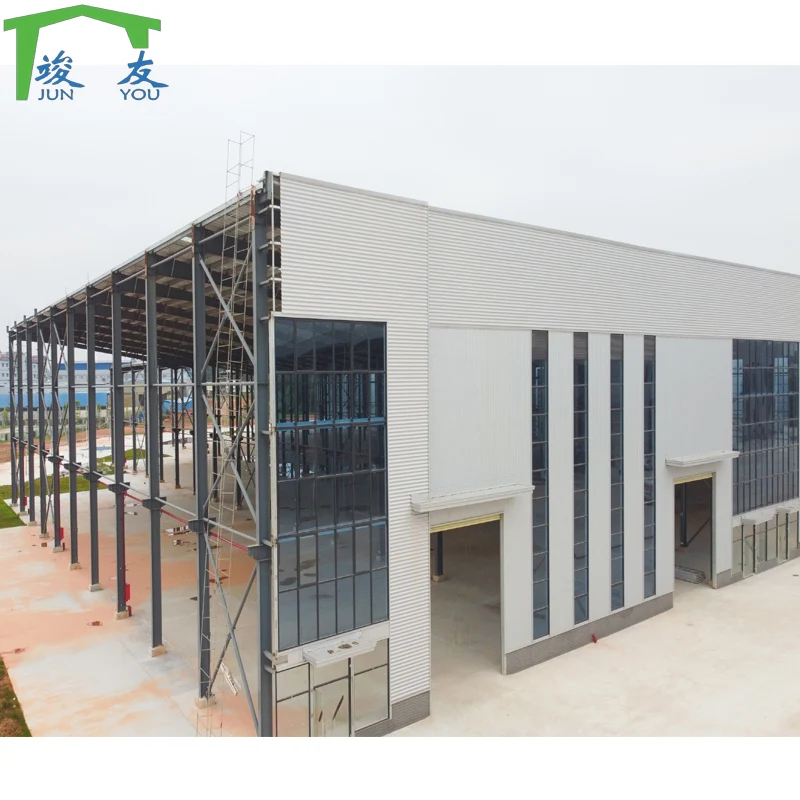

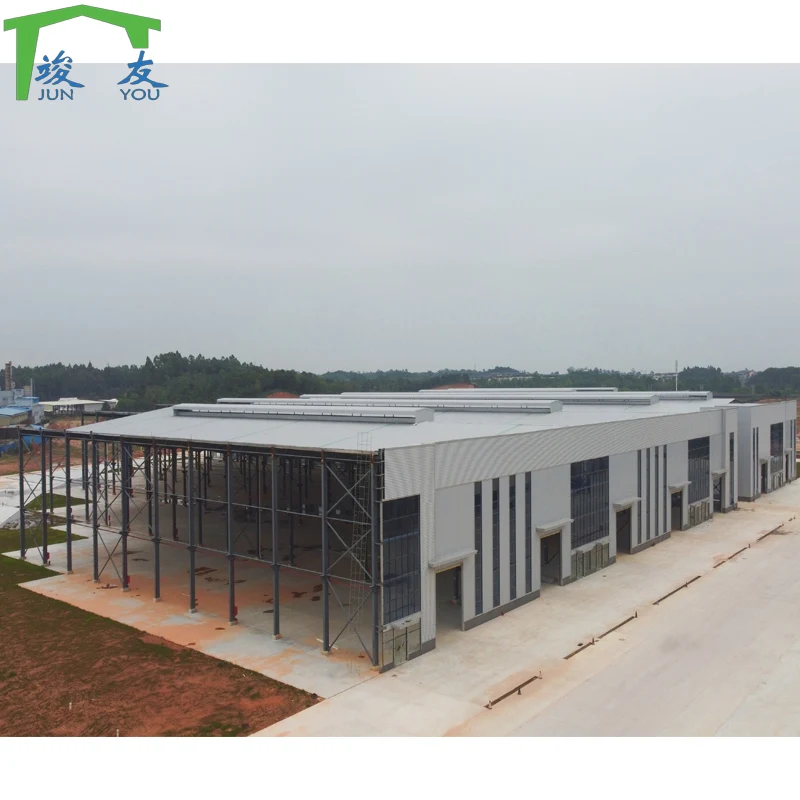

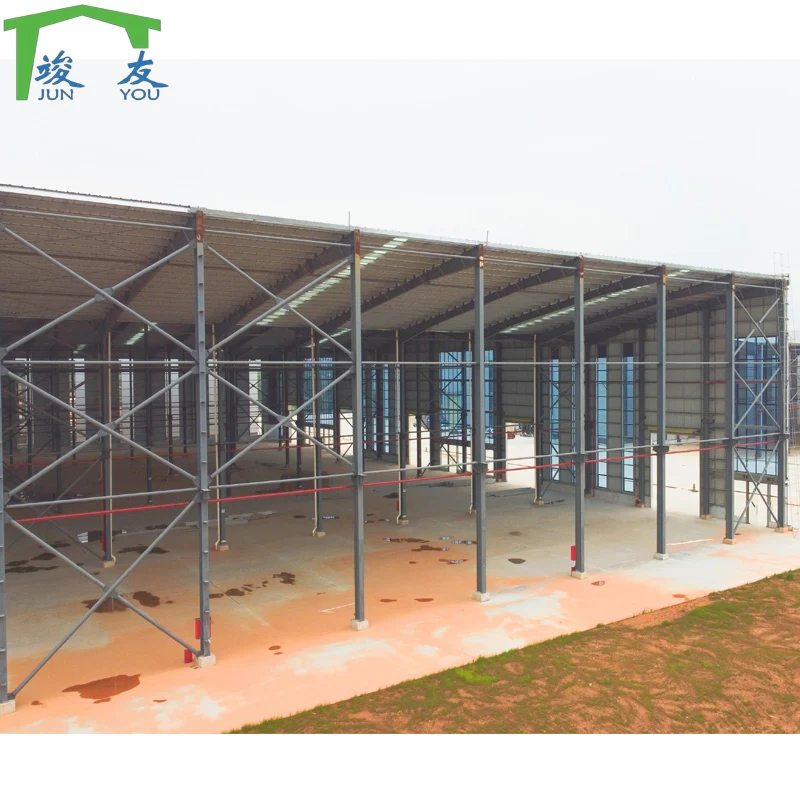

Металлическая каркасная конструкция здание промышленное хранилище стальная Складская мастерская сборное стальное
- Категория: >>>
- Поставщик: Guangdong Junyou Steel Structure Co. Ltd.
Сохранить в закладки 1601113874397:
Описание и отзывы
Характеристики
VR
Products Description
Steel Structure Buildings/ Prefabricated Buildings/ Multi Storey Steel Building/ Metal Buildings
Steel structure buildings are known for their strength, durability, and ability to accommodate large spaces and heavy loads. They are commonly seen in industrial plants, warehouses, multi-story buildings, and other structures where structural integrity and efficiency are crucial.
Steel Building Application
Steel Building Application
Steel building applications cover a wide range, including industrial facilities for factories, warehouses, manufacturing plants, and commercial fields for shopping malls, office buildings, and residential buildings.
Customer Visiting
Project Case
Details Images
Product Paramenters
I >>Main Steel Structure | ||||||||
1. | Column / Pillar/ Post | Welded H steel section | Q235B/Q355B | Painting/Hot-dip galvanized | ||||
2. | Beam/ Roof truss | Welded H steel section | Q235B/Q355B | Painting/Hot-dip galvanized | ||||
II >> Sub-steel Structure | ||||||||
1. | Wall/Roof purlin | C/Z steel | Q235B | Galvanized | ||||
2. | Tie rod | ∅89/114/158mm | Q235B | Painting/Hot-dip galvanized | ||||
3. | Flexible Bracing | ∅16/18/20mm | Q235B | Painting/Hot-dip galvanized | ||||
4. | Sag rod (straight/inclined） | ∅12 steel bar | Q235B | Galvanized | ||||
5. | Brace Rod | ∅35*2.5mm | Q235B | Galvanized | ||||
6. | Knee-brace | L50*4.0mm | Q235B | Galvanized | ||||
III >> Roof & Wall | ||||||||
1. | Roof /Wall panel | Steel sheet/Metal sheet | 0.326~0.8mm corrugated steel sheet | 0.326~0.7mm corrugated steel sheet | ||||
2. | Insulated sandwich panel | EPS,Glass wool/Rock wool/PU insulation | ||||||
2. | Roof/Wall trimmings | Ridge roof panel | 0.4~0.5 mm steel sheet | |||||
Flashing | 0.4~0.5 mm steel sheet | |||||||
Gable wall trimming | 0.4~0.5 mm steel sheet | |||||||
Wall corner trimming | 0.4~0.5 mm steel sheet | |||||||
IV >> Window & Door | ||||||||
1. | Window | PVC/Aluminum frame | Single/double glazing (Fixed/sliding/swing) | |||||
2. | Door | Roll up door /sliding door | Automatic and manual method | |||||
V >> Accessories | ||||||||
1. | Bolts | Anchor bolts,High strength bolts,Galvanized bolts,Turnbuckle,shear stud | ||||||
2. | Gutter | Steel sheet/galvanized/Stainless steel(304) | ||||||
3. | Downpipe | PVC 110/160 | ||||||
4. | Roof Ventilator | ∅600 (Galvanized) | ||||||
5. | Floor Plate (Mezzanine) | Galvanized floor decking / 18~20mm Cement board | ||||||
Drawing Design /Model Design
Drawing Design
We need the following information to make a design for you: the specifications and use of the steel building, thermal and lighting conditions, window and door requirements, wind/snow load, and whether it has a crane.
Models Design
Our company offers full design and detailing services to every customer.（PKPM, AutoCAD, Tekla).And our design team turns your requirements into clear drawings, offer 3D drawings for installation guidance, and ensures every detail is easily understandable.
Installation Steps
Packing & Delivery
Sandwich panel load method:
Wall panel: 950mm/1150mm width loading
Roof panel: 1050mm width loading Thickness: 50/ 75/ 100mm
Steel sheet/ Metal sheet load method：
Wall panel: 900mm width
Roof panel: 80mm width
Thickness: 0.5~0.8mm
Steel structure frame load method -1:
Steel structure frame can be shipped by 40' open top container or 40' HQ container.
The open-top container is convenient for loading and unloading, as they can be loaded and unloaded materials one by one using a crane. However, the shipping cost is high.
The open-top container is convenient for loading and unloading, as they can be loaded and unloaded materials one by one using a crane. However, the shipping cost is high.
Steel structure frame load method - 2:
The 40'HQ container can use a steel pallet to pack the materials, the whole pallet of goods will be pushed or pulled in and out of the container. The shipping cost will be cheaper but will increase the cost of the pallet, which is about 1 ton of steel cost.
Steel structure frame load method - 3:
Our most common way of loading cabinets is to use 40'HQ without pallets, which is the cheapest way to load containers.
1* 40'HQ can load about 450~500 square meters steel structure frame, around 20 tons.
Company Profile
JY Steel Structure
We are a FACTORY specializing in the design, supply, and fabrication of steel buildings. We manufacture prefabricated steel building services for industrial, commercial, and agricultural fields.
We are in Foshan City, Guangdong, China, which is close to Foshan/Guangzhou/Shenzhen Port, and convenient for delivery. Our processing and painting workshop covers an area of more than 20,000 m2 and is equipped with an advanced steel structure production line and skillful JY members.
From the very beginning of steel raw material cutting to the final painting each process is precise with strict quality control.
We are in Foshan City, Guangdong, China, which is close to Foshan/Guangzhou/Shenzhen Port, and convenient for delivery. Our processing and painting workshop covers an area of more than 20,000 m2 and is equipped with an advanced steel structure production line and skillful JY members.
From the very beginning of steel raw material cutting to the final painting each process is precise with strict quality control.
Production processing
FAQ
Q1.Are you a trading company or a factory?
We are a factory, that processes our steel structure orders in our workshops. Welcome to our factory to see our products and discuss your project.
Q2.What is the wind speed the steel structure you designed to withstand?We usually quote the wind load based on 100 ~110 km/h. We can also design for some countries and regions where the wind load is greater than this.
Q3. I need a steel structure warehouse but I only have the floor area info. Can you help us design it?
We can design according to your floor area and functional uses, and recommend suitable materials according to his budget.
Q4. How high are your warehouses usually?
The common warehouse we design is around 6m~8m, mainly based on considerations of building structure and economic benefits.
Q5. We want to ship the anchor bolt in advance, can you arrange it?
We can send the anchor bolts to your container loading place in advance around Foshan/ Guangzhou/ Shenzhen to ship your other goods.
