Product Applications
Application Scenario
When you work in the above scenarios, you will use our products smart safety harness monitor to better protect the staff's safety.
Safety warning

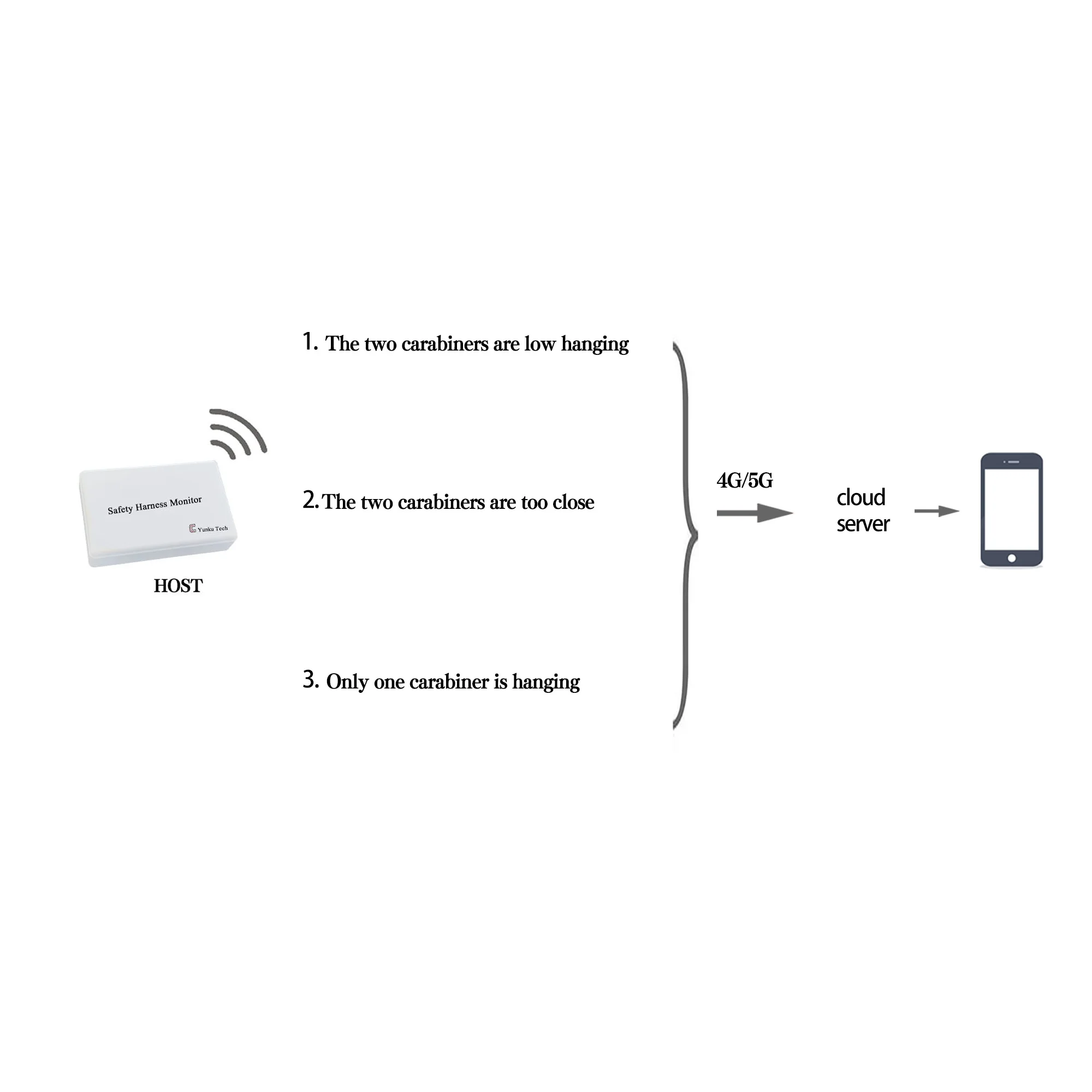

If a worker does not use the safety harness correctly, then our Smart safety harness monitor will signal them to work properly.
In addition to the workers themselves being able to see the usage, the supervisors can also see the crew's work loading in real time on their cell phones. To ensure the personal safety of the staff
Specification
Model Number | SBM1000-4g |
Size | Host machine 92*59*23mm Auxiliary machine 67*36*20mm |
Material | ABS |
Power Supply | Rechargeable lithium battery |
Battery Capacity | Host machine2200mAh Auxiliary machine1000mAh |
Working Current | Host machine: alarm current <300mA, normal working current <150mA Auxiliary machine: sleep current <50uA, normal working current <650uA |
Battery Life | Host machine: operating time: 320 hours Auxiliary machine: operating time: 1440h, standby time: 16800h |
Reminder Feature | Voice reminder |
Monitoring Frequency | 5S |
Weight | Host machine: 107g Auxiliary machine: 36g |
Communication Technology | 4G/UWB |
Communication Protocol | Private Protocol |
Positioning Technology | GPS+BeiDou |
Operating Temperature | -20~60℃ |
Operating Humidity | <90%RH |

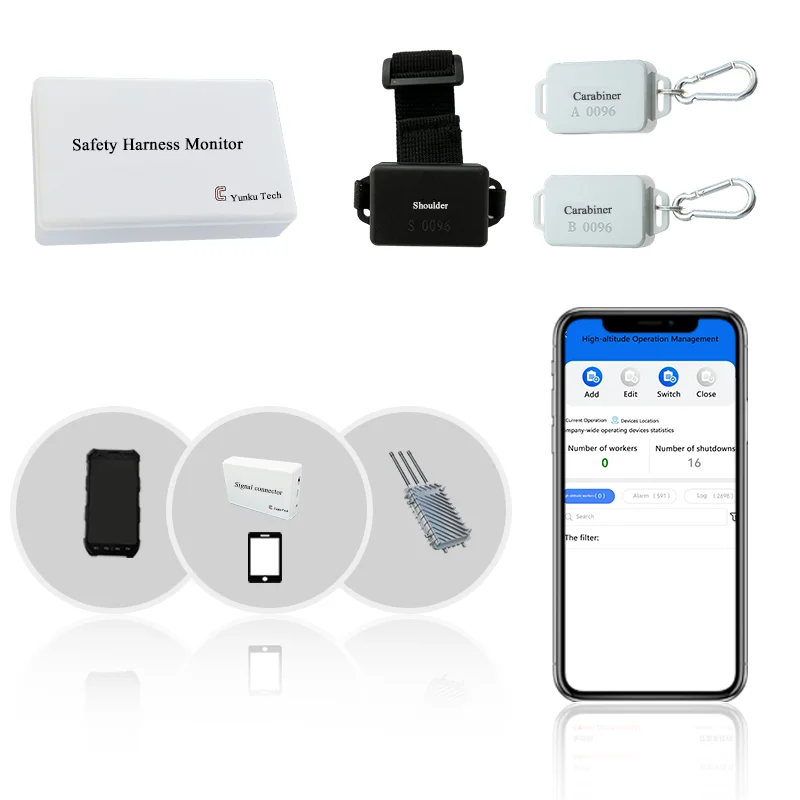

Product Description
Safety Harness Monitor
Host Machine*1 (wear on waist belt)
Power type: Lithium Battery
Work hour: 480h
Reminder: Voice Alarm
Shell material: ABS
Operating Temperature: -20°C~60°C
Operating Humidity:＜90%RH
Date Transmission: LoRa 2.4G or 4Giot
Shoulder
Auxiliary Machine*1 (shoulder straps)
Power type: Lithium Battery
Work hour: 1440h
Reminder: Voice Alarm
Shell material: ABS
Operating Temperature: -20°C~60°C
Operating Humidity:＜90%RH
Work hour: 1440h
Reminder: Voice Alarm
Shell material: ABS
Operating Temperature: -20°C~60°C
Operating Humidity:＜90%RH
Carabiners
Auxiliary Machine*2 (carabiners)
Power type: Lithium Battery
Work hour: 1440h
Reminder: Voice Alarm
Shell material: ABS
Operating Temperature: -20°C~60°C
Operating Humidity:＜90%RH
Work hour: 1440h
Reminder: Voice Alarm
Shell material: ABS
Operating Temperature: -20°C~60°C
Operating Humidity:＜90%RH
Signal Connector
Battery Capacity: 3.7V3000mah
Charge Mode: TYPE-C
Battery Life:8 hours
Communication Frequency Band:UWB,LORA2.4G,125KHZ,Blietooth
Size of devuce: 92MM*58MM*23MM
Handheld Monitor
Communication Mode: Public 4G Network, Bluetooth, Private LoRa network and WIFI
Operating System: ANDROID 10.0
Screen: capacitive touth screen
Reminder: Voice alarm
Power Type: 3.8V 5200mAh
polymer lithium battery
Standby time: more than 200 hours
Operating hours: More than 10 hours
IP grade: IP65
Telecommunication Base Station
Transmission mode:LoRa
Coverage: radius 400 meters()open
Operating Temperature:-35°C~70°C
Operating Humidity:10%~90%
No Condensation
IP grade: IP65
Six Functional Features of the samrt fall protcetion equipment
1.Compact size：A more suitable size allows the user to carry it easily.
2.Great battery life: It can reduce the number of charging times and support long time outdoor use.
3. Warning for wrong wearing ：Gives warning signals if not used correctly.
4. Response in seconds: Gives feedback within seconds in case of danger.

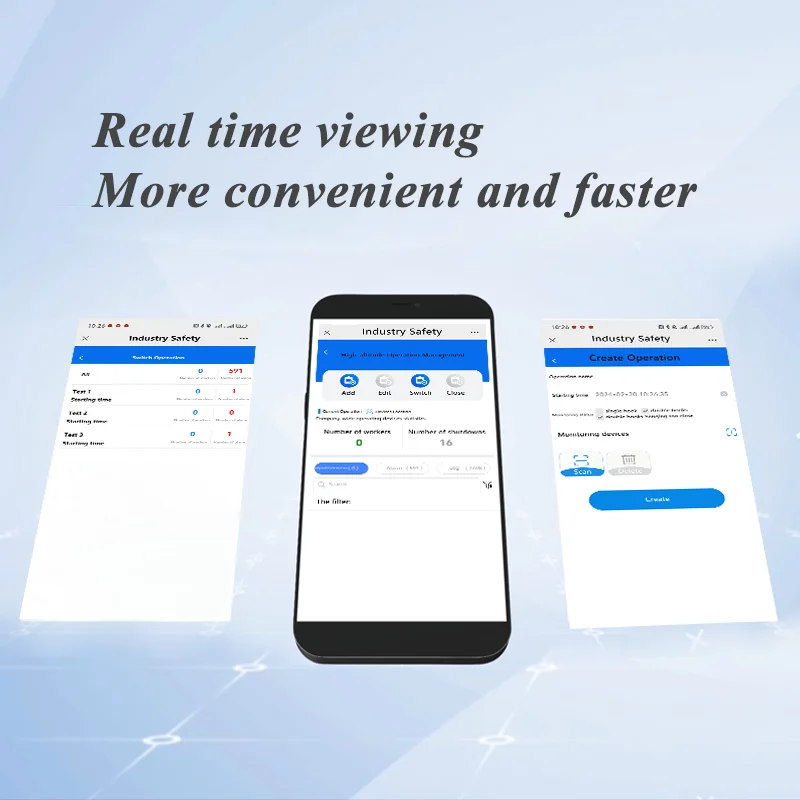

5. Monitoring on Phone: Detailed work status can be seen directly on the phone.
6. UWB ranging technology：More accurate data with UWB ranging technology.
Certifications
Company Profile
Hebei Yunku Technology Co., Ltd. is a high-tech enterprise committed to the development of smart safety in the industrial field, providing personnel, equipment and integrated solutions of safety operation for power generation, power supply, industry, manufacturing and other industries. Yunku Technology has obtained more than 30 patent certificates and software copyrights. Yunku Technology is deeply rooted in the power industry, with a management team with nearly 20 years of front-line business experience, an excellent R & D team, and an experienced implementation team. The company advocates the development purpose of "market-oriented, customer-centric, technology-based, service as the guarantee", and adheres to independent innovation and business expansion of new areas. With advanced cloud computing, internet of things, big data, artificial intelligence and other emerging technologies, refined soft and hard integration application, Yunku Technology has gradually formed a trend to lead the development of industrial smart safety management.
Recommend Products
FAQ
1.Q: What is the warranty time?
A: 12 months
3.Q: Whether you could make our brand on your products?
A: Yes, we can print your logo.
4.Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
5.Q: How to guarantee the quality of your products?
A: We have the CE and ISO certificate, and you can get samples, the MOQ is 1.
A: 12 months
2.Q: What can you buy from us?
A: fall protection monitor equipment; personal protective monitor equipment; confined space monitor ,construction smart equipment and other security products.
A: fall protection monitor equipment; personal protective monitor equipment; confined space monitor ,construction smart equipment and other security products.
3.Q: Whether you could make our brand on your products?
A: Yes, we can print your logo.
4.Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
5.Q: How to guarantee the quality of your products?
A: We have the CE and ISO certificate, and you can get samples, the MOQ is 1.
