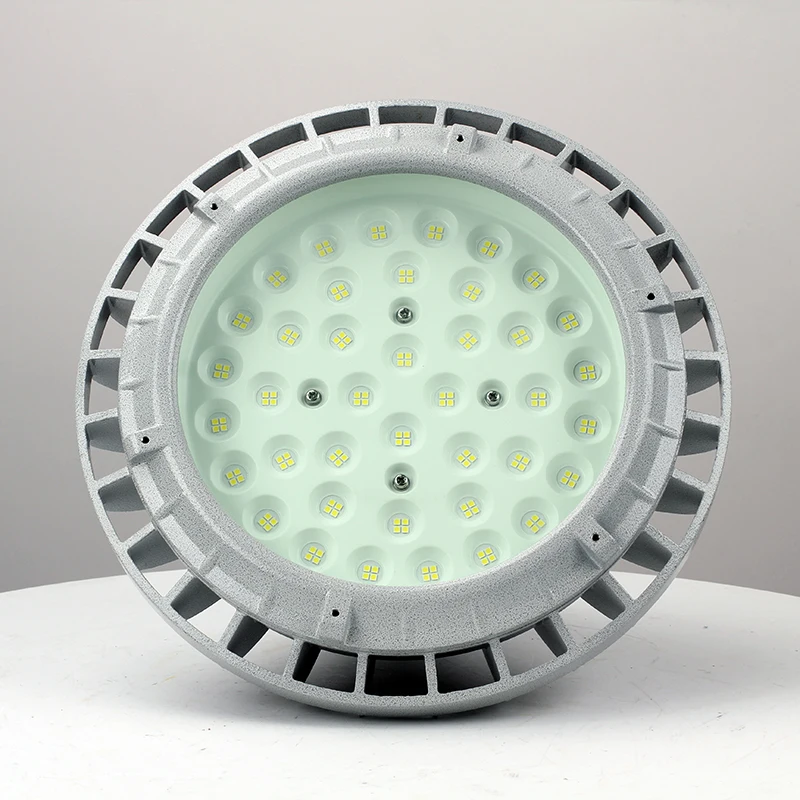

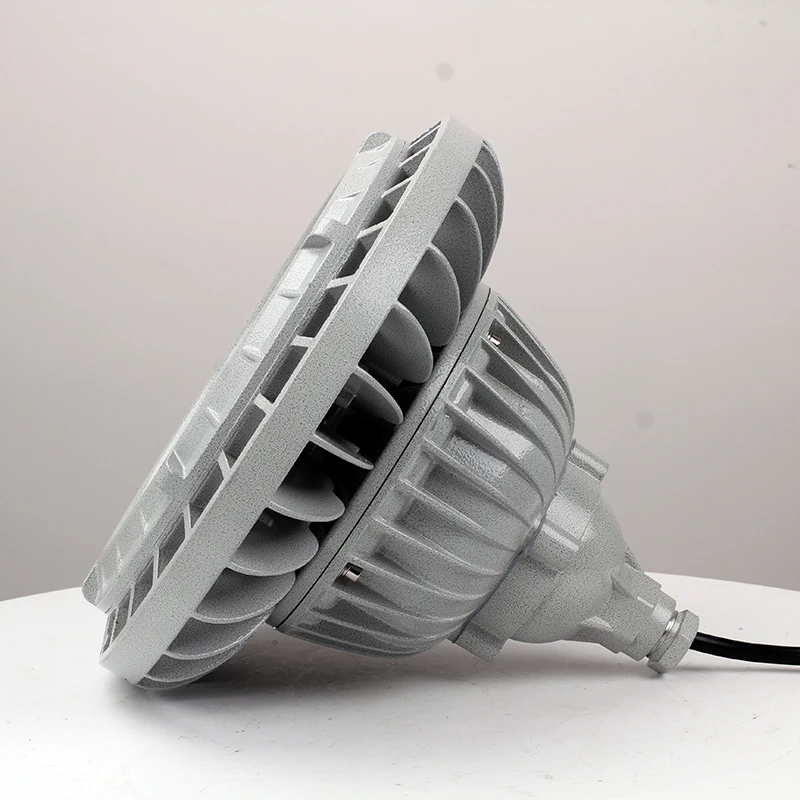

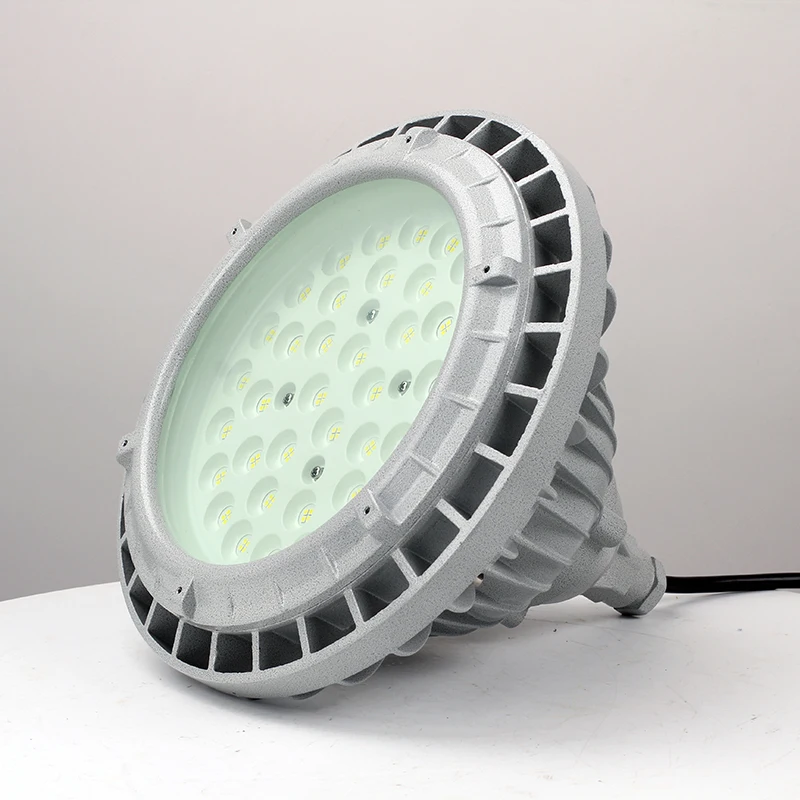

Высококачественный взрывозащищенный светодиодный свет 120 Вт 220 В взрывозащищенные светодиодные фонари
- Категория: >>>
- Поставщик: Shenhai Explosion-Proof Technology Co. Ltd.Shenhai Ltd.
Сохранить в закладки 1601116236853:
Описание и отзывы
Характеристики
Product Parameters
Model and specification | Explosion proof sign | Light source | Lamp type | Power (W) | Luminous flux (Lm) | Color temperature (k) | Weight (kg) |
Ex db IIC T6 Gb Ex tb IIIC T80℃ Db | LED | 10~30 | 1200~3600 | 3000~5700 | 2.9 | ||
AC380V | 40~60 | 4800~7200 | 3.6 | ||||
AC220V | 80~100 | 9600~12000 | 4.9 | ||||
AC380V | 120~150 | 14000~18000 | 6.5 | ||||
160~200 | 19200~24000 | 7.1 |
Rated voltage/frequency | Inlet thread | Cable outer diameter | Degree of protection | Anti corrosion grade |
220V/50Hz | G3/4 | Φ10~Φ14mm | IP66 | WF2 |
Products Description
1. The radiator is designed to be made of special cast aluminum alloy by die-casting, and its surface is sprayed with high voltage static electricity;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. The flame-proof thread flame-proof joint surface of the rabbet has a pure flame-proof structure and more reliable explosion-proof performance;
4. Standard three box separation structure design, modular installation and combination. Effectively reduce temperature rise to ensure long life of lamps;
5. Multi point lighting, high light utilization, uniform illumination without glare;
6. High strength material, transparent tempered glass, with strong impact resistance, heat resistance and high light transmittance;
7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
8. Power factor cos φ ≥0.95;
9. Steel pipe or cable wiring.
2. Exposed stainless steel fasteners with high corrosion resistance;
3. The flame-proof thread flame-proof joint surface of the rabbet has a pure flame-proof structure and more reliable explosion-proof performance;
4. Standard three box separation structure design, modular installation and combination. Effectively reduce temperature rise to ensure long life of lamps;
5. Multi point lighting, high light utilization, uniform illumination without glare;
6. High strength material, transparent tempered glass, with strong impact resistance, heat resistance and high light transmittance;
7. The constant current power supply has wide voltage input and constant current output, and has the protection functions of shunt, surge prevention, overcurrent, open circuit, open circuit, high temperature, anti electromagnetic interference, etc;
8. Power factor cos φ ≥0.95;
9. Steel pipe or cable wiring.
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;
6. It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1~T6 temperature groups;
5. It is applicable to energy-saving transformation projects and places where maintenance and replacement are difficult;
6. It is widely used for lighting in oil exploitation, oil refining, chemical industry, gas station, textile, food processing, offshore oil platforms, oil tankers and other places.
