Ручной лазерный сварочный аппарат Raycus 1000 Вт 1500 2000 лазеры новое состояние по конкурентоспособной цене
- Категория: >>>
- Поставщик: Dongguan Huahe Optoelectronics Co. Ltd.
Сохранить в закладки 1601116350030:
Описание и отзывы
Характеристики
Water Cooled Handheld Laser Welding Machine Portable Fiber Laser Handheld Welding Machine Handheld Metal Fiber Laser
1.Simple operation, large laser power, high efficiency,
2.no consumables, long-term processing is possible;
3. Environmental protection and high efficiency
hanheld laser fiber laser welding machine
Welding Machine Handheld Metal Fiber Laser
DG Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding. Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.
DG Handheld Fiber Laser Welding Machine is a new type high-power, high-end continuous welding tool which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. It avoids the two thresholds of thermal strain and post-treatment, and is environmentally friendly and pollution-free, greatly improving the joint strength and quality of welding. Replacing the previously fixed light path with a hand-held type not only facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc., but also makes laser welding possible in outdoor operations, which indicates that the traditional welding of electric welding, argon arc welding, etc. will be replaced by laser welding.

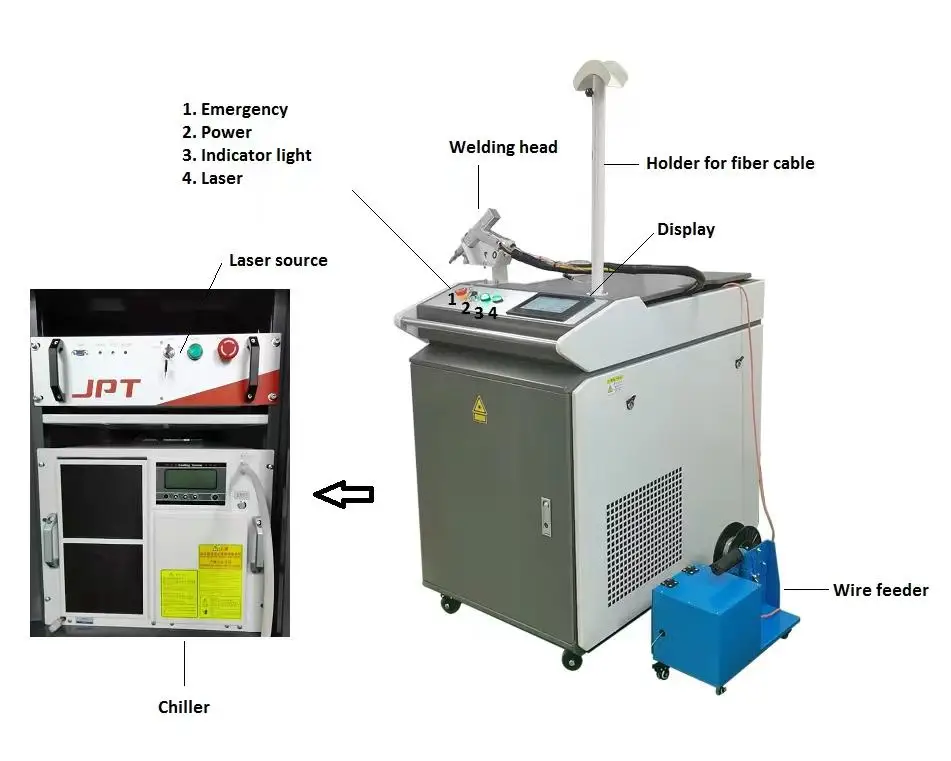

Details Images
welding head
1.This welding head could be widely used in complex and irregular welding process such as cabinets, kitchen, staircase, shelf, gridiron, stainless steel door and window guardrail, distribution box, stainless steel furniture and other industries. It is a perfect replacement of traditional argon arc welding, in welding thin stainless steel plate, iron plate, aluminum plate and other metal materials.
2.Smart internal design and interactive control system expand the tolerance range and welding width of the processing parts, and solve the disadvantage of minor laser welding spot, and provide better welding forming.
3.Light shape, Ergonomic design, advanced structure, and reliable performance ensure comfort grip and simple operation.
Size infomation
Model | DG1000W | DG-1500W | DG-2000W | DG-3000W |
Laser Power | 1000W | 1500W | 2000W | 3000W |
Laser wavelength | 1080nm | 1080nm | 1080nm | 1080nm |
Power adjustment range | 10-100% | 10-100% | 10-100% | 10-100% |
Spot adjustment range | 0.2-5mm | 0.2-5mm | 0.2-5mm | 0.2-5mm |
Weld thickness | 2mm | 3mm | 4mm | 6mm |
Power consumption | 5kw | 7kw | 9kw | 11kw |
Operating Voltage | 220-240VAC-50Hz/60Hz | 220-240VAC-50Hz/60Hz | 380-415VAC-50Hz/60Hz | 380-415VAC-50Hz/60H |
Applicable Industries
Hand-held fiber laser welding machine is applicable for all kinds of metals and various alloys, such as carbon steel, mold steel,
stainless steel, aluminum, copper, brass, zinc, gold, silver, chromium, nickel and other metal materials.
stainless steel, aluminum, copper, brass, zinc, gold, silver, chromium, nickel and other metal materials.
Hand-held fiber laser welding machine is applicable for all kinds of metals and various alloys, such as carbon steel, mold steel,stainless steel, aluminum, copper, brass, zinc, gold, silver, chromium, nickel and other metal materials.
Hand-held fiber laser welding machine is applicable for all kinds of metals and various alloys, such as carbon steel, mold steel,stainless steel, aluminum, copper, brass, zinc, gold, silver, chromium, nickel and other metal materials.
Похожие товары
Лидер продаж лазерный сварщик 3 в 1 небольшой портативный сварочный аппарат ручной для металла
716 354,60 ₽ - 743 906,70 ₽

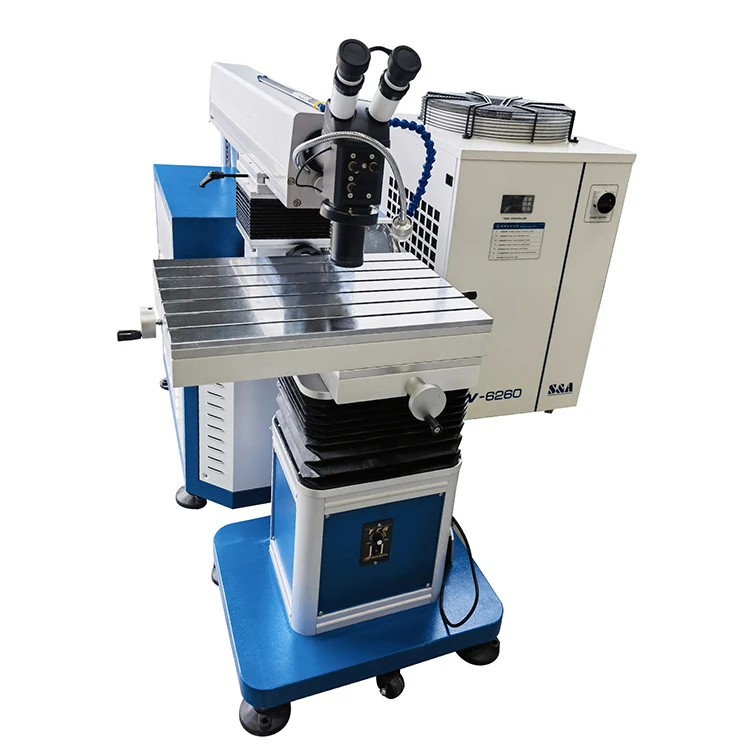

Лазерная сварочная машина Yhs для ремонта пресс-форм высокоточный сварочный аппарат
