Сверлильный станок для экскаватора с буровым шнеком на глубине 20 м
355 997,32-381 425,70 ₽
Китайский завод полностью гидравлический гусеничный мобильный анкерный буровой станок для самостоятельного бурения анкерных стержней
- Категория: >>>
- Поставщик: Kelleg International Trade (Shanghai) Co. Ltd.Kelleg Ltd.
Сохранить в закладки 1601116378013:
Описание и отзывы
Характеристики

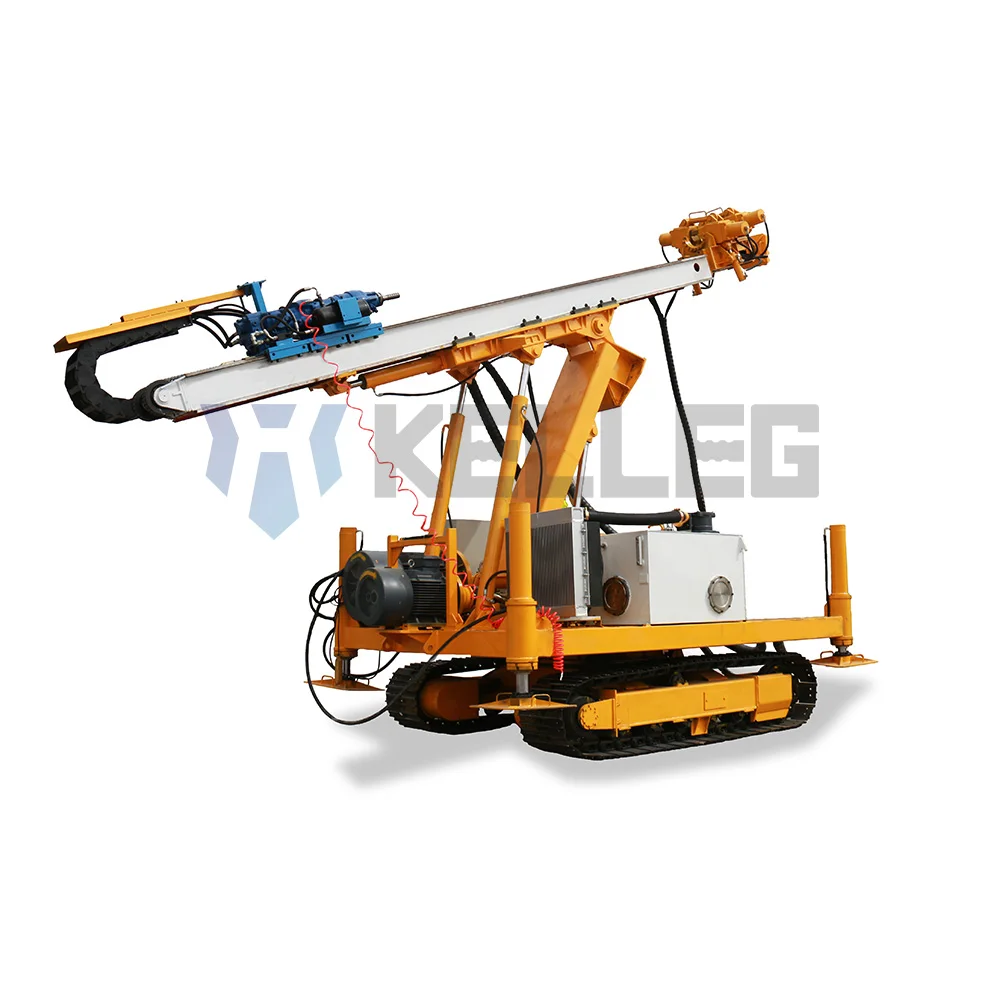

Full Hydraulic Crawler Anchor Drilling Rig
Self drilling anchor system is a new method that integrates drilling, grouting and anchoring functions together. It is especially suitable for construction in loose soil, broken rocks, pebble layers and other collapsible geological conditions. In order to give full play to the advantages of self drilling anchor bars, our company has developed the first domestic drilling rig specially used for self drilling anchor bars after more than one hundred investigations and tests.
The special drilling rig for self drilling anchor bars has the characteristics of high safety performance, good anchoring effect, and high construction efficiency, which can greatly save the overall construction cost.
Self drilling anchor system is a new method that integrates drilling, grouting and anchoring functions together. It is especially suitable for construction in loose soil, broken rocks, pebble layers and other collapsible geological conditions. In order to give full play to the advantages of self drilling anchor bars, our company has developed the first domestic drilling rig specially used for self drilling anchor bars after more than one hundred investigations and tests.
The special drilling rig for self drilling anchor bars has the characteristics of high safety performance, good anchoring effect, and high construction efficiency, which can greatly save the overall construction cost.
1. Specially developed for self drilling anchor bars, which can give full play to the advantages of its technology.
2. According to application scenarios, the power unit parameters are optimized, which can carry out high-frequency impact and high-speed rotation, and the slag discharge is smoother and the drilling speed is faster.
3. The standard anti-driving function can effectively solve the stuck problem during drilling.
4. Fully hydraulic control, convenient and flexible operation. Hydraulic valve group are imported from Italy, and they are stable, reliable and low failure rate.
5. High price/performance ratio, the price is only 1/3-1/2 of similar foreign drilling rigs.
6. The maximum lifting height is 3.3 meters. Construction work surface is large and multiple rows of holes can be drilled at one time.
7. Particularly suitable for complex geological conditions (broken rock layer, loose rock and soil layer, etc.), such as clay, silty clay, especially soil with rock, miscellaneous fill, pebbles, gravels etc., which are difficult to form holes.
8. Drilling and grouting are carried out simultaneously, the grout can effectively fill the rock fissures, and the diameter of the grout body is large with good anchoring effect.
Max. Drilling Dia. | φ100mm |
Applicable Anchor Bar Dia. | φ25-φ40mm |
Max. Applicable Anchor Bar Length | 3000mm |
Max. Lifting Height | 3300mm |
Feeding Distance | 1500mm |
Rod Drill Angle | 0°-90° |
Impact Frequency | 2900-3700bpm |
Kelleg is a market-oriented enterprise integrating R&D and designing, procurement, sales, and customer service. Kelleg focuses on the field of geotechnical anchoring and is committed to building a professional service platform that integrates system solution provision, product supply, and technical support.
We have professional technical, procuring, marketing, order management, and after-sale service teams, which can provide customers with pre-sale technical solution consultation and product selection suggestions, in-sale order management, after-sale on-site technical guidance, and other services.
We have professional technical, procuring, marketing, order management, and after-sale service teams, which can provide customers with pre-sale technical solution consultation and product selection suggestions, in-sale order management, after-sale on-site technical guidance, and other services.
