Портативный 1000 Вт 1500 2000 3000 ручной лазерный сварочный аппарат 3 в 1 очиститель резак
- Категория: >>>
- Поставщик: Hg Star Technology Co. Ltd.
Сохранить в закладки 1601116391723:
Описание и отзывы
Характеристики
Products Description
Do you have headaches because of the following problems？
1.Need to weld metal but suffer from surface rust ,paint and oil dirt
2.Chemical cleaning damage to raw materials, manual grinding can't clean well
3.Independent laser cleaning machines are expensive and less used....
Same price as laser welding machine we have brand new 4 IN 1 Smart HW Laser Welder！

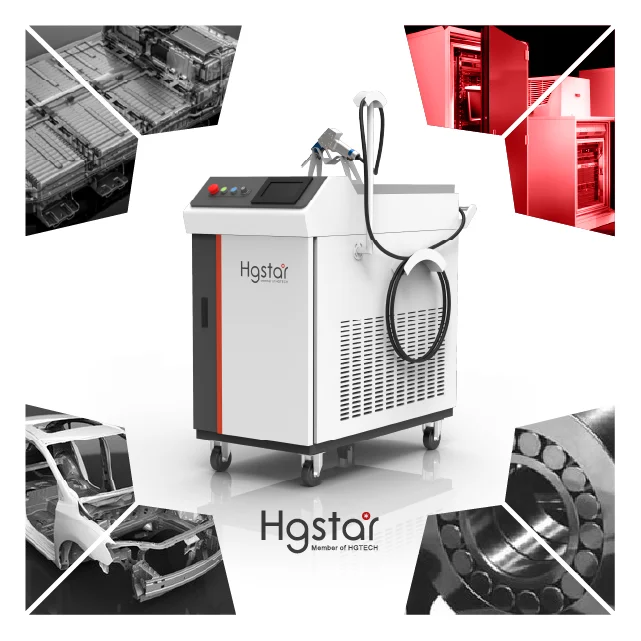

4-in-1 Laser Machine
The 4-in-1 laser machine is very efficient and meets a variety of needs, including metal cutting, welding, descaling and surface cleaning. It offers powerful welding capabilities. The welding machine body is ergonomically designed and lightweight and compact to ensure optimal productivity.

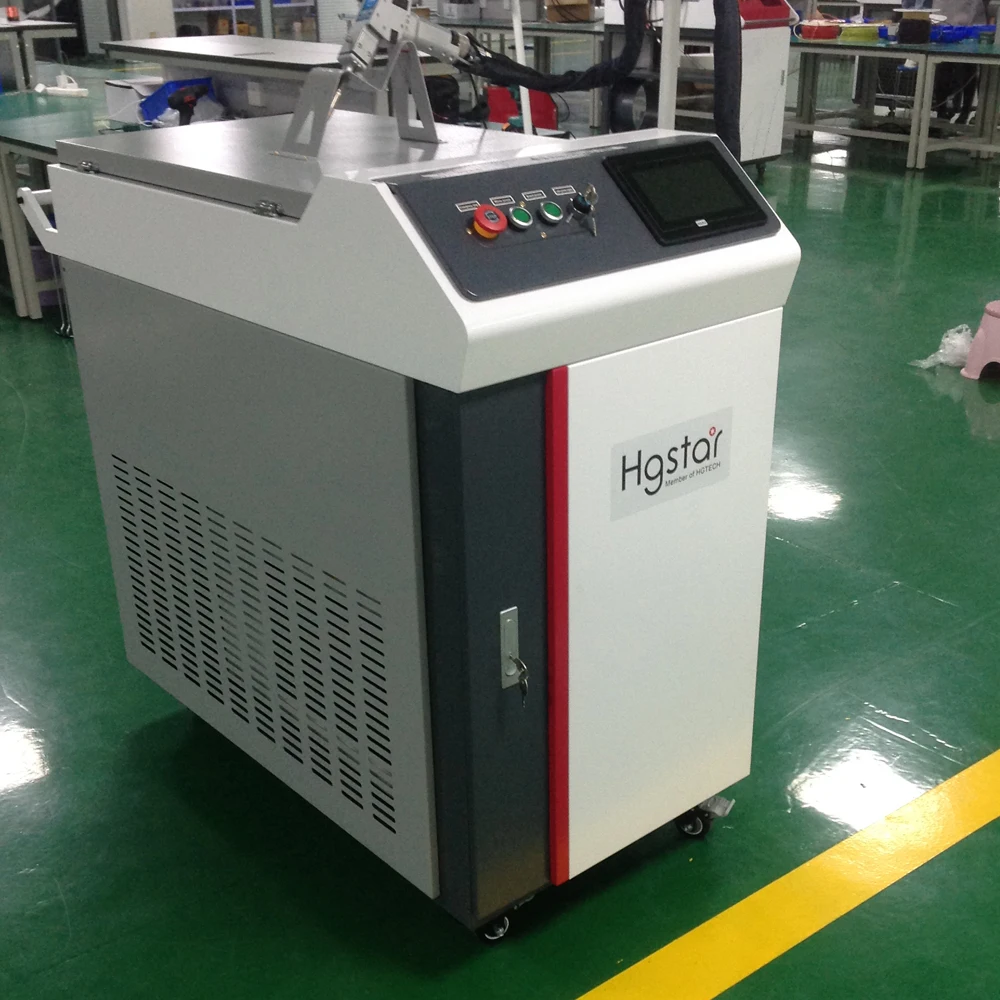

HGSTAR Portable Laser Welding Machine 2000w 3000w Fiber 4 in 1Handheld Laser Welder 1000w for metal Stainless steel Aluminum
Technical Parameter | ||||
√ Handheld model √ Raycus laser source √ Cable length:8m √ Laser head:0.9KG | ||||
Model | Smart HWE 1500/2000/3000 | |||
I.Laser source | ||||
1 | Brand | Raycus/IPG | ||
2 | Output power | 1kw/1.5kw/2kw/3kw | ||
3 | Center wavelength | 1080nm±5 | ||
4 | Fiber Cable length | 8m,50μm | ||
5 | Laser pulse Frequency | 20KH | ||
II.Water Cooling | ||||
1 | Water chiller | 1.5P/2P/2.5P ,built-in chiller | ||

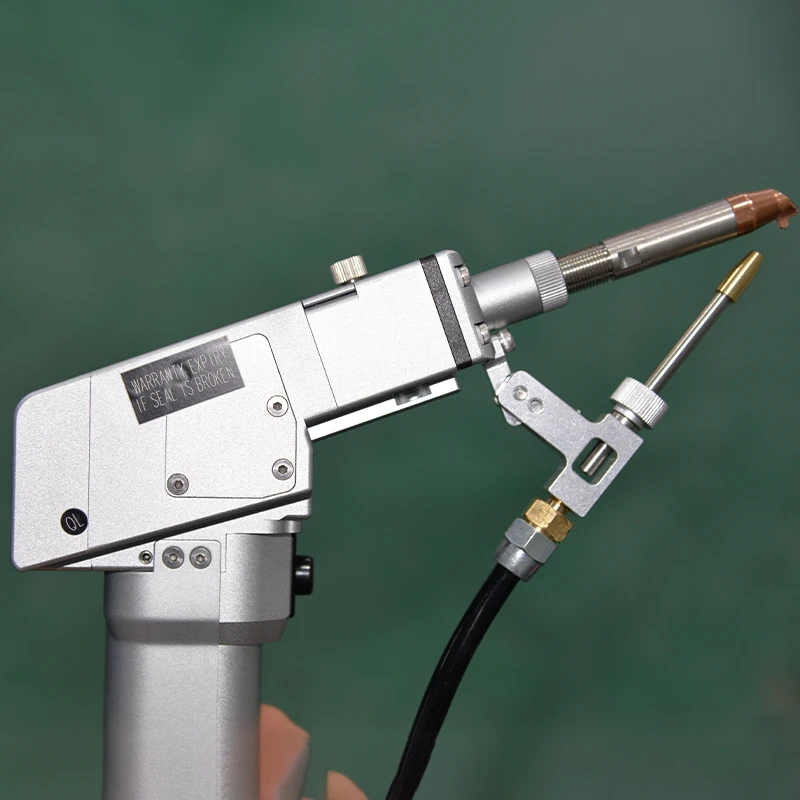

III.Laser head | ||||
1 | Brand | Relfar brand | ||
2 | Spot size(mm) | 0-5mm | ||
3 | Cleaning width | up to 80mm | ||
4 | Cutting thickness | UP to 2-3mm | ||
5 | Auto Wire-feeder | Yes included | ||
IV. Gas | Nitrogen/Argon | |||
V.Total Power Consumption | 7.5kw/8.5kw/10kw | |||
VI.Voltage | 1kw and 1.5kw:220V±20%,single phase,50/60Hz 2kw and 3kw: 380V±20%,3 phase,50/60Hz | |||
Machine dimension(L*W*H) | 810*810*880 | |||
Machine Net Weight | 105kg | |||
Product Paramenters
MODEL NUMBER | SMART – HW |
Conduction type | fiber laser |
Wavelength | 1080mm |
Power | 1.5KW/2KW/3kw |
Frequency | 20-5000KHz |
Output focal length | 120mm |
Cooling method | Water cooling |
Fiber length | 10M |
Port | 1 way gas |
Power consumption | ≤6KW |
Air pressure requirement | 4-6Bar |
Product Name | HGSTAR Portable Laser Welding Machine 2000w 3000w Fiber 4 in 1Handheld Laser Welder 1000w for metal Stainless steel Aluminum |
Company Profile
Hgstar is the member of HGTECH Group.
HGTECH has always been committed to providing broad and comprehensive laser manufacturing solutions in industrial manufacturing field.
In 2021, HGSTAR was established. Our main products are laser cutting machines, laser welding machines, laser cleaning machines and smart series focusing on the needs of 1000w-6000w laser cutter users.
Relying on HGTECH's 50 years of R & D and production experience in the laser industry, perfect global after-sales system and the advantages of combining online and offline overseas after-sales service points, we provide you with better quality and more economical choice.
In 2021, HGSTAR was established. Our main products are laser cutting machines, laser welding machines, laser cleaning machines and smart series focusing on the needs of 1000w-6000w laser cutter users.
Relying on HGTECH's 50 years of R & D and production experience in the laser industry, perfect global after-sales system and the advantages of combining online and offline overseas after-sales service points, we provide you with better quality and more economical choice.
Why Choose Us
FAQ
Q1. What's the difference between you and HGTECH?
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,Smart series mainly focus on 1000w-6000w laser equipment ,and hgtech focus on higher power laser solutions
Q2. How long is the delivery date？
A2.Each machine has 20 sets in stock and can be delivered within 7 days，if not in stock,the standard machine can be completed in 10 days，Customized models take about 20 days to be ready to ship.
Q3. What about machine warranty?
A3:3-year warranty，If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
A1.Hgstar is a subsidiary of hgtech. Considering the needs of users, hgstar mainly aims to improve the cost performance of products,Smart series mainly focus on 1000w-6000w laser equipment ,and hgtech focus on higher power laser solutions
Q2. How long is the delivery date？
A2.Each machine has 20 sets in stock and can be delivered within 7 days，if not in stock,the standard machine can be completed in 10 days，Customized models take about 20 days to be ready to ship.
Q3. What about machine warranty?
A3:3-year warranty，If the main parts are damaged by non-human factors, they can be replaced free of charge. You can choose to replace them at the local after-sales point or send them for repair
Q4. How to install and use?
A4.We provide 24-hour online service. You can install according to the machine's operation manual and installation video, or choose door-to-door installation service.
Q5. What about after-sales problems?
A5.Please contact us. We will assign you after-sales personnel in the corresponding language according to your country and region. You can directly describe your problem with the after-sales personnel. Replacement and maintenance within the scope of warranty are free of charge
Q6. What about wholesale price?
A6:If you are a wholesaler, distributor or agent, please contact us to obtain the wholesale price
Похожие товары
Профессиональное сварочное устройство 1000 Вт, 1500 Вт, 2000 Вт для сварной трубы, металлической сетки, габионная форма, портативный сварочный аппарат

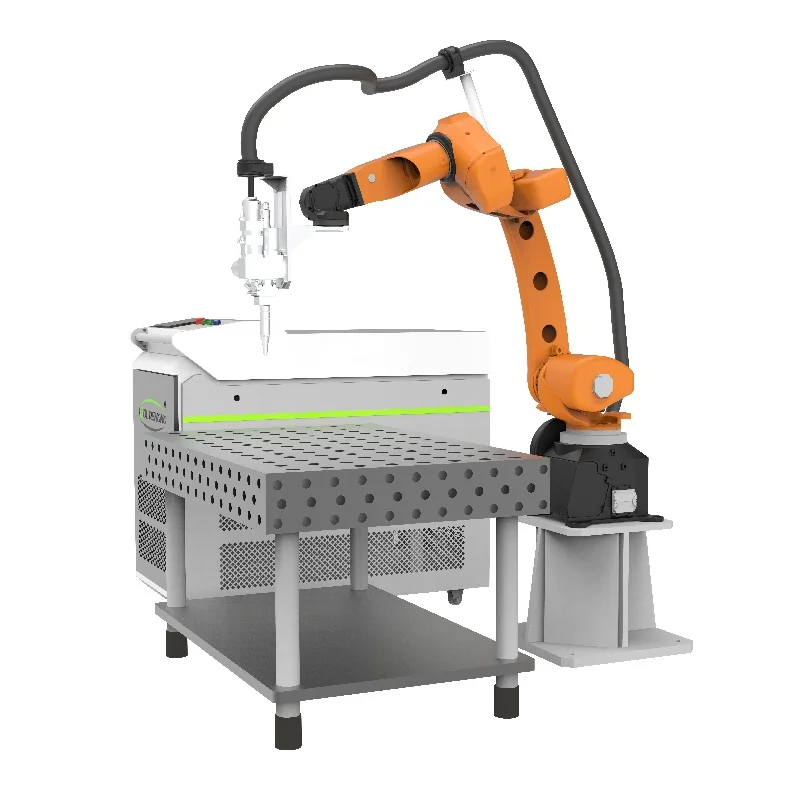

Лазерный 3D автоматический сварочный аппарат Igolden робот-сварочный золотой волоконный лазерный для
965 079,51 ₽ - 1 171 107,72 ₽

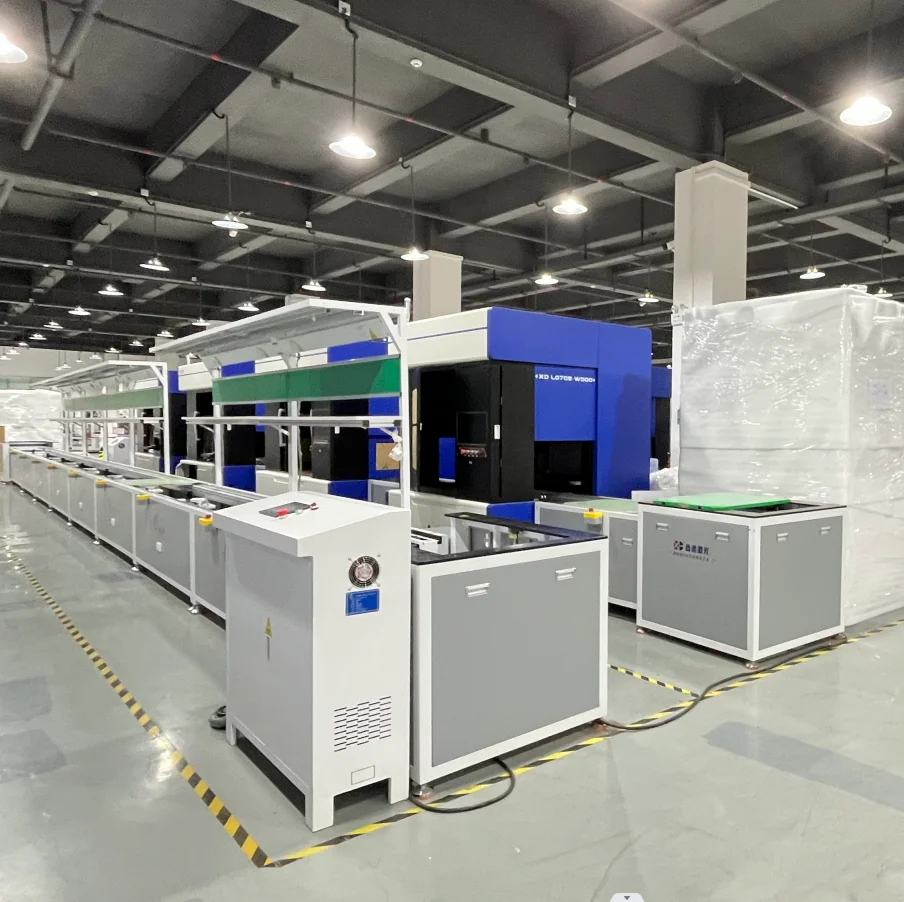

Полный комплект автоматизированных литиевых аккумуляторов, сборочная линия, машина для изготовления аккумуляторов, китайский поставщик
13 012 308,00 ₽ - 19 518 462,00 ₽

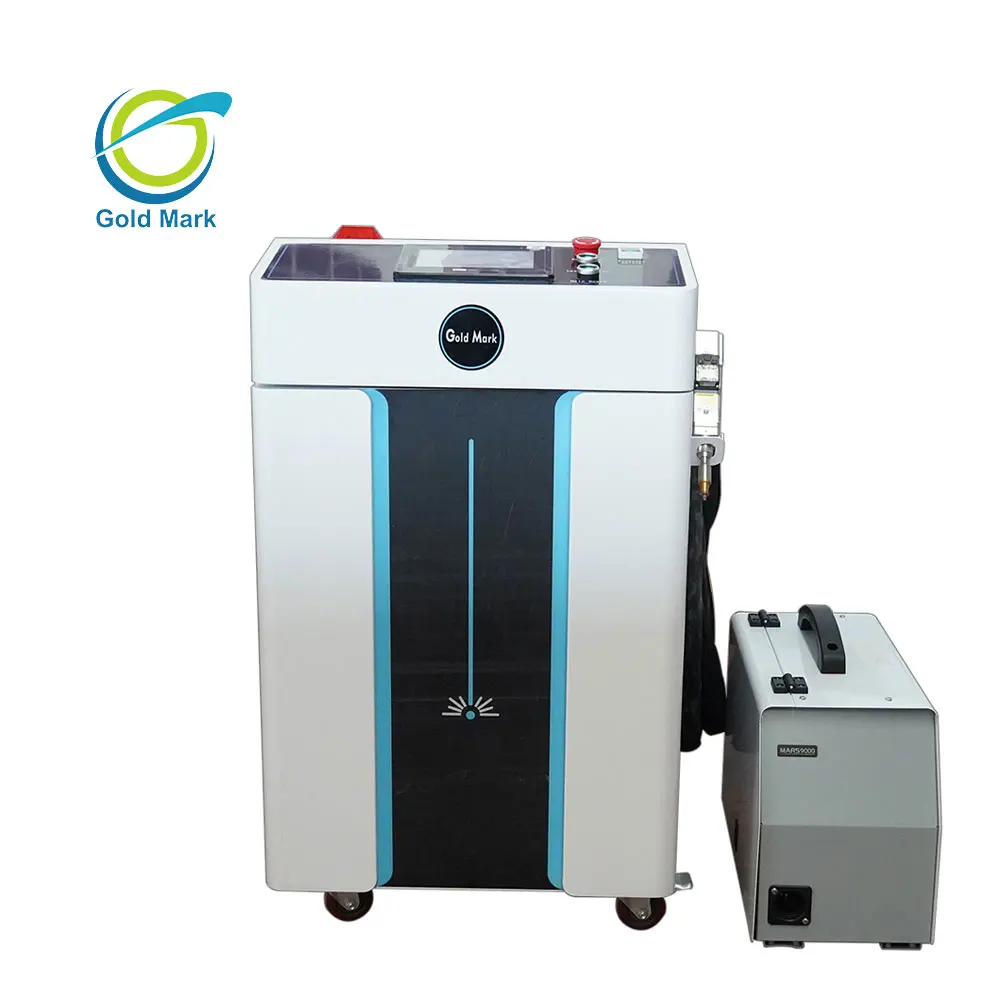

3000 Вт ручной лазерный сварочный аппарат с двойной системой подачи проволоки.
303 620,52 ₽

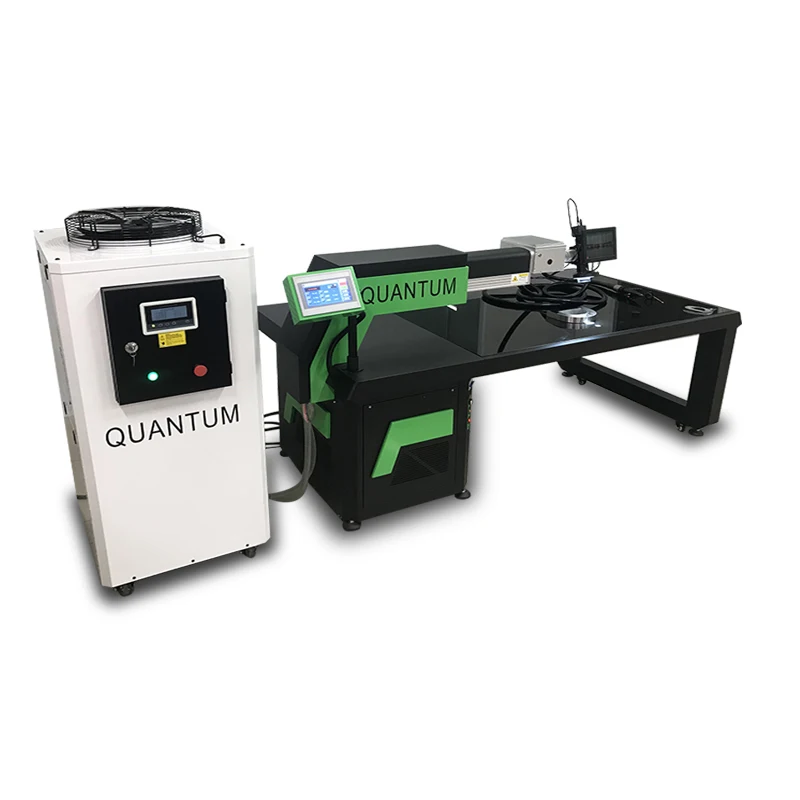

Квантовый Лазерный Сварщик/канальный Письмо Лазерный сварочный аппарат, используемый для рекламы
