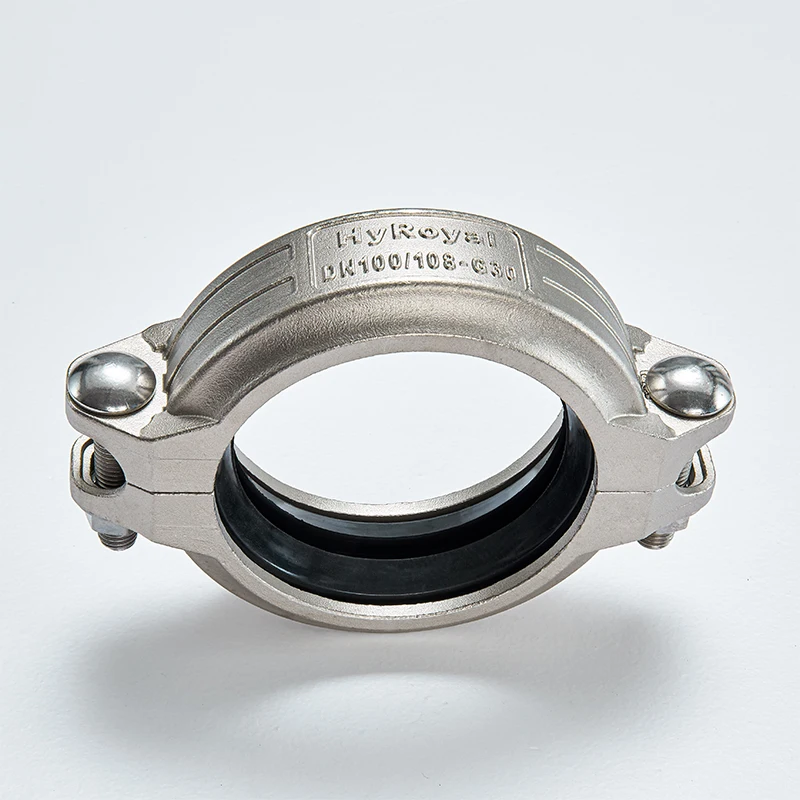

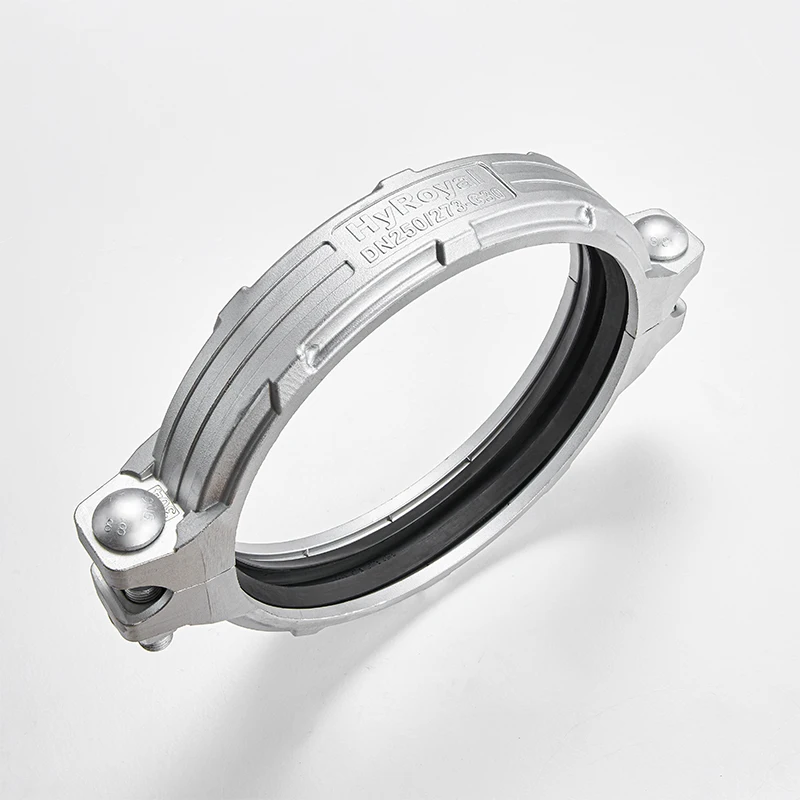

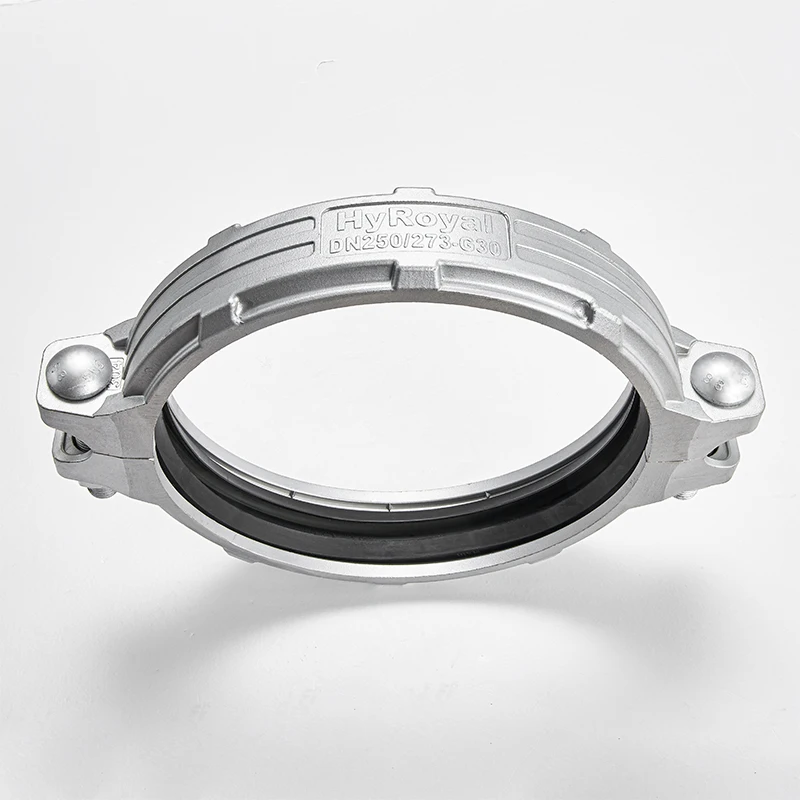

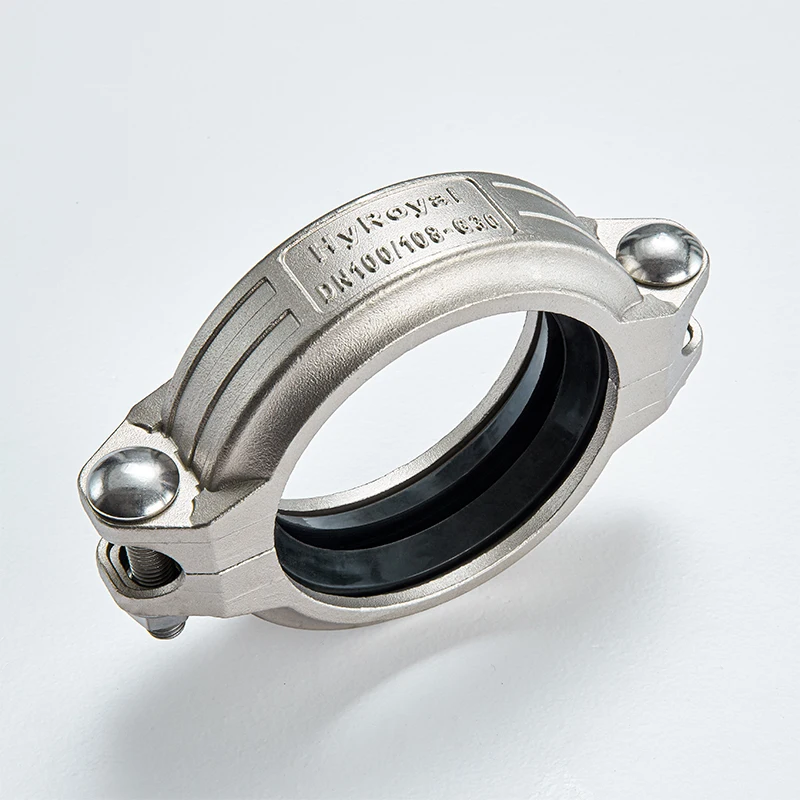

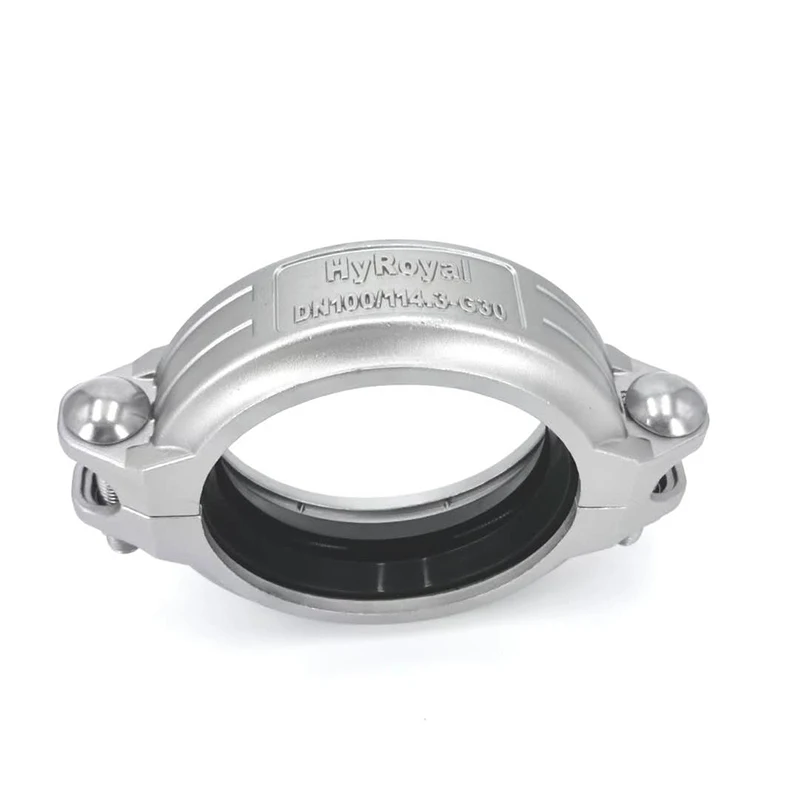

Модель G30 SS316 DN150 Соединительный зажим из нержавеющей стали для соединения труб

Модель G30 SS316 DN150 Соединительный зажим из нержавеющей стали для соединения труб

Категория: >>>
Поставщик: Anqing Great Wall Pipeline Co. Ltd.

Цена:109,65 ₽*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

Stainless Steel Grooved Coupling is a simple, quick and reliable solution for cut grooved pipe joint which allows for
expansion, contraction and deflection and it's widely applied in the water treatment industry, filter system, cooling water
system, fire extinguishing system, Sprinkle Systems and etc

Material Specification Housing

Type304 Stainless steelto ASTM A351 CFB or A743Gr.CF8

Type316 to ASTM A351 CF8M Type316L to ASTM A351 CF3M

TypeCE8MN to ASTM A8902A

Duplex 2205(CD3MN)to ASTM A8904A Super

Duplex 2507(CE3MN)tO ASTM A890 5A

Rubber Gaskets

The gasket seals is C-shaped,made of standard gasketEPDM(ethylene propylene diene monomer) for cold water/hot water/rare acid oil-free ai and multiple chemicalproduct (-34°C~+150°C) .It is not suitable for mediumlike petroleum

Bolts & Nuts

Type 304 stainless steel track bolts and nuts to GB12 orASTM F-593

Type 316 stainless steeltrack bolts and nuts to GB12orASTM-F593

Product Paramenters

Model S30 Stainless Steel Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions					Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation					X	Y	Z	Qty	Size
mm/inch	(mm/inch)	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
20 3/4	26.9 1.050	600 42	0-1.6 0-0.06	47 1.850	87 3.425	43 1.693	2	M10x40
25 1	32 1.260	500 35	0-1.6 0-0.06	53 2.087	90 3.543	43 1.693	2	M10x45
32 1 1/4	38 1.496	500 35	0-1.6 0-0.06	58 2.283	94 3.700	44 1.732	2	M10x45
32 1 1/4	42.4 1.660	500 35	0-1.6 0-0.06	62 2.441	106 4.173	44 1.732	2	M10x45
40 1 1/2	48.3 1.900	500 35	0-1.6 0-0.06	67 2.638	106 4.173	43 1.693	2	M10x45
50 2	57 2.244	500 35	0-1.6 0-0.06	77 3.031	116 4.567	43 1.693	2	M10x50
50 2	60.3 2.375	500 35	0-1.6 0-0.06	78 3.071	117 4.606	43 1.693	2	M10x50
65 2 1/2	73 2.875	500 35	0-1.6 0-0.06	94 3.700	134 5.275	44 1.732	2	M10x50
65 2 1/2	76.1 3.000	500 35	0-1.6 0-0.06	94 3.700	134 5.275	44 1.732	2	M10x50
80 3	88.9 3.500	500 35	0-1.6 0-0.06	110 4.330	150 5.905	45 1.771	2	M10x50
100 4	108 4.250	450 31	0-3.2 0-0.13	135 5.315	184 7.244	47 1.850	2	M12x60
100 4	114 4.500	450 31	0-3.2 0-0.13	139 5.472	190 7.480	48 1.890	2	M12x60
125 5	133 5.250	400 28	0-3.2 0-0.13	164 6.456	215 8.465	48 1.890	2	M12x60
125 5	141.3 5.563	400 28	0-3.2 0-0.13	168 6.614	215 8.465	48 1.890	2	M12x60
150 6	159 6.259	350 25	0-3.2 0-0.13	190 7.480	240 9.448	49 1.929	2	M12x70
150 6	168.3 6.625	350 25	0-3.2 0-0.13	198 7.795	246 9.685	49 1.929	2	M12x70
200 8	219.1 8.625	350 25	0-3.2 0-0.13	253 9.961	318 12.519	57 2.244	2	M12x70
250 10	273 10.750	300 21	0-3.2 0-0.13	315 12.401	396 15.590	59 2.322	2	M20x110
300 12	323.9 12.750	300 21	0-3.2 0-0.13	372 14.645	452 17.795	60 2.362	2	M20x110

Model S80 Stainless Steel Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions					Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation					X	Y	Z	Qty	Size
mm/inch	mm/inch	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
20 3/4	26.9 1.050	1500 103	0-1.6 0-0.06	48 1.889	88 3.465	44 1.732	2	M10x45
25 1	32 1.260	1500 103	0-1.6 0-0.06	56 2.205	96 3.779	45 1.772	2	M10x45
25 1	33.7 1.315	1500 103	0-1.6 0-0.06	56 2.205	96 3.779	45 1.772	2	M10x45
32 1 1/4	42.4 1.660	1500 103	0-1.6 0-0.06	65 2.559	103 4.055	45 1.772	2	M10x50
40 1 1/2	48.3 1.900	1500 103	0-1.6 0-0.06	70 2.755	108 4.251	45 1.772	2	M10x50
50 2	60.3 2.375	1500 103	0-1.6 0-0.06	83 3.267	127 5.000	46 1.811	2	M12x60
65 2 1/2	73 2.875	1500 103	0-1.6 0-0.06	100 3.937	142 5.590	47 1.850	2	M12x70
65 2 1/2	76.1 3.000	1500 103	0-1.6 0-0.06	100 3.937	142 5.590	47 1.850	2	M12x70
80 3	88.9 3.500	1500 103	0-1.6 0-0.06	117 4.606	160 6.299	47 1.850	2	M12x70
100 4	114.3 4.500	1500 103	0-3.2 0-0.13	147 5.787	210 8.267	52 2.047	2	M16x90
125 5	141.3 5.563	1200 83	0-3.2 0-0.13	180 7.087	252 9.921	52 2.047	2	M16x90
150 6	168.3 6.625	1200 83	0-3.2 0-0.13	210 8.267	280 11.023	52 2.047	2	M16x90
200 8	219.1 8.625	1200 83	0-3.2 0-0.13	276 10.866	360 14.173	62 2.441	2	M22x125
250 10	273 10.750	1200 83	0-3.2 0-0.13	342 13.465	420 16.535	67 2.637	2	M24x165
300 12	323.9 12.750	1200 83	0-3.2 0-0.13	394 15.512	480 18.897	67 2.637	2	M24x165

Model S160 Stainless Steel Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions					Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation					X	Y	Z	Qty	Size
(mm/inch)	(mm/inch)	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
20 3/4	26.9 1.050	2322 160	0-1.6 0-0.06	48 1.889	88 3.465	44 1.732	2	M10x50
25 1	32 1.260	2322 160	0-1.6 0-0.06	60 2.362	95 3.741	47 1.851	2	M10x50
25 1	33.7 1.315	2322 160	0-1.6 0-0.06	61 2.401	96 3.779	47 1.851	2	M10x50
32 1 1/4	42.4 1.660	2322 160	0-1.6 0-0.06	72 2.834	112 4.409	47 1.851	2	M12x60
40 1 1/2	48.3 1.900	2322 160	0-1.6 0-0.06	77 3.031	118 4.645	47 1.851	2	M12x60
50 2	60.3 2.375	2322 160	0-1.6 0-0.06	91 3.582	130 5.118	47 1.851	2	M12x70
65 2 1/2	73 2.875	2322 160	0-1.6 0-0.06	108 4.252	148 5.826	47 1.851	2	M12x70
65 2 1/2	76.1 3.000	2322 160	0-1.6 0-0.06	109 4.291	148 5.826	47 1.851	2	M12x70
80 3	88.9 3.500	2322 160	0-1.6 0-0.06	125 4.921	167 6.574	47 1.851	2	M12x70
100 4	108 4.251	2000 137	0-3.2 0-0.13	151 5.945	204 8.031	51 2.008	2	M16x90
100 4	114 4.500	2000 137	0-3.2 0-0.13	155 6.102	206 8.110	51 2.008	2	M16x90
125 5	141.3 5.563	2000 137	0-3.2 0-0.13	183 7.205	238 9.370	51 2.008	2	M16x90
150 6	168.3 6.625	1800 125	0-3.2 0-0.13	218 8.582	278 10.945	52 2.047	2	M16x90
200 8	219.1 8.625	1500 105	0-3.2 0-0.13	275 10.827	333 13.110	61 2.402	2	M22x125
250 10	273 10.750	1500 105	0-3.2 0-0.13	342 13.465	420 16.535	67 2.637	2	M24x165
300 12	323.9 12.750	1500 105	0-3.2 0-0.13	394 15.512	480 18.897	67 2.637	2	M24x165

Project Case

Company Profile

Anqing Great Wall Pipeline Co.,Ltd is the professional Chinese manufacturer of pipe fittings for pipe joining and leaking pipe repair . We have two main product categories, one is Repair Clamps Series and the other is Pipe Coupling Series. Our products are suit for varied kinds of pipeline with the pressure rating up to 1450psi and the medium temperature up to 250℃Our Repair Clamps Series including Stainless Steel Repair Clamps, Ductile Iron Repair Clamps, UPVC Repair Clamps, HDPE Repair Clamps, Split Sleeve Repair Clamps, Type B Sleeves and etc. Our Pipe Coupling Series including Universal Coupling, Flange Adaptor, Dismantling Joint, Gibault Joint, Quick Flange Adaptor, SS Metal Grip Coupling, SS Flex Coupling, SS Plastic Grip Coupling, SS Grooved Coupling, Ductile Iron Grooved Coupling and etc. Our factory covers an area of 12,000 square meters, total existing staff more than 100. We have the team of engineers which have the rich experience in the development of products for pipe joining and leaking pipe repair We own more than 110 sets of production equipment including 400 tons punching machine, 350 tons stretching machine, laser cutting machine and etc The quality of our poducts are ensured with our advanced testing equipment including salt spray tester, air tightness tester, pulse vibration platform, tensile testing machine and etc. We have the ability to design and develop new products according to our customer'spipe diameter, pressure, medium, temperature . Our company has obtained ISO9001, CE,WRAS,ACS,
IAPMO, GHOST,SGS,CCS Certificates . Our products are exported to more than 50 countries including USA, UK, Spain, Australia,Russia, Middle East countries and etc. We will supply our Repair Clamps and Pipe Couplings to our customers all around the world with best quality and competitive price .

Certifications

Product packaging

FAQ

Q: Why choose Great Wall?

A: Because we can provide competitive price and best quality, we have strict quality control and the most import is we have a large production scope.

Q: What can we expect from Great Wall ?

A: professinal negotiation, reasonable price, and good after sale service Q: Can you do customized design and size? A: Yes, OEM IS available.

Q: When can we get samples and goods?

A: If we havestock, the samples will be sent soon , make new will take about 5 days. Goods will be shipped within 20 days after receiving the deposit.

Q: How can you ensure the quality of products?

A: We have a very strict quality control system, in our factory we have 10quality control
inspectors and each of them have many years of working experiences.
