Высококачественная Гибкая муфта для пожаротушения и воды

Высококачественная Гибкая муфта для пожаротушения и воды

Категория: >>>
Поставщик: Anqing Great Wall Pipeline Co. Ltd.Anqing Ltd.

Цена:5,00 $*

Количество:

В избранное

Описание и отзывы

Характеристики

Products Description

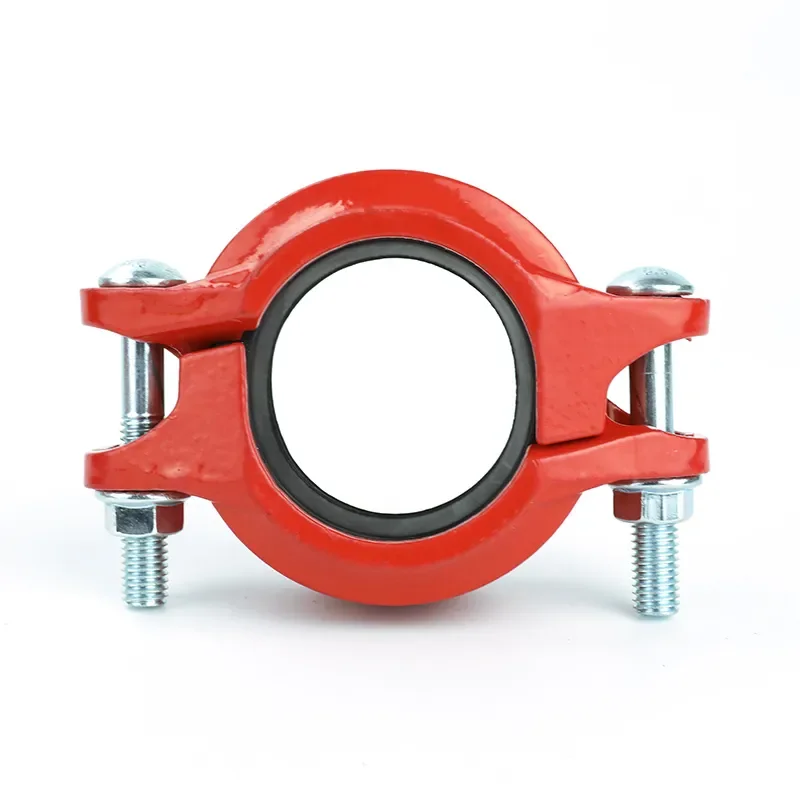

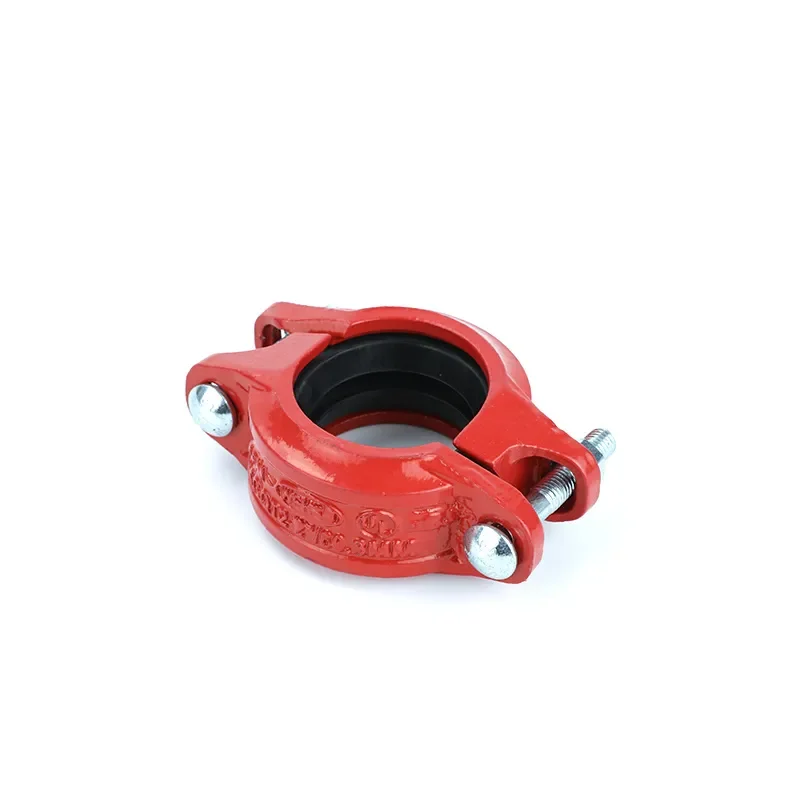

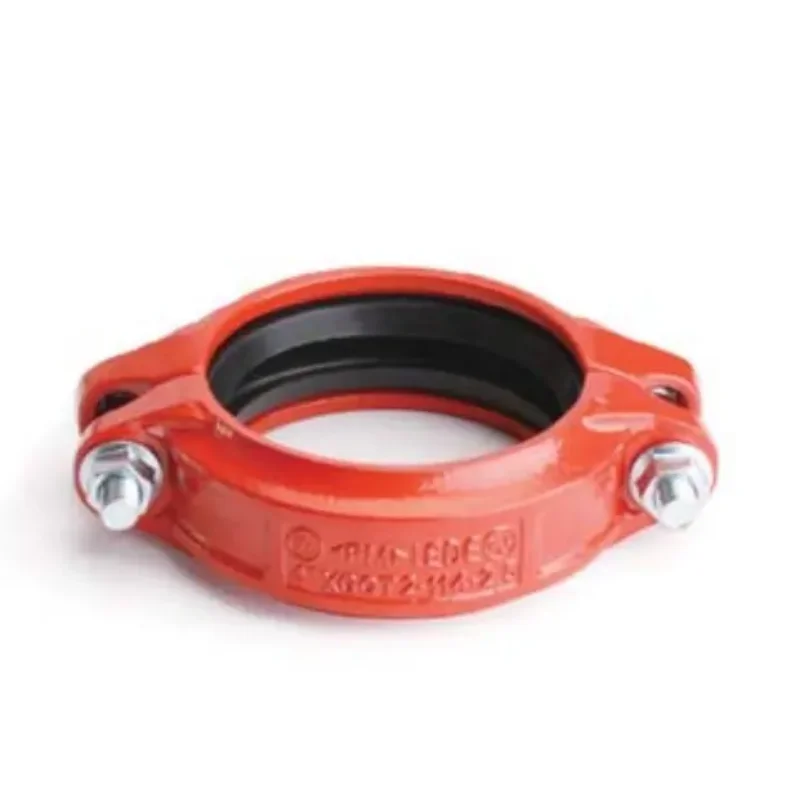

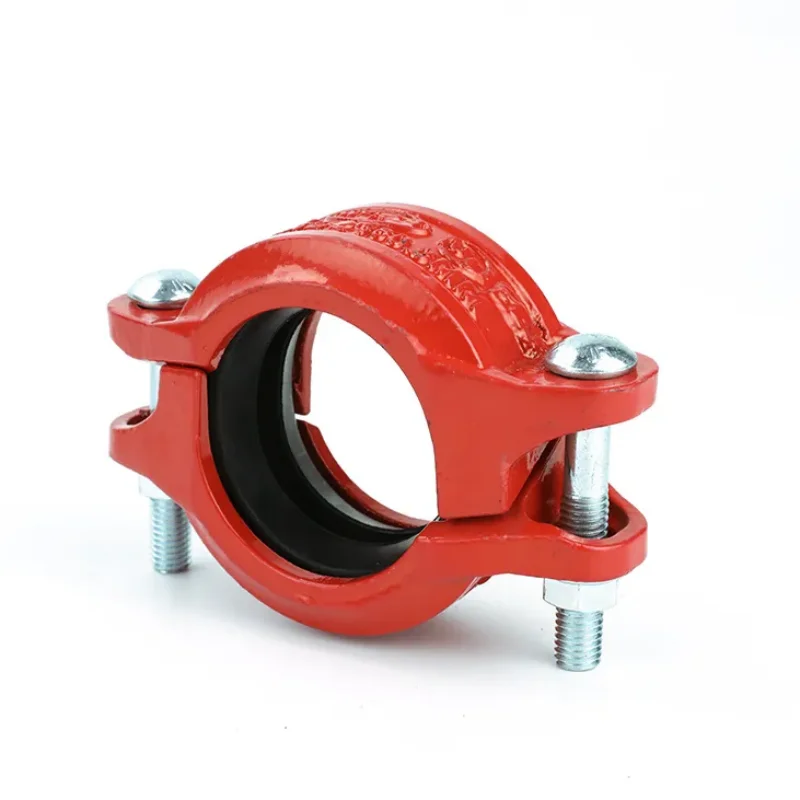

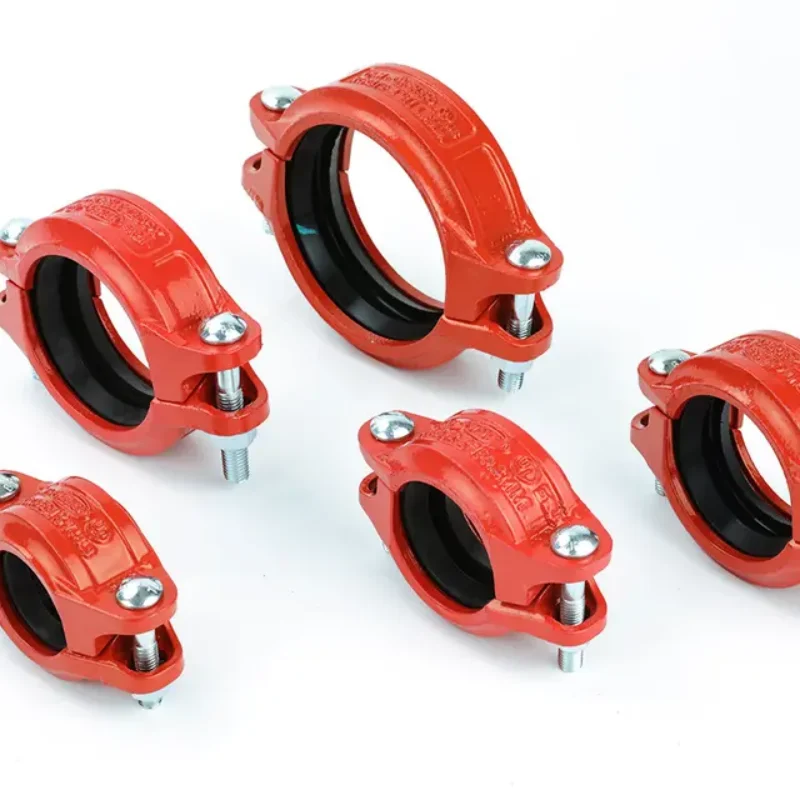

Ductile Iron Flexible Coupling is a simple, quick and reliable solution for cut grooved pipe joint which allows for
expansion, contraction and deflection and it's widely applied in the water treatment industry, filter system, cooling water
system, fire extinguishing system, Sprinkle Systems and etc

Available Size:

Model C：1'' ~ 16'' ( DN25 ~ DN400)

Model D:1'' ~ 12'' ( DN25 ~ DN300)

Maximum Working Pressure :

Model C：
* 600psi ( 42 bar)
Model D：
* 2000psi ( 137 bar)

Working pressure dependent on material, wall thickness and size of pipe

Application:

* Provides a flexible pipe joint which allows for expansion, contraction and deflection

* This product joints standard Sch 40S cut grooved pipe

Material :

* Body Material Options : Ductile Iron to ASTM A536

* Rubbe Sealing: EPDM
* Bolt & Nut : Carbon Steel

Surface Treatment :

* Body : Anti-rust red or blue painting or Hot dip galvanzied or Epoxy Power Coating or Dacromet or PTFE or Rilsan PA11 * Bolt &Nut : Galvanized or Dacromet

Product Paramenters

Model C Ductile Iron Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions					Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation					X	Y	Z	Qty	Size
(mm/inch)	(mm/inch)	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
25 1	33.7 1.315	600 42	0-1.6 0-0.06	60 2.362	97 3.818	45 1.771	2	M10x55
32 1 1/4	42.4 1.660	600 42	0-1.6 0-0.06	67 2.637	107 4.212	45 1.771	2	M10x55
40 1 1/2	48.3 1.900	600 42	0-1.6 0-0.06	74 2.913	114 4.488	45 1.771	2	M10x55
50 2	57 2.244	600 42	0-1.6 0-0.06	86 3.385	124 4.882	47 1.851	2	M10x65
50 2	60.3 2.375	600 42	0-1.6 0-0.06	86 3.385	124 4.882	47 1.851	2	M10x65
50 2	63 2.244	600 42	0-1.6 0-0.06	87 3.425	126 4.961	47 1.851	2	M10x65
65 2 1/2	73 2.875	600 42	0-1.6 0-0.06	102 4.016	139 5.472	47 1.851	2	M10x65
65 2 1/2	73 2.875	600 42	0-1.6 0-0.06	102 4.016	139 5.472	47 1.851	2	M10x65
80 3	88.9 3.500	600 42	0-1.6 0-0.06	117 4.606	163 6.471	47 1.851	2	M10x65
100 4	108 4.250	500 35	0-3.2 0-0.13	143 5.629	200 7.874	52 2.047	2	M12x85
100 4	114.3 4.500	500 35	0-3.2 0-0.13	149 5.866	191 7.519	51 2.007	2	M12x85
125 5	127 5.000	450 31	0-3.2 0-0.13	164 6.456	214 8.425	51 2.007	2	M16x100
125 5	133 5.250	450 31	0-3.2 0-0.13	177 6.968	220 8.661	51 2.007	2	M16x100
125 5	140 5.511	450 31	0-3.2 0-0.13	180 7.086	242 9.527	51 2.007	2	M16x100
150 6	159 6.259	450 31	0-3.2 0-0.13	196 7.716	264 10.393	52 2.047	2	M16x100
150 6	165.1 6.500	450 31	0-3.2 0-0.13	206 8.110	274 10.787	52 2.047	2	M16x100
150 6	168.3 6.625	450 31	0-3.2 0-0.13	206 8.110	265 10.433	52 2.047	2	M16x100
200 8	219.1 8.625	450 31	0-3.2 0-0.13	268 10.551	349 13.740	61 2.401	2	M20x110
250 10	273 10.750	350 25	0-3.2 0-0.13	328 12.913	414 16.299	65 2.559	2	M20x150
300 12	325 12.750	350 25	0-3.2 0-0.13	392 15.433	466 18.346	65 2.559	2	M20x150
350 14	355 14.000	300 21	0-3.2 0-0.13	406 15.984	445 17.519	75 2.952	3	M22x130
350 14	377 14.000	300 21	0-3.2 0-0.13	420 16.535	470 18.503	75 2.952	3	M22x130
400 16	406 16.000	300 21	0-3.2 0-0.13	479 18.858	522 20.551	75 2.952	3	M22x130
400 16	426 16.000	300 21	0-3.2 0-0.13	500 19.685	590 23.228	79 3.110	3	M22x130

Model D Ductile Iron Flexible Coupling
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation	Coupling Dimensions					Coupling Bolts
Nominal Size	Pipe O.D	Working Pressure	Pipe End Separation					X	Y	Z	Qty	Size
(mm/inch)	(mm/inch)	(psi/bar)	(mm/inch)	mm/inch	mm/inch	mm/inch	pcs	mm
25 1	33.7 1.315	2322 160	0-1.6 0-0.06	60 2.362	97 3.818	45 1.771	2	M10x55
32 1 1/4	42.4 1.660	2322 160	0-1.6 0-0.06	70 2.755	111 4.370	45 1.771	2	M10x55
40 1 1/2	48.3 1.900	2322 160	0-1.6 0-0.06	80 3.149	121 4.763	45 1.771	2	M12x60
50 2	57 2.244	2322 160	0-1.6 0-0.06	94 3.700	128 5.0392	47 1.850	2	M12x60
50 2	60.3 2.375	2322 160	0-1.6 0-0.06	94 3.700	133 5.236	47 1.850	2	M12x60
65 2 1/2	73 2.875	2322 160	0-1.6 0-0.06	108 4.251	143 5.629	47 1.850	2	M12x75
65 2 1/2	76.1 3.000	2322 160	0-1.6 0-0.06	110 4.331	150 5.905	47 1.850	2	M12x75
80 3	88.9 3.500	2322 160	0-1.6 0-0.06	127 5.000	168 6.614	47 1.850	2	M12x75
100 4	108 4.250	2000 137	0-3.2 0-0.13	152 5.984	205 8.071	52 2.047	2	M16x90
100 4	114.3 4.500	2000 137	0-3.2 0-0.13	162 6.378	210 8.267	52 2.047	2	M16x90
125 5	133 5.250	2000 137	0-3.2 0-0.13	174 6.850	230 9.055	52 2.047	2	M16x90
125 5	140 5.511	2000 137	0-3.2 0-0.13	180 7.086	240 9.448	52 2.047	2	M16x90
150 6	159 6.259	1800 125	0-3.2 0-0.13	208 8.189	264 10.393	52 2.047	2	M20x120
150 6	165.1 6.500	1800 125	0-3.2 0-0.13	233 9.173	274 10.787	52 2.047	2	M20x120
150 6	168.3 6.625	1800 125	0-3.2 0-0.13	226 8.897	282 11.102	52 2.047	2	M20x120
200 8	219.1 8.625	1500 105	0-3.2 0-0.13	289 11.378	356 14.015	60 2.362	2	M22x140
250 10	273 10.750	1500 105	0-3.2 0-0.13	334 13.149	416 16.378	65 2.559	2	M24x165
300 12	325 12.750	1500 105	0-3.2 0-0.13	390 15.354	467 18.385	65 2.559	2	M24x165

Company Profile

Anqing Great Wall Pipeline Co.,Ltd is the professional Chinese manufacturer of pipe fittings for pipe joining and leaking pipe repair . We have two main product categories, one is Repair Clamps Series and the other is Pipe Coupling Series. Our products are suit for varied kinds of pipeline with the pressure rating up to 1450psi and the medium temperature up to 250℃Our Repair Clamps Series including Stainless Steel Repair Clamps, Ductile Iron Repair Clamps, UPVC Repair Clamps, HDPE Repair Clamps, Split Sleeve Repair Clamps, Type B Sleeves and etc. Our Pipe Coupling Series including Universal Coupling, Flange Adaptor, Dismantling Joint,Gibault Joint, Quick Flange Adaptor, SS Metal Grip Coupling, SS Flex Coupling, SS Plastic Grip Coupling, SS Grooved Coupling,Ductile Iron Grooved Coupling and etc. Our factory covers an area of 12,000 square meters, total existing staff more than 100. We have the team of engineers which have the rich experience in the development of products for pipe joining and leaking pipe repair. We own more than 110 sets of production equipment including 400 tons punching machine, 350 tons stretching machine, laser cutting machine and etc The quality of our poducts are ensured with our advanced testing equipment including salt spray tester,air tightness tester, pulse vibration platform, tensile testing machine and etc. We have the ability to design and develop new products according to our customer'spipe diameter, pressure, medium, temperature . Our company has obtained ISO9001, CE,WRAS,ACS,
IAPMO, GHOST,SGS,CCS Certificates . Our products are exported to more than 50 countries including USA, UK, Spain, Australia,
Russia, Middle East countries and etc. We will supply our Repair Clamps and Pipe Couplings to our customers all around the worldwith best quality and competitive price .

Certifications

Product packaging

FAQ

Q: Why choose Great Wall?

A: Because we can provide competitive price and best quality, we have strict quality control and the most import is we have a large production scope. Q: What can we expect from Great Wall ?

A: professinal negotiation, reasonable price, and good after sale service

Q: Can you do customized design and size?

A: Yes, OEM IS available.

Q: When can we get samples and goods?

A: If we havestock, the samples will be
sent soon , make new will take about 5 days. Goods will be shipped within 20 days after receiving the deposit.

Q: How can you ensure the quality of products?

A: We have a very strict quality control system, in our factory we have 10quality control
inspectors and each of them have many years of working experiences.
