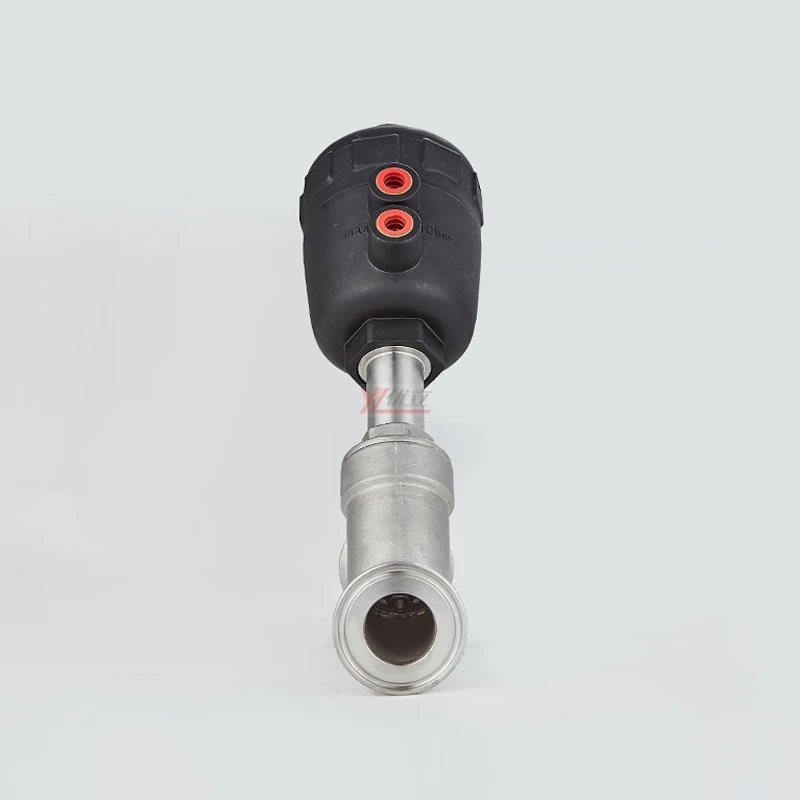

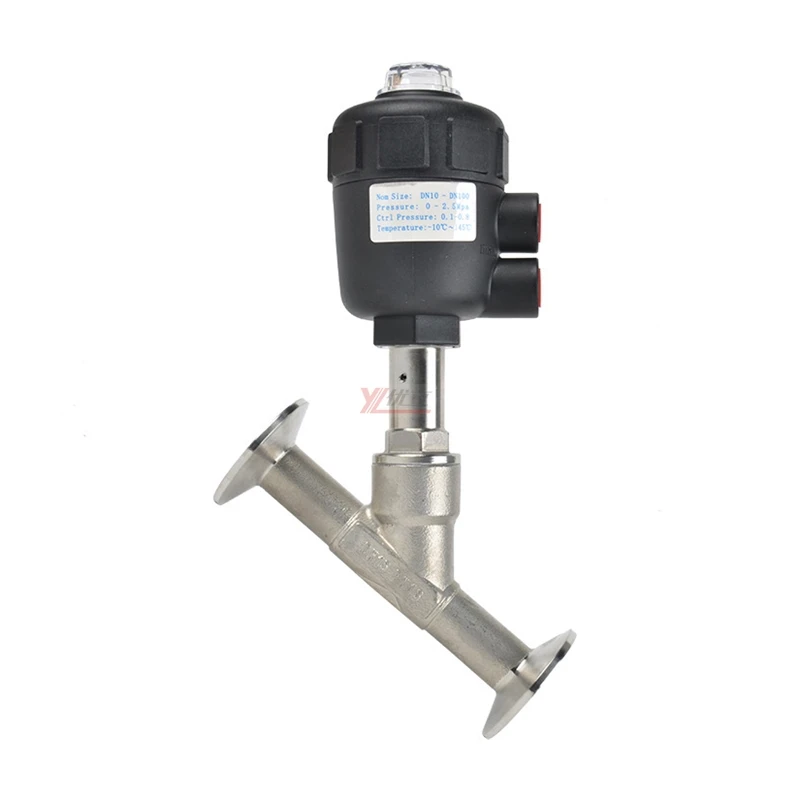

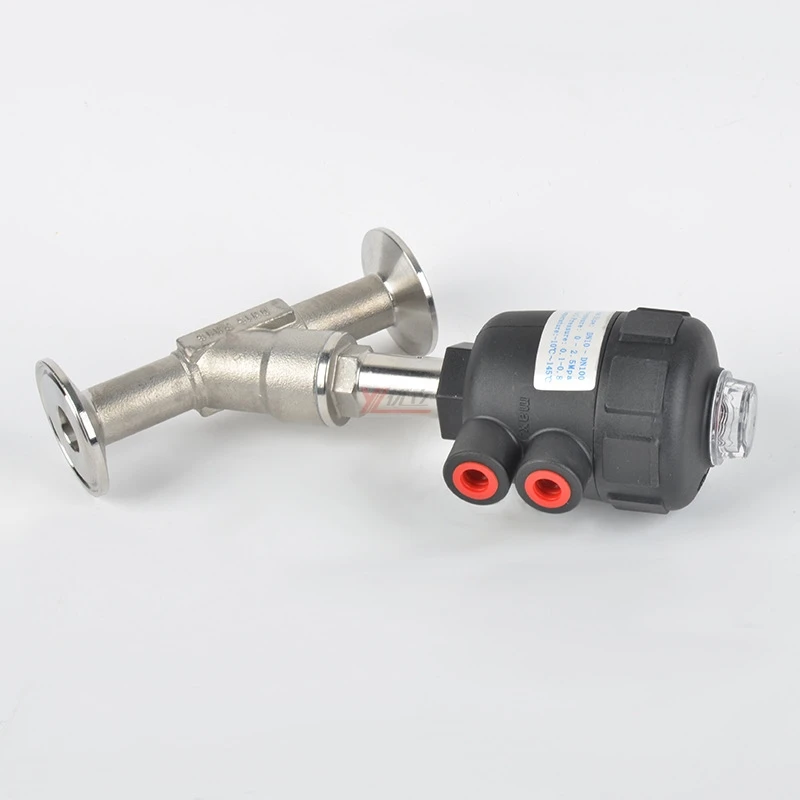

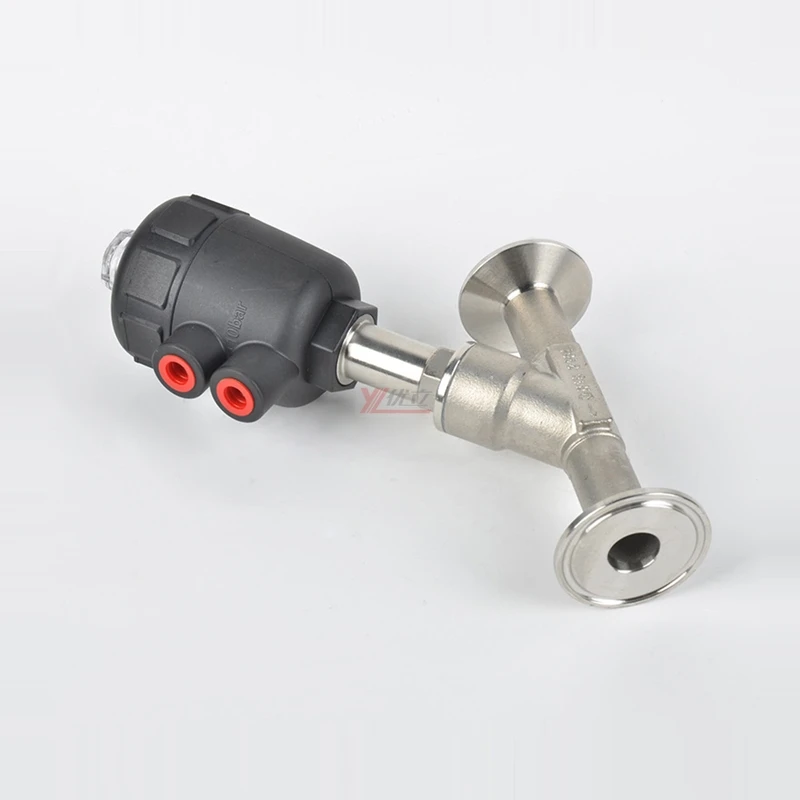

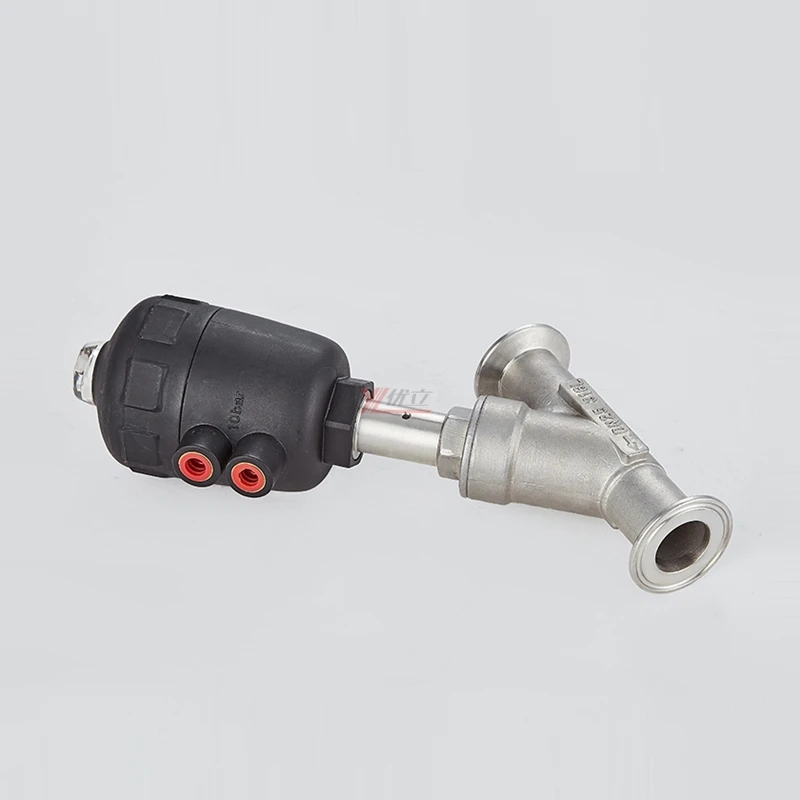

YOULI высокая температура пара 1 6 МПа 304 316 зажим 50 5 мм пластиковая головка пневматический трехзажимной угловой клапан
- Категория: >>>
- Поставщик: Wenzhou Youli Machinery Co. Ltd.
Сохранить в закладки 1601116855734:
Описание и отзывы
Характеристики
Product Description
Body material | SUS304,SUS316(CF8M),SUS 304L(CF8),SUS 316L(CF3M),1.4301/304,316L/1.4404,etc. |
Size | 1/2"-4"(DN15-DN100) |
Working pressure | PN16-25,1.6-2.5Mpa,16-25Bar |
Medium temperature | - 20 ℃ ~ + 180°C,Optional(- 20℃ ~ + 220°C) |
Ambient temperature | -20 °C~ + 60 °C |
Controlling pressure | 0.3 ~ 0.8 MPa |
Control gas | gas, air |
Connection type | Weld, Thread,Socket,Clamped,Flanged |
Thread Standard | BSPT,Optional(NPT, BSP, BSPP) |
Control type | Single acting,Double acting |
Optional accessory | Solenoid valve, limit switch box, positioner, etc. |
Actuator material | Stainless Steel,plastics |
Seat material | PTFE,PPL |
Stem material | 304,316,CF8,CF8M |
Sealing ring material | NBR |
Solenoid valve | Option(DC24V,AC220V) |
Positioner | Option(TY-1000,1500 Series, 4-20ma Signal feedback) |
Production process | Investment casting, CNC lathe, Test, Cleaning, Packing, Storage |
Capacity to produce | 10000PCS/Mouth |
Certification | CE, ISO, our factory has been inspected by leyon and TUV |
MOQ | 1pcs |
HS Code | 8481804090 |
Trademark | YOULI |
Application | Suitable for water, oil, air ,steam and some corrosive liquid etc |
Buyer's drawings or designs are available | |
Package | Cartons without pallet |
Cartons with pallet | |
Or as buyer's requirements | |
Delivery details | According to the quantities and specifications of each order |
Normal delivery time is from 10 to 15 days after receiving the deposit |
Operating Principle.
The angle seat valve maintains the flow rate to save space. It uses a single-acting pneumatic actuator with spring safety to operate the steering angle seat valve. When used, it should be normally open or normally closed.The product is made of stainless steel and Teflon. It can be used in most gases, liquids, steam and corrosive applications. It has a radiator to protect the actuator, It ensures a long life of the valve.
Product Appliction
Suitable for water, oil, air and some corrosive liquid etc
Product Paramenters
Related Products
Details Images
Company Profile
Wenzhou YouLi Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and services. The main products include ball valves,butterfly valves, gate valves, globe valves, filters, pressure reducing valves, safety valves,exhaust valves, angle seat valves, control valves, water control valves, knife gate valves, solenoid valves, discharge valves,steam traps,balance valves,breather valves, diaphragm valves, vacuum valves, needle valves, flame arresters,pumps, pipe fttings,sight glasses,manholes, pneumatic and electric accessories,fluorine-lined valves, and sanitary valves and fttings.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Our Service
On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
On After Sales | Free replacement if there is any quality problem |
On Delivery | Never delay delivery time |
On Materials | Ensure material pure |
Ensure material pure | Welcome to order our products |
FAQ
Q: Why would I choose you?
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Wenzhou Youli Machinery Co., Ltd. is a modern enterprise that integrates design, manufacturing, sales, and service.
With a people-oriented approach, technology as the core, market-oriented strategy, and quality assurance, the company is committedto providing better fluid system solutions.
Q: May I have free samples before ordering?
Yes, our company is very pleased to send you free samples for quality test as long as freight cost being paid by buyers
themselves.
Q: What’s the MOQ?
The majority of products are fully in stock, so we accept 1 piece as the minimum order quantity.
Q: Does your company have the export license?
Yes, we have more than 4 years export experience, we can do FOB, C&F, CIF, DDU and DDP (Russian Only).
Q: What’s the payment term?
For small testing orders, we accept Paypal, Western Union, T/T and Credit Card.For mass orders, we accept T/T and L/C.
Q: How would you minimize damages during delivery?
Standard: mass orders will be packed by many carbon boxes and filled in plywood cases.Available requirement: blister packing for every piece of product, plastic caps for clamp connected products.
Q: How would you choose the shipment way?
Basically, we will select shipment ways based on four factors (order quantity, delivery time, costs and customs policy), then listcouples of reasonable options with Pros and Cons to customers, letting them to decide.
Похожие товары

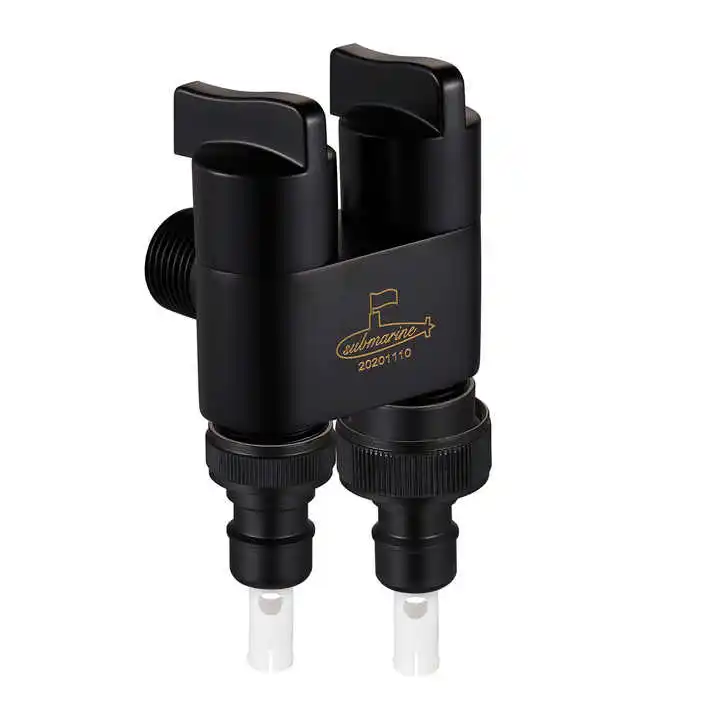

Современный двухпозиционный керамический Латунный Угловой клапан 1 в 2 для подключения туалета и стиральной машины
2 164,90 ₽ - 2 424,16 ₽

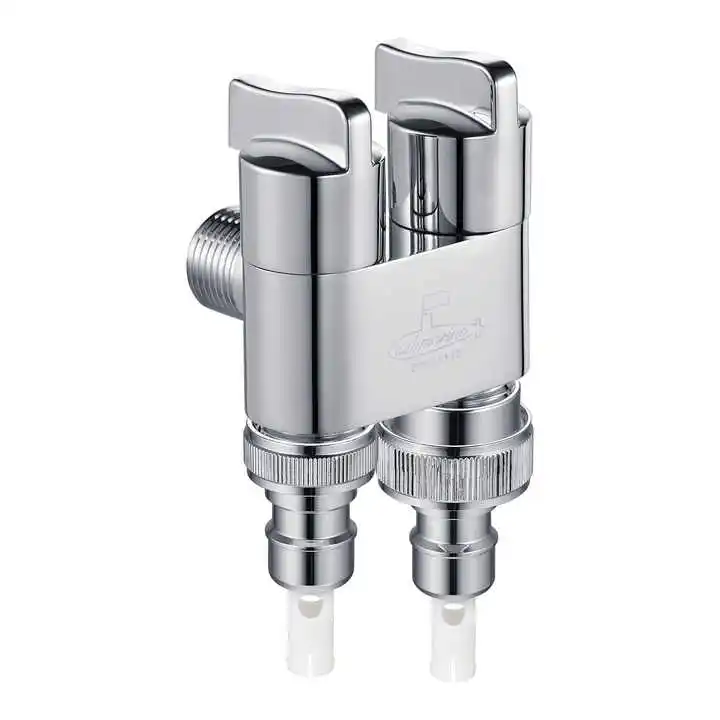

Современный двойной регулирующий клапан, керамическая катушка, латунный угловой клапан для биде, туалета, ванной
2 164,90 ₽ - 2 424,16 ₽
Прямые продажи с фабрики керамическая катушка Латунный Угловой клапан для подключения туалета и стиральной машины
2 164,90 ₽ - 2 424,16 ₽

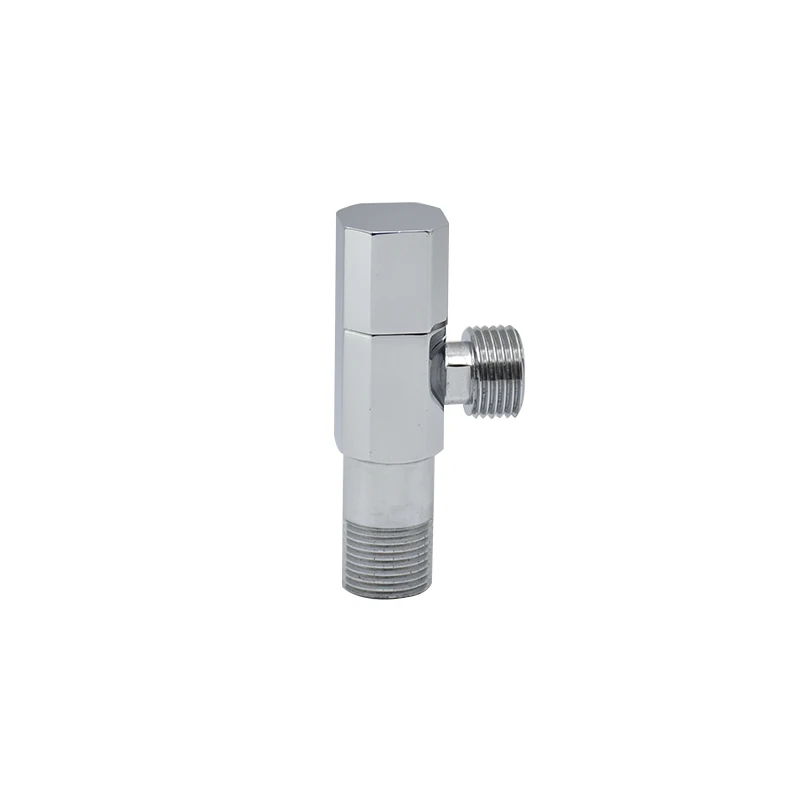

Латунный угловой клапан с полированной отделкой
217,70 ₽ - 327,09 ₽

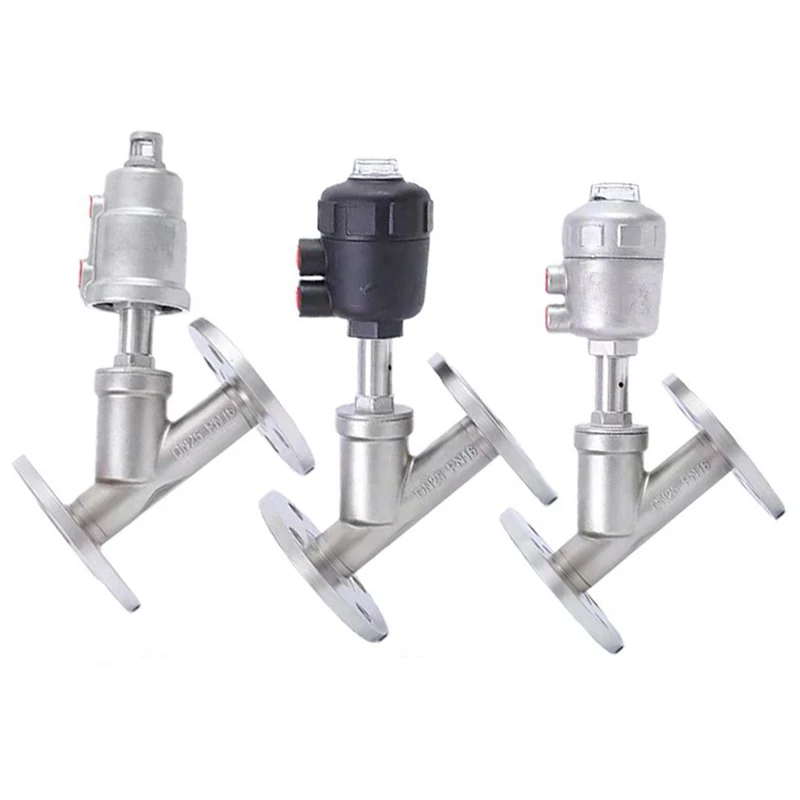

Пневматический фланцевый угловой седельный клапан из нержавеющей стали с высокой температурой Y типа угловой седельный клапан Burkert
1 575,27 ₽ - 1 969,09 ₽

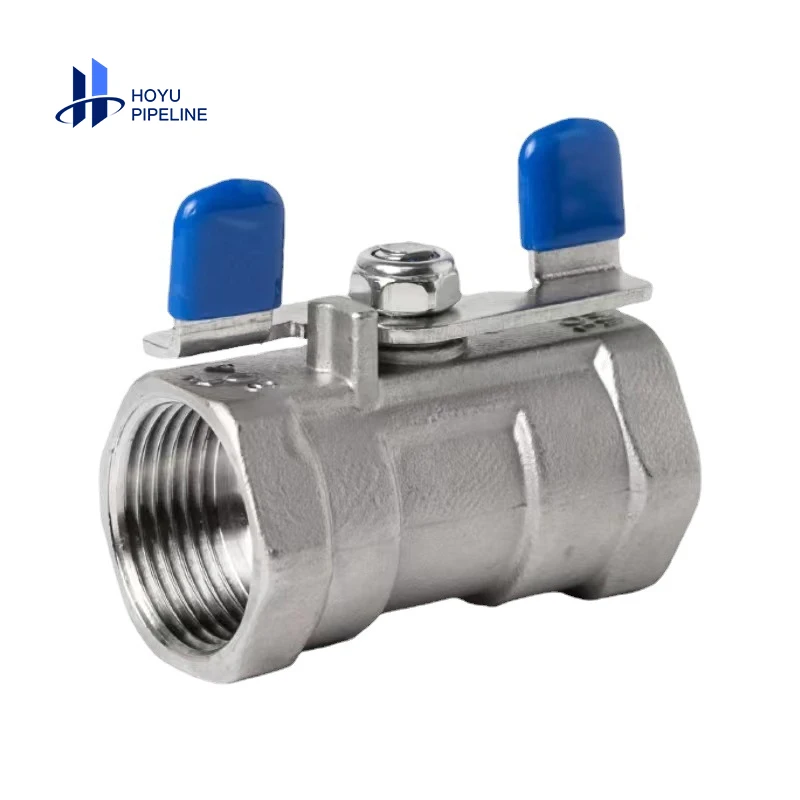

Оптовая продажа, шаровой кран из нержавеющей стали 304 с ручкой-бабочкой, высококачественный ручной шаровой кран, шаровой кран с ручкой-бабочкой
273,49 ₽

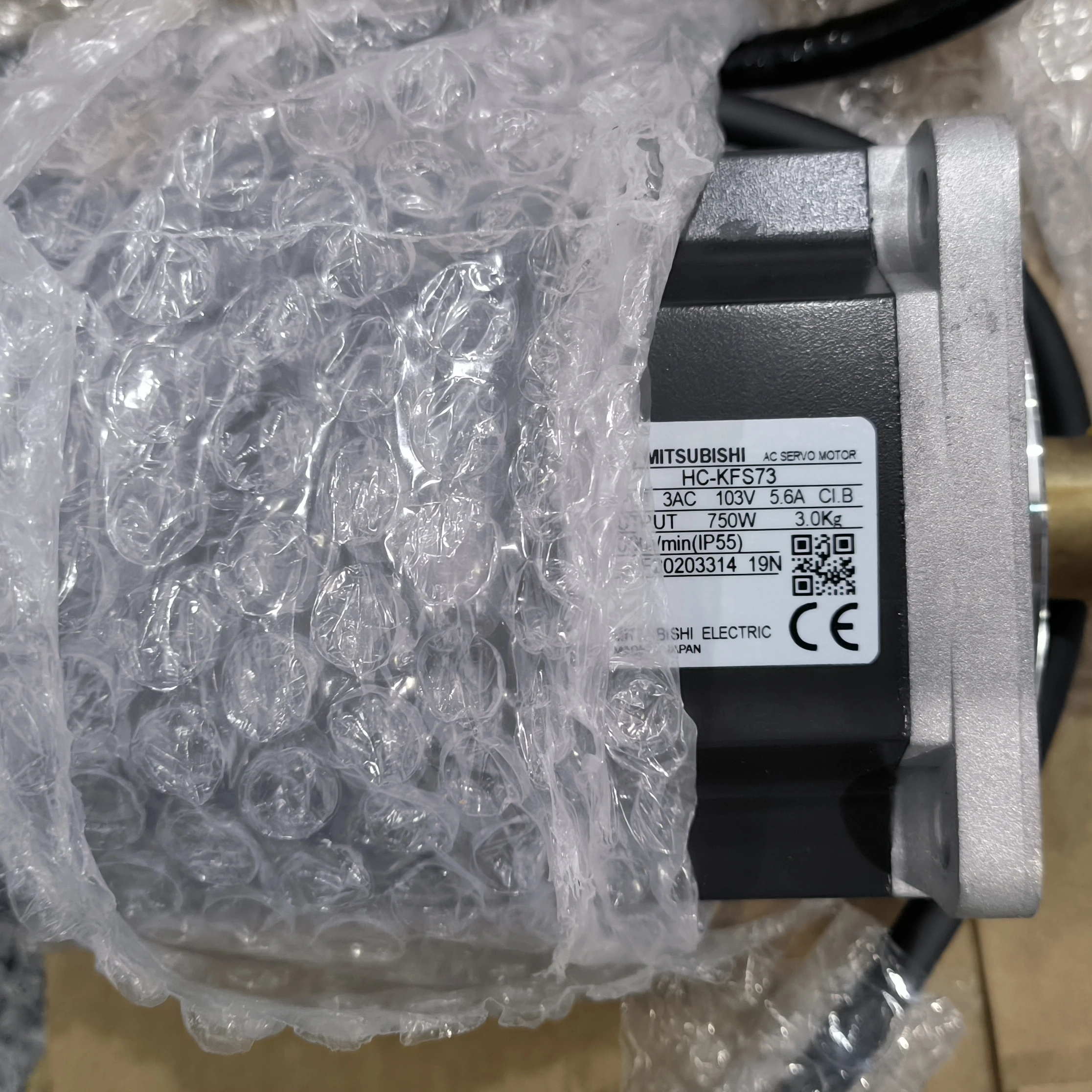

Совершенно новый аппарат не Привязанный к оператору сотовой связи Mitsubishi моторы HC-KFS73 HF-KP73
