Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора
Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора

Автомобильный аккумулятор 400 В 330 350 100Ah Lifepo4 батарея для Специального электрического трактора

Сохранить в закладки 1601117400258:


Цена:679 820,08 ₽ - 745 609,12 ₽*

Количество:

  • В избранное

Описание и отзывы

Характеристики

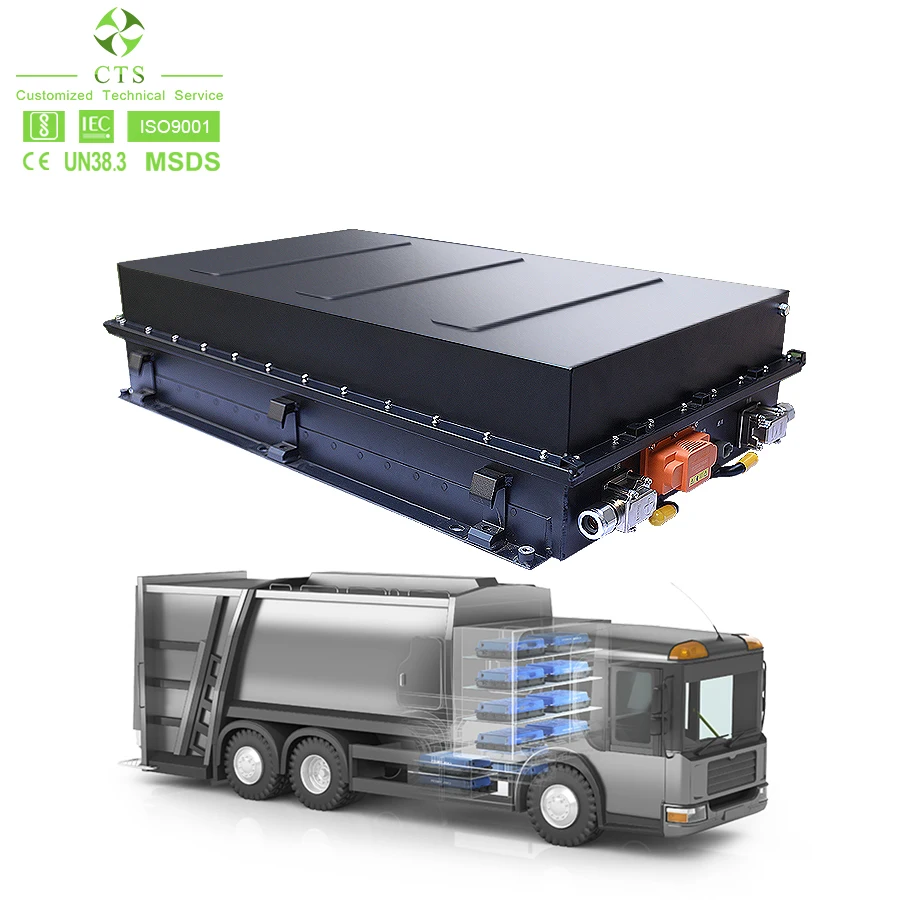

HV ev car battery 400V 330V 350V 100Ah Lifepo4 Cell Electric Vehicle Battery for Special Electric Farm Tractor






Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle, large capacity AGV, Skyline crane. We have 5 star ★★★★★ experience in different market. lf you have any question,please contact us, we will provide the proper solution for you!

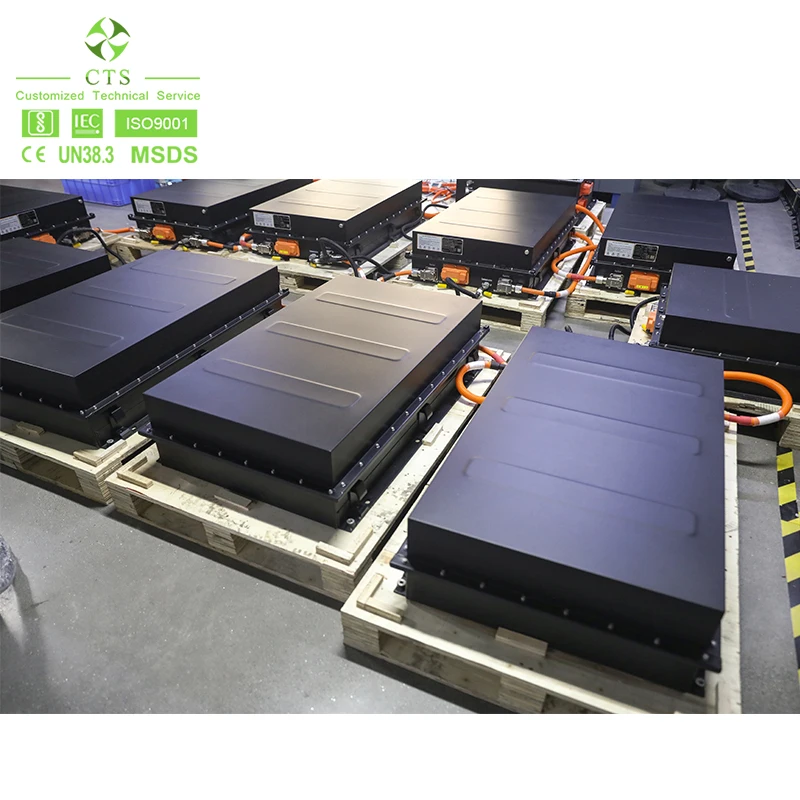

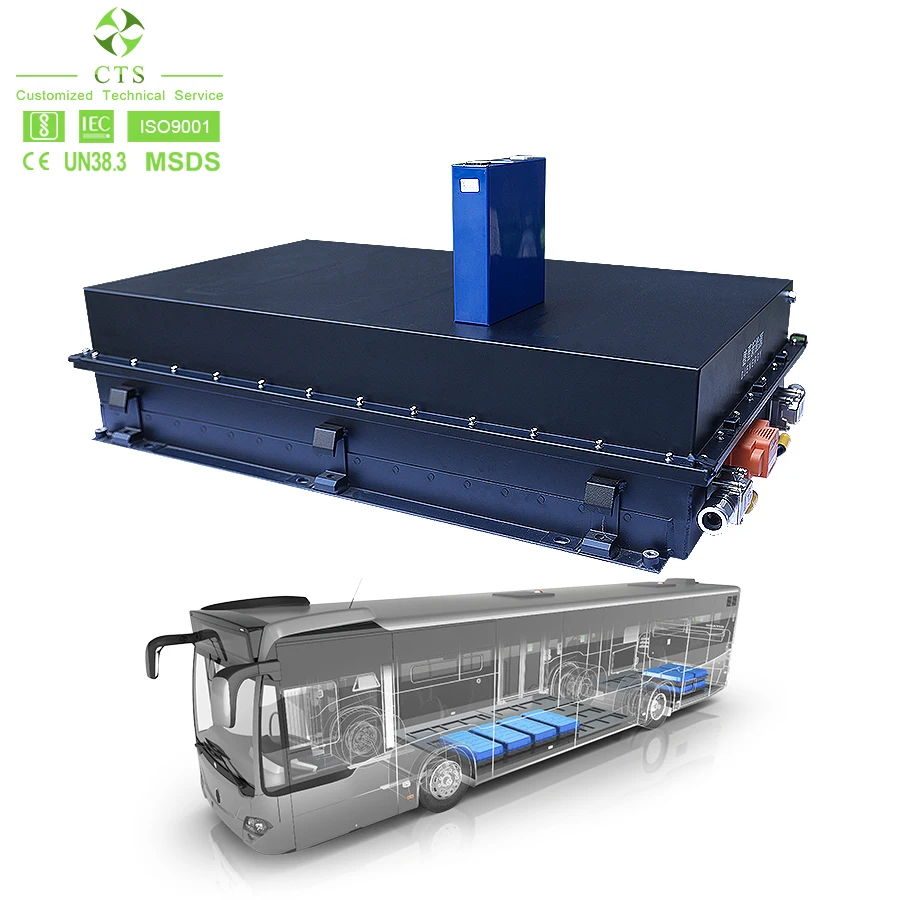

Standard EV Battery Module for Bus and Heavy Truck
Support Max 600KWH System
✅Multiple voltage and capacity choices:
Support the max connection of 12 module(4S3P) in one system.
Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:
Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module:
Reliable lifepo4 cells, multi-tiered safety system.


What is an EV battery module?

EV module and pack systems are assembled by both OEMs as well as automotive makers. A module is composed of a few cells welded or otherwise physically attached to each other. Multiple battery cells are assembled into a module, wrapped in steel plates, and have their poles welded together to produce the correct voltage.

How big is a standard EV battery module?

dimensions: 1060 x 640 x 240mm (l x w x h).


You may also like




CTS Battery Solutions for Electric Truck-Bus-Boat-Locomotive-Railway-Subway


Using 153.6V 230Ah Lifepo4 Battery Modules
(Model No.: W-XY-156206-1)
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
1
3S 1P
105.9kWh
460.8V
230Ah
360V-525V
50kW rated 100kW max
200kW peak for 30 sec
≤100kW rated
2
3S 2P
211.9kWh
460.8V
460Ah
360V-525V
100kW rated 180kW max
360kW peak for 30 sec
≤180kW rated
3
3S 3P
317.7kWh
460.8V
690Ah
360V-525V
150kW rated 220kW max
440kW peak for 30 sec
≤220kW rated
4
4S 1P
141.3kWh
614.4V
230Ah
480V-700V
70kW rated 140kW max
280kW peak for 30 sec
≤140kW rated
5
4S 2P
282.4kWh
614.4V
460Ah
480V-700V
140kW rated 240kW max
480kW peak for 30 sec
≤240kW rated
6
4S 3P
423.9kWh
614.4V
690Ah
480V-700V
210kW rated 290kW max
590kW peak for 30 sec
≤290kW rated
7
5S 1P
176.6kWh
768V
230Ah
600V-876V
85kW rated 175kW max
350kW peak for 30 sec
≤175kW rated
8
5S 2P
353.2kWh
768V
460Ah
600V-876V
175kW rated 300kW max
600kW peak for 30 sec
≤300kW rated
9
5S 3P
529.8kWh
768V
690Ah
600V-876V
260kW rated 370kW max
740kW peak for 30 sec
≤370kW rated
Using 115.2V280Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
10
3S 1P
96.8kWh
345.6V
280Ah
270V-394.2V
50kW rated 90kW max
180kW peak for 30 sec
≤90kW rated
11
3S 2P
193.5kWh
345.6V
560Ah
270V-394.2V
95kW rated 160kW max
320kW peak for 30 sec
≤160kW rated
12
3S 3P
290.3kWh
345.6V
840Ah
270V-394.2V
140kW rated 200kW max
400kW peak for 30 sec
≤200kW rated
13
4S 1P
129.0kWh
460.8V
280Ah
360V-525V
60kW rated 110kW max
250kW peak for 30 sec
≤110kW rated
14
4S 2P
258.0kWh
460.8V
560Ah
360V-525V
125kW rated 210kW max
430kW peak for 30 sec
≤210kW rated
15
4S 3P
387.1kWh
460.8V
840Ah
360V-525V
190kW rated 270kW max
540kW peak for 30 sec
≤270kW rated
16
5S 1P
161.3kWh
576V
280Ah
450V-657V
80kW rated 145kW max
320kW peak for 30 sec
≤145kW rated
17
5S 2P
322.6kWh
576V
560Ah
450V-657V
160kW rated 270kW max
540kW peak for 30 sec
≤270kW rated
18
5S 3P
483.8kWh
576V
840Ah
450V-657V
240kW rated 335kW max
670kW peak for 30 sec
≤335kW rated
19
6S 1P
193.5kWh
691.2V
280Ah
540V-788.4V
95kW rated 170kW max
385kW peak for 30 sec
≤170kW rated
20
6S 2P
387.1kWh
691.2V
560Ah
540V-788.4V
190kW rated 325kW max
655kW peak for 30 sec
≤325kW rated
21
6S 3P
580.6kWh
691.2V
840Ah
540V-788.4V
290kW rated 400kW max
810kW peak for 30 sec
≤400kW rated
Using 115.2V304Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
22
3S 1P
105.1kWh
345.6V
304Ah
270V-394.2V
50kW rated 80kW max
165kW peak for 30 sec
≤80kW rated
23
3S 2P
210.1kWh
345.6V
608Ah
270V-394.2V
105kW rated 155kW max
315kW peak for 30 sec
≤155kW rated
24
3S 3P
315.2kWh
345.6V
912Ah
270V-394.2V
155kW rated 220kW max
440kW peak for 30 sec
≤220kW rated
25
4S 1P
140.1kWh
460.8V
304Ah
360V-525V
70kW rated 110kW max
220kW peak for 10 sec
≤110kW rated
26
4S 2P
280.2kWh
460.8V
608Ah
360V-525V
140kW rated 210kW max
420kW peak for 30 sec
≤210kW rated
27
4S 3P
420.2kWh
460.8V
912Ah
360V-525V
210kW rated 290kW max
580kW peak for 30 sec
≤290kW rated
28
5S 1P
175.1kWh
576V
304Ah
450V-657V
85kW rated 140kW max
280kW peak for 30 sec
≤140kW rated
29
5S 2P
350.2kWh
576V
608Ah
450V-657V
175kW rated 260kW max
520kW peak for 30 sec
≤260kW rated
30
5S 3P
525.3kWh
576V
912Ah
450V-657V
260kW rated 365kW max
730kW peak for 30 sec
≤365kW rated
31
6S 1P
210.1kWh
691.2V
304Ah
540V-788.4V
105kW rated 165kW max
330kW peak for 30 sec
≤165kW rated
32
6S 2P
420.2kWh
691.2V
608Ah
540V-788.4V
210kW rated 315kW max
630kW peak for 30 sec
≤315kW rated
33
6S 3P
630.4kWh
691.2V
912Ah
540V-788.4V
315kW rated 440kW max
880kW peak for 30 sec
≤440kW rated
Using 307.2V105Ah Lifepo4 Battery Modules
No.
Module Qty
Total Energy
Rated Volt
Rated Capacity
Working Volt
Discharge Power @ 25℃
Suggested Motor
34
1S 1P
32.36kWh
307.2V
105Ah
240-345.6V
16kW rated 32kW max
64kW peak for 30 sec
≤32kW rated
35
2S 1P
64.5kWh
614.4V
105Ah
480-700V
32kW rated 64kW max
128kW peak for 30 sec
≤64kW rated
36
2S 3P
193.5kWh
614.4V
315Ah
480-700V
75kW rated 135kW max
270kW peak for 30 sec
≤135kW rated

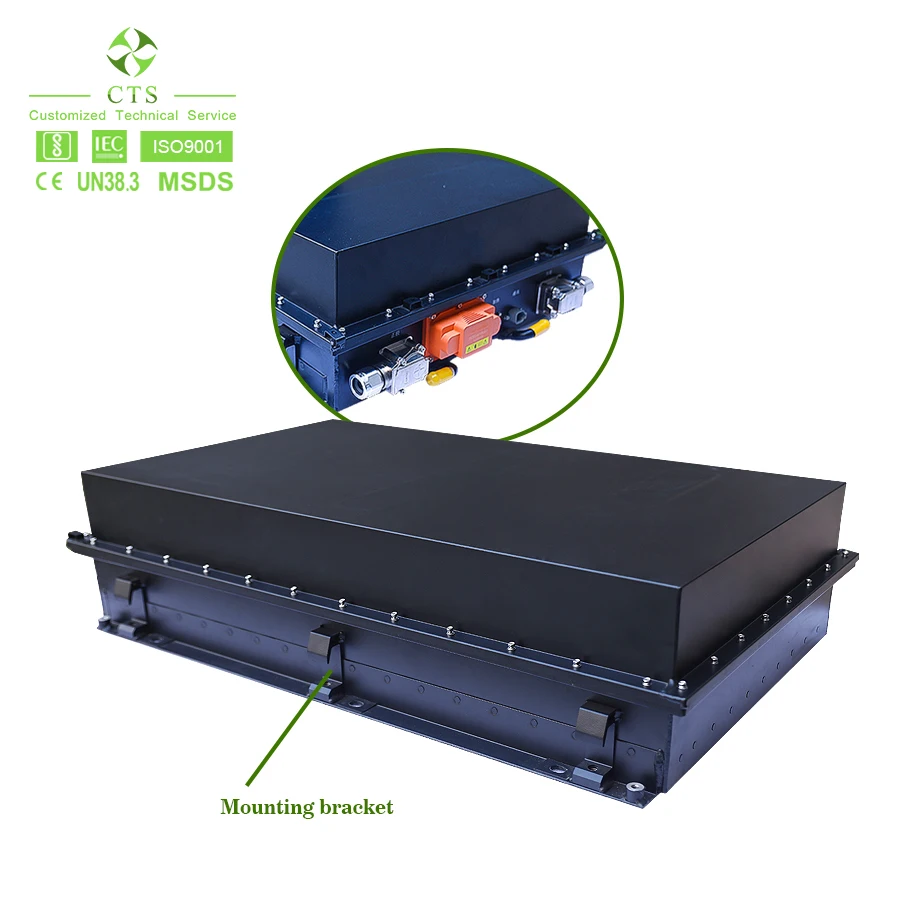

Standard EV Battery Module:
\\uD83D\\uDC77PACK System Core Technology
\\uD83D\\uDC77Compact + Lightweight Design
\\uD83D\\uDC77Patented Smart Thermal Liquid Technology
\\uD83D\\uDC77Modular Design + Single Module Drivable
\\uD83D\\uDC77The all parts in the module is standard parts which are molded parts
\\uD83D\\uDC77Cell Core Technology
\\uD83D\\uDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.




Why choose this Standard EV Battery Module?
✅SOC Calculation:
Real time dynamic calibration
Vehicle operation condition wasconsidered
Multi-method combination
High accuracy measurement of thecell Voltage /temperature/pack current
Amount of data from experiment

✅Faults Diagnosis:
Insulation & water leakage
Cell voltage out of range
High/low temperature
Communication faults
Contactor weld
Power connection
Temperature sensor faults


Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box
Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!

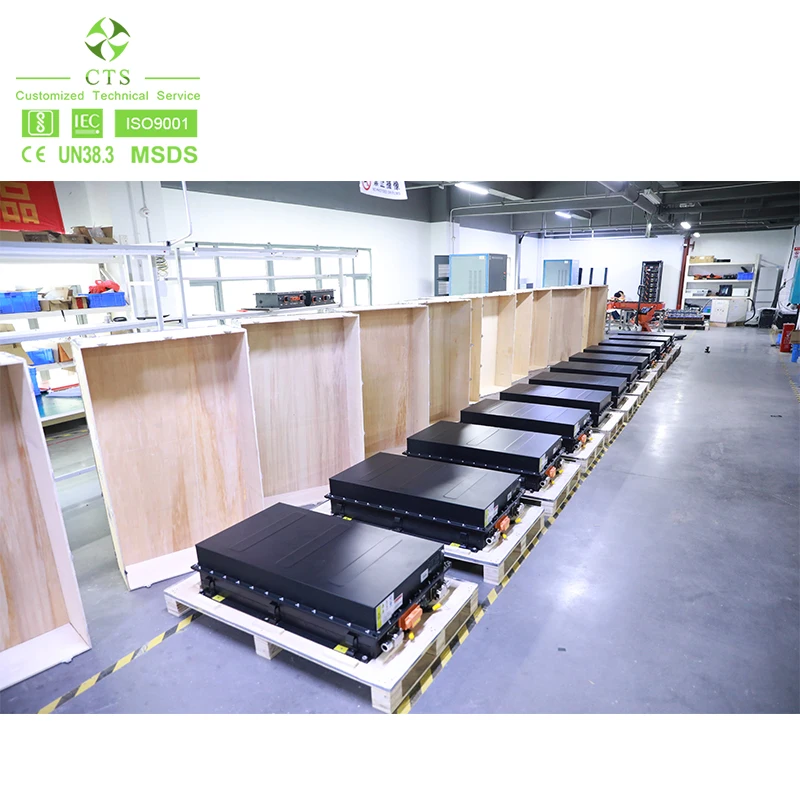

Hunan CTS Technology Co.,LTD
10+ years to sharpen a sword.
We do only one thing, professional customization.

20 + R&D team
150 front-line production employees
10 production lines
20,000 square meter plant
Capacity up to 500mwh

Since 2011, CTS has focused on one-stop customization of lithium battery products such as electric vehicle batteries, large energy storage batteries, smart home storage batteries, high-end electric motorcycle batteries and so on.

We have more 30 types of cells, and could make OEM battery pack from 12v-800v, 10-200ah, which can be used in electric vehicle, E-bike, UPS, energy storage system, telecommunication base station,E-scooter, E-tools,unmanned airplane, golf cart, fork lift, cleaning car , electric wheelchair, etc.
We has been pursuing quality policy of continuous innovation and improvement to meet customer's requirements. To realized full automation, we has introduced advanced foreign equipment and technology from Korea and Germany. To ensure the best quality, we has passed I S O 9 0 0 1 , I S O 1 4 0 0 1 and O H S A S 1 8 0 0 1 certifications.

We stick to the company concept of human orientation and efficient innovation and we welcome customization. So, lets join together to promote the development of renewable energy and friendly environment.


Please contact us




Похожие товары
Экологически достойные новые аккумуляторы купить Lifepo4 Bms циклы глубокий 12 В 100ah bms батареи литиевая батарея
22 916,52 ₽ - 27 302,46 ₽
Ультраконденсаторный модуль 12 В 20 Ач 50 100 комплект батарей с супер конденсатором для RV электрических автомобилей мотоциклов скутеров
15 789,37 ₽

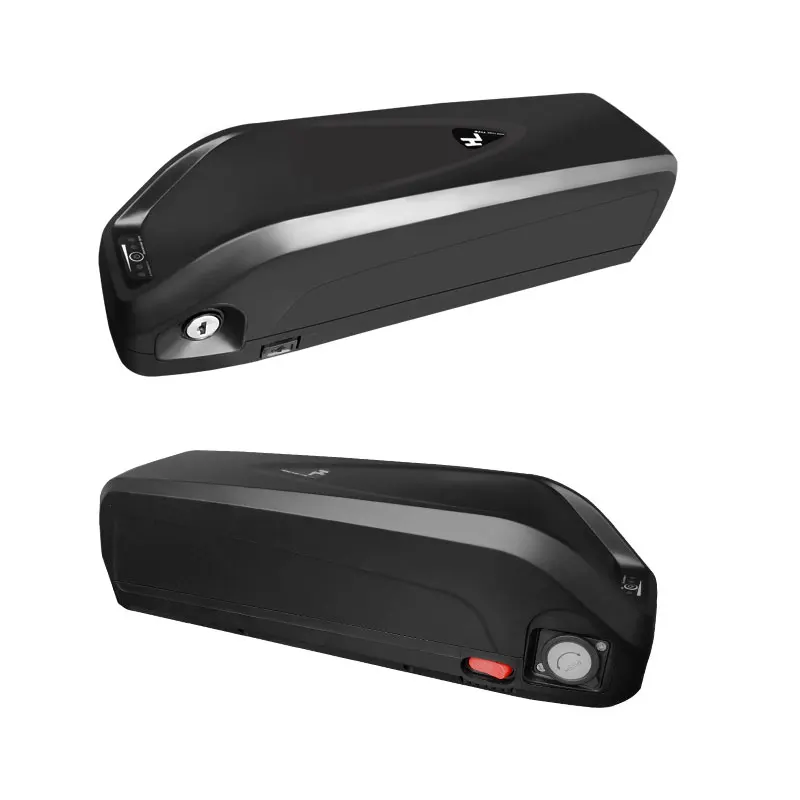

DP-6 DP-9 Аккумулятор для электрического велосипеда 18650/21700 ячеек 36 В 48 52 60 72 10ah 20Ah 25Ah 30Ah литиевая батарея электровелосипеда

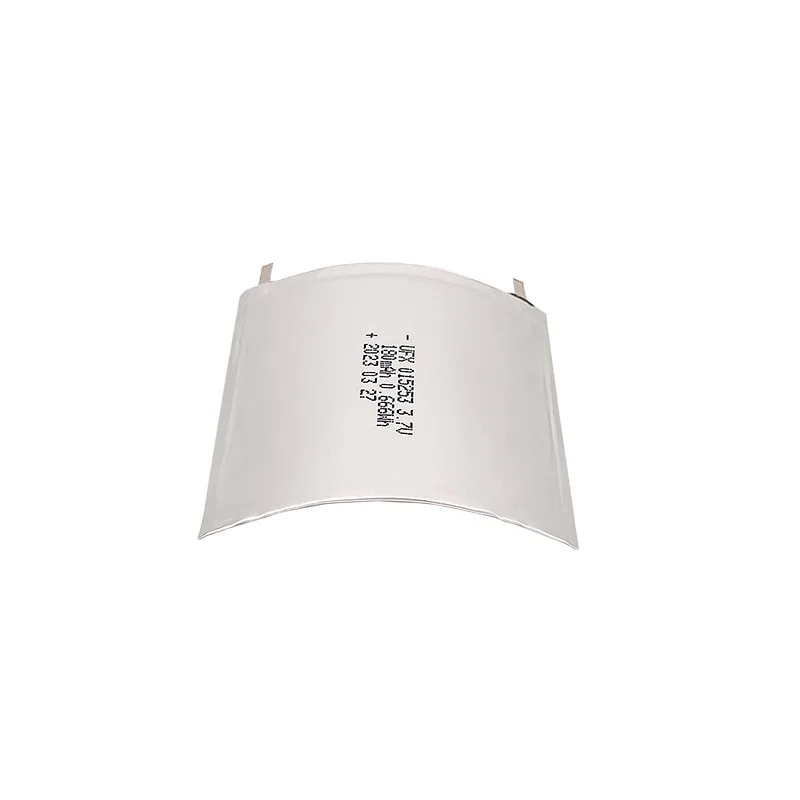

015253 (180 мАч) 3 7 В ультра-тонкий изогнутый полимерный литиевый аккумулятор
274,13 ₽ - 383,77 ₽
Литиевая батарея hailong для электровелосипеда 48 В 20 Ач длительный срок службы китайский бренд с элементами Samsung
18 859,53 ₽ - 21 052,50 ₽
Китайцы выпускают под брендом 3 7 v 123Ah 13100548 чехол батарейных ячеек для EV вилочный погрузчик мощность высокая скорость разряда батареи
3 596,47 ₽ - 3 837,70 ₽

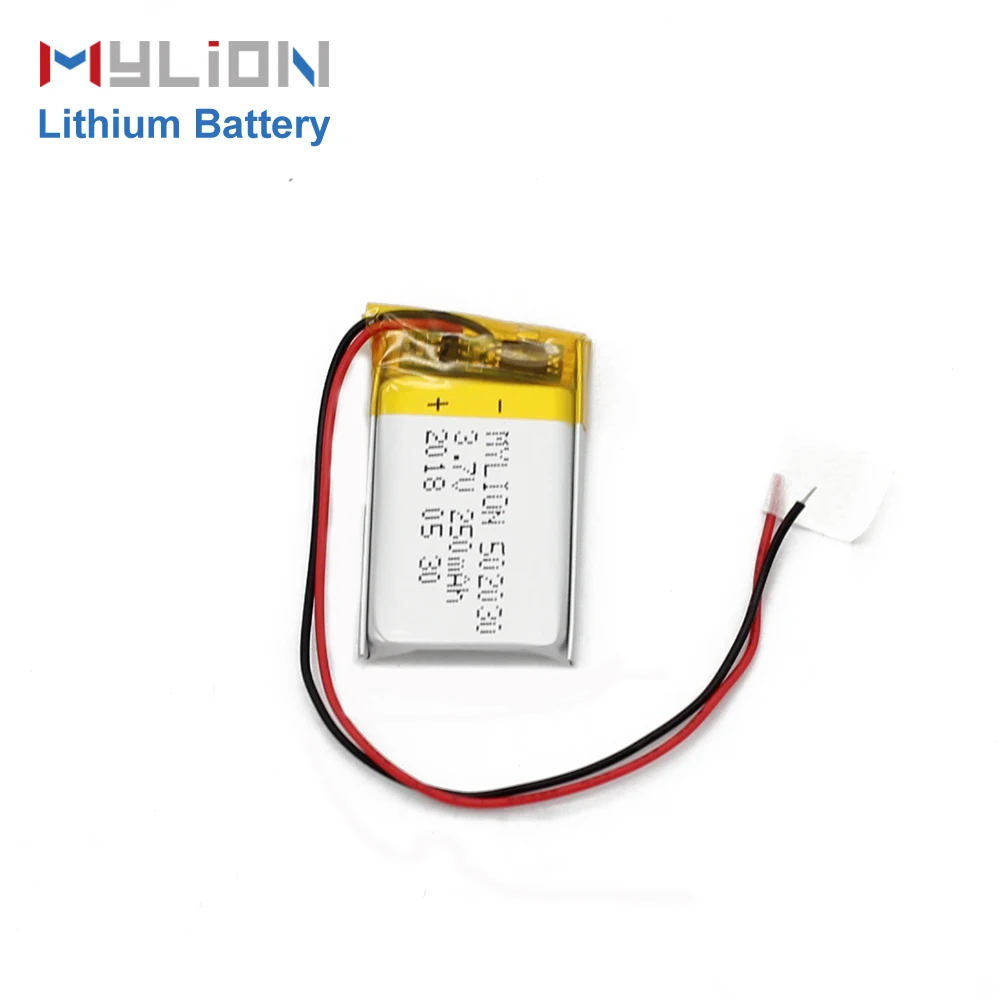

Литий-полимерный аккумулятор 3 7 В 250 мАч 502030 перезаряжаемая литиевая батарея
59,22 ₽

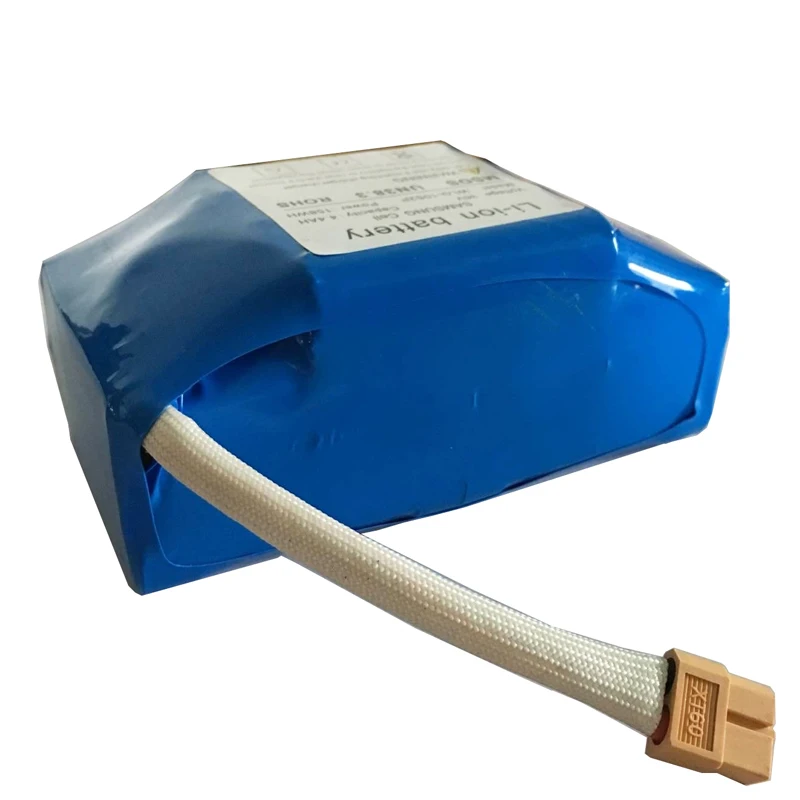

Китайский бренд сотовый 10s2p 18650 36 В 4.4ah ионный литиевый Ховерборд сменный аккумулятор
