Прямая Продажа с фабрики водородный предохранительный клапан для газовой трубы
33 827,63 ₽ - 37 961,38 ₽
Высокоэффективный электродвигатель двухходовой привод клапана моторизованный 3 шт. зажим шарового
- Категория: >>>
- Поставщик: Anhui Qianxing Supply Chain Management Co. Ltd.
Сохранить в закладки 1601117584343:
Описание и отзывы
Характеристики
Products Description

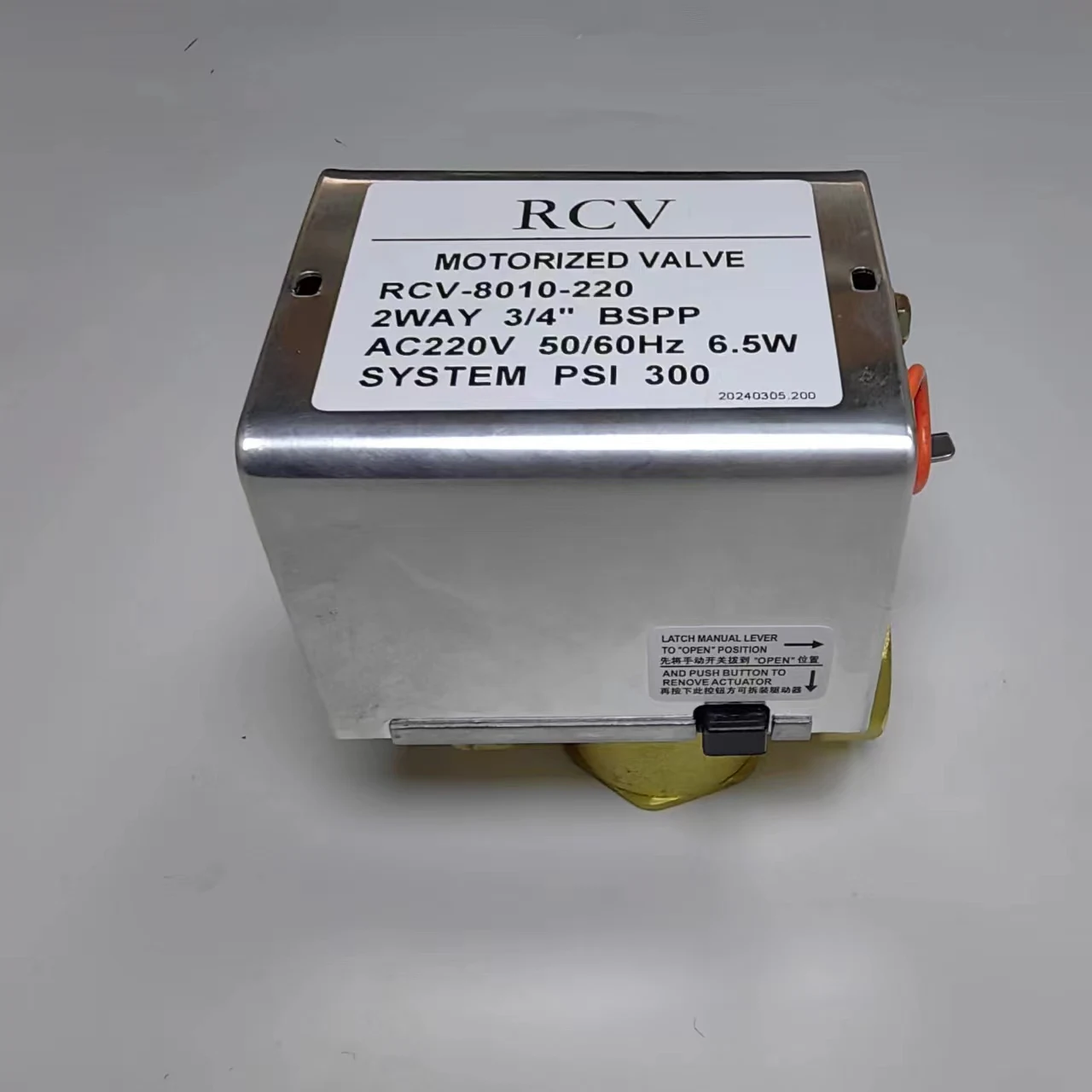

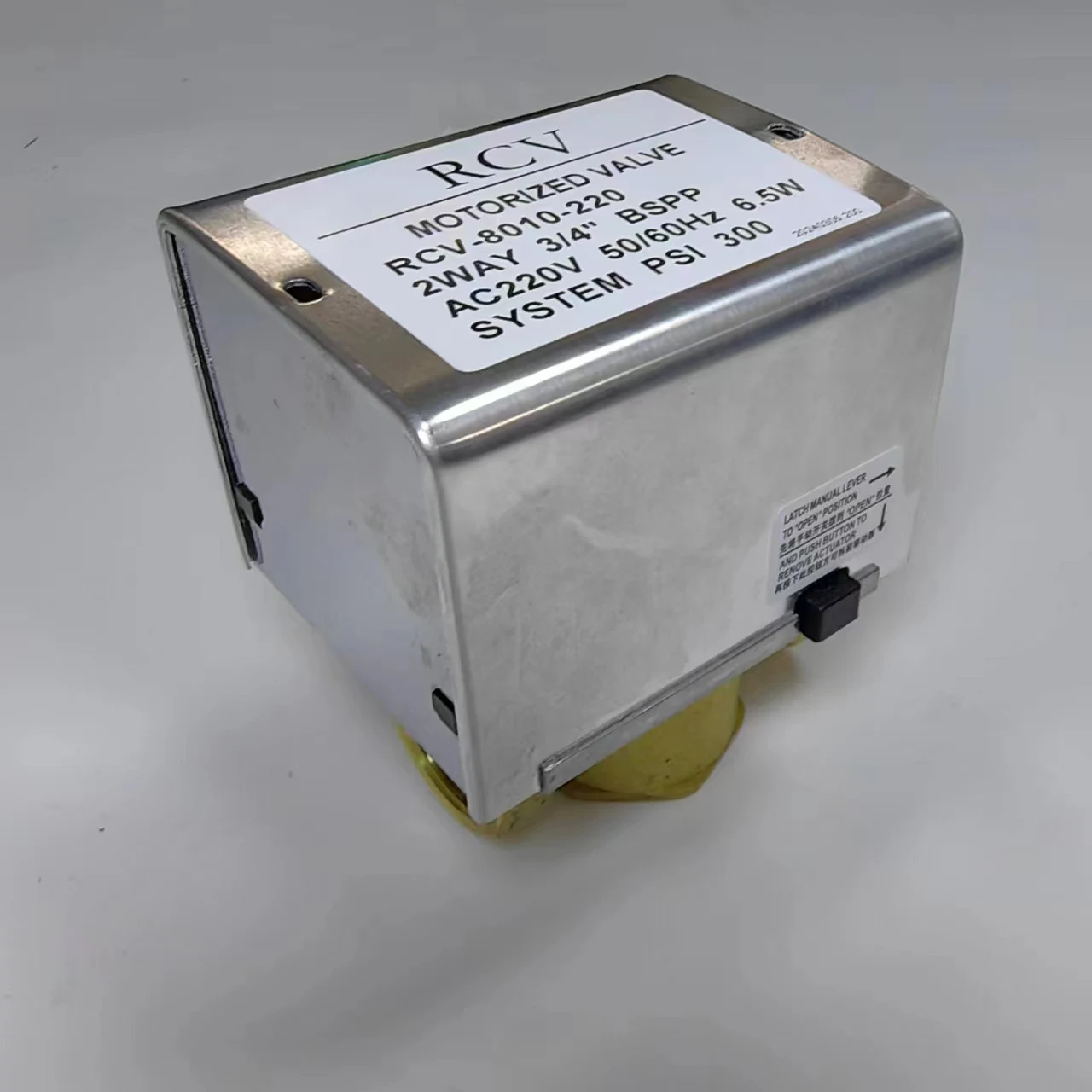

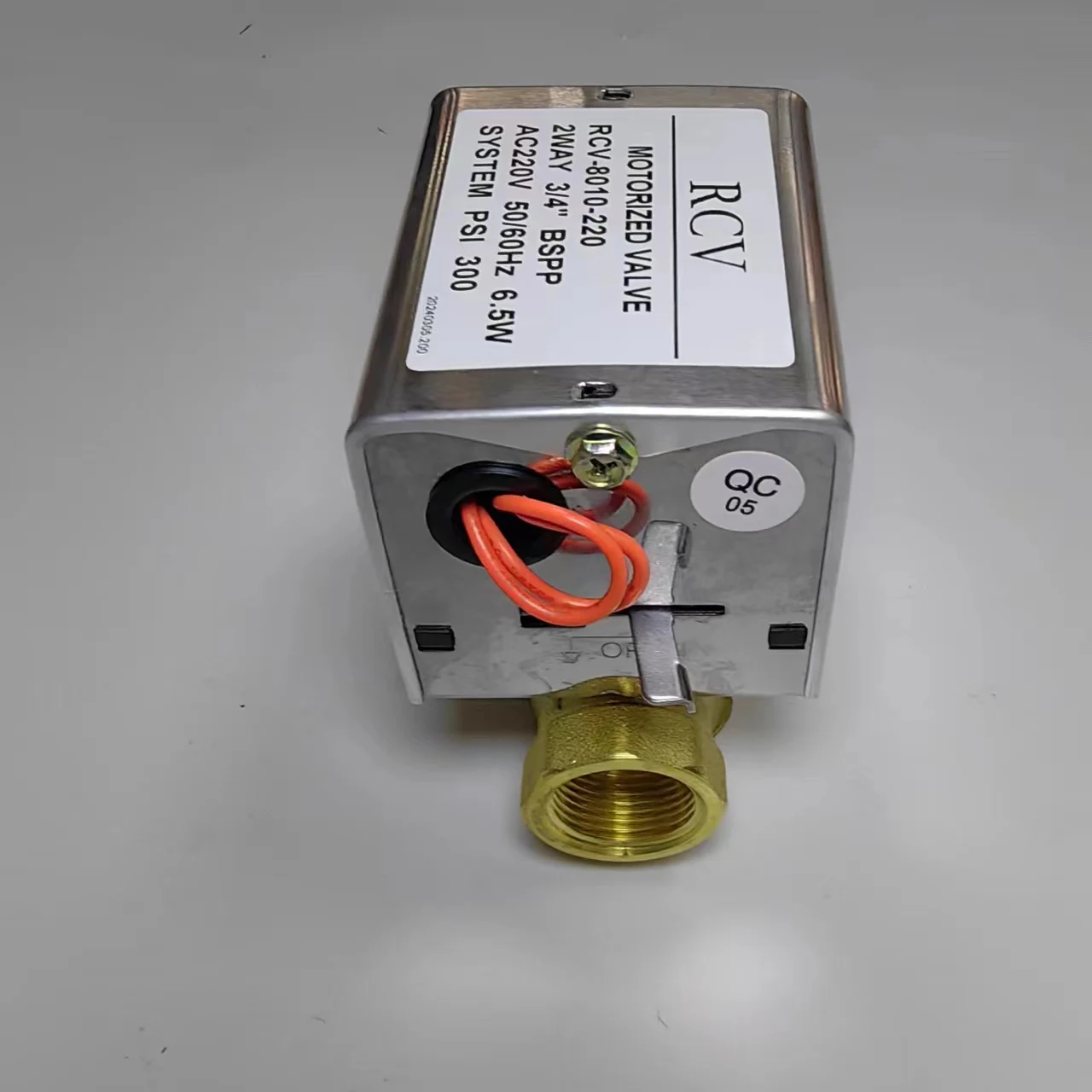

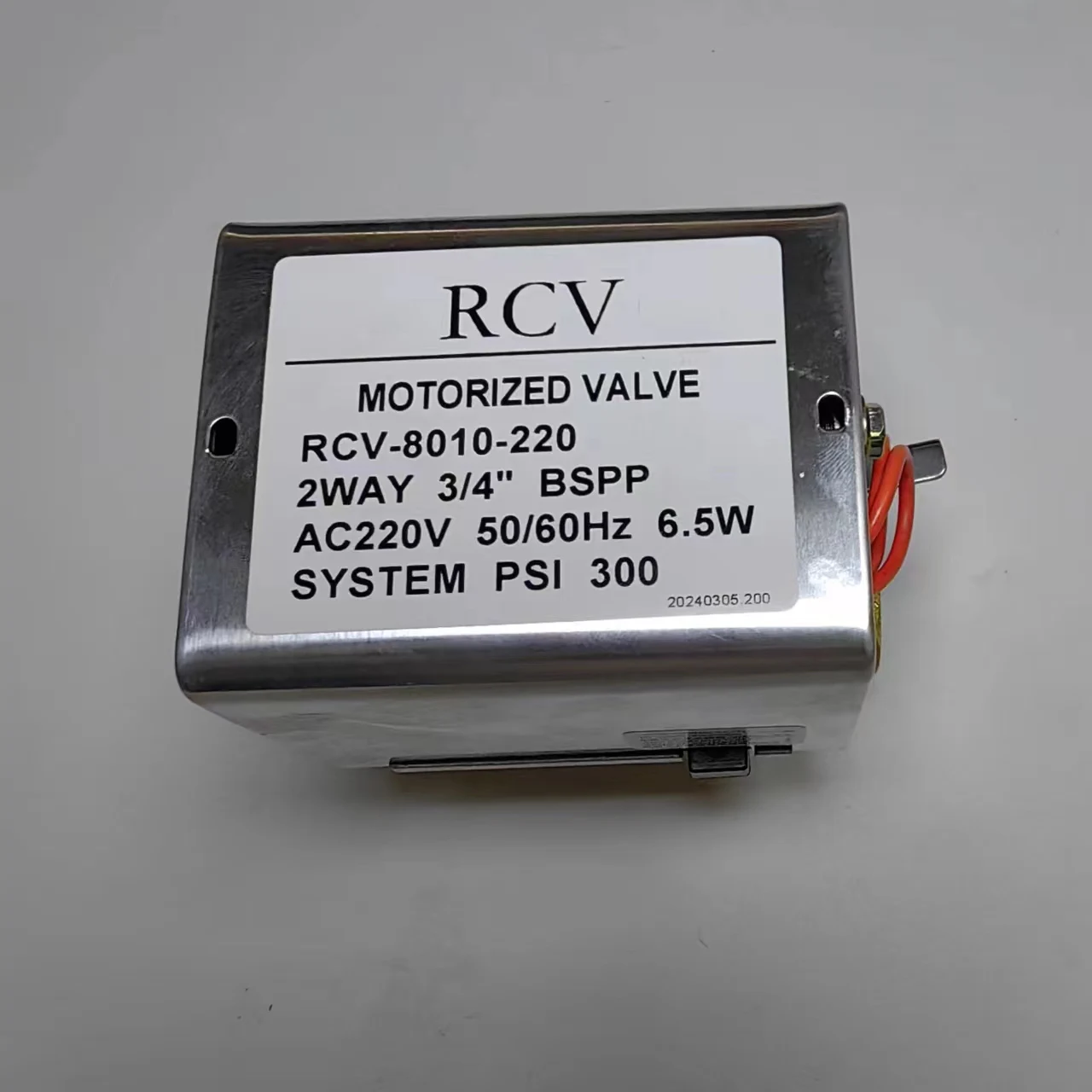

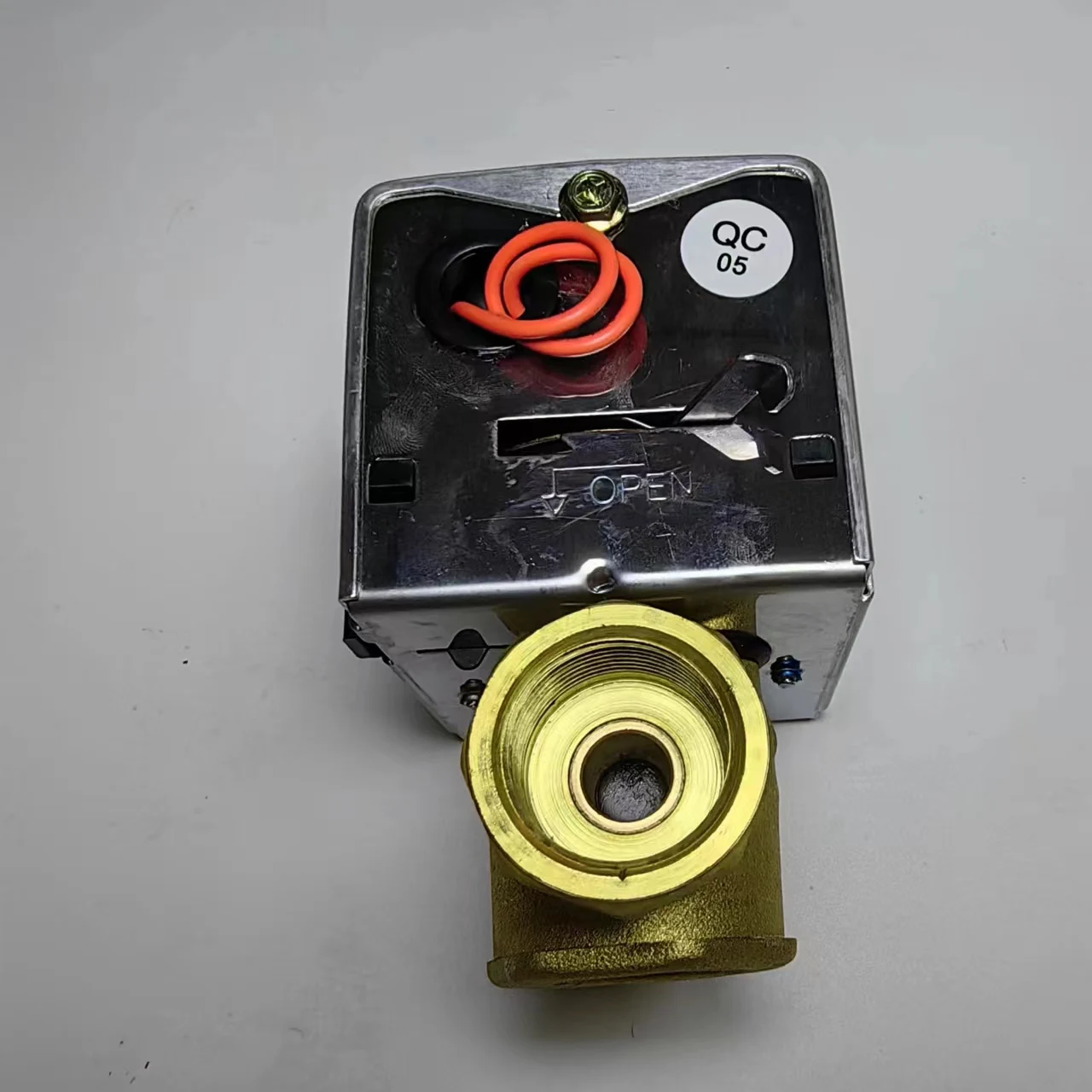

Motorized Valve zone control valves are used to control the terminal water way of air conditioners, which consist of thermostats that can control the motorized valves, and use speed-down devices and the reposition spring to turn the valves on/off, so as to control the media in the pipe and then to control the temperature automatically with the help of the air sent by the fan coil units.
Technical parameter
Features
Forged Brass Body
Stainless base with aluminum case
Driven by completely-sealed synchromotor with stainless steel reposition spring
Motor Voltage: 220VAC 50/60Hz,
Power Consumption: 6.5W
Valve Type: Normally Closed 2-way valve and 3-way diverting valve
Customerized motor voltage and valve body connection type
Stainless base with aluminum case
Driven by completely-sealed synchromotor with stainless steel reposition spring
Motor Voltage: 220VAC 50/60Hz,
Power Consumption: 6.5W
Valve Type: Normally Closed 2-way valve and 3-way diverting valve
Customerized motor voltage and valve body connection type
Technical data
PowerSupply : AC220V±10% 50/60Hz
Power Consumption : 6.5W
Pressure : 1.6Mpa
Valve Reaction time : Open Time: ≤18s; Close Time: ≤7s
Work Condition : Temperature around: 5~40℃
Medium Temperature : 5~90℃
Operating pressure : 300psi/2.0Mpa
Normal pressure : 233psi/1.6Mpa
Power Consumption : 6.5W
Pressure : 1.6Mpa
Valve Reaction time : Open Time: ≤18s; Close Time: ≤7s
Work Condition : Temperature around: 5~40℃
Medium Temperature : 5~90℃
Operating pressure : 300psi/2.0Mpa
Normal pressure : 233psi/1.6Mpa
Size | 2/3-Way | Kv (Cv) Value | Pressure Allowed (MPa) |
1/2” | 2 | 2.2(2.5) | 0.20 |
1/2” | 3 | 2.6(3.0) | 0.20 |
3/4” | 2 | 3.0(3.5) | 0.18 |
3/4” | 3 | 3.4(4.0) | 0.18 |
Application Area
Factory Show
Company Profile
Research Valve Industry (Fujian) Co., Ltd. was established in 2003, which is specialized in designing and manufacturing gate valves, butterfly valves, check valves, filters, hydraulic control valves, electropneumatic valves and ect. Widely used in municipal water supply and drainage, building water supply and drainage, fire water supply, air conditioning pipe network, industrial water, seawater cooling Water conservancy irrigation and other fields. With almost 20 years of production experience, we have become one of the leading manufacturers in this field.
Our company strictly complies with ISO9001: 2008 system, and we have certificates CE, API, TS. We mainly produce valves according to ANSI, DIN, JIS and China GB standards.Our products are widely used in the fields of water, oil, gas, petroleum, chemical and city pipeline networks. With good quality and services, we have gained a good reputation from customers from home and abroad.
Our company strictly complies with ISO9001: 2008 system, and we have certificates CE, API, TS. We mainly produce valves according to ANSI, DIN, JIS and China GB standards.Our products are widely used in the fields of water, oil, gas, petroleum, chemical and city pipeline networks. With good quality and services, we have gained a good reputation from customers from home and abroad.
Facing the furious competition of the valve market, we will fully exert our advantages in technology and management to
continuously improve our product quality and manufacture high quality valves to satisfy customers. We welcome friends from home and abroad to join us, and share the markets around the world.
continuously improve our product quality and manufacture high quality valves to satisfy customers. We welcome friends from home and abroad to join us, and share the markets around the world.
Certifications
Packing & Delivery
Packaging
Inside:Plastic film packaging.
Outside:Export wooden cases.
Outside:Export wooden cases.
Shipping
1.FedEx/DHL/UPS/TNT for sample.Door-to-Door.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
2.By Air or By Sea for batch goods for LCL/FCL;Airport /Port receiving.
3.Customers specified freight forwarders or negotiable shipping methods!
4.Delivery Time: a.in stock:immediately b.sample:2 days c.OEM/ODM:3-15 DAYS.
About packaging and shipping,do you have special needs.pls contact us, thanks!
FAQ
Q:Can you make the product as per client's requirement?
A:Yes, we can make it with your exact requirement.
Q: What is your payment term?
A: T/T, 30% down payment, balance to be paid before shipment.
Q:Where is your nearest loading port?
A:Shanghai, Shenzhen, Ningbo or Fujian, China.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
A:Yes, we can make it with your exact requirement.
Q: What is your payment term?
A: T/T, 30% down payment, balance to be paid before shipment.
Q:Where is your nearest loading port?
A:Shanghai, Shenzhen, Ningbo or Fujian, China.
Q: Can you give me a discount?
A: As you know, we are manufactory, so please believe us and our price is competitive. If the quantity is big,we can consider give you a discount.
A: As you know, we are manufactory, so please believe us and our price is competitive. If the quantity is big,we can consider give you a discount.
Q:How can you guarantee the quality or any warranty?
A:If any quality problems during use, all the products can be returned or according to consumer's requests.
Q:Do you accept small quantity order?
A:Of course we do.
Q:And what is your shipment and delivery time?
A:By sea or air. Normally 7 to 14 Days for delivery, according to your order quantity.
